Learning R Graphics: A Tutorial on Using the box() Function to Draw Borders Around Plots

Introduction to the box() Function in R Graphics

The creation of effective data visualizations often requires meticulous attention to graphical elements, including the boundaries and frames surrounding the plot area. In the realm of base R graphics, users frequently need to define or customize the border that encapsulates their visualization. Whether for aesthetic enhancement or to highlight specific regions, drawing a frame around a plot is a common requirement in statistical programming.

The most straightforward and efficient method for accomplishing this task is by utilizing the dedicated box() function. This powerful utility, included directly within the standard installation of base R, is specifically engineered to draw a rectangle around the current plot region, offering flexible customization options without requiring external libraries or packages.

It is important to recognize that the box() function works by overlaying a box, allowing users to control its color, line type, and thickness. By default, most standard plotting functions in R automatically include a solid black frame. The box() function provides the necessary tools to override or enhance this default appearance, offering granular control over the final presentation of the figure.

Understanding the Syntax and Arguments of box()

The box() function employs a concise and intuitive syntax, making it easy to implement even for complex visualizations. Because it is part of base R, you never need to worry about installing or loading additional dependencies; it is ready to use immediately upon starting R.

The core syntax for the box() function is structured as follows, though it accepts many standard graphical parameters (represented by the ellipsis):

box(which = “plot”, lty = “solid”, …)

The parameters defined within the function call allow for precise control over the characteristics of the drawn frame. The primary arguments that modify the box’s appearance and placement are:

• which: This character argument specifies the region around which the box should be drawn. Common values include “plot” (the default, surrounding the plot region defined by the axes), “figure” (surrounding the entire figure area, including margins), “inner”, and “outer”. Understanding these distinctions is critical when working with multi-panel plots or complex layouts.
• lty: This argument stands for line type and determines the pattern of the line used for the box border. By default, it is set to “solid”. However, users can specify numerical values (e.g., 1 for solid, 2 for dashed, 3 for dotted) or character strings (e.g., “dashed”) to achieve different line styles.
• col: Although not explicitly shown in the basic syntax above, the col argument is frequently used to specify the color of the box line. This, along with arguments like lwd (line width), allows for extensive visual customization.

It is important to note that, by default, the box() function draws a solid black box around the plot. However, its true utility lies in its capacity for customization, allowing developers to leverage the lty, col, and other standard graphical arguments to precisely tailor the appearance of the plot boundary to match their design requirements.

Practical Application: Creating a Default Scatterplot

To demonstrate the utility of the box() function, we will begin by establishing a foundational plot. We must first define the data structure upon which our visualization will be built. For this example, we will define two simple numerical vectors, x and y, which will represent our independent and dependent variables, respectively.

# Create x and y vectors for plotting
x <- c(1, 2, 3, 4, 5)
y <- c(1, 4, 9, 15, 22)

Once the data is established, we employ the primary R plotting utility, the plot() function, to generate a scatterplot of these two vectors. This foundational step is crucial because the subsequent application of the box() function will always occur within the context of an existing graphical device. We use specific arguments within the plot() function to enhance the initial visualization aesthetically.

# Create scatterplot of x vs. y with custom point styles
plot(x, y, col='blue', pch=19)

This command generates the initial scatterplot. We utilized the col argument to designate the color of the points as blue, and the pch (plotting character) argument was set to 19, which signifies a solid, filled circle. This combination results in the following default visualization:

Crucially, standard plots generated by plot() function inherently include a solid black bounding box around the plotting region. Our goal now is to manipulate or replace this default frame using the specialized capabilities of the box() function.

Customizing the Box Color

Although the default plot includes a border, the box() function provides immediate control over the visual attributes of this frame. The simplest form of customization is changing the color of the border. This allows for branding consistency or simply improving the visual contrast of the plot area.

To demonstrate this, we can execute the box() function immediately after generating the plot, specifying the desired color using the col argument. In this instance, we will choose a prominent red color to clearly illustrate the change. It is vital that the box() function call follows the plotting command, as it relies on the currently active graphical device.

# Create scatterplot of x vs. y
plot(x, y, col='blue', pch=19)

# Add a custom red box around the plot
box(col='red')

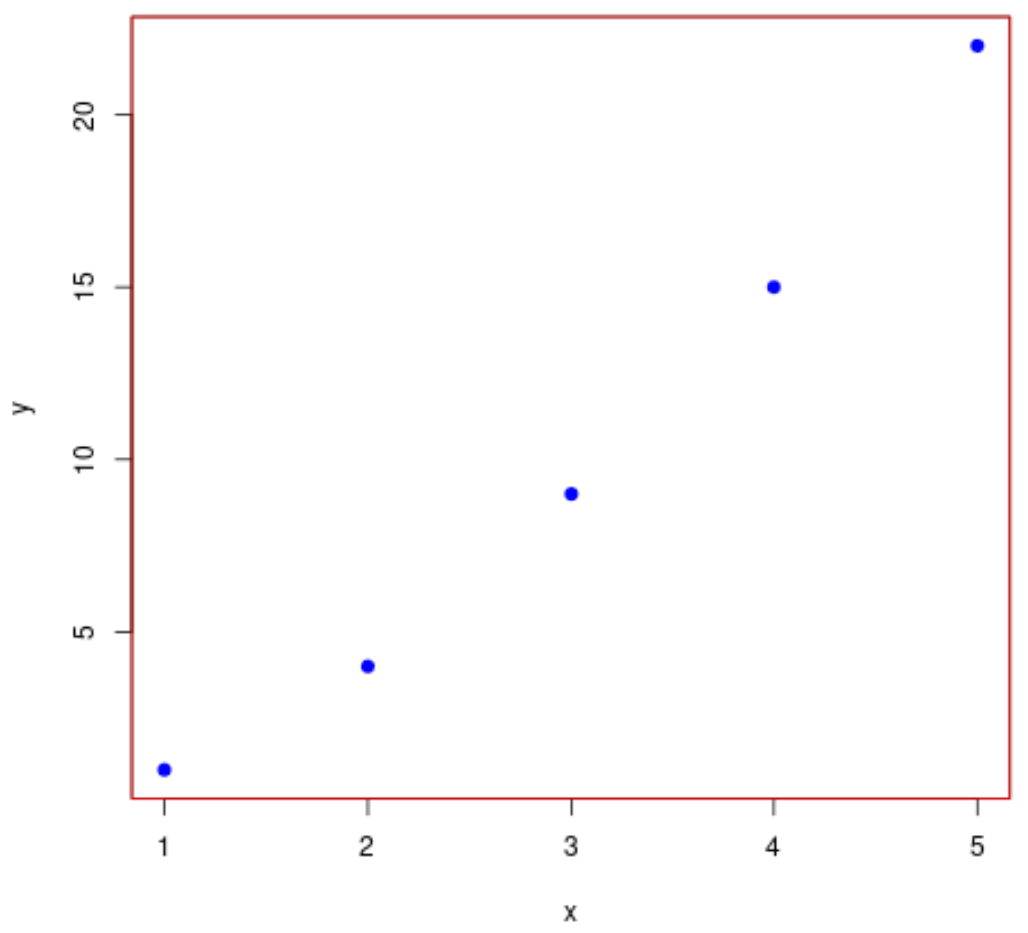

Executing this code produces the following result, where a red border is clearly visible around the perimeter of the scatterplot:

Upon careful inspection, we observe that a bold red box now frames the visualization. However, a critical technical detail must be addressed here: the default black box generated by the initial plot() function is still present, lying underneath the red box we just added. This redundancy is usually harmless when only changing the color of a solid line, but it becomes problematic when attempting to customize the line pattern.

Advanced Customization: Line Types and the axes Parameter

One of the most powerful features of the box() function is its ability to modify the line type using the lty argument. Line types, detailed in R’s graphics documentation, allow for dashed, dotted, or various other patterns. However, if we attempt to apply a non-solid lty (line type) to the box without disabling the default frame, the result will often appear as a solid line, as the underlying solid black border obscures the custom pattern.

To successfully implement advanced line type customization, we must suppress the default axes and bounding box generated by the initial plotting command. This is achieved by setting the axes argument to FALSE within the plot() function call. By turning off the underlying structure, we ensure that the box drawn by the box() function is the only boundary visible.

In the example below, we first disable the default axes in the plot command. Then, we use the box() function to introduce a red box with a dashed line pattern, using lty=’dashed’.

# Create scatterplot of x vs. y, disabling default axes/frame
plot(x, y, col='blue', pch=19, axes=FALSE)

# Add box around plot with custom color and line type
box(col='red', lty='dashed')

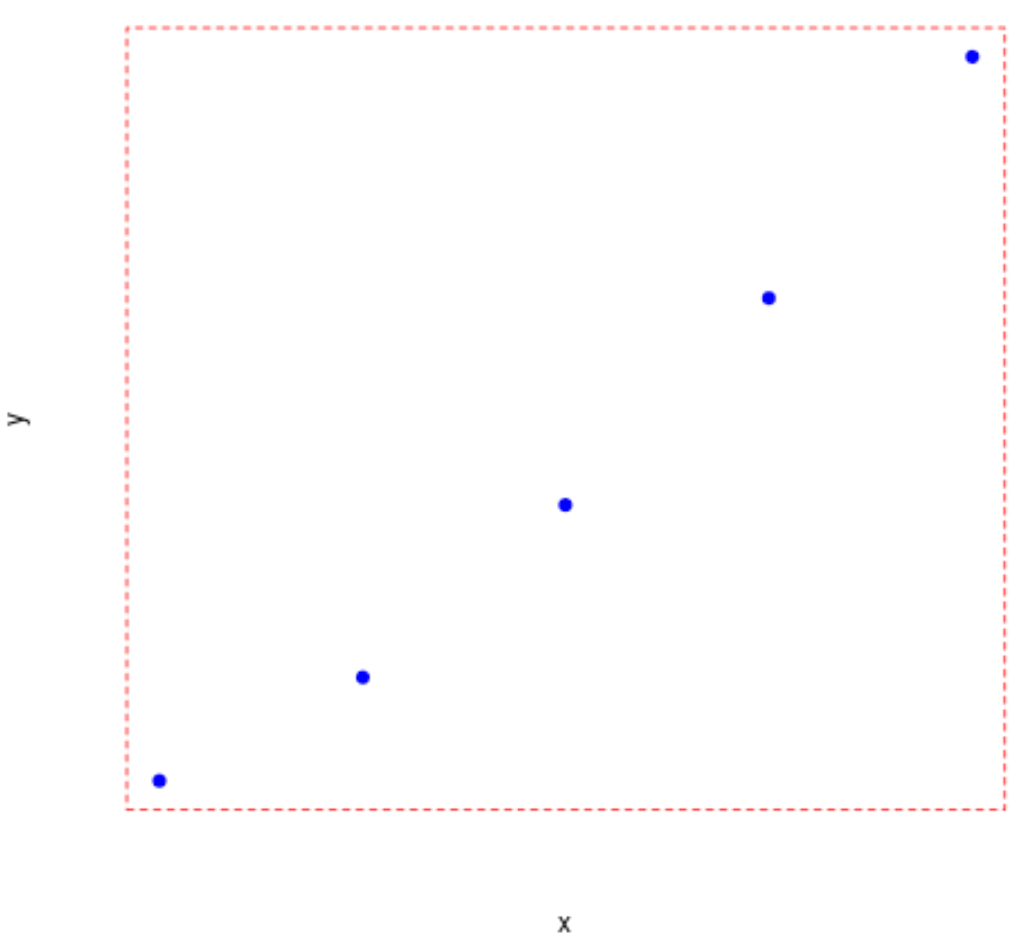

This modified procedure yields the desired result, where the custom line type is now clearly rendered:

This final visualization demonstrates a red box utilizing dashed lines, confirming that the combination of setting axes=FALSE in the plot command and utilizing the lty argument in the box() function is the correct methodology for creating custom border patterns in base R graphics. Users are encouraged to experiment freely with different values for col, lty, and lwd to match their specific graphical needs.

Additional Resources for R Graphics

Mastering graphical customization in R, including the use of specialized functions like box(), significantly improves the quality and communication power of data visualizations. For those interested in further enhancing their R graphics skills, the following tutorials explain how to perform other common tasks related to plot manipulation and aesthetic refinement:

• Exploring different line types using the lty parameter in depth.
• Understanding the role of the par() function for global graphical settings.
• Advanced techniques for adding text and legends to base R plots.

<!–
