Use the DATA Step in SAS (With Examples)

The DATA step stands as the most fundamental and versatile component within the SAS programming environment. It is the essential engine for all data management, transformation, and preparation tasks, providing programmers with granular control necessary to mold raw information into structured, analysis-ready formats. Through the DATA step, users can read various data sources, create entirely new datasets, modify existing ones efficiently, and execute complex data transformations required for rigorous statistical analysis and reporting. Mastering this core concept is non-negotiable for any professional working extensively with SAS, as the quality and structure of the input data dictate the success of all subsequent procedural tasks.

The core genius of the DATA step lies in its iterative processing model. It operates by reading and processing data observation by observation, cycling through the data record by record. This meticulous, iterative processing loop grants immense versatility, allowing the step to handle a wide spectrum of responsibilities. These tasks range from simple data entry and basic observation filtering to advanced operations like sophisticated data cleaning, robust merging of multiple data sources, and complex feature engineering crucial for predictive modeling.

While the potential capabilities of the DATA step are extensive, it is most frequently deployed in two primary operational contexts:

• Constructing a brand new dataset by inputting or reading raw data directly within the SAS program code itself.
• Generating a refined new dataset or performing modifications on an existing one by sourcing data from one or more previously created SAS datasets.

The following sections will provide practical, step-by-step examples that vividly demonstrate these two essential applications. These clear insights will offer a solid foundation for leveraging this core programming component effectively in your daily data management tasks.

Understanding the SAS DATA Step Lifecycle

To maximize coding efficiency and truly grasp how SAS interprets and executes your instructions, it is vital to understand the typical lifecycle of the DATA step. Every DATA step begins with the mandatory DATA statement, which names the dataset that will be created, updated, or modified. The step concludes when SAS encounters a RUN statement, which signals the termination of the step’s compilation phase and prompts the software to execute the collected code sequentially against the data.

The most crucial mechanism during the execution phase is the Program Data Vector (PDV). The PDV is a dedicated, temporary buffer area residing in the computer’s memory. This is where SAS temporarily holds and builds one observation’s worth of data. Throughout the iterative process, data is read into the PDV, processed according to the statements in the DATA step, and then written out to the final output dataset. This cycle—read input, process in PDV, write output—is the core principle governing how data transformations are applied in SAS.

A clear grasp of the PDV and the step-by-step nature of execution is essential for generating robust and efficient SAS code. This model clarifies exactly why certain operations, such as calculating cumulative sums or applying conditional logic, function consistently across every single row of data. When the DATA step begins, variables are initialized in the PDV; as the step runs, statements modify these variables, and only after all modifications are complete for that observation is the row written to the output file.

Example 1: Creating a SAS Dataset from Raw Input

One of the most straightforward and valuable uses of the DATA step is manually entering data and constructing a SAS dataset directly within the program file. This method is incredibly useful for rapid prototyping, quick testing of analytical code snippets, or handling very small, self-contained data tables that do not require external file storage. It guarantees that the data is immediately available and correctly formatted according to SAS standards.

The following syntax illustrates how to create a new dataset named my_data, which will store hypothetical basketball player statistics. This introductory example showcases the indispensable role of the INPUT statement and the DATALINES statement, which are the primary tools facilitating direct data entry within the program code block.

/*create dataset*/
data my_data;
    input team $ position $ points;
    datalines;
A Guard 25
A Guard 20
A Guard 30
A Forward 25
A Forward 10
B Guard 10
B Guard 22
B Forward 30
B Forward 10
B Forward 10
B Forward 25
;
run;

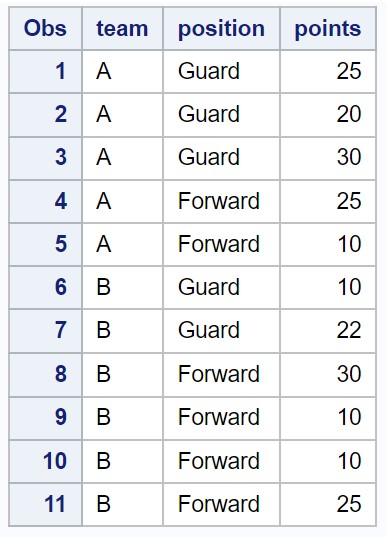

/*view dataset*/
proc print data=my_data;

To fully grasp this data creation process, let’s detail the function of each crucial component:

• data my_data;: This line initiates the DATA step. The DATA statement assigns the name my_data to the new SAS dataset being created. If a dataset with this name already exists in the current library, it will be automatically overwritten upon execution.
• input team $ position $ points;: The INPUT statement defines the variables that will populate the dataset and specifies their data type. team and position are defined as character variables (indicated by the trailing $). points is defined as a numeric variable, which stores numerical values.
• datalines;: The DATALINES statement instructs SAS that the raw data to be processed is located immediately following this line, continuing until a semicolon is encountered on a line by itself. The raw data must align precisely with the order defined by the preceding INPUT statement.
• run;: This RUN statement executes the DATA step. This is the moment when SAS reads each observation, populates the PDV, and writes the final my_data dataset to the library.
• proc print data=my_data;: Following the creation, the PROC PRINT statement is used to display the contents of the newly generated dataset in the SAS output window, providing immediate verification of the successful data structure.

Example 2: Transforming and Subsetting an Existing Dataset

In practical data science, programmers spend less time on raw data entry and far more time transforming, subsetting, or modifying existing SAS datasets. The DATA step is perfectly engineered for these scenarios, particularly through the use of the powerful SET statement. The SET statement is the mechanism that instructs SAS to read observations sequentially from one or more specified input datasets, making that data available for manipulation within the current DATA step environment.

Imagine a task where we need to create a new dataset, new_data, based on our previous my_data, but we must exclude a specific, irrelevant variable named ‘returns’. This example demonstrates the precise syntax for using the DROP statement to achieve column subsetting (or variable exclusion) during the creation of the new file. Even if ‘returns’ did not exist in my_data, the syntax illustrates the method for controlling which variables are carried forward.

/*create new dataset that drops returns from my_data*/
data new_data;
    set my_data;
    drop returns;
run;

/*view dataset*/
proc print data=new_data;

Here is a detailed breakdown of the statements used in this transformation:

• data new_data;: This statement initializes the new DATA step, specifying that the resulting output file will be named new_data.
• set my_data;: The SET statement reads an observation from the existing my_data dataset into the PDV. The DATA step then automatically iterates through the entire source dataset, observation by observation.
• drop returns;: The DROP statement ensures that the specified variable, ‘returns’, is not written to the output dataset new_data, effectively performing column subsetting. Programmers may alternatively use the KEEP statement to explicitly retain only a defined list of variables.
• run;: This statement executes the DATA step, finalizing the transformation and writing the resulting dataset, new_data.
• proc print data=new_data;: The PROC PRINT statement displays the result, confirming that all observations from the source dataset are present, customized with the dropped variable removed.

Advanced Data Step Capabilities

The true utility of the DATA step extends far beyond simple dataset creation and column subsetting. It offers a powerful, procedural environment specifically designed for sophisticated data manipulation tasks. These advanced features are often indispensable when preparing complex or messy raw data for rigorous statistical modeling or complex business intelligence reporting.

For instance, SAS programmers frequently rely on IF-THEN/ELSE statements to apply conditional logic. This enables the creation of new calculated variables based on value thresholds, or to conditionally filter out observations that fail to meet specific criteria, which is known as row subsetting. Furthermore, DO loops provide an extremely efficient method for performing repetitive, iterative tasks, such as calculating rolling averages over a sequence of observations or processing a long sequence of multiple variables using identical computational logic.

Moreover, the SAS language provides an expansive library of built-in functions optimized for numerical, character, and date/time manipulations. These functions are fully integrated and easily accessible within the DATA step, enabling critical data quality tasks like cleaning text data, extracting specific substrings, calculating complex financial metrics, or converting data types between character variables and numeric variables. This integration vastly extends the flexibility and power available to analysts during the crucial data preparation phase.

Best Practices for Effective DATA Step Programming

To ensure that your SAS programs are robust, efficient, and easily maintainable, adopting specific best practices for writing the DATA step is mandatory. Well-structured and clearly documented code not only minimizes the potential for logical errors but also significantly simplifies the lengthy process of debugging and streamlines collaboration among analytical teams.

A primary best practice is the consistent use of descriptive and meaningful names for all datasets and variables. For example, assigning the file name patient_demographics provides immediate context, which is vastly clearer than generic labels such as ds1, and naming a column age_at_diagnosis is always preferable to ambiguous names like var2. Additionally, incorporating liberal comments into your SAS code, utilizing either /* comments */ or * comments;, is essential for documenting the purpose of complex business logic or non-obvious transformation steps, serving as critical internal documentation for future reference.

Furthermore, programmers must routinely check the SAS log for any warnings or errors after every execution. The log provides invaluable real-time feedback on the execution of your program, allowing you to promptly identify issues ranging from simple syntax errors to complex logical inconsistencies. When working with extremely large datasets, a critical, time-saving strategy is to test your DATA step code using a small, representative subset of the data first. This preliminary testing helps catch critical errors before committing to running resource-intensive code on the entire production volume, making the debugging workflow much more efficient and manageable.

Conclusion: The Core of SAS Data Management

The DATA step remains unequivocally the core engine of SAS programming, providing unmatched flexibility and detailed control over every aspect of data manipulation. Regardless of whether the task involves the initial data ingestion from raw files, or the complex transformation and merging of existing structures, the DATA step provides the necessary suite of tools to prepare data precisely for any subsequent statistical procedure or reporting requirement.

By mastering the essential statements—such as the INPUT statement and DATALINES statement for direct entry, or the SET statement and DROP statement for transformation—programmers gain the ability to sculpt their data into the ideal format. The practical examples presented here offer a solid foundation for beginning your journey with this powerful tool, and continued exploration will unlock its profound potential for advanced data management and analysis.

Additional Resources for Deeper Learning

To further deepen your expertise in SAS programming and the intricacies of the DATA step, we strongly recommend consulting authoritative resources. These comprehensive guides offer detailed syntax explanations, advanced examples, and usage notes for all SAS procedures and statements.

The single most valuable resource for any SAS programmer is the official SAS Documentation. Continual learning and consistent practice are the cornerstones of achieving high proficiency in complex SAS data management and statistical analysis.
