Understanding the Normal Cumulative Distribution Function (CDF) in R: A Step-by-Step Guide

The Normal Distribution, often visualized as the ubiquitous bell curve, stands as a cornerstone of statistical theory, modeling everything from human height to measurement errors. Analyzing data that conforms to this distribution requires understanding its underlying probability structure, which is often facilitated by the Cumulative Distribution Function (CDF). The CDF is fundamentally important because it provides the cumulative probability: the likelihood that a random variable will take on a value less than or equal to a specific threshold, x.

In the powerful statistical computing environment R, the primary function dedicated to computing the Normal CDF is pnorm(). This function allows statisticians and analysts to quickly determine probabilities without resorting to cumbersome standard normal tables. This detailed tutorial aims to provide a mastery of pnorm(), covering both the fundamental methods for calculating precise event probabilities and the techniques necessary for generating high-quality visual representations of the cumulative function.

Understanding the Normal Cumulative Distribution Function (CDF)

Before implementing the function in code, it is essential to internalize the mathematical definition and practical interpretation of the CDF. For any given Normal Distribution, the CDF, denoted as F(x), represents the total area under the probability density function (PDF) curve starting from negative infinity up to a specific value, x. This area is equivalent to the probability P(X ≤ x). Understanding this area concept is key to interpreting the output of pnorm().

The pnorm() function in R is specifically engineered to handle the computation of this cumulative probability efficiently. By default, when no arguments for mean or standard deviation are supplied, pnorm() operates on the Standard Normal Distribution. This standard distribution is defined by a mean ($mu$) of zero and a standard deviation ($sigma$) of one. Critically, the function is flexible and can be easily applied to any general normal distribution simply by specifying the optional mean and sd arguments.

Throughout this guide, we will concentrate on two major applications that showcase the versatility of pnorm(): first, calculating the exact probability associated with specific events or ranges, and second, plotting the characteristic S-shaped curve that defines the cumulative probability function.

Method 1: Calculating Probabilities using pnorm()

The most common application of the pnorm() function involves determining the cumulative probability linked to a specific quantile value (often referred to as a Z-score or a random variable value). The function’s basic syntax requires only the quantile value (denoted as q) if we assume we are working within the default Standard Normal Distribution framework. Mastering the arguments of pnorm() allows for highly accurate calculations crucial for hypothesis testing and confidence interval construction.

The behavior of pnorm() is governed by the lower.tail argument. By default, lower.tail = TRUE, which means the function returns the probability P(X $le$ q)—the area in the lower tail. Conversely, setting lower.tail = FALSE instructs the function to calculate the complementary probability, P(X > q), which corresponds to the area in the upper tail. Grasping this distinction is vital for accurate interpretation, especially when calculating probabilities for one-tailed tests.

The following R code blocks illustrate how to use pnorm() to calculate probabilities for three common statistical scenarios: finding the probability to the left of a point, finding the probability to the right of a point, and determining the central area between two points.

# Scenario A: Calculate the probability that a random value is less than 1.96 in a standard normal CDF (P(Z < 1.96))
pnorm(1.96)

# Scenario B: Calculate the probability that a random value is greater than 1.96 in a standard normal CDF (P(Z > 1.96)).
# We use the argument lower.tail=FALSE to calculate the area in the upper tail directly.
pnorm(1.96, lower.tail=FALSE)

Example 1: Detailed Probability Calculations using pnorm()

To provide practical clarity, these examples demonstrate the precise output generated by R when calculating probabilities under the Standard Normal Distribution. We use the critical value 1.96 throughout these examples, a value frequently associated with the boundaries of a 95% confidence interval in statistical inference.

Calculating the Lower Tail Probability (P(Z ≤ 1.96))

This calculation determines the probability that a randomly selected observation falls below 1.96 standard deviations above the mean. Since we are employing the default settings for the Standard Normal Distribution (mean=0, sd=1), only the quantile value (1.96) must be supplied to the function. This gives us the cumulative area up to that point.

# calculate probability that random value is less than 1.96 in normal CDF
pnorm(1.96)

[1] 0.9750021

The resulting output, approximately 0.975, indicates that the probability of a random variable taking a value less than 1.96 in the Standard Normal Distribution is 97.5%. In practical terms, 97.5% of all observations in this distribution lie below this point.

Calculating the Upper Tail Probability (P(Z > 1.96))

To find the probability that an observation exceeds 1.96, we must explicitly override the default behavior of pnorm() by setting the lower.tail argument to FALSE. This calculation is essential in applications such as one-tailed hypothesis testing, where we are interested in the extreme likelihood of an event occurring in only one direction.

By using the lower.tail = FALSE argument, we efficiently calculate the area in the upper tail, avoiding the need for manual subtraction from 1:

# calculate probability that random value is greater than 1.96 in normal CDF
pnorm(1.96, lower.tail=FALSE)

[1] 0.0249979

As anticipated, this result is the complement of the lower tail probability (1 – 0.975), yielding approximately 0.025. This value represents the 2.5% tail area located above the quantile 1.96.

Calculating the Central Area Probability (P(-1.96 ≤ Z ≤ 1.96))

To calculate the probability that a random variable falls within a defined symmetrical range, we rely on a fundamental property of the CDF: P(a $le$ X $le$ b) = P(X $le$ b) – P(X $le$ a). This involves calculating the cumulative probability up to the upper boundary (b) and subtracting the cumulative probability up to the lower boundary (a).

This syntax allows us to define the central area, finding the probability that a random variable takes on a value between -1.96 and 1.96 in the Normal Distribution:

# calculate probability that random value takes on value between -1.96 and 1.96
pnorm(1.96) - pnorm(-1.96)

[1] 0.9500042

The resulting probability is approximately 0.95. This calculation confirms the well-known statistical finding that 95% of the data points in a normally distributed dataset fall within 1.96 standard deviations of the mean. This technique is indispensable for constructing two-tailed confidence intervals.

Method 2: Visualizing the Normal CDF Curve in R

While precise numerical calculation is crucial, visualizing the Cumulative Distribution Function (CDF) offers powerful intuitive reinforcement regarding how probability accumulates across the range of possible values. The Normal CDF is visually recognized by its distinct smooth, S-shaped (sigmoid) curve, which systematically transitions from a cumulative probability of 0 (in the far left tail) to 1 (in the far right tail).

Generating this visualization in R requires a standard three-step plotting process: first, defining a continuous sequence of x-values (the quantiles); second, calculating the corresponding cumulative probabilities (the y-values) for those x-values using the pnorm() function; and finally, plotting these resultant coordinate pairs using the plot() function.

Steps for Plotting the Standard Normal CDF

The following R code snippet outlines the necessary commands to generate a plot of the Standard Normal CDF. It is conventional practice to cover a range of approximately -4 to 4 standard deviations to ensure the entire distribution, including the extreme tails, is captured visually:

# Step 1: Define a sequence of x-values (quantiles) ranging from -4 to 4, using a high resolution step (.01)
x <- seq(-4, 4, .01)

# Step 2: Calculate the normal CDF probabilities (the y-values) corresponding to each x-value using pnorm()
prob <- pnorm(x)

# Step 3: Plot the normal CDF. We use type="l" for a continuous line plot for smoothness.
plot(x, prob, type="l")

Executing this sequence of code produces the foundational S-shaped visualization of the CDF. The resulting plot serves as a powerful visual representation of the accumulated area under the corresponding probability density function curve.

In this graphical representation, the horizontal x-axis corresponds to the quantile values (standard deviations from the mean for a standard normal), while the vertical y-axis displays the cumulative probability. This cumulative probability represents F(x), the chance that a random variable is less than the corresponding x-value. Observing the plot, one can confirm the earlier calculations; tracing the graph to x = 1.96 confirms that the cumulative probability is indeed close to 0.975. The curve’s noticeable steepness around x=0 emphasizes that the majority of the cumulative probability mass is concentrated near the mean in a Normal Distribution.

Advanced Plotting Techniques for Enhanced Visualization

While the basic plot() command is sufficient for exploration, enhancing the aesthetic qualities of the CDF plot significantly improves its readability and suitability for professional reports or academic publications. The robust R plot() function offers extensive parameters for customizing visual elements, including line color, thickness, titles, and axis labels, ensuring the graph effectively conveys the statistical concept.

We can substantially modify the appearance of the normal CDF plot by adding specific arguments within the plot() function call. Essential parameters for customization include col (defining the color of the line), lwd (specifying the line width), main (setting the primary title of the plot), and ylab (customizing the label for the vertical axis).

# define sequence of x-values
x <- seq(-4, 4, .01)

# calculate normal CDF probabilities
prob <- pnorm(x)

# plot normal CDF with enhanced aesthetics: blue line, wider line, custom title and y-axis label
plot(x, prob, type='l', col='blue', lwd=2, main='Normal Cumulative Distribution Function', ylab='Cumulative Probability')

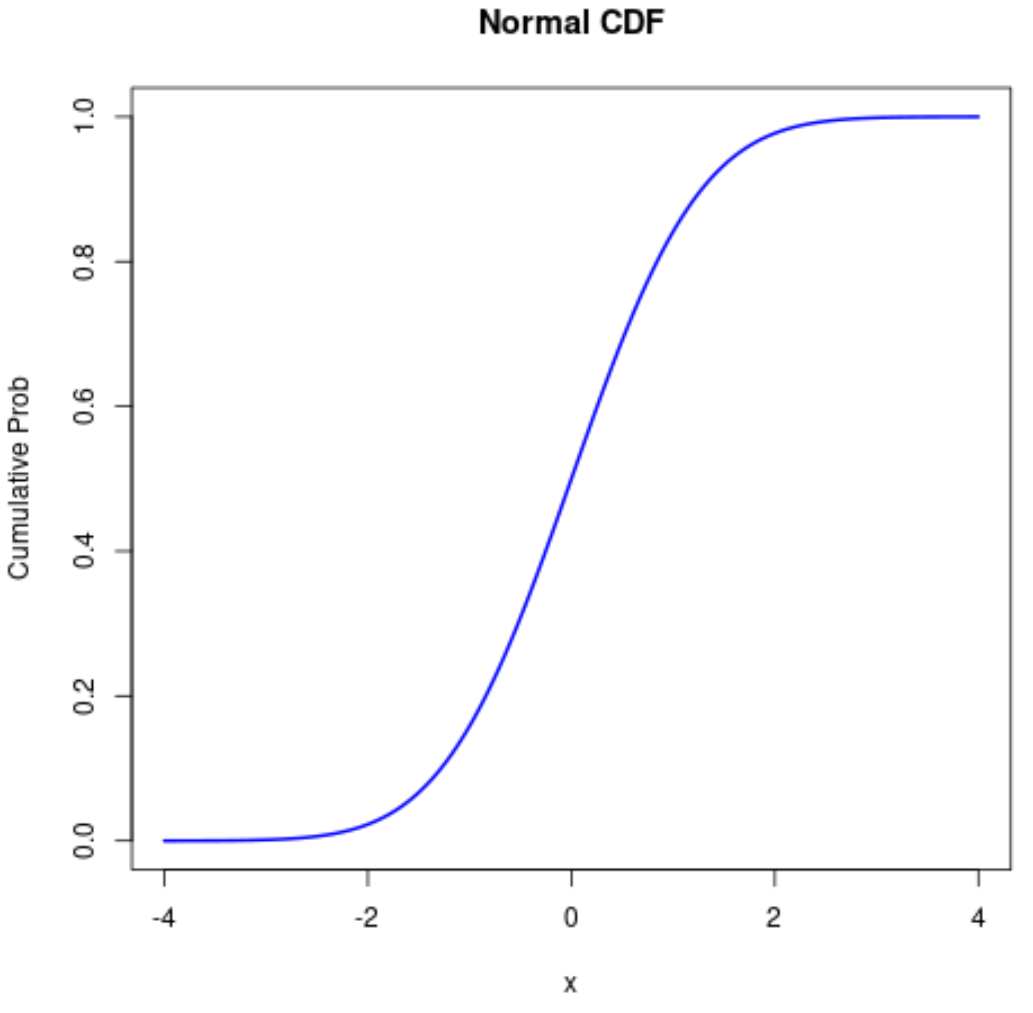

By implementing these aesthetic improvements, the resulting graph becomes clearer, more professional, and easier for an audience to interpret the cumulative probability function accurately. Utilizing descriptive titles and contrasting colors ensures the graph achieves maximum communicative impact.

This customization process underscores the inherent flexibility of R’s plotting system, allowing statisticians and data analysts to produce high-quality visual summaries of complex statistical concepts, such as the Normal CDF, suitable for any professional context.

Summary and Best Practices for Using pnorm()

The pnorm() function serves as an indispensable tool for performing probability calculations linked to the Normal Distribution within the R environment. Achieving mastery requires a solid understanding of both its numerical output capabilities and its essential role in effective data visualization.

• Understanding Default Parameters: It is crucial to remember that pnorm(q) always defaults to using the Standard Normal Distribution ($mu=0, sigma=1$). When analyzing data from a non-standard normal distribution, always ensure that the mean and sd parameters are explicitly defined.
• Strategic Tail Selection: For calculating the probability that a value exceeds a quantile (P(X > q)), always utilize the argument lower.tail = FALSE. This practice is superior to manual subtraction (1 – pnorm(q)) as it improves code readability and reduces the chance of implementation errors.
• Visualization as Verification: The technique of plotting the CDF using seq() combined with pnorm() is highly recommended. It offers a crucial visual check of complex calculations and reinforces the intuitive understanding of the S-curve shape that defines cumulative probability accumulation.

By skillfully applying these two primary methods—precise probability calculation and informative graphical representation—users can harness the full analytical power of the pnorm() function for rigorous statistical modeling and data analysis in R.

Additional Resources for Statistical Analysis in R

To deepen your expertise in R programming and statistical modeling, the following resources provide detailed explorations of related distribution functions and advanced operations:

• Explore other fundamental distribution functions in R, specifically focusing on qnorm() (the quantile function, or inverse CDF), dnorm() (the probability density function), and rnorm() (the random variate generation function).
• Learn techniques for calculating and visually representing the Probability Density Function (PDF) curve, which is the foundational curve from which the CDF is derived.
