Use the Triangular Distribution in Excel (With Examples)

The Triangular Distribution stands as a cornerstone in quantitative modeling, serving as a highly effective tool for capturing and analyzing uncertainty across various disciplines, notably risk analysis in project management, finance, and engineering. Fundamentally, it is classified as a specific type of continuous probability distribution, distinguished by its exceptionally straightforward definition and its characteristic, simple triangular shape.

What makes the Triangular Distribution so powerful and frequently utilized in business forecasting is its minimal data requirement. Unlike more complex models that demand extensive historical datasets, this distribution requires the estimation of only three parameters. These three values are typically derived from the expert judgment of subject matter specialists, making it the ideal choice for preliminary modeling and simulation studies where comprehensive data is scarce or non-existent, providing a rapid yet robust assessment of potential outcomes.

Defining the Three Essential Parameters

The defining characteristic of the Triangular Distribution, setting it apart from symmetric models like the Normal Distribution or bounded asymmetric models like the Exponential Distribution, is its reliance on three explicit boundary and peak values. These parameters, often generated through knowledgeable estimation or derived from known historical constraints, are crucial as they fully dictate the range and skewness of the modeled variable. Understanding these three points is foundational to accurately setting up any simulation or calculation within Excel.

The three parameters are defined as follows, providing the absolute limits and the central tendency of the variable:

• The minimum value (a): This parameter represents the absolute lower bound of the modeled variable. It is the lowest possible outcome that could reasonably occur, defining the starting point of the probability space.
• The maximum value (b): Conversely, this parameter establishes the absolute upper bound. It is the highest possible outcome, marking the termination point of the distribution.
• The peak value (c) or Mode: This critical parameter signifies the most likely outcome. At this point, the Probability Density Function (PDF) reaches its apex, indicating that values proximate to c have the highest relative likelihood of occurrence.

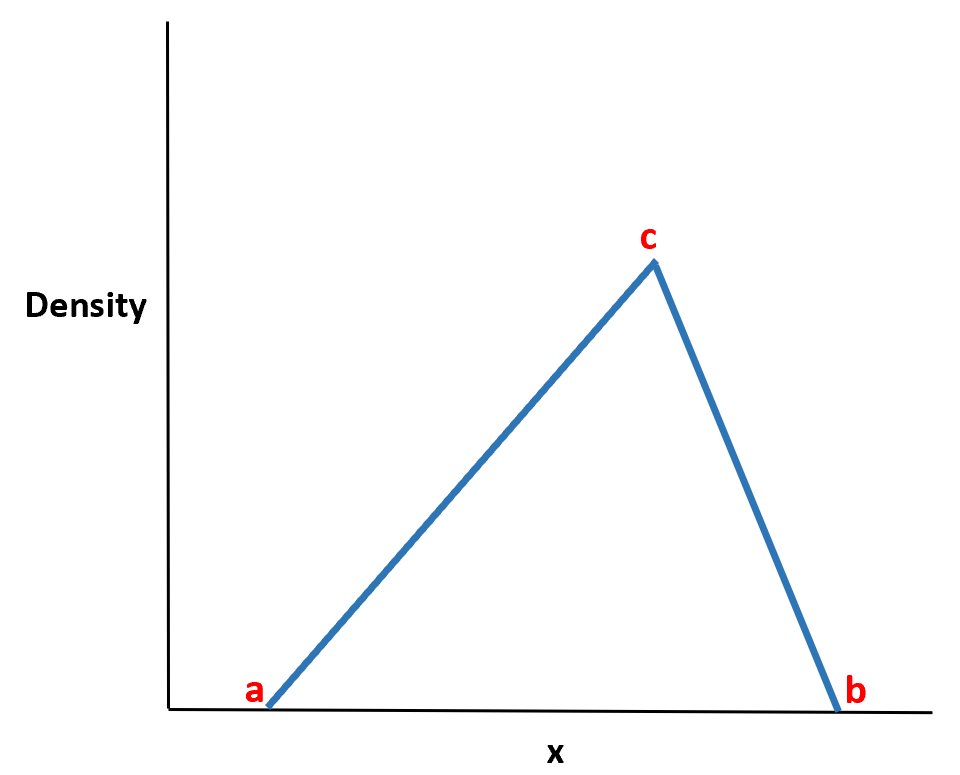

The visual representation of the distribution’s underlying mathematics clearly illustrates why it is named the Triangular Distribution. When the Probability Density Function is plotted, it forms a distinct triangle over the range defined by a and b, peaking sharply at the mode c. This inherent geometric simplicity provides immediate intuitive insight: outcomes clustered around the most likely value (c) are vastly more probable than the rare events approaching the extreme boundaries (a or b).

Mathematical Foundations: Probability Density and Cumulative Functions

Implementing the Triangular Distribution in a practical environment like Microsoft Excel necessitates working with its foundational mathematical definitions. The behavior and characteristics of this distribution are entirely encapsulated within two crucial piecewise formulas: the Probability Density Function (PDF) and the Cumulative Distribution Function (CDF). These functions are the core mechanisms for quantifying the likelihood of specific outcomes within any simulation or analytical model.

The Probability Density Function (PDF), often denoted as f(x), provides the relative likelihood of the continuous random variable X assuming a specific value x. Due to the triangular shape centered around the mode c, the PDF is defined piecewise, meaning the formula used changes depending on whether the input value x falls on the ascending side (between a and c) or the descending side (between c and b) of the distribution. This piecewise structure is essential for accurately describing the slopes of the triangle.

In contrast, the Cumulative Distribution Function (CDF), denoted as F(x), is the function most frequently utilized in practical applications for calculating probabilities. The CDF determines the probability that the random variable X will take a value less than or equal to a target value x, expressed formally as $P(X le x)$. Since the total area under the PDF curve must equal 1, the CDF accumulates this probability area as x increases from a to b. The subsequent examples focus heavily on implementing the CDF formulas within Excel to solve real-world probability questions.

Case Study 1: Calculating Left-Tail Probability (Restaurant Revenue Forecasting)

Our first practical example demonstrates how to apply the Triangular Distribution to model uncertain financial outcomes, specifically focusing on a left-tail probability calculation. This type of calculation is essential for management teams seeking to quantify the risk of underperforming their revenue targets.

Consider a restaurant management team forecasting their weekly sales. Based on historical data and market projections, they establish the following critical parameters for sales (X):

• Minimum Sales (a): $10,000 (The worst-case scenario)
• Maximum Sales (b): $30,000 (The best-case scenario)
• Most Likely Sales (c): $25,000 (The expected mode)

The primary question posed by the management is: What is the probability that the restaurant generates total sales less than $20,000? Since the target value ($20,000) is situated on the left side of the distribution’s peak ($25,000), we must utilize the first segment of the Cumulative Distribution Function (CDF), which applies when the target value x is between a and c ($a le x le c$).

The specific formula used to determine this cumulative probability, $P(X le x)$, for the left segment of the distribution is:

• P(X < x) = (x-a)² / ((b-a)(c-a))

To execute this calculation efficiently, we structure a worksheet in Excel where the parameters a, b, c, and the target x are clearly defined in dedicated cells. By entering the above formula into an output cell, we allow Excel to dynamically compute the probability based on the referenced inputs (a=10000, b=30000, c=25000, x=20000).

The resulting calculation yields a probability of 0.333. This outcome signifies that there is a 33.3% chance that the restaurant’s weekly sales will fall below the $20,000 threshold. This quantifiable metric is invaluable for risk analysis, helping management plan for potential shortfalls or resource adjustments.

Case Study 2: Determining Right-Tail Probability (Retail Customer Flow)

The second example illustrates how to utilize the Triangular Distribution to determine the likelihood of exceeding a specific performance threshold—a right-tail probability. This is crucial for operational planning, ensuring resources are adequate to handle potential high-demand scenarios.

Imagine a retail shop that is forecasting customer foot traffic for the upcoming period. Their expert estimations yield the following distribution parameters for the number of customers (X):

• Minimum Customers (a): 500
• Maximum Customers (b): 2,000
• Most Likely Customers (c): 1,200

The operational question here is: What is the probability that the shop receives more than 1,500 customers in the specified week? Since the target value of 1,500 is situated above the mode of 1,200, we are analyzing the tail of the distribution where $c le x le b$. Calculating $P(X > x)$ requires us to leverage the principle that the total probability under the curve equals one.

We first calculate the Cumulative Distribution Function value up to x, $P(X le x)$, using the formula for the right segment of the distribution: $P(X le x) = 1 – (b-x)^2 / ((b-a)(b-c))$. To find the probability of exceeding x, we apply the complement rule, subtracting $P(X le x)$ from 1.

Applying the complement rule simplifies the calculation for the right-tail probability, resulting in the following expression for $P(X > x)$:

• P(X > x) = 1 – P(X ≤ x)
• P(X > x) = (b-x)² / ((b-a)(b-c))

The setup in Excel mirrors the previous example, defining the parameters (a=500, b=2000, c=1200, x=1500) and then implementing the simplified right-tail formula:

Upon computation, the probability that the shop will experience high traffic exceeding 1,500 customers is calculated as 0.208. This robust figure assists managers in making informed decisions about staffing levels or inventory stocking, demonstrating the utility of the Triangular Distribution in operational forecasting.

Extending Risk Modeling: Beyond the Triangular Distribution

While the Triangular Distribution offers an accessible and powerful method for initial risk analysis, its mastery serves as an essential stepping stone toward more complex analytical techniques. Its simplicity is particularly valuable when introducing users to the principles of distribution modeling and preparing them for advanced simulation methods, such as Monte Carlo simulation, often executed within the Excel environment.

By successfully defining the parameters and calculating probabilities using the piecewise Cumulative Distribution Function, analysts develop the fundamental skills required to handle various probability distributions. Building this foundation allows for comparative analysis, enabling users to select the most appropriate distribution—be it Normal, Beta, or Poisson—based on the specific characteristics of the data being modeled.
