Learning the Triangular Distribution in R: A Comprehensive Guide with Examples

The Triangular distribution is a highly specialized and pragmatic type of continuous probability distribution. It is uniquely defined by a probability density function (PDF) that geometrically forms the shape of a triangle. This distribution is particularly indispensable in scenarios where precise historical data is scarce or nonexistent, forcing analysts and modelers to rely instead on expert judgment, theoretical limits, and subjective estimates to define the range of potential outcomes.

A key appeal of the triangular model, differentiating it from mathematically intricate distributions, is its inherent simplicity. It requires only three highly intuitive parameters to comprehensively define its behavior and shape, making it immediately accessible for stakeholders who may not possess deep statistical expertise. These three parameters establish the definitive range of possibilities and pinpoint the single most probable outcome for the modeled variable.

The three essential values necessary to define any triangular distribution are:

• The minimum value (a): This parameter sets the absolute lowest possible outcome that the variable can achieve.
• The maximum value (b): This parameter defines the absolute highest boundary for the variable’s potential outcome.
• The peak value (c): Commonly referred to as the mode, this is the most critical parameter, representing the single most likely outcome or the expert’s best guess.

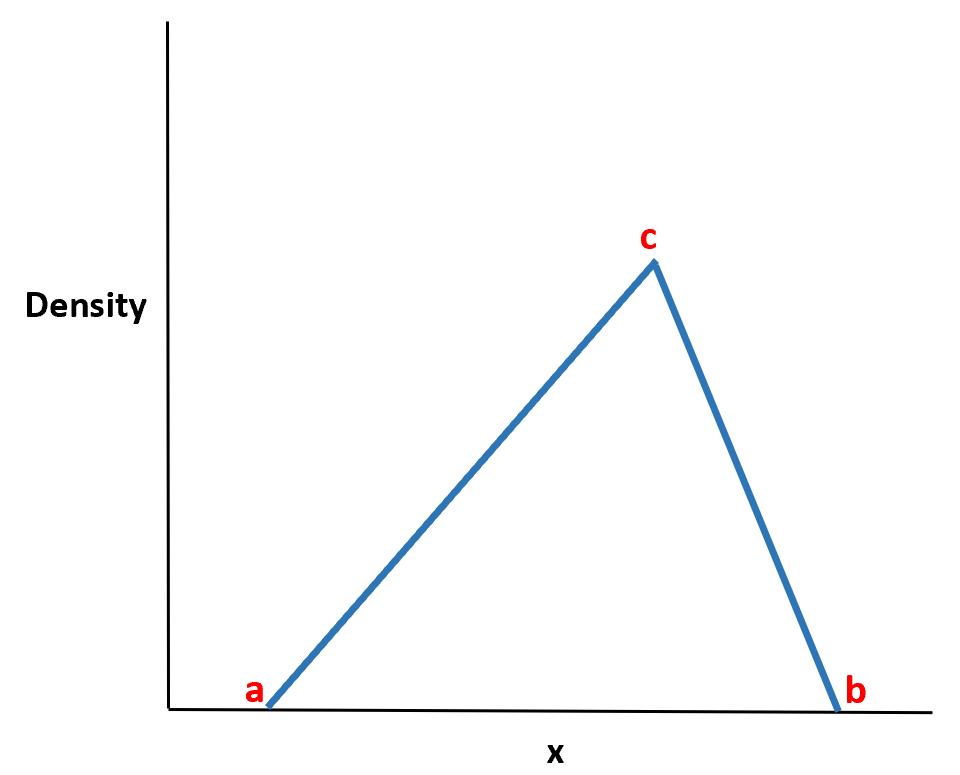

The following visual representation clearly illustrates how these three critical parameters—minimum, maximum, and mode—work in concert to define the distribution’s characteristic triangular shape:

Practical Applications and Advantages of the Triangular Model

The foremost benefit of employing the Triangular distribution lies in its remarkable simplicity and direct interpretability, allowing users to quickly translate expert knowledge into a functional probabilistic model. Consequently, it finds frequent use across diverse fields such as financial risk analysis, project management—notably within PERT estimates—and early-stage business forecasting, especially before sufficient empirical data can be gathered.

When tasked with modeling inherent uncertainty, domain experts can reliably provide a range (minimum and maximum) and their most confident prediction (the mode). The distribution then automatically assigns probabilities based on the geometry of the resulting shape, ensuring that the likelihood tapers off linearly as the values move away from the mode toward the defined boundaries. This straightforward approach positions the triangular model as a highly practical, albeit simplified, alternative to more complex models such as the Beta or Gamma distributions.

A fundamental requirement for any valid continuous probability distribution is that the total area beneath the curve must equate to 1. The triangular shape satisfies this requirement naturally. Calculating specific probabilities within this model involves determining the area of trapezoids or triangles defined by the specific quantile of interest, providing a direct and calculable method for quantifying risk and likelihood.

Implementing the Triangular Distribution in R using EnvStats

To effectively analyze and manipulate the Triangular distribution within the powerful statistical programming environment R, we must rely on specialized extension packages. It is important to note that the standard R installation does not include built-in functions for this specific distribution. Therefore, the use of the EnvStats package becomes essential. Although EnvStats is primarily oriented toward environmental statistics, it conveniently includes a robust suite of functions necessary for working with the triangular model.

Before any functionality from this package can be utilized, it must first be installed onto the system and subsequently loaded into the active R session. If the package is not already present, installation is performed using the command install.packages("EnvStats"). Once installed, the package is activated for use in the current session by employing the library() function, a crucial prerequisite demonstrated in the analytical examples that follow.

The core function used for calculating cumulative probabilities related to the Triangular distribution is ptri(). This function is responsible for computing the Cumulative Distribution Function (CDF), which fundamentally determines the probability that a random variable will adopt a value less than or equal to a specified input value, known as the quantile.

Core Syntax and Arguments of the ptri() Function

The ptri() function, sourced directly from the EnvStats package, requires a set of specific arguments that correspond precisely to the three defining parameters of the distribution, plus the single value for which the probability calculation is desired. Mastering this syntax is paramount for ensuring accurate and meaningful probability calculations within R.

The general structure of the function call is defined as follows, featuring several arguments that allow for optional default settings:

ptri(q, min = 0, max = 1, mode = 1/2)

The required and optional arguments are defined with precision:

• q: This represents the Quantile of interest. It is the specific value (X) for which the function computes the cumulative probability P(X <= q).
• min: Defines the minimum value (a), establishing the lower bound of the distribution’s range.
• max: Defines the maximum value (b), establishing the upper bound of the distribution’s range.
• mode: Defines the peak value (c), which is the single most probable outcome.

While the function provides sensible default values for standard unit interval calculations, it is an absolute necessity in practical, real-world applications that users explicitly define the min, max, and mode arguments. This explicit definition ensures that the model accurately reflects the specific context of the problem, adhering strictly to the constraint that min <= mode <= max.

Example 1: Calculating Lower-Tail Cumulative Probability

We can illustrate the use of ptri() with a practical business forecasting scenario focused on revenue. Imagine a restaurant management team attempting to forecast their total weekly revenue, basing their estimates on the structured framework of a Triangular distribution. They integrate historical performance and current market conditions to set their parameters.

Their expert estimates establish a minimum sales value of $10,000, a maximum of $30,000, and a single most likely outcome (mode) of $25,000. The core analytical question is: What is the probability that the restaurant achieves total sales less than or equal to $20,000 during the upcoming week? In this scenario, $20,000 serves as our target quantile (q).

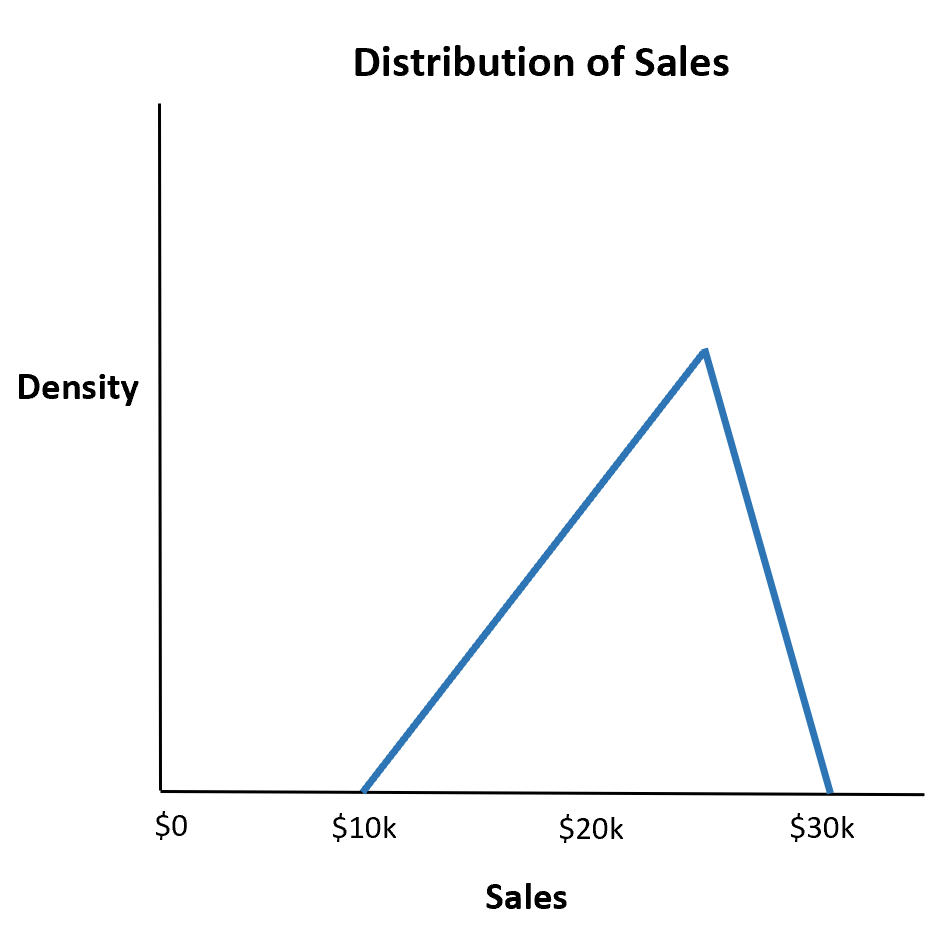

The visual model corresponding to these specific distribution parameters is depicted below:

To calculate P(Sales <= $20,000), we execute the ptri() function in R, confirming first that the EnvStats package is correctly loaded into the session:

library(EnvStats)

#calculate probability
ptri(q = 20000, min = 10000, max = 30000, mode = 25000)

[1] 0.3333333

The computed result, 0.3333333, signifies that there is an approximate 33.33% probability that the restaurant’s total weekly sales will fall at or below the $20,000 threshold. This calculation provides crucial quantitative data for financial planning, budgeting, and assessing potential downside risk.

Example 2: Determining Upper-Tail Probability via the Complement Rule

It is frequently necessary in risk modeling to determine the probability that an outcome will exceed a specific value, a calculation known as the upper-tail probability. Because the ptri() function natively computes the cumulative probability (P <= q), calculating the upper-tail requires applying the statistical complement rule: P(X > q) = 1 – P(X <= q). This powerful rule allows us to utilize the same function for inverse probability determinations.

Consider a retail establishment analyzing its weekly customer traffic. Based on expert input, the distribution is defined by a minimum of 500 customers, a maximum of 2,000 customers, and a mode of 1,200 customers. The objective is to determine: What is the probability that the shop will see more than 1,500 customers in a given week?

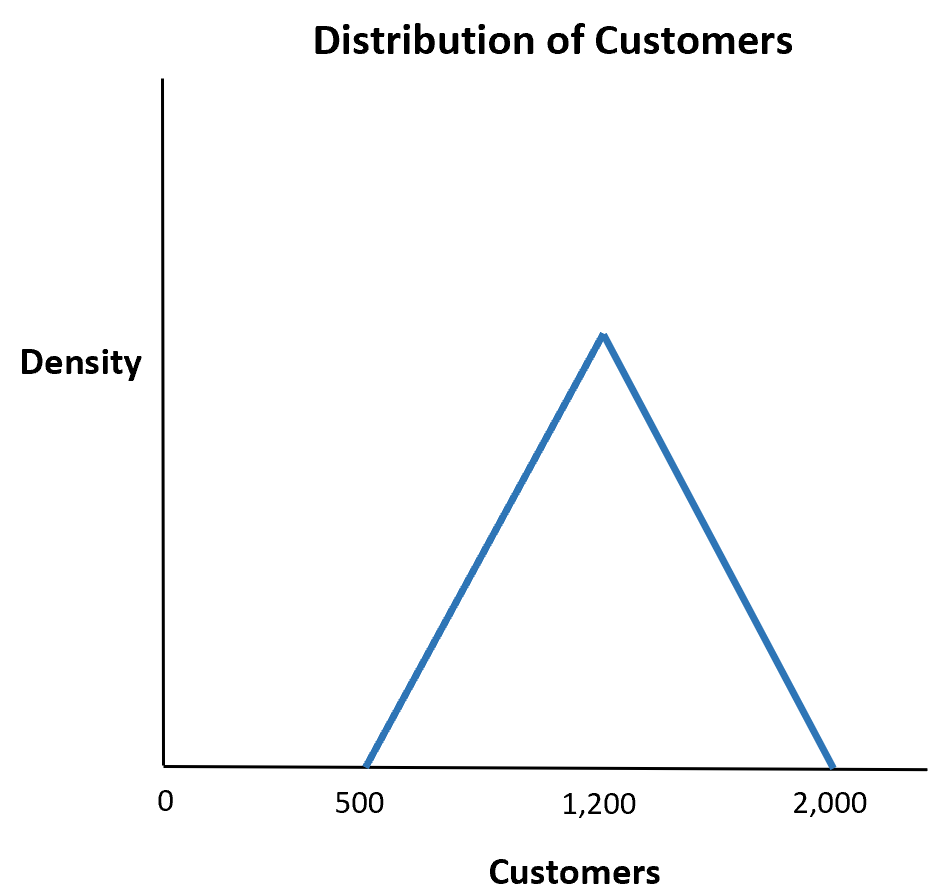

This situation necessitates calculating 1 – P(Customers <= 1,500). The corresponding triangular distribution visualization for this specific parameter set is presented below:

By applying the complement rule directly within R, we efficiently obtain the desired upper-tail probability:

library(EnvStats)

#calculate probability
1 - ptri(q = 1500, min = 500, max = 2000, mode = 1200)

[1] 0.2083333

The resulting calculation shows that the probability of exceeding 1,500 customers is approximately 0.208, or 20.83%. This critical piece of information enables the shop to proactively plan for high-volume periods, optimizing resource allocation, staffing levels, and inventory management based on a higher expected customer influx.

Advanced Application: Generating Random Variates for Simulation

Beyond calculating static cumulative probabilities using ptri(), the EnvStats package extends its utility by providing functions crucial for dynamic exploration and simulation. Specifically, the rtri() function is designed to generate random numbers (known as random variates) that strictly conform to the shape and parameters of a specified Triangular distribution. This feature is fundamental for executing complex quantitative methods like Monte Carlo simulations.

The syntax employed for generating these random variates mirrors that of ptri(), but it introduces one crucial additional argument, n, which dictates the precise number of random values the function should generate:

rtri(n, min = 0, max = 1, mode = 1/2)

The ability to generate thousands of random data points based on expert-defined boundaries allows analysts to rigorously run simulations, thereby gaining a deeper, more nuanced understanding of the full range of possible outcomes and the associated risks. This technique is a foundational element in operations research, predictive analytics, and quantitative finance, highlighting how this simple yet powerful distribution effectively models uncertainty when hard data is limited.

Additional Resources and Further Study

The Triangular distribution provides a robust and computationally straightforward methodology for modeling continuous variables based entirely on three key expert inputs. The EnvStats package in R delivers the necessary, reliable functions for working with this distribution within a powerful computational environment.

For individuals seeking exhaustive details regarding the underlying mathematical implementation, boundary conditions, and additional functionalities provided by the suite of triangular distribution functions, consulting the official documentation for the ptri() function within the EnvStats package is highly recommended.
