Learning to Use the Z-Table: A Step-by-Step Guide to Standard Normal Distributions

The Z Table, formally known as the standard normal table, stands as an indispensable instrument in the field of statistics. Its primary function is to efficiently determine the precise probability that a statistical observation falls below, above, or within defined ranges of values within a standard normal distribution. Fundamentally, this table serves to quantify the cumulative percentage of data points that are positioned below any given Z-score. Gaining a mastery of the Z Table is paramount for analysts, as it enables the transformation of raw data points, originating from any normally distributed set, into standardized probabilities. This standardization process is critical for facilitating meaningful comparisons and robust analysis across otherwise disparate datasets.

The Statistical Cornerstone: Defining the Z-Table and Its Purpose

In statistical analysis, raw data often needs to be standardized to allow for universal comparison. The standard normal distribution, characterized by a mean of zero and a standard deviation of one, is the reference distribution for this purpose. The Z Table provides the corresponding cumulative area under the curve for specific Z-scores. This area directly translates into the probability or percentage of observations occurring up to that point. This tutorial will provide a detailed, step-by-step examination of how to correctly interpret and apply the Z Table across three common statistical scenarios, ensuring clarity for both students and practicing analysts.

Before the Z Table can be utilized, the raw score must first be converted into a standardized score. This conversion process is what allows data from entirely different contexts—such as test scores and biological measurements—to be compared on the same scale. The ability to standardize data ensures that statistical inference is grounded in a common framework, enhancing the accuracy and reliability of probabilistic conclusions.

Deep Dive into the Z-Score: Definition and Calculation

A Z-score, alternatively termed a standard score, is a crucial statistical metric that precisely quantifies the distance, measured in units of standard deviations, that an individual data value lies from the population mean. Interpreting the sign of the Z-score is straightforward: a positive Z-score signifies that the data point is situated above the average, while a negative Z-score confirms that the point falls below the average. The numerical magnitude of the Z-score indicates the sheer distance from the center of the distribution.

Calculating the Z-score is the mandatory preliminary step before accessing the Z Table, as the table itself is meticulously indexed based exclusively on these standardized scores. This transformation process is essential for mapping any normal distribution onto the standard normal distribution curve, making the calculation foundational to inferential statistics.

The formula employed to calculate this fundamental measure is highly efficient and necessary for the standardization of any data point:

z-score = (x – μ) / σ

The variables within this essential formula represent the following critical characteristics of the data distribution:

• x: Represents the specific individual data value currently under analysis.
• μ: Denotes the population mean, which is the precise average value of the entire dataset.
• σ: Indicates the population standard deviation, serving as the definitive measure of data dispersion around the central mean.

This detailed tutorial provides step-by-step examples demonstrating the practical application of the Z Table across different common statistical scenarios.

Application 1: Finding Probability Below a Positive Z-Score

To illustrate the practical use of the Z Table, let us consider a typical scenario involving a standardized academic assessment. Assume that the scores obtained on this rigorous college entrance exam are normally distributed, possessing a population mean (μ) of 82 and a standard deviation (σ) of 8. Our objective is to determine the percentage of all students who achieved a score less than 84 on this test. This type of problem necessitates calculating the cumulative probability corresponding to a specific raw score.

Step 1: Standardize the Raw Score by Finding the Z-Score.

The initial and most important step requires translating the raw score (x = 84) into its equivalent standardized Z-score using the established formula. This calculation reveals exactly how far the score of 84 deviates from the mean of 82, expressing this difference in units of standard deviations:

z-score = (x – μ) /  σ = (84 – 82) / 8 = 2 / 8 = 0.25

A calculated Z-score of 0.25 mathematically confirms that a score of 84 is positioned 0.25 standard deviations above the mean of the distribution.

Step 2: Utilize the Z Table to Determine Cumulative Percentage.

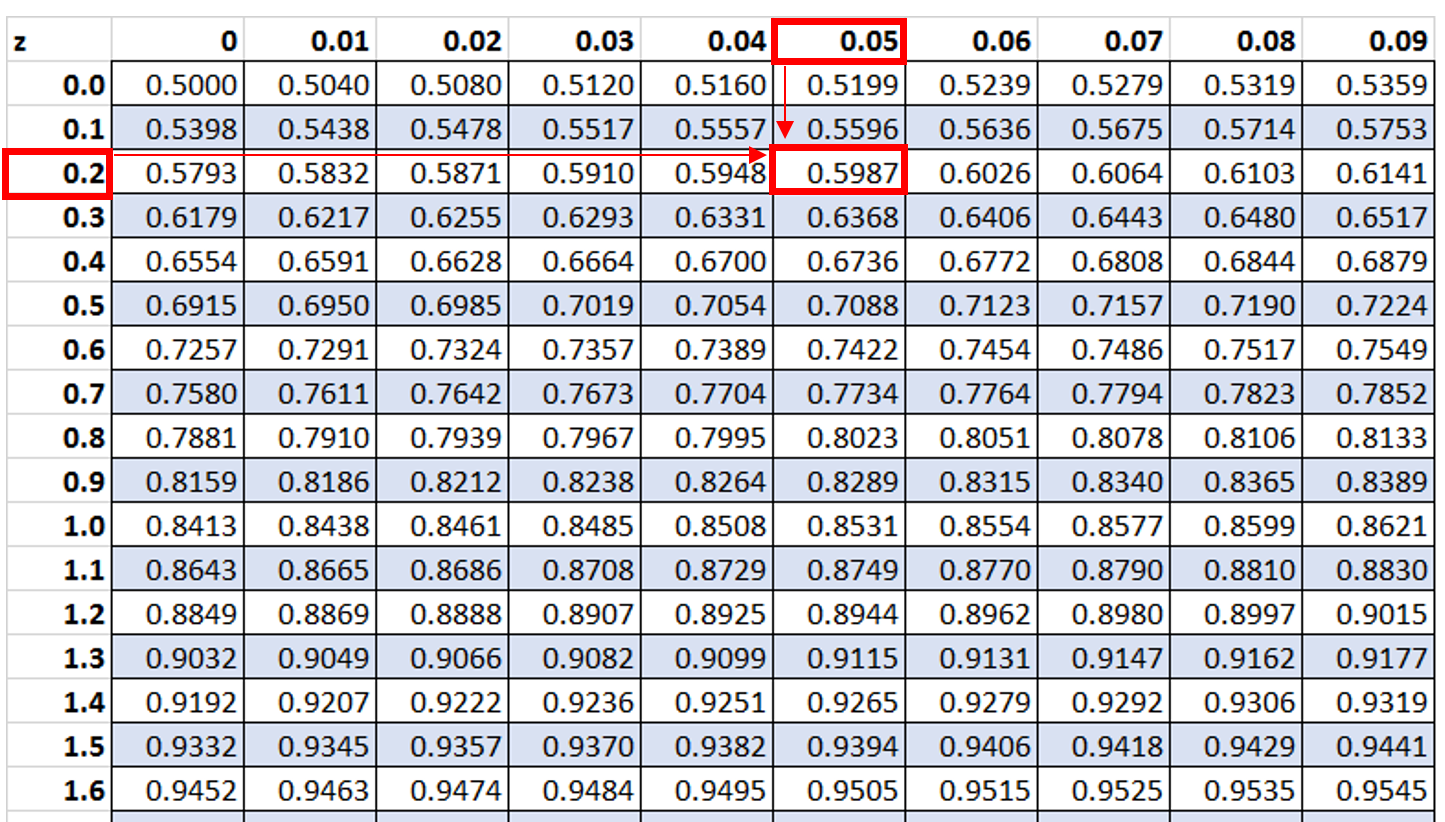

Having calculated the Z-score (0.25), the next step is to consult the Z Table. The table inherently provides the area under the standard normal curve that lies to the left of the specified Z-score, which directly correlates to the percentage of values falling below that score. To find 0.25, we first locate 0.2 in the leftmost column, and then trace across that row to the column labeled 0.05 (since 0.20 + 0.05 equals 0.25).

The corresponding numerical value located in the body of the table is 0.5987. By converting this decimal probability into a percentage, we definitively conclude that approximately 59.87% of students scored less than 84 on this entrance examination. This result provides a clear, probabilistic interpretation of the student’s performance relative to the entire population of test-takers.

Application 2: Calculating Probability Above a Negative Z-Score

In this subsequent example, we shift our focus to biological data and the concept of finding the area in the upper tail of the distribution. Assume the height of plants in a specific horticultural setting follows a normal distribution with a mean (μ) of 26.5 inches and a standard deviation (σ) of 2.5 inches. Our goal is to ascertain the approximate percentage of plants that measure greater than 26 inches tall. This calculation requires using the Z Table to find the area below the score, and then employing the complement rule to find the area above it.

Step 1: Calculate the Z-Score for the Specified Height.

We begin by standardizing the height of 26 inches (x = 26) using the established population parameters:

z-score = (x – μ) /  σ = (26 – 26.5) / 2.5 = -0.5 / 2.5 = -0.2

The resulting negative Z-score of -0.2 mathematically verifies that a height of 26 inches is slightly below the average height of 26.5 inches for this specific plant species.

Step 2: Use the Z Table to Find the Area Below the Z-Score.

Consulting the Z Table for the value -0.20 yields the cumulative area to the left of this point, which represents the percentage of plants shorter than 26 inches. We locate -0.20 in the table’s marginal values.

The table reveals a cumulative probability of 0.4207. This means 42.07% of the plant values fall below a Z-score of -0.2.

Step 3: Calculate the Area Above the Z-Score Using the Complement Rule.

Since the problem explicitly asks for the percentage of plants greater than 26 inches (the upper tail), we must utilize the complement rule. Given that the total area beneath the probability distribution curve must sum precisely to 1 (or 100%), we subtract the area found in Step 2 from 100%: 100% – 42.07% = 57.93%.

Thus, approximately 57.93% of the plants in this garden are expected to be taller than 26 inches.

Application 3: Determining Probability Between Two Z-Scores

This final example demonstrates the methodology required to locate the probability that a value falls within a specific range defined by two distinct data points. Consider the weight of a certain species of dolphin, which is assumed to be normally distributed with a mean (μ) of 400 pounds and a standard deviation (σ) of 25 pounds. Our objective is to calculate the percentage of dolphins whose weight falls between 410 and 425 pounds. To solve this range problem, we must find the cumulative area associated with the upper limit and subsequently subtract the cumulative area associated with the lower limit.

Step 1: Calculate the Two Necessary Z-Scores.

We must standardize both the lower boundary (x₁ = 410) and the upper boundary (x₂ = 425) relative to the population parameters.

Calculation for the lower boundary (410 pounds):

z-score of 410 = (x – μ) /  σ = (410 – 400) / 25 = 10 / 25 = 0.40

Calculation for the upper boundary (425 pounds):

z-score of 425 = (x – μ) /  σ = (425 – 400) / 25 = 25 / 25 = 1.00

Step 2: Use the Z Table to Find the Cumulative Percentages.

First, we determine the cumulative area associated with the lower Z-score, 0.40.

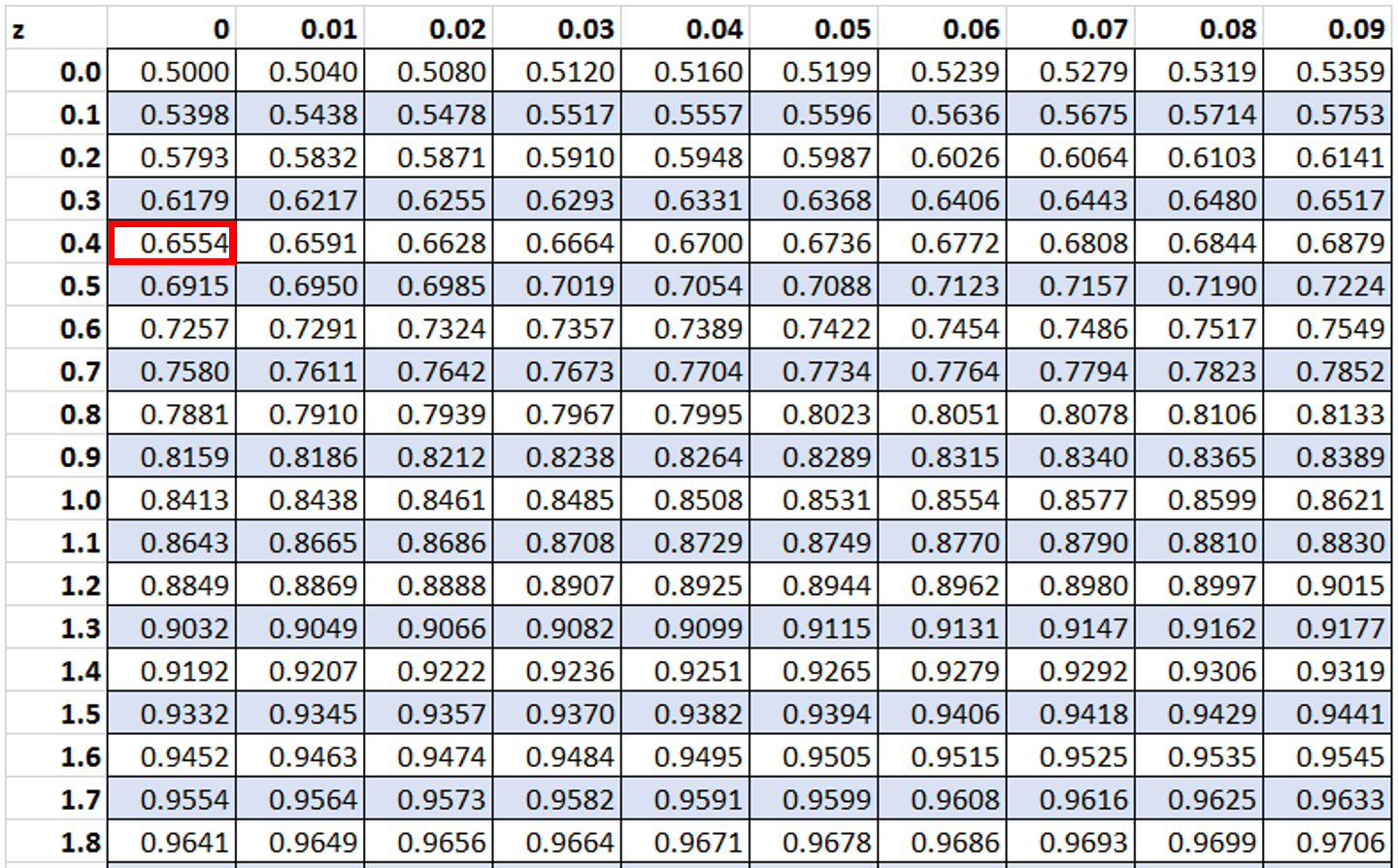

The cumulative probability for Z = 0.40 is read as 0.6554.

Next, we determine the cumulative area associated with the higher Z-score, 1.00.

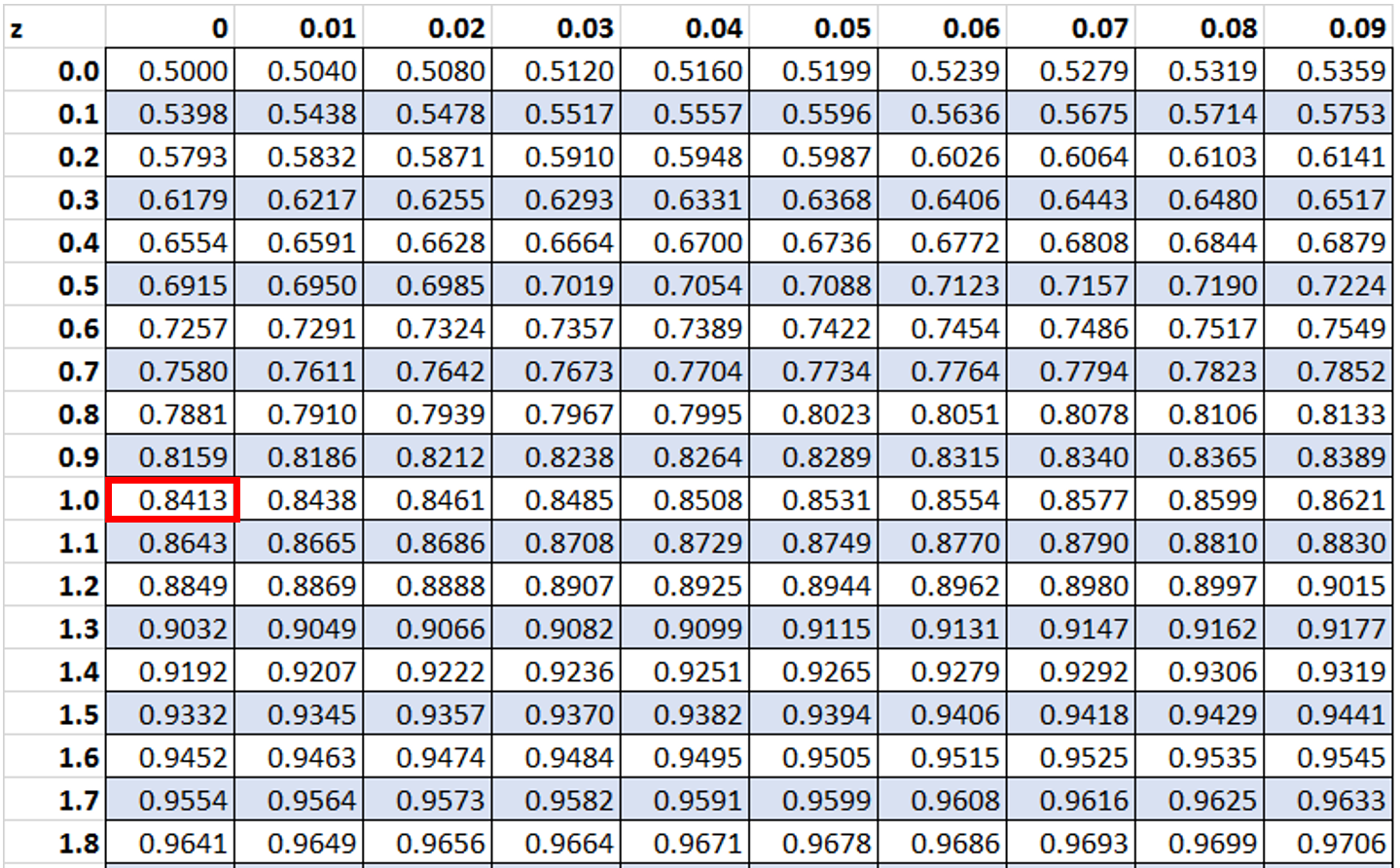

The cumulative probability for Z = 1.00 is read as 0.8413.

Step 3: Subtract the Smaller Area from the Larger Area to Find the Range Probability.

To isolate the area specifically located between the two calculated standard scores, we subtract the probability associated with the lower bound (Z = 0.40) from the probability associated with the upper bound (Z = 1.00): 0.8413 – 0.6554 = 0.1859.

Consequently, approximately 18.59% of the dolphins in this population are expected to weigh between 410 and 425 pounds.

Summary of Essential Z-Table Interpretation Techniques

The Z Table is a highly versatile statistical instrument designed to streamline complex probability calculations within any dataset that conforms to a normal distribution. By rigorously standardizing raw data into Z-scores, we acquire the essential capability to address critical questions concerning the distribution and likelihood of specific values occurring. The three detailed applications explored above demonstrate the primary methods by which the Z Table is effectively utilized:

• Finding the area below a specified value (cumulative probability).
• Finding the area above a specified value (using the complement rule).
• Finding the area between two specific values (using the subtraction method).

A deep understanding and mastery of both the Z-score calculation and the subsequent interpretation of the Z Table are fundamental competencies for anyone engaged in serious data analysis or inferential statistics. This knowledge transforms raw measurements—whether they are exam scores, plant heights, or animal weights—into universally comparable and rigorous probabilistic statements, thereby providing a solid, trustworthy foundation for drawing reliable conclusions about entire populations.
