Use tight_layout() in Matplotlib

In the realm of scientific computing and data analysis, effective data visualization is paramount for conveying complex findings clearly. When utilizing the renowned Matplotlib library to construct elaborate graphical outputs, developers frequently encounter challenges concerning spatial management. This is particularly true when a single Figure contains multiple subplots. Without deliberate intervention, critical textual components—such as titles, axis labels, and legends—often overlap or collide, resulting in figures that are cluttered, unprofessional, and difficult to interpret. Ensuring adequate internal and external padding is essential for resolving these visual conflicts. The method tight_layout() serves as Matplotlib’s indispensable, automated mechanism for calculating and applying these necessary spatial adjustments, ensuring a clean, publishable layout with minimal manual effort.

This comprehensive guide offers an expert exploration of how to seamlessly integrate and maximize the utility of tight_layout() within your Python plotting workflow. We begin by illustrating the common visual deficiencies that arise from Matplotlib’s default layout settings. Following this, we will provide practical, side-by-side comparisons that vividly demonstrate the function’s immediate, positive impact on visual coherence. Furthermore, we will delve into techniques for fine-tuning the aesthetics of the resulting plot by leveraging crucial arguments like pad, thereby granting users precise control over the margins and overall spatial arrangement of their scientific visualizations.

The Necessity of Layout Management in Multi-Panel Figures

When a Figure is initialized to hold multiple subplots, Matplotlib’s default sizing algorithm is engineered to maximize the plotting area for each individual graph. While this optimization aims to maximize data visibility, it frequently fails to reserve adequate surrounding space for essential supplementary elements like lengthy axis labels, tick mark annotations, legends, or the subplot titles themselves. The typical consequence is a collision of textual or graphical elements, where the boundaries of one subplot encroach upon the neighbor’s area, instantaneously degrading the figure’s quality and obstructing viewer comprehension.

These layout defects are far more than mere cosmetic flaws; they actively undermine the viewer’s ability to accurately interpret the represented data visualization. Overlapping or truncated titles and ambiguous axis labels can lead directly to misinterpretations regarding the relationships or descriptions of the data panels. Historically, resolving these spatial conflicts demanded laborious manual intervention using the subplots_adjust() function. This process required repetitive manual adjustments of parameters such as wspace (width space), hspace (height space), and margin controls (left, right, top, bottom). This highly inefficient, trial-and-error approach becomes impractical and unsustainable when dealing with dynamic datasets or when figure dimensions are subject to frequent changes.

The fundamental need, therefore, is an intelligent, autonomous layout management utility. Such a tool must dynamically calculate the spatial requirements, or bounding box, of every element—not just the primary plot area—across all axes within the Figure. It must then intelligently reallocate the available space to fully accommodate these elements without any overlap, guaranteeing that all descriptive text is perfectly visible and legible. This crucial, automated capability is precisely what the tight_layout() function was designed to deliver, offering an elegant and robust solution to a pervasive multi-panel plotting issue.

Visualizing the Default Deficiencies: The Case of Overlap

To fully grasp the significant corrective power offered by tight_layout(), it is necessary to first establish a visual baseline that exposes the typical layout deficiencies inherent in default Matplotlib figures. For this demonstration, we will construct a standard 2×2 grid containing four separate subplots, each assigned a unique title. Critically, we will intentionally omit the command for automatic spacing adjustment in this initial example, allowing us to observe the library’s default behavior, which prioritizes maximizing plot size at the expense of boundary integrity. The following Python script sets up the data, establishes the grid structure, and applies distinct titles to each panel:

import matplotlib.pyplot as plt

#define data
x = [1, 2, 3]
y = [7, 13, 24]

#define layout for subplots
fig, ax = plt.subplots(2, 2)

#define subplot titles
ax[0, 0].plot(x, y, color='red')
ax[0, 1].plot(x, y, color='blue')
ax[1, 0].plot(x, y, color='green')
ax[1, 1].plot(x, y, color='purple')

#add title to each subplot
ax[0, 0].set_title('First Subplot')
ax[0, 1].set_title('Second Subplot')
ax[1, 0].set_title('Third Subplot')
ax[1, 1].set_title('Fourth Subplot')

Upon careful inspection of the resulting visualization, the critical deficiencies of the default layout become strikingly apparent. The titles of adjacent plots, particularly within the top row, are positioned so closely that they are either directly colliding with each other or are overlapping the boundary of the plot area immediately below them. This visual clutter is a direct consequence of Matplotlib’s calculation of minimal padding, which fails to allocate sufficient vertical or horizontal space for the textual elements to reside comfortably without intrusion. The presence of such graphical interference severely detracts from the professional aesthetic of the Figure and compromises the interpretability of the data visualization. These layout problems are often amplified when axis labels are complex, or when the overall figure dimensions are constrained, forcing elements into even tighter proximity.

The Automated Solution: Implementing fig.tight_layout()

The most effective and dependable solution for addressing layout inconsistencies within Matplotlib is the simple invocation of the tight_layout() method. This function is applied directly to the Figure object, typically referenced in code as fig. Its mechanism involves a sophisticated analysis of the rendered dimensions for every component—titles, labels, tick marks, and plot boundaries—and subsequently calculating the absolute minimum horizontal and vertical spacing required to prevent any element collision. By automatically recalculating wspace, hspace, and the surrounding margins, tight_layout() completely eliminates the necessity for manual, iterative parameter adjustments.

We will now revise our previous code example by inserting one crucial line: fig.tight_layout(). It is vital that this call is placed after all graphical and textual elements have been fully defined (e.g., plots drawn, titles set, labels added). This optimal placement ensures that tight_layout() possesses all the necessary dimensional information regarding the content before it attempts to optimize the spacing. Note the minimal code modification required below, contrasted with the substantial and positive change in the resulting visualization:

import matplotlib.pyplot as plt

#define data
x = [1, 2, 3]
y = [7, 13, 24]

#define layout for subplots
fig, ax = plt.subplots(2, 2)

#specify a tight layout
fig.tight_layout()

#define subplot titles
ax[0, 0].plot(x, y, color='red')
ax[0, 1].plot(x, y, color='blue')
ax[1, 0].plot(x, y, color='green')
ax[1, 1].plot(x, y, color='purple')

#add title to each subplot
ax[0, 0].set_title('First Subplot')
ax[0, 1].set_title('Second Subplot')
ax[1, 0].set_title('Third Subplot')
ax[1, 1].set_title('Fourth Subplot')

The resulting visual improvement is instantaneous and profound. By executing tight_layout(), the system intelligently calculated the precise internal padding required and efficiently shifted the subplots apart, ensuring that all titles are completely visible and clearly separated. This automatic adjustment capability is the core advantage of the function, transforming a visually messy figure into a highly polished, professional-grade visualization suitable for scientific publication or presentation.

Fine-Tuning Margins: Customizing Outer Padding with pad

While tight_layout() is primarily optimized for managing the internal spacing between axes, it also provides crucial arguments for customizing the appearance of the overall Figure boundary. The most commonly used parameter for this external control is pad, which dictates the padding (or margin) surrounding the outermost edge of the subplots relative to the figure’s border. By default, this value is set to 1.08, which is measured as a fraction of the current font size, thereby establishing a consistent buffer zone.

Adjusting the pad value grants the user significant aesthetic control over the visual framing of the plots. For instance, the default setting might feel too restrictive if the Figure includes a large overall title (set using suptitle()) or if the design necessitates a generous amount of “white space” for enhanced visual clarity. Increasing this parameter effectively pushes all subplots inward, consequently enlarging the margin between the active plot area and the figure’s external borders. Conversely, decreasing pad results in a tighter frame around the visualization.

To illustrate this customization, we will revert to our functional multi-panel example and explicitly pass pad=5 to the tight_layout() function. This substantial increase in the padding value will clearly demonstrate how this parameter controls the outer buffer, operating independently of the internal spacing adjustments (wspace and hspace) that tight_layout() manages automatically. This dual capability ensures users can achieve both optimal functional clarity and precise aesthetic control over their finalized image output.

import matplotlib.pyplot as plt

#define data
x = [1, 2, 3]
y = [7, 13, 24]

#define layout for subplots
fig, ax = plt.subplots(2, 2)

#specify a tight layout with increased padding
fig.tight_layout(pad=5)

#define subplot titles
ax[0, 0].plot(x, y, color='red')
ax[0, 1].plot(x, y, color='blue')
ax[1, 0].plot(x, y, color='green')
ax[1, 1].plot(x, y, color='purple')

#add title to each subplot
ax[0, 0].set_title('First Subplot')
ax[0, 1].set_title('Second Subplot')
ax[1, 0].set_title('Third Subplot')
ax[1, 1].set_title('Fourth Subplot')

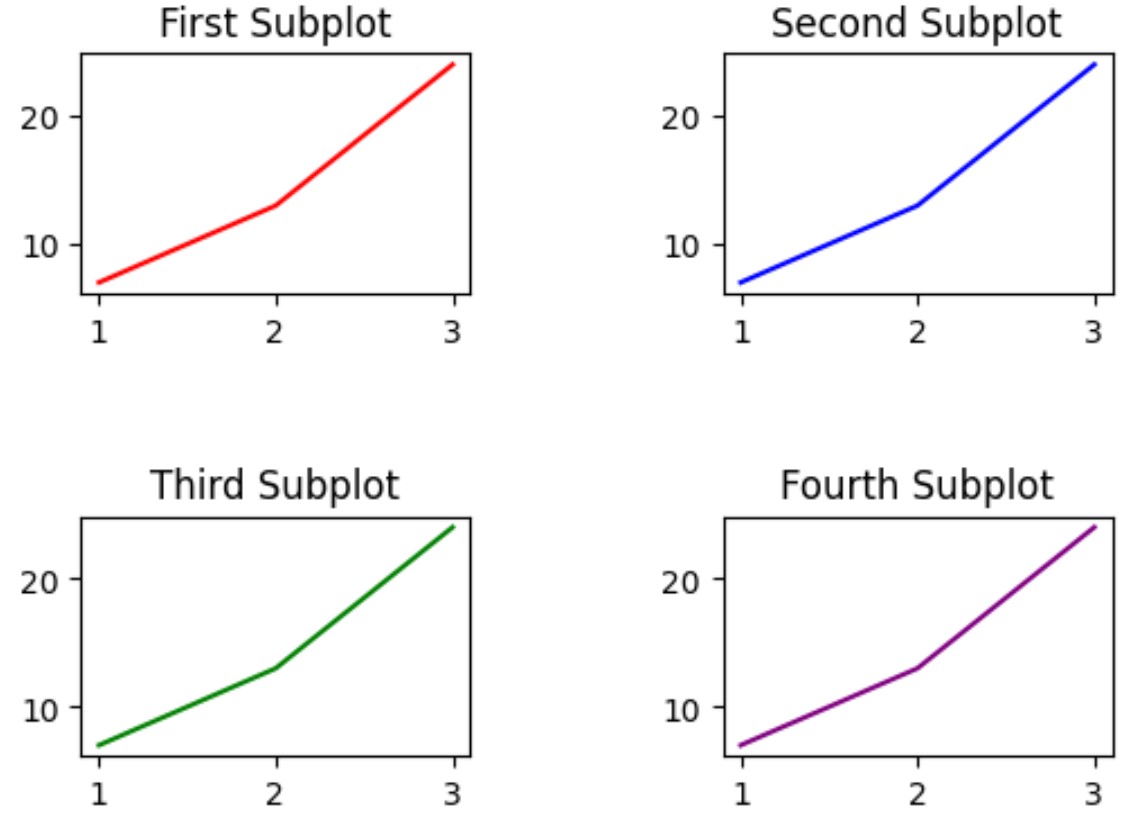

The resulting visualization emphatically displays the expanded margins surrounding the entire set of four subplots, perfectly demonstrating the effect of the significantly increased pad=5 value. This added space creates a clean, intentional visual separation between the plotting area and the external figure border, which is highly beneficial when embedding these images into documents or presentations requiring specific aesthetic margins. Leveraging the pad argument in conjunction with tight_layout() ensures comprehensive control over both the internal plot spacing and the external visual framing.

Integrating tight_layout() with Advanced Layout Managers

While tight_layout() offers exceptional performance for standard grids of subplots, Matplotlib provides even more sophisticated layout management tools designed for complex or hierarchical visualizations. A prominent modern alternative is constrained_layout, which is typically enabled upon figure creation (e.g., plt.subplots(constrained_layout=True)). Unlike tight_layout(), which functions primarily as an iterative adjustment mechanism applied post-plotting, constrained_layout uses a sophisticated constraint solver. This approach is superior for managing the challenging placement of nested grids, associated colorbars, and complex legends, often producing better results in intricate figures where elements might otherwise be inadvertently cropped.

For niche scenarios demanding absolute, pixel-level precision, the legacy method facilitated by subplots_adjust() remains available. This function allows the user to define the exact fractional position of the left, right, top, and bottom margins, alongside defining the horizontal and vertical spacing factors (wspace and hspace) between plots. This approach sacrifices the efficiency and intelligence of automatic layout solutions in favor of deterministic, manual inputs. Although cumbersome for routine plotting, subplots_adjust() is invaluable when specific, non-standard design layouts must be rigidly recreated or when automatic methods fail due to highly unusual figure compositions.

The selection among these powerful layout systems—tight_layout(), constrained_layout, or manual adjustment via subplots_adjust()—should be based entirely on the complexity and specific requirements of the Figure being generated. For the vast majority of standard scientific plotting tasks that involve a simple grid of axes, tight_layout() provides the optimal balance of efficiency, simplicity, and effectiveness, consistently yielding a clean, well-spaced layout with minimal code effort.

Summary and Best Practices for Clean Visualizations

The tight_layout() function is arguably one of the most critical utilities within the Matplotlib ecosystem for anyone generating multi-panel data visualization. Its unique capability to automatically calculate and apply the necessary internal spacing and padding across multiple axes efficiently resolves the common and frustrating problem of overlapping textual elements. This robust automation drastically streamlines the visualization development process, eliminating the need for the tedious and time-consuming manual parameter tuning that frequently complicates complex figures.

As demonstrated through practical examples, the transition from a default, visually cluttered output to a clean, professionally spaced figure requires only the execution of fig.tight_layout(). Furthermore, the inclusion of optional arguments, such as pad, grants users precise, granular control over the external margins. This flexibility allows figures to be seamlessly integrated into various publishing formats or presentations while strictly adhering to high aesthetic and clarity standards.

For generating high-quality, professional scientific figures within your Python environment, adopting tight_layout() as a fundamental best practice is strongly recommended. It represents the gold standard for simple, efficient, and robust layout management, ensuring that your data communication is consistently clear, unambiguous, and polished.
