Learning VBA: Using the TimeValue Function to Extract Time from Strings

Mastering Temporal Data Extraction with the VBA TimeValue Function

The TimeValue function is an indispensable utility within VBA (Visual Basic for Applications), specifically engineered for the precise handling and manipulation of temporal data. Its core function is to analyze a text string that contains time information—regardless of whether it’s embedded within a larger date structure—and reliably convert that information into a standard VBA serial time value. This conversion capability is critical when developers confront the challenge of data harmonization, especially when importing raw data sets from diverse external systems, databases, or flat text files where date and time information are often haphazardly stored as a single, combined text field. By effectively isolating the time component and discarding any associated date elements, the `TimeValue` function significantly streamlines data processing, making subsequent calculations, reporting, and temporal analysis tasks far more manageable.

The necessity of this conversion stems from how time is mathematically treated in programming environments. While a string like “10:30 AM” is human-readable, it holds no mathematical significance to the computer. The `TimeValue` function solves this by evaluating the input string against established system time formats and returning a corresponding numerical value—the serial time. This serial time is crucial because it transforms a descriptive text field into a quantitative measure that can be manipulated arithmetically. For example, calculating the duration between two extracted times or ensuring uniform formatting across a large data set becomes trivial once the time is in its serial format. Without the reliability of `TimeValue`, developers would be forced to resort to complex string parsing methods (like `Mid` or `Split`), which are less robust and significantly more susceptible to errors introduced by inconsistent source data formats.

By consistently leveraging the TimeValue function, developers can enforce a standard representation of time across their projects, guaranteeing both consistency and reliability in data handling. The function accommodates a wide variety of input formats—including 12-hour notations (“3:00:00 PM”), 24-hour formats (“14:45”), and strings including seconds—as long as the string can be successfully parsed into a recognizable time structure based on the operating system’s locale settings. This powerful automated conversion tool is frequently deployed in macros that focus on data cleaning, scheduling processes, or normalizing vast spreadsheets where manual data correction would be an impractical, time-consuming, and highly error-prone endeavor. Understanding this mechanism is therefore foundational for creating robust and efficient time management solutions within any serious VBA project.

The Internal Representation of Time in Excel and VBA

To fully appreciate the utility of the `TimeValue` function, one must first understand how Excel and VBA internally manage and store temporal data. In the context of the spreadsheet environment, time is not stored as hours, minutes, and seconds, but rather as a fractional component of a 24-hour day. The fundamental Date/Time data type is represented internally as a high-precision floating-point number. In this numerical structure, the integer portion of the number represents the calendar date (counting days since a baseline date, usually January 1, 1900), while the decimal or fractional portion represents the time elapsed within that specific day.

This fractional representation is highly logical and allows for simple mathematical operations on time. For example, 6:00 AM, which is exactly one-quarter of a day, is stored as the value 0.25. Similarly, noon (12:00 PM) is represented as 0.5, and 6:00 PM is 0.75. When the TimeValue function takes a text input, it performs the necessary computation to determine this precise decimal fraction corresponding to the specified time. This conversion is the pivotal step that transitions time from a static string representation to a mathematically usable numerical entity. This is vital when performing tasks such as calculating the difference between a start time and an end time, which requires simple subtraction of the two serial numbers, an operation that would be impossible if the time remained stored merely as unparsed text.

The crucial takeaway is that the `TimeValue` function reliably produces this serial time value, a standardized numerical output that Excel can then interpret and display in various user-friendly time formats (e.g., HH:MM:SS, or HH:MM AM/PM), depending on the cell formatting applied. This mechanism ensures that time data is not only accurately extracted but is also instantly usable in any subsequent analytical processes, guaranteeing that all temporal data is based on a consistent, serial numerical foundation. Understanding this underlying serial data model is key to debugging and optimizing any VBA code that interacts with dates or times.

Syntax, Arguments, and Error Handling Fundamentals

The syntax for deploying the TimeValue function is elegantly simple and direct: TimeValue(stringexpression). The sole required argument, stringexpression, must be a text string that the host operating system can successfully interpret as a valid time. This flexibility allows the function to handle various standard time formats, including those specifying hours, minutes, and seconds, using either 12-hour or 24-hour notation. A significant feature of this function is its strict isolation capability: if the input string contains both date and time components—for example, a full timestamp like “1/1/2023 10:15:34 AM”—the `TimeValue` function will meticulously extract only the time portion, entirely discarding the date information, thereby simplifying the data cleaning process.

Upon successful execution, the function returns a Date/Time variant subtype, which is the aforementioned serial number ranging between 0 and 1, representing the time of day. However, this functionality comes with a critical requirement: the input string must be valid. If the provided stringexpression cannot be unambiguously interpreted as a time—perhaps due to incorrect formatting, non-standard characters, or an empty value—the function will typically generate a runtime error, commonly a Type Mismatch (Error 13). This potential failure highlights the crucial need for robust data validation, especially when processing external data or user inputs that may not conform to expected standards.

Therefore, best practice dictates implementing error handling structures within the macro where `TimeValue` is used. While basic error suppression (like On Error Resume Next) can prevent crashes, a more sophisticated approach involves proactively checking the input data. Functions such as IsDate() can be employed to verify that the string is parsable as a date or time before attempting the conversion, significantly increasing the resilience of the VBA procedure against malformed data. This preemptive validation is essential for maintaining data integrity and script continuity in dynamic data environments.

A frequent application involves systematically processing a column of combined datetime entries within an Excel worksheet. The following generalized code illustrates how a developer might apply the function across a defined Range object to efficiently extract time components into a separate column. This pattern is the backbone of bulk data transformation tasks where efficiency and absolute accuracy in isolating temporal data are paramount requirements.

Practical Implementation Example: Isolating Time from Datetime Strings

To fully illustrate the power and inherent simplicity of the `TimeValue` function, we examine a highly common scenario encountered by data analysts: dealing with raw source data where the date and the precise time stamp are concatenated into a single data field. Consider an Excel spreadsheet column containing various datetime entries, each stored as a standard text string combining both the calendar date and the time. Extracting the time component independently is often necessary if the goal is to analyze temporal patterns—such as peak usage hours—irrespective of the specific calendar day.

Our objective is precisely defined: we must isolate the time portion from every datetime string located in column A and subsequently populate the resulting serial time values into the corresponding cells in column B. For instance, the source entry “1/1/2023 10:15:34 AM” must be programmatically reduced strictly to its time representation, “10:15:34 AM.” Attempting to perform this task manually for even a moderately sized data set of hundreds or thousands of rows is inherently inefficient, tedious, and highly susceptible to human transcription errors. This scenario perfectly demonstrates why a simple, targeted macro employing the `TimeValue` function provides the ideal automated solution, ensuring flawless parsing and conversion across the entire data range.

We implement the following concise VBA procedure to achieve this extraction goal:

Sub GetTimeValue()

Dim i As Integer

For i = 2 To 7
    Range("B" & i) = TimeValue(Range("A" & i))
Next i

End Sub

Upon execution, this procedure systematically processes the input data. The critical function is its ability to interpret the time component embedded within the string and convert it into its necessary numerical format. Excel automatically handles the display formatting for the output cells in column B, presenting the numerical value as a standard time display. The efficiency afforded by this four-line loop dramatically simplifies complex data cleaning operations, ensuring that all time entries are uniformly and accurately extracted for immediate analytical use.

Detailed Breakdown of the VBA Code Execution Logic

A meticulous analysis of the provided VBA code snippet reveals the structured, iterative logic driving the time extraction process. The routine is clearly defined by Sub GetTimeValue() and terminated by End Sub. The initial declaration, Dim i As Integer, establishes the variable i as an Integer, which is designated to function as the loop counter, keeping track of the current row number being processed within the Excel worksheet. Given the small range of data, an Integer is the appropriate, memory-efficient data type for this indexing purpose.

The core mechanism of automation is encapsulated within the For i = 2 To 7 loop structure. This command mandates that the enclosed block of code will execute sequentially and repeatedly, starting with i equal to 2 (corresponding to the first row of data) and continuing its iterations until i reaches 7 (the final row containing source data). The concluding command, Next i, is responsible for automatically incrementing the counter variable after each successful execution cycle. This systematic, iterative approach is fundamental to automating repetitive data processing tasks across sequential data sets in Excel VBA, allowing a single set of instructions to be applied uniformly without any manual intervention.

The most impactful line in the entire procedure is Range("B" & i) = TimeValue(Range("A" & i)), which performs the entire data transformation in one step. First, Range("A" & i) dynamically references the source cell in column A corresponding to the current row number (e.g., A2, A3, etc.). The value of this cell (the combined datetime string) is passed directly as the required argument to the TimeValue function. The function immediately isolates the time component and converts it into its precise numerical serial equivalent. Finally, the resulting serial time value is assigned to the dynamically addressed cell in column B, referenced by Range("B" & i). This numerical assignment triggers Excel’s automatic formatting capabilities, typically causing the output cell to display the result as a recognizable time format (like HH:MM:SS), provided the cell formatting is not explicitly set to Text.

This structured, single-line transformation efficiently ensures that the output cells in the range B2:B7 contain only the purified time data, extracted accurately from the source data in A2:A7. The use of dynamic range addressing is a hallmark of efficient macro development, allowing the code to be easily adapted to larger or smaller data sets merely by adjusting the loop boundaries (i.e., changing 2 To 7). This maximizes the code’s reusability and robustness in various data cleaning contexts.

Handling Data Types, Formatting, and Common Errors

The effective use of the `TimeValue` function is inherently tied to the nuances of data type management within VBA and Excel. As previously established, successful conversion yields a serial time value—a Date/Time variant expressed as a floating-point number between 0 and 1. When this numerical result is written to an Excel cell that retains the default General format, the user will observe the decimal representation (e.g., 0.43715 for 10:29 AM). However, Excel is highly intelligent and often recognizes that a serial time number has been input, frequently applying a default standard time format (e.g., HH:MM:SS) automatically, which provides the desired user-friendly output. It remains a critical development step to ensure that output cells are explicitly formatted as Time if the decimal representation is not the desired outcome for the end user.

While the TimeValue function is exceptionally robust in handling diverse time notations, its primary vulnerability lies in dealing with invalid or non-standard input formats. If the required stringexpression argument is malformed, entirely null, or contains data that cannot be regionally interpreted as a time, the function will inevitably raise a Type Mismatch error (Error 13). Such failures often occur when strings contain unexpected delimiters, non-numeric characters in time positions, or use a regional time format (like using a dot instead of a colon) that conflicts with the system’s locale settings.

To create truly resilient macros, developers must incorporate proactive data validation. By using conditional checks such as If IsDate(Range("A" & i).Value) Then... before invoking the conversion, the script can gracefully skip or flag invalid entries instead of crashing. This approach prevents runtime failures and significantly improves the overall reliability of the data processing procedure. When the macro is executed against our example data set, the visual result clearly confirms the successful isolation and conversion of the time component:

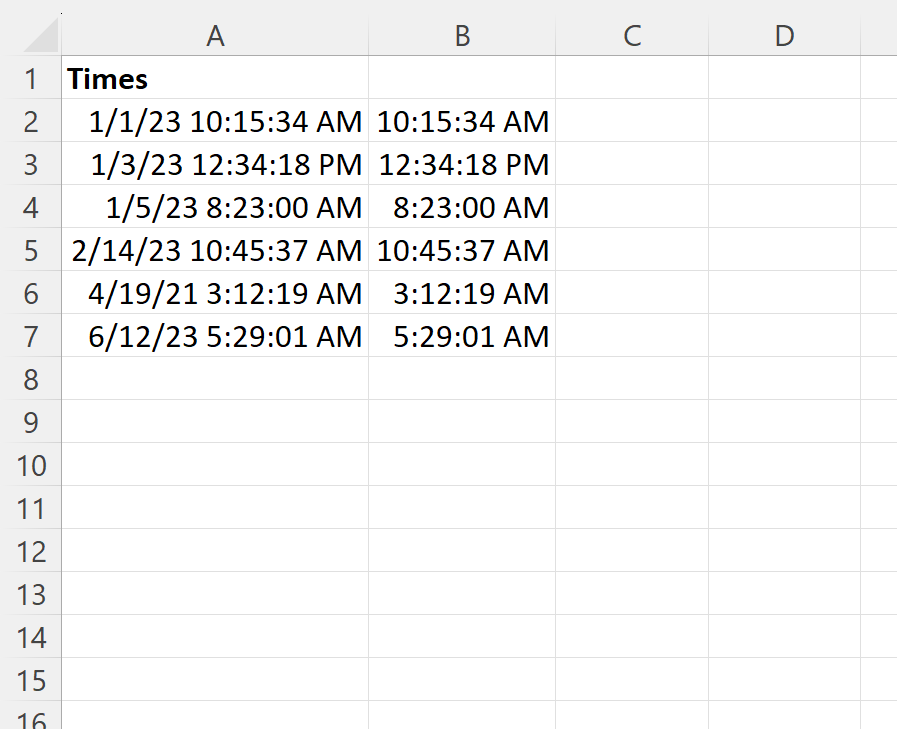

As clearly illustrated, column B now holds the extracted and standardized time value for each corresponding datetime entry found in column A. This visual confirmation underscores the immense utility of the `TimeValue` function in data purification and standardized time extraction, proving its worth in automating crucial data preparation tasks.

The specific conversions performed by the function are reliably consistent, demonstrating how the date portion is flawlessly discarded while the time is converted to its serial representation before being displayed in the standard time format:

• The TimeValue function converts 1/1/2023 10:15:34 AM to 10:15:34 AM.
• The TimeValue function converts 1/3/2023 12:34:18 PM to 12:34:18 PM.
• The TimeValue function converts 1/5/2023 8:23:00 AM to 8:23:00 AM.

This demonstrates reliable and precise extraction across various time stamps, regardless of the original date component.

Advanced Temporal Manipulation and Resources

Mastering the manipulation of temporal data is a core competency required for advanced VBA development and data analysis. Once developers are comfortable using `TimeValue` to accurately extract time components, the next logical step often involves performing related operations, such as combining extracted time values with separate date components (using the DateSerial and TimeSerial functions), calculating precise time differences (using the DateDiff function), or dynamically manipulating large ranges of time entries.

The following resources provide essential guidance and official documentation on these advanced techniques, helping developers expand their capabilities beyond simple time extraction and into comprehensive temporal data management within Excel and VBA:
