Learning VLOOKUP Equivalent in Power BI: Using LOOKUPVALUE

The Transition from VLOOKUP to DAX: A Paradigmatic Shift

The VLOOKUP function in Excel has long served as the cornerstone for data integration and retrieval within spreadsheet environments. It provides a simple, direct mechanism for pulling a specific value from one column based on a matching key found in a corresponding column of another range. However, transitioning this methodology to advanced business intelligence platforms, specifically Power BI, necessitates a significant change in analytical approach. Power BI operates on a columnar, relational data model, where performance and context are governed by the powerful Data Analysis Expressions (DAX) language, rather than static cell references. Direct cell-to-cell lookups, while efficient in Excel, are inherently incompatible with Power BI’s design philosophy, which emphasizes established table relationships and optimized calculation context.

Analysts moving from the flexibility of Excel often seek a function that can directly replicate the column-specific lookup capability of VLOOKUP within the tabular model utilized by Power BI. Fortunately, the DAX framework provides an optimized solution specifically engineered for this requirement: the LOOKUPVALUE function. This function allows developers to execute a search operation—retrieving a single value from a secondary table—while correctly respecting the row context established by the primary table where the calculation is being executed. Mastering the mechanics of LOOKUPVALUE is essential for efficiently enriching datasets within the Power BI environment, particularly when dealing with data sources that lack pre-defined relationships or when performing ad-hoc data consolidation.

The core distinction between the traditional Excel VLOOKUP and its Power BI counterpart lies in their operational context. VLOOKUP is restricted to static ranges and columns within a worksheet. Conversely, LOOKUPVALUE operates across entire tables loaded into the data model, harnessing the full analytical engine of DAX. This architectural difference is critical for maintaining performance and scalability, ensuring that data retrieval remains instantaneous even when querying models containing millions of rows. By strategically employing LOOKUPVALUE, users can dynamically enhance their primary dataset with context-specific details retrieved from supporting tables, thus achieving the data integration goals of VLOOKUP using a superior, model-aware approach optimized for business intelligence reporting.

Deconstructing the Power BI Equivalent: The LOOKUPVALUE Function Syntax

To effectively mimic the functionality of VLOOKUP within the Power BI structure, data professionals rely on the LOOKUPVALUE function, a specialized component of the DAX library. This function is purpose-built for scenarios where a single value must be retrieved from a designated result column in one table by matching criteria based on corresponding search columns and values. It performs a precise, direct lookup operation, optimized specifically for the columnar data storage engine that powers Power BI’s analytical capabilities.

The standard syntax for the LOOKUPVALUE function is both robust and intuitive. It mandates three core arguments for successful execution, defining precisely what to look for, where to look, and what to return. These arguments are: the Result Column, the Search Column, and the Search Value. The Result Column specifies the column containing the data you intend to retrieve (analogous to the ‘return index’ column in VLOOKUP). The Search Column defines the column in the lookup table where the matching operation must occur (the ‘lookup range’ column). Lastly, the Search Value is the criterion—typically a column from the current row of the primary table—used to find the exact match within the Search Column.

The practical implementation of this function typically involves creating a new calculated column within your primary table. As illustrated in the example below, the DAX syntax efficiently extracts necessary metrics, such as Points, from a secondary table (data2) and injects them directly into the primary table (data1) using a common identifier, like Team. This method is highly effective for relationships where a unique match is expected for every lookup key, such as one-to-one or many-to-one scenarios.

Points = LOOKUPVALUE('data2'[Points], 'data2'[Team], 'data1'[Team])

In this specific construction, a new column named Points is generated in the data1 table. The value for this new column is determined by locating the entry in the Team column of the data2 table that precisely corresponds to the Team value of the currently evaluated row in data1. Once that match is found, the corresponding entry from the Points column in data2 is returned. It is vital to remember the core constraint of LOOKUPVALUE: it requires a unique match. If the function encounters multiple matching entries in the lookup table for a single key, it will return an error, requiring the developer to implement alternative DAX functions, such as combining CALCULATE with FILTER, or to ensure that the designated lookup key is truly unique within the secondary table.

Structuring the Data Model for Lookup Success

Prior to implementing the LOOKUPVALUE function, it is foundational to ensure that the data model is correctly configured with all necessary source and destination tables loaded into the DAX environment. For instructional purposes, we will use a common scenario involving two distinct tables, where descriptive data is separated from core performance metrics. Our objective is to successfully consolidate these metrics into the primary descriptive table.

We begin with our primary table, designated as data1. This table serves as the destination for our calculated column and contains contextual information about various basketball players, including their associated Team and playing Position. This table is where the data enrichment will take place, receiving the new column generated by the lookup operation.

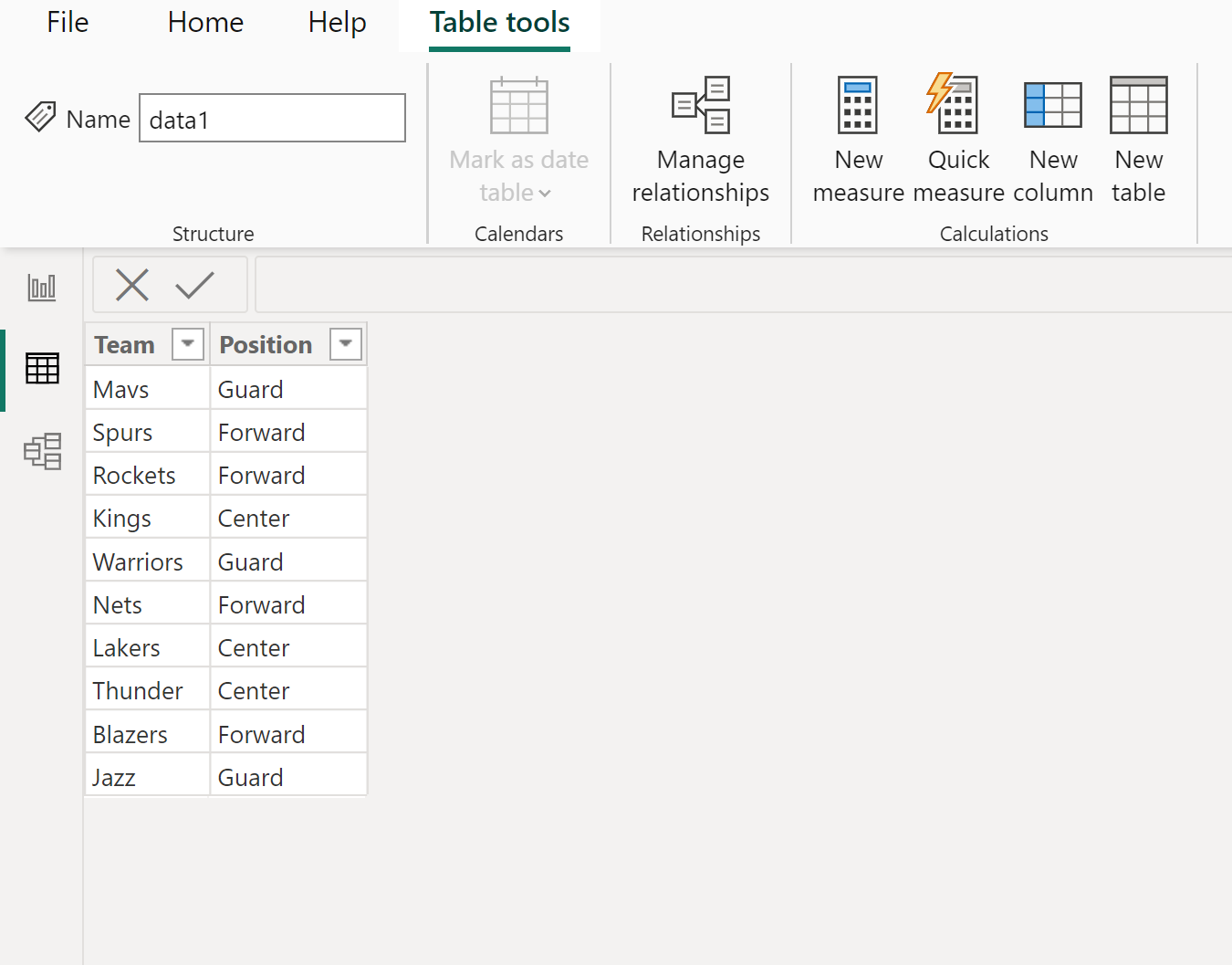

The structure of data1, which contains information about the Team and Position for various basketball players, is as follows:

Next, we introduce the secondary table, named data2, which holds the performance metrics we intend to retrieve. Crucially, data2 must include the matching key column—in this example, Team—alongside the specific value column we are interested in—the total Points scored. The efficacy of the lookup depends entirely on the accuracy, consistency, and formatting of the values within the common Team column across both datasets, ensuring that the lookup key is treated identically by the DAX engine.

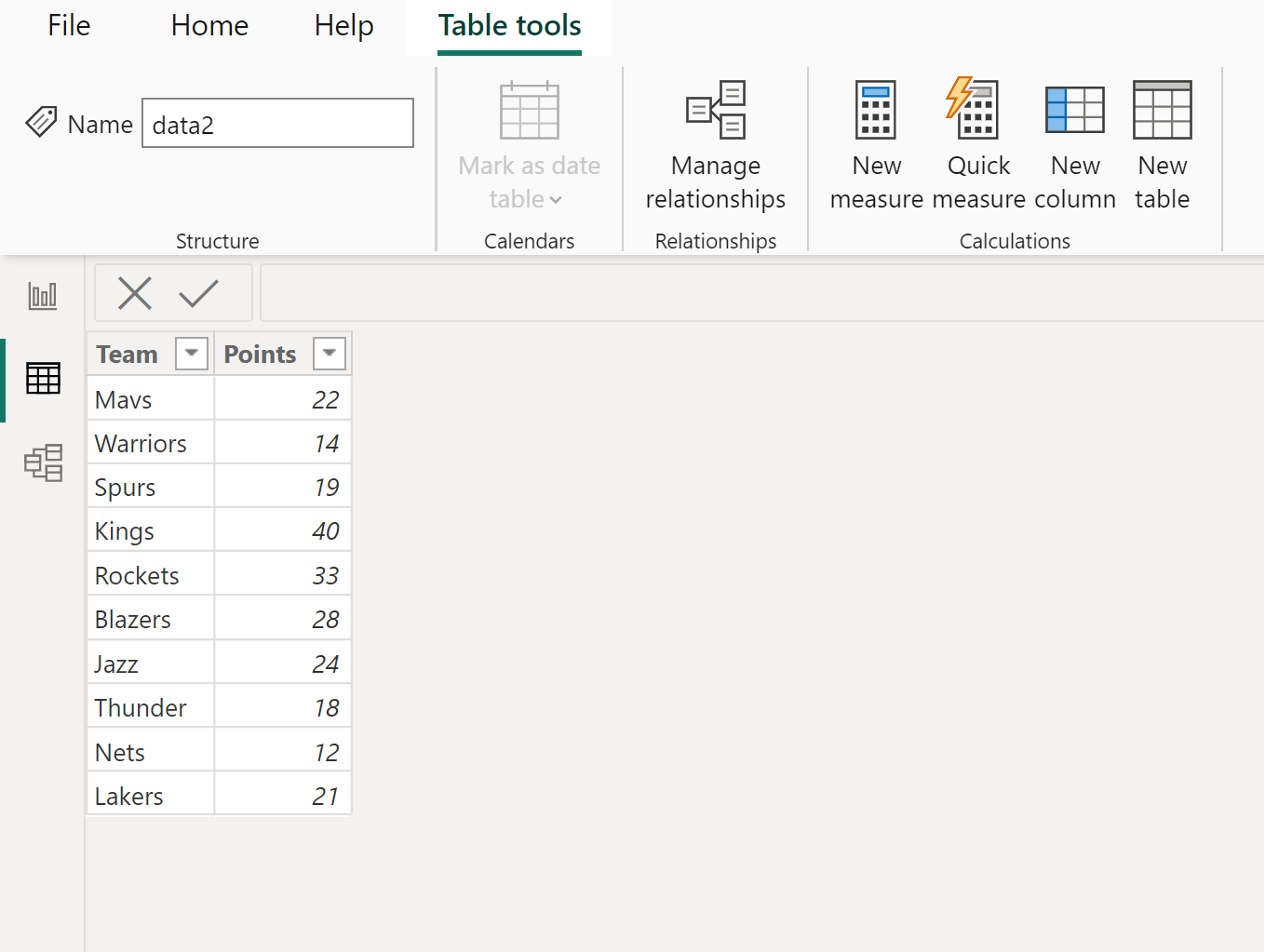

The structure of data2, which contains information about the Team and corresponding Points for the players, is shown below:

Therefore, the core task is to take the Team values from data1, search for them within the Team column in data2, and return the corresponding figure from the Points column in data2. This preparation accurately mirrors the input requirements for a traditional VLOOKUP operation, establishing the necessary conditions for the DAX function to execute flawlessly and enrich the original player data with vital performance scores.

Step-by-Step Implementation in Power BI Desktop

The process for implementing the LOOKUPVALUE function in Power BI is initiated within the Power BI Desktop application, specifically in the Data View, using the Table tools ribbon. This ensures that the calculation is performed at the column level, integrating the derived data directly into the established table structure of the data model. The procedure is highly systematic and begins by confirming that the user is interacting with the correct destination table, which is data1 in our example.

To start the implementation, first navigate to the Data View within Power BI Desktop. Verify that the data1 table is selected and currently active in the Fields pane. With the correct table displayed, locate the Table tools tab situated along the top ribbon interface. Within this ribbon, click the New column icon. This action will prepare the formula editor environment for the input of the DAX formula that will execute the required lookup operation.

Once the new column is initialized, the formula bar will activate, prompting the user to define the calculation. It is in this formula bar that the LOOKUPVALUE function must be typed, specifying the precise result column, search table, and matching columns involved in the data retrieval. This step formalizes the analytical request: “For every row currently being evaluated in data1, find the corresponding matching Team in data2, and return the associated Points value.”

The following specific formula should be entered into the formula bar:

Points = LOOKUPVALUE('data2'[Points], 'data2'[Team], 'data1'[Team])

Executing this formula immediately generates the calculated column. This method is exceptionally efficient because Power BI performs the calculation only once—either upon creation or during data refresh—and stores the resulting values directly within the model structure. Consequently, the newly retrieved Points data is readily available for all subsequent visualizations, complex measures, and reports, functioning exactly as if it were an original, physically loaded column in the table.

Analyzing the Result and Key Considerations

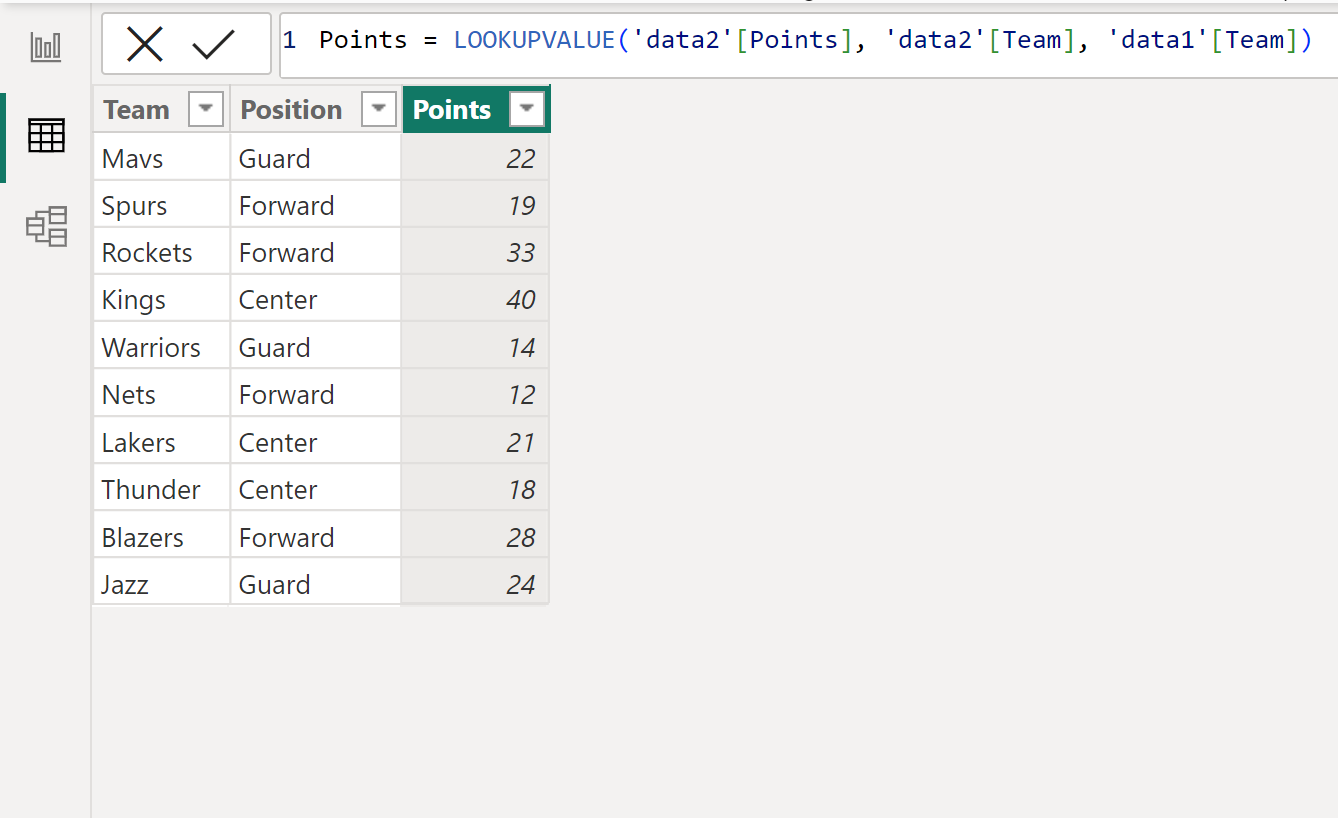

Upon successful execution of the DAX formula, the Power BI data model instantaneously updates the data1 table, seamlessly integrating the newly computed Points column. This column now holds the corresponding performance figures accurately derived from the data2 table, matched precisely to each team identified in the primary table. The final result showcases a clean and effective integration of data sourced from two separate tables without requiring external manual merging or data manipulation.

This operation successfully creates a new column named Points that contains the values sourced from the data2 table, corresponding correctly to each team in the data1 table. The resulting combined table provides a far richer dataset for comprehensive analysis, facilitating reports that can correlate player position directly with team performance points.

Important Note: While LOOKUPVALUE is a highly functional equivalent to VLOOKUP when generating calculated columns, users must be aware of its limitations. It is highly recommended to consult the official DAX documentation for detailed specifics regarding robust error handling, especially in cases where no match or multiple matches are inadvertently found. Furthermore, for complex data models where relationships between tables are already formally established, utilizing the RELATED function is the generally accepted best practice. The RELATED function is fundamentally optimized for traversing existing, defined relationships, offering superior performance and simplicity compared to a general, column-scanning lookup function.

Superior Alternatives for Data Integration in Power BI

Although LOOKUPVALUE provides the most direct functional analogue to VLOOKUP, it is often not the most high-performing or robust method for integrating data within the holistic Power BI ecosystem, particularly when dealing with massive datasets or intricately complex data schemas. Power BI encourages the use of two primary alternatives that are typically superior for data integration.

The first alternative involves establishing a formal, defined relationship between data1 and data2 within the Model View of Power BI. If a relationship is correctly established (e.g., a one-to-many relationship based on the unique Team column), the RELATED DAX function should be utilized in place of LOOKUPVALUE. The RELATED function offers drastically improved performance because it relies on the pre-optimized relationship context to retrieve values, completely eliminating the need for the DAX engine to explicitly scan and match columns row-by-row. The syntax for the RELATED function is significantly simpler, requiring only the designation of the column name to be retrieved: Points = RELATED('data2'[Points]). This approach represents the standard best practice for data retrieval in a professionally structured Power BI data model.

The second, and arguably most robust, alternative is the utilization of the Power Query Editor to execute a data merge operation. Merging tables within Power Query (which leverages the M language) joins the necessary data during the initial ETL (Extract, Transform, Load) phase, before the data even reaches the DAX engine for modeling. This process permanently combines the two tables into a single, cohesive table structure, ensuring that the lookup column is materialized and stored with maximum efficiency. This method often results in a cleaner, more streamlined data model (fewer tables to manage) and yields superior query performance during reporting, as the engine does not need to perform complex runtime calculations to repeatedly retrieve lookup values. The choice between LOOKUPVALUE, the RELATED function, and the Power Query Merge functionality depends heavily on the specific requirements of the calculation, the size of the datasets, and the overall design structure of the data model.
