Learning to Customize Axis Tick Mark Spacing in R for Effective Data Visualization

The Critical Role of Customizing Axis Tick Marks in Data Visualization

In the field of statistical analysis and high-quality data visualization, especially when leveraging the robust capabilities of the R programming language, achieving absolute clarity is paramount. Default plotting settings are often inadequate for optimally representing complex data structures or precisely conveying a specific analytical message. A frequent challenge for analysts involves dealing with the automatic spacing of tick marks on a plot’s axis, which may appear either excessively cluttered, too sparse, or misaligned with preferred numerical interval values.

Gaining precise control over the placement and density of these marks is fundamentally essential for generating professional, easily digestible, and scientifically accurate charts. Consider a scenario where your dataset ranges from 0 to 50; if the default plot only provides major ticks at 0, 25, and 50, you might require a finer analytical resolution, such as ticks appearing every 10 units. Conversely, if the default setting generates an excessive number of marks, the axis labels can begin to overlap, thereby obscuring the overall visualization and reducing readability. Fortunately, the core functionality provided by base R offers a highly effective and straightforward solution for achieving this precise axis control.

The simplest and most direct approach for manipulating the spacing of tick marks specifically on the x-axis involves utilizing the powerful plotting parameter, xaxp(). This function is an integral component built directly into base R, which means that analysts do not need to install or load any external libraries or packages. This intrinsic availability streamlines the visualization process significantly, allowing for immediate application within virtually any standard plotting script or environment.

Decoding the Syntax and Parameters of the xaxp() Function

The xaxp() functionality is not executed as a standalone command; rather, it is passed directly as a key argument within the primary plotting function, most commonly plot(). To effectively define the axis boundaries and the required interval resolution, it necessitates a vector comprising three specific numerical values. A thorough understanding of these parameters is crucial for ensuring the resulting visual output accurately matches the desired aesthetic and analytical specifications.

The canonical structure for incorporating this function into an R plotting command adheres to the following syntax:

plot(…, xaxp = c(x1, x2, n))

The three components of this required vector argument precisely define the boundary conditions and the resulting resolution of the plotted axis:

• x1: This parameter establishes the minimum value at which the x-axis plotting should commence. It dictates the left-most limit of the axis range displayed on the chart.
• x2: This parameter specifies the maximum value at which the x-axis plotting must terminate. It defines the highest numerical value visibly displayed on the axis.
• n: This critical parameter determines the precise number of intervals that must be created between the minimum value (x1) and the maximum value (x2). It is vital to remember the core rule that the total number of tick marks actually drawn on the axis will always equal n + 1 (one tick mark for the start, one for the end, and ‘n-1’ marks positioned in between).

When working with the xaxp() parameter, analysts must often engage in an iterative process of experimentation with the value assigned to the n argument. Increasing the value of n results in a higher number of intervals, which consequently decreases the physical spacing between the tick marks, leading to a denser and potentially more detailed axis representation. Conversely, decreasing n increases the spacing, resulting in fewer marks and a generally cleaner axis presentation. This essential fine-tuning process allows the visualization to strike the optimal balance between providing necessary detail and maintaining high readability.

Preparing the R Environment and Generating Sample Data

To provide a clear, practical demonstration of the xaxp() parameter in action, we must first establish a reproducible environment and generate a sample data frame within the R console. This test dataset will contain 100 observations spanning two key variables, labeled x and y, providing the necessary material to generate a simple two-dimensional scatterplot. The following code block initializes this data, ensuring full reproducibility for any user by setting a specific random seed:

#make this example reproducible
set.seed(1)

#create data frame
df <- data.frame(x=runif(100, 0, 50),
                 y=runif(100, 0, 10))

#view head of data frame
head(df)

         x        y
1 13.27543 6.547239
2 18.60619 3.531973
3 28.64267 2.702601
4 45.41039 9.926841
5 10.08410 6.334933
6 44.91948 2.132081

In setting up this scenario, we utilized the standard base R function runif(), which is designed to generate random numerical values drawn from a uniform distribution. A uniform distribution implies that every possible value within the specified range (minimum to maximum) possesses an equal probability of being selected. The basic syntax for this essential function is clearly defined:

runif(n, min, max)

• n: This argument specifies the total number of values that the function is instructed to generate. We utilized 100 to match our requirement for 100 observations.
• min: This defines the minimum value boundary of the distribution range. For our x variable, this was set to 0.
• max: This defines the maximum value boundary of the distribution range. For the x variable, this was set to 50, while for the y variable, we set the maximum limit to 10. This intentional design ensures that our y variable spans a distinct, smaller range (0 to 10) compared to the x variable (0 to 50).

This preliminary step of high-quality data generation is critically important before moving to the visualization stage, as it furnishes the raw data upon which we will meticulously demonstrate the customization capabilities afforded by the xaxp() parameter.

Baseline Visualization: Analyzing Default Tick Spacing

With the sample data frame successfully established, the next logical step involves creating a standard scatterplot utilizing the default graphical settings inherent to R. This initial, unmodified plot serves as an essential baseline comparison, allowing us to accurately observe how the axis is rendered when no explicit customization parameters are applied. We employ the core plot() function, clearly specifying the two variables and adding stylistic elements such as color and point type to enhance the overall visual appeal.

#create scatterplot of x vs y
plot(df$x, df$y, col='blue', pch=19)

Executing this command generates the initial visualization. It is worth noting the inclusion of the argument pch=19, a common graphical parameter within base R plotting, which explicitly defines the markers representing the data points as filled-in circles. This simple choice significantly enhances the visibility and distinction of each observation on the plot.

The resulting image below clearly illustrates this default configuration. A close inspection of the x-axis reveals the automatic placement and density of the tick marks. In this specific default rendition, which spans the range from 0 to 50, the axis typically displays six total tick marks (0, 10, 20, 30, 40, 50). While technically functional, an analyst might determine that this default spacing is too fine or cluttered, preferring a wider interval for either aesthetic refinement or improved communicative effectiveness.

The subsequent analytical goal is therefore to reduce the density of these marks, effectively increasing the space between them. For the purpose of this detailed demonstration, we will aim to decrease the total number of tick marks from the current six down to five, which necessitates a careful calculation of the required parameter value for the xaxp() function.

Precision Control: Implementing xaxp() for Custom Spacing

To successfully achieve the desired reduction in tick marks and the corresponding increase in spacing, we must re-execute the plot() function while explicitly incorporating the xaxp argument. As established by the function’s definition, the total number of marks drawn is defined by the formula n + 1. If our analytical target is precisely five total marks, then the required value for the interval parameter n must be 4 (since 4 + 1 = 5).

We already possess the necessary boundary data: the minimum range (x1) must be 0, and the maximum range (x2) must be 50, aligning perfectly with our initial data generation parameters. Consequently, we pass the vector c(0, 50, 4) to the xaxp argument within the revised plotting function. This vector explicitly instructs R to draw the x-axis spanning from 0 to 50, segmented by exactly 4 intervals. This calculation results in 5 total tick marks precisely located at 0, 12.5, 25, 37.5, and 50.

#create scatterplot of x vs y with custom axis
plot(df$x, df$y, col='blue', pch=19, xaxp=c(x1=0, x2=50, n=4))

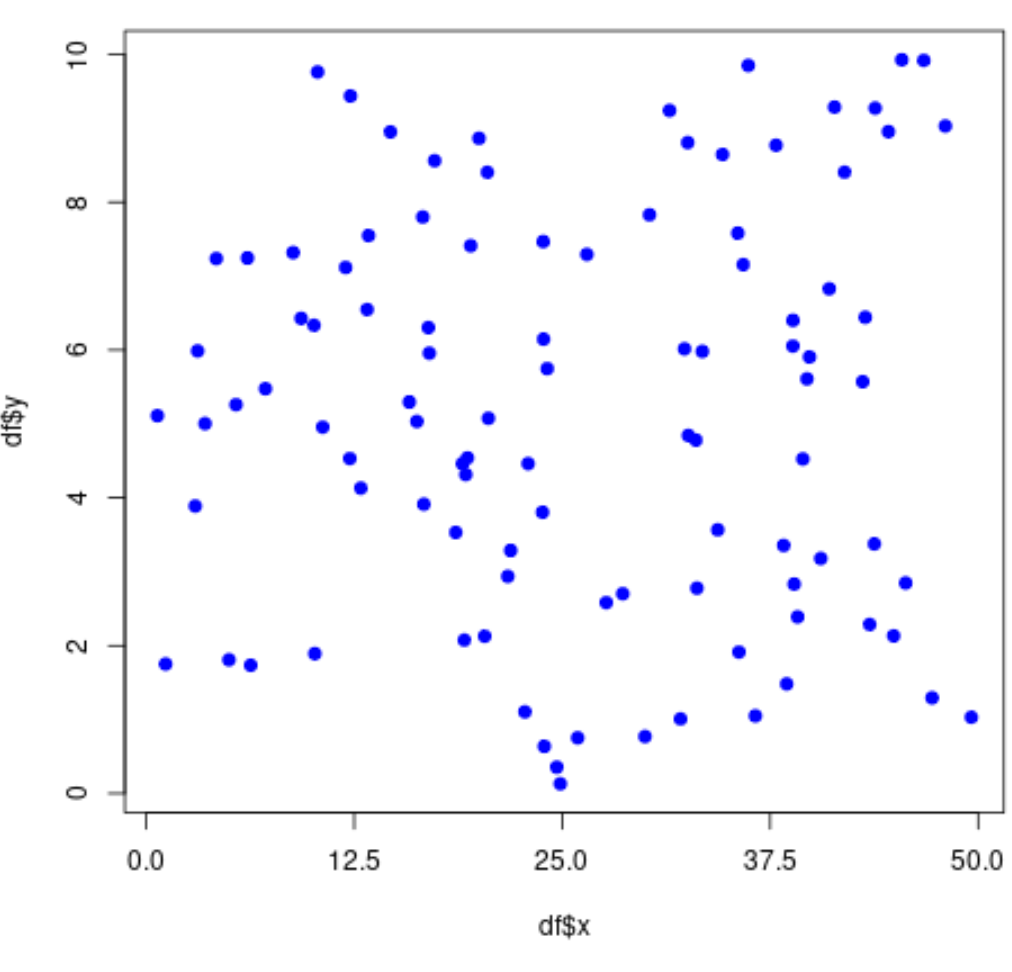

The execution of this modified command yields the following visualization, which definitively confirms the successful application and control provided by the xaxp() parameter. The distinct difference in the x-axis rendering is immediately noticeable when compared directly to the initial default plot.

The x-axis now clearly displays exactly five total tick marks, effectively demonstrating how the argument xaxp=c(0, 50, 4) successfully mandated the custom axis rendering. By setting the interval parameter n=4, we requested four divisions, which translated directly into five tick marks distributed uniformly along the specified range. This robust methodology grants the user complete and granular control over the axis resolution, enabling precise definition of the visual scale. We highly recommend that users freely adjust the value of n within the xaxp argument—increasing or decreasing it—to dynamically change the total number of tick marks and quickly identify the optimal, most readable spacing for any given dataset.

Expanding Control: Y-Axis Customization and Best Practices

While the xaxp() function provides detailed control over the x-axis scaling, it is important for comprehensive data visualization to recognize that a corresponding function, yaxp(), is available for customizing the y-axis. This related function utilizes the exact same structure and set of parameters (y1, y2, n). Employing both arguments simultaneously allows for comprehensive and symmetrical control over both axes of a standard two-dimensional plot, ensuring a cohesive presentation.

When implementing these vital axis customization techniques, analysts must always ensure that the range defined by x1 and x2 (or y1 and y2) adequately encompasses the entire span of the actual data points. Defining a range that is too narrow risks truncating valid data points from the visualization, while defining a range that is excessively wide might visually compress the scatter of observations, diminishing the perceived variance. Furthermore, choosing a value for n that results in major tick marks appearing at clearly labeled, round numerical intervals (e.g., intervals of 5, 10, or 25) consistently leads to a more professional, intuitively readable graph than relying on intervals based on arbitrary decimal numbers.

Mastering axis customization is an indispensable skill for any professional performing data analysis and visualization in R. The ability to move confidently beyond the default settings empowers the user to create visualizations that are not only statistically rigorous but also aesthetically refined, highly communicative, and tailored specifically to the analytical narrative being presented.
