XLOOKUP in VBA: A Comprehensive Tutorial for Data Retrieval

Integrating XLOOKUP into VBA for Advanced Data Retrieval

The XLOOKUP function represents a pivotal evolution in data lookup capabilities within Excel, offering a modern, superior, and far more adaptable alternative to older functions such as VLOOKUP and HLOOKUP. When this powerful function is seamlessly coupled with VBA (Visual Basic for Applications), it unlocks tremendous potential for developers and advanced users. This integration allows for the automation of highly complex data retrieval and validation tasks, effectively transforming static spreadsheets into robust, dynamic, and efficient computational applications. Harnessing this combination is fundamental for building reliable macros that can search across data ranges bidirectionally, manage missing values gracefully, and execute lookups based on highly flexible and conditional criteria.

The core advantage of embedding XLOOKUP directly within VBA code lies in the enhanced flexibility and simplified structure it provides compared to traditional programming methods. Unlike its predecessors, XLOOKUP eliminates the strict requirement for the lookup column to be to the left of the return column, thereby streamlining the overall code logic and drastically reducing the chances of structural errors during maintenance. Moreover, its native ability to specify a custom return value when no match is found (the if_not_found argument) eliminates the need for bulky external error-checking constructs like If IsError(VLOOKUP(...)), resulting in cleaner, faster, and significantly more reliable VBA solutions.

This comprehensive guide is meticulously structured to guide you through the exact mechanisms required for calling and precisely controlling the XLOOKUP function from the confines of your VBA projects. We will cover the essential syntax required for successful execution, provide clear, step-by-step practical examples utilizing common data scenarios, and explore advanced techniques aimed at optimizing macro performance and ensuring error resilience. Mastering the integration of XLOOKUP is an indispensable step for any professional looking to elevate their Excel automation skills to an expert level.

Implementing XLOOKUP using the WorksheetFunction Object

To successfully execute nearly any standard Excel worksheet function, including advanced ones like XLOOKUP, directly from VBA code, it is absolutely essential to utilize the WorksheetFunction object. This crucial object serves as the necessary bridge, effectively exposing the robust calculation engine of the main Excel application directly into your VBA environment. The fundamental structure for calling these functions involves referencing the desired function as a method of the WorksheetFunction object, while passing all required arguments, typically in the form of Range objects or standard values.

The standard syntax for executing a basic XLOOKUP operation within a macro is defined clearly below. This particular example is designed to retrieve a specific value based on a lookup key and then immediately place the resulting data into a designated cell on the currently active worksheet:

Sub Xlookup()
    Range("F2").Value = WorksheetFunction.Xlookup(Range("E2"), Range("A2:A11"), Range("C2:C11"))
End Sub

In this foundational block of code, the lines beginning with Sub and concluding with End Sub demarcate a standard VBA Sub procedure. The critical assignment statement, Range("F2").Value =, is what instructs the program to calculate the result of the lookup function and subsequently insert that resulting value into cell F2. The arguments passed to the XLOOKUP method are vital for defining the search parameters: Range("E2") designates the lookup_value (the specific item we are trying to locate); Range("A2:A11") specifies the lookup_array (the column where the search operation takes place); and finally, Range("C2:C11") represents the return_array (the column from which the corresponding result should be extracted). Developing a clear understanding of how to correctly map these Excel range references to the necessary function arguments is the essential first step toward automating complex data lookups efficiently.

Step-by-Step Practical Example: Automating Data Lookup

To effectively solidify your command over this powerful function, let us apply the XLOOKUP VBA syntax to a highly realistic, real-world dataset scenario. Consider a situation where you are managing basketball statistics, and you possess a table that meticulously details various team metrics, including their accumulated points and total assists. This data is structured within an Excel worksheet as shown in the visual aid below:

Our practical objective here is to develop a dynamic macro capable of rapidly searching for any specified team name and retrieving its corresponding count of assists. For this setup, we will designate cell E2 to function as the input field, holding the team name we wish to search for (our lookup_value). Cell F2 will then be the designated output location for the resulting assist count retrieved by the function.

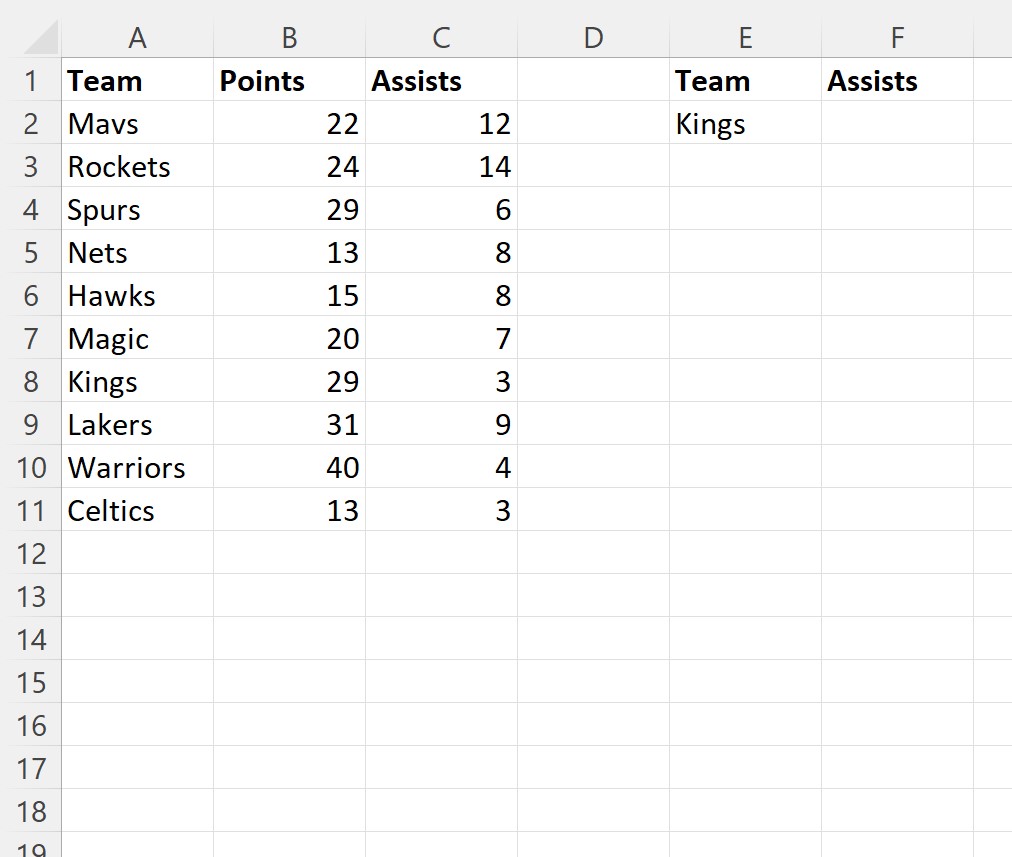

To achieve this specific data retrieval task, we will employ the identical VBA code block introduced previously, ensuring that the range references accurately reflect our dataset structure: Team names reside in A2:A11 (the lookup_array), and the assist counts are located in C2:C11 (the return_array). If we initialize the process by entering the team name “Kings” into cell E2, executing the macro will prompt the lookup operation and return the corresponding assist value into cell F2.

Sub Xlookup()
    Range("F2").Value = WorksheetFunction.Xlookup(Range("E2"), Range("A2:A11"), Range("C2:C11"))
End Sub

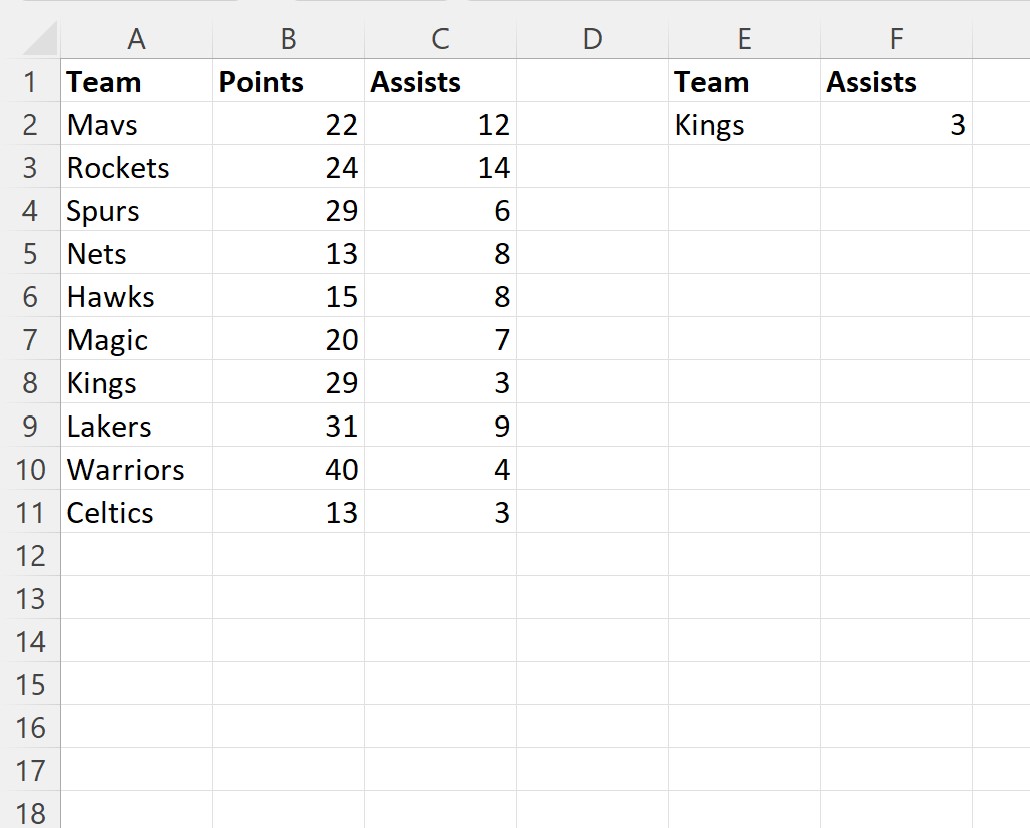

Upon the successful execution of this macro, the XLOOKUP function diligently searches for the value “Kings” within the defined team list range (A2:A11) and retrieves the corresponding value from the assists column (C2:C11), displaying the final result in cell F2. The following output image confirms that the data extraction was successful and accurate:

As clearly illustrated, the XLOOKUP function correctly located the “Kings” entry and returned the associated assist count of 3, thereby demonstrating the efficiency and reliability of calling core worksheet functions directly through the WorksheetFunction object within VBA.

Enhancing Automation with Dynamic Lookups and Error Handling

A primary motivation for integrating XLOOKUP within VBA is to introduce significant dynamism into your automated spreadsheet solutions. The Sub procedure we have constructed is inherently dynamic because the lookup key (the lookup_value) is sourced directly from cell E2. This architectural choice means the automation can be re-executed for any new team name entered into E2 without needing any manual modification to the underlying code. This makes the solution an ideal component for building interactive user dashboards or complex, automated report generation systems.

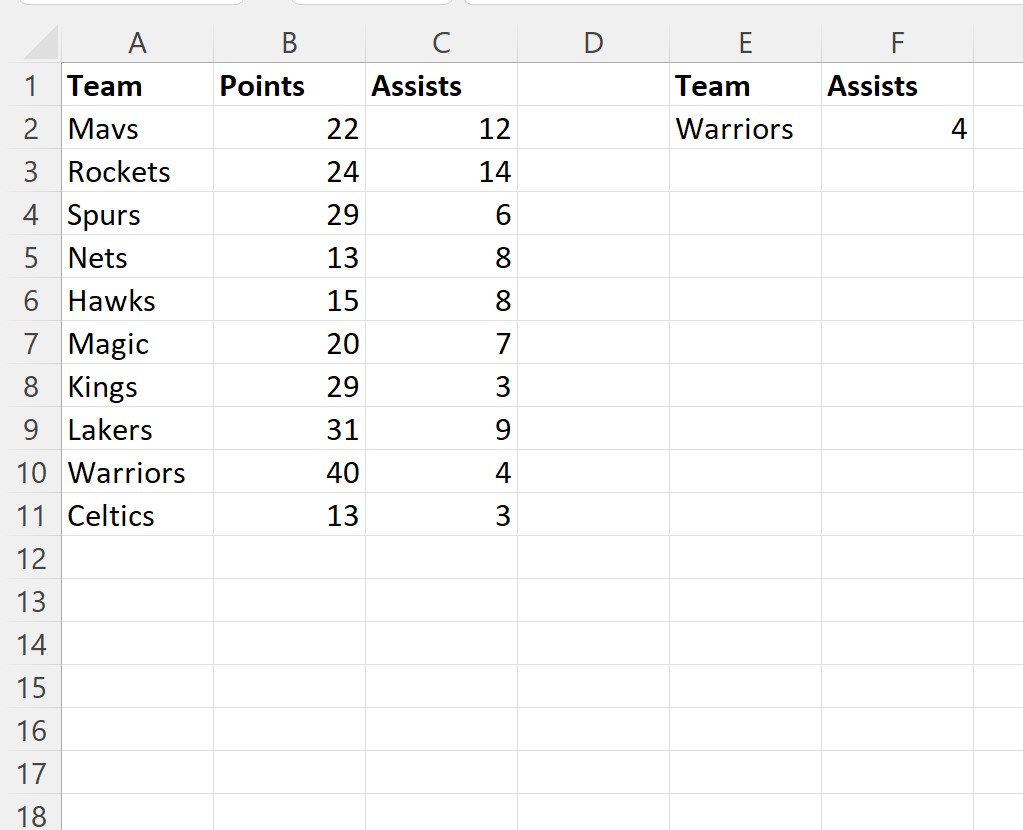

For example, if a user updates the team name in cell E2 from “Kings” to “Warriors” and then runs the exact same Sub procedure again, the result displayed in cell F2 will seamlessly and automatically update to reflect the newly retrieved data point from the lookup table. This capability for fluid adaptability is a defining characteristic of high-quality VBA automation.

As confirmed by the visual outcome, the operation successfully identified the “Warriors” and returned the corresponding value of 4 assists. Beyond this powerful dynamism, XLOOKUP provides a critical, built-in advantage over older functions: native error handling via the optional fourth argument, if_not_found. Historically, when performing lookups in VBA, if a match was not located, the code would typically trigger a runtime error, abruptly halting the execution of the macro. By explicitly defining the if_not_found argument, you gain the ability to manage these non-matches gracefully by specifying a predefined default return value, thereby preventing application failures.

To implement this robust error handling, we simply extend the argument list in our WorksheetFunction call. In the code below, we instruct the function to return the string “None” as the value to be displayed if the team name currently in E2 cannot be found within the designated lookup range:

Sub Xlookup()
    Range("F2").Value = WorksheetFunction.Xlookup(Range("E2"), Range("A2:A11"), Range("C2:C11"), "None")
End Sub

When using this modified code, if the user enters a non-existent team name, cell F2 will cleanly display “None” instead of interrupting the user experience with a runtime error. This simple, yet powerful, addition significantly enhances the robustness and user-friendliness of your VBA application. Developers can easily substitute the string “None” with a numerical zero, an empty string (""), or any other appropriate feedback mechanism suitable for the specific data context.

Advanced Control: Match Modes and Search Modes

Beyond the primary and error-handling arguments, XLOOKUP provides two exceptionally powerful optional arguments—match_mode and search_mode—that enable granular, high-level control over how the lookup is executed. Integrating these parameters into your VBA code permits the creation of highly tailored and performance-optimized data retrieval scenarios that far surpass the limited capabilities of traditional lookup functions.

The match_mode argument is used to dictate the precise type of match XLOOKUP should attempt. While the default numerical value of 0 mandates an exact match, other integer values unlock advanced approximate and pattern matching: specifying -1 finds an exact match or the next smaller item, 1 finds an exact match or the next larger item, and crucially, 2 enables powerful wildcard character matching (allowing the use of pattern symbols like * or ?). This degree of flexibility is highly valuable for processing fuzzy or imperfect data, or for accurately performing lookups within defined numerical threshold ranges.

Similarly, the search_mode argument meticulously controls both the direction and the methodology of the search. The default value of 1 executes a standard search, moving sequentially from the first item to the last. However, setting this argument to -1 forces a reverse search (moving from the last item to the first), a technique essential for retrieving the most recent or latest occurrence of a repeated value in a log or dataset. Furthermore, for managing extremely large, pre-sorted datasets, utilizing binary search options (2 for ascending order and -2 for descending order) can dramatically accelerate execution time, offering substantial performance gains for your VBA automation routines. When incorporating these arguments, they must be appended in order after the if_not_found parameter within the WorksheetFunction call.

Best Practices for Robust VBA Implementation

To guarantee that your VBA solutions remain maintainable, highly efficient, and consistently reliable, particularly those that incorporate complex functions like XLOOKUP, several key best practices must be rigorously applied. First and foremost, developers should adopt clear, descriptive, and functional naming conventions for their Sub procedures. Move away from vague, generic identifiers like Xlookup and utilize functional names such as RetrieveTeamAssists or CalculateInventoryPrice. This practice significantly enhances the immediate readability of the code and accelerates future troubleshooting efforts.

Additionally, it is highly recommended that developers prioritize the use of dedicated VBA variables to define and hold the Range objects required by XLOOKUP, rather than simply hardcoding range addresses directly into the function call. For instance, declaring Dim lookupSource As Range and setting it to the appropriate worksheet range makes the code much more resilient and easier to modify if column locations or sheet names change in the future. Always include comprehensive comments (using the apostrophe ') to explain the purpose of variables, document complex logical flows, and clearly map the XLOOKUP arguments, thereby substantially reducing the time and cognitive load needed for maintenance by other developers or by your future self.

In scenarios where the built-in if_not_found argument is insufficient to handle all potential runtime errors—such as instances where a referenced range cannot be found, a necessary object is not properly initialized, or data type mismatches occur—you must employ robust VBA error trapping mechanisms. Tools like On Error GoTo ErrorHandler or conditional checks utilizing the If IsError(...) function provide the means to gracefully manage critical failure points without causing the application to crash. Finally, for optimizing performance when working with very large datasets, consider adopting an array-based approach: read the entire lookup and return ranges into memory-based VBA arrays first, execute the data manipulation (including lookups) exclusively within memory, and only write the final, processed results back to the worksheet. This crucial technique minimizes the slow interaction with the Excel user interface, leading to significantly faster macro execution times.

Conclusion

Integrating the modern XLOOKUP function into your VBA code offers a substantial and necessary upgrade to automated data retrieval workflows in Excel. By developing a thorough understanding of how to correctly utilize the WorksheetFunction object, you can seamlessly access all of XLOOKUP’s sophisticated features, including its flexible argument structure, critical bidirectional searching capability, and native error handling via the if_not_found parameter.

The practical examples covered here clearly demonstrate the straightforward process of creating dynamic lookups that automatically adjust results based on real-time user input, thereby greatly enhancing the interactivity and usefulness of your automated spreadsheets. Furthermore, by competently employing the advanced optional arguments—match_mode and search_mode—you gain the power to precisely tailor search behavior for approximation, pattern matching, or dramatic performance gains on massive datasets. It is vital to remember that truly successful VBA development relies equally on robust code functionality and adherence to best practices; utilizing descriptive variable names, implementing thorough commenting, and ensuring efficient memory handling will guarantee that your macros remain reliable, scalable, and easy to maintain as your automation projects inevitably grow in complexity.

Further Learning and Resources

To continue developing your expertise in VBA and to maximize the potential of sophisticated, automated data processing routines, we recommend exploring the following advanced topics:

• Techniques dedicated to efficiently manipulating and transforming large datasets directly within the fast environment of VBA arrays.
• Advanced methods for working with worksheet Range objects, including concepts like dynamic range definition, resizing, and systematic iteration through cells.
• Detailed professional guides on debugging methodologies, comprehensive error handling (going well beyond the simple if_not_found argument), and optimizing overall VBA code performance for production environments.
• In-depth tutorials covering the effective use of other essential WorksheetFunction methods, such as SUMIFS, COUNTIFS, and the powerful INDEX/MATCH combination, within the integrated VBA environment.
