Learning VBA: A Tutorial on Controlling Excel Zoom Levels

Mastering the Excel View: Introducing VBA Zoom Functionality

The capacity to programmatically manage the user interface of Microsoft Excel constitutes a cornerstone of advanced automation offered by Visual Basic for Applications (VBA). A particularly impactful feature is the ability to control the visual zoom level. This functionality allows developers to precisely direct the user’s attention, guaranteeing that critical data or specific report areas are immediately visible upon file opening or after the execution of a complex procedure. Relying on manual adjustment of the zoom percentage is inefficient and prone to human error; conversely, utilizing a straightforward macro provides an elegant and effective solution for automating this essential presentation task.

Achieving granular control over the display magnification is managed primarily through the ActiveWindow object. This object is fundamental, as it represents the specific window currently visible to the user within the Excel application. By manipulating the .Zoom property associated with the ActiveWindow object, developers can dictate the exact scale at which the active worksheet is rendered. This capability proves indispensable in environments involving intricate workbooks, especially those housing substantial datasets, where distinct worksheets may necessitate varying initial viewing scales to ensure optimal data comprehension and navigability.

This comprehensive guide dissects three distinct yet complementary methodologies for defining the zoom level within Excel utilizing VBA. These techniques progress from applying a static, fixed magnification percentage to dynamically adjusting the viewpoint based on the user’s existing selection or a predefined cell Range. Proficiency in these methods grants developers significant power over the presentation layer, enabling the creation of highly refined and user-centric automated Excel solutions.

Technique 1: Implementing Fixed Percentage Zoom

The most direct and foundational approach to governing the worksheet view involves assigning a specific numerical constant to the ActiveWindow.Zoom property. This technique ensures that the worksheet is displayed at a precise, predetermined magnification level, irrespective of the user’s prior display settings or the characteristics of their screen resolution. The numerical value provided corresponds directly to the percentage magnification; for instance, setting the property value to 150 will result in the sheet being magnified by 150%.

When employing this fixed-percentage methodology, it is crucial to select a magnification percentage that is suitable for the target audience and the density of the content being displayed. Values exceeding 100% perform a zoom in operation, offering an enlarged, detailed perspective, whereas values below 100% execute a zoom out, facilitating a broader view of the data landscape. It is important to remember the operational boundaries of this property: Excel imposes a maximum permissible zoom value of 400% and a minimum of 10%.

The following fundamental macro provides a clear demonstration of how to configure the zoom level to a precise magnification of 150% for the currently active worksheet:

Sub ZoomToAmount()
ActiveWindow.Zoom = 150
End Sub

This single, powerful line of code, ActiveWindow.Zoom = 150, instantly executes the display adjustment. This approach is highly effective for enforcing view standardization across multiple users or maintaining visual consistency when generating and distributing automated reports. Remember this fundamental principle: a value greater than 100 causes the view to magnify (zoom in), and a value less than 100 causes the view to shrink (zoom out), providing flexible presentation control.

Technique 2: Dynamic Zoom Based on User Selection

While fixed percentages offer consistent viewing, there are many situations where the objective is to ensure that a specific, relevant portion of the data optimally fills the screen, regardless of its size or current magnification level. This requirement is perfectly met by employing dynamic zooming based on the current cell selection. This technique involves setting the ActiveWindow.Zoom property to the boolean value True immediately following the selection of a Range. Upon execution, Excel automatically calculates the ideal magnification required to display the entirety of the selected area within the confines of the active window boundary.

Implementing this dynamic method significantly enhances the user experience by eliminating the necessity for manual scrolling or resizing after a key data table or specific cell block has been highlighted. For example, if a user selects a compact table (e.g., A1:C5), the system may aggressively increase the zoom (perhaps to 250%) to maximize visibility. Conversely, selecting a vast area (e.g., A1:Z100) will likely result in a reduced magnification (e.g., 75%) to fit the entire range onto the screen. The calculation is performed automatically and optimally.

The code sequence below demonstrates how to utilize the Selection.Select method in conjunction with setting the ActiveWindow.Zoom property to True. Although a range is often already selected before such a macro is triggered, the inclusion of the Selection.Select line here clarifies the dependency on the selected area:

Sub ZoomToSelection()

Selection.Select
ActiveWindow.Zoom = True

End Sub

When this routine is executed, the ActiveWindow object analyzes the dimensional properties of the currently selected cells and intelligently adjusts the magnification level. This ensures that the selected data is perfectly framed, effectively maximizing the use of screen real estate and focusing the user’s attention precisely on the area of immediate operational relevance.

Technique 3: Programmatic Focusing on a Defined Range

The third technique offers a hybrid approach, combining the explicit control inherent in Method 1 with the dynamic sizing capabilities of Method 2. Rather than depending on whatever the user has currently highlighted, this method empowers the developer to hardcode a precise cell Range that must fill the entire screen view. This is essential for robust automation routines where the user’s focus must unfailingly land on a predetermined area, such as a summary dashboard, critical output cells, or standardized input fields.

To implement this, the routine must first utilize the Range() function to explicitly identify the target area, followed by invoking the .Select method to make that range the active selection. Once the target range is selected, we apply ActiveWindow.Zoom = True, mirroring the dynamic adjustment step from the previous method. The fundamental distinction lies in the deliberate, programmatic selection step, which removes any ambiguity regarding which cells will be optimally framed by the zoom function.

Consider an example where a key performance indicator (KPI) summary is consistently located within cells C1 through E5. We can author a VBA macro that reliably centers the view on this specific zone, regardless of the user’s current scrolling position within the sheet. In this illustration, the target range is explicitly defined as “C1:E5”.

Sub ZoomToRange()

Range("C1:E5").Select
ActiveWindow.Zoom = True

End Sub

This macro first designates the specific range C1:E5, ensuring it becomes the active selection, and then executes the dynamic zoom operation. The magnification level is instantly adjusted to optimally fit those three columns and five rows on the user’s screen. This systematic approach guarantees that designated output or input areas are always immediately and perfectly presented to the user upon the completion of the automation routine.

Practical Application: Demonstrating the Three Zoom Methods

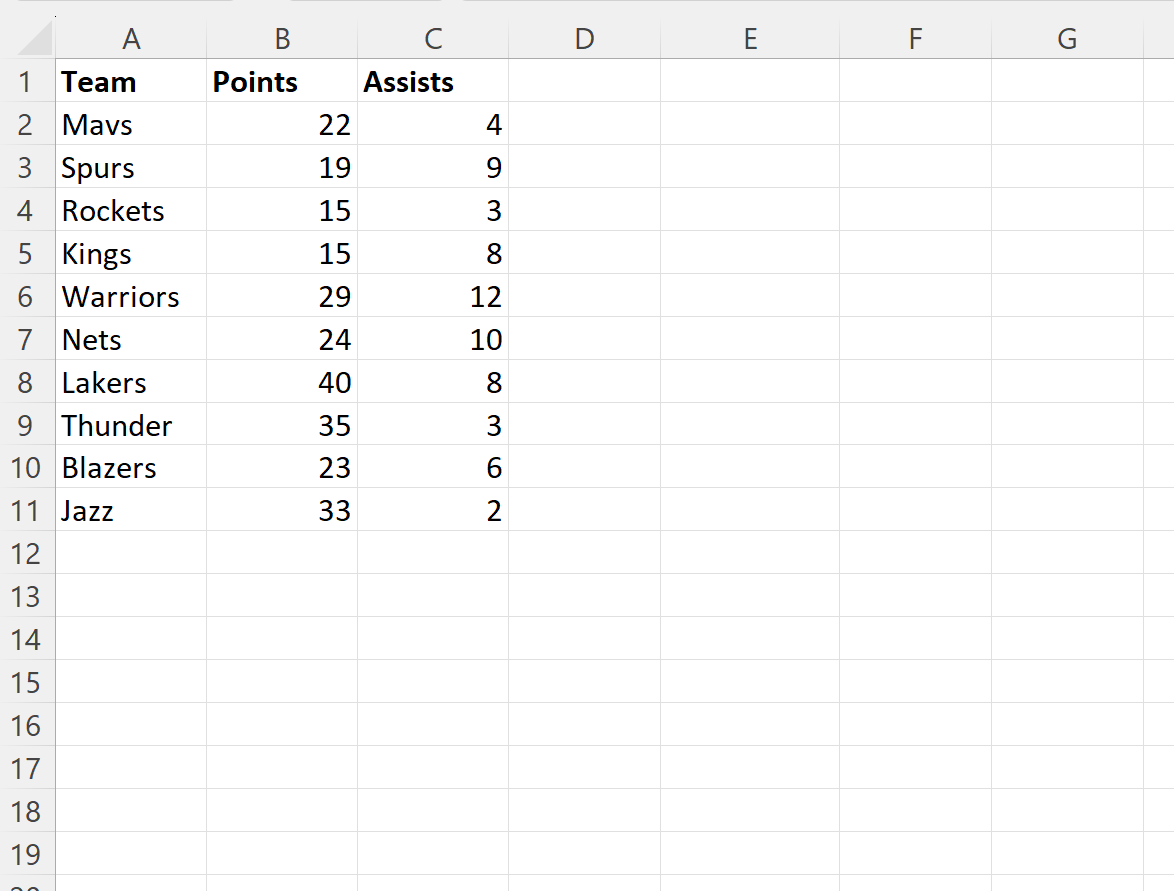

To fully visualize the impact and functional differences of these three powerful techniques, let us utilize a standard Excel sheet containing a structured dataset, such as basketball player statistics. Understanding how these VBA commands modify the display requires a clear visual reference. The initial default state of our example worksheet is presented below:

This initial configuration is typically set to a standard magnification, often 100%. We will now systematically apply each of the three defined methods to illustrate the resultant changes in the active window’s display. Grasping the subtle yet critical differences between these applications is the key to selecting the most appropriate zoom strategy for your specific automation requirements.

Example 1: Applying Fixed Zoom Percentage

If the project goal is to uniformly magnify the entire sheet by 50% beyond the standard view (i.e., setting it to 150%), we apply Technique 1. This use case is particularly valuable for end-users who possess smaller display monitors or for scenarios where the intent is to highlight the overall layout structure rather than requiring focused attention on individual cells. The following code snippet implements a fixed, absolute zoom of 150%:

Sub ZoomToAmount()
ActiveWindow.Zoom = 150
End Sub

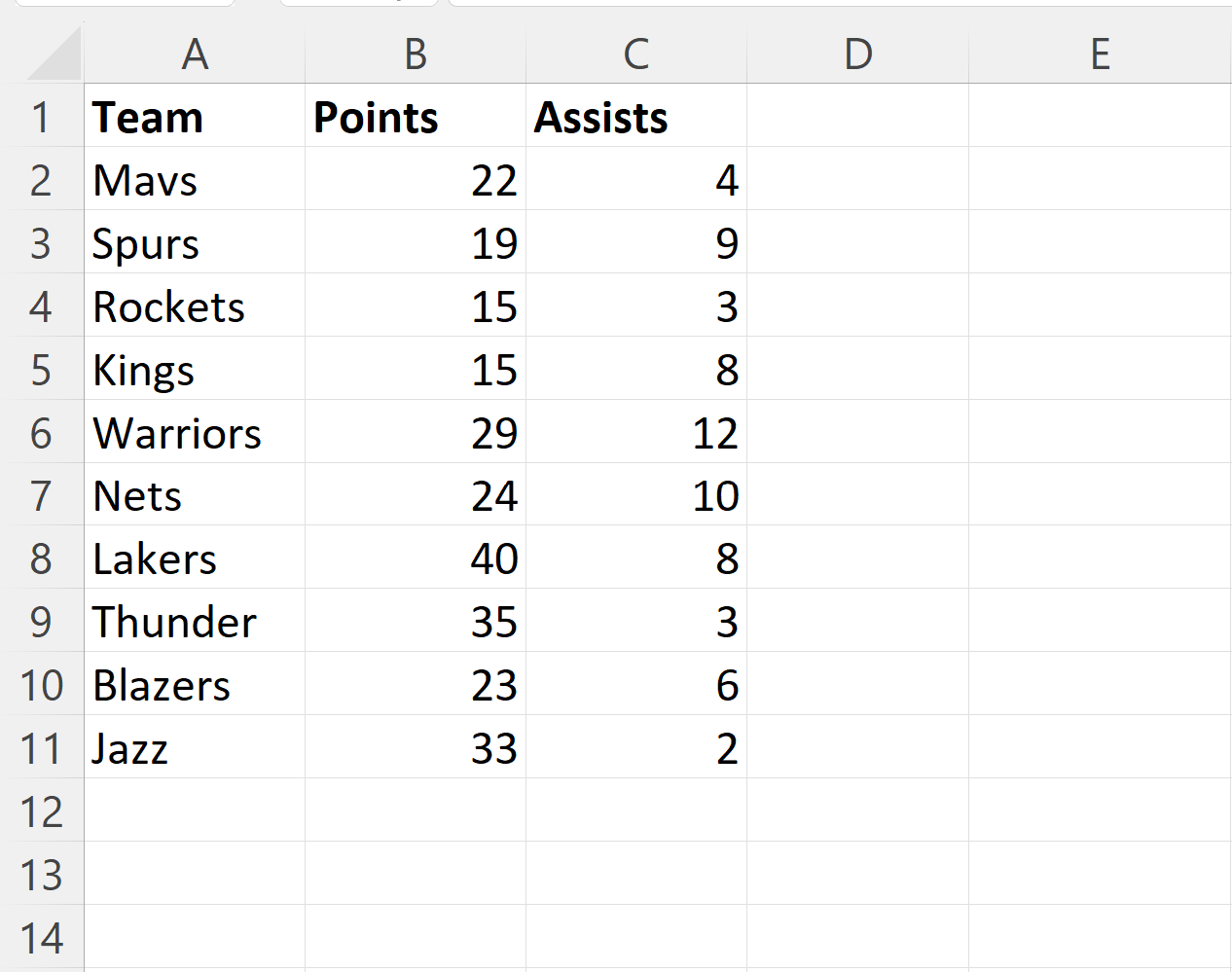

Upon the execution of the ZoomToAmount() procedure, the entire worksheet undergoes instantaneous magnification, causing the text and data points to appear larger and significantly more legible. It is important to observe that the visible area shrinks, but the level of detail within that visible frame is substantially enhanced. The resulting screen view, illustrating the clear effect of the 150% magnification, is shown below:

Conversely, if the value had been set to 75, the macro would zoom out, thereby displaying a greater number of rows and columns simultaneously, albeit at the cost of reduced text size. The inherent flexibility of setting a fixed integer value allows for highly precise control over the visual presentation, a defining characteristic of professionally engineered Excel workbook designs.

Example 2: Leveraging Dynamic Zoom Based on Current Selection

In complex scenarios where the user frequently interacts dynamically with the worksheet—for instance, selecting a specific subset of data for immediate review—the expectation is that the view will adapt seamlessly and automatically. Assuming a user has manually selected a particular block of player data, such as the range A7:C11, we can employ the following VBA code to ensure this selection fills the screen perfectly, maximizing visual impact:

Sub ZoomToSelection()

Selection.Select
ActiveWindow.Zoom = True

End Sub

Since the ActiveWindow.Zoom property is set to True, Excel performs an automatic calculation to determine the exact zoom level necessary to fit the entire boundaries of A7:C11 within the viewing area. The resulting display focuses exclusively on the selected rows and columns, effectively eliminating distracting peripheral data and ensuring that visibility of the key information is maximized.

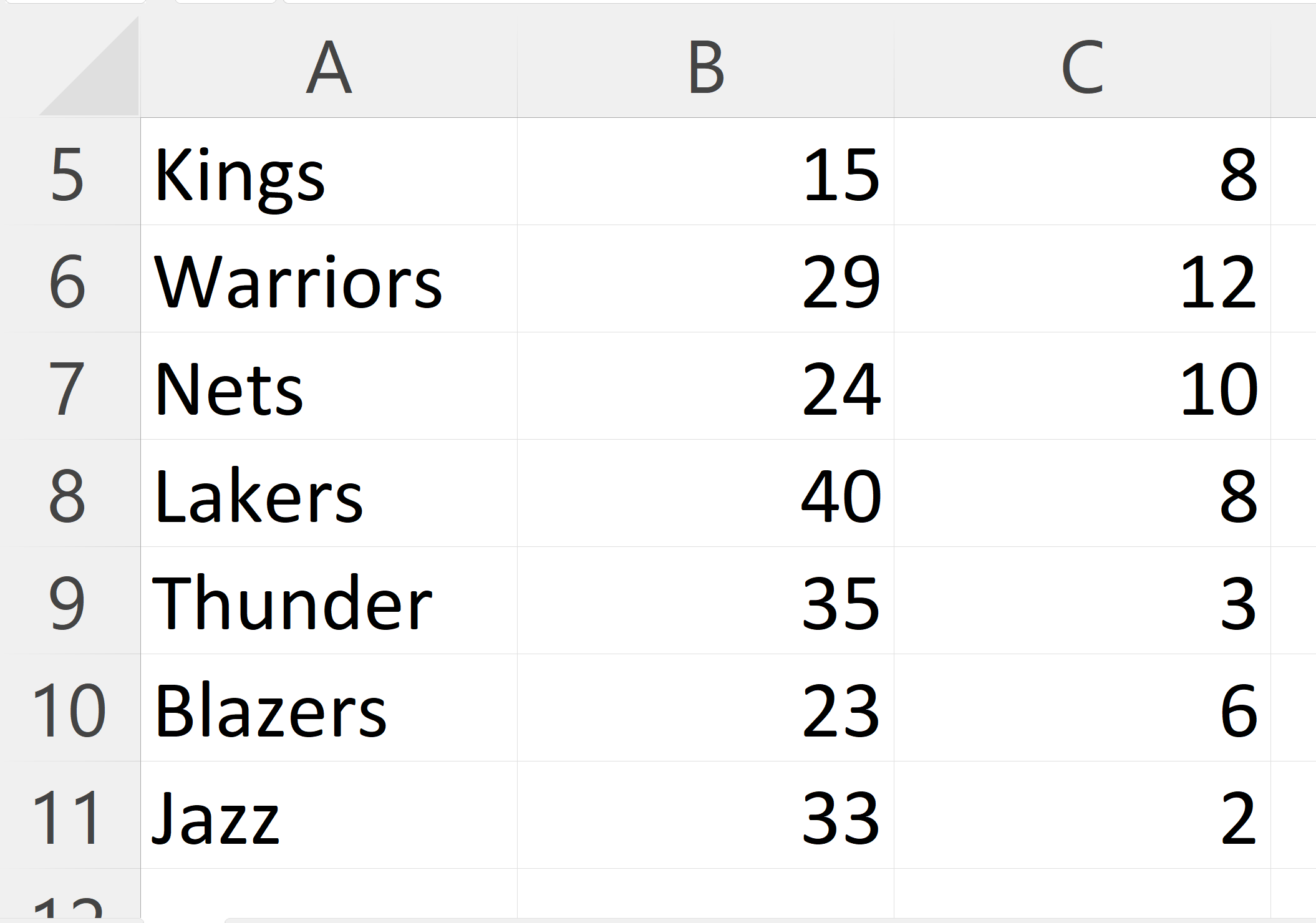

Following the execution of this macro, the sheet dynamically adjusts its magnification to optimally frame the selected range, as clearly demonstrated in the image provided below. Notice the effect: the rows and columns surrounding the selected area are pushed out of view, dedicating the entirety of the screen space to the targeted data.

Example 3: Forcing Programmatic Zoom to a Defined Range

Finally, consider the scenario where the vital data requiring focus is always situated in a fixed location, regardless of the user’s current interaction area. If the critical statistics summary is perpetually housed within the Range C1:E5, we can mandate that the view centers on this precise area using a combination of explicit selection and the dynamic zooming feature.

The following macro initiates the process by selecting the target range C1:E5 and subsequently activates the dynamic zoom functionality:

Sub ZoomToRange()

Range("C1:E5").Select
ActiveWindow.Zoom = True

End Sub

When the ZoomToRange() macro is executed, the window automatically adjusts its magnification to precisely encompass the defined range C1:E5, resulting in a display configuration similar to the image below. This specific method provides the highest degree of developer control over the presentation, making it the ideal choice for setting introductory screens in automated applications or for enabling quick navigation between disparate critical report sections.

By mastering these three distinctive approaches—setting a fixed percentage, adapting to the current selection, and explicitly targeting a defined range—developers can substantially elevate the usability, reliability, and professional polish of their VBA automation solutions within the Excel environment.

Expanding Your Expertise: Advanced VBA Resources

For professionals intent on expanding their foundational knowledge beyond the immediate scope of controlling display magnification, the domain of VBA automation presents a wealth of advanced techniques. A comprehensive understanding of how to manipulate other core components of the Excel Object Model—including worksheets, charts, and user forms—is absolutely essential for engineering robust and comprehensive business solutions.

We strongly encourage continued exploration through tutorials that detail the implementation of other common automation tasks in VBA. These tasks include advanced file manipulation, automated conditional formatting rules, and seamless interaction with external databases. Persistent practice and engagement with the intricacies of the Excel Object Model are the keys to unlocking the maximum potential of automation and developing highly customized applications.

• Worksheet Manipulation: Learning the programmatic techniques required to add, delete, conceal, and rename sheets dynamically within a workbook.

• Data Management and Organization: Automating complex sorting and data filtering tasks efficiently through advanced Range object methods and properties.

• Robust Error Handling: Implementing reliable error traps (e.g., On Error Resume Next or On Error GoTo Handler) to ensure macros execute smoothly and gracefully, even when encountering unforeseen data or environmental exceptions.

• Custom User Interface Development: Creating bespoke dialog boxes (User Forms) to gather necessary user input, provide feedback, and precisely control the execution flow of complex macro sequences.

These fundamental programming skills, when integrated effectively with the powerful presentation control offered by objects like the ActiveWindow, form the essential technical backbone for constructing truly advanced and scalable Excel automation platforms.
