Learning VBA: How to Apply Conditional Formatting to Excel Cells

The Power of Programmatic Conditional Formatting

Conditional Formatting is arguably one of the most powerful visualization tools available within Microsoft Excel. It allows users to automatically apply dynamic visual styles—such as background colors, font changes, or borders—to cells based on whether they meet specific, predefined criteria. While Excel’s standard interface provides easy setup for basic requirements, tackling large datasets or implementing highly complex, interdependent rules requires a more robust approach.

This is where VBA (Visual Basic for Applications) becomes essential. Utilizing VBA provides the developer or analyst with superior programmatic control over formatting rules, enabling the precise automation of dynamic logic that would be cumbersome or impossible to manage manually. This level of control ensures consistency, improves efficiency, and is critical when working with data models that evolve over time.

This expert guide outlines the fundamental methods for applying and managing complex Conditional Formatting rules using VBA. We will cover the core operations necessary for effective data visualization: applying rules based on a single condition, managing multiple comparative conditions simultaneously, and ensuring the complete, systematic removal of existing formats from a worksheet.

Foundation: Understanding the VBA Range and FormatConditions Objects

Before writing any code, it is crucial to understand the two primary objects involved in VBA-driven conditional formatting. Firstly, the target area is always defined by the Range object, which specifies the cells where the formatting rules will be evaluated and applied. Secondly, all conditional formatting rules associated with that range are managed through the FormatConditions collection. This collection acts as the container for all individual rules applied to the selection.

The most critical method associated with the FormatConditions collection is .Add, which is used to define and implement a new rule. Equally important is the .Delete method. As a best practice, it is highly recommended to execute the .Delete method before initiating any new rule application. Purging all prior rules prevents unintended cumulative effects or conflicts between old and new formatting, guaranteeing a clean slate for your visualization.

Method 1: Applying Formatting Based on a Single Numeric Criterion

The most direct application of conditional formatting involves defining a single rule that, upon satisfaction, triggers a specific format change. This is achieved by accessing the FormatConditions collection of the targeted Range and calling the .Add method. The .Add method requires several parameters to define the logic, specifically the comparison type (e.g., xlCellValue for comparing cell contents) and the operator (e.g., xlGreater, xlEqual, etc.).

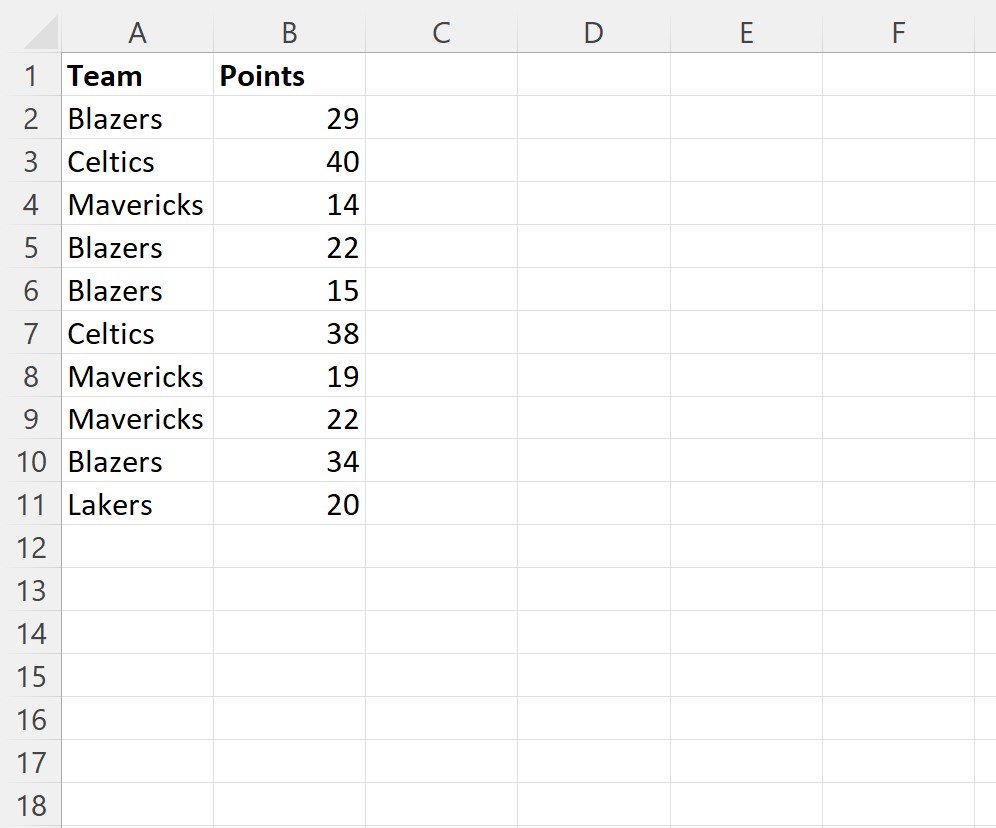

Consider the requirement to visually identify all sales figures in a dataset that exceed a threshold of 30. The objective is to highlight these high-value entries automatically. The following sample dataset illustrates the data we will be working with:

The Sub procedure, ConditionalFormatOne, below demonstrates this process. It first defines the target range as B2:B11, clears any existing formats, and then sets a new rule to apply a green interior color, black font, and bold text style to any cell value greater than 30. Notice how the new rule is captured in a FormatCondition object, allowing us to manipulate its formatting properties using the With statement.

Sub ConditionalFormatOne()
Dim rg As Range
Dim cond As FormatCondition

'specify range to apply conditional formatting
Set rg = Range("B2:B11")

'clear any existing conditional formatting
rg.FormatConditions.Delete

'apply conditional formatting to any cell in range B2:B11 with value greater than 30
Set cond = rg.FormatConditions.Add(xlCellValue, xlGreater, "=30")

'define conditional formatting to use
With cond
.Interior.Color = vbGreen
.Font.Color = vbBlack
.Font.Bold = True
End With

End Sub

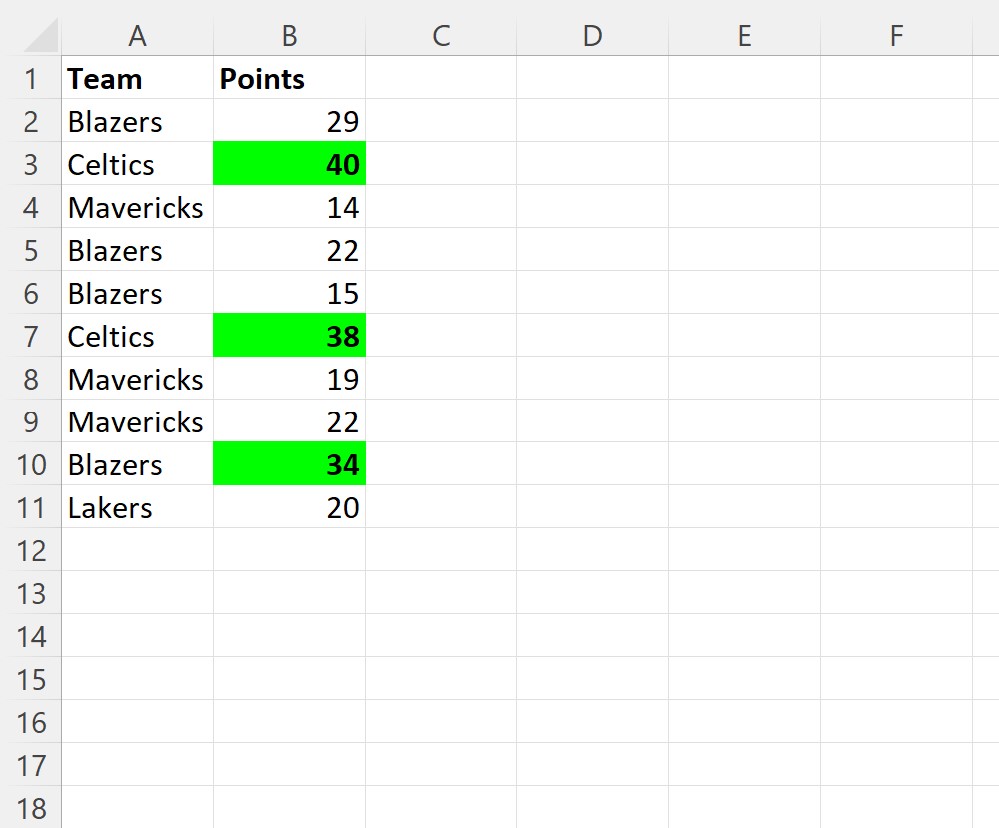

Upon execution, the macro yields the expected result: only the sales figures that strictly meet the condition (greater than 30) have the new format applied. This validates the precise control provided by the FormatCondition object and confirms that values equal to or less than 30 remain unaffected, maintaining data clarity.

Method 2: Managing Multiple Rules for Textual Data

In real-world data analysis, visualization often demands applying unique formats based on multiple distinct criteria, especially when categorizing textual or qualitative data. VBA efficiently handles this complexity by allowing the creation and management of several independent rules within the same target range. Each distinct rule is defined by its own FormatCondition object.

To manage these independent rules effectively, it is necessary to declare separate variables—such as cond1, cond2, and cond3—to hold and manipulate the formatting properties for each specific criterion. This separation ensures that changing the style for one rule does not inadvertently affect the others.

In the subsequent example, we define three separate rules for the team names located in the Range A2:A11. We utilize the xlEqual operator to ensure exact matches for the text strings “Mavericks”, “Blazers”, and “Celtics”, assigning a unique color and font treatment to each. This showcases how VBA can segment and highlight categorical data based on precise string matching.

Sub ConditionalFormatMultiple()
Dim rg As Range
Dim cond1 As FormatCondition, cond2 As FormatCondition, cond3 As FormatCondition

'specify range to apply conditional formatting
Set rg = Range("A2:A11")

'clear any existing conditional formatting
rg.FormatConditions.Delete

'specify rules for conditional formatting
Set cond1 = rg.FormatConditions.Add(xlCellValue, xlEqual, "Mavericks")
Set cond2 = rg.FormatConditions.Add(xlCellValue, xlEqual, "Blazers")
Set cond3 = rg.FormatConditions.Add(xlCellValue, xlEqual, "Celtics")

'define conditional formatting to use
With cond1
.Interior.Color = vbBlue
.Font.Color = vbWhite
.Font.Italic = True
End With

With cond2
.Interior.Color = vbRed
.Font.Color = vbWhite
.Font.Bold = True
End With

With cond3
.Interior.Color = vbGreen
.Font.Color = vbBlack
End With

End Sub

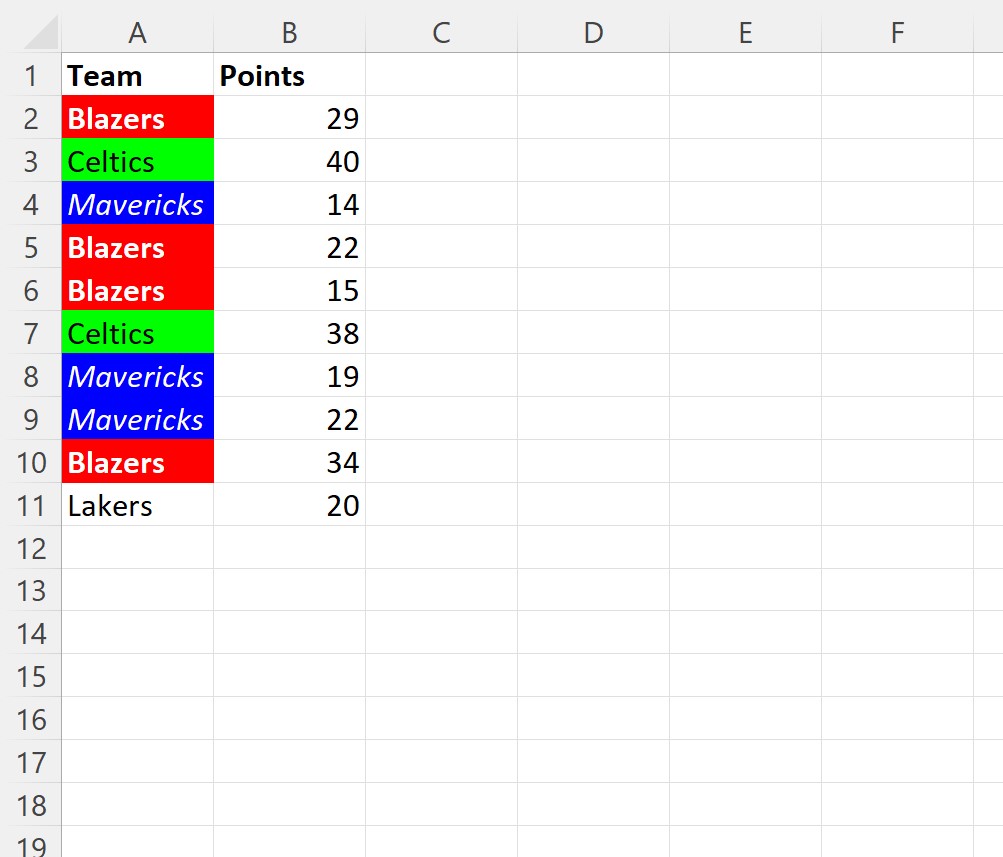

Running the ConditionalFormatMultiple macro results in a highly differentiated visualization. Cells containing “Mavericks” receive a blue background, “Blazers” a red background, and “Celtics” a green background, each with unique font styling. This example clearly demonstrates that the rule sets are applied exclusively based on the predefined textual criteria. It is important to observe that any team name not explicitly included in the rules (such as “Lakers” in this dataset) receives no formatting whatsoever.

Method 3: Essential Cleanup and Removal of All Conditional Formatting Rules

The third essential task in managing conditional formatting involves the ability to quickly and completely remove all rules from a specified worksheet or range. This cleanup process is crucial for maintaining data integrity, ensuring that residual formatting does not mislead users, and preparing a worksheet for new analysis or external distribution.

Manually deleting rules from large sheets is impractical. Fortunately, VBA dramatically simplifies this operation, allowing the removal of potentially hundreds of complex rules with a single line of code directed at the FormatConditions collection. By targeting the entire sheet, we can guarantee a comprehensive reset of the visual state.

The macro RemoveConditionalFormatting targets the entire ActiveSheet and applies the .FormatConditions.Delete method to all cells within it. This straightforward command serves as the most efficient and robust way to reset the visual state, ensuring no inherited or residual formatting rules remain active anywhere on the sheet.

Sub RemoveConditionalFormatting()
ActiveSheet.Cells.FormatConditions.Delete
End Sub

Upon executing this Sub procedure, the sheet successfully reverts to its original, unformatted state, as shown below. All conditional formatting applied in the previous examples—regardless of complexity or quantity—is successfully stripped away, demonstrating the efficacy of the .Delete method in achieving a clean slate for subsequent data presentation or analysis.

Summary and Advanced Automation Techniques

The three methods detailed here form the foundational toolkit for managing Conditional Formatting programmatically within VBA. By mastering the use of the FormatConditions.Add method for implementation and the .Delete method for cleanup, developers can automate complex data visualization tasks that extend far beyond the limitations of standard manual Excel functionality.

Advanced techniques often involve iterating through sheets or workbooks, dynamically calculating thresholds before applying rules, or linking conditional formatting parameters to user-defined settings stored in configuration cells. These foundational concepts are indispensable stepping stones toward full Excel automation.

For those looking to expand their skills, the following list outlines related automation topics that build upon the principles demonstrated in this guide:

• Using the Formula1 parameter to apply rules based on external cell values.
• Implementing dynamic rules that change based on variable input.
• Applying conditional formatting across non-contiguous ranges.
• Automating the creation of data bars, color scales, and icon sets.
