Automating Duplicate Value Highlighting in Excel with VBA: A Step-by-Step Tutorial

In the dynamic world of data analysis and management, maintaining absolute data quality and swiftly identifying anomalies are fundamental requirements. One of the most frequently encountered challenges is locating and highlighting redundant entries, or duplicate values, buried within massive datasets. While Microsoft Excel offers standard, user-friendly features for this identification process, leveraging VBA (Visual Basic for Applications) provides a far superior, highly robust, and remarkably scalable solution. This level of automation is essential for organizations that handle recurring data audits or manage large spreadsheets that are frequently updated, ensuring integrity is maintained without constant manual oversight.

This comprehensive guide is designed to demonstrate precisely how to harness the extensive power of VBA to programmatically apply conditional formatting, focusing specifically on highlighting duplicate entries within any designated cell range. By scripting this crucial process, analysts can dramatically enhance data visibility, preserve data integrity, and significantly mitigate the potential for manual errors that are inherently linked to repetitive formatting actions. We begin our exploration by analyzing the foundational code structure required to execute this powerful data auditing task effectively.

The Core VBA Syntax for Programmatic Duplicate Identification

To successfully achieve programmatic conditional formatting within Excel, it is necessary to interact with two key components of the VBA Object Model: the FormatConditions Collection and the specialized UniqueValues Object. These objects allow developers to define complex visual rules without relying on the user interface. The following code snippet provides the exact foundation for identifying and stylizing duplicate data points across a chosen area. Crucially, this structure mandates that any existing formatting rules are cleared first, which guarantees a clean and conflict-free application of the new rule defined by the VBA script.

Sub ConditionalFormatDuplicates()

Dim rg As Range
Dim uv As UniqueValues

' Specify the range where conditional formatting will be applied
Set rg = Range("A2:A11")

' Clear any existing conditional formatting rules from the specified range
rg.FormatConditions.Delete

' Add a new conditional formatting rule to identify duplicate values
Set uv = rg.FormatConditions.AddUniqueValues
uv.DupeUnique = xlDuplicate

' Apply the desired visual styling to the identified duplicate values
uv.Interior.Color = vbBlue
uv.Font.Color = vbWhite
uv.Font.Bold = True

End Sub

This powerful macro is specifically configured to apply a distinct visual styling—a highly visible bold, white font set against a striking blue background—to every instance of a duplicate value discovered within the designated range A2:A11 of the currently active worksheet. Gaining a deep understanding of the role played by each line within this syntax is fundamentally crucial for successful adaptation, enabling developers to easily extend this solution to complex, multi-column data validation or sophisticated auditing procedures.

Dissecting the VBA Code for Precision Formatting

A comprehensive, line-by-line understanding of the components contained within the VBA script is absolutely essential for effective customization, maintenance, and troubleshooting. The provided code relies on manipulating specific object models within the Excel library to control the worksheet’s visualization properties. Below is a detailed breakdown of the functional segments:

• Sub ConditionalFormatDuplicates(): This is the standard procedure declaration, which formally initiates the subroutine and names the macro “ConditionalFormatDuplicates.” All subsequent instructions will be executed sequentially until the corresponding End Sub statement is reached.

• Variable Declarations (Dim Statements): Two critical variables are explicitly declared for type safety and clarity. The variable rg is defined as a Range object, representing the collection of cells targeted for formatting. The variable uv is declared as a UniqueValues object, which is the specific rule object used to manage conditional formatting based on the criteria of uniqueness or duplication.

• Targeting the Range (Set rg = Range("A2:A11")): This line utilizes the mandatory Set keyword to assign the reference of the cells from A2 through A11 to the object variable rg. Modifying the string literal within the parentheses is the primary and most straightforward method for adapting this code to target alternative data locations.

• Clearing Previous Rules (rg.FormatConditions.Delete): Before implementing any new rules, this command invokes the Delete method on the FormatConditions Collection belonging to the target range. This essential step ensures that the worksheet is clean and that the new conditional formatting rules are applied without interference from legacy or conflicting visual rules.

• Adding the Rule (Set uv = rg.FormatConditions.AddUniqueValues): This method executes the creation of a new UniqueValues rule object within the cell range and immediately assigns the reference to the uv variable. This object then serves as the container for all subsequent visual and criteria settings.

• Defining Duplication Criteria (uv.DupeUnique = xlDuplicate): This is arguably the most crucial line for achieving our objective. The DupeUnique property dictates whether the rule should target unique values or, conversely, duplicate values. Setting it to the constant xlDuplicate instructs the formatting engine to highlight only those cells that possess exact matches elsewhere within the defined range.

• Styling Properties: The final three lines of code configure the visual presentation of the identified cells. uv.Interior.Color controls the fill color of the cell, uv.Font.Color manages the color of the text, and uv.Font.Bold applies the bold typeface attribute. Standard VBA constants, such as vbBlue and vbWhite, are employed here for maximum simplicity and readability.

Practical Step-by-Step Example of Implementation

To solidify the theoretical understanding of the code, let us walk through a practical, real-world scenario. Imagine you have recently imported a long list of team names into Excel, and your immediate task is to rapidly audit this list for any accidental repetitions that could compromise data integrity. Utilizing the VBA macro ensures that this audit is executed instantaneously and remains infinitely repeatable across different datasets.

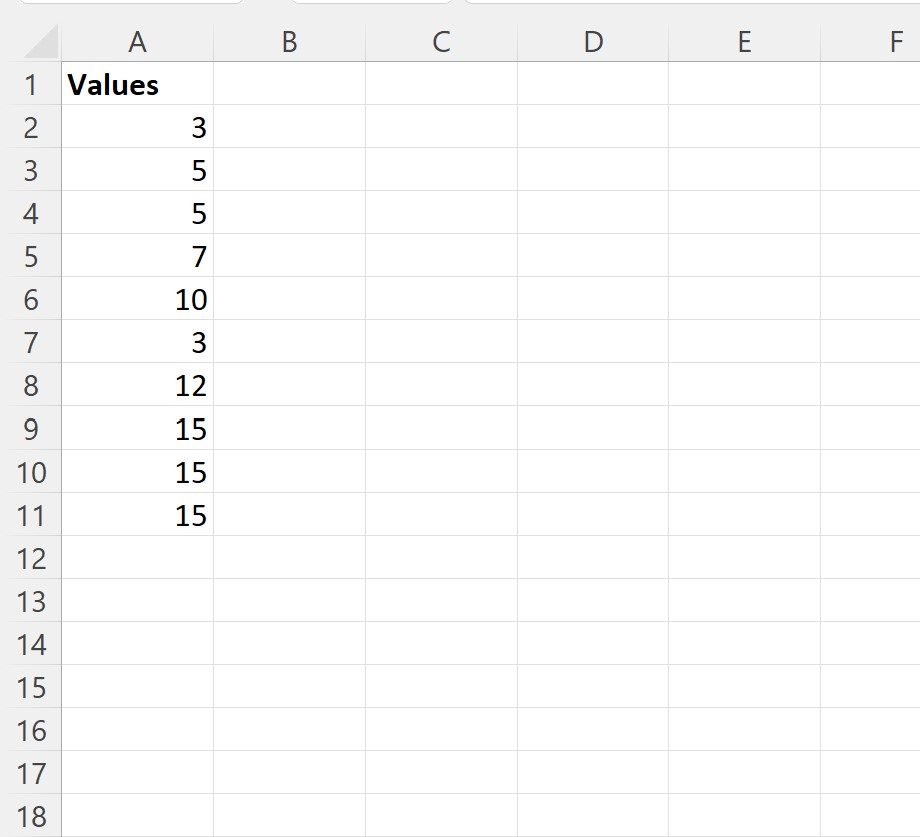

Consider the following raw dataset, which is currently located in column A of your worksheet. Note the presence of several repeated entries:

Our objective is to apply a visually impactful set of conditional formatting rules to every cell that contains a duplicate entry within the specific range A2:A11. The required visual format is designed for maximum contrast: a Blue background (vbBlue), complemented by White text (vbWhite) that is also bolded for maximum data visibility and immediate recognition.

By executing the ConditionalFormatDuplicates macro (the code for which is conveniently displayed below for simple reference) after pasting it into a standard module within the VBA editor, the automation is applied immediately, radically transforming the data visualization and flagging errors:

Sub ConditionalFormatDuplicates()

Dim rg As Range
Dim uv As UniqueValues

'specify range to apply conditional formatting
Set rg = Range("A2:A11")

'clear any existing conditional formatting
rg.FormatConditions.Delete

'identify duplicate values in range A2:A11
Set uv = rg.FormatConditions.AddUniqueValues
uv.DupeUnique = xlDuplicate

'apply conditional formatting to duplicate values
uv.Interior.Color = vbBlue
uv.Font.Color = vbWhite
uv.Font.Bold = True

End Sub

The successful result of running this script is the instantaneous application of the defined visual rules to all duplicate cells, as clearly demonstrated in the output image below. Entries containing “Mavs,” “Hawks,” and “Spurs” are instantly recognizable due to the high-contrast format, thereby achieving our critical data auditing goal with maximum efficiency and minimal effort.

Customizing Range and Visual Formatting Rules

One of the principal and most compelling advantages of leveraging VBA for managing conditional formatting is the ease and flexibility with which rules can be modified, extended, and adapted. The code provided in the previous sections should be viewed as a foundational template, which can be dynamically adjusted to fit virtually any complex data structure or specific aesthetic requirement.

If your dataset resides outside the default A2:A11 range, modifying the target area is straightforward and involves only one line of code adjustment. To target a new area, such as B5 through B100, you only need to adjust the range assignment line: Set rg = Range("B5:B100"). Furthermore, if the requirement is to apply this rule across different worksheets within the same workbook, you must qualify the range selection by explicitly specifying the sheet name. For instance: Set rg = Worksheets("DataInput").Range("A1:C50"). This built-in flexibility ensures that the macro remains relevant and functional regardless of changes in data location or sheet structure.

Beyond the selection range, the visual styling properties offer extensive customization options far beyond simple constants. While we employed basic constants like vbBlue and vbWhite for clarity, you can achieve precise branding or detailed color coding using the powerful RGB function. For example, to set a custom, specific shade of red for the background, the line would be modified to: uv.Interior.Color = RGB(255, 102, 102). Additionally, analysts can manipulate other font attributes such as uv.Font.Italic = True or uv.Font.Underline = True. By experimenting with these various properties, developers can create highly differentiated and exceptionally effective visual cues for various types of data errors or complex anomalies.

Clearing Existing Conditional Formatting with Automation

In the context of robust, automated data workflows, the ability to cleanly and instantly remove existing formatting rules is often just as critically important as the ability to apply new ones. Manually deleting conditional formatting from vast or complex areas of a spreadsheet is frequently tedious and highly susceptible to human error. VBA simplifies this necessary process, allowing you to instantly reset the visual state of the entire worksheet or a specified area.

The following concise macro efficiently removes all conditional formatting rules from every single cell within the currently ActiveSheet:

Sub RemoveConditionalFormatting()
ActiveSheet.Cells.FormatConditions.Delete
End Sub

When the RemoveConditionalFormatting macro is executed, the entire sheet immediately reverts to its default, unformatted appearance. This crucial action effectively prepares the data for new analysis or presentation purposes without any lingering visual distractions from previous formatting rules. This cleaning function is particularly invaluable when conditional formatting is applied temporarily for internal auditing purposes, or when preparing a final, client-facing report where the visual emphasis on duplicate data is no longer necessary.

Conclusion: Elevating Data Auditing with VBA Best Practices

The ability to programmatically apply and meticulously manage conditional formatting rules through the use of VBA represents a significant and modern leap forward in professional Excel data analysis workflows. This automated approach delivers enhanced consistency, unparalleled automation, and precise control over visual cues, making the identification of duplicate values—a common and frustrating source of data error—effortless and immediate.

To maximize the operational value and long-term maintainability of your macros, it is highly recommended that you adhere strictly to these established best practices:

• Pre-Cleaning Protocol: Always include the FormatConditions.Delete method immediately prior to applying any new rule. This essential step prevents rule stacking, which can often lead to unnecessary performance degradation and confusing, difficult-to-interpret visual outcomes.

• Dynamic Range Selection: For datasets that are expected to fluctuate significantly in size (either growing or shrinking), always prioritize the use of dynamic range definitions (for example, utilizing CurrentRegion or scripting to identify the last active row/column) instead of relying on static range definitions such as the rigid “A2:A11.”

• Thorough Commentary: Utilize descriptive code comments (lines beginning with `’` or `' in the code snippets) to thoroughly explain the purpose of complex or non-obvious lines, specific constants, or key decision points. This ensures that the code remains easily understood and maintained, whether by a colleague or by your future self.

By effectively integrating these powerful VBA techniques into your daily routines, you can move decisively beyond tedious manual spreadsheet manipulation and embrace a modern, professional, and fully automated workflow, thereby allowing you to focus your attention on critical data interpretation rather than repetitive formatting tasks. This level of automation is truly an indispensable tool for anyone committed to high-quality, professional data management within Excel.
