A Comprehensive Guide to Parsing Data with VBA’s TextToColumns Method in Excel

Automating Data Structure: An Essential Guide to VBA’s TextToColumns Method

In the demanding environment of modern data analysis and manipulation within Microsoft Excel, the ability to rapidly and accurately parse large, consolidated text strings is absolutely critical. It is exceedingly common for raw data imports to arrive in a single column, despite containing multiple distinct fields of information often separated by various delimiters such as commas or spaces. Manually attempting to segment this data, particularly across massive datasets, is not only prohibitively time-consuming but also introduces significant potential for human error and inconsistency. This is precisely where VBA (Visual Basic for Applications) provides immense utility, offering robust and reliable automation capabilities for these necessary, repetitive data transformation tasks.

The fundamental tool available in the VBA library designed specifically for this structural reorganization is the Range.TextToColumns method. This powerful feature is engineered to convert text residing within a specified range of cells into discrete columns, relying on either defined delimiters or fixed character widths. It perfectly mirrors the functionality of Excel’s built-in “Text to Columns” wizard, yet offers the crucial advantage of programmatic control. This makes it an indispensable component for automating repetitive macro procedures and essential steps within any rigorous data cleansing workflow.

This detailed guide is crafted to provide a practical, step-by-step walkthrough, demonstrating the effective application of the TextToColumns method across several diverse, real-world data scenarios. We will thoroughly examine the mechanics of implementing various separators, understanding how to manage text qualifiers, and mastering the critical arguments required to guarantee precise and accurate data parsing. By the conclusion of this tutorial, you will possess the requisite technical proficiency to leverage this essential VBA feature, thereby significantly streamlining your data preparation and overall processing workflows, leading to heightened efficiency and accuracy.

Understanding the Syntax and Core Arguments of the TextToColumns Method

The TextToColumns method is structurally a member of the Range object, meaning its execution scope is always focused directly on a user-specified collection of cells within a worksheet. Its underlying syntax is highly comprehensive, enabling it to accommodate a vast spectrum of data parsing requirements and complex configurations. The complete basic syntax structure is formally defined as: expression.TextToColumns(Destination, DataType, TextQualifier, ConsecutiveDelimiter, Tab, Semicolon, Comma, Space, Other, OtherChar, FieldInfo, DecimalSeparator, ThousandsSeparator, TrailingMinusNumbers).

Although the method offers numerous arguments, several are profoundly important for achieving standard data splitting objectives effectively. The Destination argument, though technically optional, is strongly recommended for defining the precise starting cell where the newly parsed data should be placed. If this critical argument is inadvertently omitted, the resulting output will overwrite the original source data range, potentially leading to irreversible data loss. The DataType argument determines the parsing technique—specifying whether the operation should use fixed width partitioning or the more common separator-based splitting. For all practical examples demonstrated in this guide, we will utilize separator-based parsing, which is identified by the constant xlDelimited.

The primary Boolean arguments that dictate how the text is partitioned include Tab, Semicolon, Comma, and Space, which must be set to either True or False to identify which characters should function as delimiters. For handling unique or custom separators, the Other argument must be set to True, and the specific non-standard character must be provided through the OtherChar argument. Furthermore, the ConsecutiveDelimiter argument, when activated (set to True), instructs VBA to interpret any sequence of two or more separators as a single unit. This is a vital feature for preventing the unintentional creation of empty, superfluous columns in the parsed output. A thorough command of these specific arguments is fundamental for the effective and reliable utilization of this powerful method.

Practical Implementation 1: Splitting Data Using the Space Separator

A very common data preparation requirement involves separating complex text structures, such as full names or descriptive phrases, where the individual components are clearly delineated by spaces. Consider a typical scenario within Microsoft Excel where a list of names is entirely contained within a single column, specifically targeting the Range A1:A9. Our primary objective is to efficiently parse these composite entries into separate columns dedicated to the first name, middle name (if applicable), and last name.

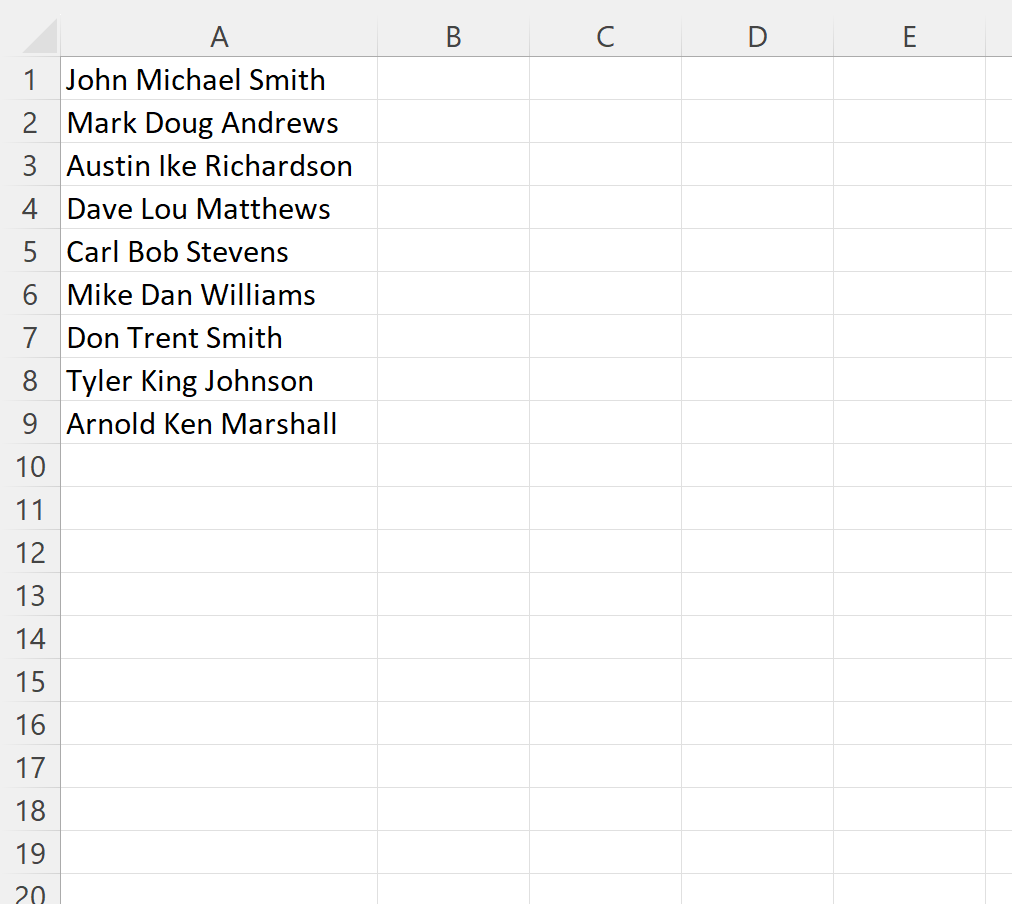

The following visual representation illustrates the initial organization of our consolidated dataset before the parsing operation:

To execute this separation programmatically, we develop a concise VBA macro meticulously designed to target the specified range and explicitly define the space character as the necessary separator. Crucially, the ConsecutiveDelimiter argument must be set to True. This setting guarantees that any surplus or multiple spaces found between names are correctly treated as a single boundary marker, which prevents the undesirable generation of blank columns in the final result.

Sub TextToCols()
    Range("A1:A9").TextToColumns _
    ConsecutiveDelimiter:=True, _
    Space:=True
End Sub

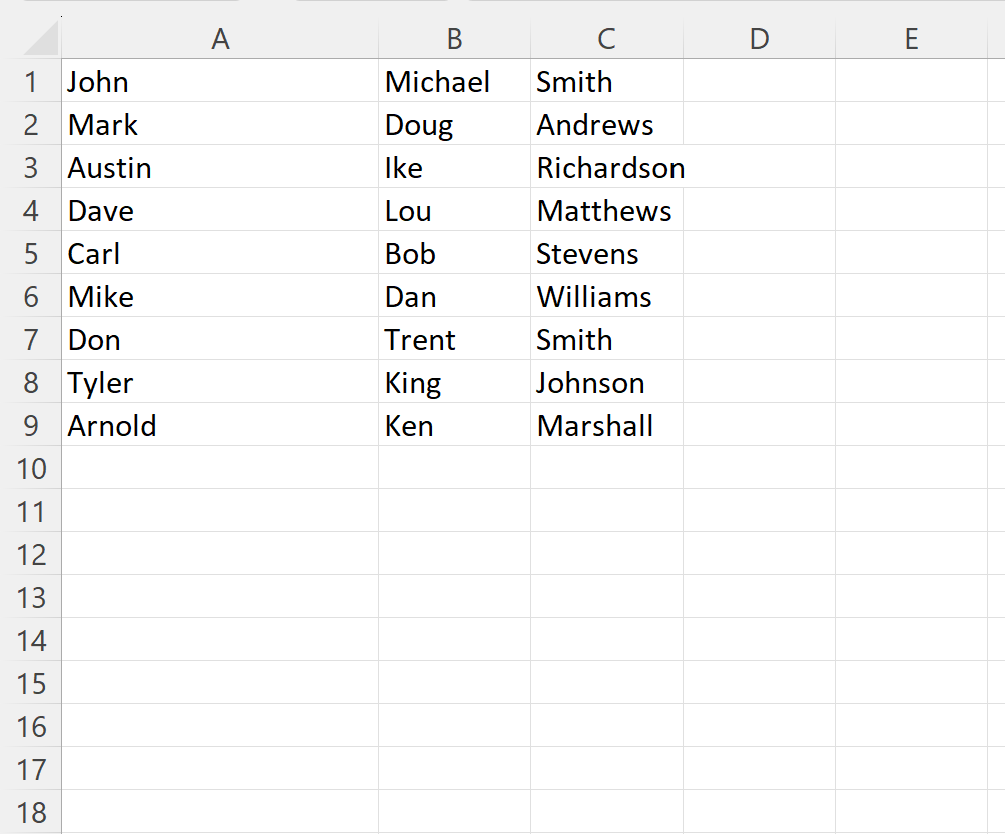

Upon successful execution of this macro, the data within the Range A1:A9 undergoes a fundamental structural transformation. Every distinct segment of text that was previously separated by a space is now neatly placed into its own adjacent column, successfully achieving the desired split of the original consolidated entries. The subsequent output below explicitly confirms the precise and successful transformation:

This outcome robustly verifies that the original source text from column A has been cleanly distributed across columns A, B, and C, with each name component now correctly residing in an individual cell. This demonstrates the effective application of the space separator for complex data parsing. The critical inclusion of ConsecutiveDelimiter:=True is vital here, as it ensures that VBA interprets any sequence of spaces, irrespective of its length, as a single demarcation point, thus maintaining a clean and accurate final output structure.

Practical Implementation 2: Handling Comma Separated Values (CSV Format)

Another exceptionally frequent data structure encountered by analysts involves values separated by commas, a format instantly recognizable from standard Comma Separated Values (CSV) files or exports from various database systems. Let us adapt the structure from the previous example, where names are contained in Excel cells within the Range A1:A9, but this time, the constituent parts of each name entry are explicitly partitioned by commas rather than spaces.

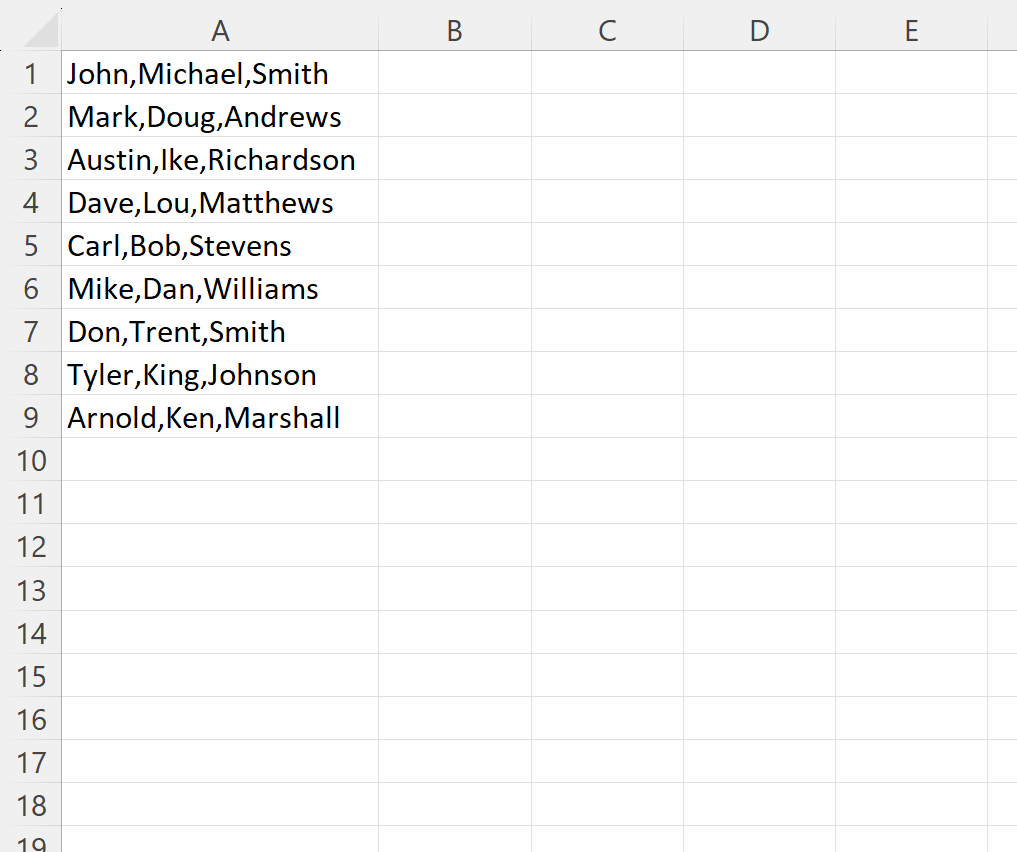

The initial data configuration, accurately simulating a simplified CSV import scenario, is presented here for reference:

To accurately and reliably process this comma-delimited data structure, our VBA macro must be explicitly configured to designate the comma as the exclusive primary separator. Consistent with rigorous best practices, we will again incorporate ConsecutiveDelimiter:=True. This practice is essential for efficiently managing potential instances where multiple commas might occur consecutively, ensuring they are correctly treated as a singular separator event rather than generating spurious empty columns.

Sub TextToCols()
    Range("A1:A9").TextToColumns _
    ConsecutiveDelimiter:=True, _
    Comma:=True
End Sub

Execution of this specialized VBA code will successfully transform the data contained within Range A1:A9. Each logical component of the text that was partitioned by a comma will be precisely relocated to its own distinct and dedicated column. The resultant parsed output, which is visually and structurally equivalent to the space-delimited result shown previously, confirms the successful separation:

This successful parsing operation powerfully underscores the robust versatility and adaptability of the TextToColumns method. It demonstrates its capacity to seamlessly switch between different common separator types while consistently maintaining the desired structural integrity and cleanliness of the output data, proving its value in diverse data import scenarios.

Practical Implementation 3: Utilizing Text Qualifiers for Encapsulated Data

In many advanced or complex datasets, particularly those generated by external systems or databases, text strings are often deliberately encapsulated within double quotes. This established practice is typically implemented to guarantee that a value containing internal separators (such as commas or spaces) is correctly processed as a single, unified data field rather than being incorrectly split during parsing. For example, a field value might be “Dr. Jane Doe, Ph.D.”, which could appear in the raw data as “”Dr. Jane Doe, Ph.D.””.

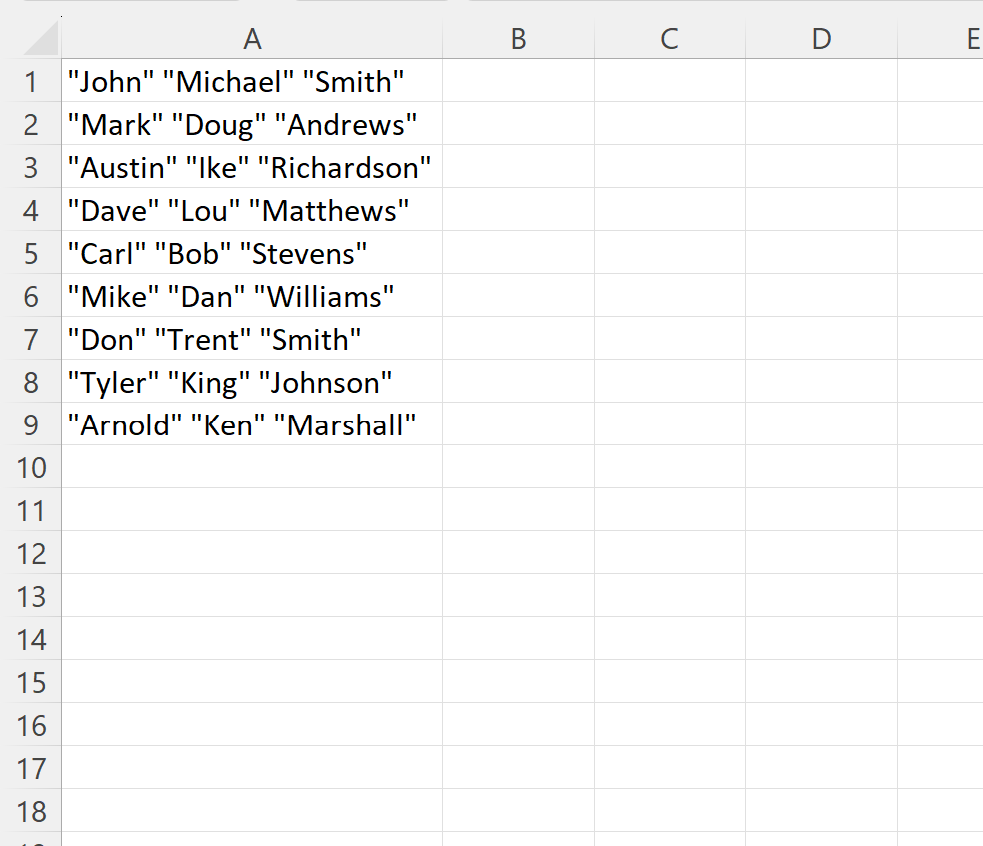

Let us now examine our list of names residing in Excel Range A1:A9. The components are space-separated, but the entire entry is enclosed in double quotes for protection against internal delimiters. Here is the visual representation of this specific data format:

When processing such precisely structured data, it becomes absolutely essential to inform VBA that the double quotes are intended to function as TextQualifiers. A TextQualifier defines the definitive start and end boundaries of a text field and must be automatically stripped away by the parser during the process. We accomplish this critical step by accurately setting the argument TextQualifier:=xlDoubleQuote, in addition to specifying the space as the primary separator.

Sub TextToCols()
    Range("A1:A9").TextToColumns _
    TextQualifier:=xlDoubleQuote, _
    ConsecutiveDelimiter:=True, _
    Space:=True
End Sub

Following the successful execution of this macro, VBA will correctly identify and efficiently remove the external double quotes before proceeding to split the text based on the internal space separators. The resulting output will be flawlessly clean, entirely devoid of residual quotation marks, and the data will be accurately distributed into the designated columns, precisely mirroring the clean result shown in the previous examples:

This successful parsing operation highlights the indispensable nature of the TextQualifier argument in handling complex data formats. Failing to include this specific setting would erroneously result in the double quotes being treated as literal characters within the text, inevitably leading to inaccurate splits and undesirable characters polluting your final, processed output. The constant xlDoubleQuote explicitly directs VBA to handle standard double quotation marks as the expected field boundaries.

Practical Implementation 4: Defining and Utilizing Custom Separators

While Microsoft Excel and VBA offer inherent, built-in support for standard separators such as spaces, commas, and tabs, imported data frequently relies on unconventional or proprietary characters. These custom delimiters might include pipe symbols (|), tildes (~), carets (^), or any other unique character chosen by the source system’s export configuration. Fortunately, the TextToColumns method is engineered for maximum flexibility, allowing it to seamlessly handle these unique separators through the strategic combination of the Other and OtherChar arguments.

Imagine a scenario where our list of names is stored in Range A1:A9, but each individual data component is separated by a pipe character (|). A typical entry in this specific data configuration might appear as: “Smith|Jane|A.”. Here is how this pipe-delimited data might be visually presented in your worksheet:

To accurately instruct VBA to recognize and utilize the pipe character as the designated separator, we must first set the Other argument to True, signaling the use of a non-standard delimiter. We then specify the exact character using OtherChar:=”|“. This configuration ensures that the method ignores all standard, pre-defined separators and focuses exclusively on our custom delimiter for the parsing operation.

Sub TextToColsCustom()
    Range("A1:A9").TextToColumns _
    ConsecutiveDelimiter:=True, _
    Other:=True, _
    OtherChar:="|"
End Sub

Following the execution of the TextToColsCustom macro, the data within Range A1:A9 will be meticulously split based on every instance of the pipe separator found. Each discrete piece of text situated between the pipe characters will be correctly placed into a unique column. The resultant visual output will be structurally identical to the highly successful splits demonstrated in the preceding examples, with the data flawlessly organized across columns A, B, and C.

This comprehensive illustration underscores the exceptional robustness and flexibility of the TextToColumns method, making it highly adaptable to virtually any proprietary or unconventional data format encountered during integration. The indispensable capability to define and utilize custom separators through the Other and OtherChar arguments represents an essential feature for thorough data cleansing and reliable preparation workflows.

Advanced Best Practices and Performance Considerations

While the Range.TextToColumns method is a remarkably powerful utility, developers must strictly adhere to specific best practices to mitigate potential pitfalls and guarantee consistently reliable outcomes. A primary and persistent concern revolves around the optional Destination argument. If this argument is left unspecified, the parsed output will directly and irreversibly overwrite the original source data range. To safeguard data integrity, particularly within critical production environments, it is strongly recommended to explicitly define a destination range that is entirely separate from your source material, ideally in an adjacent column set or a new, dedicated worksheet.

Another crucial consideration involves the meticulous management of explicit data types. The FieldInfo argument grants the essential ability to specify the exact data type for each resulting output column. For example, you might need to forcefully treat a column of numerical values as text to correctly preserve leading zeros, or ensure that date strings are accurately recognized and formatted according to regional settings. Neglecting the FieldInfo argument can lead to Excel making default assumptions about data types that may directly contradict your requirements, potentially leading to silent data corruption or misinterpretation. The formal structure of this argument requires an array composed of two-element arrays, where each internal array specifies the column number and the corresponding data type constant (e.g., Array(Array(1, xlTextFormat), Array(2, xlGeneralFormat))).

Performance optimization is also a critical factor when processing exceptionally large datasets that involve thousands of rows. To dramatically accelerate the execution speed of VBA macros, it is prudent developer practice to temporarily disable screen updating and automatic calculations at the very beginning of your Sub routine and reactivate them just before the routine concludes. This established technique significantly reduces processing overhead associated with constantly redrawing the screen or recalculating formulas. A typical implementation involves setting Application.ScreenUpdating = False and Application.Calculation = xlCalculationManual, along with appropriate resetting commands at the end.

Finally, as a fundamental rule of robust development, always thoroughly test your macros on a duplicated copy of your data before deploying them against live, mission-critical datasets. This necessary precautionary measure ensures that any unexpected errors, subtle data formatting issues, or unforeseen outcomes do not jeopardize the integrity of your original source information. By fully grasping the diverse operational arguments of the TextToColumns method and integrating them with careful planning and testing, you will make your data manipulation tasks far more reliable, efficient, and professionally managed.

Conclusion: Elevating Data Productivity with VBA Automation

The Range.TextToColumns method represents an indispensable utility for any professional who routinely interacts with or manages text-based data within Microsoft Excel. Its inherent versatility allows it to seamlessly handle a wide range of common and custom separators, including spaces, commas, and highly customized characters. This, combined with its crucial ability to correctly manage TextQualifiers, establishes it as a highly robust and comprehensive solution for virtually all data parsing requirements encountered in business analysis.

By automating the typically laborious process of splitting consolidated text into clean, structured columns, users can achieve a dramatic decrease in manual labor, substantially improve the accuracy and consistency of their data, and reallocate valuable time toward more complex and strategic analytical activities. Whether your current task involves cleaning newly imported raw data, preparing complex financial reports, or simply organizing large volumes of disparate information, mastering this core VBA method will unequivocally enhance your overall productivity and elevate your data management capabilities to a professional level. We strongly encourage all users to actively experiment with the various arguments presented and apply these powerful techniques to their own unique datasets to fully capitalize on the method’s extensive potential.
