Learn VBA: How to Copy Visible Rows Between Excel Sheets

In the realm of advanced data manipulation within Microsoft Excel, the ability to efficiently handle large, filtered views is paramount for accurate reporting and analysis. A frequent yet challenging requirement involves extracting and copying only the visible rows—those remaining after a filter has been applied—from one location to another worksheet. This selective extraction is crucial because it guarantees that only the specific subset of data relevant to the current investigation is processed, effectively excluding all hidden or irrelevant information. Fortunately, Visual Basic for Applications (VBA) offers a precise and powerful mechanism to automate this exact data segregation task.

This article serves as an expert guide, meticulously detailing the construction of a simple but profoundly effective macro tailored specifically for this purpose. Our focus centers on leveraging a pivotal method within the Excel Object Model: the Range property’s specialized utility, namely the constant SpecialCells(xlCellTypeVisible). This feature is the key differentiator, ensuring that only the currently displayed data is targeted for the copy operation. We will systematically break down the underlying code, explain the function of each critical component, and provide a clear, practical example demonstrating its immediate application in real-world scenarios.

Mastering SpecialCells for Selective Data Extraction

The core efficiency of this data transfer operation lies in utilizing a concise VBA macro structure that intelligently isolates and selects only the data rows currently visible on your worksheet following the application of filters. The resulting code is exceptionally clean, reusable, and relies entirely on established objects and methods within the Excel environment. The fundamental syntax provided below represents the most reliable and efficient way to accomplish the selective copying of visible cells, making it an indispensable tool for data professionals.

Sub CopyVisibleRows()

    Dim sourceWS As Worksheet
    Dim destinationWS As Worksheet

    Set sourceWS = ThisWorkbook.Sheets("Sheet1")
    Set destinationWS = ThisWorkbook.Sheets("Sheet2")

    sourceWS.Range("A1:D999").SpecialCells(xlCellTypeVisible).Copy
    destinationWS.Cells(1, 1).PasteSpecial
    Application.CutCopyMode = False

End Sub

This deceptively simple macro is configured to precisely locate and copy all currently visible rows within a predefined range, which is set here as A1:D999 on the source sheet (Sheet1). The subsequent action then pastes this extracted data, preserving its structure and integrity, into the starting cell (A1) of the destination sheet (Sheet2). To fully appreciate the power and efficiency of this routine, it is essential to analyze the purpose of the initial variable declarations and the function of the specific range selection method employed.

Deconstructing the VBA Routine

The initial lines of the procedure are dedicated to setting up the environment using object variables, which is a fundamental practice in robust VBA development. The lines utilizing the Dim keyword, specifically Dim sourceWS As Worksheet and Dim destinationWS As Worksheet, declare object variables intended to hold direct references to the source and destination worksheets, respectively. Declaring variables explicitly improves code readability and prevents runtime errors.

Following declaration, the Set statements establish these crucial references, linking the variables to specific sheets (Sheet1 and Sheet2) within the active workbook. For seamless implementation, developers must always ensure they update the sheet names—“Sheet1” and “Sheet2”—to accurately reflect the actual nomenclature used in their Microsoft Excel file. This dynamic referencing prevents hardcoding issues and makes the macro highly portable.

The Key Command: SpecialCells(xlCellTypeVisible)

The most crucial instruction within the entire procedure is the single line dedicated to selection and copying: sourceWS.Range(“A1:D999”).SpecialCells(xlCellTypeVisible).Copy. The core functionality that intelligently bypasses all hidden rows or columns rests entirely within the .SpecialCells(xlCellTypeVisible) method. This method functions as an intelligent selector, instructing VBA to evaluate the initially defined Range and include only the cells that are currently displayed to the user, thereby systematically excluding any rows concealed either by an active filter or manually hidden by a user.

Once the visible cells have been successfully copied to the clipboard, the subsequent line, destinationWS.Cells(1, 1).PasteSpecial, executes the transfer. The Cells(1, 1) syntax refers precisely to cell A1 on the destination worksheet, designating the exact starting point for the pasted data. Finally, the instruction Application.CutCopyMode = False is an essential cleanup step. This command cancels the active “cut and copy” mode in Excel, removing the distracting visual marching ants border around the source range and returning the application to a normal operational state, ready for further user interaction or subsequent VBA procedures.

Practical Application: Analyzing Filtered Datasets

To fully illustrate the practical utility of this VBA technique, let us consider a concrete data management example. Imagine a scenario where you are responsible for maintaining a large dataset on Sheet1. This dataset contains comprehensive details about professional basketball players, including critical statistics such as names, teams, points scored, and other performance metrics. The initial, unfiltered dataset encompasses all available entries, providing a complete view of the data, as depicted in the image below.

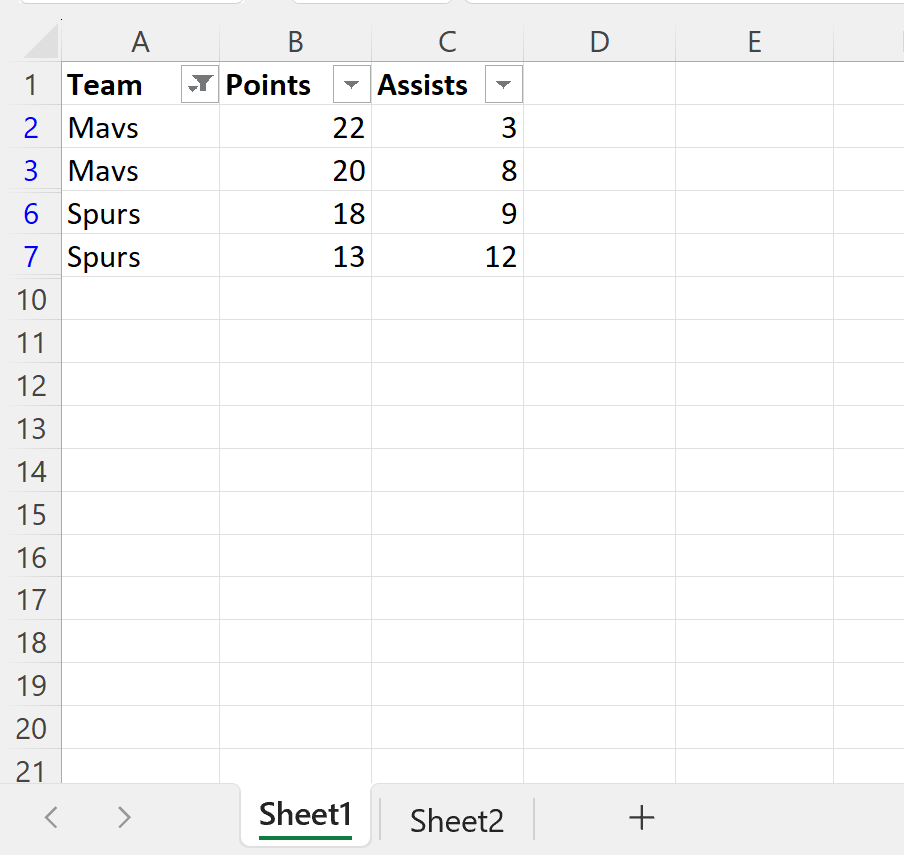

Suppose your immediate analytical objective is highly specific: to isolate and analyze only those players belonging to certain franchises, specifically the “Mavs” and the “Spurs.” To achieve this specialized view, you would first apply a column filter to the Team column in Sheet1, setting the required selection criteria. After implementing this filter, the Microsoft Excel worksheet dynamically adjusts, displaying only the rows that satisfy the filter condition while simultaneously concealing the rest of the data. The resulting visible subset of data is shown in the subsequent image.

Our goal now transitions from simple viewing to efficient data extraction. We require a robust method to transfer only these currently visible rows from Sheet1 to a new, pristine location in Sheet2, guaranteeing that absolutely none of the hidden data is inadvertently included in the output. This scenario is precisely where the automation provided by our VBA macro proves invaluable, offering a fast, accurate, and automated solution for data segregation and extraction that manual selection cannot reliably achieve.

Implementing the Solution and Validating the Output

To execute this procedure, the developer must first access the VBA editor (typically accessed via Alt + F11 in Microsoft Excel). Inside the editor, insert a new module and paste the complete code block provided below. This code is the precise implementation tailored for our basketball player dataset example, designed specifically to leverage the power of the xlCellTypeVisible constant for targeted copying.

Sub CopyVisibleRows()

    Dim sourceWS As Worksheet
    Dim destinationWS As Worksheet

    Set sourceWS = ThisWorkbook.Sheets("Sheet1")
    Set destinationWS = ThisWorkbook.Sheets("Sheet2")

    sourceWS.Range("A1:D999").SpecialCells(xlCellTypeVisible).Copy
    destinationWS.Cells(1, 1).PasteSpecial
    Application.CutCopyMode = False

End Sub

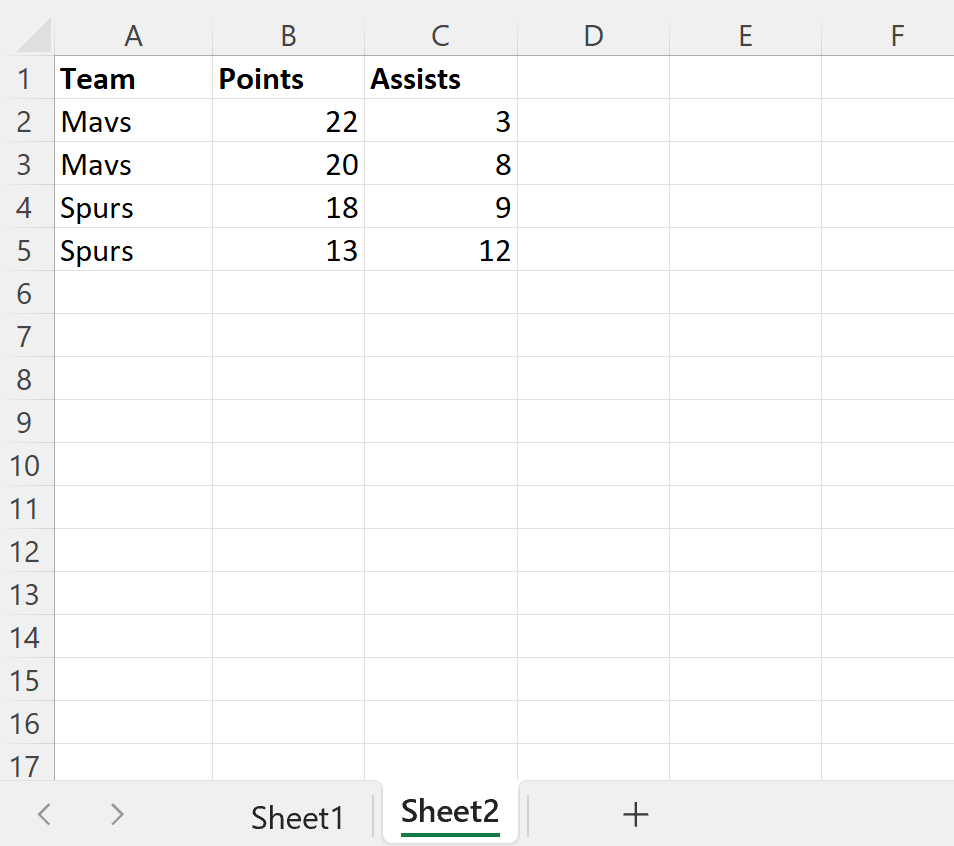

Upon successfully running the macro (either by pressing F5 in the editor or executing it from the Developers tab in Excel), you will instantly witness the precise outcome in Sheet2. The destination sheet will contain a perfect replica of the visible data from Sheet1, beginning correctly at cell A1, and, most importantly, rigorously excluding all the rows that were concealed by the active filter. The following image confirms the clean and accurate transfer of the filtered subset.

The image clearly verifies that every row visible in the source sheet, corresponding only to the teams selected by the filter, has been accurately transferred and pasted into the destination sheet. This validation solidifies the effectiveness of using the .SpecialCells(xlCellTypeVisible) method. This powerful technique provides a reliable, fast, and highly efficient mechanism for extracting specific data subsets from large, complex, and highly filtered datasets without resorting to unreliable manual selection or complex conditional programming loops.

Key Considerations for Robust VBA Development

While the demonstrated VBA procedure is highly functional and effectively addresses the primary requirement of copying visible data, expert development demands considering scenarios that extend beyond the basic fixed range. To create more robust, flexible, and scalable automation solutions, developers should integrate several key best practices and advanced techniques into their routines, ensuring resilience against data changes and user errors.

The following considerations are vital for significantly enhancing the performance and reliability of your data extraction procedures:

• Dynamic Range Selection: Relying on a static range like “A1:D999” is inefficient for evolving data. Instead, utilize dynamic methods such as sourceWS.UsedRange or sourceWS.Cells(1, 1).CurrentRegion. These methods automatically detect the precise boundaries of your active data, thereby preventing potential data loss when the underlying dataset grows or unnecessary processing of vast empty cells.
• Error Handling Implementation: Always employ structured error handling, such as On Error GoTo ErrorHandler, to manage unexpected situations gracefully. A very common issue arises when the SpecialCells(xlCellTypeVisible) method fails because no cells remain visible after an extremely strict filter is applied. Proper error handling prevents the macro from crashing and provides informative feedback to the user, instructing them on the reason for the non-transfer.
• Optimizing Paste Options: The generic .PasteSpecial method copies everything (values, formats, formulas, etc.). If the goal is only to extract the raw data content, use the specific command destinationWS.Cells(1, 1).PasteSpecial xlPasteValues. Utilizing specific xlPaste enumeration constants offers precise control over the final output, dramatically improving both performance and cleanliness of the destination sheet.
• Performance Optimization: For procedures dealing with exceptionally large volumes of data, the continuous copying and screen refreshing can introduce noticeable lag and degrade the user experience. Mitigate this by temporarily disabling screen updating (Application.ScreenUpdating = False) at the macro’s start and ensuring it is re-enabled (Application.ScreenUpdating = True) just before the procedure concludes.

Summary: The Efficiency of Targeted Data Extraction

The strategic implementation of VBA to copy only visible rows represents an invaluable, fundamental skill set for any professional frequently interacting with complex or heavily filtered data in Excel. By harnessing the power of the .SpecialCells(xlCellTypeVisible) property, developers gain meticulous, automated control over data extraction, guaranteeing that their analyses, reports, and subsequent operations are based exclusively on the intended visible information set.

This automated method significantly streamlines complex data management workflows, drastically minimizing the risk of human error associated with attempting to manually select or extract data from filtered views. Whether your immediate task involves consolidating data from multiple filtered views, preparing crucial compliance reports, or simply organizing large worksheets for easier consumption, mastering this single, efficient macro is a powerful and essential enhancement to your professional automation toolkit.
