VBA: Highlight Top N Values in Column

While Microsoft Excel offers robust built-in features for data analysis and visualization, certain complex or highly dynamic highlighting requirements necessitate the power of Visual Basic for Applications (VBA). Specifically, identifying and visually emphasizing the top N values within a large data set or Range is a common task. The following syntax provides a fundamental and highly adaptable macro that efficiently highlights the largest values in a specified column.

This method utilizes a structured loop combined with a powerful built-in Excel function to dynamically determine the threshold for highlighting, ensuring accuracy even when data values are subject to frequent changes. Understanding this basic structure is the first step toward automating complex data visualization tasks in your worksheets.

Deconstructing the Core Highlighting Macro

The provided VBA procedure, named HighlightTopN, serves as the foundation for applying conditional formatting based on magnitude. Before execution, it is critical to understand the role of key components, including variable declaration and the use of nested loops. We start by declaring two necessary variables of type Range: rng, which represents the individual cell being evaluated during the iteration, and EntireRange, which defines the complete collection of data cells we are analyzing.

The initial setup phase involves explicitly defining the data set. In the code snippet below, Set EntireRange = Range("A2:A11") precisely specifies the boundaries of the column data we wish to examine. Following this definition, the macro employs a primary For Each loop to iterate through every single cell (rng) within the defined EntireRange. Inside this primary loop, a nested For loop is utilized. This nested loop is the mechanism that determines how many top values, N, we are targeting. In the initial configuration, the loop runs from i = 1 To 3, indicating that we are checking for the top three values.

The critical comparison happens within the If statement, which leverages the WorksheetFunction.Large method. This function determines if the current cell’s value is equivalent to the 1st, 2nd, or 3rd largest value in the entire range. If the condition is met, the cell’s interior color is immediately set using rng.Interior.Color = vbYellow. This structure ensures that even if multiple cells share the same value (a tie), they are all successfully identified and highlighted, fulfilling the requirement of highlighting the top N distinct or non-distinct values.

Sub HighlightTopN()

    Dim rng As Range
    Dim EntireRange As Range

    'specify range to use
    Set EntireRange = Range("A2:A11")

    'highlight top 3 values in range
    For Each rng In EntireRange

        For i = 1 To 3

        If rng.Value = WorksheetFunction.Large(EntireRange, i) Then
        rng.Interior.Color = vbYellow
        End If
        Next

    Next rng

End Sub

This particular macro is pre-configured to highlight the top 3 largest values in the specified Range of A2:A11. To highlight a different number of top values, simply change the line For i = 1 To 3 to have a different upper bound, such as For i = 1 To 5 for the top five values. This straightforward parameter adjustment allows for dynamic reporting based on changing requirements.

The Role of WorksheetFunction.Large

The core logic of this VBA solution hinges entirely on the seamless integration of Excel’s native functions, specifically the WorksheetFunction.Large method. This method replicates the behavior of the standard Excel LARGE formula, which returns the k-th largest value in a data set. In the context of our macro, WorksheetFunction.Large(EntireRange, i) dynamically calculates the threshold value needed for accurate highlighting.

When the inner loop executes, i takes on values from 1 up to N (e.g., 3). When i=1, the function returns the absolute largest value in the range. When i=2, it returns the second largest, and so on. By comparing the current cell’s value (rng.Value) against the result of this function for every k (from 1 to N), we effectively identify all cells that meet the criteria of being among the top N values. This iterative comparison is significantly more robust than attempting to manually define a single static threshold value, especially when the data set is volatile.

It is important to note that accessing Excel functions through the WorksheetFunction object is standard practice in VBA programming. This approach ensures that you utilize the optimized calculation engine of Excel directly within your macro environment, avoiding the need to write complex sorting algorithms in VBA itself. For scenarios requiring the smallest values, one would simply substitute WorksheetFunction.Large with WorksheetFunction.Small, demonstrating the versatile nature of this integration.

Example: Step-by-Step Implementation

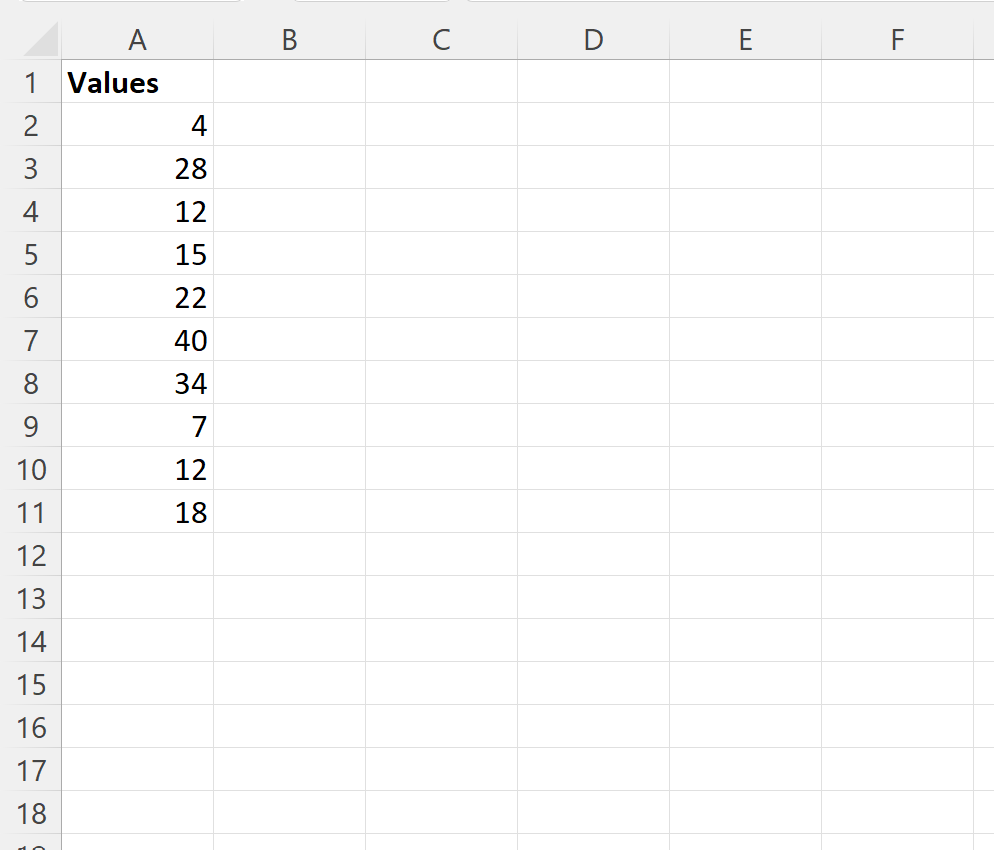

To illustrate this technique, let us suppose we have the following sample numerical values in column A of our Excel worksheet, spanning the range A2:A11. Our goal is to execute the initial macro to highlight the top three largest data points within this collection.

The data set we are working with is presented visually below. Note the distribution of values, which will help us manually verify the macro’s output before execution. The successful implementation of the macro depends solely on correctly referencing this data Range within the EntireRange declaration.

We can create the following macro to highlight the top 3 largest values in the range A2:A11, using the yellow background color defined by vbYellow:

Sub HighlightTopN()

    Dim rng As Range
    Dim EntireRange As Range

    'specify range to use
    Set EntireRange = Range("A2:A11")

    'highlight top 3 values in range
    For Each rng In EntireRange

        For i = 1 To 3

        If rng.Value = WorksheetFunction.Large(EntireRange, i) Then
        rng.Interior.Color = vbYellow
        End If
        Next

    Next rng

End Sub

When we run this macro, we receive the following output, demonstrating that the cells containing the top 3 values (98, 95, and 90) have been correctly identified and formatted:

Notice that the cells with the top 3 largest values in column A are now highlighted. This confirms the precision and successful execution of the conditional highlighting macro.

Customizing N and Highlighting Color

The true advantage of using a VBA solution over static formatting is its ease of customization. You are not limited to highlighting just three values or using a fixed color. Both the number of top values (N) and the specific visual formatting (color) can be modified by altering just two lines within the macro structure.

Note that you can change the color to use for highlighting along with the number of top values to highlight. To highlight a different number of entries, adjust the upper bound of the inner loop (e.g., For i = 1 To 5). To change the color, simply substitute the color constant (e.g., replacing vbYellow with vbGreen, or using an VBA color constant like vbRed).

For example, we can use the following macro to highlight the top 5 values in column A, changing the interior color to green using the vbGreen constant:

Sub HighlightTopN()

    Dim rng As Range
    Dim EntireRange As Range

    'specify range to use
    Set EntireRange = Range("A2:A11")

    'highlight top 5 values in range
    For Each rng In EntireRange

        For i = 1 To 5

        If rng.Value = WorksheetFunction.Large(EntireRange, i) Then
        rng.Interior.Color = vbGreen
        End If
        Next

    Next rng

End Sub

When we run this revised macro, we receive the following output. The top five largest values (98, 95, 90, 88, and 85) in column A are now visually emphasized, and the color scheme has been updated to green, aligning with the new parameters set in the code.

Notice that the cells with the top 5 largest values in column A are now highlighted in green, proving the flexibility of programmatic formatting.

VBA vs. Standard Conditional Formatting

While the provided VBA macro is highly effective for one-time or scheduled highlighting tasks, it is crucial to consider its relationship with standard Conditional Formatting (CF). The primary difference is persistence: the VBA approach applies static formatting, meaning if data changes, the highlights will remain fixed unless the macro is rerun. CF, using built-in rules, updates dynamically.

However, the VBA method shines when requirements extend beyond simple value comparisons. For instance, if you needed to clear formatting from other columns simultaneously, or integrate the highlighting step into a larger reporting macro that handles data cleaning and output generation, the VBA structure offers superior control. It allows for the integration of custom error handling and complex logic that standard CF formulas cannot easily replicate, making it an ideal choice for complex automation workflows.

For scenarios where immediate, dynamic highlighting is the only goal, using a standard Conditional Formatting formula (e.g., =A2>=LARGE($A$2:$A$11, 3)) is often simpler and faster, particularly for very large spreadsheets. The decision to use the VBA iterative approach should be driven by the need for integration, specific formatting requirements, or the complexity of the ranking criteria that requires a programmatic solution.

Additional Resources

Mastering VBA unlocks a vast potential for automation and complex data manipulation within Excel. The concepts utilized in this tutorial—such as range iteration, object manipulation (Interior.Color), and integrating Worksheet Functions—are fundamental to writing robust macros. We recommend studying the following specific topics for immediate growth in Excel automation:

• Techniques for applying formatting to other objects (e.g., fonts, borders, number formats).

• Methods for handling dynamic range selection based on data content.

• Understanding the structure of event-driven macros (e.g., Worksheet_Change).

The following tutorials explain how to perform other common tasks in VBA:
