Learn VBA: A Step-by-Step Guide to Removing Borders from Excel Cells

Introduction to VBA and Automated Excel Cell Border Management

In the professional domain of data management and reporting, Microsoft Excel is universally recognized as an indispensable tool. While borders are frequently applied to enhance data readability and clearly define tables, their usefulness often diminishes when data must be prepared for final reports, integrated into other documents, or simply requires a cleaner, less cluttered appearance. The task of manually removing borders from extensive cell ranges is not only highly tedious and prone to human error but also consumes significant time that could be dedicated to analysis. This inherent inefficiency in manual formatting underscores the critical need for automation, which is expertly provided by Visual Basic for Applications (VBA).

VBA offers robust capabilities for automating repetitive formatting tasks within the Excel environment, allowing users to transition from labor-intensive manual adjustments to rapid, script-driven execution. By leveraging VBA, developers and advanced users can ensure consistent, clean data presentation across vast datasets, drastically boosting overall productivity. This specialized tutorial is engineered to provide a comprehensive, programmatic solution for eliminating cell borders in bulk using a simple yet powerful VBA routine.

Throughout this guide, we will meticulously establish the essential syntax required, systematically break down the relevant components of the Excel object model, and provide a clear, executable step-by-step example. Furthermore, we will delve into methods for customizing the script to handle specific ranges, entire worksheets, or even precise border lines, thereby delivering a complete mastery of border removal automation. Mastering this technique is a foundational step toward achieving highly efficient and immaculate data preparation in all your projects.

Deconstructing the Excel Object Model: Range, Borders, and LineStyle

To manipulate cell formatting successfully using VBA, it is paramount to grasp the hierarchical structure of objects and properties that govern interactions within Excel. The fundamental building block for all cell manipulation in VBA is the Range object. This object serves as the reference point for any action applied to a single cell, a defined column, an entire row, or any collection of contiguous cells within a sheet. All operations, including border removal, begin by accurately targeting the desired Range.

Directly descending from the Range object is the Borders property. When accessed via a Range object, this property returns a dedicated Borders object, which is essentially a collection containing the four boundaries—top, bottom, left, and right—of the specified cell or range. This Borders object grants essential access to individual attributes that define the appearance of the lines, such as their color, weight (thickness), and, critically for this task, the line style itself.

The visual appearance of these boundaries is governed by the LineStyle property. This property accepts specific numerical constants defined within the XlLineStyle enumeration, which determine whether a border displays as a solid line, a dashed line, a double line, or, most importantly, as invisible. To achieve the objective of complete border removal, we must assign the LineStyle property the constant value of xlNone. Setting the style to xlNone effectively clears the border definition entirely, rendering it visually nonexistent across the selected cells.

Essential VBA Syntax for Comprehensive Border Clearing

The core command required to programmatically strip all borders from a designated range is remarkably concise and highly performant. This single line of code leverages the object hierarchy detailed previously to execute the necessary formatting change with maximum efficiency. Understanding this syntax is central to mastering bulk border removal in VBA. Here is the foundational structure for the required macro:

Sub RemoveBorders()
Range("A1:B12").Borders.LineStyle = xlNone
End Sub

Let us dissect this powerful command line: `Range(“A1:B12”).Borders.LineStyle = xlNone`. The instruction begins by identifying the target area, which in this example is the specified cell range A1 through B12. It then accesses the Borders property of that range, which refers to the collection of all border lines (internal and external) within the selection. Finally, it sets the LineStyle property for every border in that collection to the constant xlNone. This action ensures that all lines defining the cell boundaries are removed simultaneously, achieving a perfectly clean presentation.

The enclosing lines, `Sub RemoveBorders()` and `End Sub`, are necessary to define the start and conclusion of the procedure, formally naming the executable macro as `RemoveBorders`. This structure allows the code to be called and executed seamlessly from within the Excel application interface.

Practical Implementation: A Step-by-Step Border Removal Guide

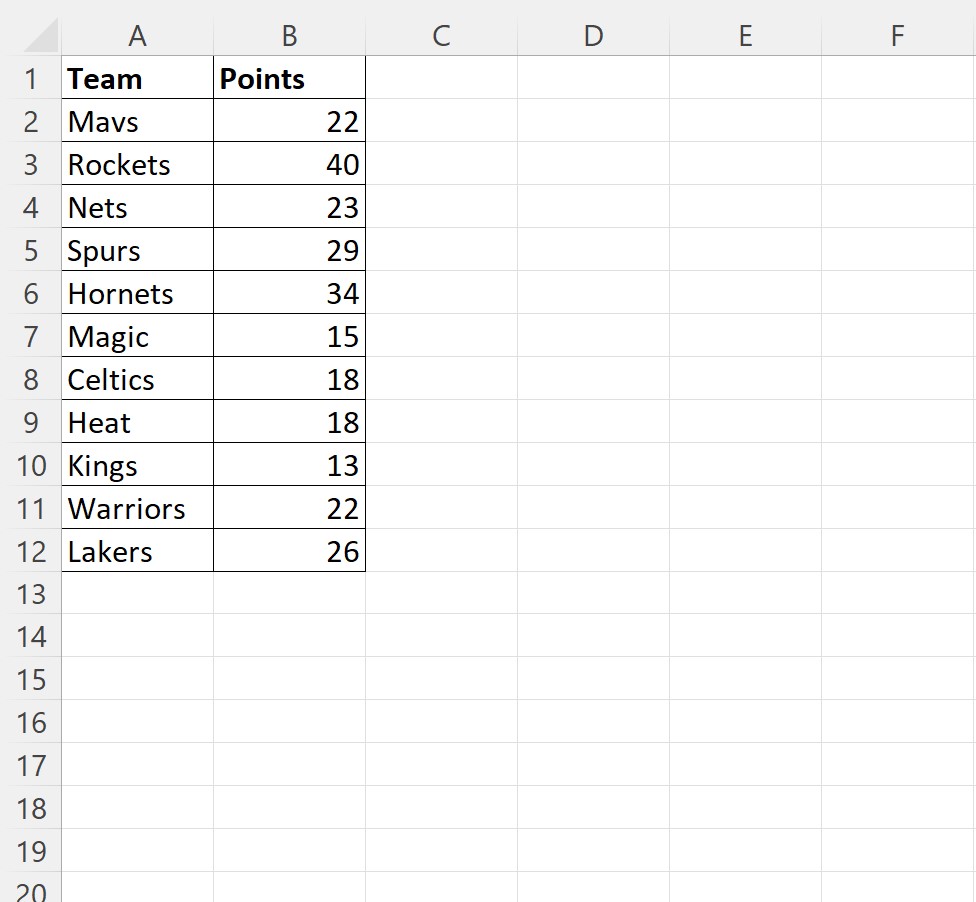

To solidify your understanding of this automation technique, we will now walk through a complete, practical example within Microsoft Excel. Imagine you are working with a sports dataset, such as a roster of basketball players, where the table structure is currently emphasized by heavy, visible cell borders. For a final publication or reporting requirement, these borders must be completely eliminated.

Our goal is precise: remove all current borders from the cells within the range A1:B12 of this specific dataset. Follow these detailed steps precisely to integrate and execute the VBA code:

1. Access the Visual Basic Editor (VBE): Launch your Excel workbook containing the data. Press the keyboard combination Alt + F11. This action instantly opens the VBE, the dedicated development environment for creating and managing VBA procedures.

2. Insert a Standard Module: Within the VBE interface, navigate to the menu bar at the top. Select the Insert option, and then click Module. A new, blank code window will open in the main panel, ready for your macro definition.

3. Paste the Border Removal Code: Copy the exact VBA code provided below and paste it directly into the newly created module window:

   Sub RemoveBorders()
   Range("A1:B12").Borders.LineStyle = xlNone
   End Sub

4. Execute the Macro: The procedure can be run using either method below:

   • VBE Execution: Ensure your cursor is positioned anywhere between the `Sub` and `End Sub` lines. Press F5, or click the Run Sub/UserForm button (the green triangle icon) on the VBE toolbar.
   • Excel Execution: Return to your Excel spreadsheet. Access the Developer tab (you may need to enable this tab in Excel Options first), click Macros (or press Alt + F8), select the `RemoveBorders` macro from the displayed list, and click Run.

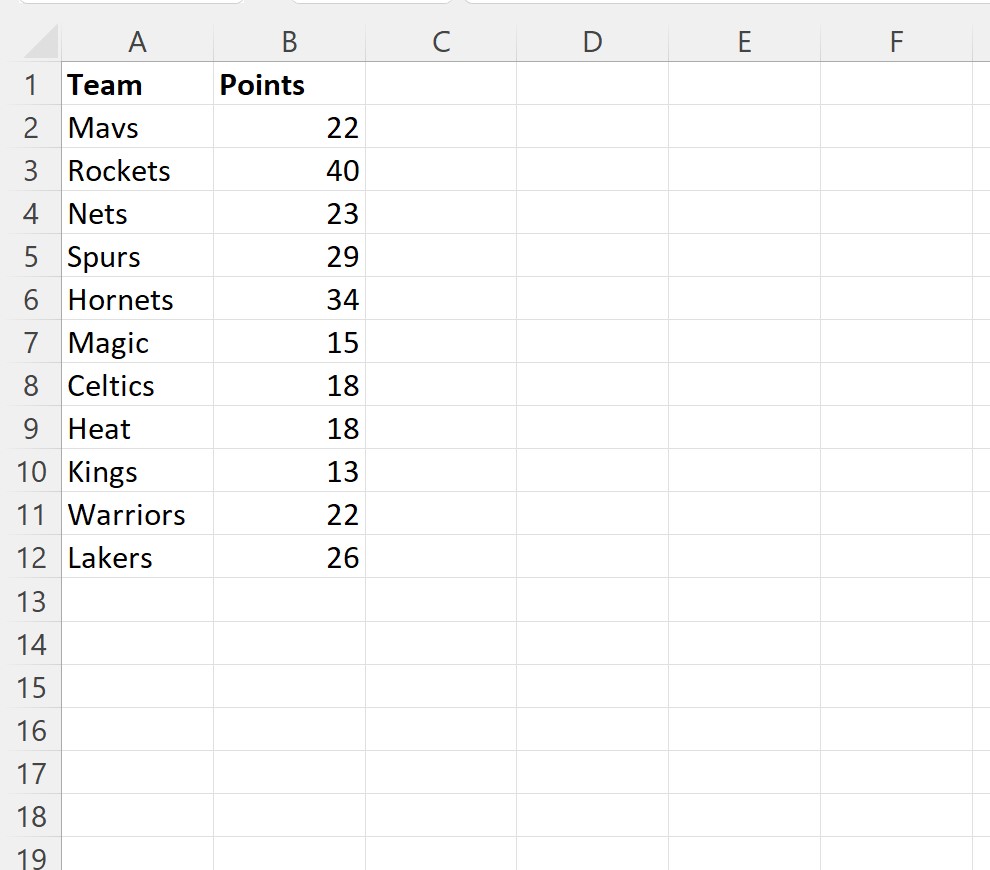

Upon immediate execution, observe the transformation on your worksheet. The visible borders within the defined range A1:B12 will instantly disappear, resulting in a significantly cleaner, border-free presentation of your underlying data, as demonstrated in the output image:

The image clearly illustrates that the automated VBA command successfully targeted and removed all borders that previously enclosed each cell in the designated range, leaving only the essential data displayed.

Advanced Customization: Targeting Specific Ranges and Elements

While the fundamental macro provides an excellent solution for general border removal, the true advantage of VBA lies in its highly adaptive nature, allowing for extensive customization to meet complex formatting requirements. The most frequent modification involves simply redefining the target range. To clear borders from a different segment of your worksheet, the developer simply adjusts the range argument within the parentheses:

Sub RemoveBordersFromSpecificRange()
    Range("C5:D20").Borders.LineStyle = xlNone
End Sub

Furthermore, VBA enables the application of this change across much larger structures. For instance, to rapidly remove borders from every single cell on the currently active worksheet, you can utilize the following code, which targets the entire `Cells` collection associated with the `ActiveSheet` object:

Sub RemoveBordersFromActiveSheet()
    ActiveSheet.Cells.Borders.LineStyle = xlNone
End Sub

For the highest level of precision, the Borders property can be accessed using an index to specify only individual border lines, rather than modifying all four simultaneously. By utilizing specific constants, such as `xlEdgeTop` (for the top boundary), `xlEdgeLeft` (for the left boundary), or `xlInsideHorizontal` (for internal horizontal dividers), you can achieve granular control. This advanced technique allows you to selectively remove unnecessary internal cell dividers while preserving essential lines, such as a thick external outline for a table, ensuring highly refined data presentation.

Conclusion: Mastering Border Management with VBA

The effective management of cell borders is an essential component of producing high-quality, professional, and easily readable Excel worksheets. While Excel provides manual tools for formatting, leveraging VBA for tasks such as comprehensive border removal delivers an unparalleled level of efficiency, repeatability, and necessary automation. By internalizing the core syntax—`Range(“YourRange”).Borders.LineStyle = xlNone`—and developing a clear understanding of the underlying object model, you can rapidly and decisively clean up complex data presentations.

The ability to automate such a common, repetitive formatting task provides twin benefits: it saves substantial time that would otherwise be spent clicking through menus, and it guarantees absolute consistency across multiple reports, workbooks, and projects. Whether you are dealing with complex financial models, standardizing imported raw data, or maintaining personal organizational spreadsheets, VBA delivers the precision and speed necessary to maintain a consistently polished and professional aesthetic. We highly recommend experimenting with diverse range specifications and exploring the indexed options of the Borders property to further expand your Excel automation capabilities.

Note: Comprehensive technical documentation, including details on the VBA LineStyle property and all related Excel objects, is officially available on the Microsoft Learn documentation website.
