Understanding Density Curves: Definition, Properties, and Examples

Defining Density Curves and Their Core Purpose

A density curve is a fundamental concept in descriptive statistics, serving as a graphical representation of the distribution of values within a continuous dataset. Unlike histograms, which use discrete bars, the density curve is a smoothed curve that idealizes the overall shape of the distribution, making complex data patterns immediately accessible to the observer. It summarizes the relative proportion of observations falling within specific intervals.

The utility of a density curve extends beyond simple visual appeal. It acts as a probability distribution model, allowing statisticians and analysts to infer characteristics about the underlying population from which the sample data was drawn. By visualizing the data this way, we can bypass the noise and specifics of individual data points and focus on the overall trend and central tendency. The most globally recognized example of this concept is the classic bell-shaped curve that defines the normal distribution, a cornerstone of statistical theory.

The Critical Role of Density Curves in Data Visualization

Density curves are essential tools for gaining rapid insight into the structure of a dataset’s distribution. They provide three primary benefits that enhance data analysis and interpretation. First, they clearly illustrate the overall “shape” of the data, immediately revealing whether values cluster around a single point (unimodal) or if multiple high-frequency regions exist (bimodal or multimodal). This visual inspection of the distribution shape is often the critical first step in selecting appropriate statistical methods for further analysis.

Second, the curve allows for a precise visual estimation of key statistical measures, such as the mean and the median. The symmetry or asymmetry of the curve dictates the relative positions of these measures of central tendency. This quick visualization is invaluable for understanding the balance of the data—whether it is perfectly symmetrical or heavily weighted toward one end.

Finally, and perhaps most powerfully, a density curve allows us to visually calculate the proportion or percentage of observations that fall between any two given values. Since the total area under the curve must equal 100% (or 1), the area under the curve between two points on the x-axis directly corresponds to the probability that a randomly selected observation will fall within that range. This property makes the density curve a potent tool for probabilistic assessment.

Case Study: Constructing and Analyzing a Density Curve

To fully grasp how density curves operate, consider a practical example. Suppose we are tracking the growth of plants and collect a dataset representing the height (in inches) of 20 different specimens. The raw data provides a sequence of numbers, but the distribution pattern remains obscured:

4, 5, 5, 6, 6, 6, 6, 7, 7, 7, 7, 7, 8, 8, 8, 9, 9, 9, 2, 2

When this data is initially plotted using a simple histogram, displaying the relative frequencies of each height value, we begin to see the clustering pattern. The histogram converts the raw counts into proportions, illustrating how frequently each height occurs relative to the total sample size. For instance, the height value “7” occurs 5 times out of 20, resulting in a relative frequency of 0.25 (or 25%).

The visual representation of the relative frequency histogram is shown below. Note how the x-axis represents the data value (plant height), and the y-axis shows the relative frequency:

When we overlay or generate a smooth density curve to capture the underlying idealized shape of this distribution, the relationship becomes clearer. The curve acts as a continuous approximation of the histogram. The resulting curve demonstrates that the peak frequency occurs near the center of the dataset, where the majority of the plant heights are located. Conversely, the curve tapers off significantly at the tails (e.g., heights of 2 or 9 inches), indicating these values are far less common.

Interpreting Distribution Shape: Skewness and Peaks

Density curves are indispensable for quickly identifying two critical characteristics of a data distribution: its symmetry (or lack thereof, known as skewness) and the number of distinct high-frequency regions, or peaks. These features directly impact how we choose to summarize and model the data statistically.

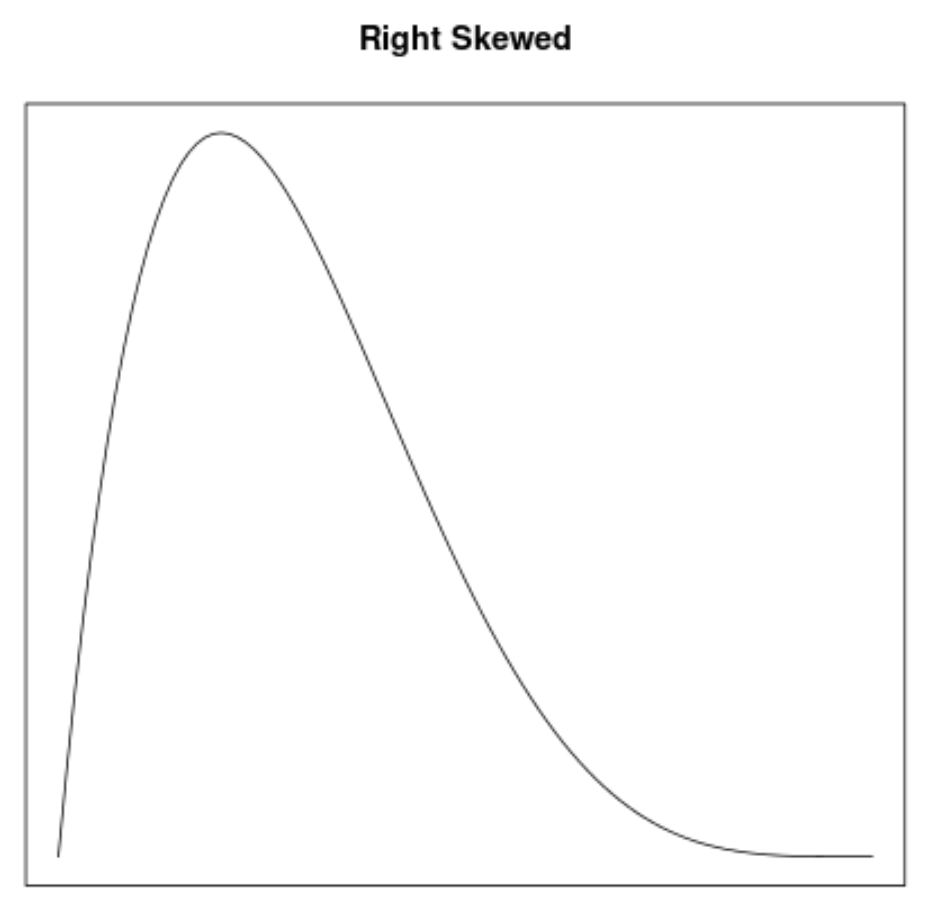

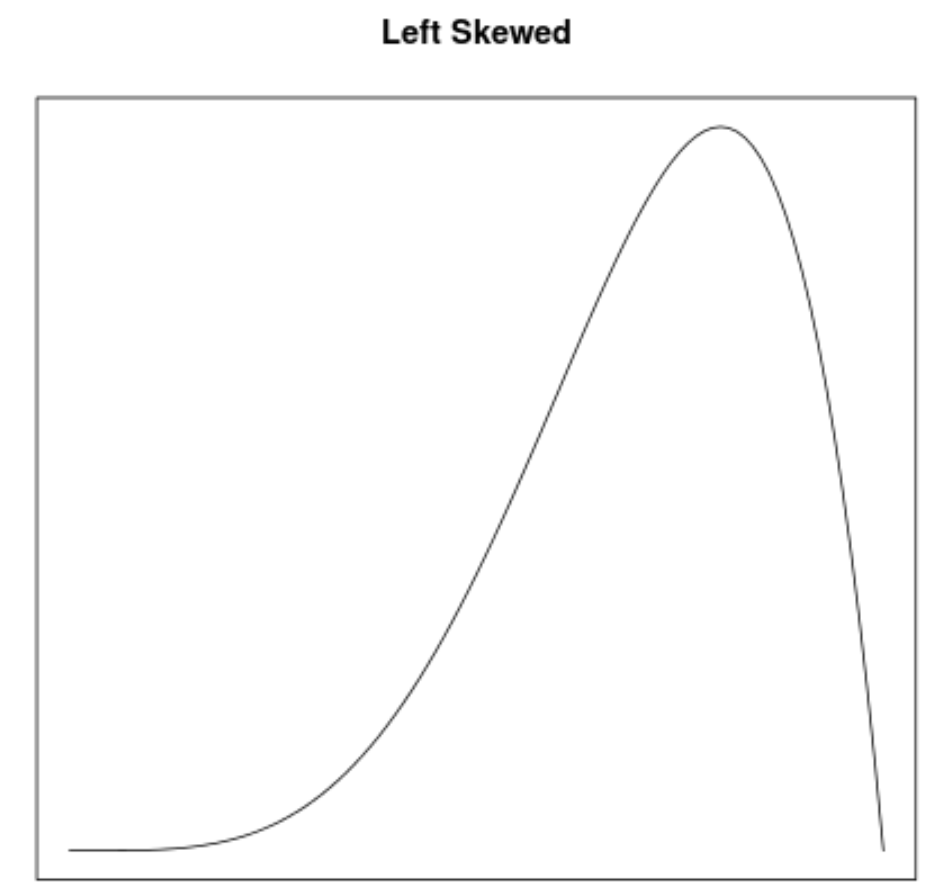

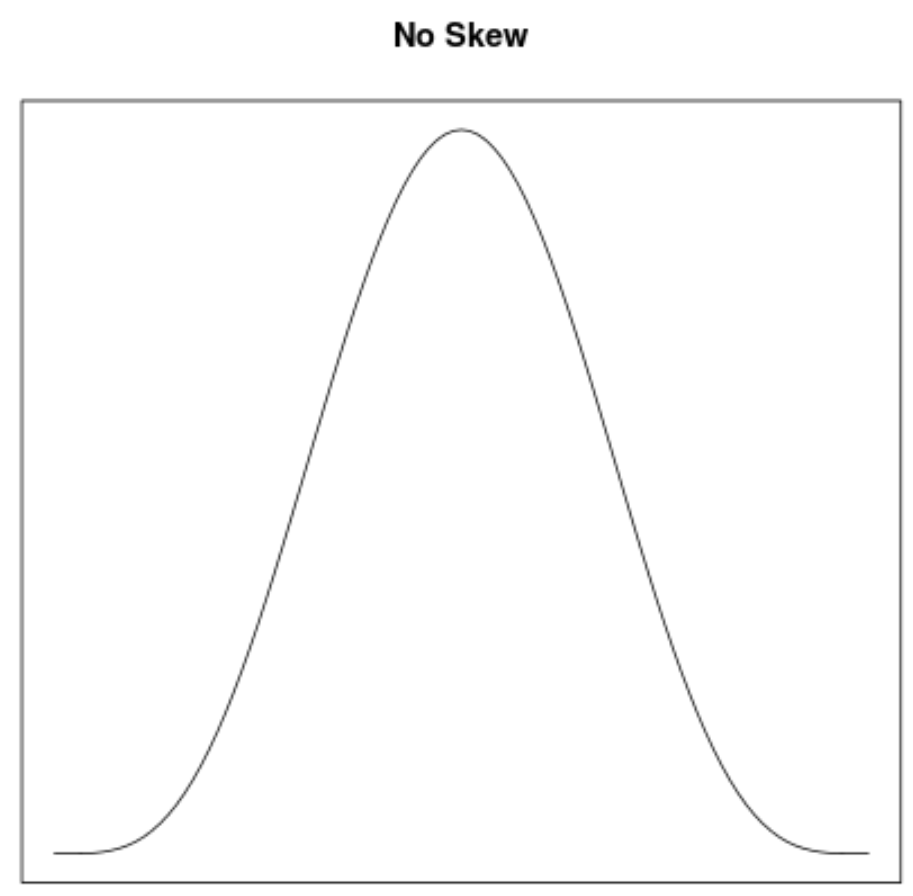

Skewness describes the degree of asymmetry in a distribution. A perfectly symmetrical curve has no skew, meaning the left side is a mirror image of the right. However, if the tail of the distribution extends significantly longer on one side, we identify it as skewed. A distribution is left skewed (or negatively skewed) if the tail points toward the smaller values, and right skewed (or positively skewed) if the tail points toward the larger values. The images below illustrate these three fundamental shapes:

Furthermore, density curves reveal the distribution’s modality, which is the number of major peaks present. In standard statistical modeling, distributions often possess a single peak, making them unimodal. However, some datasets, particularly those combining two distinct populations, exhibit two clear peaks, known as bimodal distributions. In rarer instances, a distribution may be multimodal, displaying two or more prominent peaks. The density curve provides an immediate visual confirmation of this modality, which is essential for understanding whether the data originates from a single homogeneous process or multiple underlying factors.

Key Statistical Metrics: Locating the Mean and Median

One of the most practical applications of interpreting density curves is determining the relative positions of the mean (the average value) and the median (the middle value). This relationship is directly dependent upon the distribution’s skewness and provides crucial information about the central tendency of the data.

In a perfectly symmetrical distribution (one with no skew), the mean and the median are precisely equal and located at the center of the curve. However, when skewness is present, the mean is disproportionately pulled toward the long tail of the distribution, while the median, being less sensitive to outliers, remains closer to the main body of the data.

This systematic relationship allows for clear rules when assessing central tendency based on the curve’s appearance:

• If a density curve is left skewed, the mean is pulled down by the low values in the left tail, resulting in the mean being less than the median.
• If a density curve is right skewed, the mean is pulled up by the high values in the right tail, resulting in the mean being greater than the median.
• If a density curve has no skew (it is symmetrical), then the mean is equal to the median.

Fundamental Properties of Valid Density Curves

For any curve to qualify as a statistically valid density curve representing a continuous probability distribution, it must adhere to two strict mathematical properties. These properties ensure that the curve correctly models probability and frequency.

The first critical property is that the area under the entire curve must always sum up to exactly 1, or 100%. This is because the curve represents the distribution of all possible values in the dataset; therefore, the probability of an observation falling somewhere along the entire range must be absolute certainty. This standardization to an area of 1 is what allows us to interpret partial areas as probabilities or percentages.

The second fundamental property is that the curve can never dip below the x-axis. Since density curves represent frequencies and probabilities, which can only be non-negative values, the height of the curve (the density) must always be zero or positive. These two foundational facts are essential considerations for both the construction and accurate interpretation of any density curve.
