Understanding Residuals: A Guide to Model Accuracy in Statistics

In the fundamental fields of statistics and machine learning, the concept of a residual is absolutely central to evaluating the performance and accuracy of any predictive model. Put simply, a residual is a measure of the vertical distance separating an actual data point, known as the observed value, from the corresponding value estimated by the model, known as the predicted value, particularly within the context of regression analysis.

This critical difference serves to quantify the specific error associated with each individual data point in the dataset. The calculation is straightforward and defined by the following foundational formula:

Residual = Observed value – Predicted value

The primary goal of fitting a statistical model, such as linear regression, is to establish the clearest possible relationship between one or more independent variables (predictors) and a dependent response variable. To achieve the best possible fit, the statistical procedure identifies the line that minimizes the total sum of squared errors—this ideal line is commonly referred to as the least squares regression line.

It is exceptionally rare for a model’s prediction to align perfectly with the actual observed outcome for every single data point. The unavoidable discrepancy that arises between the outcome forecast by the model and the actual outcome recorded in the data is precisely the gap that the residual is designed to capture and measure.

Visualizing Residuals in the Regression Model

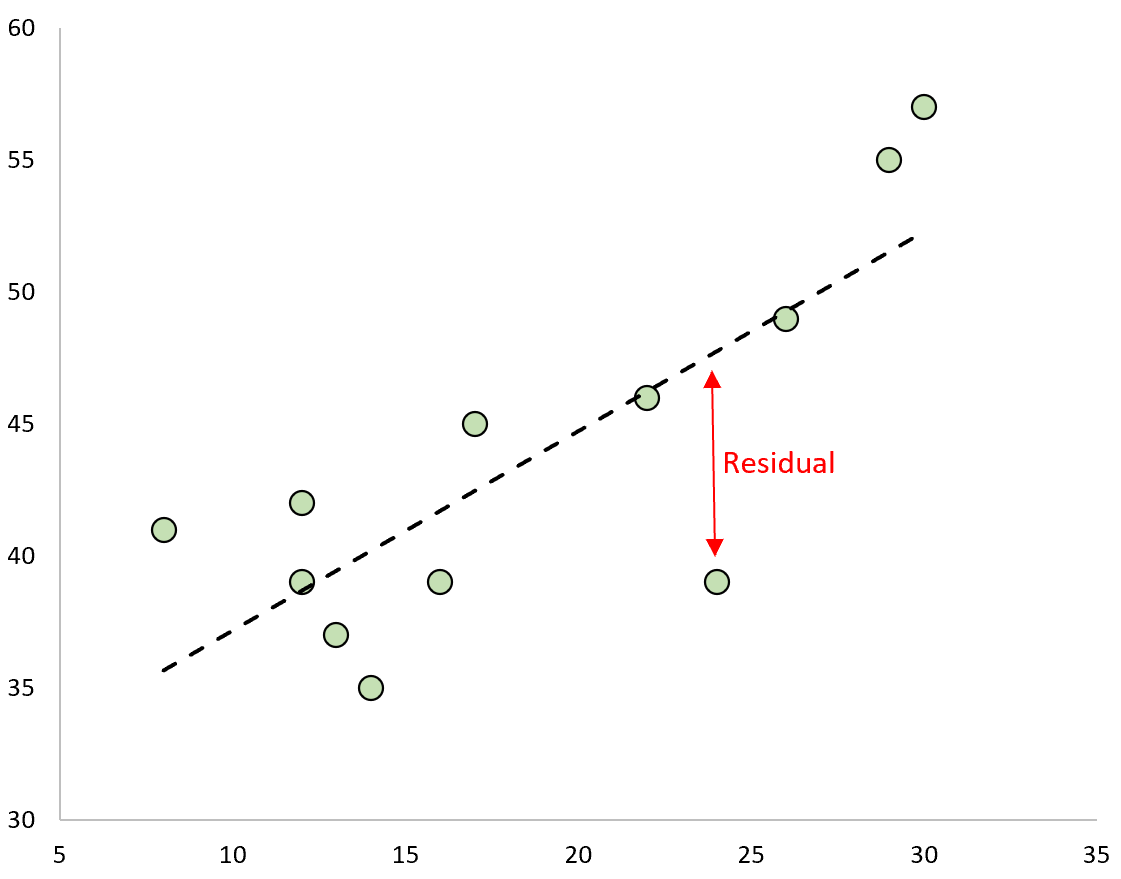

When data points are plotted on a graph and the mathematically fitted regression line is overlaid, the meaning of individual residuals becomes immediately visible and intuitive. Graphically, each residual represents the exact vertical distance spanning the gap between an observation and the regression line itself. This visual interpretation is fundamental, allowing analysts to quickly grasp the accuracy of the prediction for any specific data entry.

A small residual signifies that the predictive model delivered a highly accurate estimate for that particular observation. Conversely, a large residual indicates a substantial deviation or error, suggesting the model struggled to accurately account for that specific data point.

Interpreting Positive and Negative Residuals

Residuals are categorized as positive, negative, or zero, classifications that depend entirely on the observed value’s position relative to the calculated regression line. This directional classification is vital for detailed interpretation of model performance, especially when analyzing individual data points.

An observation results in a positive residual when the actual observed value is positioned higher than the predicted value derived from the regression line. On a scatter plot, these data points will always lie above the fitted line. A positive residual signifies that the model systematically underestimated the true outcome for that observation.

Conversely, a negative residual occurs when the observed value is lower than the predicted value. These points are located below the fitted line, indicating that the predictive model overestimated the actual outcome. If a residual is exactly zero, it means the model predicted the observation perfectly.

Although individual residuals vary widely, a fundamental mathematical property of the ordinary least squares method is that the algebraic sum of all residuals across the entire dataset must precisely total zero. This property ensures that the total error represented by points above the line perfectly balances the total error from points below the line.

Step-by-Step Example of Calculating Residuals

To firmly grasp the utility of residuals, let us examine a practical calculation using a small, representative dataset. Suppose we are tracking 12 observations involving two variables, X (predictor) and Y (response):

After employing standard statistical software to fit a linear regression line to this data, we find that the line of best fit is mathematically defined by the following equation:

y = 29.63 + 0.7553x

We can now utilize this fitted regression equation to calculate the predicted Y value (often denoted as ŷ) for any given X input. For our first observation, where the X value is 8, the predicted Y value would be calculated as: ŷ = 29.63 + 0.7553(8) = 35.67.

Since the actual observed Y value for this observation is 41, we proceed to calculate the residual using our defining formula:

Residual = Observed value – Predicted value = 41 – 35.67 = 5.33

The resulting positive value (5.33) confirms that the model underestimated the actual outcome for this specific data point. By systematically repeating this identical procedure for all 12 observations, we are able to generate a complete and comprehensive set of residuals for the entire dataset:

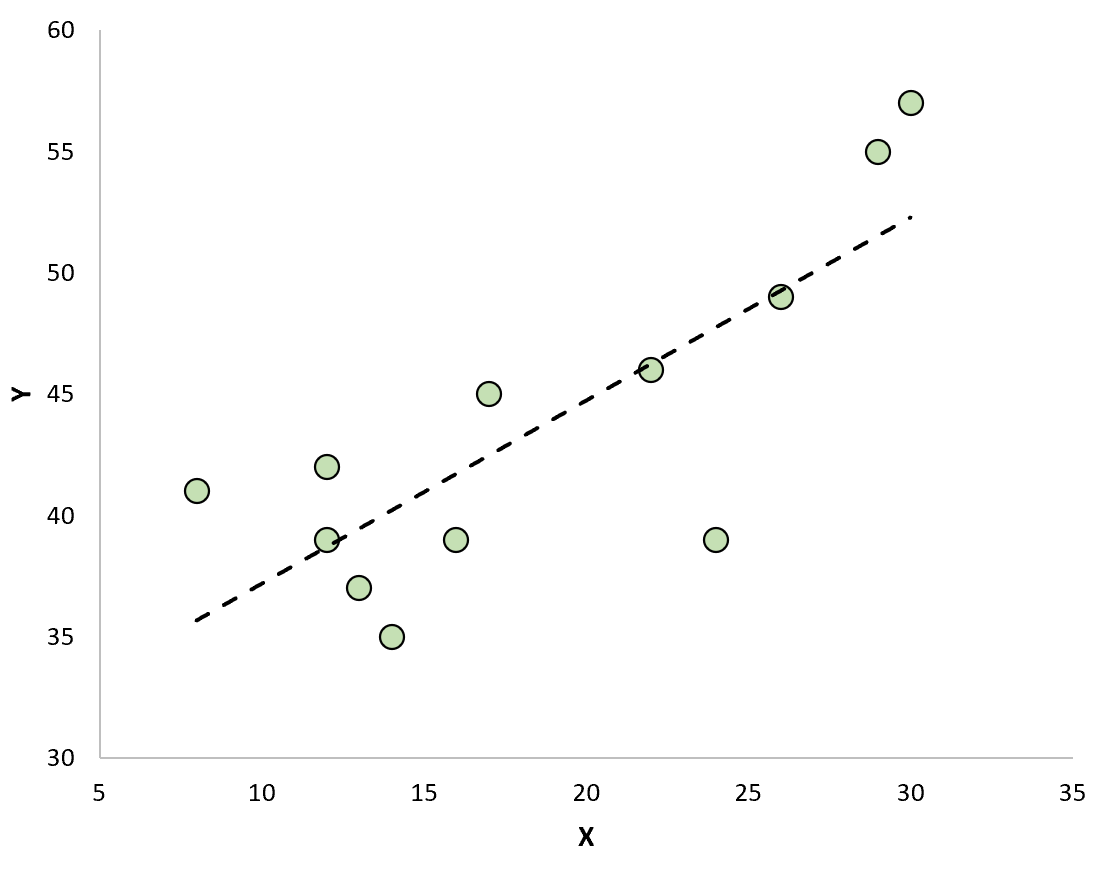

When these values are mapped onto a scatterplot, the residuals clearly delineate the vertical gaps separating each data point from the line of best fit, providing a powerful visualization of the model’s overall accuracy.

Key Statistical Properties of Residuals

Residuals are much more than simple measurements of error; they possess distinct statistical properties that are fundamental to the underlying theory of regression analysis. A thorough understanding of these properties is indispensable for properly validating the assumptions upon which the statistical model is built.

The ordinary least squares methodology is mathematically structured to ensure these specific characteristics are maintained when fitting the model:

• Correspondence: Every single observation present within the dataset must have a corresponding residual. If a dataset contains 1,000 observations, the model will inevitably produce 1,000 predicted values, thus yielding 1,000 total residuals.
• Sum of Zero: A defining mathematical feature of the least squares estimation method is that the algebraic sum of all residuals across the entire fitted model must equate precisely to zero.
• Zero Mean: As a direct and logical consequence of the sum being zero, the mean value (average) of the residuals for any correctly specified regression model must also be zero.

Residuals as Diagnostic Tools in Model Assessment

In practical data analysis and statistical modeling, residuals function as the primary diagnostic mechanism for thoroughly evaluating the quality, reliability, and validity of a linear regression model. They are strategically employed to address three crucial assessment objectives:

1. Assessing Overall Model Fit (Residual Sum of Squares).

One foundational metric derived directly from the residuals is the Residual Sum of Squares (RSS). The RSS is calculated by squaring every individual residual and subsequently summing those squared values. Since the definition of the least squares method is to minimize this total squared error, a lower RSS value conclusively indicates a superior fit between the regression model and the underlying observed data.

2. Checking the Assumption of Normality.

A core requirement underpinning valid inference in linear regression is the assumption that the model’s residuals must follow a normally distributed pattern. When this assumption is violated, statistical tests and confidence intervals derived from the model can become unreliable or invalid.

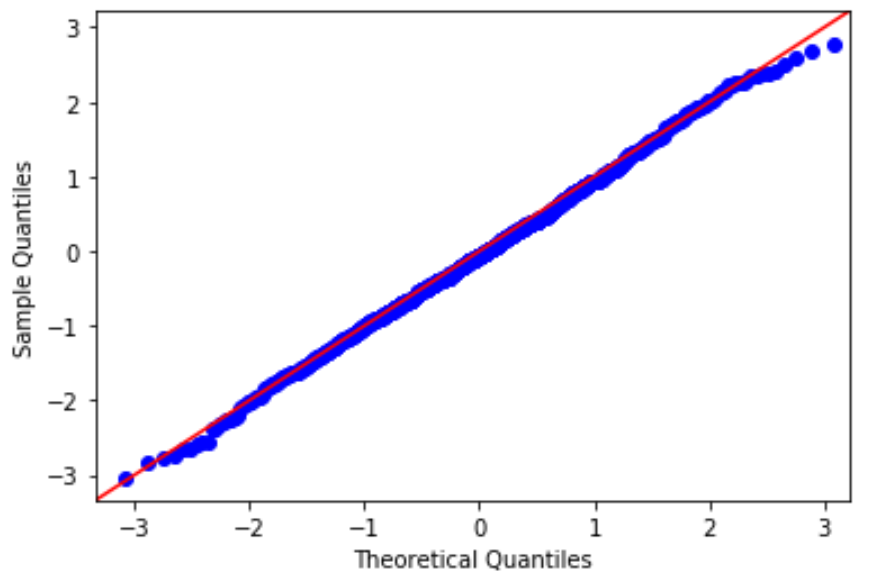

Analysts typically check this distribution requirement using a specialized graphical tool called a Q-Q plot. If the plotted data points adhere closely to a straight diagonal line, it provides strong visual evidence that the normality assumption is generally being met.

3. Checking the Assumption of Homoscedasticity.

The final critical requirement is homoscedasticity, which mandates that the variance (spread) of the residuals must remain consistent and constant across all possible levels of the independent predictor variable (X). When the variance is demonstrably unequal across the range, the model is suffering from the issue of heteroscedasticity, which severely compromises the efficiency and validity of the statistical estimates.

This assumption is primarily assessed by inspecting a residual plot (residuals plotted against predicted values or fitted values). The ideal residual plot shows the residuals randomly and evenly scattered around the horizontal zero line, exhibiting absolutely no discernible patterns, such as funnel shapes or curved trends.

If the data points in this diagnostic plot appear structureless and are spread roughly equally both above and below the zero baseline, the vital assumption of homoscedasticity is typically deemed satisfied, allowing for reliable statistical inference.
