Understanding F-Values in ANOVA: A Beginner’s Guide

The Analysis of Variance (ANOVA) is a fundamental statistical tool used across various fields, from experimental psychology to financial modeling. Its primary purpose is to determine whether or not the means of three or more independent groups are statistically equal. Unlike the t-test, which is limited to comparing only two means, ANOVA provides an efficient method for assessing multiple treatments or conditions simultaneously, helping to control the overall Type I error rate.

When conducting a one-way ANOVA, we are essentially investigating whether the differences observed between the sample group means are larger than what we would expect from natural, random sampling variability alone. This comparison is quantified by the F-statistic, a crucial metric derived from the variance components within the data. Understanding how this F-value is calculated and interpreted is key to drawing valid conclusions from your study.

A one-way ANOVA uses the following Null and Alternative Hypotheses to formalize the statistical question:

• H₀ (Null Hypothesis): All population group means are equal. This hypothesis proposes that the treatment or factor has no measurable effect.
• H_A (Alternative Hypothesis): At least one population group mean is significantly different from the rest. This suggests that the treatment or factor does have an effect on the outcome variable.

Deconstructing the ANOVA Summary Table

After running a one-way ANOVA, the results are always presented in a standardized summary table. This table organizes the calculation of variance into components attributable to the factor being tested (Treatment) and components attributable to random chance (Error). Understanding each column is vital for interpreting the final F-statistic.

The primary components summarized include the Sum of Squares (SS), the Degrees of Freedom (df), the Mean Squares (MS), the F-statistic, and the resulting P-value. The Mean Squares column, which represents the variance estimates, is the direct input used for calculating the F-ratio.

Whenever you perform a one-way ANOVA, you will end up with a summary table that looks like the following example, which we will analyze in detail:

The Mean Squares (MS) values in the table are essentially estimates of the population variance. The MS Treatment captures the variability explained by the differences between the group means, while the MS Error captures the variability due to random chance or measurement error.

Defining the F-Ratio and Its Components

The F-value is calculated as a ratio of these two variance estimates. This ratio is designed to measure how much larger the variance explained by the differences in the groups (the signal) is compared to the variance that cannot be explained (the noise).

The formula for the F-value in the table is calculated as:

• F-value = Mean Squares Treatment / Mean Squares Error

Another way to write this ratio, which provides a more intuitive understanding of the underlying concept, is as follows:

• F-value = variation between sample means / variation within the samples

In the context of the null hypothesis, if there is truly no difference between the population means, both the MS Treatment and the MS Error should be estimating the same population variance, leading to an F-ratio close to 1.

For example, the F-value in the table above is calculated using the MS values from the Treatment and Error rows:

• F-value = 96.1 / 40.8 = 2.358

What a High F-Value Indicates

The interpretation of the F-value is straightforward: the larger the F-value, the stronger the evidence against the null hypothesis. A high F-value occurs when the variation between the sample means is high relative to the random variation observed within each of the samples.

A significantly high F-value suggests that the differences observed between the group averages are unlikely to have occurred purely by random chance. This is precisely the “signal” that researchers look for, indicating that the factor (treatment) being studied has a genuine effect on the outcome variable.

Conversely, an F-value close to 1 (or less than 1) suggests that the variation between the groups is roughly equivalent to the variation within the groups. In this scenario, the differences among the group means are considered small enough that they could easily be attributed to sampling error, providing little evidence to reject the claim that all population means are equal.

The Role of the F-Distribution and P-Value

To translate the F-value into a meaningful statistical decision, we must use the theoretical F-distribution. The F-distribution is a family of distributions defined by two parameters: the numerator Degrees of Freedom (df Treatment) and the denominator Degrees of Freedom (df Error).

The resulting calculation yields the P-value, which represents the probability of obtaining an F-statistic as extreme as, or more extreme than, the one calculated, assuming the null hypothesis is entirely true. The higher the F-value, the further out in the tail of the F-distribution it lies, and thus, the smaller the corresponding P-value.

For our example, the P-value that corresponds to an F-value of 2.358, with numerator df = 2, and denominator df = 27, is calculated as 0.1138.

Since this P-value (0.1138) is not less than the commonly accepted significance level of α = .05, we fail to reject the null hypothesis. This outcome means we do not have sufficient statistical evidence to conclude that there is a statistically significant difference between the means of the three groups.

Visualizing the F-Value of an ANOVA

To gain an intuitive understanding of the F-value and the concept of variability comparisons, consider the following visualization based on hypothetical exam scores across different groups.

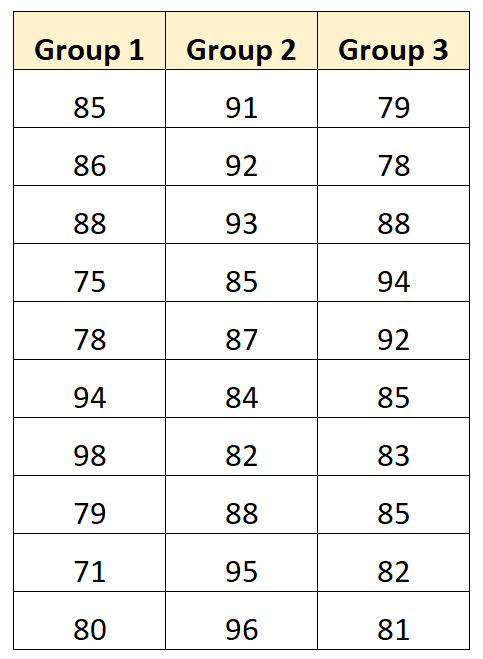

The raw data distribution illustrates the individual data points for each of the three groups being compared:

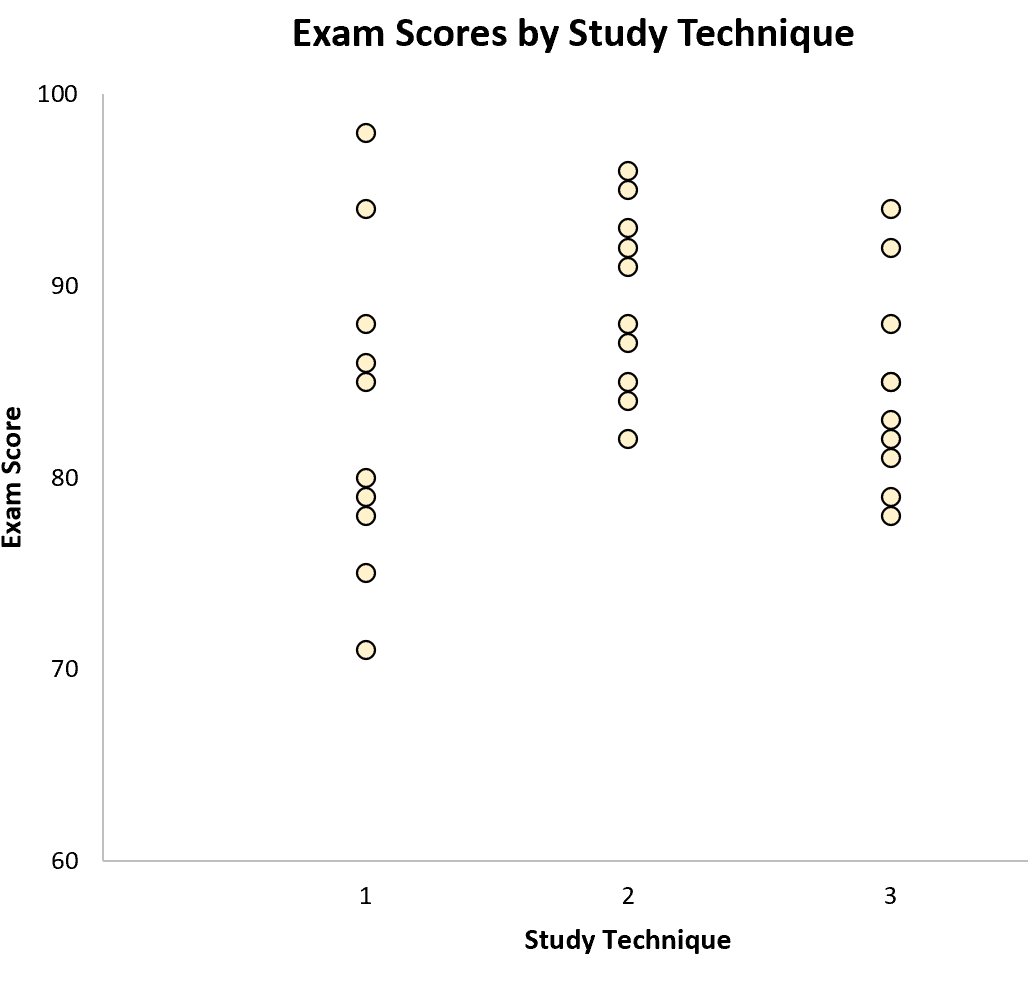

We can create the following plot to visualize the exam scores by group, showing their central tendency and spread:

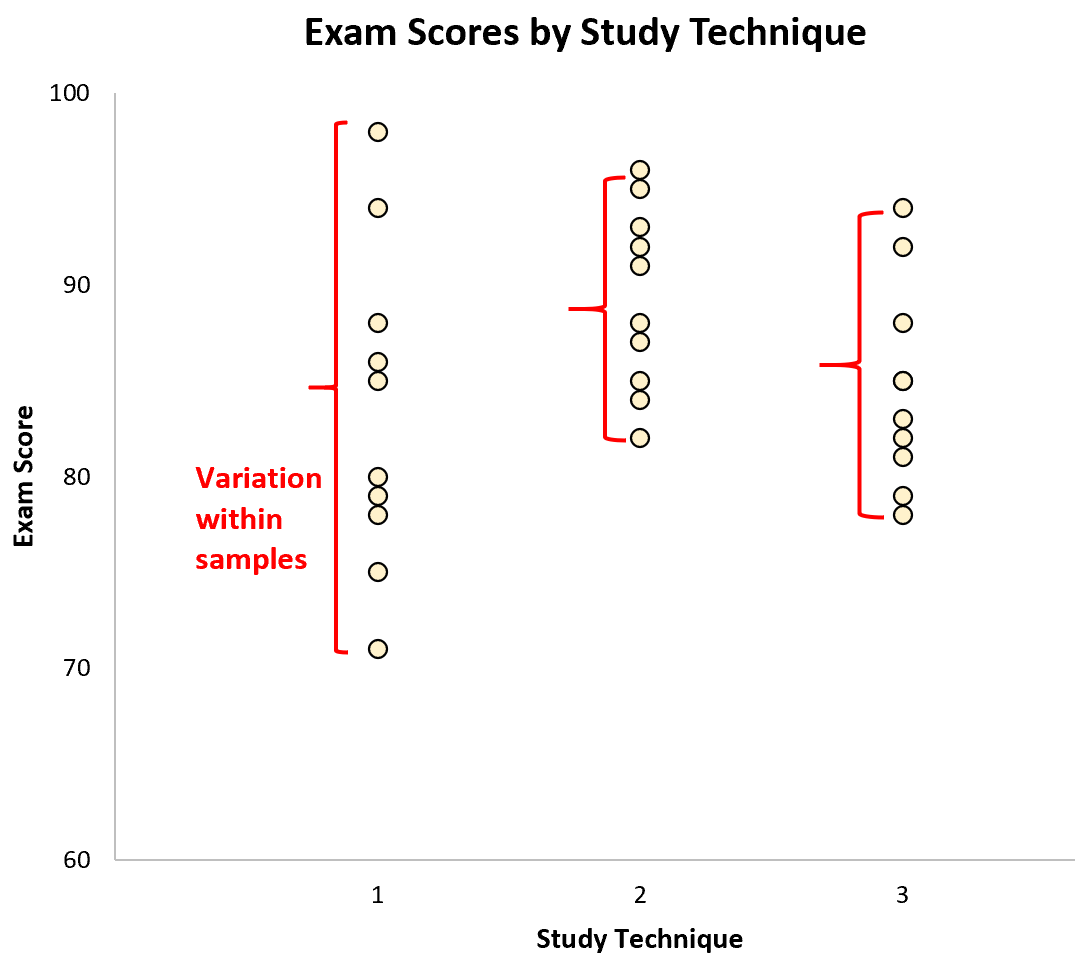

The variation within the samples is the denominator of the F-ratio (MS Error). This represents the noise—the inherent, random spread of the values within each individual sample group. If this spread is large, it dampens the F-statistic:

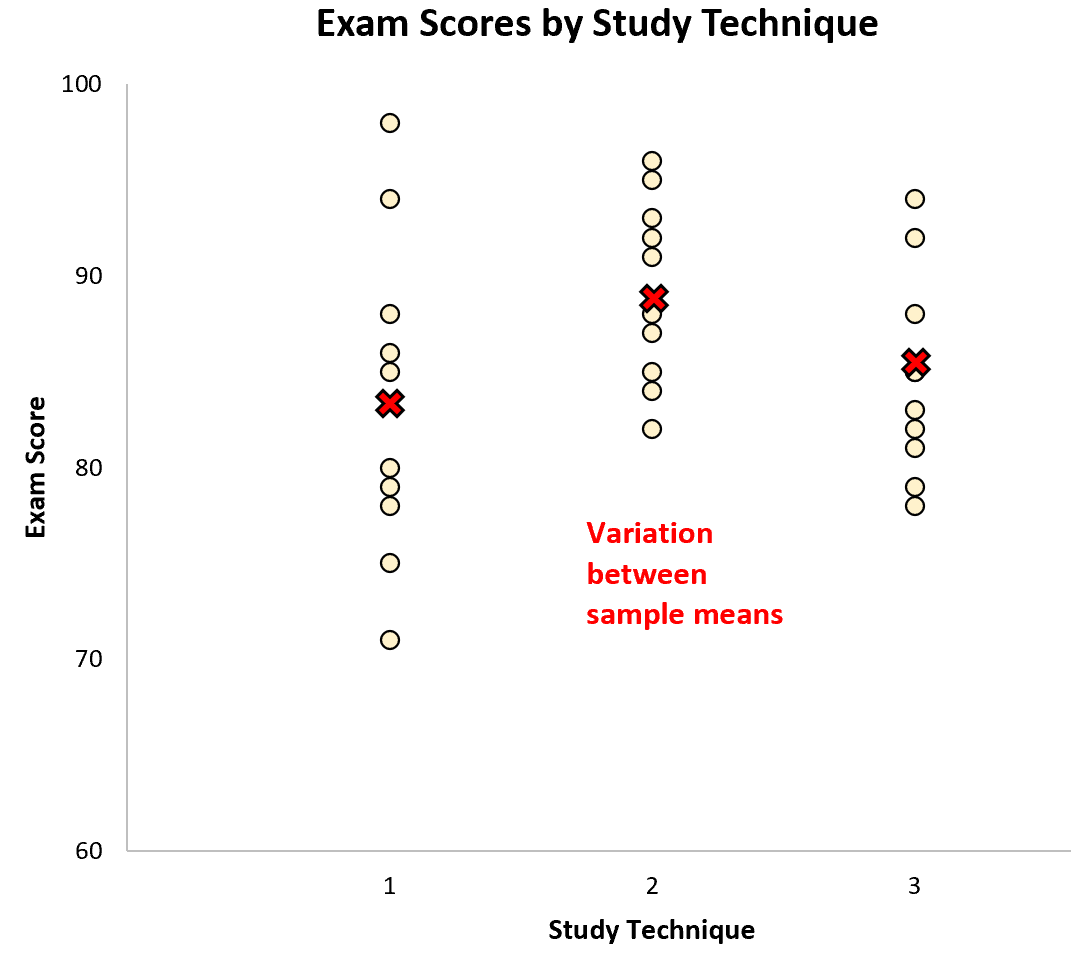

The variation between the samples is the numerator of the F-ratio (MS Treatment). This represents the signal—the differences between the sample means themselves. If the means are far apart, this metric is high:

As established previously, performing a one-way ANOVA for this dataset yielded an F-value of 2.358 and a corresponding P-value of 0.1138.

Because this P-value is above the threshold of .05, we failed to reject the null hypothesis. Visually, this tells us that although the group means show some separation, the variation within each group (the overlap) is too large relative to the separation between the means to declare a statistically significant difference. A truly high F-value would correspond to plots where the means are far apart and the internal group spreads are very narrow.

Conclusion: Interpreting F-Values for Significance

The F-value is the critical outcome of an ANOVA, quantifying the ratio of structured variance to residual error. A high F-value is necessary, though not sufficient alone, to conclude that group means differ significantly.

Here’s a brief summary of the main points regarding the interpretation of the F-statistic:

• The F-value in an ANOVA is calculated as: variation between sample means / variation within the samples.
• The higher the F-value in an ANOVA, the higher the variation between sample means relative to the random variation within the samples.
• The higher the F-value, the lower the corresponding P-value, as a high F-value falls further out on the tail of the F-distribution.
• If the P-value associated with the F-statistic is below a certain threshold (e.g. α = .05), we can reject the null hypothesis of the ANOVA and conclude that there is a statistically significant difference between group means.
