Understanding Cross-Lagged Panel Designs: A Guide to Analyzing Relationships Over Time

The cross-lagged panel design (CLPD) is a highly effective methodology utilized in quantitative research, particularly within the social sciences. This technique is often categorized as a specialized form of structural equation modeling (SEM). The primary utility of the CLPD lies in its ability to analyze the directional relationship between two variables that are measured repeatedly over time. By incorporating multiple measurement points, researchers can move beyond simple correlation to investigate potential causal pathways in complex longitudinal studies.

Defining the Cross-Lagged Panel Design (CLPD) Framework

The fundamental purpose of the CLPD is to establish temporal precedence and infer directional influence between two constructs, conventionally labeled Variable A and Variable B. Unlike traditional correlational analysis, which only captures simultaneous association, the CLPD leverages longitudinal data collected from the same sample across at least two distinct measurement waves (Time 1 and Time 2).

This robust method explicitly tests two competing hypotheses simultaneously. First, does Variable A measured at Time 1 predict Variable B measured at Time 2? Second, does Variable B measured at Time 1 predict Variable A measured at Time 2? By comparing the strengths of these two “cross-paths,” and critically, by controlling for the stability of each variable over time, the model provides a rigorous statistical test for directional causal influence.

A clear understanding of the terminology is essential for grasping the model’s function. The descriptor “cross” signifies that the analysis tracks the relationship *across* the two distinct variables (A to B, and B to A). Conversely, the term “lagged” emphasizes the necessary temporal separation; the analysis determines if a variable at an earlier point in time (T1) influences the other variable at a subsequent point in time (T2). This temporal lag is the mechanism that allows for the inference of precedence, a necessary condition for inferring causality.

Illustrative Example: Education Investment and Economic Prosperity

To demonstrate the practical application of the CLPD framework, let us consider a classic research question: determining the long-term, directional relationship between national education investment and economic prosperity. A researcher collects data on two critical metrics within a specific country: the total amount of money allocated to education (E) and the median household income (H). These variables are measured at two separate time points five years apart—say, 2015 (T1) and 2020 (T2).

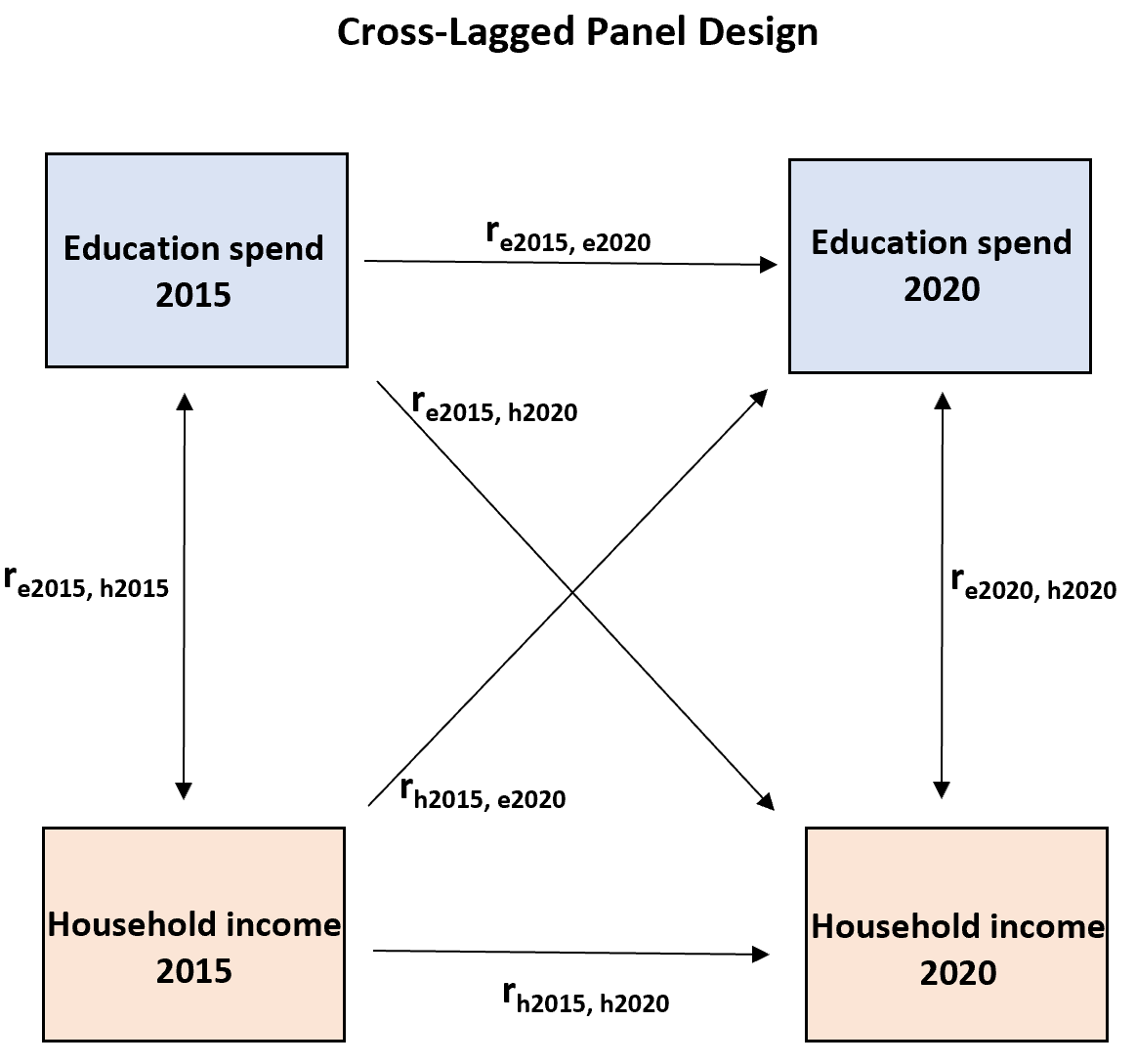

The CLPD structure allows us to meticulously analyze how Education Spend in 2015 predicts Household Income in 2020, while simultaneously assessing whether Household Income in 2015 predicts Education Spend in 2020. This allows us to disentangle which variable exerts a stronger influence over the other across the defined time interval. The diagram below visually represents the basic structure of this cross-lagged panel design, showcasing all potential paths.

Note: The notation r_{e2015, h2015} specifically denotes the concurrent correlation between education expenditure and median household income when both metrics are measured at exactly the same point in time (2015).

The Three Categories of Relationships Assessed by CLPD

A complete cross-lagged panel design involving two variables and two time points requires the estimation of six core relationships. These six paths are grouped into three distinct categories, each providing unique information necessary for fully characterizing the dynamic interplay between the variables.

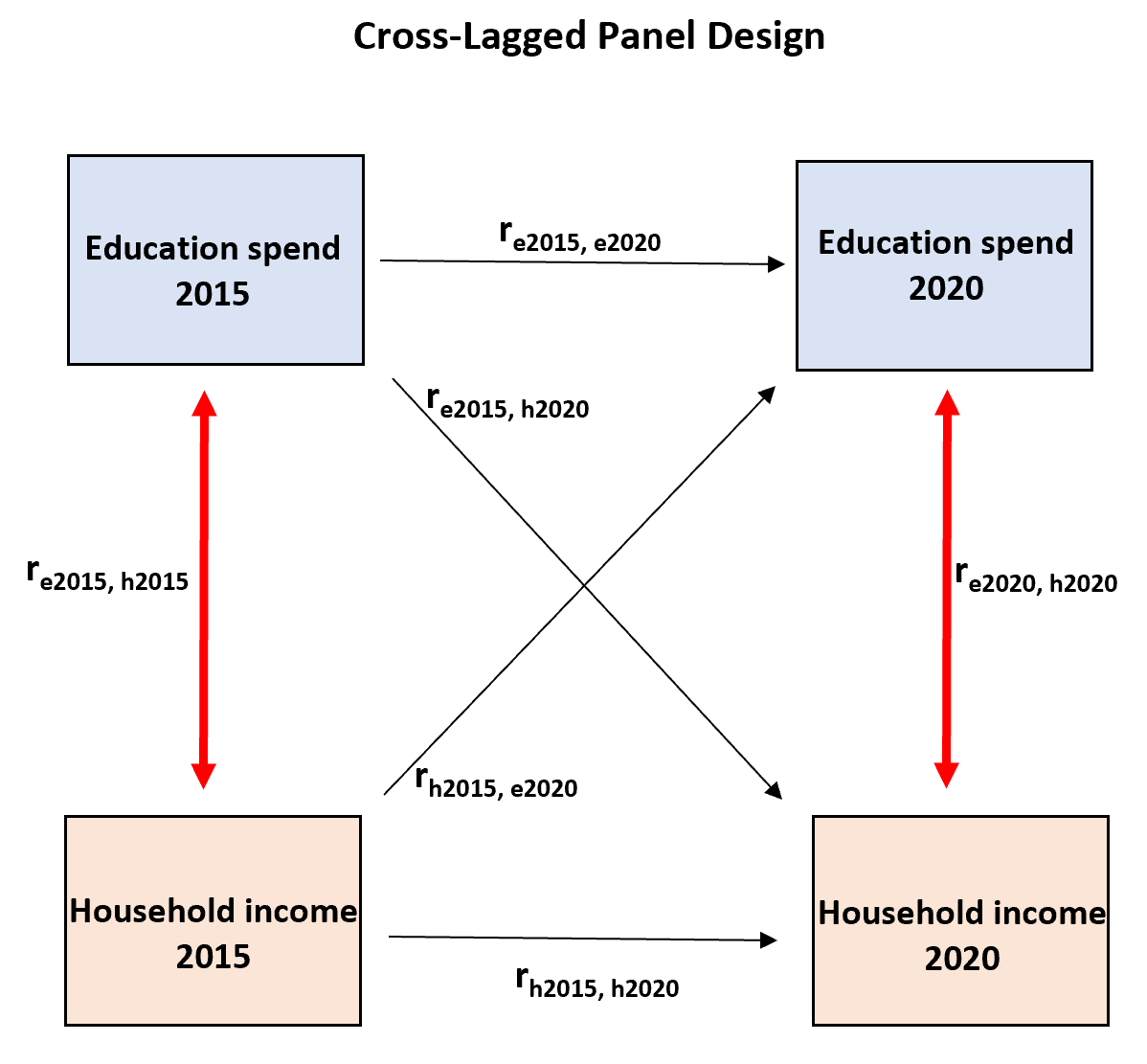

Synchronous Relations

The two synchronous relations quantify the concurrent association between Variable E and Variable H at the precise same time points (T1 and T2). These paths, often represented as correlations, reflect how the variables co-vary irrespective of the time lag between measurements. They confirm the standard association observed when variables are measured simultaneously, offering a baseline measure of their immediate relatedness.

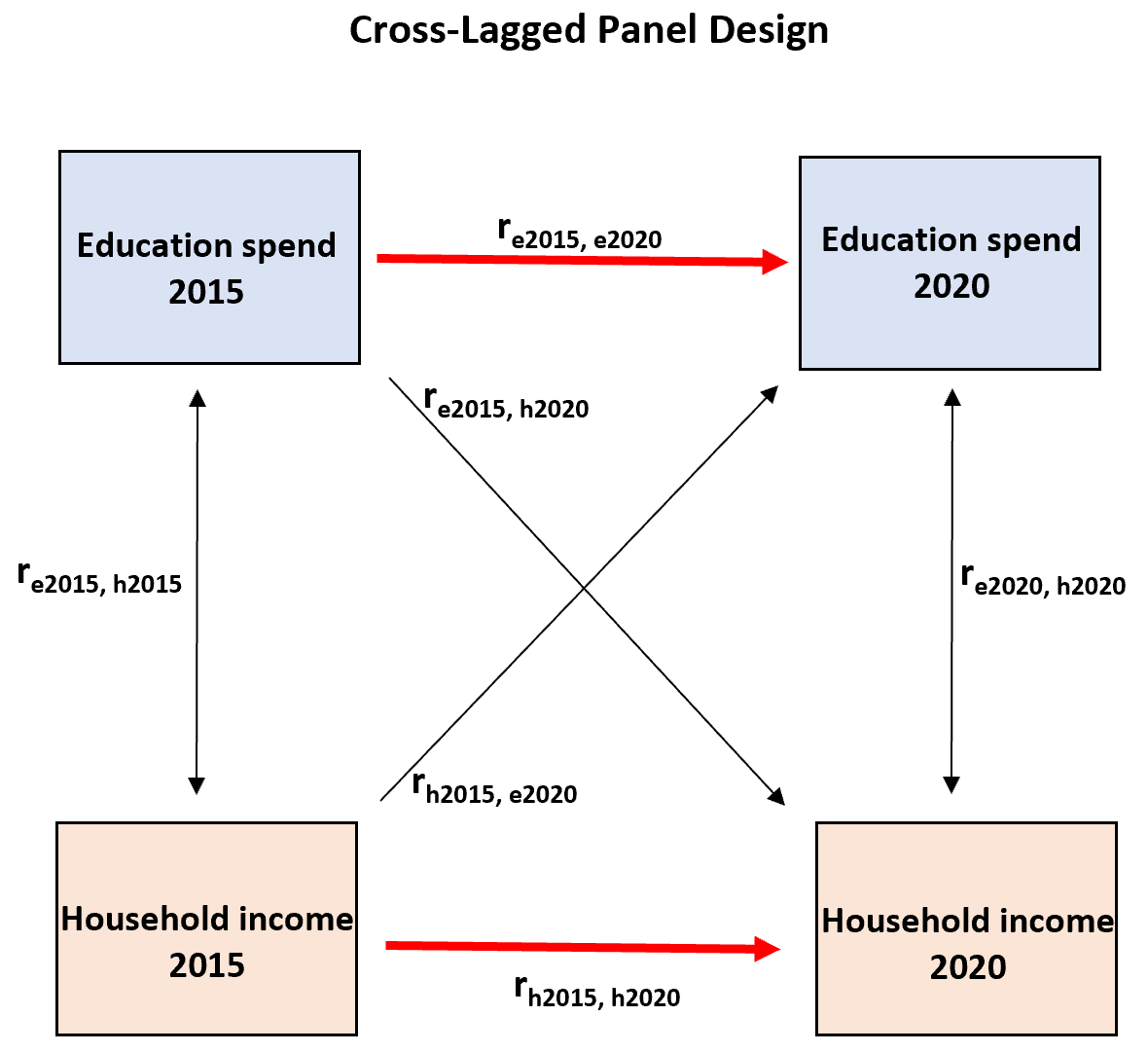

Stability Relations

The two stability relations measure the temporal consistency, or auto-correlation, of a single variable across the time interval (e.g., E at T1 predicting E at T2). High stability coefficients indicate that the variable is highly consistent, meaning units of analysis (countries, individuals, etc.) tend to maintain their relative standing on that metric from Time 1 to Time 2. Controlling for this stability is crucial because it ensures that the cross-lagged effects are not merely artifacts of the variable’s inherent persistence.

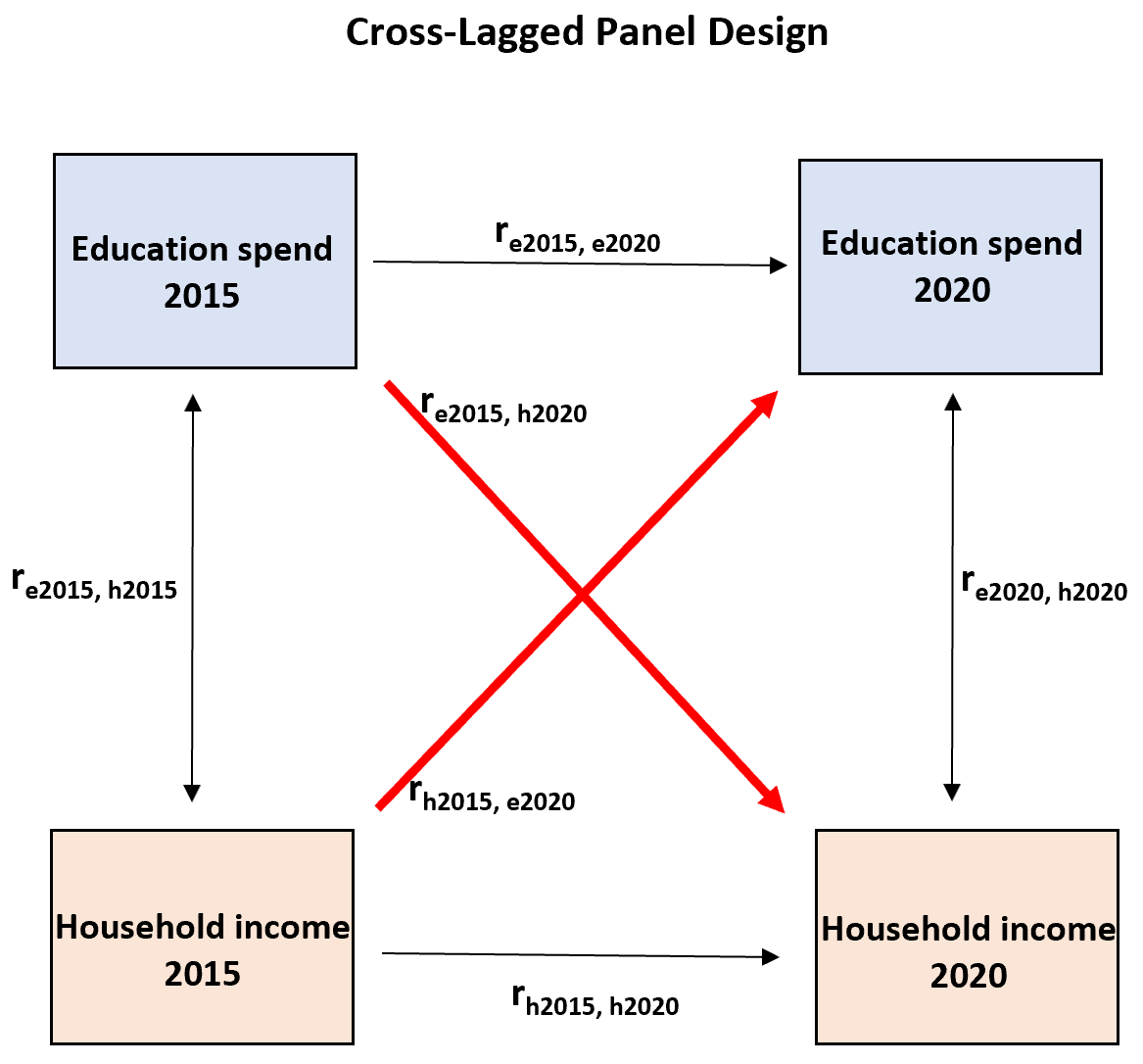

Cross-Lagged Relations

The two cross-lagged relations represent the heart of the CLPD, as they directly assess directional influence and temporal precedence. These paths measure the association between one variable at the earlier time point (T1) and the other variable at the later time point (T2). By examining the path from E at T1 to H at T2, and comparing it to the path from H at T1 to E at T2, researchers can statistically test which variable drives change in the other.

Interpreting Directional Influence and Causal Inference

The true inferential power of the CLPD is realized during the interpretation of the cross-lagged paths. If a specific cross-lagged path coefficient is statistically significant and substantially larger than the reciprocal path, it provides strong evidence for a directional effect. This suggests that, after accounting for the stability of both variables, one variable systematically precedes and influences the other over the measured time interval.

Continuing our example, if the cross-lagged path r_{e2015, h2020} (Education Spend at T1 predicting Household Income at T2) is statistically significant, but the reverse path r_{h2015, e2020} is negligible, the model supports the interpretation that increased investment in education leads to subsequent gains in household income, rather than the reverse relationship dominating. This finding establishes temporal order and suggests a non-spurious relationship.

However, it is critically important to maintain a cautious stance when using the term “causal.” While the CLPD addresses temporal precedence and controls for auto-correlation (two key criteria for causality), the resulting statistical relationship only suggests a potential causal pathway. Robust causal claims require rigorous theoretical justification, proper study design (e.g., appropriate time lags), and diligent consideration of relevant confounding variables not included in the model.

Crucial Assumptions Governing the CLPD Model

The validity and reliability of the directional inferences derived from a cross-lagged panel design are predicated on the adherence to several methodological assumptions. Failure to meet these assumptions can result in biased statistical estimates and potentially incorrect conclusions about which variable influences the other.

Synchronicity

The assumption of Synchronicity mandates that the measurements for both Variable A and Variable B must be collected at the exact same time point within each wave (T1 and T2). This ensures that the concurrent associations are true reflections of the relationship at that moment. If measurement timing is slightly offset, the synchronous correlation may be inaccurate, which can subsequently bias the estimation of the stability and cross-lagged paths.

Stationarity

The assumption of Stationarity is often the subject of intense debate in CLPD literature. It requires that the underlying statistical relationships, specifically the stability coefficients and the cross-lagged coefficients, remain constant (invariant) across all measurement waves. In practical terms, this means that the strength of the causal influence of A on B (and B on A) must be the same between T1-T2 as it is between T2-T3 (if a third time point is included). If the strength of the relationship evolves dramatically over time, the stationarity assumption is violated, necessitating more complex modeling approaches.
