Understanding Residuals vs. Leverage Plots in Regression Analysis

The Role of the Residuals vs. Leverage Plot in Model Diagnostics

The residuals vs. leverage plot stands as a cornerstone diagnostic tool within the field of regression analysis. Its fundamental purpose is to empower statisticians and analysts to pinpoint specific data points—known as influential observations—that exert a disproportionate and potentially misleading impact on the estimated parameters of a fitted regression model. Identifying these outliers is crucial, as their undue weight can significantly skew the resulting coefficients, compromising the reliability of the model’s conclusions.

In any rigorous statistical modeling exercise, assessing the robustness of the model’s parameters is essential. We must determine whether the derived relationships are representative of the entire dataset or if they are heavily dependent on just a handful of extreme data points. This two-dimensional visualization provides an elegant solution, offering a clear graphical representation of how much influence each observation contributes to the overall stability and fit of the model.

Modern statistical environments often automate this analysis. For instance, within the powerful open-source environment of the statistical programming language R, this plot is routinely generated as a standard component of the diagnostic output for linear models. It achieves its diagnostic power by plotting two key metrics against each other: statistical leverage on the horizontal (x) axis and standardized residuals on the vertical (y) axis. The resulting scatter plot helps isolate points that possess high values in both critical dimensions.

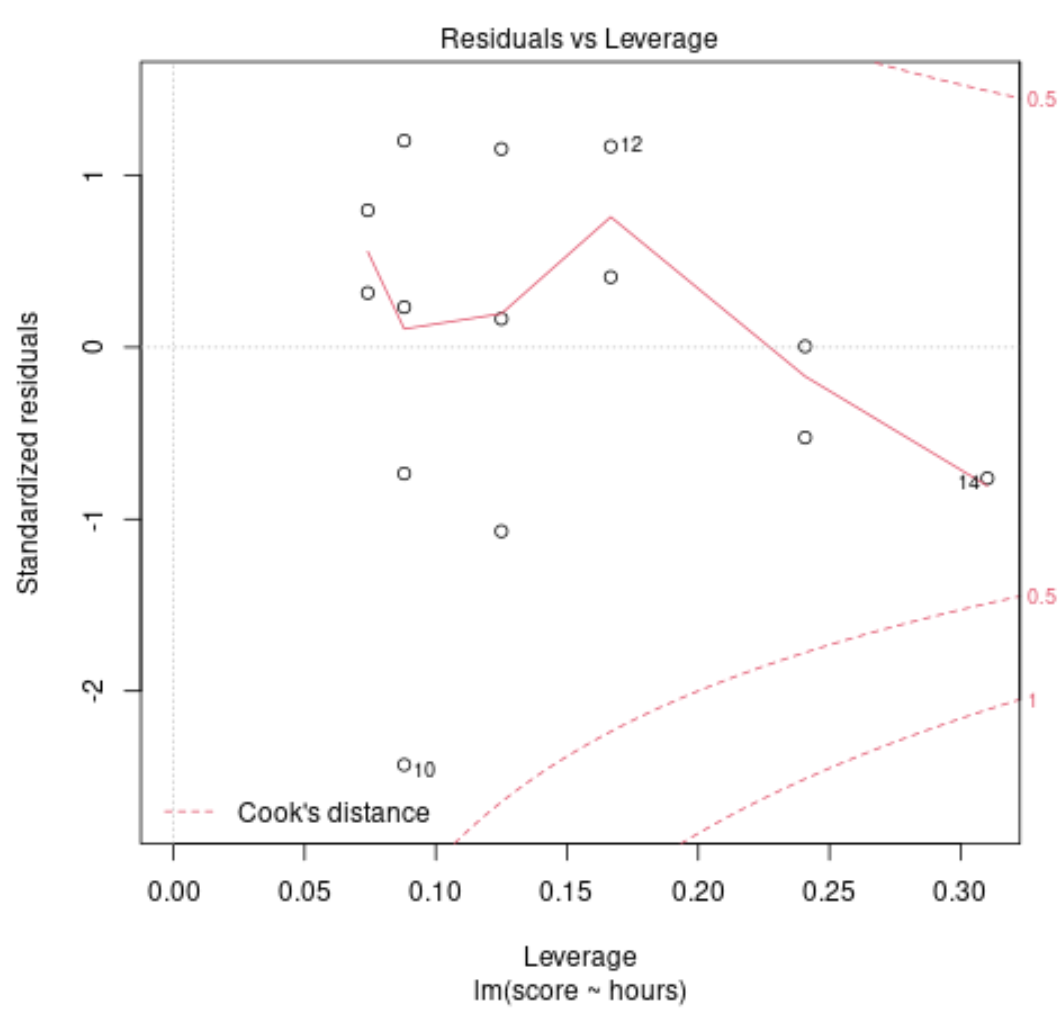

Below is a typical representation of a residuals vs. leverage plot generated during a standard regression diagnostic process:

Component Focus: Interpreting Statistical Leverage

The horizontal axis of the residuals vs. leverage plot quantifies leverage. Leverage essentially measures how extreme an observation’s independent variable values are relative to the mean of all independent variable values in the dataset. Points that are far removed from the center of the predictor space are classified as high-leverage points. These observations have the potential to significantly influence the model simply because of their unique position in the input space.

More formally, leverage reflects the maximum potential capacity of a specific observation to pull or shift the regression coefficients toward itself. If an observation exhibits high leverage, it means that its removal or inclusion in the calculation could dramatically alter the slope and intercept of the fitted line. Even if a high-leverage point fits the general trend of the data perfectly, its extreme position means it warrants careful attention due to its outsized influence over the model geometry.

It is vital to distinguish between high leverage and actual influence. High leverage merely indicates a potential for influence; it is a measure of extremity in the X (predictor) space. If a point has high leverage but happens to fall perfectly on the established regression line, it will not substantially change the model’s parameters. However, analysts must scrutinize these points because they possess the structural capacity to become highly influential if their corresponding response variable value were to deviate even slightly from the predicted line.

Component Focus: Standardized Residuals and Model Fit

The vertical axis of the plot is dedicated to displaying the standardized residuals. A residual, in its simplest form, is the raw error: the vertical distance between the actual observed outcome (Y) and the value predicted by the regression line ($hat{Y}$). Standardizing these residuals is a critical step that makes them directly comparable across different regression models and datasets, regardless of the original scale of the response variable.

The process of standardization involves dividing the raw residual by an estimate of its standard deviation. This transformation is powerful because it allows us to gauge the severity of the lack of fit for any given observation relative to the expected variability. As a rule of thumb, standardized residuals whose absolute magnitude exceeds 2 or, more conservatively, 3, are usually flagged as potentially severe fit issues, indicating the presence of an outlier in the response variable.

While leverage addresses extremity in the input (X) space, a large standardized residual signifies a poor fit in the output (Y) space. It is entirely possible for an observation to exhibit a massive standardized residual—meaning the model predicts its value very poorly—yet possess low leverage if its predictor values are situated very near the center of the dataset means. Thus, combining leverage and residuals is essential for a complete diagnostic picture.

Identifying Influence: The Critical Function of Cook’s Distance

The true diagnostic utility of the residuals vs. leverage plot emerges when these two metrics—leverage and residual error—are synthesized to identify truly influential observations. This synthesis is achieved through the calculation of Cook’s distance, which is visually represented on the plot using red, dashed contour lines.

Cook’s distance provides a single, comprehensive metric that quantifies the overall change in the regression coefficients that would result if a specific observation were completely deleted from the analysis. High values of Cook’s distance are a direct indication that the removal of that particular data point would significantly alter the fundamental parameters (slopes and intercepts) of the statistical model. The contour lines drawn on the plot typically correspond to established influence thresholds, commonly D > 0.5 or D > 1, depending on the chosen statistical convention.

Any data point that falls outside the highest Cook’s distance boundary (frequently the D=1 line) is unequivocally flagged as an influential observation demanding immediate and rigorous investigation. These points simultaneously possess both high leverage (extreme X values) and a large standardized residual (poor Y fit). Their combined effect means they are far from the center of the predictor space and far from the fitted relationship, thus exerting a dominant pull on the regression line.

To summarize the interpretation framework based on location within the plot:

• Low Leverage and Small Standardized Residuals: These are the well-behaved points, forming the bulk of the data, which strongly support and stabilize the model’s estimates.
• High Leverage but Small Standardized Residuals: These points are extreme in the X space but lie very close to the regression line; they possess high potential influence but are not actively distorting the model fit.
• Low Leverage but Large Standardized Residuals: These are outliers in the Y space (poorly predicted outcomes) but do not drastically shift the regression slope because they are surrounded by other points that constrain the line’s movement.
• High Leverage and Large Standardized Residuals: These are the most problematic points—the truly influential observations—as they cross the Cook’s distance threshold and require immediate attention.

Case Studies: Analyzing Stable vs. Influential Datasets

To solidify our understanding, let us examine the initial example plot again, focusing on the relationship between the data points and the Cook’s distance contours. This scenario illustrates a successful diagnostic outcome where the regression model is deemed stable.

In this illustration, we can observe that while certain observations, such as point #10, are positioned close to the inner boundary defined by the Cook’s distance line, they do not cross it. Crucially, no observation falls outside of the red dashed boundary that signifies significant influence. This finding confirms that the diagnostic test is successful: there are no significantly influential data points present that are structurally distorting the estimated coefficients of our regression model. The model’s parameters are robust against the removal of any single observation.

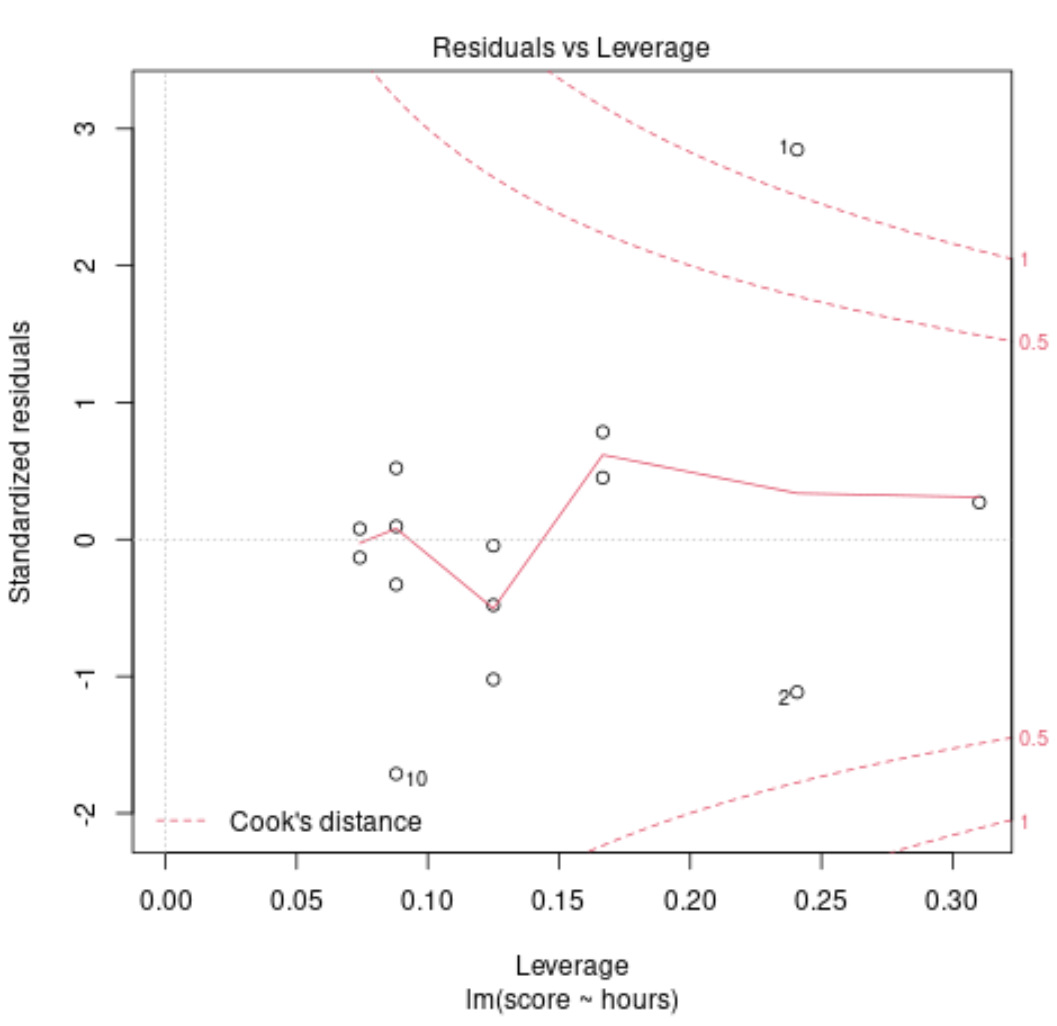

Conversely, consider a situation where a model is severely impacted by a single data point:

In this second plot, observation #1 is prominently located in the upper right quadrant. It clearly crosses the red dashed contour line, placing it squarely in the zone defined by high leverage and large standardized residuals. This unambiguous violation of the Cook’s distance threshold signals that observation #1 is a highly influential point. Its presence alone is sufficient to substantially shift the estimated coefficients, meaning the model conclusion is heavily reliant upon this single data entry.

Systematic Strategies for Addressing Influential Data Points

The discovery of one or more influential observations through the residuals vs. leverage plot should initiate a systematic, cautious investigation. It is a common misconception that influential points must always be removed; rather, their presence is a signal that demands deeper scrutiny into the quality of the data and the adequacy of the model specification.

Analysts should follow these best practices when handling influential data points:

1. Verify Data Integrity and Source Errors: The immediate first step involves confirming whether the influential observation is simply the result of an error. This includes checking for typos, data entry mistakes, measurement errors, or unit conversion anomalies. A simple error often explains the most extreme outliers.
2. Evaluate Model Specification Adequacy: If the data is verified as accurate, the influential point might be highlighting a flaw in the chosen model structure. Analysts should explore alternative regression model formulations, such as incorporating interaction terms, testing polynomial fits, or transitioning to a different class of nonlinear or generalized linear models.
3. Employ Robust Estimation Techniques: A powerful alternative to data alteration is the use of estimation techniques that are inherently less sensitive to extreme values. Methods such as Robust Regression systematically down-weight the influence of outliers while retaining the entire dataset, thereby producing more stable coefficients.
4. Consider Observation Removal (With Extreme Caution): Removal of an influential observation is a last resort. It should only be considered if the point cannot be explained by error, and if the model provides an otherwise exceptional fit for the majority of the data. Any decision to remove data must be fully transparent, thoroughly documented, and justified, as this action can severely limit the generalizability of the final results.

Effectively understanding and mitigating the impact of these influential points is paramount for guaranteeing the statistical validity, predictive power, and overall reliability of the final conclusions drawn from any statistical analysis.

Beyond Leverage: Integrating Comprehensive Diagnostic Checks

While the residuals vs. leverage plot offers unparalleled insight into data influence, it should always be considered one piece of a comprehensive diagnostic portfolio. A thorough assessment of model assumptions and fit quality requires integrating results from other crucial residual plots.

Standard diagnostic checks typically include the Residuals vs. Fitted values plot, which assesses linearity and homoscedasticity, and the Normal Q-Q plot, which verifies the assumption of normally distributed errors. Utilizing all these tools simultaneously provides a complete, multi-faceted picture of the model’s performance and robustness.
