Understanding Latin Hypercube Sampling: A Comprehensive Guide

The methodology of Latin Hypercube Sampling (LHS) stands as a highly sophisticated and efficient statistical technique designed specifically for generating robust input data sets required for complex simulations and sensitivity analyses. Unlike traditional methods, LHS is a specialized form of stratified sampling that ensures input variables are distributed uniformly and comprehensively across the defined sample space.

The fundamental objective of employing LHS is to guarantee that the resulting sample set accurately mirrors the true underlying probability distribution of the input variables. This technique produces what are often termed controlled random samples. While simple random sampling risks creating undesirable clustering or significant gaps in the data range, LHS guarantees thorough coverage, making it a critical tool in modern computational statistics.

Because of its superior efficiency in exploring the input domain, LHS is invaluable in applications like Monte Carlo analysis and uncertainty quantification. By compelling the samples to be perfectly representative of their marginal distributions, LHS dramatically minimizes the number of simulation runs needed to achieve statistically reliable results. This optimized approach yields significant savings in both computational resources and time, especially crucial when dealing with complex, high-dimensional models where efficiency is paramount.

Illustrating the Core Concept of Stratification

To truly grasp the power of Latin Hypercube Sampling, it is essential to contrast its mechanism with the inherent pitfalls of basic, purely random selection. LHS introduces a necessary layer of structure to randomness, strategically placing samples rather than leaving their position entirely to chance. This strategic placement is the core differentiator.

Consider a scenario requiring a small sample size—say, two data points—from a population that is normally distributed, centered around a mean of zero. If we rely on a traditional random number generator, there is a substantial probability that both resulting values might, by chance, fall into the same region—for instance, both in the upper quartile (both greater than 0) or both in the lower quartile (both less than 0). Such a sample would be statistically unbalanced and fail to accurately represent the full distribution range.

If we apply Latin Hypercube Sampling, we would first partition the distribution into two equally probable regions (strata): one covering all values above zero and one covering all values below zero. We would then randomly select exactly one sample point from the first region and exactly one sample point from the second region. This controlled process guarantees that the resulting sample of size two is perfectly balanced, ensuring robust representation of the underlying distribution even when working with minimal data.

This ability to systematically partition the domain and enforce representation ensures that the resulting input set explores the entire parameter range far more thoroughly and efficiently than simple random sampling could ever achieve, providing a foundation for reliable modeling.

One-Dimensional Stratification through the CDF

The foundation of Latin Hypercube Sampling is anchored in the precise stratification along the axis of each individual input variable. For any single variable, the process is straightforward yet mathematically rigorous: the continuous range of the variable is divided into n non-overlapping regions, where n corresponds to the desired final sample size.

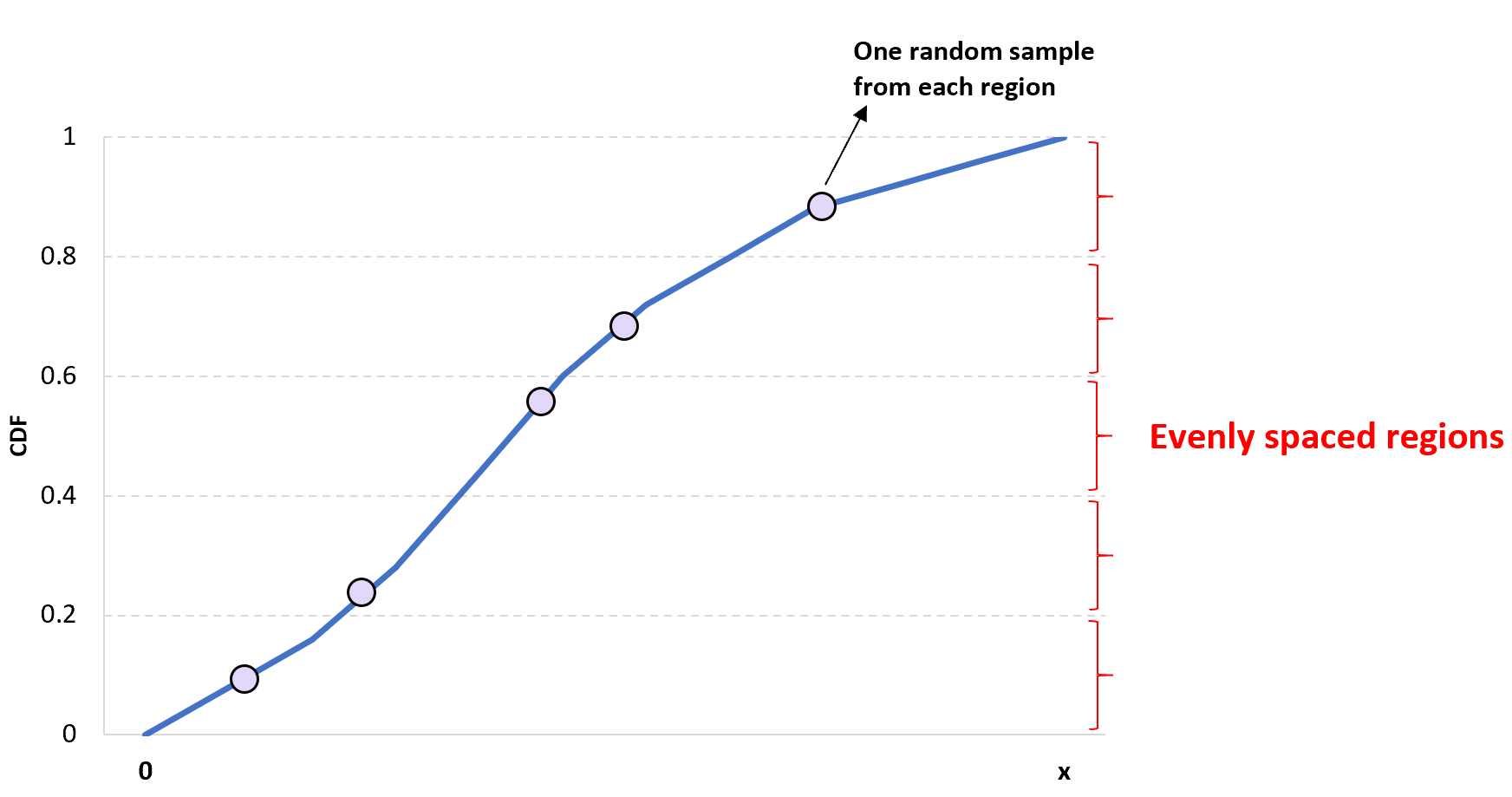

This critical stratification is typically executed by segmenting the variable’s Cumulative Distribution Function (CDF) range (which spans from 0 to 1) into n intervals of equal probability. For example, if a sample size of 10 is required, the probability intervals would be defined as [0.0, 0.1], [0.1, 0.2], and continuing up to [0.9, 1.0]. A single, unique random value is then drawn from within each of these established probability intervals.

The randomly selected probability value obtained from each interval is then mapped back to the original physical variable space using the inverse CDF (also known as the quantile function). This meticulous procedure ensures that every resulting sample point is unique and falls precisely within a specific, predetermined stratum of the original distribution, thereby guaranteeing coverage across the variable’s entire range.

The significant benefit inherent in this one-dimensional stratification is the assurance that the sample provides coverage across the entire probability spectrum. This minimizes the risk of missing crucial regions of the distribution—such as the extreme tails—a common and severe failure mode often observed when relying on basic random sampling techniques.

Extending the Technique to Multivariate Spaces

The true computational advantage of Latin Hypercube Sampling becomes most apparent when the technique is extended to multivariate problems, encompassing two or more input variables. Consider two variables, X and Y. The process involves independent stratification for each variable, followed by a crucial step of systematic, randomized pairing.

First, the sample space of variable X is divided into n strata, and n samples are independently selected (one per stratum). Simultaneously, the sample space of variable Y is also divided into n strata, and n samples are selected (one per stratum). This results in two separate, fully stratified lists of data: X and Y.

The defining step of LHS is the pairing of these two stratified lists. To maintain overall randomness while strictly guaranteeing coverage, the n X-values are paired with the n Y-values using a random permutation. This means that if the resulting data set were visualized on an n x n grid, exactly one sample point would occupy each row (corresponding to the X-strata) and exactly one sample point would occupy each column (corresponding to the Y-strata). This structural requirement is the origin of the descriptive “Latin Hypercube” moniker.

It is critically important to note that the standard application of this pairing technique assumes that the two variables are statistically independent. Should the variables possess a known correlation structure, the straightforward random pairing must be adjusted or replaced. Specialized correlation-inducing algorithms, such as those leveraging rank correlation methods, are necessary to ensure that the final sample matrix accurately reflects the true dependency between the input variables X and Y, preventing misleading simulation results.

Scaling Up: N-Dimensional LHS for Complex Systems

The rigorous structure established for two dimensions scales naturally to N dimensions, where N represents the total number of input variables in the system model. This inherent scalability is what makes Latin Hypercube Sampling exceptionally effective for simulating highly complex systems characterized by dozens or even hundreds of uncertain parameters.

In the N-dimensional scenario, every single variable is independently partitioned into n equally probable strata, and n stratified samples are drawn for each variable. This procedure generates N distinct lists, with each list containing n samples.

To construct the final controlled random sample set, these N lists must be systematically combined using N-1 distinct random permutations. The ultimate result is a data matrix composed of n sample points, where each point is an N-tuple. This guarantees that the marginal distribution coverage of every individual variable is perfectly stratified, regardless of how many dimensions are involved.

While LHS guarantees excellent marginal distribution coverage, a major challenge arises in the high-dimensional joint space. If the sample size n is not sufficiently large relative to the number of dimensions N, the coverage of the joint space can become sparse—a manifestation of the curse of dimensionality. Therefore, advanced optimization techniques are frequently deployed during the permutation step. These optimizations aim to maximize the distance between the generated sample points in the N-dimensional space, significantly improving the overall space-filling property of the design and ensuring better exploration of the parameter domain.

The Computational and Statistical Advantages

The primary strength of Latin Hypercube Sampling lies in its capacity to generate highly efficient and representative samples. This efficiency is a direct consequence of the systematic stratification, which ensures that samples genuinely reflect the underlying distribution, leading to dramatically faster convergence of simulation results when compared to non-stratified methods.

Specifically, LHS requires significantly smaller sample sizes than classical simple random sampling or even standard Monte Carlo analysis to attain the same level of statistical accuracy in estimating population parameters, such as the mean or variance of the model output. This enhancement in efficiency is formally recognized as a variance reduction technique.

This sophisticated method of sampling is absolutely critical when modeling systems with a high number of dimensions, where thorough exploration using purely random methods is computationally infeasible. By guaranteeing coverage along each dimension, LHS provides a structured and deterministic path to obtaining random samples that are certain to reflect the true distribution of the data, which is indispensable for accurate uncertainty and sensitivity analyses across all fields of engineering and science.

Summary of Key Benefits:

• Improved Efficiency: Requires substantially fewer simulation runs to achieve stable and reliable results compared to simple random sampling methods.
• Distribution Coverage: Provides a mathematical guarantee that the entire range, or marginal distribution, of every input variable is represented in the final sample set.
• High-Dimensional Viability: Serves as an essential strategy for efficiently sampling and analyzing complex models defined by numerous input parameters, mitigating the effects of the curse of dimensionality.
