Understanding Multicollinearity: Definition, Examples, and Implications

Understanding Multicollinearity and the Concept of Perfect Correlation

In statistical modeling, particularly within the domain of regression analysis, a critical challenge known as Multicollinearity emerges when two or more predictor variables exhibit a strong correlation with one another. This high interdependency means the variables are not providing unique or independent information to the model, which significantly complicates the reliable estimation of coefficients.

While a high degree of correlation (imperfect multicollinearity) can lead to inflated standard errors and unstable coefficient estimates, the most severe and mathematically debilitating form of this phenomenon is known as perfect multicollinearity.

Perfect multicollinearity is defined as the exact linear dependence between at least two predictor variables. This implies that one variable can be derived precisely from the other using an exact linear relationship, such as one being a constant multiple of the other, or one being a simple mathematical transformation of the other. The presence of this perfect dependency renders the model fundamentally unsolvable using standard techniques.

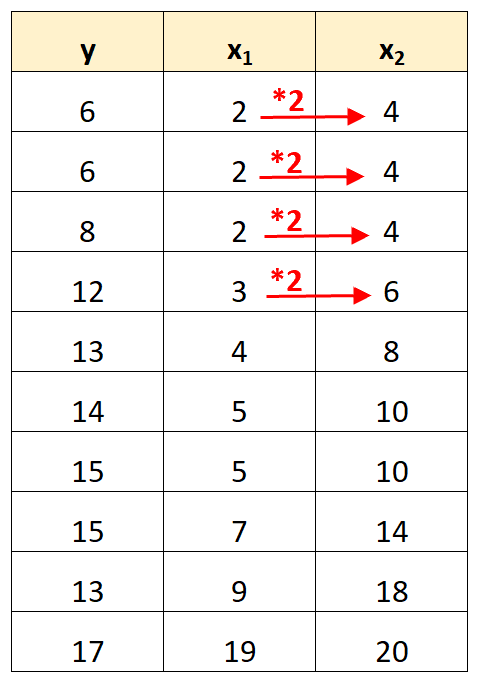

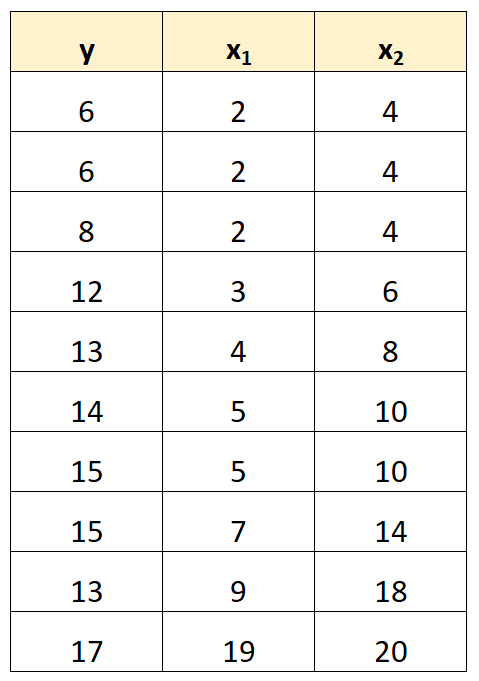

To clearly visualize this foundational issue, consider a straightforward dataset where the variables are linked by a precise, deterministic rule:

In this illustrative example, observe that the values for predictor variable x₂ are exactly double the values of x₁ (x₂ = 2 * x₁). Because this mathematical link is flawless and absolute, the system suffers from perfect multicollinearity, meaning x₂ offers zero unique information beyond what x₁ already provides.

The Mathematical Impossibility of OLS Estimation

The central problem caused by perfect multicollinearity is its absolute incompatibility with the standard parameter estimation method used in linear models: Ordinary Least Squares (OLS). When a perfect linear dependency exists among the predictor variables, OLS is mathematically incapable of calculating stable or unique estimates for the regression coefficients.

The core objective of any regression is to isolate the independent contribution of each predictor variable on the response variable. If, for instance, x₁ and x₂ are perfectly correlated, it becomes theoretically impossible to calculate the marginal effect of x₁ on the response variable (y) while holding x₂ constant. This is because x₂ cannot remain constant; it must change in direct, proportional lockstep with x₁. They are, effectively, the same variable measured differently.

Technically speaking, perfect multicollinearity causes the design matrix (X’X) to be singular, meaning it is non-invertible. Since the OLS formula requires the inversion of this matrix to solve for the coefficients, the calculation breaks down completely, leading to undefined or nonsensical coefficient results for the dependent variable.

A Straightforward Solution: Removing Redundancy

Unlike the more nuanced issues posed by imperfect multicollinearity, resolving the perfect form is exceptionally straightforward and definitive. The most effective and simplest remedy is to identify the redundant variable—the one that shares the exact linear relationship with another predictor—and eliminate it from the model entirely.

Returning to our initial illustration involving predictors x₁ and x₂, since x₂ is perfectly predictable from x₁ (x₂ = 2 * x₁), we must simply drop x₂ as a predictor variable. By removing this redundancy, we ensure the remaining model matrix is full rank and invertible.

By simplifying the dataset in this manner, we can successfully fit a regression model using only x₁ to predict y. This practical approach guarantees that all remaining variables contribute unique explanatory power, allowing the OLS algorithm to produce stable and identifiable coefficients.

Case Study 1: Redundant Scaling and Unit Conversion

A common real-world manifestation of perfect multicollinearity arises when researchers include variables that represent the same underlying measurement but use different units or scaling factors. These are inherently redundant measurements.

Consider a scenario where the goal is to predict an animal’s weight using two different measurements of its physical height: “height in centimeters” and “height in meters.”

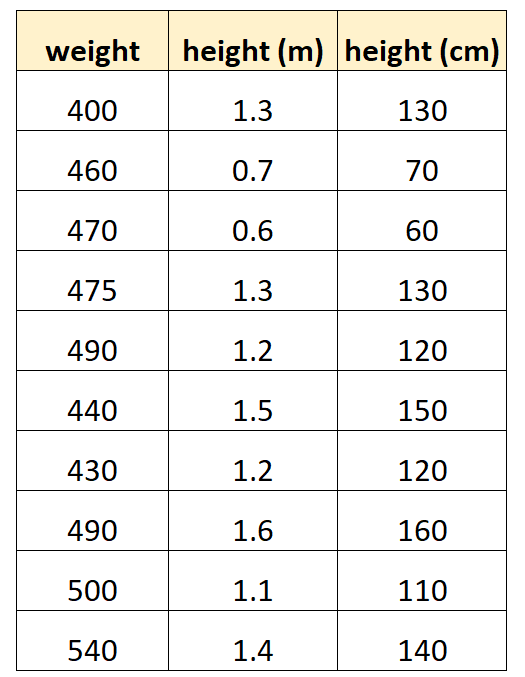

The resultant structure of the dataset clearly illustrates the deterministic link between the two predictors, defined strictly by unit conversion:

The variable “height in centimeters” is precisely equal to “height in meters” multiplied by 100. This perfect, inherent exact linear relationship ensures that using both variables simultaneously results in perfect multicollinearity.

If we attempt to fit a multiple linear regression model in software like R using both variables, the program detects the singularity (the non-invertibility of the matrix) and is forced to refuse estimation for one of the coefficients (in this case, ‘cm’), indicating the system is underdetermined:

#define data
df <- data.frame(weight=c(400, 460, 470, 475, 490, 440, 430, 490, 500, 540),
                 m=c(1.3, .7, .6, 1.3, 1.2, 1.5, 1.2, 1.6, 1.1, 1.4),
                 cm=c(130, 70, 60, 130, 120, 150, 120, 160, 110, 140))

#fit multiple linear regression model
model <- lm(weight~m+cm, data=df)

#view summary of model
summary(model)

Call:
lm(formula = weight ~ m + cm, data = df)

Residuals:
    Min      1Q  Median      3Q     Max
-70.501 -25.501   5.183  19.499  68.590

Coefficients: (1 not defined because of singularities)
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  458.676     53.403   8.589 2.61e-05 ***
m              9.096     43.473   0.209    0.839
cm                NA         NA      NA       NA
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 41.9 on 8 degrees of freedom
Multiple R-squared:  0.005442,	Adjusted R-squared:  -0.1189
F-statistic: 0.04378 on 1 and 8 DF,  p-value: 0.8395

Case Study 2: Inclusion of Transformed Variables

Another classic case involves mistakenly including an original variable along with a mathematically transformed version of itself. While transformations (like standardization or normalization) are often beneficial steps in data preparation, including both the raw and the derived variable simultaneously guarantees perfect multicollinearity.

For instance, suppose we are constructing a regression model to predict basketball player ratings. We include the original metric “points” (pts) and a newly calculated variable, “scaled points” (scaled_pts).

The “scaled points” variable is calculated using the standard normalization formula: Scaled points = (points – μ_points) / σ_points. Since the mean (μ) and standard deviation (σ) are fixed constants for the dataset, the scaled variable is merely a linear transformation of the original variable.

The resulting data structure clearly shows this derived relationship, where one predictor is a perfect linear function of the other:

Because “scaled points” is perfectly linearly dependent on “points,” this setup constitutes perfect multicollinearity. Attempting to fit the OLS model confirms the inevitable failure, as the software cannot produce a coefficient estimate for the redundant predictor (“scaled_pts”):

#define data
df <- data.frame(rating=c(88, 83, 90, 94, 96, 78, 79, 91, 90, 82),
                 pts=c(17, 19, 24, 29, 33, 15, 14, 29, 25, 22))

df$scaled_pts <- (df$pts - mean(df$pts)) / sd(df$pts)

#fit multiple linear regression model
model <- lm(rating~pts+scaled_pts, data=df)

#view summary of model
summary(model)

Call:
lm(formula = rating ~ pts + scaled_pts, data = df)

Residuals:
    Min      1Q  Median      3Q     Max
-4.4932 -1.3941 -0.2935  1.3055  5.8412

Coefficients: (1 not defined because of singularities)
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  67.4218     3.5896  18.783 6.67e-08 ***
pts           0.8669     0.1527   5.678 0.000466 ***
scaled_pts        NA         NA      NA       NA
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 2.953 on 8 degrees of freedom
Multiple R-squared:  0.8012,	Adjusted R-squared:  0.7763
F-statistic: 32.23 on 1 and 8 DF,  p-value: 0.0004663

Case Study 3: Avoiding the Dummy Variable Trap

Perhaps the most frequent structural source of perfect multicollinearity in applied econometrics and social science modeling is the Dummy Variable Trap. This situation arises when researchers improperly handle categorical variables that are converted into multiple indicator columns for use in a regression model.

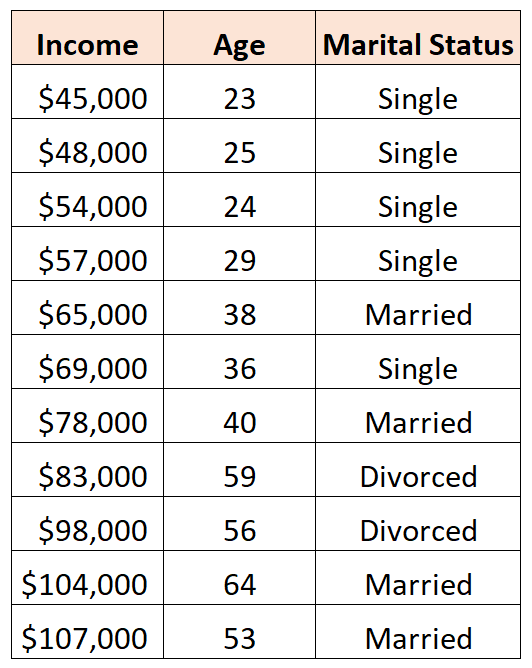

Imagine constructing a model where income is predicted by age and marital status:

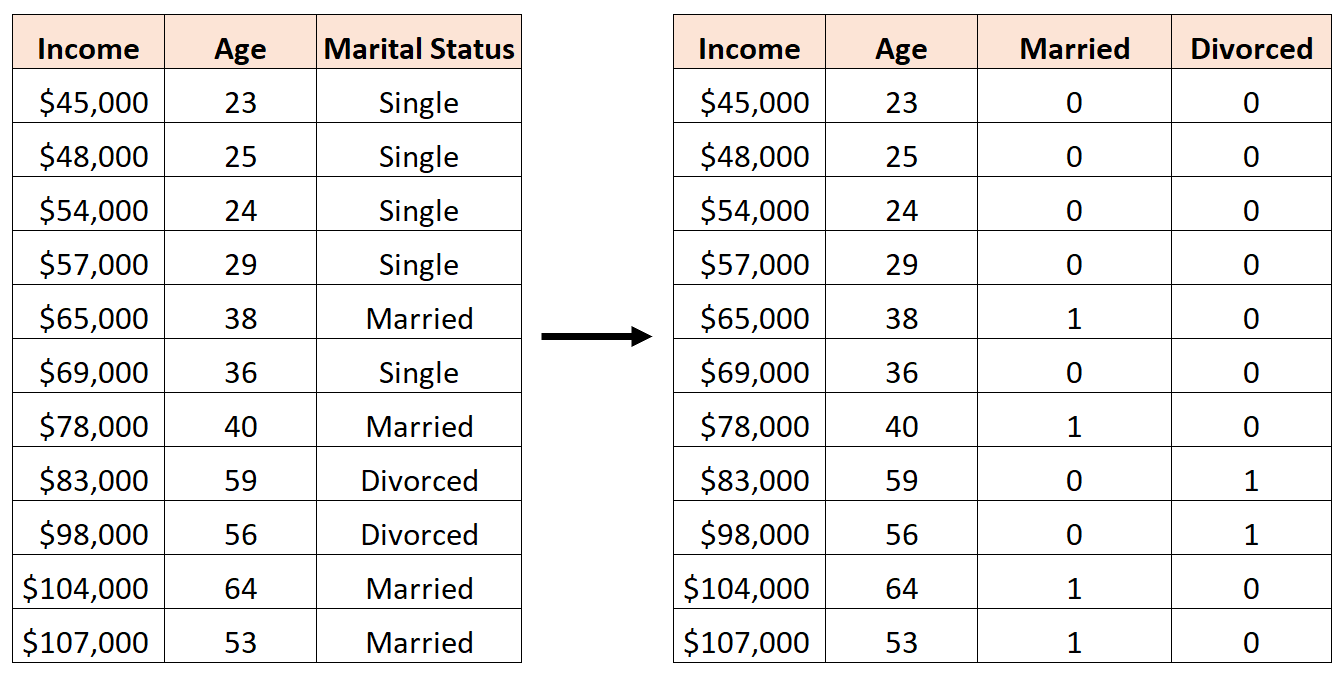

To correctly incorporate a categorical variable like “marital status,” it must be transformed into a set of dummy variable columns. The crucial step is selecting one category to serve as the reference or baseline, which is then excluded from the model.

For example, if “Single” is chosen as the baseline category, we create indicators only for “Married” and “Divorced.” The status “Single” is then implicitly defined when both the “Married” and “Divorced” indicator variables are set to zero, thus maintaining the independence required for estimation:

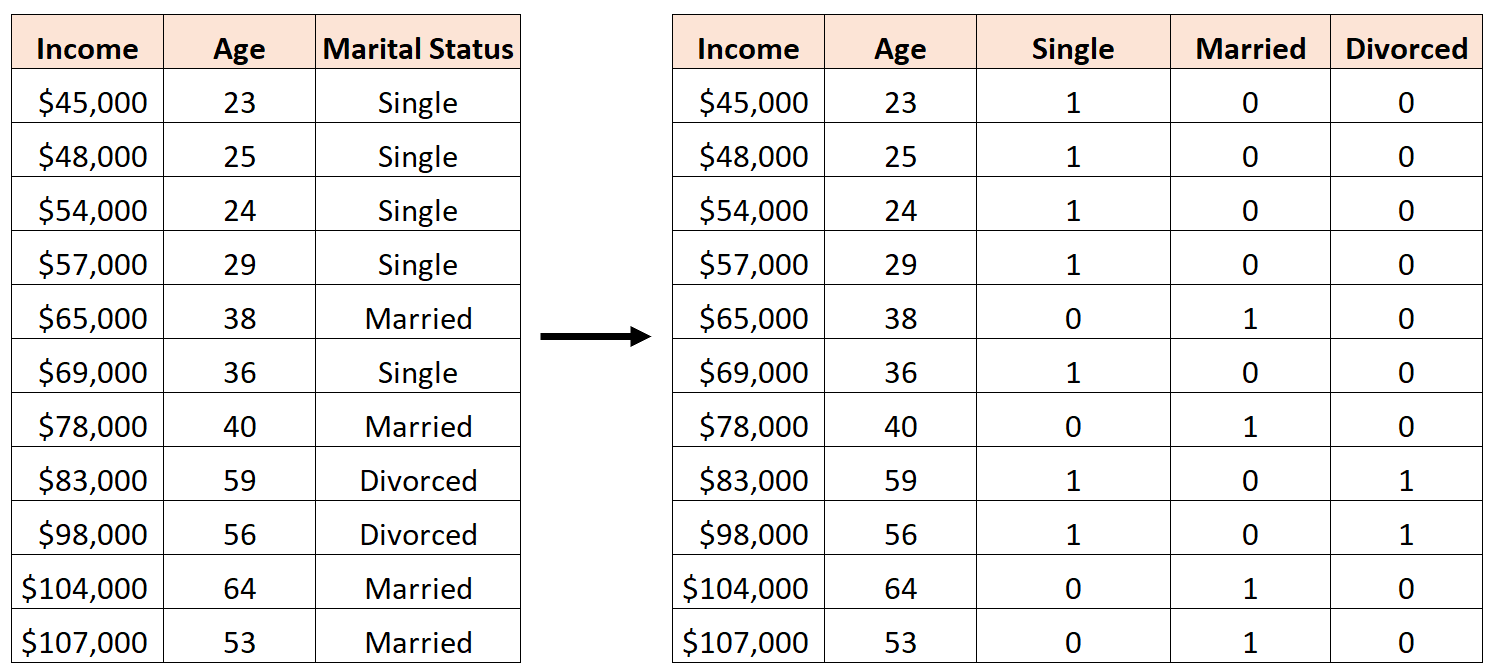

The error leading to the Dummy Variable Trap occurs when the researcher includes an indicator column for every single category (Single, Married, and Divorced):

If all three indicator variables are included, the variable “Single” becomes a perfect linear combination of the other two: Single = 1 – (Married + Divorced). This is the exact definition of perfect multicollinearity within the context of categorical data.

When attempting to fit this structurally flawed model in R, the software correctly identifies the mathematical dependency and fails to estimate a coefficient for one of the dummy variable columns (here, ‘married’), confirming the singularity:

#define data
df <- data.frame(income=c(45, 48, 54, 57, 65, 69, 78, 83, 98, 104, 107),
                 age=c(23, 25, 24, 29, 38, 36, 40, 59, 56, 64, 53),
                 single=c(1, 1, 1, 1, 0, 1, 0, 1, 1, 0, 0),
                 married=c(0, 0, 0, 0, 1, 0, 1, 0, 0, 1, 1),
                 divorced=c(0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0))

#fit multiple linear regression model
model <- lm(income~age+single+married+divorced, data=df)

#view summary of model
summary(model)

Call:
lm(formula = income ~ age + single + married + divorced, data = df)

Residuals:
    Min      1Q  Median      3Q     Max
-9.7075 -5.0338  0.0453  3.3904 12.2454

Coefficients: (1 not defined because of singularities)
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  16.7559    17.7811   0.942  0.37739
age           1.4717     0.3544   4.152  0.00428 **
single       -2.4797     9.4313  -0.263  0.80018
married           NA         NA      NA       NA
divorced     -8.3974    12.7714  -0.658  0.53187
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 8.391 on 7 degrees of freedom
Multiple R-squared:  0.9008,	Adjusted R-squared:  0.8584
F-statistic:  21.2 on 3 and 7 DF,  p-value: 0.0006865

Conclusion: Addressing Redundancy for Model Identifiability

Perfect multicollinearity represents a fatal mathematical flaw for standard OLS estimation methods. Its presence introduces mathematical redundancies that make it fundamentally impossible for the algorithm to isolate the unique causal effects of the predictor variables, resulting in non-estimable coefficients.

It is crucial to differentiate this absolute problem from high but imperfect multicollinearity. The latter requires complex diagnostic tools and potentially advanced solutions like Ridge Regression. Perfect multicollinearity, however, demands a simple, definitive structural correction: the mandatory removal of the perfectly dependent variable.

By vigilantly ensuring that no predictor variable in the dataset is an exact linear combination of others—whether the dependency stems from unit measurement redundancy, inadvertent mathematical transformation, or the improper creation of a full set of dummy variable indicators—data scientists can guarantee that their models are identifiable and that valid coefficients can be successfully estimated.
