Understanding Residual Variance: Definition and Examples in Statistical Modeling

The concept of residual variance is fundamental to statistical inference and model evaluation. Often synonymously referred to as unexplained variance, this metric quantifies the degree of variation in a dependent variable that the chosen predictor variables within a statistical model fail to account for. In simplest terms, residual variance represents the inherent noise, random error, or influence of omitted variables that remains after the model has optimally fitted the observed data.

Grasping and correctly interpreting the magnitude of residual variance is essential for assessing the efficacy and predictive reliability of any statistical framework, whether it be a simple linear regression analysis or a complex multi-factor design. A model producing a high residual variance suggests that a significant portion of the observed data variation is still unexplained, indicating potential shortcomings either in the choice of predictors or the structural form of the model itself. Conversely, a low residual variance signals a robust model fit, where the variables successfully explain the vast majority of the observed variability.

This critical diagnostic measure features prominently in the output generated by foundational statistical methodologies. These methods include Analysis of Variance (ANOVA) and various forms of regression analysis. While the precise calculation methodology adapts slightly depending on the specific model used, the underlying principle—the rigorous quantification of unexplained error—remains consistently vital. The following sections delve into how residual variance is precisely defined, computed, and interpreted within these powerful statistical frameworks.

The Crucial Role of Variance Partitioning in Statistical Modeling

A primary objective in statistical analysis is to understand the sources of variation within a dataset. Analysts strive to dissect the total variability observed in the outcome variable into two distinct, meaningful components: the systematic variation explained by the factors or predictors included in the model, and the random variation that remains unexplained—this latter component being the residual element.

The total variation is measured by the aggregate differences between each individual observation and the overall grand mean of the dataset. When a model is introduced (such as an ANOVA comparing treatment groups or a regression fitting a line), the core computational goal is to minimize the error between the model’s predictions and the actual observed values. The resulting minimized deviation, quantified as the residual sum of squares, forms the fundamental building block for calculating residual variance.

A truly effective statistical model is characterized by its ability to maximize the explained variance while simultaneously minimizing the residual variance. If the residual variance proves to be large, it acts as a strong indicator that critical factors influencing the outcome variable have likely been omitted from the analysis. It might also suggest that the true relationship between variables is complex, non-linear, or poorly captured by the current model structure. Consequently, residual variance stands as a powerful and indispensable diagnostic tool for the rigorous assessment of model quality and completeness.

Interpreting Residual Variance in Analysis of Variance (ANOVA)

ANOVA is a statistical technique designed to test for significant mean differences among three or more independent groups. Its mechanism relies on partitioning the total variability observed in the dependent variable into two primary components: the variability Between Groups, which is the explained variance attributable to the treatment or group differences; and the variability Within Groups, which constitutes the unexplained variance or the residual error.

When an ANOVA model is computed, the output is typically summarized in a structured ANOVA table. This table meticulously breaks down the sources of variation, their associated degrees of freedom, the sum of squares (SS), the mean squares (MS), and the final F-statistic. Within this structure, the residual variance in ANOVA is directly derived from the variation categorized as Within Groups.

The Within Groups variation specifically captures the inherent, random variability of observations within each particular group. This represents the noise or individual differences that persist even after accounting for the systematic differences between the group means. Because this variation cannot be systematically explained by the grouping variable itself, it is formally defined as the residual or error component of the model.

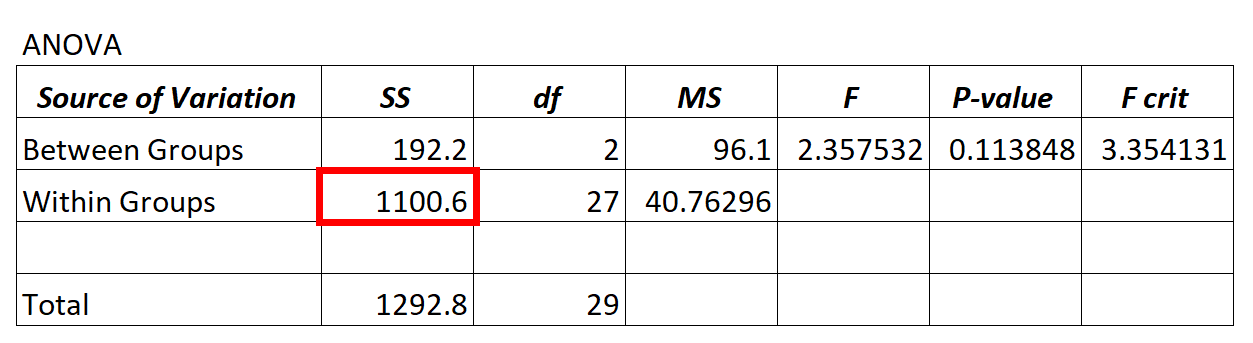

A typical layout for an ANOVA table is represented below, illustrating where the components are located:

Within this tabular representation, the raw measure for the residual variance is located in the SS (Sum of Squares) column, corresponding precisely to the Within Groups row. This specific value is also widely known in statistical literature as the sum of squared errors (SSE).

Calculating the Sum of Squared Errors (SSE) in ANOVA

The calculation for the residual variance, specifically the Sum of Squared Errors (SSE) in an ANOVA context, involves measuring the squared difference between each individual observation and the mean of its respective group. This formula effectively isolates and quantifies the amount of variation that remains contained within the groups, entirely independent of the systematic differences observed between the groups.

The precise mathematical formula employed to calculate the sum of squared errors for the within-groups component is:

Σ(X_ij – X_j)²

where the variables denote:

• Σ: The Greek summation symbol, representing the operation of summing across all observations.
• X_ij: The i^th individual observation that belongs to the j^th group.
• X_j: The calculated sample mean specific to the j^th group.

Referring back to the provided example ANOVA table, the residual variance (SS Within Groups) is reported as 1,100.6. To determine whether this value is statistically significant or merely indicative of high noise, it must be contextualized relative to the explained variance (SS Between Groups). This essential comparison is achieved through the computation of the F-statistic.

The F-statistic is derived as the ratio of the Mean Square (MS) Between Groups to the MS Within Groups. The Mean Squares are calculated by dividing the Sum of Squares (SS) by their corresponding degrees of freedom (df).

The resultant calculation proceeds as follows:

• F = MS_between / MS_within
• F = 96.1 / 40.76296
• F = 2.357

In this scenario, a relatively small F-value (2.357, depending on the specific degrees of freedom) indicates that the variance successfully explained by the grouping factors (MS Between) is not substantially larger than the unexplained variance (MS Within). This outcome implies that the residual variance is comparatively high relative to the variation the model successfully attributes to the groups. Consequently, the conclusion drawn is that there is insufficient statistical evidence to assert a significant difference exists between the means of the groups under comparison.

Residual Variance in Regression Models: Quantifying the Error Term

In a regression model, the foundational aim is to establish and quantify the systematic relationship between one or more predictor variables (independent variables) and a response variable (dependent variable). The model works by generating a line or a hyperplane that minimizes the overall distance between the predicted values derived from the model and the actual observed data points.

Within the regression context, the residual variance is precisely defined as the sum of the squared differences between the actual observed data points and the corresponding data points predicted by the fitted regression line. Each individual difference, known as a residual, geometrically represents the vertical distance from the observed data point to the calculated regression line. Minimizing the sum of these squared residuals is the core principle of Ordinary Least Squares (OLS) regression.

The formula for calculating the Sum of Squared Residuals (SSR) in regression is analogous in principle to the SSE used in ANOVA, focusing specifically on the deviation between the observed outcomes and the predicted outcomes:

Σ(y_i – ŷ_i)²

where the elements represent:

• Σ: The symbol for summation across all data points.
• y_i: The observed data points (the actual values recorded for the response variable).
• ŷ_i: The predicted data points (the values estimated by the calculated regression model).

When a regression model is fitted, the resulting output typically incorporates an analysis of variance summary that clearly illustrates how the total observed variation is systematically partitioned between the variation explained by the model (Regression) and the variation that remains unexplained (Residuals).

Examine the following illustrative example of standard regression output:

In this regression ANOVA table, the measure of residual variance is explicitly found in the SS (Sum of Squares) column, corresponding to the Residual variation row. Here, the Sum of Squared Residuals is quantified as 5.9024.

Connecting Residual Variance to Model Fit (R-squared)

In regression analysis, the practical significance of the residual variance is most frequently evaluated by comparing its magnitude against the total variation present in the response variable. This comparison is vital, as it yields a percentage that precisely indicates the proportion of total variation that the predictor variables failed to account for.

The ratio of the residual variation (SS Residual) relative to the total variation (SS Total) provides the percentage of variability in the response variable that is not successfully explained by the predictors included in the model. This is calculated using the formula:

Unexplained variation = SS Residual / SS Total

Utilizing the specific values taken from the regression output table above:

• Unexplained variation = 5.9024 / 174.5
• Unexplained variation = 0.0338

This calculation yields a result indicating that approximately 3.38% of the total variation in the response variable remains unexplained by the fitted model. Given that this is a very small proportion, it suggests an exceptionally good model fit.

Furthermore, this concept of unexplained variation is directly and inversely related to the coefficient of determination, commonly known as R-squared (R²). R-squared specifically represents the percentage of variation in the response variable that is successfully explained by the model. Therefore, the unexplained variation is simply the mathematical complement of R-squared:

• Unexplained variation = 1 – R²
• Unexplained variation = 1 – 0.96617
• Unexplained variation = 0.0338

The high R-squared value (0.96617) confirms that the predictive model is highly effective. Consequently, the lower the calculated unexplained variation, the better the model utilizes its predictor variables to explain the inherent variability observed in the dependent measure. Minimizing residual variance is thus the central, unifying objective when developing robust and accurate predictive statistical models.

Summary of Key Insights and Practical Diagnostics

Residual variance remains a cornerstone concept in statistical inference, effectively serving as the ultimate objective metric of a model’s explanatory deficiencies. Whether it is analyzed in ANOVA, where it is meticulously measured as the variation existing within groups, or in regression, where it quantifies the deviation from the predicted line, residual variance consistently measures the error that persists after all systematic effects and predictors have been accounted for.

A diligent statistician must always critically scrutinize the magnitude and characteristics of the residual variance. If this variance is found to be high, it immediately flags potential structural issues such as significant measurement error, the presence of omitted variable bias, or the failure to incorporate complex interactions into the model design. Beyond the raw quantification, a crucial subsequent step in refining any statistical model is the detailed analysis of the residuals themselves—for instance, by plotting them to check for non-random patterns, heteroscedasticity, or violations of normality assumptions.

Ultimately, by successfully minimizing the residual variance, analysts maximize the confidence that can be placed in their model’s ability to accurately represent and predict the underlying real-world phenomena being studied, ensuring reliability and validity in statistical conclusions.

Additional Resources for Statistical Depth

For further reading on related statistical concepts, methodologies, and detailed derivations of these variance components, consulting authoritative textbooks on linear models and advanced statistical inference is highly recommended.
