Understanding Box Plots: 3 Scenarios for Effective Data Visualization

The box plot, frequently known as a box-and-whisker plot, is a fundamental and highly efficient visualization technique used extensively in exploratory data analysis (EDA). Its primary function is to provide a comprehensive, non-parametric view of the distribution of a numerical dataset, condensing vast amounts of information into a single, intuitive graphic. By highlighting the five number summary, this plot allows data professionals to swiftly grasp the critical characteristics of the data, including its spread, central location, and the presence of extreme values.

Understanding the components of the box plot is essential for accurate interpretation. The plot is entirely constructed around the five key statistical measures that summarize the dataset’s distribution:

• The Minimum Value: The smallest observation in the dataset, excluding any data points defined as outliers.
• The First Quartile (Q1): This marker represents the 25th percentile, meaning 25% of the data falls below this point.
• The Median (Q2): Also the 50th percentile, the median is the center line that divides the data into two equal halves.
• The Third Quartile (Q3): This is the 75th percentile, indicating that 75% of the data falls below this value.
• The Maximum Value: The largest observation in the dataset that is not classified as an outlier.

The graphical construction of a box plot follows a precise statistical methodology, which simplifies the interpretation of complex distributions. The entire plot is built upon three distinct visual elements that map directly to the five number summary:

1. Defining the Box: The rectangular box itself is drawn from the first quartile (Q1) to the third quartile (Q3). This span represents the middle 50% of the data and is statistically defined as the Interquartile Range (IQR). The length of this box is a direct measure of data variability.
2. Marking the Center: A strong vertical line is drawn within the box to precisely locate the median (Q2). The position of this line relative to the sides of the box indicates the skewness or symmetry of the central 50% of the data.
3. Adding the Whiskers: The “whiskers” extend outward from the box to the non-outlier minimum and maximum values. These lines provide visual context for the overall spread of the data and help define the statistical limits beyond which observations are considered outliers.

Three Critical Scenarios for Employing the Box Plot

While simpler graphical methods, such as bar charts or histograms, are suitable for visualizing frequency, the box plot offers superior performance in situations requiring robust distribution analysis, rapid comparative benchmarking, and reliable identification of extreme values. Data analysts and statisticians primarily rely on this visualization technique in three essential scenarios where detailed distributional information is paramount.

The strength of the box plot lies in its clarity and conciseness. It abstracts away the noise of individual data points to provide an immediate summary of the underlying statistics. This makes it an ideal tool when time is limited or when communicating complex distributional concepts to a non-technical audience.

Scenario 1: Visualizing the Distribution of Values in a Single Dataset

The foundational purpose of the box plot is to provide an immediate, structured visual summary of a dataset’s spread and characteristics. Unlike a histogram, which requires binning and can sometimes obscure the true statistical boundaries, the box plot explicitly defines the limits of the data based on quartiles.

This visualization technique allows analysts to determine swiftly whether the data distribution is symmetric, positively skewed (median closer to Q1), or negatively skewed (median closer to Q3). Furthermore, the length of the box (the IQR) instantly reveals the concentration of the middle 50% of data points, while the whiskers show the extent of the remaining data. It is an indispensable method for initial data inspection, helping to form hypotheses about the data’s overall shape and behavior relative to the median.

By focusing on positional statistics rather than frequency counts, the box plot remains robust even with non-normal distributions, offering a standardized way to quantify and visualize data dispersion.

Scenario 2: Comparing Two or More Statistical Distributions

When the analytical objective involves contrasting the performance, spread, or central tendency of multiple groups or categories against a consistent metric, side-by-side box plots represent the most efficient and powerful visualization strategy. Aligning these plots allows for rapid, simultaneous comparison of key statistical measures across all defined groups without the need for complex, manual calculations.

Specifically, side-by-side visualizations facilitate several key comparisons. Analysts can immediately compare the relative positions of the median lines to assess the central tendencies of the groups. They can also evaluate the variability by observing the length of the boxes, where a longer box suggests greater inconsistency or spread. Finally, differences in skewness and the presence of extreme values can be visually contrasted, providing a comprehensive benchmarking tool for distributions from different populations or treatment groups.

This comparative efficiency is crucial in fields like quality control, A/B testing, and clinical trials, where subtle differences in distributions across groups must be identified and quantified quickly.

Scenario 3: Identifying and Flagging Potential Outliers

The inherent statistical calculation used to design the box plot makes it an exceptionally reliable method for the robust identification of potential outliers—data points that are statistically distant from the majority of other observations. In box plots, these extreme values are typically rendered as isolated markers (such as small dots or asterisks) that fall outside the maximum reach of the standard whiskers.

The statistical definition of an outlier in this context is based on the fence criteria, which utilize the Interquartile range (IQR = Q3 – Q1) to set precise boundaries:

• An observation is deemed a low outlier if its value is less than Q1 – 1.5 × (Interquartile range).
• An observation is deemed a high outlier if its value is greater than Q3 + 1.5 × (Interquartile range).

Visualizing data in this manner allows data scientists to quickly confirm the presence and location of unusual data points. This is a critical first step in data cleaning and preparation, as outliers can disproportionately influence statistical averages (like the mean) and significantly distort the results of predictive models. Identifying them early ensures data quality and validity for subsequent analysis.

Detailed Example 1: Visualizing a Single Data Distribution

Imagine a basketball coach who needs a fast, digestible summary of the typical scoring performance of players across the entire team for the last season. Rather than sifting through spreadsheets of raw game statistics, the coach generates a single box plot to visualize the distribution of points scored.

From this single graphical summary, the coach can immediately extract the entire five number summary without needing any further calculation:

• Minimum: 5 points (The lowest non-outlier score).
• Q1 (First Quartile): Approximately 8 points.
• Median (Q2): Approximately 13 points (The typical score).
• Q3 (Third Quartile): Approximately 18 points.
• Maximum: 25 points (The highest non-outlier score).

This simple analysis reveals that the total range of scores is 20 points (from 5 to 25). Crucially, the coach learns that the center of the scoring distribution is 13 points, and the middle 50% of the team consistently scores between 8 and 18 points per game. The plot’s ability to provide this level of detail in an instant underscores its efficiency as an exploratory tool.

Detailed Example 2: Comparing Performance Across Multiple Teams

A sports analyst is tasked with benchmarking the scoring consistency and overall performance of three different basketball teams: Team A, Team B, and Team C. To effectively compare their respective score distributions, the analyst employs side-by-side box plots.

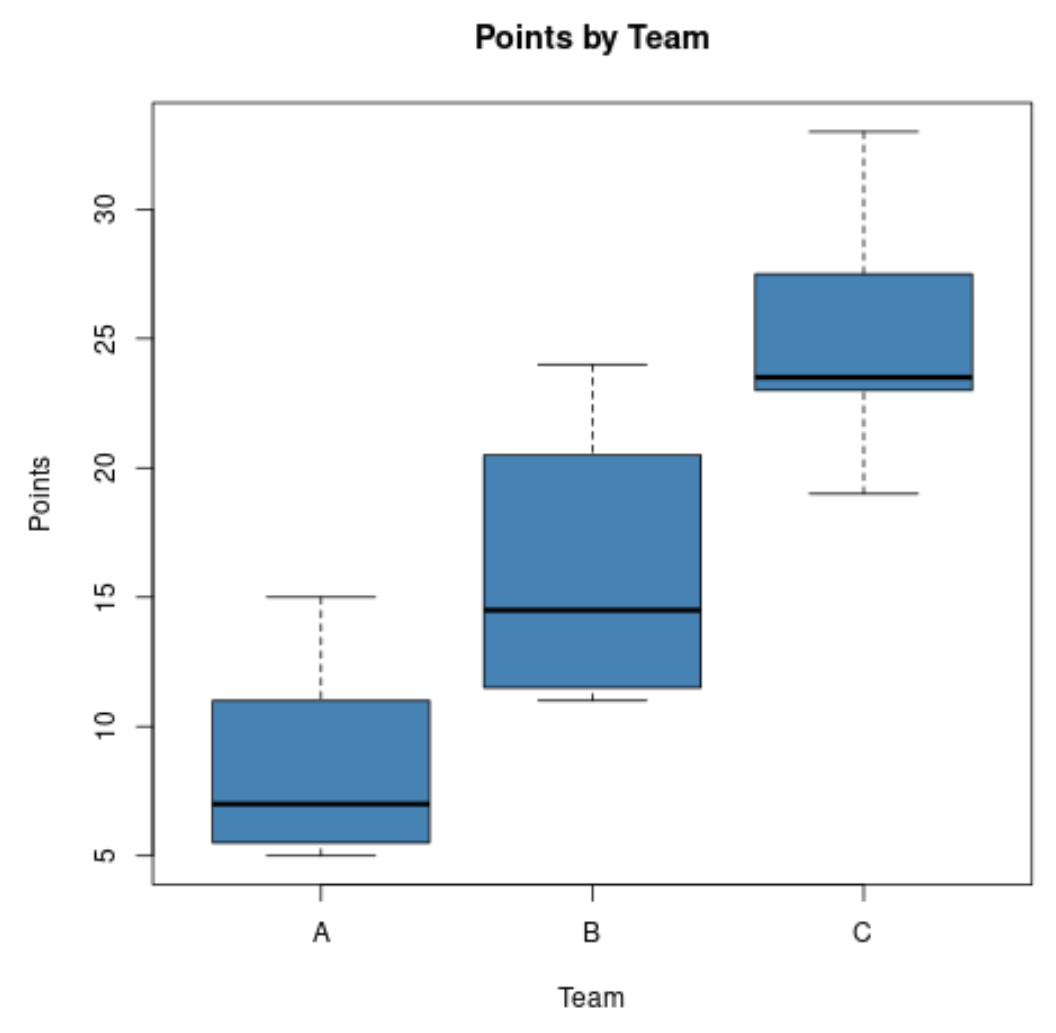

By comparing the vertical location of the central median lines, the analyst can quickly conclude that Team C exhibits the highest central tendency, as its median score is visibly greater than those of the other two teams. Conversely, Team A shows the lowest median score, suggesting a lower typical performance level. This visual comparison immediately establishes the relative performance hierarchy.

Furthermore, assessing the length of the boxes and whiskers allows the analyst to quantify variability. Team B displays the longest box, which indicates the largest Interquartile Range (IQR). This finding suggests that Team B’s scoring performance is the most spread out or inconsistent among the three teams. In contrast, Teams A and C show tighter distributions, implying more consistent scoring performance, even if their median scores differ.

Detailed Example 3: Pinpointing Unusual Data Points

Returning to the coach’s team data, the coach now wishes to specifically investigate whether any players have demonstrated unusually high or low performances that statistically deviate from the norm. This task requires a visualization specifically optimized for outlier detection.

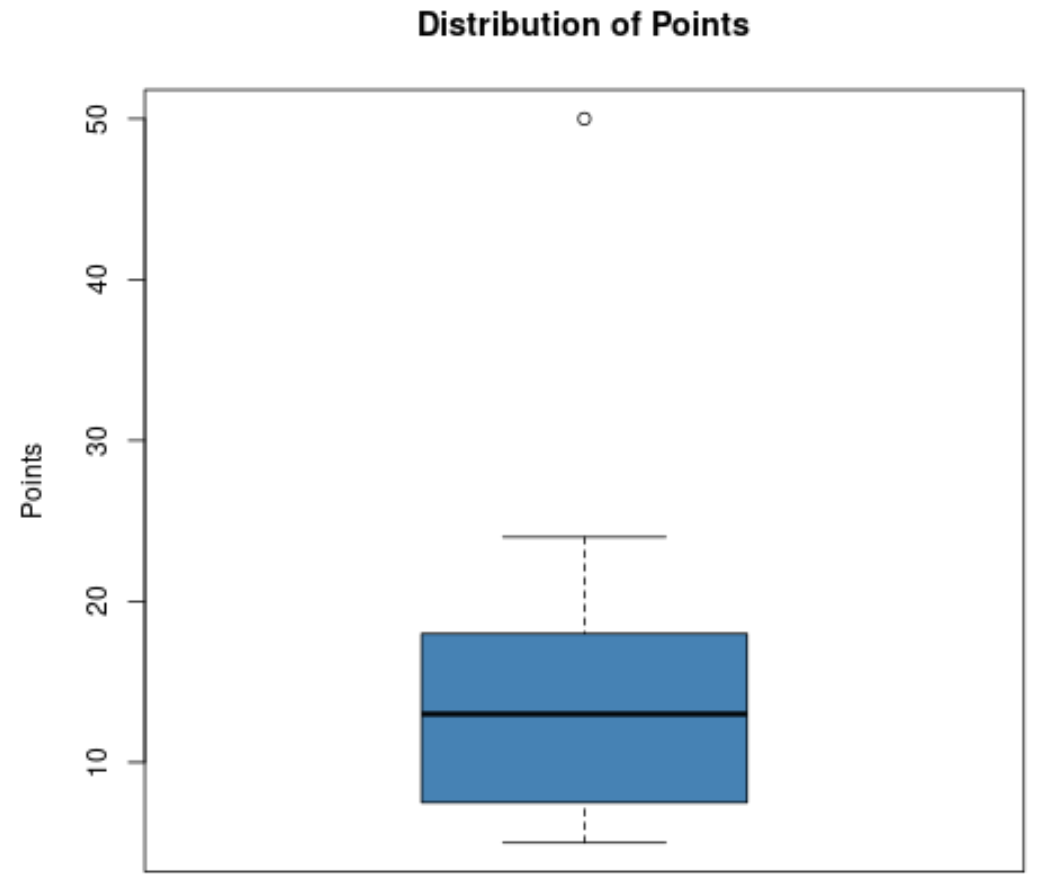

The resulting plot immediately draws attention to a small, isolated circle positioned significantly above the upper whisker. This visual cue is the box plot’s standard way of designating the presence of a statistical outlier. The data point represents an extreme performance that lies beyond the 1.5 × IQR fence, confirming its anomalous nature.

Specifically, this marker corresponds to a score of approximately 50 points. Given that the main body of the team’s scores (the box and whiskers) ranges roughly from 10 to 30 points, a 50-point game is statistically unusual. This scenario definitively illustrates how the box plot provides an objective, rule-based method for flagging extreme deviations, which is invaluable for ensuring data integrity and focusing attention on unique events in a dataset.
