Understanding Within-Group and Between-Group Variance in ANOVA: A Beginner’s Guide

The Analysis of Variance (ANOVA) stands as a cornerstone in classical inferential statistics, offering a robust method to determine if the means of three or more independent groups differ significantly from one another. Unlike a simple t-test, which is limited to comparing only two groups, ANOVA provides a framework for analyzing experimental designs with multiple treatment levels or factors. Fundamentally, this technique does not compare means directly; rather, it uses the ratio of different types of variability observed in the data to infer differences among the underlying population means.

The power of the one-way ANOVA model stems from its ability to systematically partition the total observed variation within a dataset into components attributable to specific factors (the treatment effect) and components attributable to random error (inherent individual differences). This process of decomposition is crucial for understanding whether the differences observed between sample groups are likely due to the experimental manipulation or merely due to chance occurrences within the samples.

The Core Hypotheses and Logic of One-Way ANOVA

Statistical inference in ANOVA is driven by a formal comparison between the data collected and a pair of mutually exclusive statements regarding the population parameters. Researchers must always establish these foundational null and alternative hypotheses before proceeding with the computation and interpretation of the results:

• H₀ (Null Hypothesis): All group means are statistically equal (i.e., $mu_1 = mu_2 = dots = mu_k$). This hypothesis posits that the independent variable or factor being tested has absolutely no significant effect on the dependent variable.
• H_A (Alternative Hypothesis): At least one group mean is significantly different from the others. This is the research hypothesis, suggesting that the treatment factor does, in fact, influence the outcome variable.

When a one-way ANOVA is performed, the output is conventionally organized into a summary table. This table provides a standardized method for summarizing how the total variability in the dataset has been divided, calculated, and ultimately used to derive the test statistic necessary for making a decision about the null hypothesis. The structure of this analysis hinges entirely on distinguishing between variation caused by the factor and variation caused by random noise.

Deconstructing the Sources of Variation: Signal vs. Noise

The fundamental genius of ANOVA lies in its ability to partition the total variability observed in the dependent variable ($SS_{Total}$) into two primary, measurable components. By quantifying these components—the signal and the noise—and comparing them, statisticians can determine if the signal is strong enough to conclude that the treatments are genuinely different. If the signal is much stronger than the noise, we have compelling evidence against the null hypothesis.

The two critical sources of variation measured by ANOVA are defined as follows:

• Between-Group Variation (Sum of Squares Between, SSB): This component, often referred to as $SS_{Factor}$ or $SS_{Treatment}$, captures the variability that exists among the different group means. It measures the total squared distance between each group mean and the overall grand mean of all observations. Essentially, SSB represents the signal—the systematic differences explained by the independent variable or treatment levels. A larger SSB suggests a stronger effect of the treatment.
• Within-Group Variation (Sum of Squares Within, SSW): Also known as $SS_{Error}$ or $SS_{Residual}$, this measures the variation observed inside each group. It calculates the total squared distance between each individual data point and its own group mean. This component reflects the inherent variability within subjects or measurement error, which cannot be explained by the experimental treatment. Thus, SSW represents the noise—the random, unexplained variability.

The core mechanism of the ANOVA test is the comparison of these two measures of variability. If the Between-Group Variation is substantially larger relative to the Within-Group Variation, it strongly suggests that the experimental manipulation has produced a genuine, non-random effect. This relationship is formalized by the F-statistic (the ratio of Mean Square Between to Mean Square Within), where a larger F-value corresponds to a smaller p-value, leading to the rejection of the null hypothesis and the conclusion that treatment effects are present.

Case Study: Calculating Variation in Exam Scores

To solidify the understanding of these crucial concepts, we will now meticulously walk through a practical example demonstrating the calculation of both the systematic (Between) and random (Within) sources of variation. This hands-on approach illustrates precisely how the raw components of the ANOVA summary table are derived from the data.

Consider a hypothetical educational study designed to investigate whether three distinct studying methods (Group 1, Group 2, and Group 3) yield different average outcomes on a standardized exam. Thirty students were recruited and randomly assigned, resulting in 10 students allocated to each of the three treatment groups. The dependent variable is the final exam score achieved by each student.

The raw exam scores corresponding to the students in each group are presented below, forming the basis for our variance calculations:

Step 1: Quantifying Systematic Differences (SSB)

The first critical step in the ANOVA calculation is determining the Between-Group Variation, or the Sum of Squares Between (SSB). This value quantifies the systematic differences between the groups, focusing on the distance between the mean score of each specific group ($bar{X}_j$) and the overall grand mean ($bar{X}_{..}$). The formula ensures that the difference is weighted by the sample size ($n_j$) of the respective group:

Between Group Variation (SSB) = $Sigma n_j(bar{X}_j – bar{X}_{..})^2$

Where the variables are formally defined as:

• $n_j$: The specific sample size of group $j$ (in this case, $n_j=10$ for all groups).
• $Sigma$: The summation symbol, indicating that the weighted squared difference must be summed across all $k$ groups (here, $k=3$).
• $bar{X}_j$: The mean score calculated for group $j$.
• $bar{X}_{..}$: The grand mean, representing the average score of all $N=30$ observations combined.

To execute this calculation, we must first determine the mean score for each of the three groups and the overarching grand mean score for the entire study population:

Substituting these calculated means into the SSB formula yields the following precise steps: $10(80.5 – 83.1)^2 + 10(82.1 – 83.1)^2 + 10(86.7 – 83.1)^2$. After performing the squaring and summing operations, the final Between Group Variation (SSB) is calculated to be 207.2. This value represents the total variance in scores that can be attributed to the differences in the three studying methods.

Step 2: Quantifying Random Variability (SSW)

The second necessary component is the Within-Group Variation, or Sum of Squares Within (SSW). This term measures the inherent, unexplained variability, or random error, that exists among subjects who received the exact same treatment. It is calculated by summing the squared differences between each individual observation ($X_{ij}$) and the mean of its own group ($bar{X}_{j}$).

Within Group Variation (SSW): $Sigma (X_{ij} – bar{X}_{j})^2$

Where the terms are defined as:

• $Sigma$: The summation symbol, applied universally to all squared differences across all individuals in all groups.
• $X_{ij}$: The $i^{th}$ individual observation (score) belonging to group $j$.
• $bar{X}_{j}$: The mean score specific to group $j$.

We must calculate the sum of squared differences independently for each group and then aggregate those values:

Group 1 (Mean = 80.5): $(75-80.5)^2 + (77-80.5)^2 + (78-80.5)^2 + (78-80.5)^2 + (79-80.5)^2 + (81-80.5)^2 + (81-80.5)^2 + (83-80.5)^2 + (86-80.5)^2 + (87-80.5)^2 = mathbf{136.5}$

Group 2 (Mean = 82.1): $(78-82.1)^2 + (78-82.1)^2 + (79-82.1)^2 + (81-82.1)^2 + (81-82.1)^2 + (82-82.1)^2 + (83-82.1)^2 + (85-82.1)^2 + (86-82.1)^2 + (88-82.1)^2 = mathbf{104.9}$

Group 3 (Mean = 86.7): $(82-86.7)^2 + (82-86.7)^2 + (84-86.7)^2 + (86-86.7)^2 + (86-86.7)^2 + (87-86.7)^2 + (87-86.7)^2 + (89-86.7)^2 + (90-86.7)^2 + (94-86.7)^2 = mathbf{122.1}$

The total Within Group Variation (SSW) is the sum of these three independent measures of internal variability: $136.5 + 104.9 + 122.1 = mathbf{363.5}$. This value represents the total variance that remains unexplained by the factor—it is the measurement of random noise.

Interpreting the ANOVA Results and the F-Statistic

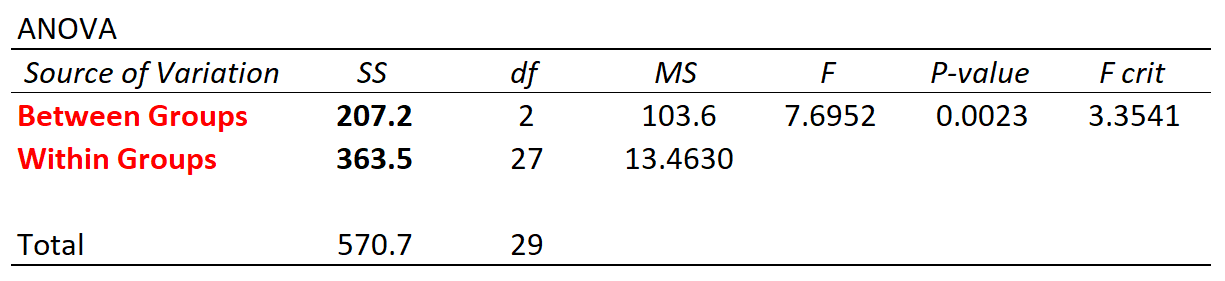

Once the Sums of Squares (SSB and SSW) are calculated, they are typically entered into statistical software which completes the analysis by calculating the degrees of freedom (df), the Mean Squares (MS), and the final F-statistic. The resulting ANOVA summary table, using our calculated values, is shown below:

The most crucial output derived from the partitioned variance is the F-statistic. This statistic serves as the formal test statistic for the ANOVA and is calculated as the ratio of the Mean Square Between (MSB) to the Mean Square Within (MSW). The Mean Squares are simply the Sums of Squares divided by their respective degrees of freedom, effectively converting the total variation measures into average variance measures.

The logic of the F-ratio is straightforward: $F = frac{MSB}{MSW}$. If the F-statistic is large (i.e., MSB is much greater than MSW), it means the systematic variation between groups is significantly larger than the random variation within groups. This provides strong statistical evidence that the treatment differences are real and not merely the result of chance error.

In this specific example, the calculated F-statistic is 7.6952. This value corresponds to a p-value of .0023. Given that this p-value is substantially lower than the conventional significance threshold (typically $alpha = .05$), we have overwhelming evidence to reject the initial null hypothesis. We can confidently conclude that at least one of the three studying techniques results in a mean exam score that is significantly different from the others, suggesting the choice of study method has a meaningful impact on the outcome.
