Learning to Write IF Statements in Power BI DAX: A Practical Guide

The capacity to implement robust conditional logic is not merely useful but fundamental to effective data analysis, modeling, and reporting. Within the Power BI ecosystem, this logical processing is powered by DAX (Data Analysis Expressions), and specifically, the versatile IF function. Mastering the IF statement allows data professionals to execute complex operations such as categorizing raw data, defining logical flags, and calculating custom performance measures based on specific, dynamic criteria. This comprehensive guide serves as your essential resource, detailing the core syntax and offering practical, step-by-step examples for implementing both simple and deeply nested IF statements in DAX.

The core philosophy of the DAX IF function revolves around a simple premise: testing a given condition. If the condition evaluates as true, the function returns a specified result; otherwise, if the condition is false, it returns an alternative result. This binary structure is invaluable for deriving new, contextually rich columns or measures from the existing data within your Power BI data model, transforming raw numbers into actionable categories.

Understanding the DAX IF Function Syntax and Structure

The foundational structure of the DAX IF function is designed to be highly intuitive, echoing the conditional logic structures utilized across numerous programming languages and spreadsheet environments. It is a compulsory three-argument function, meaning it requires all three components to execute successfully. These components dictate the test, the affirmative action, and the negative action.

The three core arguments are defined as follows:

1. Logical Test: This is the expression that must evaluate to a Boolean result (TRUE or FALSE). It typically involves comparisons using operators like >, <, =, <=, or >=.
2. Value if True: The result returned by the function if the Logical Test evaluates to TRUE. This can be a numerical value, a text string, another calculation, or even another DAX function.
3. Value if False: The result returned if the Logical Test evaluates to FALSE. Like the ‘Value if True’ argument, this can be any valid DAX expression or data type.

The standard syntax for assigning a conditional value, often used when defining a new Calculated Column based on a single condition (binary logic), is shown below. This method is the simplest implementation of the IF function and is ideal for basic classification.

Method 1: Writing a Simple IF Statement for Binary Classification

Rating =
IF(
    'my_data'[Points] > 20,
    "Good",
    "Bad"
)

This formula is engineered to create a new column, creatively named Rating, within the source table (‘my_data’). Crucially, DAX evaluates this formula row by row. For every row, if the value found in the Points column exceeds 20, the function yields the text string “Good”; conversely, if the value is 20 or less, it returns the string “Bad.” This binary classification approach provides immediate, clear labeling for simple thresholds.

Mastering the Nested IF Statement for Multi-Tier Classification

While simple IF statements excel at binary (two-way) classification, many real-world reporting requirements necessitate categorizing data into three, four, or even more groups (e.g., Low, Medium, High, Excellent). To achieve this multi-tier classification using the IF function, we must employ a technique known as nesting. A Nested IF Statement involves embedding one complete IF function within one of the arguments of an outer IF function.

In DAX, the standard practice is to place the subsequent IF function within the ‘Value if False’ argument of the preceding IF function. This structure is vital because it dictates the flow of evaluation: the inner condition is only tested if the outer condition has already been determined to be false. This sequential evaluation demands careful ordering of the conditions, typically moving from the most restrictive criteria to the least restrictive, ensuring that data is categorized correctly and exclusively into the desired buckets.

Method 2: Writing a Nested IF Statement for Three or More Outcomes

Rating =
IF(
    'my_data'[Points] < 20,
    "Bad",
    IF(
        'my_data'[Points] <30,
        "Good",
        "Great"
    )
)

In this expanded example, the calculated column Rating now supports three possible outcomes. The process begins with the outer IF: it checks if the points are less than 20. If TRUE, it immediately assigns “Bad” and stops. If FALSE (meaning points are 20 or greater), the DAX engine proceeds to the nested, inner IF statement. The inner IF then checks if the points are less than 30. If this is TRUE (meaning the points fall between 20 and 29), it assigns “Good.” If this inner test also fails (meaning the points must be 30 or greater), it defaults to the final assignment of “Great.”

The effective logical flow established by this specific nesting structure is as follows:

• Assign “Bad” if the value in the Points column is strictly less than 20.
• Otherwise, assign “Good” if the value in the Points column is less than 30 (logically resulting in a range of 20 through 29).
• If neither of the above conditions is met, assign “Great” (covering all values of 30 or greater).

We will now proceed to demonstrate the practical application of these methods using a concrete dataset within DAX. For the forthcoming examples, we operate under the assumption that the user is working with a defined table in Power BI named my_data, which contains a crucial numerical field called Points.

Practical Implementation: Creating a Simple IF Calculated Column

Our initial practical objective is to apply a straightforward binary classification to the existing dataset. We seek to introduce a new column that clearly distinguishes between high-performing rows and all others. Specifically, the column must return the value “Good” if the corresponding value in the Points column exceeds 20, and the value “Bad” in every other instance. This process illustrates the most basic yet powerful use of the IF function in defining categorical data.

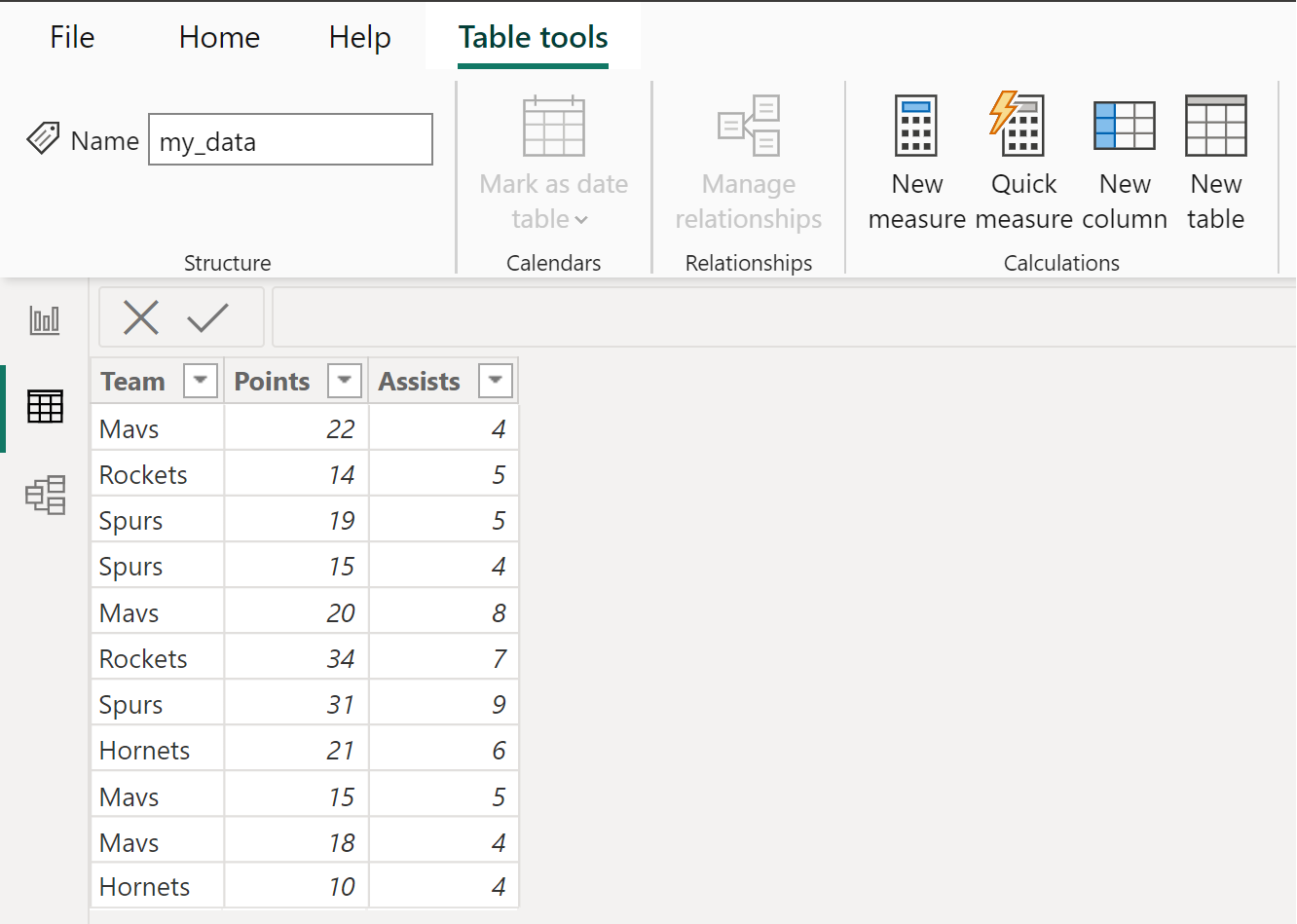

To commence this operation within the Power BI Desktop environment, the user must first navigate to either the Data View or the Report View and ensure the target table is selected. The essential first step in creating any calculated column is initiating the calculation process via the application ribbon.

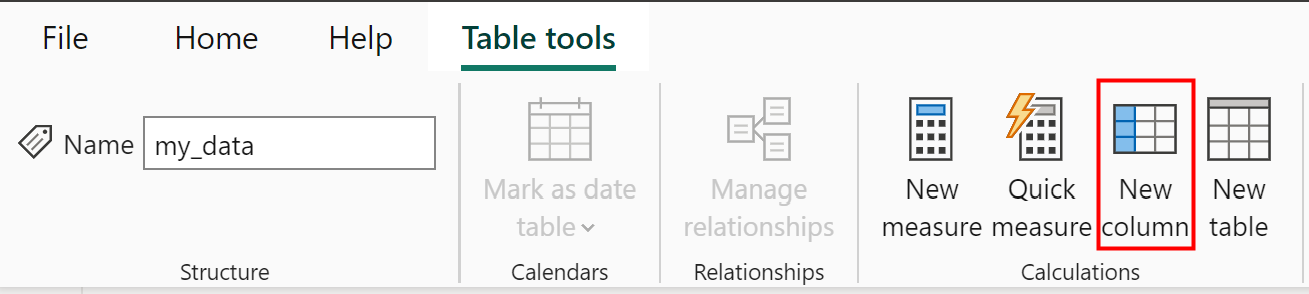

Look for and click the New column icon, typically situated within the Table Tools tab on the ribbon. This action successfully activates the DAX formula bar, providing the interface necessary to input and execute your DAX code.

Once the formula bar is active, carefully input the following formula. It is critical to adhere precisely to the DAX syntax, which mandates referencing the table name (‘my_data’) before the column name (‘Points’). This explicit reference ensures the DAX calculation engine correctly establishes the row context for the operation and accurately locates the source data for comparison:

Rating =
IF(
    'my_data'[Points] > 20,
    "Good",
    "Bad"
)

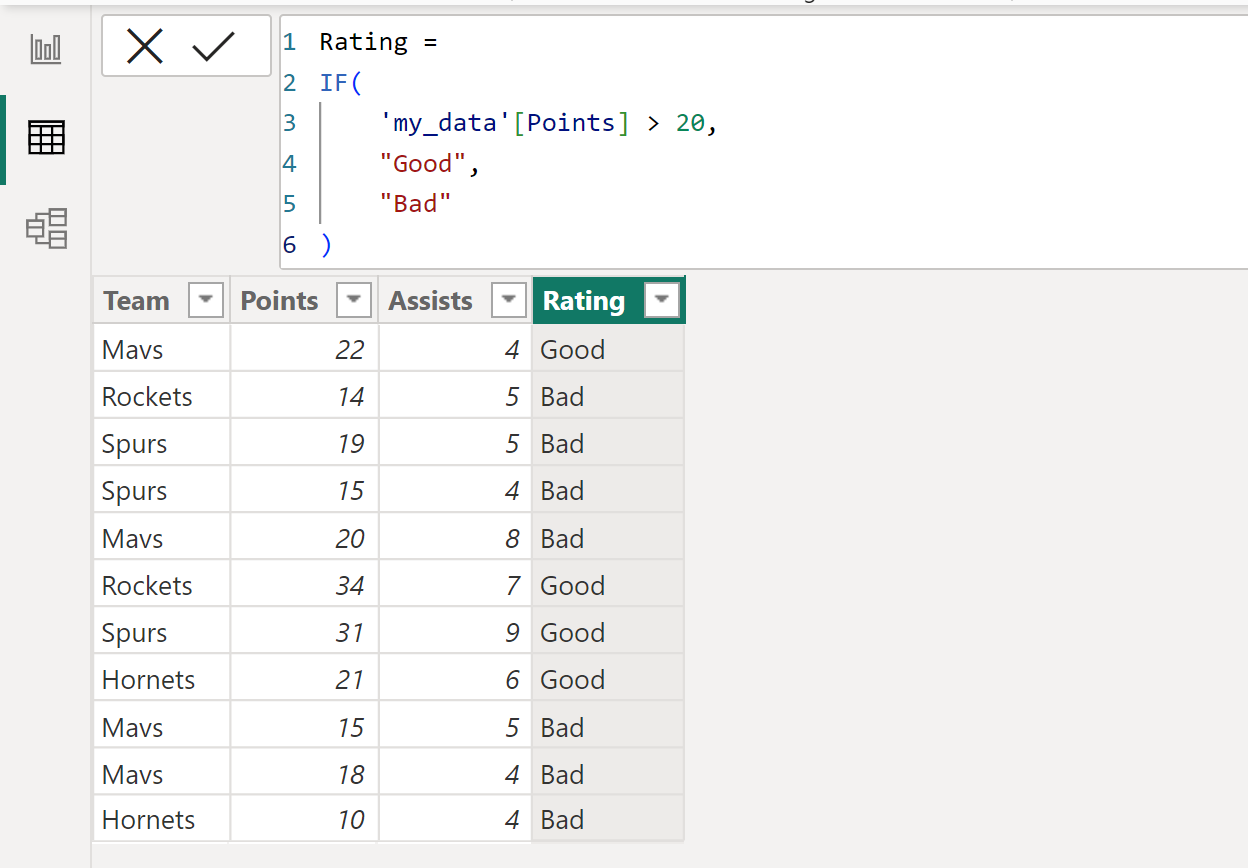

Upon executing this formula (by pressing Enter or clicking the checkmark), the new calculated column named Rating will be generated instantly. This column will populate seamlessly across all rows, displaying either “Good” or “Bad” based purely on the corresponding value in the Points column, thereby providing immediate, powerful categorical insights derived directly from your raw data. You can verify the successful application of this logic by examining the resulting table structure provided below.

Advanced Application: Building the Nested Classification

For scenarios demanding more granular control over classifications—such as complex grading systems, detailed performance appraisals, or multi-tiered metrics—the Nested IF Statement becomes an indispensable tool. In this advanced example, our goal is to establish three distinct performance tiers: “Bad” for low scores (less than 20), “Good” for moderate scores (20 up to 29), and “Great” for high scores (30 or above). This task requires implementing multi-step, sequential logic.

The sophisticated logic implementation must proceed as follows: First, check if Points is less than 20; if true, return “Bad.” If that initial condition fails (meaning points are 20 or more), the engine must then check the next condition: is Points less than 30? If true, return “Good.” Finally, if both preceding tests have failed, the only remaining possibility is that the score is 30 or greater, and thus the formula must return “Great.”

As demonstrated previously, the first action required is to activate the new column creation tool. Click the New column icon once more in the Table Tools ribbon to open the dedicated DAX formula editor.

Next, input the detailed nested formula into the formula bar. While DAX does not strictly require formatting, the use of proper indentation is highly recommended, especially when dealing with multiple nested functions. This practice vastly improves readability and helps clarify which conditions belong to which specific IF evaluation, making debugging and future maintenance significantly easier:

Rating =
IF(
    'my_data'[Points] < 20,
    "Bad",
    IF(
        'my_data'[Points] <30,
        "Good",
        "Great"
    )
)

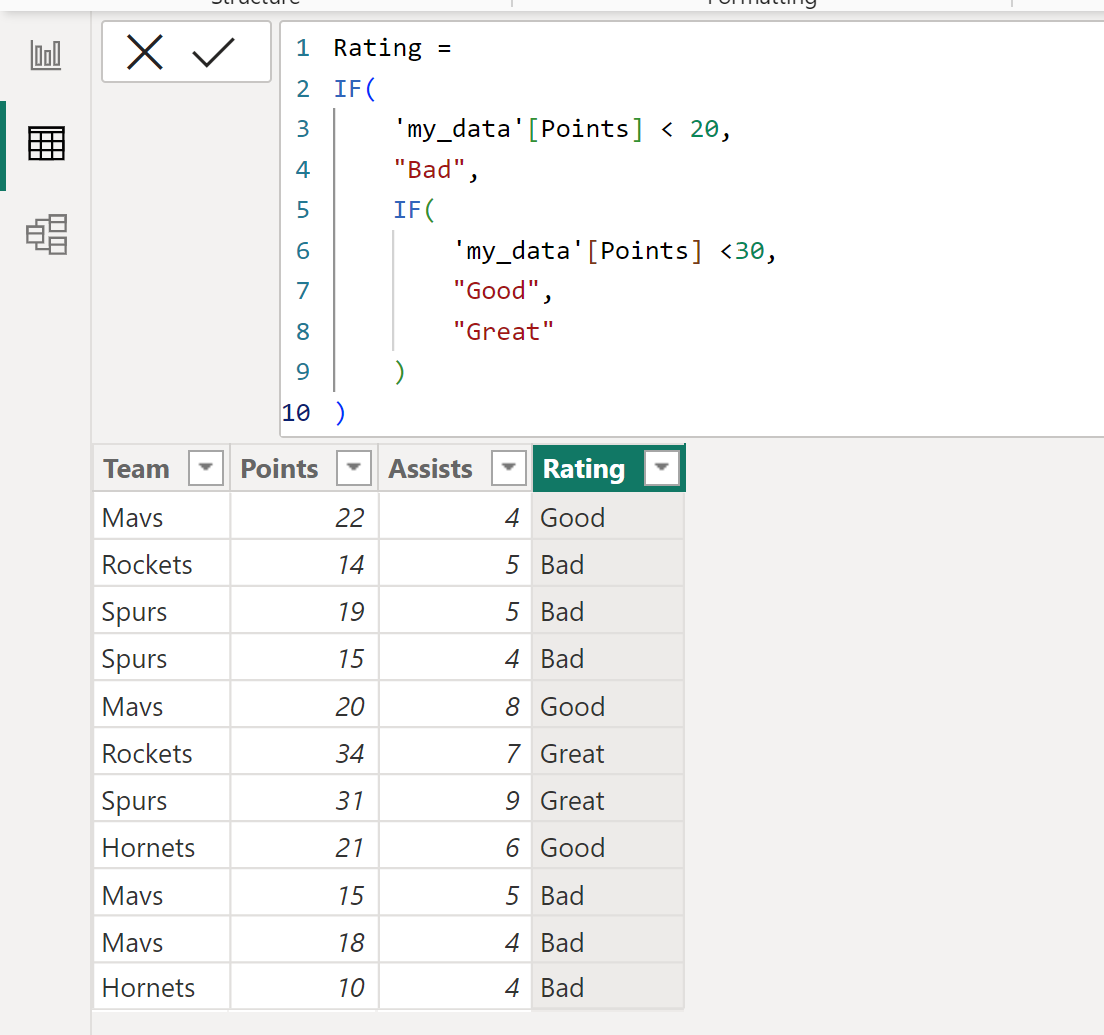

Upon executing this complex code, a new column named Rating will populate the table. This column now contains the corresponding categorical value (“Bad,” “Good,” or “Great”) based on the sequential, multi-layered evaluation of the Points column. This outcome powerfully demonstrates the utility of nested conditional logic in transforming complex quantitative metrics into immediately meaningful qualitative categories within Power BI.

Conclusion and Alternatives to Deep Nesting

The IF function is undeniably a cornerstone tool in the DAX language, providing the necessary foundation for building robust conditional logic into your data models. However, it is essential to recognize the limitations of deep nesting. When a scenario requires evaluating more than three or four conditions sequentially, the resulting nested IF structure can quickly become cumbersome, prone to error, and extremely difficult for other developers to read and maintain.

For these highly complex, multi-condition scenarios, developers often prefer an alternative DAX function: SWITCH(TRUE()). The SWITCH function evaluates a series of conditions and returns the result associated with the first TRUE condition it encounters. When used with the TRUE() parameter, it provides a significantly cleaner, more scalable, and far more maintainable structure than deep IF nesting, particularly when handling numerous outcomes or complex tiers. This alternative should always be considered when readability becomes a concern.

Note: For those seeking to delve deeper into performance considerations, edge cases, and additional detailed examples regarding the IF function in DAX, the complete and official documentation is available directly on the Microsoft documentation website.

Additional Resources for DAX Mastery

To further solidify your expertise in data manipulation and modeling within Power BI, it is highly recommended to explore tutorials that cover related conditional and analytical functions. Understanding how to use functions like SWITCH, ISBLANK, and logical operators (AND/OR) alongside IF will greatly enhance your capability to construct sophisticated data models.

The following topics are crucial for advancing beyond basic IF statements:

• Exploring the benefits and syntax of the SWITCH(TRUE()) alternative.
• Understanding how to combine multiple conditions using the AND and OR operators within the IF function’s logical test argument.
• Learning the difference between using IF in a Calculated Column (Row Context) versus a Measure (Filter Context).
