Understanding 2×4 Factorial Experimental Designs: A Comprehensive Guide

Introduction to Experimental Designs

The foundation of rigorous scientific inquiry rests upon effective experimental design. This methodological framework provides researchers with the essential tools to systematically investigate and isolate cause-and-effect relationships, ensuring that collected data is both robust and reliable enough to support valid conclusions. By meticulously planning how variables are manipulated and measured, researchers can move beyond mere correlation and establish strong evidence for causality.

Among the powerful tools available in this field, factorial designs are highly valued for their efficiency in assessing the influence of multiple factors simultaneously. Unlike simpler designs that test one variable at a time, factorial structures allow for a comprehensive view of complex systems where variables rarely operate in isolation.

What makes factorial designs particularly potent is their capacity not only to quantify the separate impact (or main effect) of each independent variable on a measured outcome (the dependent variable) but also to uncover crucial interactions between these factors. Understanding these synergistic or antagonistic relationships is vital across disciplines, from determining optimal drug dosages in biology to refining manufacturing processes in engineering. This specialized guide focuses on one common and highly effective structure: the 2×4 factorial design, detailing its configuration, analytical methods, and the unique insights it delivers.

Understanding the 2×4 Factorial Design

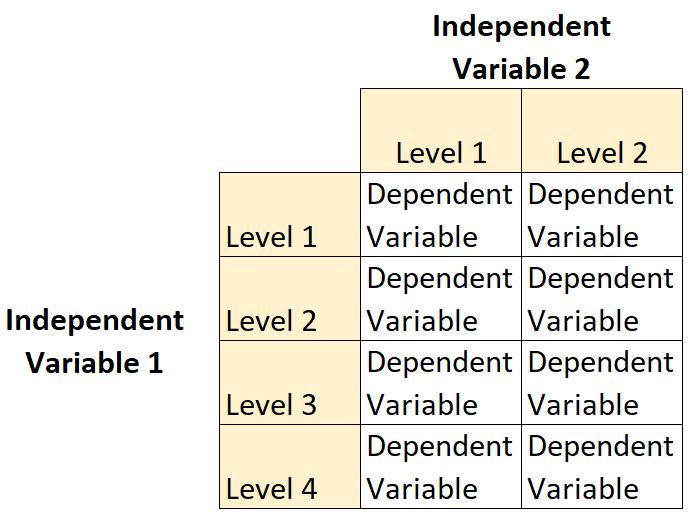

The 2×4 factorial design represents a specific and powerful type of experimental design constructed to fully elucidate the effects of two distinct independent variables on a single dependent variable. The numerical notation, “2×4,” is not arbitrary; it precisely defines the structure of the experimental setup based on the number of conditions, or levels, associated with each independent variable.

In this configuration, the first independent variable is structured to have two distinct levels, while the second independent variable is structured to have four distinct levels. These levels correspond to the specific conditions, categories, or dosages under which the factor is tested. For instance, if Factor A is “Treatment Type,” its two levels might be ‘Drug A’ and ‘Placebo.’ If Factor B is “Dosage Frequency,” its four levels might be ‘Once Daily,’ ‘Twice Daily,’ ‘Three Times Daily,’ and ‘As Needed.’

The core benefit of employing a 2×4 factorial design lies in its inherent efficiency and completeness. By testing all possible combinations of the variables’ levels (2 multiplied by 4 results in 8 total experimental conditions or groups), the design provides a comprehensive assessment. This allows researchers to simultaneously evaluate the direct impact of each variable (main effects) and, critically, how the effect of one variable changes across the conditions of the other (interaction effects), providing a far more realistic and actionable understanding than separate, single-factor experiments could achieve.

Defining Variables and Their Levels: An Illustrative Example

To solidify the abstract concept of a 2×4 factorial design, let us examine a concrete scenario. Consider an agricultural scientist aiming to optimize the yield of a new crop strain. The scientist hypothesizes that both light exposure and fertilizer type are crucial factors influencing crop productivity.

In this setup, the measured outcome, which is the kilograms of crop harvested per plot, is designated as the dependent variable. The factors intentionally manipulated by the scientist are the independent variables:

• Independent Variable #1: Fertilizer Type
  • Levels: Organic Compound (Type A), Synthetic Mix (Type B)
• Independent Variable #2: Light Exposure
  • Levels: Shade, Partial Sun, Full Sun, Greenhouse Lighting

This scenario perfectly illustrates a 2×4 factorial design: one factor (Fertilizer Type) has two distinct levels, and the second factor (Light Exposure) has four distinct levels. The design mandates that the crop yield be measured under all 8 possible combinations (e.g., Organic Fertilizer with Shade, Synthetic Fertilizer with Full Sun, etc.). The scientist is thereby equipped to analyze not only the overall best fertilizer or best lighting condition, but, more importantly, whether the optimal fertilizer choice depends critically on the amount of light the plants receive.

Exploring Main Effects in Detail

A fundamental goal in analyzing data from a factorial design is the identification and quantification of main effects. A main effect represents the average, overall influence that a single independent factor exerts on the dependent variable, regardless of the conditions or levels of the other independent variables. Essentially, it isolates the general impact of one factor by averaging out the influence of all others.

In the context of the agricultural experiment, two primary main effects would be calculated:

• Main effect of Light Exposure on Crop Yield: This analysis involves comparing the mean crop yield across all four light exposure levels (Shade, Partial Sun, Full Sun, Greenhouse Lighting), irrespective of the type of fertilizer used. The researcher would calculate the collective average yield for all plots exposed to Shade, then the average for all plots exposed to Partial Sun, and so forth. A statistically significant main effect here would confirm that different light levels inherently lead to statistically different average yields.
• Main effect of Fertilizer Type on Crop Yield: Similarly, this effect examines the overall average crop yield under the two fertilizer types (Type A vs. Type B), without concern for the specific light conditions. This requires comparing the mean yield of all plots treated with Type A fertilizer against the mean yield of all plots treated with Type B fertilizer. A significant result would indicate that one fertilizer type is generally superior or inferior to the other, averaged across all lighting conditions.

By establishing these main effects, the researcher gains foundational insights into the general influence of each factor. While important, these main effects only tell half the story; they serve as a necessary precursor to understanding the more complex dynamics captured by interaction effects.

Discerning Interaction Effects

While main effects provide information about individual factor influence, interaction effects are often the most critical findings in a factorial study. An interaction occurs when the magnitude or direction of the effect of one independent variable on the dependent variable is contingent upon the specific level of the second independent variable. In essence, the factors combine in a non-additive way.

In our agricultural example, an interaction effect would address questions such as: Does the superior performance of Fertilizer Type B (Synthetic) hold true across all light conditions, or is its advantage only pronounced when plants are under Full Sun exposure? Conversely, does the difference in yield between Shade and Full Sun conditions become much larger when using Fertilizer Type A (Organic)?

A significant interaction effect dictates that the researcher cannot simply interpret the main effects in isolation. If an interaction exists, the most accurate understanding of the outcome requires considering the specific combination of both factors. For instance, the main effect might suggest Fertilizer Type A is best overall, but the interaction might reveal that Type B is dramatically superior under Greenhouse Lighting—a crucial finding that would be masked in a single-factor design. These effects are often visually represented in graphs where non-parallel lines clearly suggest that the relationship between one variable and the outcome changes across the settings of the other variable.

Practical Analysis: Implementing a Two-Way ANOVA

To rigorously analyze the data generated by a 2×4 factorial design and statistically test the presence of both main effects and interaction effects, researchers utilize a powerful statistical method known as Analysis of Variance (ANOVA). Given that this design involves two independent variables, the appropriate specific test is the two-way ANOVA.

The two-way ANOVA mathematically separates the total variability observed in the dependent variable (crop yield) into components attributed to Factor 1 (Light), Factor 2 (Fertilizer), the combined influence of their interaction, and any remaining unexplained error. This process culminates in the calculation of a test statistic (F-value) and an associated p-value for each effect. The p-value is essential for determining the probability that the observed effect is merely due to random chance, thereby establishing the statistical significance of the findings.

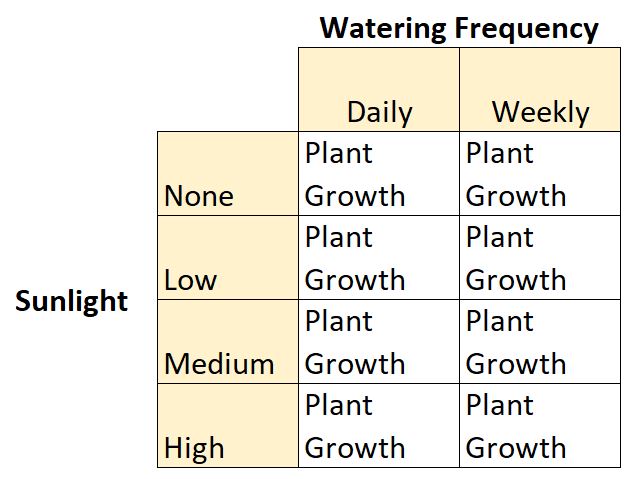

The following example utilizes the statistical programming language R to demonstrate the implementation of a two-way ANOVA on synthetic data simulating the plant growth scenario, ensuring the analysis is reproducible for educational purposes.

#make this example reproducible
set.seed(0)

#create data
df <- data.frame(sunlight = rep(c('None', 'Low', 'Medium', 'High'), each=10, times=2),
                 water = rep(c('Daily', 'Weekly'), each=40, times=2),
                 growth = c(rnorm(10, 8, 2), rnorm(10, 8, 3), rnorm(10, 13, 2),
                            rnorm(10, 14, 3), rnorm(10, 10, 4), rnorm(10, 12, 3),
                            rnorm(10, 13, 2), rnorm(10, 14, 4)))

#fit the two-way ANOVA model
model <- aov(growth ~ sunlight * water, data = df)

#view the model output
summary(model)

                Df Sum Sq Mean Sq F value   Pr(>F)
sunlight         3  744.1  248.04   34.16  < 2e-16 ***
water            1   43.1   43.05    5.93    0.016 *
sunlight:water   3  195.8   65.27    8.99 1.61e-05 ***
Residuals      152 1103.5    7.26
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Interpreting the ANOVA Output

The output generated by the two-way ANOVA is the key to understanding the experimental results. The summary table systematically reports the statistical metrics for each source of variation: the main effects of Sunlight and Water, and the crucial Interaction effect (Sunlight:Water).

1. Degrees of Freedom (Df): Indicates the number of independent pieces of information used to estimate the variance for each effect. For an independent variable with ‘k’ levels, Df = k-1.
2. Mean Sq (Mean Square): Represents the variance estimate for that specific source of variation, calculated by dividing the Sum of Squares by the Degrees of Freedom.
3. F value: The test statistic, derived by comparing the Mean Square of the effect against the Mean Square of the residuals (error). A higher F-value suggests a stronger effect relative to random noise.
4. Pr(>F) (p-value): The probability of observing the calculated F-value purely by chance if the null hypothesis (i.e., no effect) were true. Researchers use this value to make decisions regarding statistical significance.

Based on the hypothetical plant growth ANOVA results:

• Main Effect of Sunlight: The associated p-value is <2e-16. Since this value is far below the standard threshold of .05, we conclude that the main effect of sunlight exposure is highly statistically significant. Different levels of light exposure result in substantially different average plant growth outcomes.
• Main Effect of Water: The p-value for watering frequency is .016. As this is also less than .05, the main effect of watering frequency is deemed statistically significant. On average, the growth outcome differs between daily and weekly watering regimes.
• Interaction Effect (Sunlight:Water): The p-value for the interaction is 1.61e-05. This extremely low value confirms a statistically significant interaction. This is the most crucial finding: the effect of sunlight on plant growth is dependent on the watering frequency, meaning the researcher must examine the specific combinations to determine the optimal conditions.

The significance codes (***) next to the p-values provide a concise summary, indicating that the evidence against the null hypothesis is very strong for both main effects and the interaction effect.

Advantages and Considerations of the 2×4 Factorial Design

The 2×4 factorial design offers numerous methodological advantages that make it a cornerstone of experimental research. Its primary strength lies in its efficiency; by testing two factors simultaneously within a single setup, it maximizes the information gained from the available resources, saving both time and experimental subjects compared to running multiple sequential experiments.

Crucially, this design is structurally built to detect interaction effects. Since few real-world phenomena are governed by factors operating in complete isolation, the ability to uncover how the effect of one variable is modulated by the levels of another is invaluable for providing an ecologically valid and nuanced understanding of the system. Furthermore, by observing effects across different conditions of the second factor, the findings possess greater generalizability than those derived from single-factor studies.

However, researchers must also acknowledge certain constraints. As the number of levels or factors increases, the complexity of the interpretation grows exponentially. While a 2×4 design is highly manageable, larger designs require proportionally larger sample sizes to maintain adequate statistical power, particularly for detecting subtle interaction effects. Moreover, a significant interaction often necessitates extensive follow-up analysis (such as simple main effects tests) and careful visualization to fully communicate the contingent nature of the findings.

Conclusion

The 2×4 factorial design is an exceptionally valuable and versatile methodology in experimental science. It allows researchers to move beyond simplistic examinations of single factors and delve into the intricate, interdependent relationships that define complex systems. By systematically manipulating two levels of one factor and four levels of another, this design provides a rich tapestry of data that captures individual factor influence and synergistic effects.

The rigorous statistical evaluation afforded by the two-way ANOVA enables clear determination of significant main and interaction effects. This comprehensive approach ensures that research outcomes are not only statistically sound but also deeply reflective of the real-world complexity of the phenomena under investigation. Leveraging the efficiency and depth of the 2×4 factorial structure empowers researchers across all disciplines to conduct more insightful and impactful studies.
