Learning to Order Categories on the X-Axis in ggplot2 for Effective Data Visualization

The Critical Role of X-Axis Order in Data Visualization

In the realm of analytical reporting, effective data visualization stands as the cornerstone for conveying complex insights clearly and persuasively. When dealing with categorical data, the arrangement of items along the x-axis is not merely an aesthetic choice; it fundamentally dictates how the viewer interprets and compares the information presented. An axis that defaults to an alphabetical or arbitrary sort often manages to obscure underlying patterns, misrepresent critical hierarchies, or introduce unnecessary friction into the process of comparison.

The default behavior of ggplot2, the preeminent visualization package within the R environment, is to automatically order discrete variables alphabetically or numerically. While this consistency provides predictability, it rarely aligns with the optimal narrative required to tell the data’s true story. For instance, a meaningful visualization might require categories to be sequenced by magnitude (e.g., population size), a logical progression (e.g., “low” to “high”), or a specific, custom arrangement mandated by business rules or temporal factors.

By intentionally taking control of the x-axis ordering, analysts gain the power to guide the audience’s focus, highlight salient relationships, and transform standard plots into highly intuitive and maximally informative communication tools. This guide will detail the precise techniques necessary to override the default settings in ggplot2, ensuring your visualizations serve their intended analytical purpose.

Factors and Levels: The Foundation of Categorical Ordering in R

To effectively manipulate the display order of categorical variables in ggplot2, one must first grasp the concept of R’s factor data type. A factor is specifically designed to store categorical data, whether it is nominal (categories without inherent order, like “city names”) or ordinal (categories with a defined sequence, like “rating scales”). The key distinction between a factor and a simple character vector is the existence of a predefined set of unique possible values, known as levels.

The defined order of these levels is the mechanism that ggplot2 uses to determine how categorical variables are plotted on discrete axes. If a character vector is passed to an aesthetic mapping, such as x or fill, ggplot2 will implicitly convert it into a factor, and by default, it will assign levels alphabetically. This is why variables often appear sorted A-Z unless otherwise specified.

Therefore, customizing the visual order requires explicit modification of the underlying factor levels. This is typically achieved using the foundational factor() function in R. By utilizing the levels argument within this function, we can preempt the default alphabetical sorting and enforce a desired, logical sequence that aligns with the analysis goals.

Manual Ordering: Utilizing the factor() Function

The most straightforward and highly controlled method for dictating the x-axis order for discrete variables in ggplot2 involves embedding the categorical variable within the factor() function, specifically leveraging its level argument. This approach provides granular control, allowing the user to set the precise sequence for every category present in the visualization.

The core syntax for implementing this manual ordering is applied directly within the aes() (aesthetic mapping) function of your primary ggplot2 call, as shown below:

ggplot(df, aes(x=factor(x_var, level=c('value1', 'value2', 'value3')), y=y_var)) +
  geom_col()

This syntax breaks down into several functional components:

• df specifies the input data frame containing the data to be plotted.
• The aes() function defines how variables map to visual properties.
• x_var is the categorical column intended for the x-axis display.
• The critical command is level=c('value1', 'value2', 'value3'). This character vector explicitly lists the exact categories from x_var in the precise order they must appear on the plot. Any categories present in the data but omitted from this list will typically be placed at the end, following their default alphabetical sorting.
• geom_col() is utilized here as a placeholder geometry, such as a bar chart, to illustrate the effect of the x-axis ordering. The same factoring principle applies universally across all discrete geometries in ggplot2.

By integrating this powerful yet simple modification directly into the aesthetic mapping, you instruct ggplot2 on the exact arrangement of your categories, ensuring the visual output immediately reflects your analytical or narrative priorities.

Demonstration: Customizing Bar Chart Category Sequence

To illustrate the practical application of manual ordering, let us examine a scenario involving basketball team performance data. We have a set of teams and their respective total points scored, and the goal is to visualize these scores using a bar chart while imposing a specific, non-alphabetical sequence for the teams on the x-axis.

We begin by constructing the sample data frame in R:

#create data frame
df <- data.frame(team=c('Mavs', 'Heat', 'Nets', 'Lakers'),
                 points=c(100, 122, 104, 109))

#view data frame
df

    team points
1   Mavs    100
2   Heat    122
3   Nets    104
4 Lakers    109

If we were to generate a standard bar plot using this data frame without any factoring, ggplot2 would default to arranging the team categories alphabetically. This results in an ordering that is often disjointed from the comparison a user might wish to make:

library(ggplot2)

#create bar plot with default alphabetical order
ggplot(df, aes(x=team, y=points)) +
  geom_col()

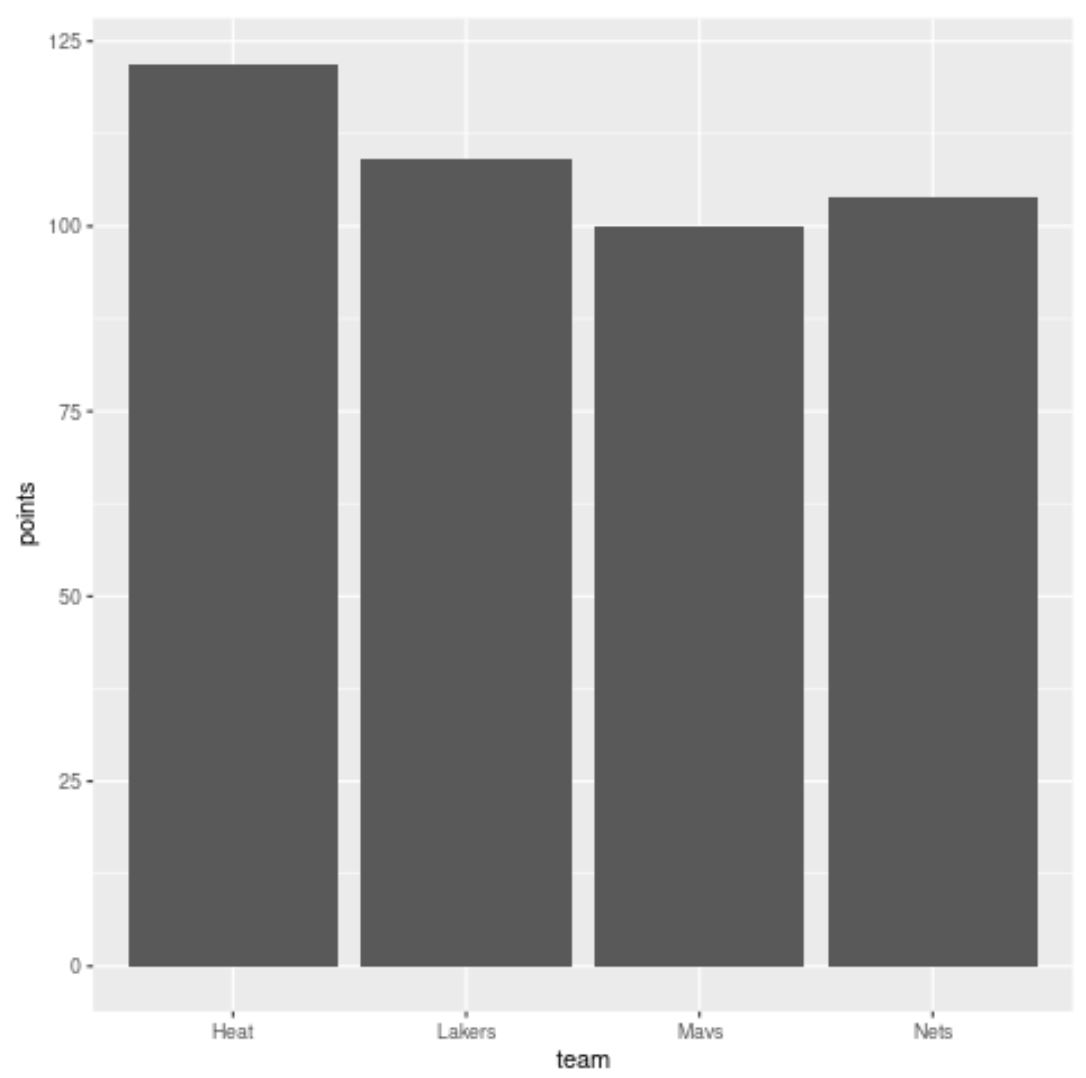

As clearly visible, the teams are sorted alphabetically (Heat, Lakers, Mavs, Nets). To override this default and impose our custom sequence—say, ‘Mavs’, ‘Heat’, ‘Nets’, ‘Lakers’—we must apply the factor() function and define the specific levels within the aes() mapping:

library(ggplot2)

#create bar plot with specific axis order
ggplot(df, aes(x=factor(team, level=c('Mavs', 'Heat', 'Nets', 'Lakers')), y=points)) +
  geom_col()

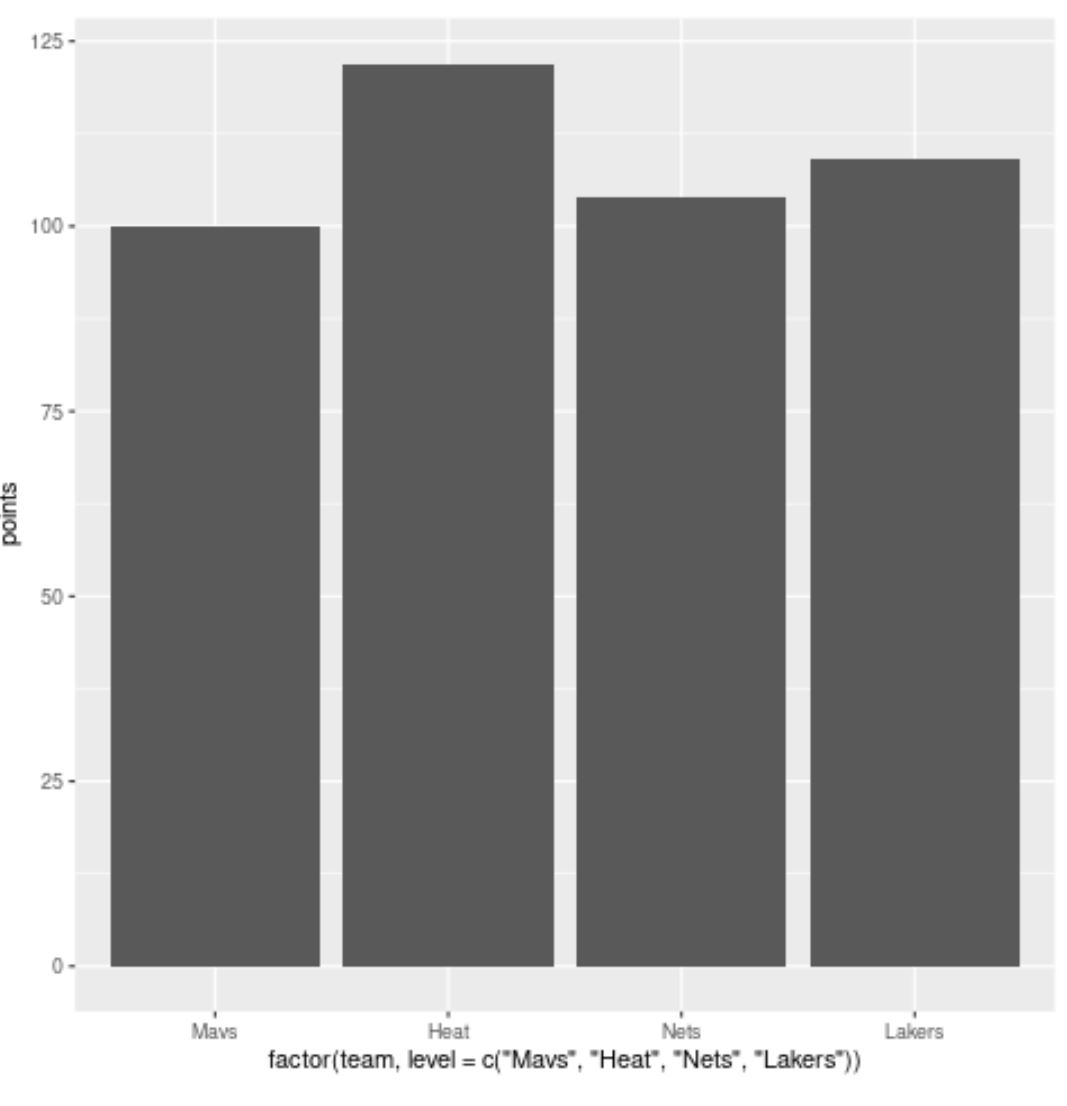

The resulting chart now perfectly reflects the specified order: Mavs, Heat, Nets, and Lakers. This transformation confirms the effectiveness of explicitly setting the levels, granting the data creator full command over the visual sequence of categories.

Refining Visual Communication: Custom X-Axis Labels

While controlling category order is vital, a complete visualization requires more than just correct sequencing; it demands clarity in presentation. By default, ggplot2 often uses the raw variable name as the axis label, which can sometimes be technical or aesthetically displeasing, especially when the variable has been transformed using functions like factor(). Effective data visualization necessitates clear, human-readable labels.

To elevate the professionalism and user-friendliness of the plot, we can easily rename the x-axis using the xlab() function. This function is appended as an additional layer to the existing ggplot2 object, allowing the specification of a descriptive custom title for the x-axis without altering the underlying data or aesthetic mappings.

Continuing with our basketball example, we integrate xlab() to provide a clear label for the ordered team categories:

library(ggplot2)

#create bar plot with specific axis order and custom x-axis label
ggplot(df, aes(x=factor(team, level=c('Mavs', 'Heat', 'Nets', 'Lakers')), y=points)) +
  geom_col() +
  xlab('Team')

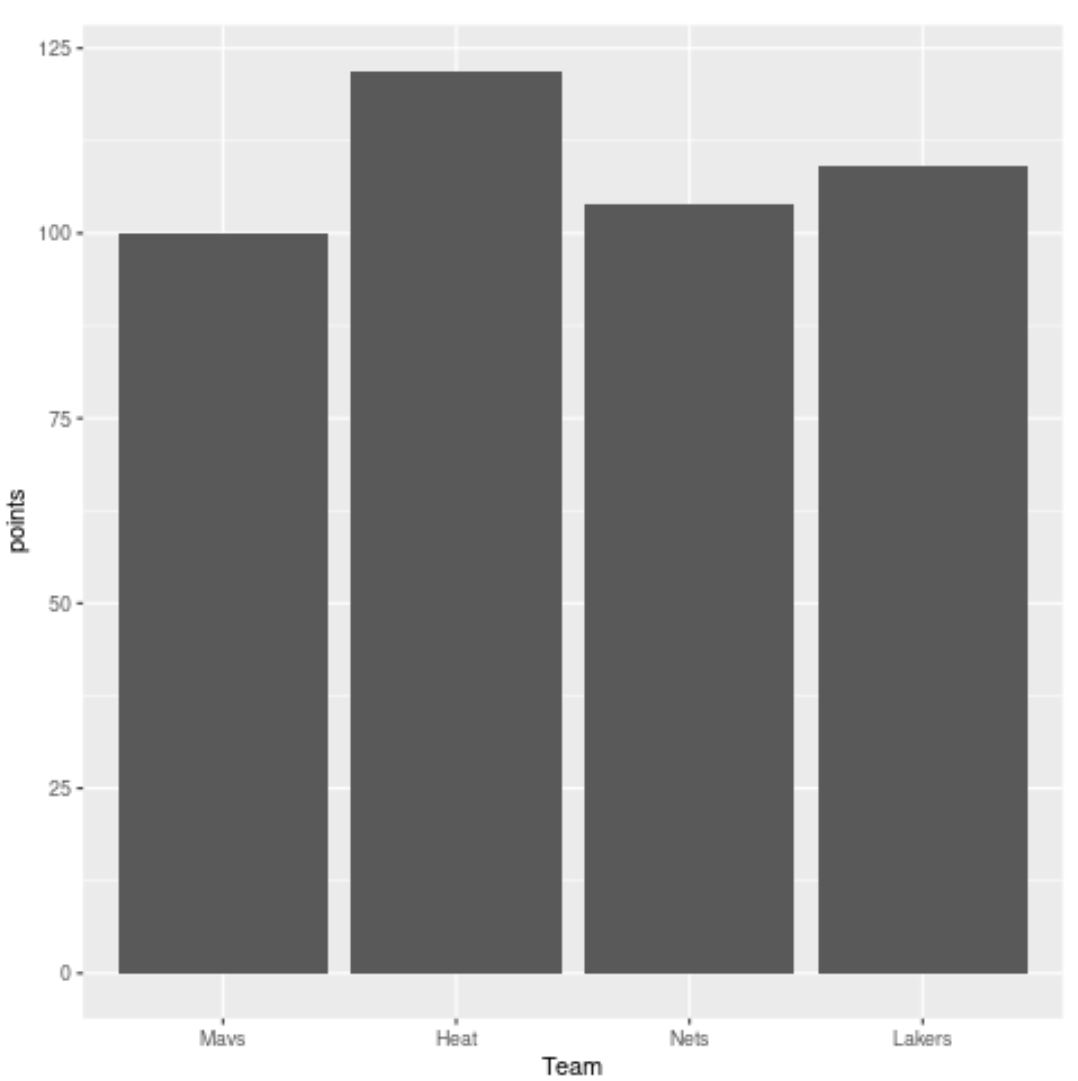

The resulting chart now clearly labels the x-axis as “Team,” significantly improving the plot’s overall interpretability compared to using the raw variable name. This simple addition is a crucial best practice for creating professional and accessible visualizations.

Dynamic Ordering: Sorting Categories by Value using forcats

While manual specification using factor() is excellent for small, static datasets, it quickly becomes cumbersome for large numbers of categories or when the ordering must dynamically reflect changes in the data. A frequent analytical need is to sort the categorical items based on the magnitude of an associated quantitative variable—for example, ordering our teams from the highest scored points to the lowest.

For these dynamic and programmatic ordering requirements, the fct_reorder() function from the forcats package provides a robust solution. The forcats package, part of the larger tidyverse ecosystem, is specifically designed for manipulating factor levels efficiently. This function reorders the levels of a factor based on the values of another variable, defaulting to sorting by the mean of that variable.

To illustrate, we use fct_reorder() within the aes() mapping to sort the basketball teams in our data frame by their points score in descending order, thus immediately highlighting the top performers:

library(ggplot2)
library(forcats) # Required for fct_reorder()

#create bar plot, ordering teams by points in descending order
ggplot(df, aes(x=fct_reorder(team, points, .desc=TRUE), y=points)) +
  geom_col() +
  xlab('Team')

The arguments passed to fct_reorder() are straightforward: the first argument (team) is the factor to be ordered; the second (points) is the numeric variable that dictates the sort; and .desc=TRUE enforces descending order. This concise function enables the creation of ranked visualizations where the order is generated programmatically from the data itself, ensuring accuracy and efficiency. Furthermore, fct_reorder() is highly flexible, allowing users to specify a custom aggregation function (e.g., .fun = sum or .fun = median) if the default mean aggregation is not appropriate for the analytical task.

Summary and Best Practices for ggplot2 Ordering

The ability to precisely control the sequence of items on the x-axis is an indispensable skill for analysts utilizing ggplot2 within the R environment. By moving beyond the default alphabetical sorting, you ensure that your visualizations become powerful tools for narrative communication, facilitating immediate insight and deeper understanding for your audience.

We have established two primary, complementary methods for achieving superior axis ordering:

1. Manual Control via factor(): The syntax factor(variable, level=c('order1', 'order2', ...)) guarantees exact, fixed control over category sequence. This technique is optimal when dealing with a small, fixed set of categories or when an arbitrary, predefined business order must be strictly maintained.
2. Dynamic Ranking via fct_reorder(): Utilizing fct_reorder(variable_to_order, variable_to_sort_by, .desc=TRUE) from the forcats package provides a robust, scalable solution. It dynamically reorders categories based on a quantitative measure, making it essential for creating ranked visualizations and handling large datasets where manual listing is infeasible.

As a final best practice, always enhance your meticulously ordered axes with clear and descriptive labels using the xlab() function. Thoughtful labeling eliminates potential ambiguity and significantly boosts the overall professional quality and accessibility of your plots, ensuring that the visual narrative you construct is interpreted exactly as intended. By integrating these methods, your ggplot2 outputs will be both aesthetically refined and analytically effective.
