Learning to Visualize Confidence Intervals with ggplot2 in R

In the specialized field of data visualization, it is critical to present not only the underlying statistical trend but also the associated uncertainty for truly robust and defensible analysis. When utilizing the powerful ggplot2 package within the R programming environment, analysts can seamlessly incorporate confidence interval lines into their graphical outputs. This essential capability is primarily managed through the versatile function, geom_smooth(), which forms the cornerstone of trend representation in ggplot2.

The geom_smooth() function is specifically engineered to overlay smoothed conditional means onto scatterplots. This line often represents a fitted model, such as a linear regression line or a non-linear trend, complemented by a vital visual representation of the uncertainty surrounding that estimate. The resulting confidence interval defines a calculated range of values within which the true underlying relationship between the variables is statistically likely to reside. This visual addition transforms a simple trend line into a comprehensive statistical statement.

library(ggplot2)

some_ggplot +
  geom_point() +
  geom_smooth(method=lm)

The subsequent detailed sections will guide you through practical, step-by-step examples. We will demonstrate how to effectively apply this syntax using R’s built-in mtcars dataset. These examples are structured to cover foundational implementation, techniques for modifying the confidence level, and methods for customizing the visual aesthetics, ensuring you gain a comprehensive mastery of plotting confidence intervals using geom_smooth() in ggplot2.

Understanding ggplot2 and the Confidence Interval Concept

ggplot2 stands out as one of the most powerful and aesthetically pleasing data visualization packages available for R. Its design is rooted in the theoretical framework known as the Grammar of Graphics. This foundational structure enables users to construct complex plots logically, layer by layer—starting with the raw data, mapping variables to aesthetics (such as color or position), and then adding geometric objects (geoms) and statistical transformations (stats). This inherently modular approach grants data scientists unparalleled flexibility and precise control over every element of their visual output.

Statistically, a confidence interval represents a calculated range of values derived from sample data that is likely to encompass the true value of an unknown population parameter. In the context of regression analysis, visualizing a confidence interval around a fitted line communicates the inherent uncertainty in the estimation of that line itself. For instance, a commonly used 95% confidence interval signifies that if the process of sampling and analysis were repeated numerous times, 95% of the constructed intervals would successfully contain the true, unknown population regression line. This definition is crucial for accurate statistical interpretation.

The act of visualizing these uncertainty bands is fundamental because it elevates the analysis beyond a simple point estimate—such as a solitary regression line—to convey the precision and reliability of that estimate. Including this layer of information helps researchers and analysts avoid the over-interpretation of observed trends, a risk that is particularly high when working with sparse or noisy datasets. By promoting more responsible and accurate data storytelling, confidence intervals become an indispensable tool in quantitative research.

The Statistical Power of `geom_smooth()`

The geom_smooth() function serves a central role in exploratory data visualization within ggplot2 by effectively revealing the underlying structure and trend within a set of data points. It automatically calculates and renders a smoothed line, which is typically the result of a fitted statistical model, and pairs it with an optional shaded area that denotes the confidence interval around that fit. This immediate visual synthesis allows the audience to rapidly assess the direction, magnitude, and statistical strength of the relationship between the plotted variables.

By default, geom_smooth() intelligently selects a suitable smoothing method: it uses Local Polynomial Regression Fitting (LOESS) for datasets with fewer than 1,000 observations and defaults to Generalized Additive Models (GAM) for larger datasets. However, users can precisely control the statistical methodology employed using the method argument. Specifying method="lm", for example, forces the function to calculate a simple linear regression fit, which is the preferred choice for understanding straightforward linear relationships, as we demonstrate throughout our examples. This flexibility ensures geom_smooth() remains adaptable to diverse analytical demands.

The shaded region surrounding the smoothed line is a graphical representation of the standard error of the estimate, scaled to produce the specified confidence interval (defaulting to 95%). This visual element is profoundly valuable for determining the reliability of the trend: confidence bands that are wide suggest substantial uncertainty and potential variability, whereas narrower bands indicate a more precise and statistically reliable estimate. Mastering the control and interpretation of these uncertainty bands is paramount for generating insightful and trustworthy data visualizations.

Fundamental Implementation: A 95% CI Example using `mtcars`

This introductory example demonstrates the essential workflow for creating a scatterplot in ggplot2 and subsequently overlaying it with a statistically robust line of best fit, along with its corresponding default 95% confidence bands. We will utilize R’s foundational mtcars dataset, which details 32 different automobile specifications, to examine the classic inverse relationship between vehicle miles per gallon (mpg) and overall weight (wt).

The R code begins by ensuring the ggplot2 library is loaded into the session. Next, a ggplot object is initialized, where the aesthetic mapping explicitly assigns mpg to the horizontal (x) axis and wt to the vertical (y) axis. The function geom_point() is added as the first layer to render the raw data points, forming the scatterplot base. Crucially, geom_smooth(method=lm) is appended to the object, instructing R to calculate and draw the linear regression line and its accompanying 95% confidence interval, which is the default setting when the level argument is omitted.

library(ggplot2)

#create scatterplot with confidence bands
ggplot(data=mtcars, aes(x=mpg, y=wt)) +
  geom_point() +
  geom_smooth(method=lm)

As clearly illustrated in the resulting visualization, the prominent solid blue line represents the statistically estimated linear regression model, which defines the average predicted relationship between a vehicle’s weight and its fuel efficiency. The surrounding pale grey shaded region serves to visualize the 95% confidence interval bands. These bands delineate the region within which the true population regression line is expected to fall with a 95% certainty. This combined visual output is highly effective, communicating both the central trend and its inherent statistical uncertainty simultaneously.

Fine-Tuning Precision: Adjusting the Confidence Level

While the 95% confidence interval is the accepted standard in many statistical fields, certain analytical contexts, or specific reporting requirements, may necessitate the use of a different confidence level. Fortunately, geom_smooth() provides simple control over this parameter through the use of the level argument, which accepts any numeric value between 0 and 1. This flexibility allows analysts to tailor the precision and certainty conveyed by their visualizations.

For instance, an analyst might decide to visualize a 90% confidence interval instead of the default 95%. It is important to understand the trade-off: a 90% interval will inherently be narrower than a 95% interval calculated from the same data, reflecting a higher precision (narrower range) but a slightly reduced degree of certainty that the interval captures the true population parameter. Conversely, increasing the confidence level to 99% would result in significantly wider bands, indicating greater certainty at the cost of broader, less precise estimates.

The code below demonstrates the practical application of adjusting this parameter to generate a 90% confidence interval. By simply appending level=0.90 within the geom_smooth() function call, the calculation is instantly updated to render the statistically appropriate narrower confidence bands. This adjustment provides an alternative perspective on the precision of the linear regression estimate derived from the mtcars data, highlighting how small changes in the statistical parameters can alter the visual story.

library(ggplot2)

#create scatterplot with 90% confidence bands
ggplot(data=mtcars, aes(x=mpg, y=wt)) +
  geom_point() +
  geom_smooth(method=lm, level=0.90)

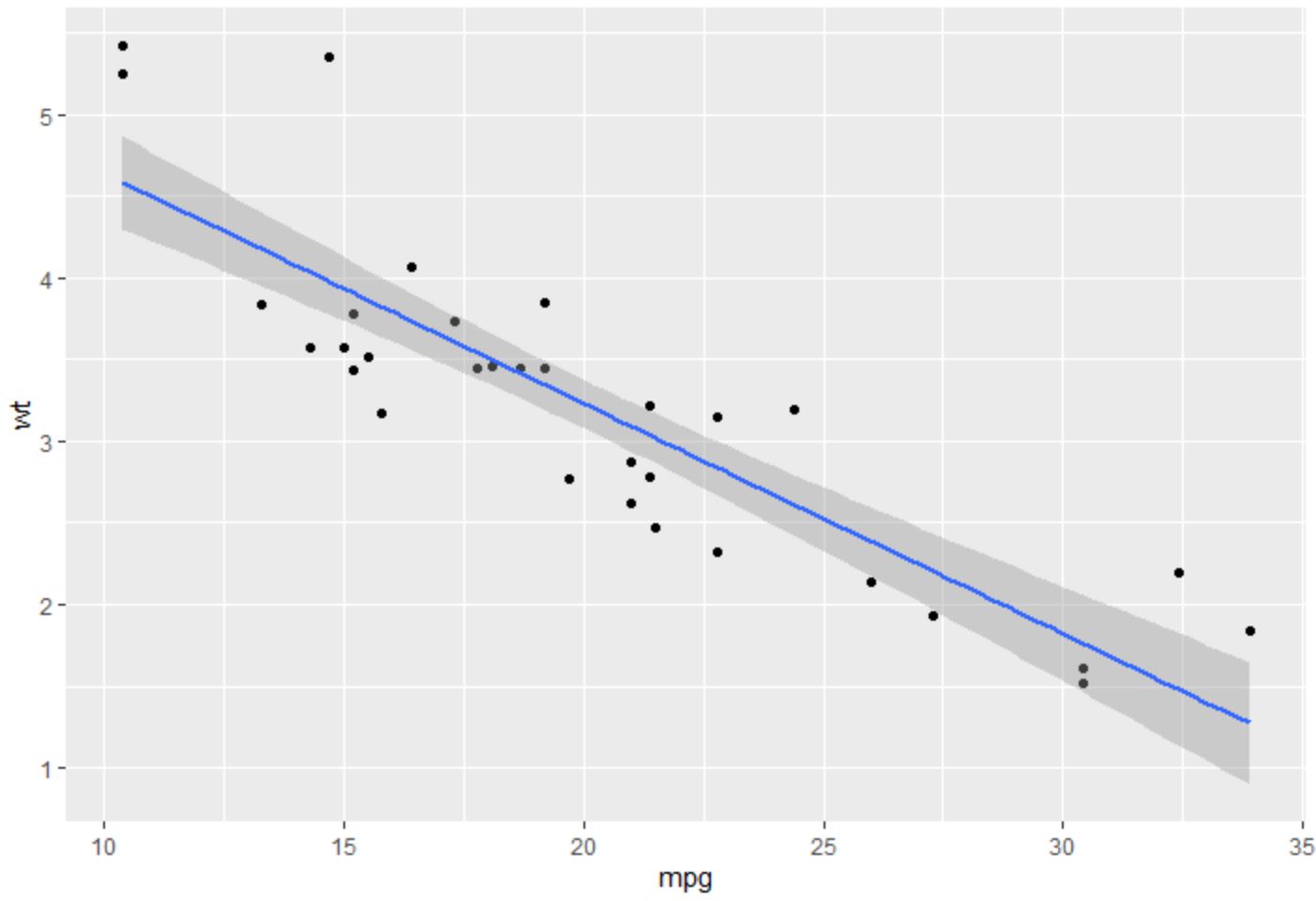

When comparing this plot to the previous one, the resulting confidence interval bands are visibly narrower, validating the statistical principle at play. This visual difference explicitly reinforces the concept that decreasing the confidence level leads to a more precise, tighter interval. However, this gain in precision comes with the necessary statistical trade-off: a slight reduction in the probability that this specific interval truly captures the population parameter. Recognizing and communicating this balance between precision and certainty is key to ethical data reporting.

Aesthetic Enhancement: Customizing Bands and Lines

While statistical rigor is paramount, effective data visualization also relies heavily on aesthetic appeal and clarity, especially when plots are intended for publication or presentation. The geom_smooth() function in ggplot2 provides robust options for customizing the visual appearance of both the primary regression line and its accompanying confidence bands. Specifically, the line’s color is controlled by the color argument, whereas the shaded area of the confidence interval is controlled by the fill argument.

Strategic modification of these visual aesthetics can dramatically improve the legibility and overall impact of your plots, ensuring they integrate seamlessly into broader reports. For instance, selecting a bold, contrasting color for the regression line can ensure it immediately captures the viewer’s attention against the background data points. Similarly, choosing a soft, semi-transparent fill color for the confidence bands prevents them from visually dominating the plot while still clearly defining the region of uncertainty.

The following code snippet demonstrates how to apply explicit custom colors directly within the geom_smooth() function. Here, we assign the regression line the color 'red' and specify the confidence interval area with a 'lightblue' fill. This straightforward aesthetic adjustment transforms the default grey and blue into a more intentional visual scheme, facilitating better differentiation between the estimated trend and the range of uncertainty, aligning the visualization with specific design requirements.

library(ggplot2)

#create scatterplot with custom confidence interval lines
ggplot(data=mtcars, aes(x=mpg, y=wt)) +
  geom_point() +
  geom_smooth(method=lm, color='red', fill='lightblue')

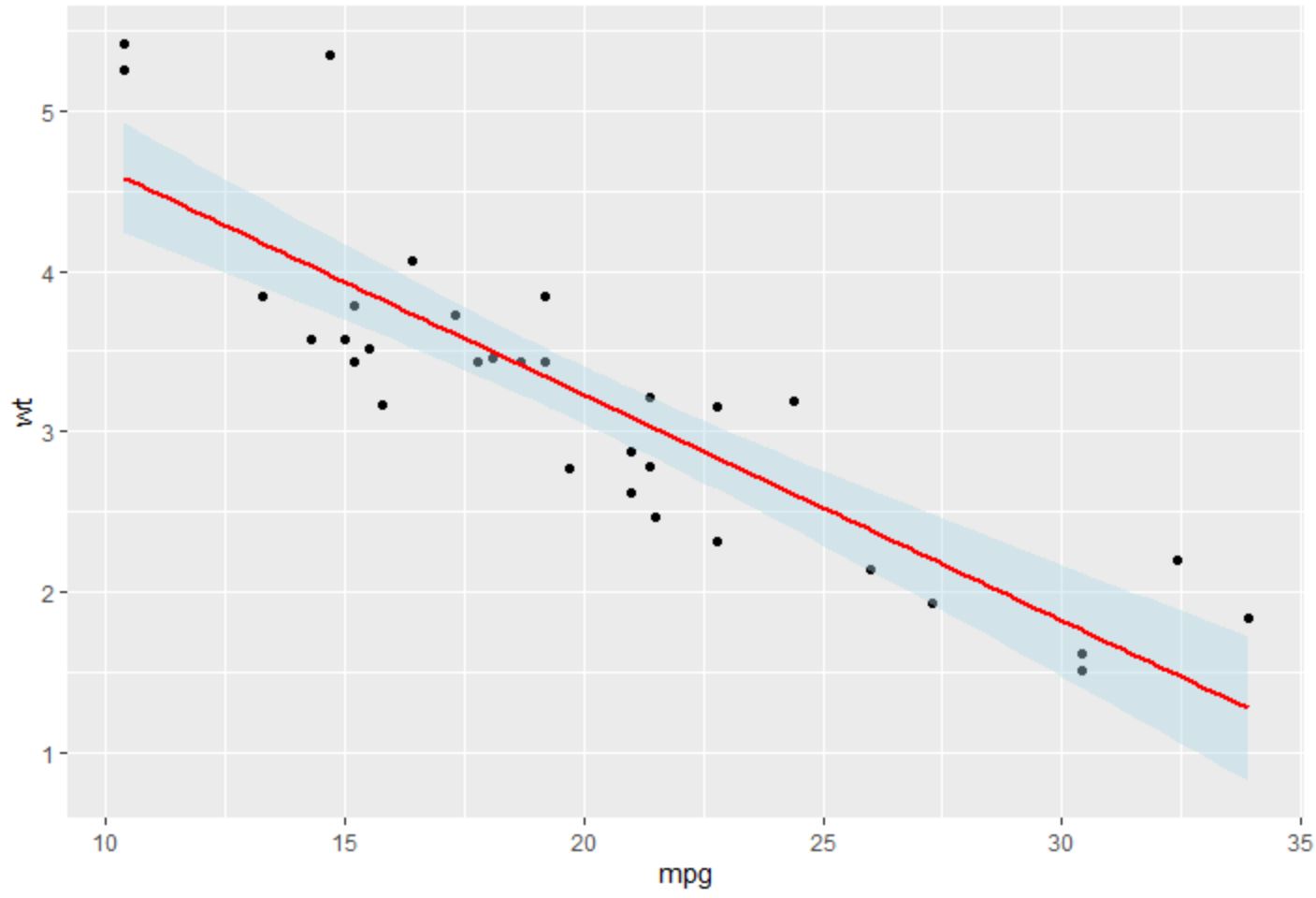

Upon rendering this customized visualization, the regression line immediately stands out in vibrant red, drawing the eye to the central estimated relationship. Simultaneously, the uncertainty bounds are defined by a visually distinct, yet subtle, light blue filling, clearly demarcating the confidence interval. This level of customization significantly enhances the plot’s informational value by improving component separation and ensuring the resulting statistical insights are both more engaging and more readily accessible to the target audience.

Interpreting and Avoiding Misconceptions

Generating accurate confidence intervals is only half the battle; understanding their correct interpretation is equally vital for ethical statistical reporting. In a ggplot2 plot featuring geom_smooth(), the shaded region visually represents the range within which the true population regression line is estimated to exist, based on the chosen confidence level (e.g., 95%). This means that if the entire data collection and interval construction process were repeated many times, 95% of those resulting intervals would be expected to successfully enclose the true, but unknown, underlying population relationship.

It is crucial for analysts to avoid common statistical misinterpretations. Specifically, the confidence interval derived from a single sample does *not* imply that there is a 95% probability that the true population line lies within that *specific* calculated range. Instead, the 95% refers to the long-run success rate of the method used to construct the interval. Furthermore, the width of the confidence interval serves as a direct visual proxy for the precision of your estimate. Narrower bands convey higher precision and less uncertainty, often resulting from larger sample sizes or less data variability, while wider bands signal greater uncertainty and less reliable predictions.

The concept of standard error fundamentally governs the calculation and shape of these uncertainty bands. A key characteristic, particularly in linear regression, is the tendency for the confidence bands to widen significantly as you move towards the extremes (away from the mean) of the independent variable. This widening is a mathematically sound representation of the increased uncertainty inherent in making predictions based on extrapolated or less densely sampled data points. Therefore, careful consideration of the interval’s variability across the plot range is essential for drawing accurate, non-extrapolative conclusions from your ggplot2 visualizations.

Next Steps and Further Resources

Achieving proficiency in ggplot2, and mastering powerful functions like geom_smooth(), unlocks advanced capabilities in statistical data visualization. To continue your learning journey and explore more sophisticated analytical techniques, numerous high-quality resources are readily available. The official documentation for the geom_smooth() function provides the most authoritative and detailed reference, including explanations for all statistical methods, arguments, and default behaviors.

Beyond the simple linear model used in our examples, remember that geom_smooth() natively supports a variety of other statistical smoothing methods. These include Generalized Additive Models (GAM), Locally Estimated Scatterplot Smoothing (LOESS), and various spline fits. Experimenting with these alternative methods allows you to uncover different underlying patterns in your data and helps ensure you select the model that most accurately represents the true relationship between your variables.

We highly recommend seeking out additional tutorials and case studies that focus on the advanced features of ggplot2. Expanding your toolkit beyond basic geoms will significantly enhance your ability to produce compelling, statistically robust, and highly informative visualizations. Consider dedicating time to learning concepts such as facetting (for multi-panel plots), custom coordinate systems, defining unique themes for branding, and exploring packages that enable interactive ggplot visualizations.
