Learning to Adjust Point Size in ggplot2: A Tutorial with Examples

Introduction: Controlling Visual Aesthetics in Data Graphics

In the thriving ecosystem of R for data analysis, ggplot2 remains the cornerstone for high-quality data visualization. This powerful package is founded on the principles of the Grammar of Graphics, offering a systematic and modular approach to constructing complex plots. By defining elements such as data, aesthetic mappings, geometric objects, and scales in distinct layers, users gain unparalleled flexibility to generate customized, publication-ready visualizations with precision.

The scatterplot is arguably the most fundamental tool in statistical visualization, essential for exploring the relationship between two continuous quantitative variables. Within ggplot2, this plot type is created using the geom_point() function, a geometric object that renders each row of data as an individual point on the plot plane. The effectiveness of a scatterplot often hinges on the meticulous control of these points’ visual attributes.

Among these attributes—which include color, shape, and transparency—the size of the points is profoundly important for communicating data effectively. Adjusting point size can dramatically influence plot readability, help emphasize specific clusters or outliers, and even serve as a mechanism for encoding a third variable in a multivariate display. This article provides a comprehensive guide to manipulating the size aesthetic in ggplot2, illustrating techniques ranging from static adjustments to dynamic data mapping, ensuring your visualizations are both clear and impactful.

The Fundamentals of Point Scaling using geom_point()

The most direct method for controlling the dimension of points in an R visualization built with ggplot2 is through the size argument supplied directly to the geom_point() function. This argument accepts a single, fixed numeric value that dictates the uniform visual scale for all points in the layer. Specifying a higher value produces visually larger markers, which can be useful for visibility, while a lower value results in smaller markers, useful for reducing clutter.

some_ggplot +
  geom_point(size=1.5)

By default, when the size argument is omitted, ggplot2 sets the point dimension to a standard value, typically 1.5. This default is often adequate for general exploratory analysis, offering a reasonable balance between point visibility and the risk of visual overlap. However, achieving optimal communication requires tailoring this value based on specific factors, including the number of data points being plotted, the desired output resolution, and the intended audience for the graphic.

To practically illustrate these concepts, all subsequent examples will utilize the widely known mtcars dataset, which is readily available in the base R environment. Our focus will be on visualizing the inherent inverse relationship between a car’s fuel efficiency, represented by mpg (miles per gallon), and its weight, measured as wt (weight in 1000 lbs). The following code block generates the baseline scatterplot using the default point size for reference:

library(ggplot2)

ggplot(data=mtcars, aes(x=mpg, y=wt)) +
  geom_point()

Example 1: Maximizing Clarity with Increased Point Size

Adjusting the point size statically to a larger value is highly advantageous in several common visualization contexts. When working with datasets that contain a limited number of observations, or when plotting on high-resolution displays where default markers might appear too small, increasing the size ensures that every data point is highly discernible. This enhancement in visual prominence is critical for preventing individual data points from being overlooked by the viewer.

Furthermore, a larger point size is often intentionally applied to draw immediate attention to specific features, such as distinct data clusters, influential outliers, or key data regions that require emphasis. This technique is particularly valuable when preparing graphics for presentations or reports, where clarity and impact must be achieved quickly, often viewed from a distance or in a constrained display environment.

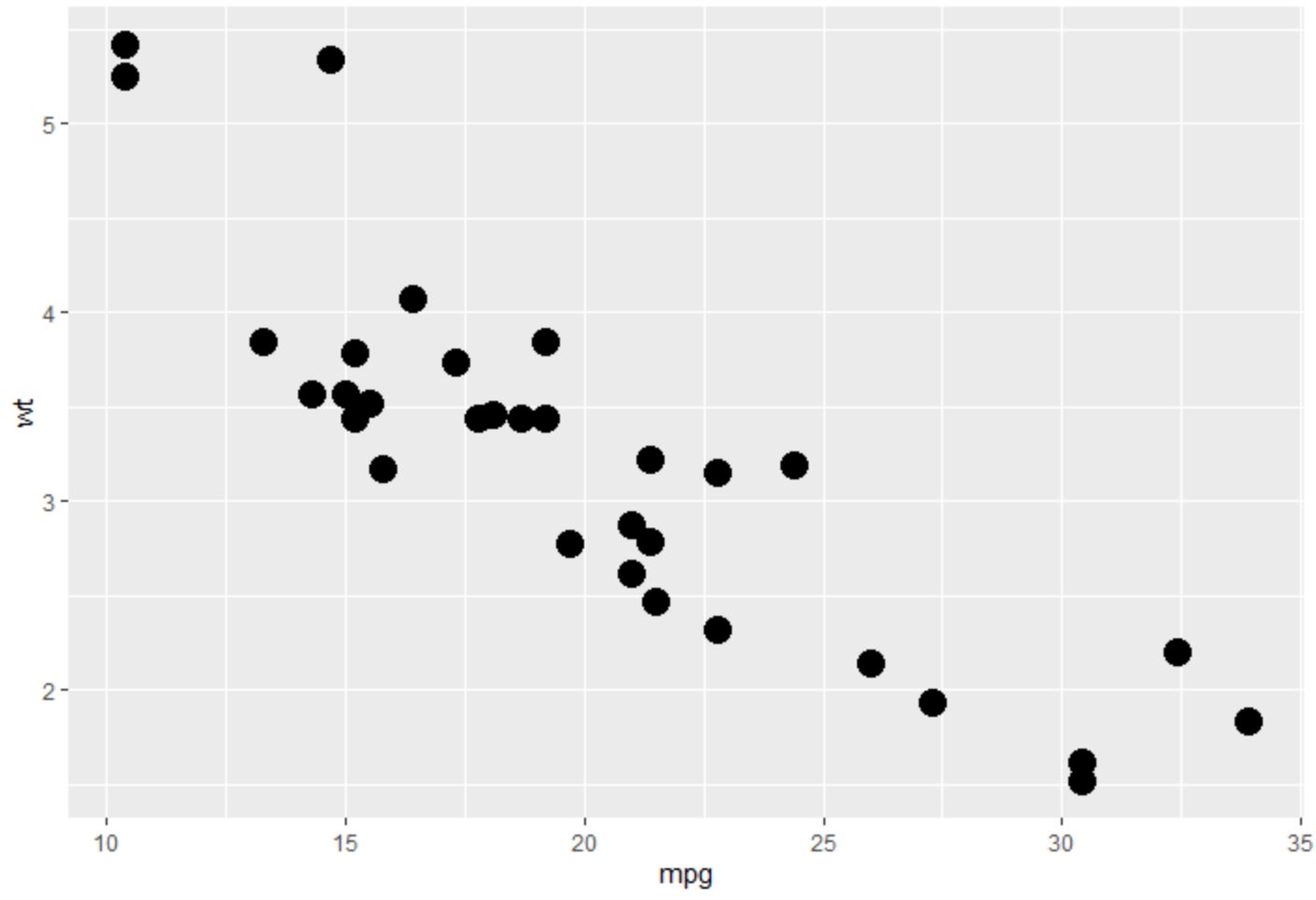

The following R code snippet demonstrates how to achieve a substantial increase in point size within our scatterplot. By explicitly setting the size argument within geom_point() to a value of 5, we create a clear visual separation from the default appearance, making the individual cars in the mtcars dataset much easier to identify and track across the plot area.

library(ggplot2)

#create scatterplot with increased point size
ggplot(data=mtcars, aes(x=mpg, y=wt)) +
  geom_point(size=5)

While the enhanced visibility is clear from the output, it is essential to proceed with caution. Using an excessively large size, especially in dense datasets, significantly increases the potential for overplotting. This occurs when overlapping markers obscure underlying data structure, potentially leading to a cluttered appearance and misrepresentation of the true data distribution. Analysts must therefore seek a careful equilibrium between maximizing clarity and minimizing information loss due to visual interference.

Example 2: Mitigating Overplotting Through Size Reduction

In contrast to the previous example, many data visualization projects involve large or densely clustered datasets, presenting the common challenge of overplotting. Overplotting occurs when numerous data points occupy identical or nearly identical positions, making individual observations indistinguishable and leading to inaccurate perceptions of data density. In these scenarios, static point size reduction is a vital technique for producing interpretable scatterplots.

Decreasing the size of the points allows the viewer to observe the concentration and boundaries of data clusters more clearly. By minimizing the physical footprint of each marker, we can reveal subtle underlying patterns and gradients in density that would otherwise be masked by larger, overlapping geometry. This strategy is particularly effective when the visualization’s primary objective is to convey overall distribution rather than focus on specific individual data points.

The following code demonstrates this mitigating technique by generating a scatterplot where the point size is significantly reduced. Setting the size argument within geom_point() to 0.5 ensures that the markers are much smaller than the default 1.5, thereby managing potential overlap and allowing the structure of the data to emerge more distinctly.

library(ggplot2)

#create scatterplot with decreased point size
ggplot(data=mtcars, aes(x=mpg, y=wt)) +
  geom_point(size=0.5)

As the resulting plot confirms, the decreased point size allows for a sharper delineation of the data points. While this strategy successfully addresses overplotting, analysts must be mindful of not reducing the size to a point where the markers become too small to distinguish reliably, especially when viewed on lower-resolution screens or in printed formats. The selection of the optimal size is always a trade-off dictated by the total number of points and the required level of detail.

Example 3: Encoding a Third Dimension via Aesthetic Mapping

One of the core strengths of ggplot2, derived from the Grammar of Graphics, is its facility to map data variables to aesthetic mappings. This capability allows a visualization to move beyond two dimensions by encoding additional data properties—such as color, shape, or size—into the visual characteristics of the geometric objects. Mapping a continuous variable to point size enables the creation of multivariate scatterplots, where the magnitude of the third variable is intuitively represented by the point’s visual scale.

In this sophisticated example, we move beyond static size control to dynamically adjust the size of each point based on the value of the qsec variable from the mtcars dataset. The qsec variable represents the vehicle’s quarter-mile time, a proxy for acceleration. By placing qsec inside the aes() function, we instruct ggplot2 to map this variable to the size aesthetic, thereby allowing us to visualize mpg, wt, and acceleration performance simultaneously.

library(ggplot2)

#create scatterplot with point size based on value of qsec
ggplot(data=mtcars, aes(x=mpg, y=wt)) +
  geom_point(aes(size=qsec))

When the resulting plot is examined, the size of each point is clearly proportional to its corresponding qsec value. ggplot2 automatically manages the scaling and generates a legend, which is indispensable for interpretation as it maps the point dimensions back to the underlying data values. This dynamic mapping technique provides a richer, more comprehensive view of the dataset, revealing complex interdependencies between three variables that a simple bivariate plot would fail to capture.

Advanced Considerations and Best Practices for Point Sizing

While manipulating point size is straightforward, maximizing the efficacy of this aesthetic mapping requires adherence to advanced visualization best practices. The persistent issue of overplotting remains a primary concern, even when size is mapped to a variable. In densely populated areas of the plot, larger or overlapping markers can still conceal individual observations. To combat this, advanced techniques should be layered onto size adjustments, such as introducing transparency (using the alpha aesthetic), subtly shifting point positions (jittering), or dividing the data into smaller, manageable subplots (faceting).

A second crucial consideration involves the perceptual challenges inherent in using size to represent magnitude. Human perception of area is notoriously non-linear; viewers often do not perceive a point with double the radius as having double the magnitude. When mapping a continuous variable to point size, ggplot2 applies a sensible default scaling, but fine-tuning may be necessary. Functions like scale_size_continuous() offer granular control over the mapping range and transformation, ensuring the visual differences accurately reflect the quantitative disparities in the data. Conversely, using different discrete sizes for categorical variables is generally discouraged, as color or shape typically provide clearer visual separation for qualitative distinctions.

Ultimately, the choice of point size—whether static or mapped—must align with the communicative goal and context of the visualization. A plot optimized for detailed statistical inspection might tolerate greater visual complexity than one designed for a general business presentation. Analysts should prioritize clarity above all else, experimenting with different size values and mappings to discover the representation that most clearly articulates the underlying narrative and relationships within the specific dataset.

Conclusion: Leveraging Size for Enhanced Data Storytelling

The ability to effectively manipulate point size is a cornerstone of advanced data visualization using ggplot2. As illustrated through the practical examples, the size argument within geom_point() provides a flexible mechanism for controlling the visual impact of data points. This control enables analysts to make static adjustments to enhance visibility or manage density, as well as perform powerful dynamic mapping to integrate a third variable into a single, cohesive scatterplot. Mastering these techniques empowers data practitioners to move beyond simple data plotting, crafting expressive, informative graphics that reveal deeper insights and complex relationships embedded within their data.

Additional Resources

To further enhance your ggplot2 expertise, explore these related tutorials and documentation:

• Official Documentation for geom_point(): A comprehensive reference for all arguments and capabilities of the point geometry.
• R for Data Science – Data Visualization Chapter: An excellent resource for understanding the Grammar of Graphics and various ggplot2 aesthetics.
• Data-to-Viz – Handling Overplotting: Learn more strategies for dealing with dense data points in scatterplots.
• ggplot2 Scale Size Functions: For advanced control over how numerical values are mapped to point sizes.
