Learning to Add Horizontal Lines to ggplot2 Plots for Data Visualization

The Essential Role of Reference Lines in Data Visualization

Reference lines, particularly horizontal ones, are arguably the most crucial components in effective data visualization. They function as powerful analytical anchors, allowing the viewer to immediately contextualize raw data points against a significant benchmark. Whether the goal is to highlight a population’s average score, denote a critical safety threshold, or visualize a specific statistical target, a horizontal line provides immediate clarity regarding performance and deviation. Within the vast ecosystem of statistical computing, specifically the R programming environment, the ggplot2 package stands out as the definitive standard for constructing sophisticated and publication-ready statistical graphics based on the elegant principles of the grammar of graphics.

Incorporating such a vital marker into a ggplot2 visualization is designed to be highly intuitive, leveraging a dedicated geometric object function tailored precisely for this purpose. This function integrates seamlessly into the layered architecture of the plot, ensuring that the resulting reference lines are not only perfectly precise but also fully customizable in terms of color, thickness, and style. The ease with which these lines can be added empowers analysts to enrich their charts without complicating the underlying code structure.

The specific functionality leveraged for this task is the geom_hline() function. This comprehensive guide will dissect its essential syntax, explore practical usage examples ranging from single benchmarks to multiple thresholds, and delve into advanced customization techniques. By mastering geom_hline(), you will be equipped to significantly enhance scatterplots, time-series charts, and various other visualizations with critical horizontal markers that drive immediate interpretation and insight.

Deconstructing the geom_hline() Function and Its Parameters

The primary purpose of the geom_hline() function is to efficiently draw one or more straight, horizontal lines that span the entire width of the defined plotting area. This function operates uniquely within the ggplot2 framework: unlike other geometric functions that demand mappings for both X and Y aesthetics (such as `geom_point()`), geom_hline() only necessitates the explicit definition of the Y-intercept. This is because its X position is inherently fixed, extending across the entire domain of the plot regardless of the data range.

To effectively deploy this function, a deep understanding of its core parameters is absolutely crucial. The basic syntax is intentionally concise, facilitating rapid deployment while maintaining granular control over the line’s visual characteristics. The structure allows you to quickly overlay horizontal lines onto your plots, ensuring they serve their analytical purpose without visually obstructing the main data patterns.

The core signature of the function adheres to the following structure:

geom_hline(yintercept, linetype, color, size)

These four primary arguments collectively dictate not only the line’s spatial placement but also its aesthetic attributes, ensuring it is visually distinct and appropriately weighted within the overall visualization hierarchy.

• yintercept: This is the mandatory parameter, specifying the precise numerical location where the line must be drawn along the Y-axis. Crucially, this value can be a single numeric input (for one reference line) or, more powerfully, an R vector of multiple numeric values if several distinct reference thresholds are required simultaneously.
• linetype: This parameter governs the visual style of the line. While the default setting is a plain solid line, analysts have access to a rich selection of predefined styles, including twodash, longdash, dotted, dotdash, dashed, or even blank if the line is only needed for internal calculation purposes. Selecting the appropriate linetype is essential for differentiating between various types of analytical benchmarks (e.g., distinguishing a mean value from a standard deviation boundary).
• color: This parameter specifies the hue of the reference line. It accepts standard R color names (such as black, red, or grey) or precise hexadecimal color codes (e.g., #33A02C). Careful color selection ensures the line stands out or blends in, depending on its intended emphasis.
• size: This controls the width or thickness of the rendered line. It accepts a numeric value, where increasing the number results in a visibly thicker line. This adjustment is often used to emphasize the most critical reference line among several.

Practical Application: Incorporating a Singular Benchmark Line

The most frequent application of geom_hline() involves visualizing a solitary, specific analytical threshold. This might represent the grand mean of a dataset, a regulatory boundary, or an externally mandated target. Placing this line on the plot provides immediate visual context, allowing viewers to quickly assess how individual data points or groups perform relative to this central or critical boundary.

The example provided below demonstrates the foundational steps required: initializing the necessary library, constructing a minimal sample data frame, and then layering the geom_hline() function onto a standard scatterplot using the grammar of graphics. For demonstration purposes, we establish a clear target line at the Y-axis value of 20.

It is important to observe that the yintercept argument is supplied with a single, unambiguous numeric value. This method represents the simplest and most direct approach for embedding a solitary, significant reference line into any visualization created with geom_hline().

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 3, 3, 4, 5, 5, 6, 9, 12, 15),
                 y=c(13, 14, 14, 12, 17, 21, 22, 28, 30, 31))

#create scatterplot with horizontal line at y=20
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_hline(yintercept=20)

As clearly illustrated in the resulting plot, the reference line positioned at Y=20 instantly establishes a visual boundary. This demarcation makes it immediately obvious which data points exceed the established benchmark and which fall short. This technique is indispensable not only for quick data auditing but also for facilitating rapid visual comparison against predefined objectives.

Implementing Multi-Tiered Thresholds: Using Vectors for Efficiency

In sophisticated data analysis, it is frequently necessary to reference multiple analytical thresholds simultaneously. Examples include plotting the first, second (median), and third quartiles, or designating low, medium, and high performance zones. While one could technically call geom_hline() multiple times, doing so is both inefficient and makes the code unnecessarily verbose. Fortunately, the function is optimized to accept a vector of values for the yintercept argument, enabling the drawing of multiple lines in a single, clean command.

By passing an R vector (constructed typically using the c() function) to yintercept, you instruct geom_hline() to generate a separate horizontal line for every single value contained within that vector. This streamlined approach drastically reduces code redundancy and maintains a highly readable script, which is particularly beneficial when dealing with numerous reference points.

The subsequent example demonstrates how to plot three distinct reference lines corresponding to the Y-axis values of 10, 20, and 30. This is achieved through a single, concise function call where the vector c(10, 20, 30) is supplied to the primary argument.

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 3, 3, 4, 5, 5, 6, 9, 12, 15),
                 y=c(13, 14, 14, 12, 17, 21, 22, 28, 30, 31))

#create scatterplot with horizontal lines at y = 10, 20, 30
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_hline(yintercept=c(10, 20, 30))

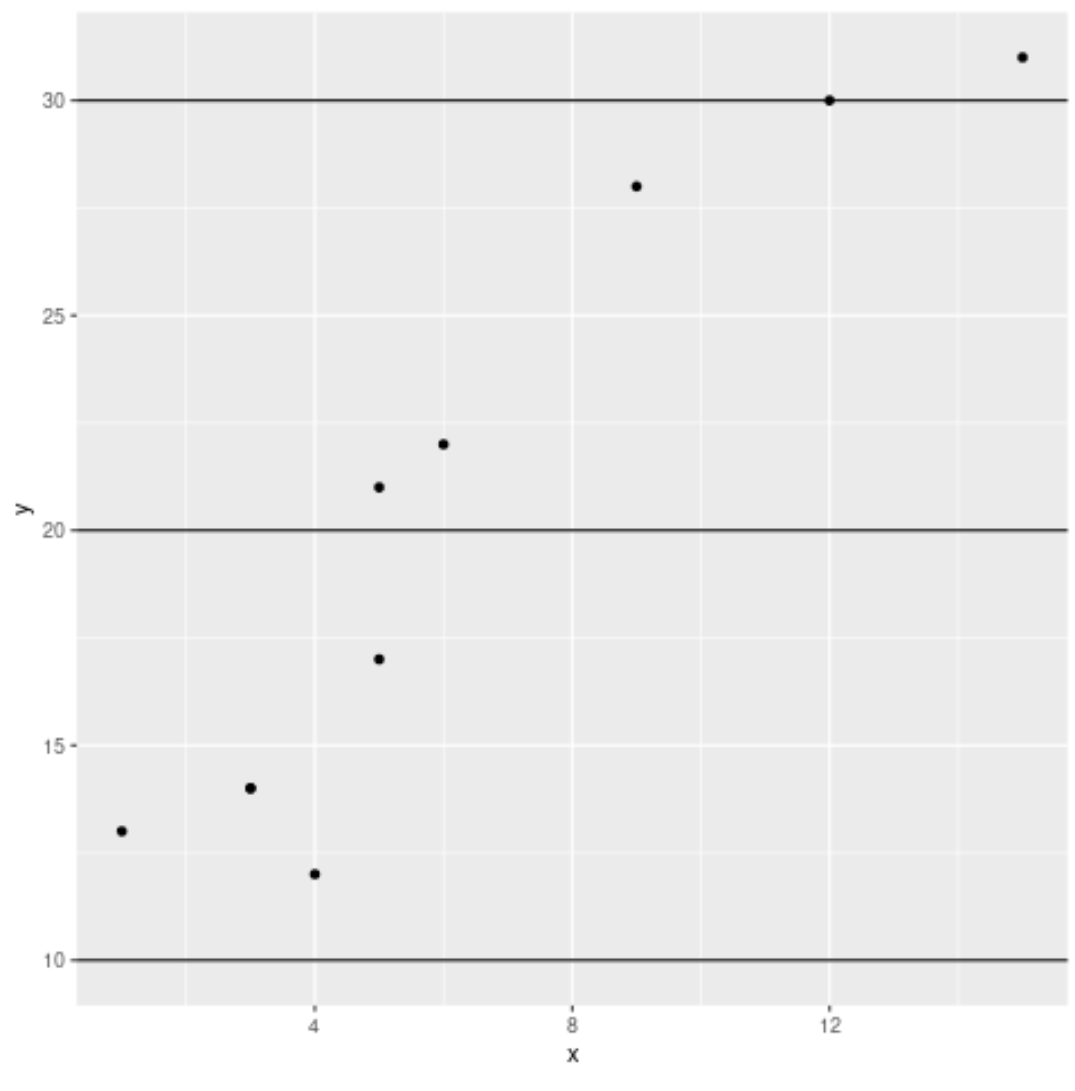

While this method is immensely efficient for visualizing statistical boundaries or multi-tiered categorization, simply plotting multiple identical lines can lead to visual clutter. Therefore, when utilizing this feature, it becomes essential to customize the appearance of each line to ensure they are easily distinguishable from each other and from the primary visual data, leading directly to the necessity of advanced styling techniques.

Advanced Customization: Styling Multiple Lines for Interpretive Clarity

Drawing multiple lines that share the same default color and linetype can severely compromise the plot’s clarity and interpretability. Advanced customization addresses this by allowing the analyst to map specific visual properties to each corresponding reference line, thereby enhancing the viewer’s ability to differentiate between various thresholds. A typical application involves visual prioritization—for instance, styling a critical mean line as solid blue and subsidiary standard deviation lines as dashed grey.

When customizing multiple lines within a single geom_hline() call, a crucial requirement is that the vectors supplied for linetype, color, and size must precisely match the length of the original yintercept vector. If there is a mismatch in length, geom_hline() will automatically recycle the shorter vector’s values, potentially leading to unintended or misleading aesthetic results.

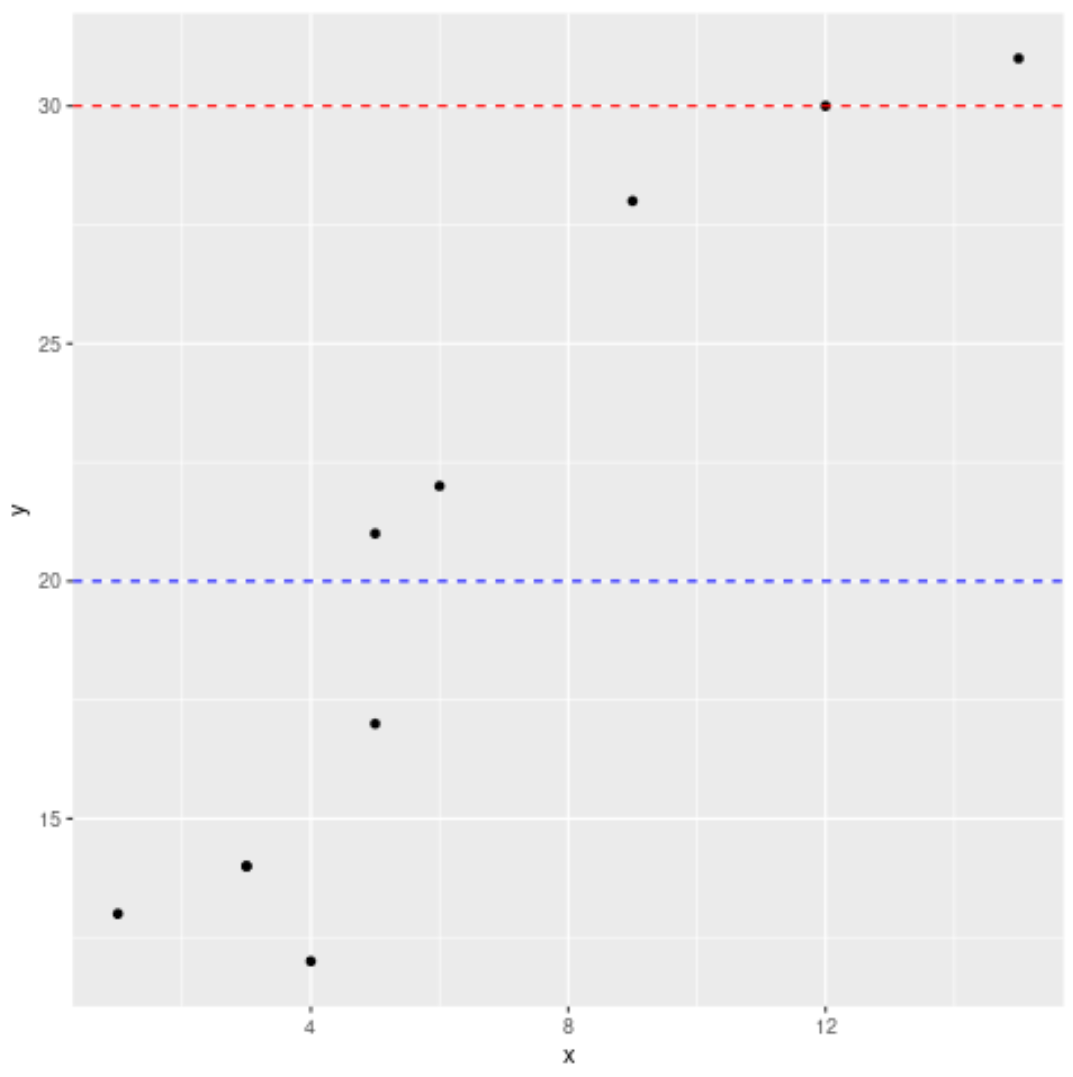

The subsequent code block demonstrates the method for customizing two distinct lines (at Y=20 and Y=30). We instruct both lines to adopt the dashed linetype but assign them sharply contrasting colors: blue for the Y=20 line and red for the Y=30 line. This sophisticated approach guarantees immediate visual separation and unambiguous clarity for anyone analyzing the graph.

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 3, 3, 4, 5, 5, 6, 9, 12, 15),
                 y=c(13, 14, 14, 12, 17, 21, 22, 28, 30, 31))

#create scatterplot with customized horizontal lines
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_hline(yintercept=c(20, 30), linetype='dashed', color=c('blue', 'red'))

Through the judicious use of the color, linetype, and size arguments, you transform simple reference lines into potent, informative visual cues that substantially elevate the narrative quality and statistical rigor of your data presentations. A key consideration for best practice is to often employ subtle colors (such as light grey) or dashed lines for secondary references, ensuring these markers support the data without visually overwhelming the actual representation of the variables.

Conclusion and Expert Best Practices for geom_hline()

The geom_hline() function is an exceptionally versatile and fundamental tool, offering a straightforward yet powerful method for integrating essential horizontal reference points into your ggplot2 visualizations. Whether the task involves marking a single, critical benchmark or illustrating complex statistical distributions using multiple boundaries, this function guarantees both analytical accuracy and visual consistency within the structured framework of the grammar of graphics.

To maximize the impact of your visualizations when utilizing reference lines, several expert best practices should be rigorously applied. First, ensure that every line serves a clear, justifiable analytical purpose; reference lines should denote averages, decision thresholds, or key statistical limits, never just arbitrary values. Second, utilize the linetype and color arguments with restraint and purpose: if the lines are purely for contextual reference and are not the primary focus of the plot, consider using muted or semi-transparent colors (e.g., light grey or a very pale blue) and dashed styles to prevent visual competition with the main data elements.

Finally, for creating truly production-quality and self-explanatory plots, consider employing the annotate() function in conjunction with geom_hline(). Annotation allows you to label the specific meaning of each line directly onto the plot area—for example, labeling one line “Median Performance” and another “Upper Control Limit.” This eliminates the need for viewers to consult a separate legend for critical interpretation. Mastering geom_hline() is an indispensable step toward constructing statistical graphs in R that are both visually compelling and analytically rigorous.
