Learning ggplot2: How to Change Background Color with Examples

Introduction to Customizing Plot Aesthetics in ggplot2

The process of creating compelling data visualizations often requires moving beyond default settings. The ggplot2 package, a foundational component of the Tidyverse ecosystem within the R programming language, is built upon the powerful principles of the grammar of graphics. While the standard gray panel background provided by ggplot2 is highly effective for rapid prototyping and general use, specific professional contexts—such as academic publishing, corporate branding, or high-contrast presentations—demand customized aesthetics.

Achieving precise control over the visual presentation of a plot, especially its background color and supporting elements, relies heavily on the versatile theme() function. This function serves as the central hub for modifying all non-data components of a visualization, including the plot area, axis appearance, text styles, and, crucially, the panel background. Mastery of theme() is essential for transforming standard plots into unique and polished graphical outputs that meet rigorous design standards.

In this guide, we will thoroughly investigate the two primary methods for background modification: first, employing the detailed syntax of theme() for granular, element-by-element control; and second, leveraging the efficiency of pre-defined, built-in themes for instant, professionally designed aesthetic changes.

The Core Mechanism: Using theme() for Granular Control

To exert fine-grained control over the visual presentation of your data panel, you must append the theme() layer to your base plot object. Within this function, the specific element responsible for defining the appearance of the main plotting area—where the data points and geometric objects reside—is the panel.background parameter.

The appearance of the panel background is defined using the element_rect() function. This function creates a customizable rectangle object. It takes two key arguments for coloring: fill, which dictates the interior background color of the panel, and color, which defines the color and thickness of the border surrounding the panel. Careful coordination between the background color and the plot elements, such as gridlines, is necessary to ensure optimal readability and visual harmony.

The following comprehensive syntax demonstrates how to use theme() to define a custom panel background color and simultaneously style the major and minor gridlines, resulting in a cohesive and dramatic visual alteration:

p + theme(panel.background = element_rect(fill = 'lightblue', color = 'purple'),
          panel.grid.major = element_line(color = 'red', linetype = 'dotted'),
          panel.grid.minor = element_line(color = 'green', size = 2))

Leveraging Built-in ggplot2 Themes for Quick Styling

While direct manipulation via theme() offers maximum customization potential, ggplot2 provides a robust collection of pre-packaged themes. These themes are designed to instantly alter the overall visual style of a plot, including the background, axes, and gridlines, providing high-quality, professional results without the need to specify individual element parameters like element_rect().

By simply appending one of these theme functions (e.g., theme_bw() or theme_classic()) to your plot object, you can immediately switch from the default gray aesthetic to a cleaner, more minimalist, or publication-ready appearance. Utilizing these built-in themes is often the fastest and most reliable way to standardize the look of multiple plots or prepare a visualization for immediate presentation.

The following is an overview of the most frequently used built-in themes and their primary effects on the plot’s background and grid structure:

• theme_bw(): Switches the panel background to a stark white, contrasting with faint grey gridlines.
• theme_minimal(): Removes almost all background annotations and border lines, focusing intensely on the data.
• theme_classic(): Emulates traditional statistical plots by retaining only the axis lines and completely eliminating all internal gridlines.

p + theme_bw() #white background and grey gridlines
p + theme_minimal() #no background annotations, axes lines are also minimal
p + theme_classic() #axis lines but completely removes gridlines

Practical Example 1: Implementing Granular Customization

To demonstrate the practical application of theme(), we first establish a base plot. This initial step involves loading the ggplot2 library, defining a simple dataset, and creating a scatterplot object. This baseline visualization will automatically utilize the standard ggplot2 gray panel background, which serves as our starting point for modification.

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 3, 3, 4, 5, 5, 6, 9, 12, 15),
                 y=c(13, 14, 14, 12, 17, 21, 22, 28, 30, 31))

#create scatterplot object
p <- ggplot(df, aes(x=x, y=y)) +
       geom_point()

#display scatterplot (Default Appearance)
p

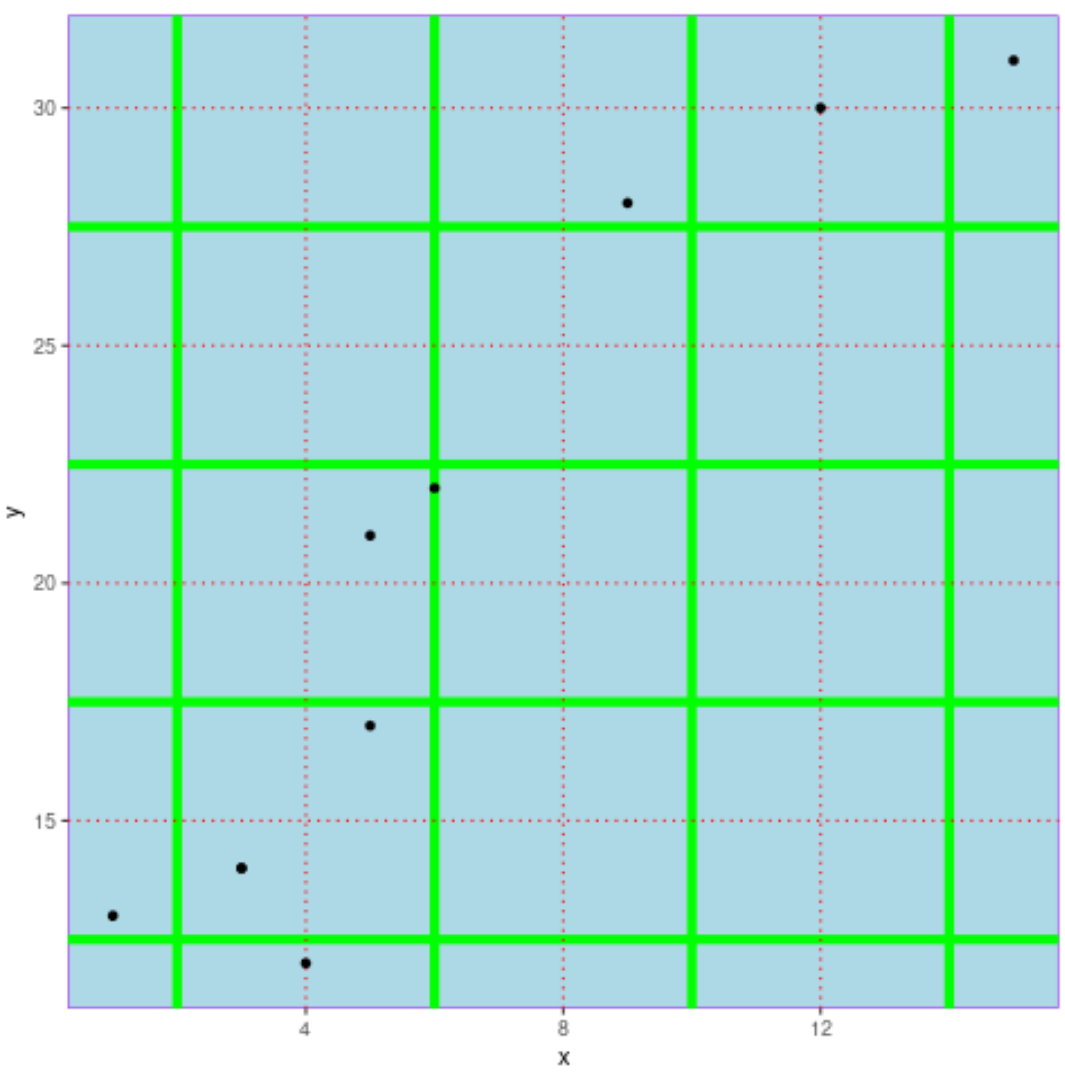

Next, we apply the detailed custom theme modifications. By setting panel.background using element_rect(fill = 'lightblue', color = 'purple'), we simultaneously redefine the panel’s interior color to light blue and add a pronounced purple border around the entire plotting region. Furthermore, we override the default gridline styling by specifying that major gridlines should appear as dotted red lines, while minor gridlines are set to be thick green lines (size = 2).

This level of detailed control enables the creation of highly specific visual branding. It is essential to remember the dual role of the element_rect() function: fill dictates the vast inner area, while color controls the surrounding boundary line.

p + theme(panel.background = element_rect(fill = 'lightblue', color = 'purple'),
          panel.grid.major = element_line(color = 'red', linetype = 'dotted'),
          panel.grid.minor = element_line(color = 'green', size = 2))

Practical Example 2: Utilizing Standardized Built-in Themes

While the custom theme() approach offers superior flexibility, built-in themes provide instant, validated aesthetic changes that are often sufficient for standard reporting needs. We will now apply the three most common built-in themes to the same scatterplot object (p) created previously, showcasing the immediate visual transformation each provides.

First, we utilize theme_bw(), which stands for “black and white.” This is arguably the most popular alternative to the default gray background, favored for its high contrast and readability, particularly in print. It effectively switches the panel background to a crisp white while preserving subtle gray gridlines that aid in data localization without distracting from the data points themselves.

p + theme_bw() #white background and grey gridlines

Second, applying theme_minimal() adopts a highly minimalist design philosophy. This theme systematically eliminates nearly all non-data visual noise, including the panel border, the subtle gridlines present in theme_bw(), and often softens the axis lines. The resulting plot directs the viewer’s focus almost exclusively to the data points and their relationship to the axes, making it exceptionally clean and modern.

p + theme_minimal() #no background annotations

Finally, theme_classic() is specifically crafted to mimic the appearance of graphs found in classical statistical literature. This theme retains clear, well-defined axis lines (a requirement for many formal plots) but makes the conscious decision to completely remove all internal gridlines. This approach is highly effective when gridlines are deemed extraneous or potentially misleading for interpreting the underlying data trends.

p + theme_classic() #axis lines but no gridlines

Summary of Best Practices and Key Distinctions

Successful customization of ggplot2 plots hinges on understanding the hierarchical nature of its aesthetic components. A critical distinction must be maintained between the plot background (the entire area, including margins, titles, and legends) and the panel background (the specific area bounded by the axes where the data is drawn). Background color changes almost always target the panel.background.

When aiming for unique or branded colors, always use the syntax theme(panel.background = element_rect(...)). Remember that the fill argument dictates the background color itself, while the color argument manages the panel’s border. A vital consideration when choosing custom colors is adherence to accessibility standards; high contrast between the background, the data points, and text labels is paramount for universal readability.

For rapid deployment, consistency, or when a clean, standardized look is required, built-in themes provide a powerful shortcut. theme_bw() remains the standard professional choice for a white background with subtle context. Conversely, if the focus must be exclusively on the data without any visual aid from gridlines, theme_minimal() or theme_classic() offer the best solutions. Consistency in theme usage across a project or publication greatly enhances the overall professionalism and ease of interpretation of the analytical results.

Additional Resources for Advanced Customization

For users who require control beyond the panel background—such as modifying the overall plot background, legend boxes, or specific axis ticks—the official ggplot2 documentation for theme() provides an exhaustive list of every customizable element. Exploring these resources allows for complete control over every pixel of the visualization.
