Learn How to Create Transparent Backgrounds in ggplot2 Plots for R

The Critical Need for Transparent Plot Backgrounds

The ability to produce aesthetically pleasing and highly customizable graphics is paramount in modern data science. The ggplot2 package, built upon the foundation of the R programming language, provides an unparalleled grammar for creating sophisticated data visualization. However, when transitioning these plots from the analytical environment into complex digital settings—such as interactive dashboards, custom-themed websites, or professional presentation decks—the default opaque background often becomes a significant visual impediment. Achieving a truly seamless integration requires a plot with a completely transparent background, allowing the underlying design elements of the host medium to show through.

Default ggplot2 themes typically render with a standard white or light gray background. While this is functional for immediate analysis, it creates an unprofessional, jarring box effect when overlaid on any background color other than white. The goal of implementing transparency is to eliminate every non-data visual element that might obscure the underlying canvas. This involves meticulous configuration of the plot’s structure to ensure that only the critical data points, geometric components, and axes remain visible, thereby maintaining visual harmony and adhering to rigorous professional design standards.

This process is not achieved by a single command but rather through a systematic manipulation of the plot’s hierarchical layers. We must specifically target and neutralize the background of the inner drawing area (known as the panel), the surrounding outer margins (the plot area), any residual gridlines, and crucially, all elements associated with the legend. By setting these components to be explicitly ‘transparent’, we guarantee that the final exported graphic is ready for high-level integration, blending perfectly into any environment without unwanted borders or color blocks.

Understanding the Theming Hierarchy in ggplot2

Customizing the appearance of a ggplot2 visualization relies almost entirely on the powerful theme() function. To successfully apply transparency, it is essential to first grasp the distinction between the two primary background components that define the plot area: the panel background and the plot background. Failing to address both will inevitably leave residual opaque areas in the final output.

The panel.background setting dictates the appearance of the interior region where the data geometries (such as points, bars, or lines) are actually plotted. This is the area enclosed by the x and y axes. Conversely, the plot.background controls the area outside of the panel, encompassing the margins, the title area, and any space surrounding the central visualization. In standard ggplot2 output, these two layers often default to different opaque colors (e.g., white panel, light grey outer area), necessitating separate handling.

For complete transparency, both the panel.background and the plot.background must be explicitly defined using element_rect(fill='transparent'). This instructs the rendering engine to use an alpha channel setting rather than an opaque color. Furthermore, when dealing with the plot.background, it is a critical best practice to also set color=NA. This specific instruction prevents the rendering of a faint, default border stroke that ggplot2 sometimes places around the entire graph perimeter, ensuring that the graphic is truly borderless and clean upon integration.

Mastering Transparency with the theme() Function

The theme() function serves as the central control mechanism for overriding the default aesthetic settings of a ggplot2 visualization. When targeting transparency, we employ the element_rect() function, which is used to define the appearance of rectangular elements, specifically setting their fill property to 'transparent'. This technique is applied across multiple components of the plot hierarchy to ensure comprehensive transparency from the core data panel outward to the outermost margins.

The following comprehensive syntax package outlines the necessary commands required to define a reusable plot object, here represented by the variable p, with a fully transparent structure. This structure systematically addresses the primary backgrounds, the internal grid systems, and all legend components to ensure no opaque element is missed.

p +
  theme(
    panel.background = element_rect(fill='transparent'), #transparent panel bg
    plot.background = element_rect(fill='transparent', color=NA), #transparent plot bg
    panel.grid.major = element_blank(), #remove major gridlines
    panel.grid.minor = element_blank(), #remove minor gridlines
    legend.background = element_rect(fill='transparent'), #transparent legend bg
    legend.box.background = element_rect(fill='transparent') #transparent legend panel
  )

By implementing this thematic structure, we leverage the power of the element_rect() function to achieve the desired transparent fill. This process guarantees that the plot object itself, while residing within the R session, carries the necessary metadata to render without any opaque background colors, setting the stage for a clean export suitable for high-end graphic design integration.

Eliminating Distractions: Gridlines and Legend Components

Beyond the primary panel and plot backgrounds, a truly professional and uncluttered visualization requires the careful management of ancillary elements, specifically gridlines and the legend box. While gridlines are invaluable for precise interpretation of values during the analytical phase, they often become visual noise when the plot is intended as a minimalistic overlay or a design element in a larger composition.

To manage the grid system, we utilize the element_blank() function. This powerful function instructs ggplot2 to completely suppress the rendering of the designated element. We must specifically target both the panel.grid.major and the panel.grid.minor elements. Applying element_blank() to these components ensures that the visualization area is completely free of intersecting lines, providing the clean, unencumbered look necessary for integration into a professional design scheme.

The legend component requires a similarly detailed approach, as it often contains two distinct background layers. First, legend.background controls the background immediately behind the legend keys, text, and title. Second, legend.box.background manages the background encompassing the entire legend box, including any padding or margins surrounding the keys. Even if the main plot area is transparent, these legend backgrounds often default to opaque white. Therefore, it is essential to apply element_rect(fill='transparent') to both legend.background and legend.box.background, ensuring that the legend itself seamlessly integrates into the surrounding environment, allowing the underlying webpage or document color to show through every part of the visualization.

Practical Implementation: Building a Transparent Boxplot Example

To illustrate the efficacy of these systematic theme modifications, we will walk through a complete example, generating a grouped boxplot and applying the transparency settings. This workflow demonstrates how complex theme customization is integrated into a standard plotting process within the R programming language.

Initially, we must prepare the environment and the data. We load the required ggplot2 package, set a seed to ensure the example is reproducible, and then construct a synthetic data.frame. This dataset contains categorical variables (team and program) suitable for grouping, alongside a continuous variable (values) appropriate for a boxplot analysis. The first code block below shows the data creation and the generation of a default boxplot, which visibly retains the standard opaque backgrounds and gridlines inherent to ggplot2’s default settings.

library(ggplot2)

#make this example reproducible
set.seed(1)

#create dataset
data <- data.frame(team=rep(c('A', 'B', 'C'), each=50),
                   program=rep(c('low', 'high'), each=25),
                   values=seq(1:150)+sample(1:100, 150, replace=TRUE))

#create boxplot
ggplot(data, aes(x=team, y=values, fill=program)) +
  geom_boxplot()

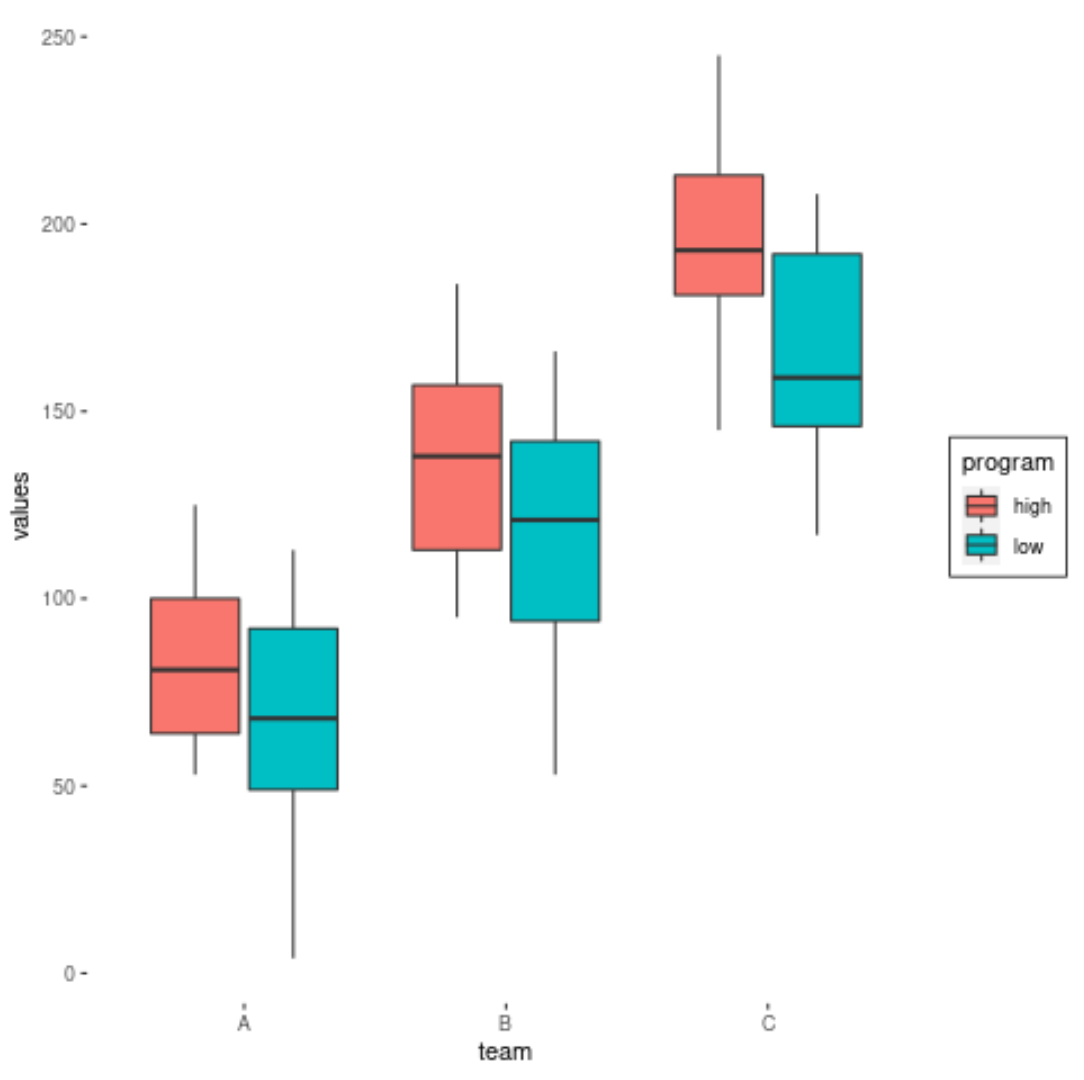

The next step involves integrating the complete transparency theme into the plot object. By chaining the base plot definition with the custom theme() modifications and assigning the result to a variable p, we create a single, reusable object that embodies all the desired transparent characteristics. The application of the element_blank() and element_rect(fill='transparent') functions simultaneously eliminates the gridlines and all background areas, resulting in a dramatically cleaner and more professional aesthetic ready for final deployment as a data visualization asset.

library(ggplot2)

#make this example reproducible
set.seed(1)

#create dataset
data <- data.frame(team=rep(c('A', 'B', 'C'), each=50),
                   program=rep(c('low', 'high'), each=25),
                   values=seq(1:150)+sample(1:100, 150, replace=TRUE))

#create boxplot
p <- ggplot(data, aes(x=team, y=values, fill=program)) +
       geom_boxplot() +
       theme(
         panel.background = element_rect(fill='transparent'),
         plot.background = element_rect(fill='transparent', color=NA),
         panel.grid.major = element_blank(),
         panel.grid.minor = element_blank(),
         legend.background = element_rect(fill='transparent'),
         legend.box.background = element_rect(fill='transparent')
       )

#display boxplot
p

Exporting Visualizations: The Crucial Role of ggsave()

Defining transparency within the R environment using theme() is a necessary first step, but it is insufficient for guaranteeing a transparent output file. When exporting the visualization, the file format chosen and the specific parameters passed to the export command must both explicitly support and recognize the alpha channel—the mechanism that governs transparency. If the plot is saved using standard default settings, the output file will frequently revert to an opaque white background, effectively nullifying all the custom theme work performed in the previous steps.

To successfully preserve the transparent quality upon export, two stringent conditions must be met: Firstly, the chosen file format must be capable of handling transparency (e.g., PNG or SVG are suitable, while formats like JPEG are not). Secondly, the ggsave() function must receive explicit instruction to use a transparent background during the saving process.

The key to overriding the default export behavior lies in the bg argument within the ggsave() function. By setting bg='transparent', we ensure that the saving mechanism honors the internal theme settings and carries the transparency property through to the final file structure. This step is mandatory regardless of how transparent the plot object p appears in the R viewer or IDE window.

ggsave('grouped_boxplot.png', p, bg='transparent')

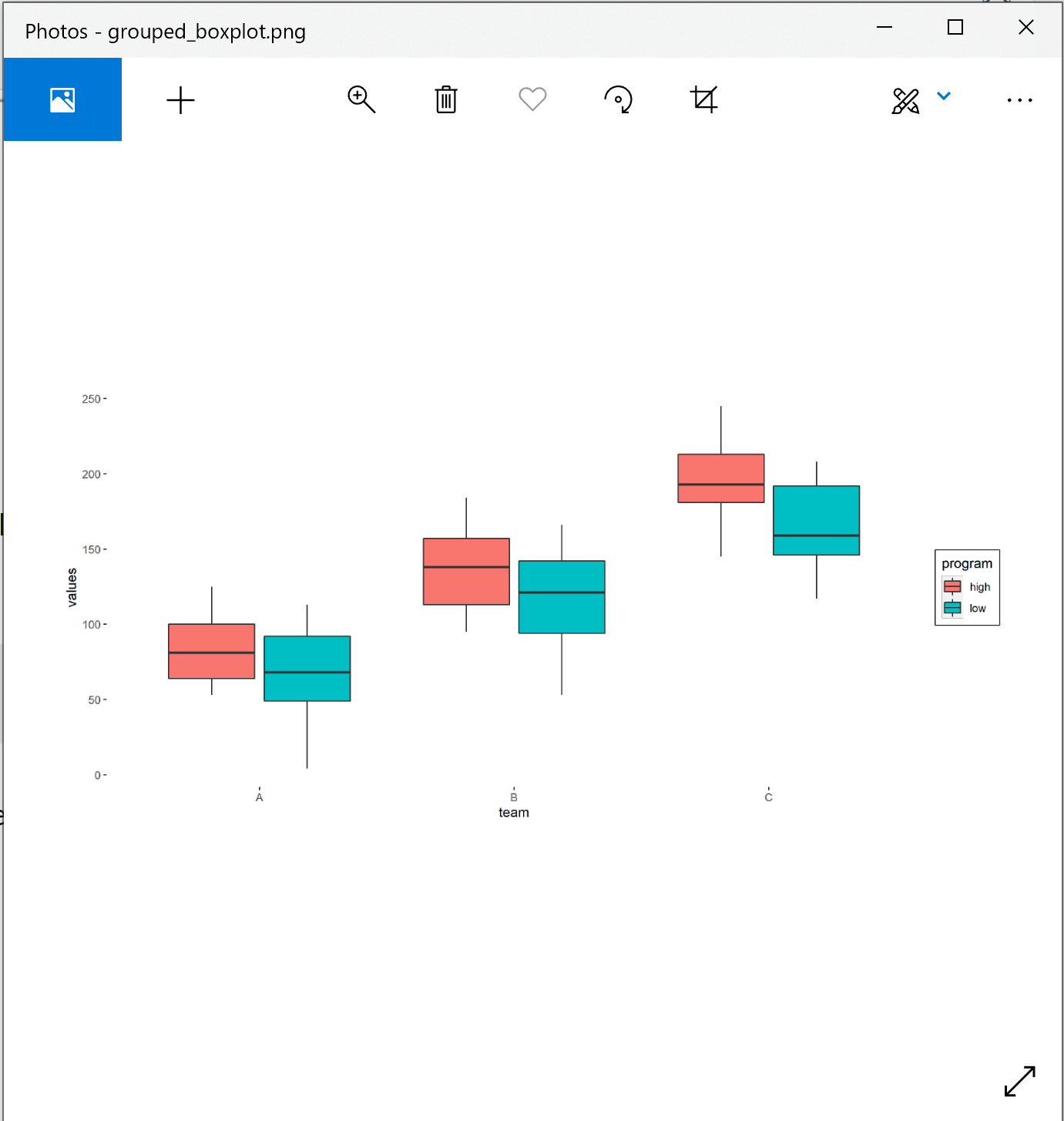

Once the file is saved using a compatible format like PNG and the crucial bg argument is included, the resulting image can be imported into any document or web page. When rendered, the visualization will display only the data elements and axes, allowing the underlying host medium to be visible through the entire plot area. This final visual confirmation solidifies that both the internal theme settings and the external export parameters were correctly configured for true transparency.

Troubleshooting and Adherence to Best Practices

While the methodology for creating transparent plots in ggplot2 is logically structured, users commonly encounter recurring issues that prevent successful final rendering. Understanding these pitfalls is essential for efficient workflow and guaranteed output quality.

The most frequent error stems from an incomplete application of the transparency setting. Specifically, a user may correctly set panel.background = element_rect(fill='transparent') but forget to apply the same setting to plot.background. If only the inner panel is set to transparent, the outer margins of the plot (controlled by the plot background) will retain their default opaque color, resulting in an undesirable white frame surrounding the visualization. Always ensure both elements are explicitly targeted.

Another critical best practice relates to file format selection. It is mandatory to use lossless image formats that inherently support the alpha channel. Formats such as PNG (Portable Network Graphics) or SVG (Scalable Vector Graphics) are highly recommended. If an attempt is made to save the plot using a format that does not support transparency, such as JPEG, the image will be forced to render an opaque background, typically white, regardless of the theme settings applied in R. Always verify that your output extension matches a format capable of handling transparency.

Finally, even after meticulous theme configuration, always double-check that the ggsave() command explicitly includes the bg='transparent' argument. This is a non-negotiable instruction for the export process. Adhering to these rigorous steps—targeting all background components, utilizing appropriate lossless file formats, and providing the explicit save command—guarantees the creation of high-quality, professional visualizations ready for seamless integration into any digital medium. For further customization and exploration of advanced theming options, consult the official ggplot2 documentation.
