Learning Guide: Customizing Legend Labels in ggplot2 for Data Visualization

Mastering Legend Customization in ggplot2

Generating high-quality, reproducible statistical graphics is a fundamental requirement in contemporary data analysis and scientific reporting. The ggplot2 package, a cornerstone of the Tidyverse ecosystem and built upon the sophisticated principles of the Grammar of Graphics, provides unparalleled flexibility for creating intricate visualizations within the R programming language. While ggplot2 excels at automatically handling the mapping of aesthetic elements (such as color, shape, and fill) to data variables, the default output for legends often requires refinement. For any visualization to transition from a technical output to a truly effective communication tool, its legend must be immediately clear and descriptive.

The necessity for customizing legends arises because default labels are typically inherited directly from the raw variable names or factor levels found in the underlying data frame. These raw names—often abbreviated, cryptic, or context-dependent—can introduce confusion when a plot is viewed by an audience unfamiliar with the source dataset’s structure. Customization is therefore not merely an aesthetic choice; it is a critical step in ensuring the accessibility and professional quality of the plot. By carefully modifying these labels, we ensure that the visual cues, like the colors used in a bar plot or the shapes in a scatter plot, accurately and unambiguously convey their meaning.

This guide focuses specifically on manipulating the labels associated with discrete aesthetic scales, particularly the common fill and color aesthetics. When dealing with categorical data, we must employ specialized scale functions provided by the ggplot2 ecosystem to intercept the default text and replace it with audience-friendly language. Mastering this technique allows practitioners to maintain the integrity of their underlying data structure while elevating the presentation layer to meet publication standards, significantly enhancing the overall effectiveness of the resulting data visualization.

Implementing Custom Labels Using Scale Functions

To successfully override the default text labels displayed in a ggplot2 legend, we must interact with the plot’s scale component. Scales are the engine that transforms data values into visual properties, and they provide the perfect interface for customization. The specific function required depends directly on the aesthetic being mapped. For instance, if we are mapping a discrete variable to the internal area of shapes (e.g., in bar plots or grouped boxplots), we use the fill aesthetic, necessitating the use of scale_fill_discrete(). Conversely, if the aesthetic were color, controlling the color of lines or points, we would apply scale_color_discrete().

The mechanism for modification is straightforward: we supply a character vector containing the desired replacement names to the labels argument within the chosen scale function. This function is then simply added as another layer to the existing plot object. A crucial consideration here is the strict necessity of maintaining correct order. The vector of new labels must align precisely with the internal order of the factor levels within the source dataset. If the levels of your variable are “A”, “B”, “C”, and you provide labels “Alpha”, “Beta”, “Gamma”, then “Alpha” will map to “A”, “Beta” to “B”, and so forth. Misordering this vector will lead to misleading results, where the custom label intended for one data group is erroneously applied to another, resulting in a fundamentally flawed visualization.

Understanding the underlying structure is key. When ggplot2 encounters a categorical variable, it typically orders the levels either alphabetically or based on the explicit factor definition if one exists. Before applying custom labels, it is often helpful to inspect the factor levels of the variable in question (using a function like levels() in R) to confirm their precise sequence. Once this sequence is known, the custom label vector is constructed in the matching order. The fundamental syntax for applying these custom labels using the fill aesthetic is concisely demonstrated below, illustrating how a character vector replaces the default level names:

p + scale_fill_discrete(labels=c('label1', 'label2', 'label3', ...))

This powerful, declarative approach ensures that the visual properties assigned by the scale remain consistent (e.g., the colors) while only the textual description in the legend is altered. This technique is universally applicable across various plot types—including histograms, scatter plots, and complex statistical summaries—provided a discrete variable is mapped to a coloring or filling aesthetic.

Practical Example: Setting Up the Grouped Boxplot

To provide a concrete illustration of this customization technique, we will construct a common type of visualization: a grouped boxplot. This chart is highly effective for comparing the statistical distribution (median, quartiles, outliers) of a continuous variable across multiple categorical groupings. In our hypothetical scenario, we are analyzing values representing performance scores across three distinct team categories (A, B, and C). Crucially, this analysis is further segmented by a program intensity level, which is either “low” or “high.”

The initial setup necessitates loading the required ggplot2 library and generating a reproducible sample dataset. By utilizing set.seed(1), we guarantee that anyone running the code will generate the exact same data, ensuring the results are consistent. The structure of our data frame, named data, contains 150 observations. We map the program variable to the fill aesthetic, which signals to ggplot2 that it must differentiate the boxplots using color based on this variable’s levels, simultaneously generating the corresponding legend.

The following R programming language code snippet details the data preparation and the initialization of our baseline plot object, designated as p. Observe the use of the fill=program argument within the main aes() function—this is the specific mapping that dictates the structure and default labels of the legend we intend to modify later. Running this code provides the visualization against which we will compare our customized result, clearly demonstrating the default behavior of the legend generation process.

library(ggplot2)

#make this example reproducible
set.seed(1)

#create dataset
data <- data.frame(team=rep(c('A', 'B', 'C'), each=50),
                   program=rep(c('low', 'high'), each=25),
                   values=seq(1:150)+sample(1:100, 150, replace=TRUE))

#create grouped boxplots
p <- ggplot(data, aes(x=team, y=values, fill=program)) +
       geom_boxplot()

#display grouped boxplots
p

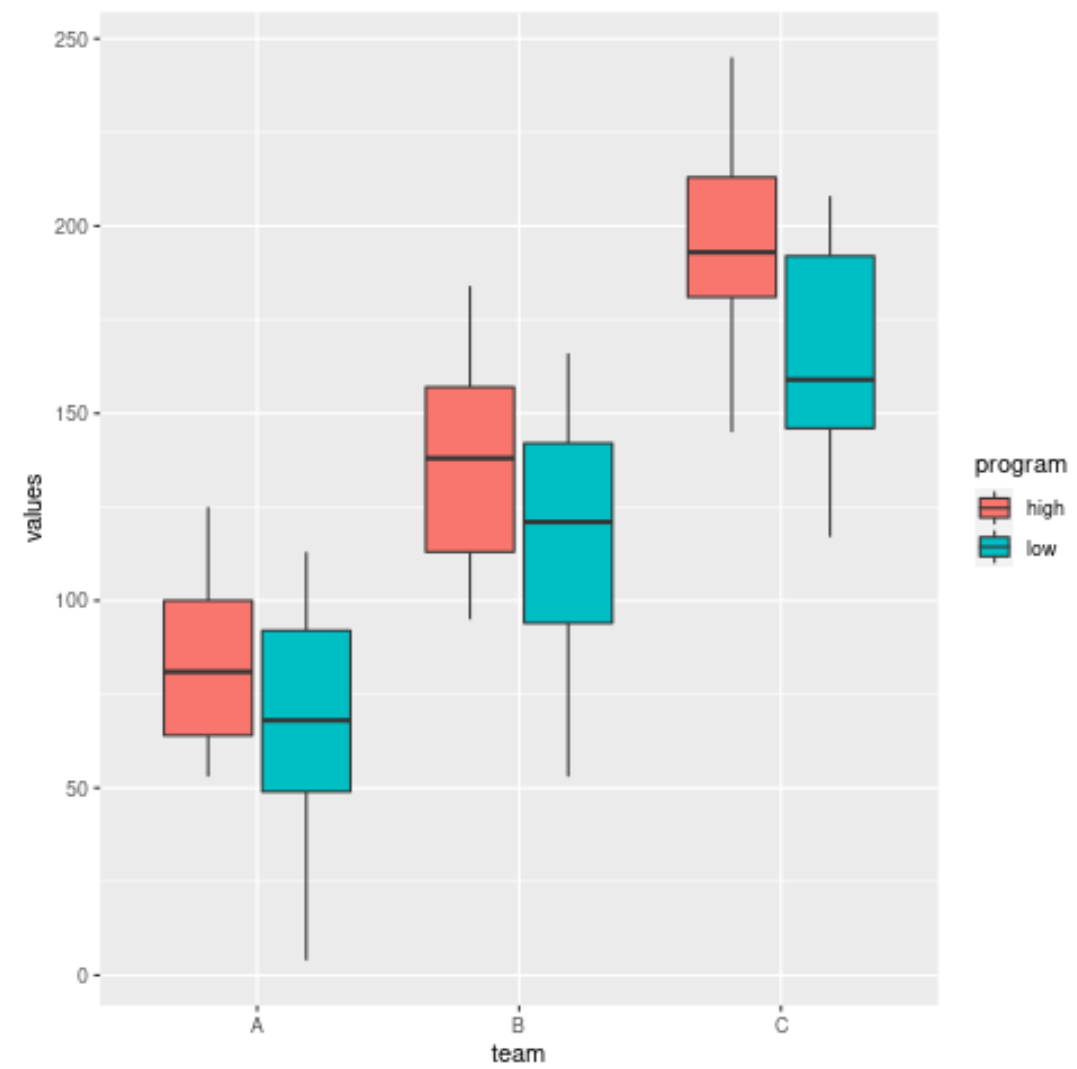

Upon execution, the initial visualization is rendered. This baseline plot clearly illustrates the default legend, which simply reflects the raw factor levels from the data: “low” and “high.” While technically functional, these abbreviated labels lack the descriptive power often required for formal documentation or public presentation. The subsequent steps will demonstrate how to transform these basic labels into informative components that enhance the overall narrative of the data visualization.

Analyzing Default Legend Behavior and Factor Order

When ggplot2 constructs a plot and automatically generates a legend, it defaults to using the unique values present in the variable mapped to the aesthetic. In our example, the program variable, which is mapped to fill, contains only the strings “high” and “low”. As expected, the initial plot displays these exact strings in the legend key. This direct mapping is predictable and reliable, yet it often falls short of the ideal standard for graphical communication, particularly in data analysis where context is paramount.

The default presentation, showing:

• high
• low

is concise but could be significantly improved by incorporating more context. Imagine this visualization is intended for a stakeholder report; replacing “high” with “High Intensity Program” and “low” with “Low Intensity Program” immediately clarifies the distinction for the reader, removing any cognitive burden associated with translating abbreviations. The core challenge is achieving this enhancement without making permanent alterations to the source data itself, preserving the raw structure of the data frame for other analyses.

Furthermore, before we can successfully implement the custom labels, we must rigorously confirm the internal ordering of the factor levels. By default, R and ggplot2 typically treat character vectors alphabetically. In our generated data, the levels are ordered as “high” followed by “low” alphabetically. If we fail to recognize this implicit ordering, our replacement vector will map the first custom label to “high” and the second to “low.” Therefore, achieving the correct output requires us to provide our desired labels in the sequence: (1) descriptive label for ‘high’, (2) descriptive label for ‘low’. This strict requirement for order is the most common pitfall when customizing discrete scales in the R programming language.

Implementing Custom Legend Labels using scale_fill_discrete

The solution involves introducing the scale_fill_discrete() function to the plot layers. This function is specifically designed to grant manual control over the properties of the discrete fill scale, allowing us to dictate the appearance of the legend without disturbing the geometry or the data mapping. Our objective is to replace the functional but generic labels (“high” and “low”) with the more descriptive alternatives: “High Program” and “Low Program.”

As established, the critical rule is matching the order of the new labels to the underlying factor levels. Since the levels in our dataset are ordered alphabetically as “high” then “low,” our custom label vector must follow this sequence: c('High Program', 'Low Program'). The first element, ‘High Program’, will correctly replace ‘high’, and the second element, ‘Low Program’, will replace ‘low’. This seamless integration is achieved by simply adding the scale function layer to our existing plot object p.

The revised code below demonstrates how this single line of customization transforms the plot. We take the existing plot object p, which already defines the data, aesthetics, and geometry (the boxplot), and append the scale function. This declarative method is characteristic of ggplot2—we state the desired outcome, and the package handles the necessary rendering logic.

#create grouped boxplots with custom legend labels
p <- ggplot(data, aes(x=team, y=values, fill=program)) +
       geom_boxplot() +
       scale_fill_discrete(labels=c('High Program', 'Low Program'))

#display grouped boxplots
p

The execution of this code yields the final, polished visualization. The statistical content remains identical to the baseline plot, but the legend is now significantly more informative and professional. This exemplifies how a small, targeted customization can drastically improve the communicative power of the final data visualization, making the plot immediately accessible to the intended audience.

Advanced Customization and Alternative Workflows

While scale_fill_discrete() and its sibling scale_color_discrete() are the standard tools for customizing discrete legends, the ggplot2 framework offers comprehensive control over all scale types. If, for instance, you were mapping a continuous variable to color (perhaps representing revenue or temperature), you would use scale_color_continuous(). In this context, the labels argument would be used to format the numeric values displayed along the color bar (e.g., adding currency symbols or percentage signs), while the name argument would be used to change the legend title. This consistency across scale functions simplifies the learning process, ensuring that once you understand the core concept of scale manipulation, you can apply it universally.

An important alternative workflow involves modifying the underlying data structure rather than the visualization layer. If the variable used for the aesthetic mapping is explicitly stored as a factor in R, you can use functions such as factor() or specialized tools like fct_recode() from the forcats package (part of the Tidyverse) to rename the factor levels directly within the data frame. When the factor levels are renamed in the data, ggplot2 automatically inherits these new names for the legend labels, circumventing the need for a separate scale_* function call. This approach is highly effective if the new descriptive names are required throughout the entire data analysis pipeline.

However, utilizing the scale_* functions, as demonstrated throughout this guide, provides a critical separation of concerns. This method is generally safer and cleaner when the descriptive labels are needed solely for presentation purposes and should not contaminate the raw data structure. Furthermore, these scale functions offer additional arguments for fine-tuning the legend appearance. For example, to retain the custom labels but completely remove the legend title (which often defaults to the variable name, e.g., “program”), you can pass the argument name = NULL within the scale function. Alternatively, comprehensive control over all non-data visual elements, including legend position, background, and key size, is managed globally through the highly flexible theme() function, allowing for professional-grade graphical output in the R programming language environment.

Conclusion and Resources for ggplot2 Mastery

The ability to precisely control every textual element of a visualization is paramount to generating professional, publication-ready graphics. Customizing legend labels is a critical step in transforming raw output into compelling data visualization. By leveraging the specific scale functions provided by the ggplot2 package—such as scale_fill_discrete()—analysts can ensure that their plots are not only statistically sound but also visually clear and contextually rich for any intended audience. The key principle to remember is the necessary alignment between the sequence of custom labels and the internal ordering of the discrete factor levels in the source data.

Mastering these scale customization techniques is fundamental to unlocking the full potential of the Grammar of Graphics framework. We have demonstrated that a single, targeted function call can override default settings, allowing for maximum control over presentation logic while preserving the integrity of the underlying data structure. This precise control, extending from axis formatting to the appearance of every key in the legend, is what elevates a standard plot to an exceptional piece of statistical communication.

We strongly encourage readers to continue their exploration of ggplot2 documentation and tutorials to refine their graphical skills further. Related customization tasks often involve manually setting specific colors using scale_color_manual(), adjusting axis titles, defining plot titles, and controlling the intricate layout of complex, multi-panel figures. Building upon the foundation established here—the mastery of scale functions—will enable you to produce high-quality graphics consistently.

The following resources offer guidance on other common ggplot2 tasks, allowing you to build a comprehensive toolkit for effective graphical reporting:
