Learn How to Add a Horizontal Reference Line to an Excel Scatterplot

In the realm of data visualization, the clear communication of critical benchmarks and performance metrics is absolutely essential for effective analysis. When utilizing a scatterplot in Microsoft Excel, analysts frequently encounter the need to introduce a static reference line. This line might represent a mean value, a predetermined control limit, or a specific performance threshold that separates acceptable performance from areas requiring attention. Such a line provides crucial context to the underlying data distribution.

Unlike some specialized charting software or even other chart types within Excel (like bar charts), the scatterplot function does not natively include a simple, built-in feature to draw a solitary horizontal line based on a fixed Y-value. If we were to try to add a horizontal line directly, we would quickly realize that the software expects all visual elements to be defined by a series of paired (X, Y) coordinates. Therefore, achieving this seemingly simple goal requires employing a creative, calculated workaround: introducing a secondary, strategically constructed data series designed specifically to model a perfectly straight, horizontal segment across the plot.

This comprehensive tutorial serves as a step-by-step guide detailing the precise methodology required to accurately and efficiently incorporate a stationary horizontal reference line into any existing Excel scatterplot. Mastering this technique ensures your visualizations are not only visually appealing but also profoundly informative, allowing viewers to immediately gauge data points against a defined benchmark. The core principle involves careful preparation of auxiliary data that essentially “tricks” the scatterplot engine into rendering the desired straight line.

Foundation: Preparing the Primary Dataset

Before any reference line can be successfully integrated, the foundational requirement is a well-structured dataset and a correctly generated initial scatterplot. The primary dataset forms the basis for our entire analytical visualization, dictating the minimum and maximum ranges of both the X-axis and Y-axis, which are vital for determining the span of our future reference line.

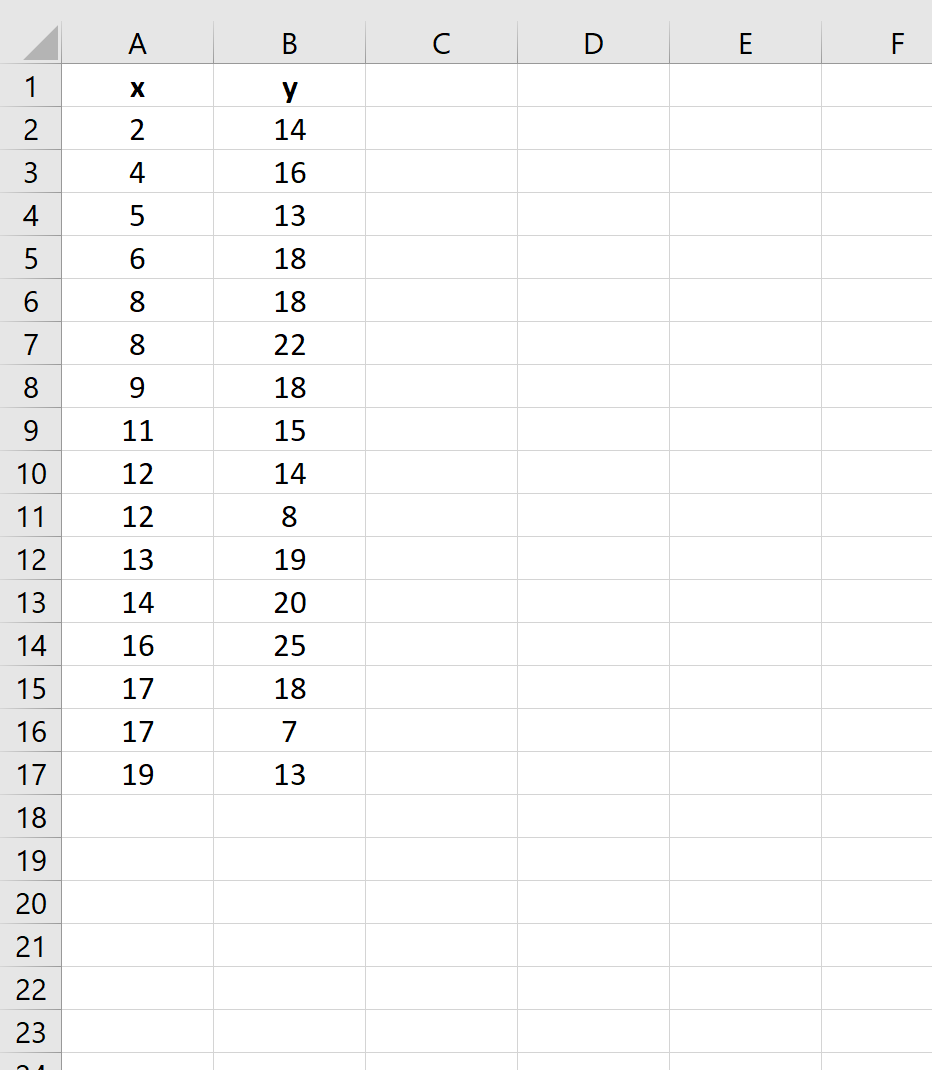

For the purposes of illustrating this technique, we will begin by constructing a simulated dataset directly within an Excel worksheet. This data must consist of clear X values (representing the independent variable) and corresponding Y values (the dependent variable) that we intend to visualize and analyze. A critical element of proper data preparation is ensuring the independent variable (X) is consistently placed in the first column and the dependent variable (Y) is in the second column. Any deviation from this standard structure can lead to misinterpretations when Excel automatically assigns the axis roles.

The structure displayed above demonstrates the ideal configuration. This careful data arrangement is the initial critical step toward generating accurate and meaningful graphical representations. Once this data is confirmed and correctly entered, we can proceed to the initial visualization phase.

Initial Chart Generation: Creating the Scatterplot

With the primary data correctly entered and formatted, the immediate subsequent step is to generate the base scatterplot. This visualization will establish the initial relationship between the X and Y variables and provide the canvas onto which we will add our benchmark line.

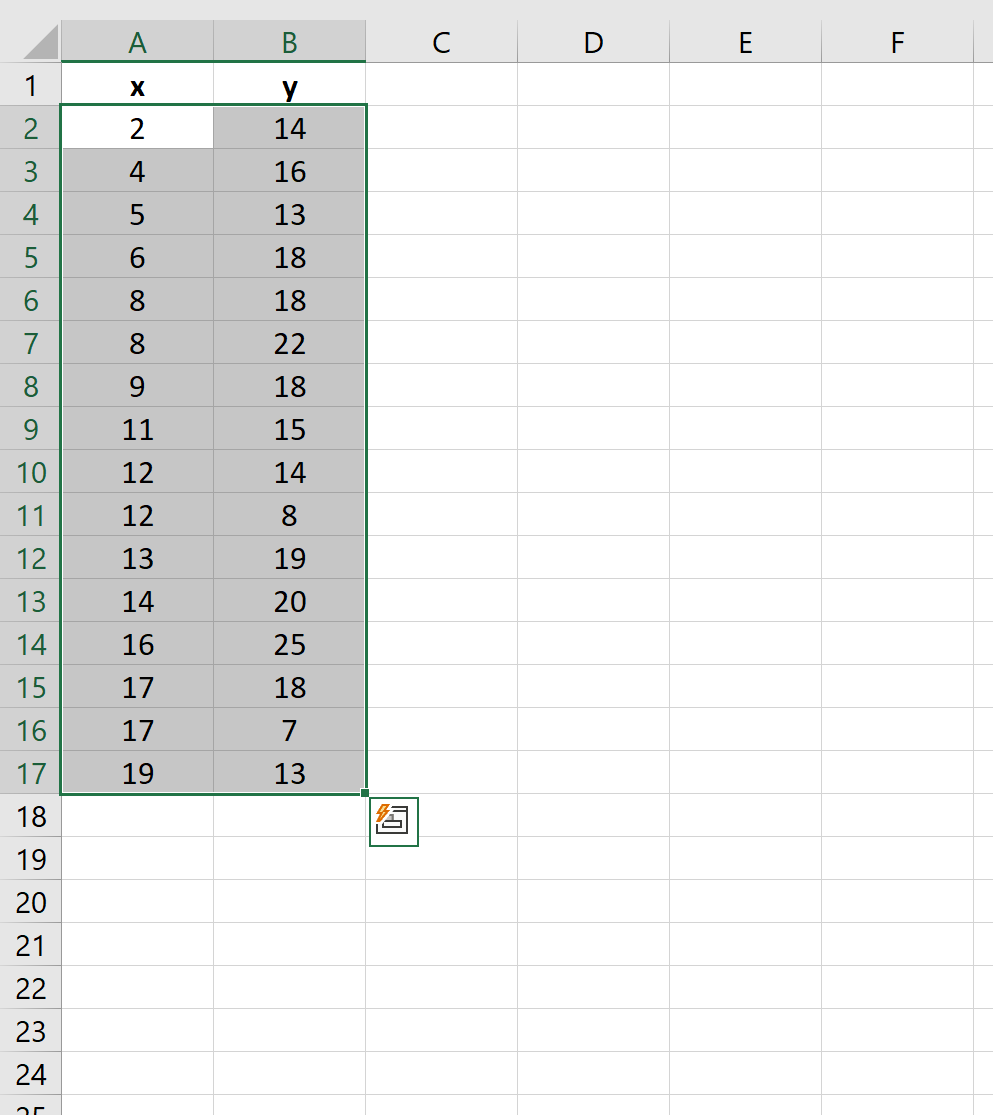

To initiate the chart creation process, first, highlight the relevant range containing your numerical data. In this specific demonstration, this corresponds to the cell range A2:B17. It is generally advised to exclude column headers during this selection process if you intend for them to be used only as labels and not as plotted data points. The selection must encompass all data pairs required for the base rendering.

After highlighting the data, navigate to the top command ribbon. Click on the Insert tab. Within the Charts group, locate the specialized tool designated for inserting scatter charts, typically labeled Insert Scatter (X, Y) or Bubble Chart. Select the first available chart type, which usually displays discrete markers only. Upon selection, the basic scatterplot shown below will be automatically generated and displayed on your worksheet, serving as the visual context for all subsequent manipulations.

The Core Technique: Defining the Reference Data Series

The fundamental constraint we must overcome is that Excel scatterplots demand that every visual element, including a perfectly straight line, be defined as a data series composed of at least two coordinate pairs. To draw a horizontal line at a specific Y-value (for instance, Y = 20), we must define two endpoints that share that exact Y-value while spanning the full extent of the chart’s displayed X-axis range.

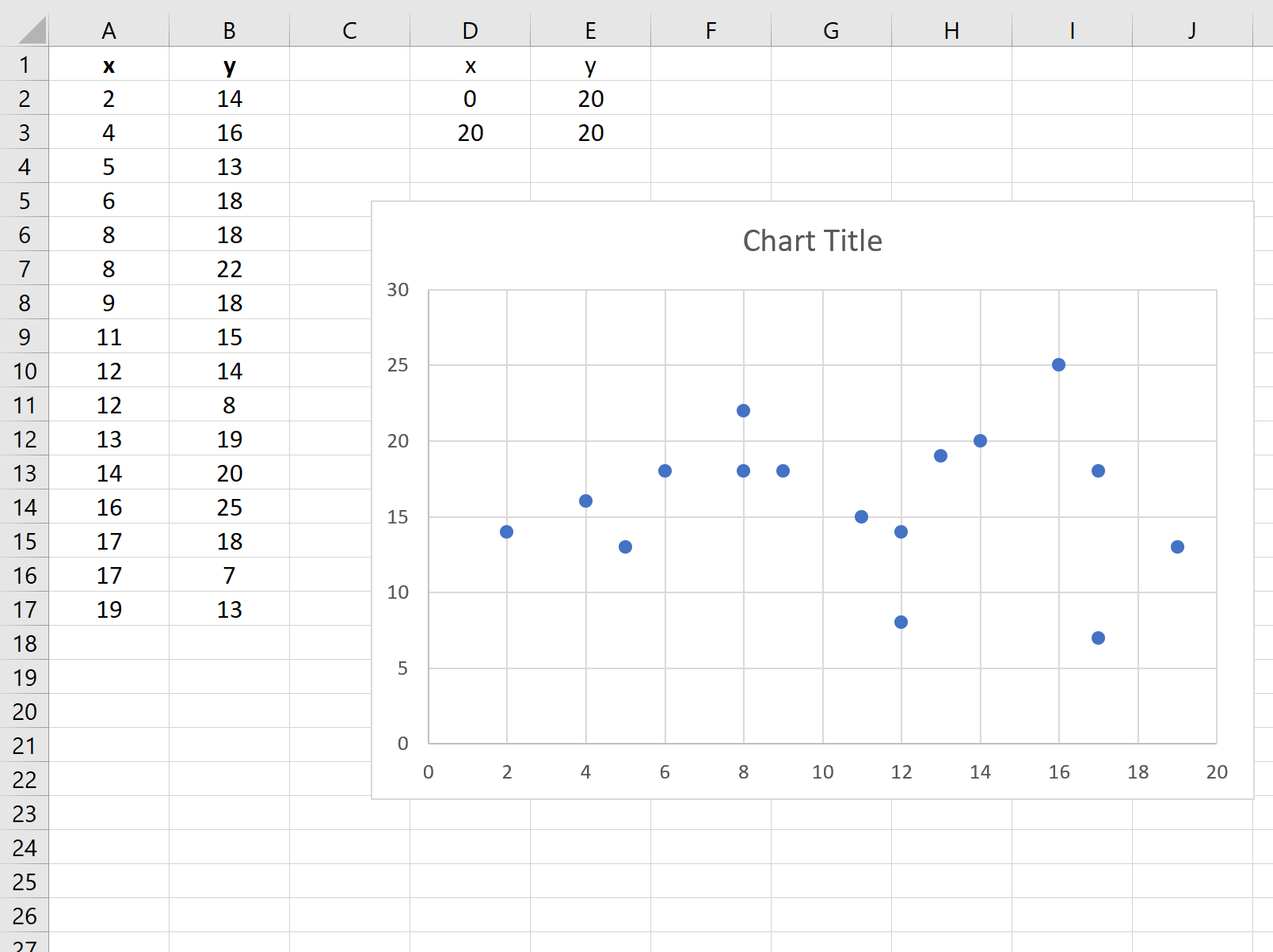

Let us assume our analytical objective is to incorporate a reference line corresponding precisely to the value y = 20. This value represents our designated performance benchmark or critical threshold. To successfully model this line, we must construct a small, dedicated auxiliary table located separately from our main dataset. This table will contain just two points, which are the start and end of the line segment.

For maximum effectiveness, the X-values of these two points should correspond to the minimum and maximum X-axis values currently visible on the chart, or slightly beyond them, ensuring the line segment fully crosses the plotting area. Crucially, the Y-values for both points must be exactly 20. If our chart’s X-axis ranges from 0 to 20, the required points are defined as: (X=0, Y=20) and (X=20, Y=20). This pair mathematically defines the horizontal segment.

This methodology is the operational key to the entire process: by defining the endpoints of a line segment using a fully consistent Y-value, we guarantee that the rendered line will be perfectly horizontal, regardless of any scaling or adjustments made to the X-axis by the charting engine.

Integrating the New Series into the Excel Chart

Once the auxiliary data for the reference line has been accurately defined, the next necessary step is integrating this new information into the existing scatterplot visualization. This integration is managed efficiently through Excel’s powerful Select Data Source dialogue box, which controls all active series within the chart.

To access this feature, right-click anywhere within the chart area—taking care not to click on an existing data point—and select the Select Data… option from the resulting context menu. This action immediately launches the data selection and management interface. Within the Select Data Source window, direct your attention to the Legend Entries (Series) section, which provides a list of all current data series active in the chart. Click the Add button to introduce the new series dedicated solely to rendering the horizontal line.

A subsequent dialogue box, labeled Edit Series, will then appear, requiring precise definition of the new series’ components. We must define three distinct parameters here:

1. Series Name: Assign a clear, descriptive name, such as “Reference Line (Y=20),” for easy identification.
2. Series X Values: Specify the two X-values (0 and 20) by selecting them from the auxiliary table we created.
3. Series Y Values: Input the two corresponding Y-values (20 and 20) by selecting them from the same auxiliary table.

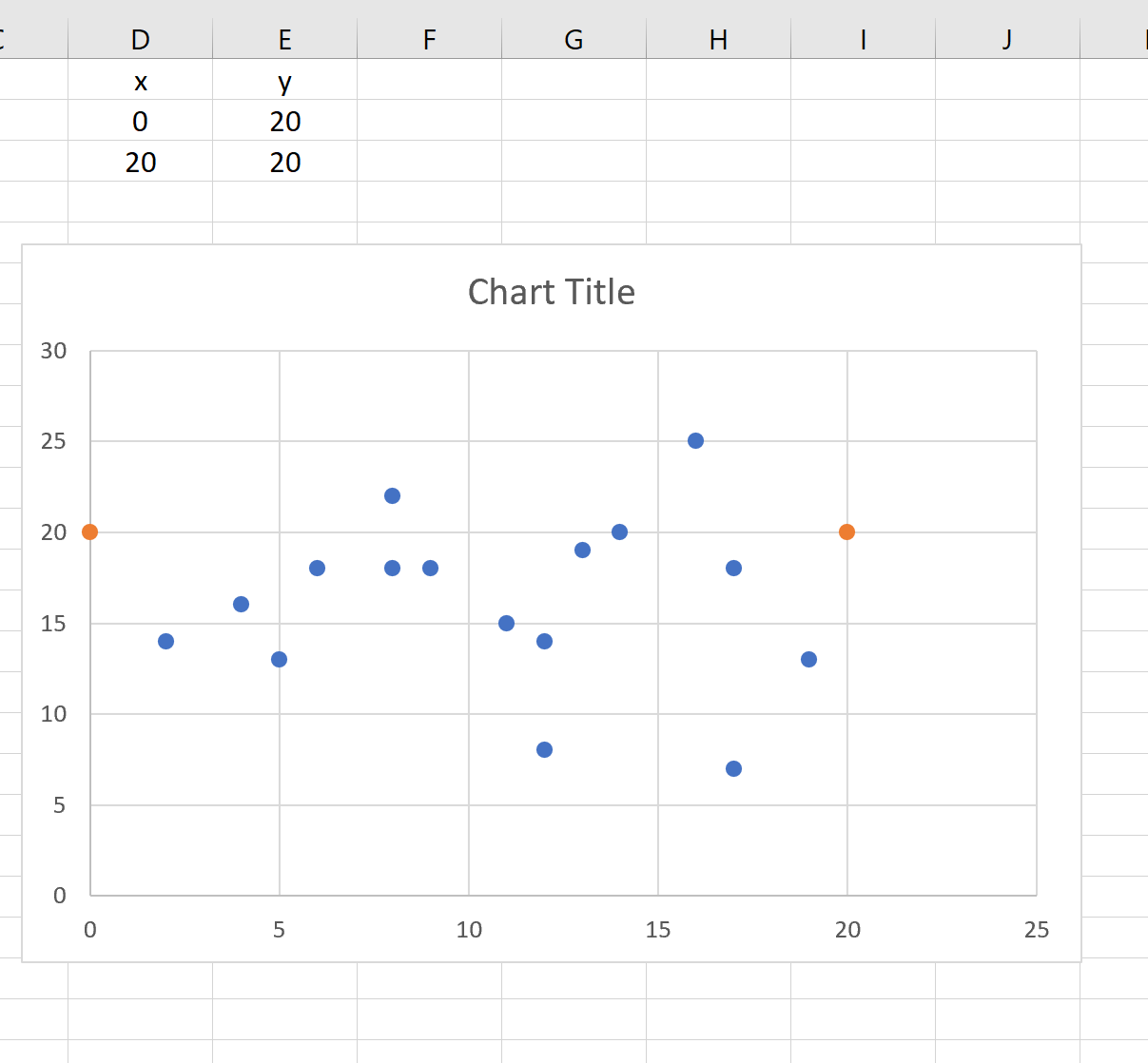

Upon successfully defining these coordinates and clicking OK, you will immediately observe that two new points—typically appearing as small, distinct markers (e.g., orange dots)—have been appended to the chart precisely at the Y=20 level. These visual elements represent the two endpoints of our intended horizontal segment, confirming successful data integration.

Visual Refinement: Formatting the Line Segment

The final operational step involves transforming the two discrete data points into a single, continuous line segment that effectively spans the entire width of the plotting area. This transformation is exclusively accomplished by modifying the formatting properties of the newly added reference data series.

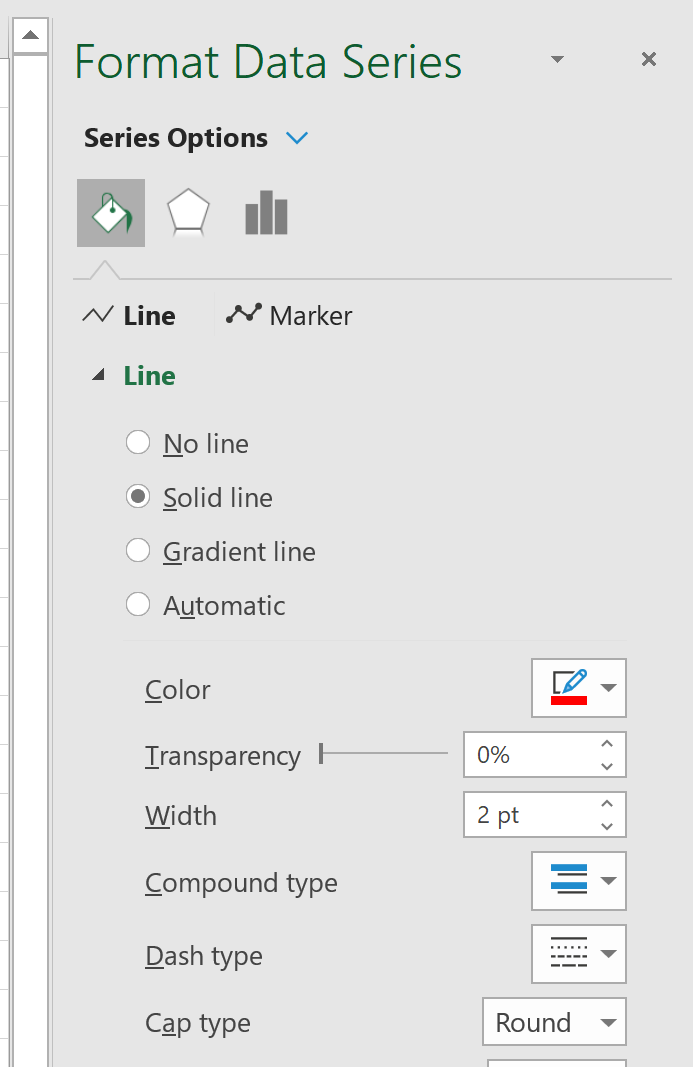

Begin by right-clicking directly on one of the new markers (the orange dots) that represent the reference line series. From the resulting context menu, select Format Data Series… This action typically opens the dedicated formatting pane on the right side of the Excel application window, providing detailed control over visual attributes. Within the Format Data Series pane, you must navigate to the Fill & Line icon, which is usually represented by a paint bucket icon.

Under this section, two critical adjustments must be made to achieve the desired line appearance:

1. Marker Options: Under the Marker section, select None for the marker type. This crucial step hides the visible dots, ensuring that the chart only displays the connective line itself.
2. Line Options: Under the Line section, select Solid Line. This command explicitly instructs Excel to connect the two defined points (0, 20) and (20, 20) with a continuous, unbroken segment, thereby creating the horizontal line.

Upon applying these specific formatting changes, the two isolated markers instantly dissolve and are replaced by a solid line extending horizontally across the entire plot area at the specified Y-value (20). This marks the successful integration of the analytical benchmark into your visualization, making it far more powerful for interpretation.

Customization and Advanced Benchmark Usage

Once the horizontal reference line has been successfully established using the two-point data series method, you gain complete control over its aesthetic and functional properties, allowing for further enhancement of the overall clarity of the data visualization.

While still utilizing the Format Data Series pane, you can easily modify the line’s visual characteristics to optimize its role as a benchmark. Options include adjusting the Color to a high-contrast shade (such as a sharp red or bold black) to ensure it stands out clearly from the primary data points. You can also modify the Thickness (Width) to make the line more or less prominent depending on its analytical importance. Additionally, selecting a unique Dash Type (such as a dashed or dotted style) is highly recommended, as it visually signals that the line represents a static reference point rather than a dynamic regression analysis or trend line calculated from the data.

If your analytical requirements extend beyond a single metric, this technique is fully scalable, allowing you to incorporate multiple horizontal benchmarks onto a single chart. To achieve this, simply repeat the entire process—Steps 3 through 5—for every new Y-value you wish to represent. It is important to note that each new line must be defined with its own unique pair of (X, Y) points within the auxiliary data table and must be added as a completely separate Excel series.

This powerful technique of leveraging calculated secondary data series is fundamental to advanced charting in Excel, enabling analysts to create sophisticated and highly informative graphical reports that exceed the limitations of the software’s default charting functions.
