Learning to Visualize Agreement: A Guide to Creating Bland-Altman Plots in Python

The Bland-Altman plot, frequently recognized as the difference plot, stands as an indispensable statistical and graphical tool primarily utilized across clinical measurement science, biomedical engineering, and analytical chemistry. Its fundamental purpose is not to merely establish a relationship between two variables, but rather to rigorously assess the degree of agreement and interchangeability between two distinct quantitative methods or instruments designed to measure the same characteristic.

In countless scientific and industrial applications—whether comparing a new, cheaper diagnostic device against an established gold standard, or validating consistency between two manufacturing quality control systems—the crucial question is whether Method B can reliably substitute Method A. Simple correlation analysis, often represented by the Pearson’s r coefficient, proves insufficient for this task because a strong linear association does not guarantee acceptable agreement. The Bland-Altman methodology bypasses the pitfalls of correlation by focusing specifically on the magnitude, direction, and consistency of the differences between paired measurements.

This comprehensive tutorial provides a systematic and technically rigorous methodology for generating, customizing, and, most importantly, correctly interpreting a Bland-Altman plot. We leverage the powerful statistical capabilities inherent within the Python programming ecosystem, utilizing specialized libraries to streamline complex calculations and produce high-quality, publication-ready visualizations.

Understanding the Foundational Principles of Method Agreement

Developed and championed by statisticians J. Martin Bland and Douglas G. Altman in 1986, the graphical approach addresses a critical flaw in standard statistical comparison techniques. Researchers frequently misuse correlation coefficients, mistakenly assuming that a high correlation (e.g., r > 0.95) signifies that two methods are interchangeable. However, two methods can exhibit perfect correlation yet consistently differ by a fixed amount—a phenomenon known as systematic bias. This consistent disagreement renders them non-interchangeable for critical applications.

The structure of the Bland-Altman plot is specifically designed to expose these biases. The visualization plots the difference between the two measurements (Measurement A minus Measurement B) on the Y-axis. This is critical because it directly quantifies the disagreement for each sample. Conversely, the X-axis represents the average of the two measurements ((A + B) / 2). By plotting the difference against the average magnitude, researchers can easily identify if the disagreement changes as the size of the measured quantity increases, a condition known as proportional bias.

There are three key statistical elements that the Bland-Altman plot visually summarizes, each providing crucial information regarding the comparison:

• Mean Difference (Bias): Represented by the central horizontal line, this is the average difference across all observations. It quantifies the systematic error inherent when comparing the two methods.
• Fixed Bias Assessment: If the data points cluster evenly above and below the mean difference line, fixed bias is the primary concern. If the points deviate systematically as the X-axis value increases, proportional bias is indicated.
• Limits of Agreement (LoA): These define the boundaries within which 95% of the differences between the two methods are expected to fall. They are the ultimate determinant of method interchangeability based on practical acceptability.

Mastering this visualization technique is fundamental for any professional involved in validating new instruments or quality assurance processes, as it moves the focus from association to the practical question of agreement.

Setting Up the Python Statistical Environment

To successfully execute the analysis demonstrated in this guide, a functional Python environment is required. The analytical power needed to generate and calculate the necessary statistical parameters for the Bland-Altman plot is derived from three core libraries, which are standard components of the modern data science toolkit:

• Pandas: Essential for efficient data manipulation, structuring, and handling of the paired observations in a tabular format (the DataFrame).
• Statsmodels: The workhorse for this specific analysis. This library provides advanced statistical modeling and testing capabilities, including the specialized function mean_diff_plot(), which handles the complex calculations of the mean difference and the 95% Limits of Agreement automatically.
• Matplotlib: The foundational plotting library in Python, used here to configure the figure, axes, and display the final graphical output generated by Statsmodels.

Ensuring these specialized packages are installed is the first practical step. If your environment lacks these tools, they can be easily integrated using the standard Python package installer, pip, as shown below. It is highly recommended to use a virtual environment to manage dependencies cleanly.

pip install pandas statsmodels matplotlib

Once these libraries are imported and available, we gain access to the precise statistical functions, such as sm.graphics.mean_diff_plot(), that elevate this analysis far beyond simple scatter plotting.

Step 1: Structuring Paired Measurement Data in Pandas

Data preparation is always the crucial precursor to robust analysis. For this tutorial, we simulate a common comparative study: a biologist is evaluating two instruments, labeled A and B, used to measure the weight (in grams) of a sample of 20 organisms. The underlying research objective is to determine if the newer Instrument B is statistically and practically interchangeable with the established Instrument A.

We begin by structuring this raw, paired data into a Pandas DataFrame. This columnar structure is ideally suited for storing paired measurements, where each row represents a single independent observation (in this case, one frog measured by both instruments). Using Pandas allows us to easily reference the data series (Instrument A and Instrument B) needed for the subsequent statistical function call.

The following Python code initializes the DataFrame, ensuring that the measurements from Instrument A and Instrument B are correctly aligned as paired observations. Note the utilization of the pd.DataFrame() constructor to encapsulate the data:

import pandas as pd

df = pd.DataFrame({'A': [5, 5, 5, 6, 6, 7, 7, 7, 8, 8, 9,
                         10, 11, 13, 14, 14, 15, 18, 22, 25],
                   'B': [4, 4, 5, 5, 5, 7, 8, 6, 9, 7, 7, 11,
                         13, 13, 12, 13, 14, 19, 19, 24]})

With the 20 paired observations now securely loaded into the DataFrame df, specifically referenced by their column names df.A and df.B, the data is prepared for the core analytical step: invoking the Statsmodels plotting function.

Step 2: Generating the Bland-Altman Visualization

The execution of the Bland-Altman plot is simplified dramatically through the use of the Statsmodels library, which encapsulates the necessary statistical calculations. We rely on the sm.graphics.mean_diff_plot() function to perform the calculation of the mean difference, the standard deviation of differences, and subsequently, the 95% Limits of Agreement (LoA).

The generation process requires two key imports: the Statsmodels API (conventionally aliased as sm) and the plotting utility Matplotlib.pyplot (aliased as plt). Matplotlib is used primarily to instantiate the figure and axes objects, providing the canvas upon which Statsmodels draws the plot.

The script below first sets up an appropriately sized figure object and then passes the data series (df.A and df.B) directly to the Statsmodels plotting function. The resulting visualization is then displayed using plt.show(), which renders the plot complete with data points, the mean difference line, and the critical boundaries of agreement.

import statsmodels.api as sm
import matplotlib.pyplot as plt

# Create the figure and axes objects for plotting
f, ax = plt.subplots(1, figsize = (8,5))
sm.graphics.mean_diff_plot(df.A, df.B, ax = ax)

# Display the final Bland-Altman plot
plt.show()

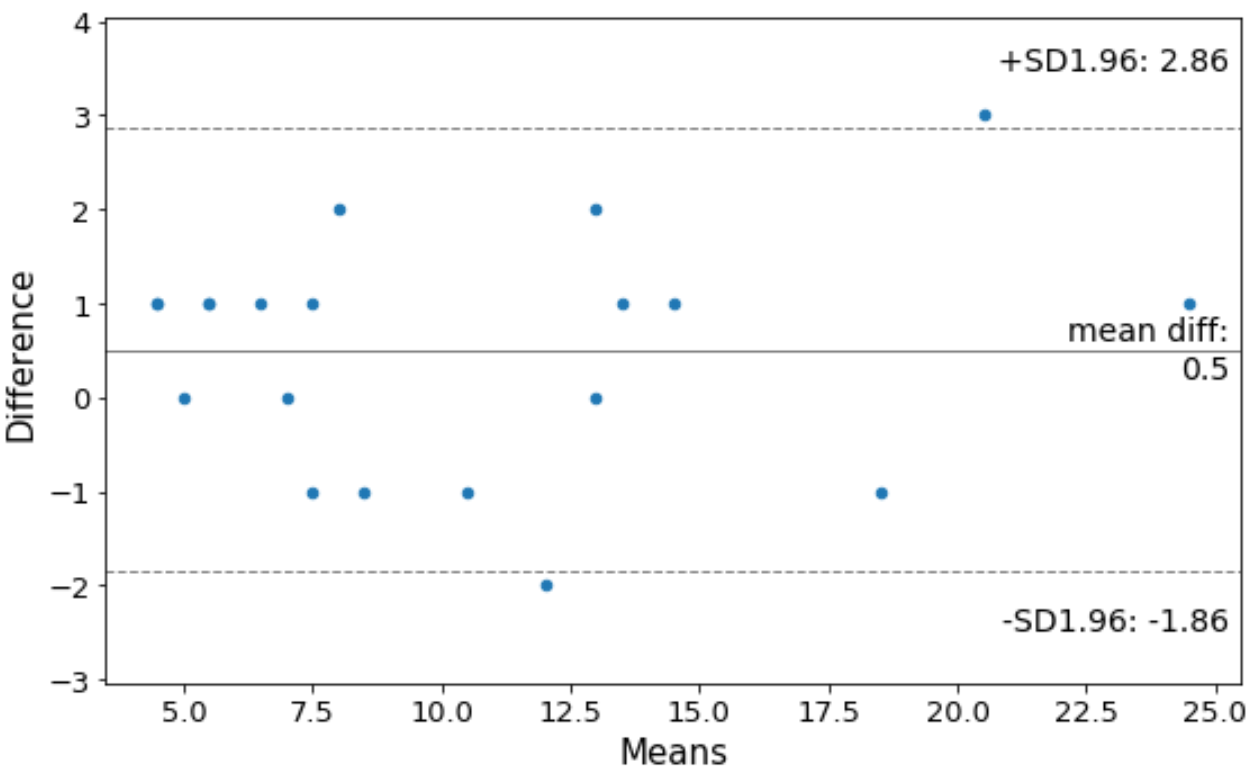

Executing this concise code yields the graphical output, which is the cornerstone of our agreement analysis. The visualization instantly allows us to move beyond raw numbers and assess the consistency and potential bias present between the two measurement methods across the entire range of measurements observed.

Interpretation: Decoding the Statistical Output

The statistical validity of an agreement analysis rests entirely on the correct interpretation of the three main components of the Bland-Altman plot.

First, we examine the data distribution. The plot’s X-axis (Average Measurement) indicates the magnitude of the measured characteristic (frog weight), ranging from low (around 4.5g) to high (around 24.5g). The Y-axis (Difference: A – B) shows the error or disagreement for each paired measurement. Ideally, for perfect agreement, all points would cluster tightly around the zero line on the Y-axis.

Second, the solid black line represents the Mean Difference, which quantifies the fixed bias. In our frog weight example, the calculated mean difference is exactly 0.5 grams. Since this value is positive, it indicates that Instrument A consistently reports measurements that are, on average, 0.5g higher than Instrument B across all observations. This is a measure of systematic error that must be accounted for if the instruments are to be used interchangeably.

Third, and most critically, the two dashed lines define the 95% Confidence Interval for the average difference, known formally as the Limits of Agreement (LoA). These limits are calculated as the mean difference plus or minus 1.96 times the standard deviation of the differences. For this specific dataset, the LoA are determined to be [-1.86, 2.86]. This statistical range means that if we were to measure a new frog, we would expect 95% of the time the difference between Instrument A and Instrument B to fall between a deficit of 1.86g and a surplus of 2.86g.

The practical decision of interchangeability hinges entirely on whether these Limits of Agreement are clinically or practically acceptable. If the researcher determines that a potential difference of nearly 3 grams (2.86g) is too large for the precise measurement of frog mass, then the methods are not in sufficient agreement, despite the relatively small mean bias of 0.5g. The LoA thus provide the essential link between statistical findings and real-world utility.

Conclusion and Practical Applications

The Bland-Altman plot is an indispensable graphical tool that successfully addresses the complex challenge of assessing method agreement, providing a far more intuitive and statistically robust alternative to relying solely on misleading correlation coefficients. By simultaneously visualizing the systematic error (mean difference) and the random variability (Limits of Agreement), it empowers practitioners to make informed, evidence-based decisions regarding the interchangeability of measurement techniques.

In our simulated biological study, we identified a minor systematic positive bias of 0.5g, indicating Instrument A tends to read slightly high. However, the critical factor remains the practical width of the Limits of Agreement ([-1.86g, 2.86g]). The decision to deem Instrument B an acceptable replacement for Instrument A is ultimately non-statistical; it is a clinical or scientific judgment based on whether an error range spanning nearly 5 grams is tolerable for the intended application.

Whether the goal is validating a new diagnostic device in a medical setting, ensuring quality control consistency in manufacturing, or performing rigorous scientific comparison in research, the ability to generate and correctly interpret the Bland-Altman plot using Python and the powerful Statsmodels library is a critical skill for any quantitative analyst committed to methodological rigor.
