Learning to Add Titles to Seaborn Plots: A Comprehensive Guide

When developing complex data visualizations using the powerful Seaborn library in Python, the clarity of communication rests heavily on effective labeling. A descriptive title is not merely an optional addition; it is an essential component that frames the context and highlights the primary insights of the visualization. Mastering the art of titling in Seaborn requires understanding the underlying structure of the plots, which can be broadly categorized into two distinct approaches: titling a single plot, which operates at the Axis-level, and titling a multi-plot visualization, which operates at the Figure-level, often involving a Facet Grid.

For standard, single-panel plots generated by Seaborn—plots that return a Matplotlib axis object—the most efficient and recommended method for title application is the .set() function. This function allows developers to concisely define the plot’s title within the same line of code that generates the visualization, streamlining the development process and ensuring properties are correctly assigned to the relevant axis.

Conversely, visualizations that organize multiple subplots into a single display, such as those created by Facet Grid functions, require a different approach. Since the title must span the entire collection of subplots, we must target the overall Figure object rather than any individual axis. This is achieved through the dedicated .suptitle() function, which is designed specifically for applying a singular, overarching title to a multi-panel layout.

Understanding Axis-Level vs. Figure-Level Titling

The core distinction in Seaborn titling lies in the object that the plotting function returns. Seaborn is built on top of Matplotlib, meaning its functions either interact directly with a single set of axes (Axis-level) or manage an entire collection of axes organized within a Figure (Figure-level). Recognizing which type of object is returned dictates the proper titling syntax.

For Axis-level plots, such as a basic boxplot or a simple histogram, the resulting object is a Matplotlib Axes object. The .set() method is universally applicable here, accepting the title parameter along with other axis configuration settings (like x-labels or y-labels). This simple method chaining provides an elegant solution for titling single visualizations, as demonstrated by the fundamental syntax below:

sns.boxplot(data=df, x='var1', y='var2').set(title='Title of Plot')

Conversely, when generating highly structured visualizations using functions like relplot or catplot, the output is a specialized Facet Grid object. This grid structure manages the placement of subplots based on categorical variables, necessitating a title that contextualizes the entire grouping, not just one panel. Therefore, the Figure object itself must be targeted using the .suptitle() function, ensuring the title is placed centrally above the entire layout.

The Figure-level approach always requires accessing the underlying Figure object via the .fig attribute of the Facet Grid instance. This crucial step ensures that the subsequent .suptitle() call correctly applies the title to the top level of the visualization hierarchy, providing the necessary context for the entire collection of charts. The required structure for applying this overall title is notably different from the axis-level method:

#define relplot
rel = sns.relplot(data=df, x='var1', y='var2', col='var3')

#add overall title to replot
rel.fig.suptitle('Overall Title')

Method 1: Titling Single Plots Using the .set() Function

The majority of foundational Seaborn plotting functions, including boxplot(), scatterplot(), histplot(), and kdeplot(), are designed to integrate seamlessly with the Matplotlib object model. When executed, these functions draw the visualization onto a single set of axes and return a reference to that specific axes object. This mechanism is what enables the efficient use of the .set() function.

The primary strength of the .set() method is its versatility and chainability. By appending .set() directly after the plotting command, the title (along with other axis properties) is configured immediately. This avoids the need for defining a separate variable for the axes object, making the code cleaner and more readable. This method is the standardized way to manage axis-level information, providing control over the title, axis limits, and labels all within a single, concise statement.

To solidify this concept, the following section provides a series of practical examples demonstrating how .set() is implemented across various types of axis-level visualizations, ensuring that every plot is accompanied by a clear and informative title that directs the viewer’s interpretation of the data presented. We will first prepare a sample dataset using the Pandas library to serve as the foundation for our demonstrations.

Practical Example 1: Applying Titles to Axis-Level Plots

Before generating any graphical output, standard practice dictates importing the necessary libraries and preparing the data structure. We require pandas for efficient data manipulation, seaborn for statistical plotting, and matplotlib.pyplot for rendering and display management. The following code block initializes the environment and constructs a small, fictitious DataFrame to be used throughout the examples:

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

#create fake data
df = pd.DataFrame({'points': [25, 12, 15, 14, 19, 23, 25, 29],
                   'assists': [5, 7, 7, 9, 12, 9, 9, 4],
                   'team': ['A', 'A', 'A', 'A', 'B', 'B', 'B', 'B']})

#create boxplot and apply title
sns.boxplot(data=df, x='team', y='points').set(title='Points by Team')

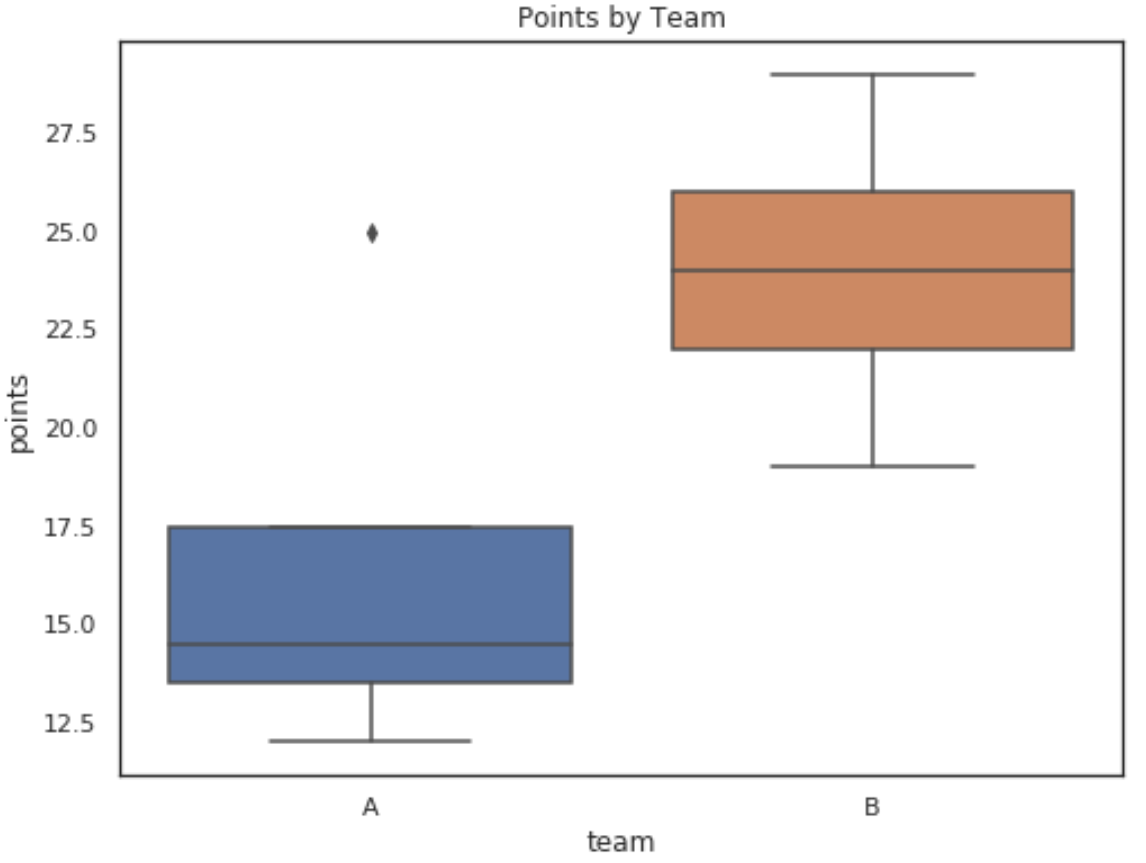

The code above generates a boxplot comparing the distribution of ‘points’ across the two ‘team’ categories. By chaining .set(title='Points by Team'), we immediately assign the descriptive label directly to the resultant axis object, ensuring the visualization’s purpose is instantly conveyed.

This same principle holds true for relationship plots. For example, to visualize the correlation between ‘points’ and ‘assists’, we can use a scatterplot. The subsequent code applies the identical .set() methodology to label this relational plot, confirming the consistency of the axis-level titling approach across different plot types:

sns.scatterplot(data=df, x='points', y='assists').set(title='Points vs. Assists')

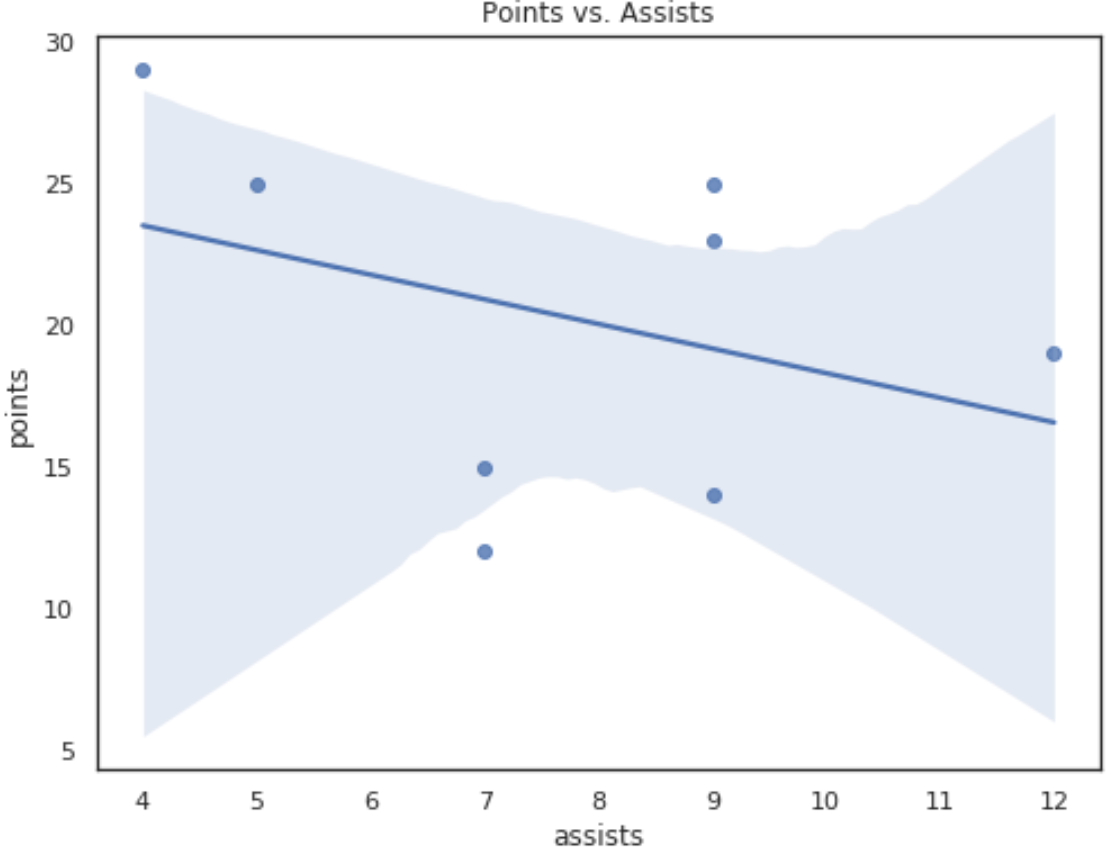

The resultant scatterplot clearly features the title “Points vs. Assists,” fulfilling its role as an immediate guide for the viewer. Furthermore, even more complex axis-level visualizations, such as regplot which superimposes a linear regression line, utilize .set() without modification. The standardization provided by .set(title='...') is the crucial takeaway for managing axis-level information in Matplotlib-based Seaborn plots.

sns.regplot(data=df, x='points', y='assists').set(title='Points vs. Assists')

Method 2: Applying Overall Titles to Seaborn Facet Grid Plots

When moving beyond single-axis visualizations to multi-panel displays, Seaborn employs the Facet Grid structure. Functions such as relplot, catplot, and lmplot automatically generate multiple subplots, dividing the data based on discrete variables (e.g., using col or row parameters). Because the resulting visualization is a single entity composed of many axes, the title must be applied to the parent Figure, not to any individual child axis.

To achieve Figure-level titling, we must first capture the output of the plotting function into a variable (e.g., rel). This variable holds the Facet Grid object, which provides an interface to the underlying Matplotlib Figure via the .fig attribute. Once the Figure is accessed, we employ the .suptitle() method, short for “super title,” which is specifically designed to place a high-level title above all subplots contained within the Figure boundary.

The following demonstration uses relplot to create separate scatterplots for each ‘team’ in our sample data. We then illustrate the two-step process required to apply a unifying title: accessing the .fig attribute and then calling .suptitle() to provide context for the entire comparative visualization.

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

#create fake data (re-initialization for clarity)
df = pd.DataFrame({'points': [25, 12, 15, 14, 19, 23, 25, 29],
                   'assists': [5, 7, 7, 9, 12, 9, 9, 4],
                   'team': ['A', 'A', 'A', 'A', 'B', 'B', 'B', 'B']})

#create relplot
rel = sns.relplot(data=df, x='points', y='assists', col='team')

#add overall title
rel.fig.suptitle('Stats by Team')

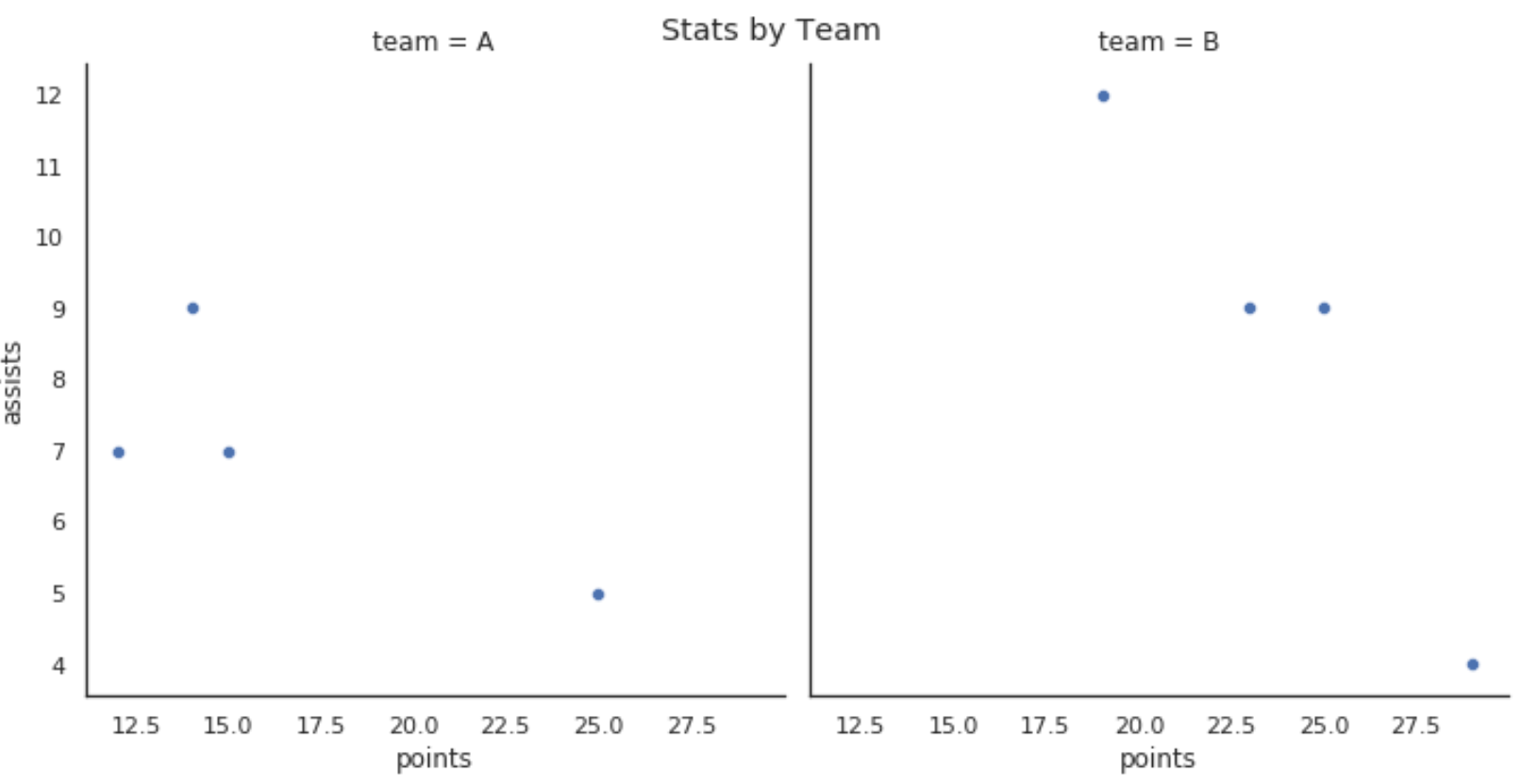

The resulting visualization now features the comprehensive figure-level title, “Stats by Team,” placed high on the canvas to contextualize both faceted scatterplots below it.

Handling Advanced Positioning in Facet Grids

A frequent challenge when using .suptitle(), particularly with Facet Grid plots, is title overlap. If the default spacing is too tight, the title might interfere visually with the subplot borders or axis labels. To mitigate this, we must explicitly control the vertical boundaries of the subplots relative to the overall Figure canvas.

This control is achieved using the subplots_adjust() function, which is available directly on the Figure object (rel.fig). By manipulating the top parameter within subplots_adjust(), we can effectively shrink the vertical space allocated to the subplots, pushing them downward and creating necessary headroom for the figure title. Setting the top parameter to a value slightly less than 1.0 (e.g., 0.8 or 0.9) ensures adequate separation, leading to a much cleaner and more professional presentation.

The following code snippet demonstrates the integration of subplots_adjust() into the titling workflow. It is important to execute this adjustment before or immediately after applying the title to ensure the rendering engine accounts for the new layout space.

#create relplot (Assuming 'rel' object is already defined from previous data)
rel = sns.relplot(data=df, x='points', y='assists', col='team')

#move overall title up by setting the top boundary of the subplots
rel.fig.subplots_adjust(top=.8)

#add overall title
rel.fig.suptitle('Stats by Team')

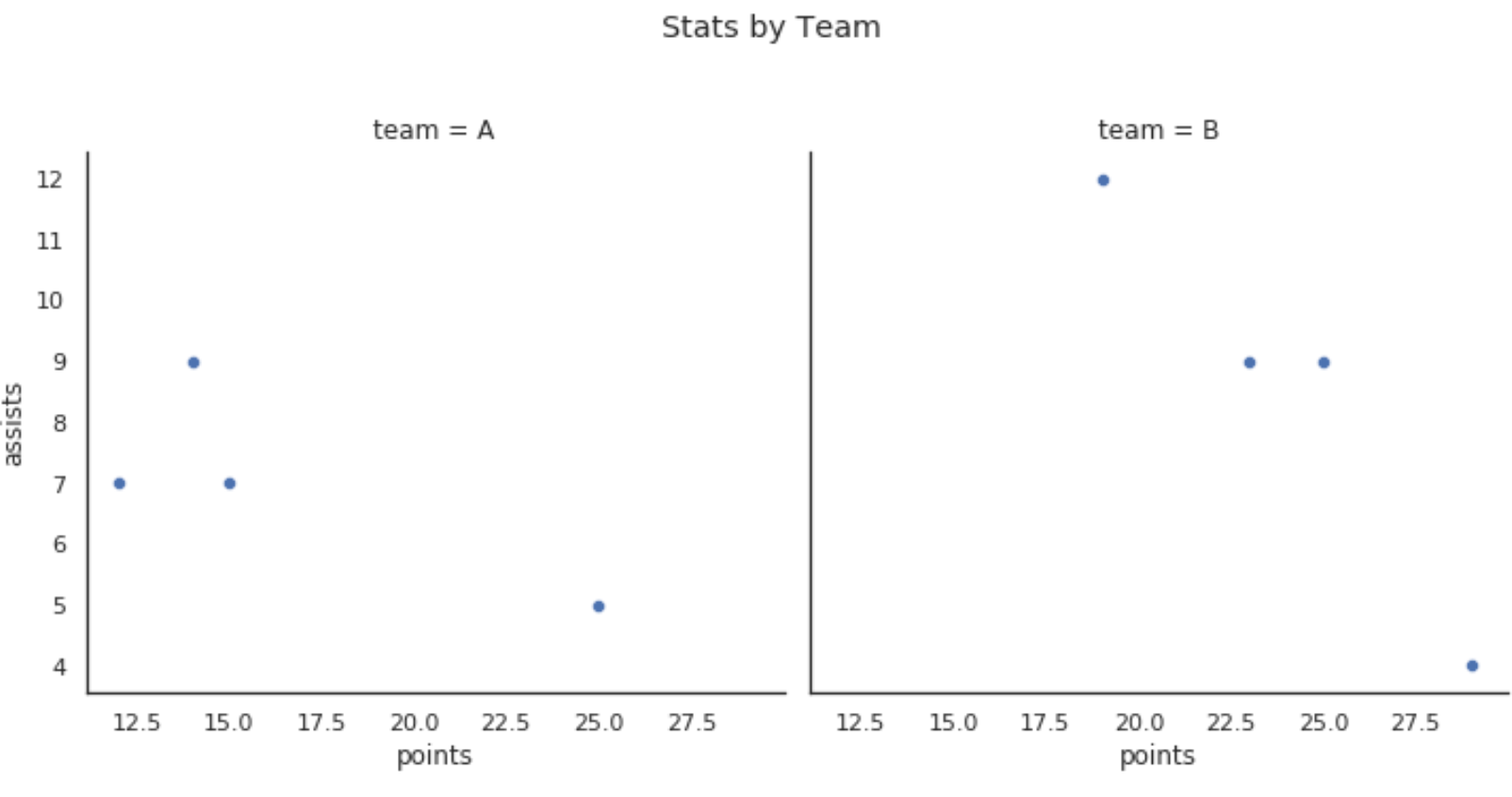

This modification guarantees a clear separation between the overall title and the individual subplots, significantly improving the aesthetic quality and readability of the final multi-panel visualization.

Comprehensive Summary of Seaborn Titling Strategies

The ability to correctly label statistical graphics is paramount for generating publication-ready results. The choice of titling mechanism in Seaborn depends entirely on whether the chosen function operates at the level of a single Axis or manages an entire Figure composed of multiple axes. By adhering to the appropriate convention, you ensure that titles are positioned correctly and carry the intended semantic weight.

To summarize the key methods for future reference, the two primary strategies are defined by the object returned by the plotting call:

• Axis-Level Plots: These functions return a single Matplotlib axis object (e.g., sns.barplot(), sns.histplot()). Use the method chaining syntax for direct assignment: .set(title='Your Specific Plot Title').

• Figure-Level Plots: These functions return a Facet Grid object that manages an entire Figure (e.g., sns.relplot(), sns.lmplot()). Access the parent Figure object and use .suptitle() for an overall title: grid_object.fig.suptitle('Your Overall Figure Title').

Following these structural guidelines ensures that your Seaborn visualizations are correctly annotated, significantly enhancing their interpretability for any technical or general audience.

Additional Resources

For developers seeking deeper documentation on advanced styling, layout management, and further details regarding the underlying structure of Seaborn and Matplotlib objects, please consult these authoritative guides:

• The official Seaborn Facet Grid Tutorial, offering comprehensive details on multi-plot layouts.

• The official Matplotlib suptitle documentation, detailing options for super titles on figures.
