Learning Seaborn: A Guide to Placing Legends Outside of Plots

The Critical Need for External Legend Placement in Data Visualization

Effective data visualization is fundamental to transparent communication in modern statistical analysis. However, the visual clarity of a plot is often compromised when explanatory elements, such as the legend, overlap with critical data points. This challenge is particularly prevalent when working with complex charts generated by powerful libraries like Seaborn, which leverages the underlying infrastructure of Matplotlib.

By default, when plotting multi-hue visualizations—such as scatter plots differentiating categories or line charts tracking multiple variables—the plot legend is often automatically placed in a corner within the plotting area. While convenient, this default positioning can obscure outliers, dense clusters of data, or key trends, thereby reducing the overall impact and integrity of the visualization. For publication-quality graphics, it is essential that the data area remains completely unobstructed.

The solution to this common plotting dilemma is to relocate the legend entirely outside the axes boundary. This relocation is achieved through a precise configuration of the legend function in Matplotlib, primarily utilizing the robust argument, bbox_to_anchor(). This function grants granular control over the legend’s position relative to the plot axes, allowing it to be placed in the periphery of the figure canvas.

To illustrate this concept, consider the standard syntax required to place a legend just outside the top-right corner of the plot. This configuration uses a tuple of normalized coordinates in conjunction with alignment parameters:

plt.legend(bbox_to_anchor=(1.05, 1), loc='upper left', borderaxespad=0)

Deconstructing the Matplotlib Coordinate System and `bbox_to_anchor()`

Understanding how Matplotlib handles positioning is crucial for mastering external legend placement. The plot area uses a system of normalized coordinates, where the axes range from 0 to 1. The point (0, 0) represents the bottom-left corner of the plot area, and (1, 1) represents the top-right corner. The critical distinction for external placement is that the bbox_to_anchor() parameter accepts coordinates outside this (0, 1) range.

The bbox_to_anchor() parameter accepts a tuple, (x, y), which defines the anchor point for the legend’s bounding box. To move the legend outside the plot boundary, we must supply values slightly greater than 1 for external placement on the right (x > 1) or above (y > 1). Conversely, values less than 0 would push the legend to the left or below the plot. For example, using an x-coordinate of 1.05 moves the legend 5% of the plot width outside the right edge, ensuring it resides only on the figure canvas.

The combination of coordinate values and alignment arguments allows for precise control over the final position. The coordinates define where the legend will be anchored, while the loc parameter determines which point on the legend box itself adheres to those coordinates. This interplay is summarized by these key parameters:

• The coordinates, such as (1.05, 1), explicitly define the target location on the figure canvas. The 1.05 signifies a slight movement past the right boundary (x=1), and the 1 aligns the element with the top boundary (y=1).
• The loc='upper left' argument specifies that the upper-left corner of the legend box should be fixed exactly at the coordinates provided by bbox_to_anchor(). This is crucial: using 'upper left' when x > 1 ensures the legend expands rightward, away from the data.
• The borderaxespad argument manages the minimal padding, measured in font-size units, between the axes border and the legend boundary. Setting this value to 0 is standard practice when positioning externally, as it minimizes the gap and allows the legend to sit flush against the plot edge, maximizing available figure space.

The following detailed examples transition from theory to practice, demonstrating how subtle manipulations of the (x, y) tuple within bbox_to_anchor() achieve different external placements.

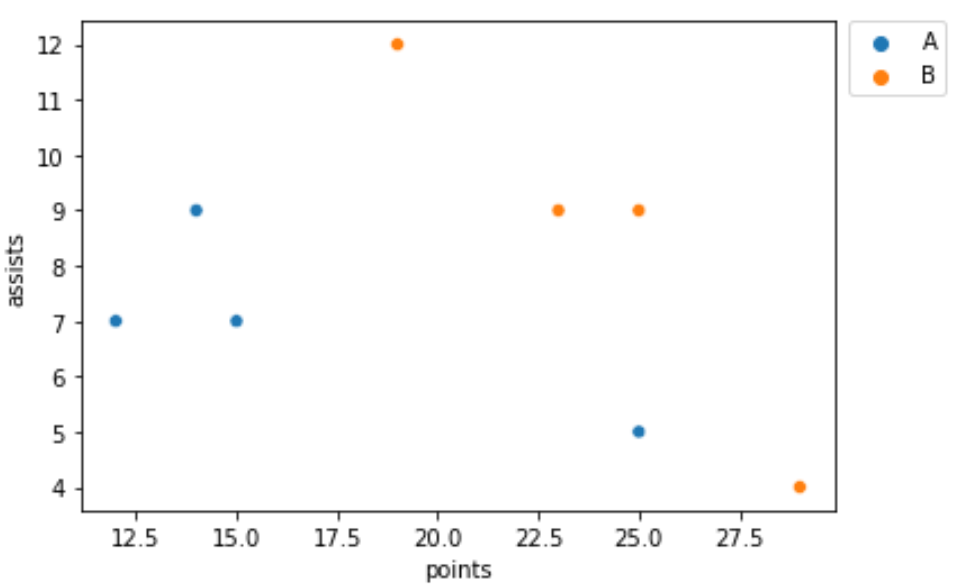

Practical Implementation: Top-Right External Legend Placement

The most common requirement for external placement is positioning the legend neatly in the top-right periphery of the visualization. This setup is ideal when the figure has ample vertical space and when the right side of the plot is already visually separated from other elements in a document.

Before plotting, we must ensure all required libraries are imported: Pandas for efficient data manipulation and structuring, Seaborn for generating statistical visualizations, and the pyplot module from Matplotlib, which provides the necessary configuration tools for legends and axes.

The following code block demonstrates the setup, including the creation of a simple dataset and the final positioning command:

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

#create fake data
df = pd.DataFrame({'points': [25, 12, 15, 14, 19, 23, 25, 29],
                   'assists': [5, 7, 7, 9, 12, 9, 9, 4],
                   'team': ['A', 'A', 'A', 'A', 'B', 'B', 'B', 'B']})

#create scatterplot
sns.scatterplot(data=df, x='points', y='assists', hue='team')

#place legend outside top right corner of plot
plt.legend(bbox_to_anchor=(1.02, 1), loc='upper left', borderaxespad=0)

By defining the coordinates as (1.02, 1), we instruct Matplotlib to anchor the legend’s top edge (y=1) precisely along the top boundary of the plot and shift it slightly (2% of the plot width) outside the right boundary (x=1.02). Since loc='upper left' is specified, the legend box grows down and to the right from this anchor point, resulting in a clean, professional visualization where the data area is maximized and completely unobstructed by the explanatory key.

Fine-Tuning Vertical Alignment: Center-Right and Bottom-Right Positioning

While the top-right position is often suitable, there are scenarios—such as when a figure title occupies the top space or when the data density is low in a different quadrant—where vertical positioning must be adjusted. By strategically changing the y-coordinate within bbox_to_anchor(), we can achieve center-right or bottom-right placement.

Center-Right Alignment

To position the legend vertically centered along the right edge, we must adjust the y-coordinate closer to 0.5. Since we maintained loc='upper left' in our primary examples, setting y=0.5 will anchor the top edge of the legend at the vertical midpoint of the plot. If true vertical centering (where the legend’s middle is exactly at y=0.5) is desired, one would typically use loc='center left' combined with y=0.5. The following snippet illustrates a visually centered placement using our established anchor point:

#create scatterplot
sns.scatterplot(data=df, x='points', y='assists', hue='team')

#place legend outside center right border of plot
plt.legend(bbox_to_anchor=(1.02, 0.55), loc='upper left', borderaxespad=0)

By changing the y-coordinate to 0.55, the anchor point is moved down toward the vertical center. The x-coordinate remains 1.02, ensuring the legend is still slightly outside the right boundary. This mid-level placement is excellent for balancing visual weight, especially in complex figures that incorporate multiple subplots.

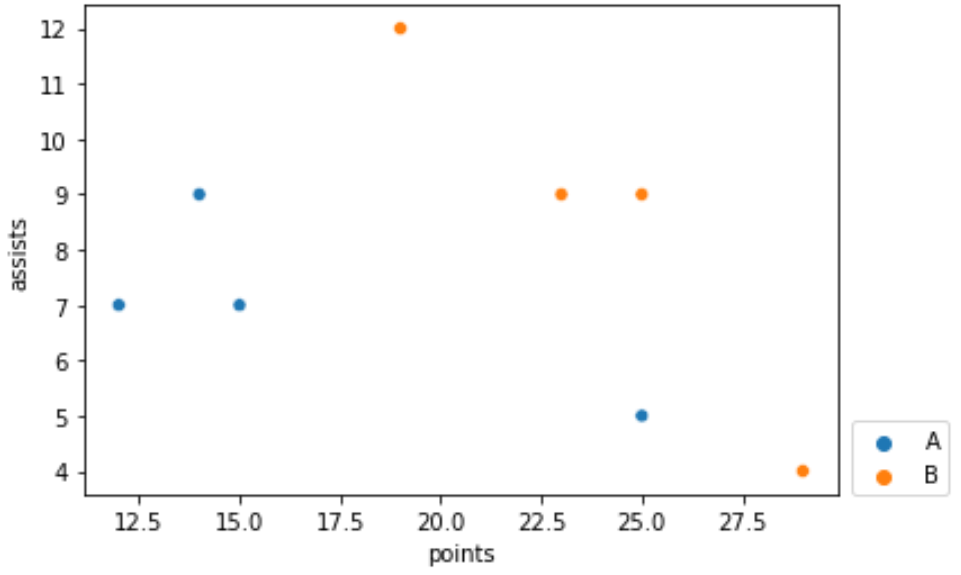

Bottom-Right Alignment

For scenarios where the legend is best placed near the bottom of the figure—perhaps to align with text footnotes or other low-level elements—we adjust the y-coordinate to a value close to zero. We must still maintain an x-coordinate greater than 1 to keep the legend external to the plot area. This demonstrates the immense flexibility provided by the normalized coordinate system in defining arbitrary positions:

#create scatterplot
sns.scatterplot(data=df, x='points', y='assists', hue='team')

#place legend outside bottom right corner of plot
plt.legend(bbox_to_anchor=(1.02, 0.15), loc='upper left', borderaxespad=0)

Here, the y-coordinate of 0.15 anchors the top edge of the legend box very low on the figure. This configuration effectively places the legend in the bottom-right corner of the available figure space, ensuring it does not interfere with data points situated higher up the y-axis.

Mastering Alignment: The Synergy of `loc` and `borderaxespad`

While the bbox_to_anchor() tuple defines the target location, the efficiency and appearance of the external legend depend entirely on coordinating this with the loc parameter and careful figure sizing. These elements collectively dictate the final presentation quality.

1. The Crucial Role of the loc Parameter: The loc parameter dictates which point on the legend’s bounding box is pinned to the (x, y) coordinates provided by bbox_to_anchor(). If you place the anchor point slightly outside the right edge (x > 1), you must select a loc value that directs the legend box to expand outward, away from the plot. For right-side placement, 'upper left' or 'center left' are generally the safest choices, as they ensure the legend expands horizontally to the right. Conversely, using a loc like 'upper right' would cause the legend to expand leftward, potentially overlapping the data again.
2. Minimizing Padding with borderaxespad: The borderaxespad argument controls the whitespace between the axes box and the legend box. By setting this value to 0, as demonstrated in all examples, we achieve a minimal separation. This is essential for clean external placement, as it maximizes the visual space available for the legend without introducing unnecessary gaps that might waste valuable canvas real estate.
3. Addressing Figure Resizing: A critical consideration for external legends is ensuring that the overall figure canvas is large enough to contain both the axes and the newly positioned legend. If the figure size is too small, the legend will inevitably be clipped or partially cut off. This issue is resolved by explicitly increasing the figure dimensions using the Matplotlib function plt.figure(figsize=(width, height)) before generating the plot. Always size the figure dynamically based on the expected size of the legend entries.

By diligently configuring these three parameters—the anchor point, the internal alignment (loc), and the overall figure size—data scientists can ensure that every visualization is not only informative but also aesthetically optimized for publication or presentation.

Further Resources for Advanced Data Visualization Styling

Achieving mastery in Seaborn and Matplotlib extends beyond mere legend placement. Optimizing the visual aesthetics, such as font size, marker styles, and color schemes, is equally important for creating high-impact graphics. For instance, adjusting the size of the text within the legend can dramatically improve readability, especially when the legend is far removed from the core data visualization.

It is strongly recommended to consult the official Matplotlib documentation for the most comprehensive and mathematically precise definitions regarding the usage of the bbox_to_anchor() argument and its interaction with various coordinate systems. Furthermore, detailed guidance on styling elements like color schemes, font sizes, and marker styles can be found throughout the Matplotlib and Seaborn documentation sets.

The following external resource offers practical guidance on one aspect of styling:

• Exploring options for adjusting the size of the text within the legend can significantly improve readability, especially when the legend is positioned far from the plot.

• Understanding the relationship between Seaborn styles and Matplotlib figure settings is key to generating publication-quality graphics.
