Learning to Customize Seaborn Legends: Adjusting Font Size and Appearance

The Role of Legends in Statistical Graphics and Data Readability

Data visualization stands as a critical pillar in the process of modern data analysis, offering immediate, intuitive insights into complex datasets. The Seaborn library, expertly constructed upon the robust foundation of the Matplotlib library, provides a high-level, declarative interface specifically designed for generating highly informative and aesthetically pleasing statistical graphics. While Seaborn skillfully manages a majority of the aesthetic decisions automatically, ensuring customization of crucial plot elements—such as the legend—is often paramount for achieving optimal readability and adhering to strict publication standards. The legend is indispensable, serving as the essential key that maps the various visual encodings (like color, shape, or size) back to the specific data categories they represent, thus making the plot fully interpretable.

In scenarios involving the generation of intricate or dense visualizations, the default font size applied to the legend text frequently proves inadequate. The text might be disproportionately small relative to the primary plot area, or perhaps too large compared to the axis labels, leading to visual imbalance. Therefore, gaining granular control over the typography of the legend elements—encompassing both the individual categorical labels and the overall legend title—is fundamental to producing professional, accessible, and high-impact graphics. Fortunately, the process of customizing these textual elements within Seaborn is remarkably straightforward, primarily by interacting directly with the underlying Matplotlib application programming interface (API).

The definitive instrument for fine-tuning the appearance of the legend, particularly after a Seaborn plot has been initialized, is the powerful plt.legend() function. This function grants developers the necessary flexibility to override standard default settings, including the capability to specify precise dimensional attributes for text components. Utilizing this function ensures that the legend seamlessly complements the comprehensive visual design of the statistical graphic, contributing to overall clarity and design integrity.

The standard syntax employed for modifying the font dimensions within a legend generated by a Seaborn visualization relies heavily on passing specific, targeted arguments directly into the plt.legend() function. These parameters allow for distinct control over the label text and the title text, enabling the creation of a clear typographical hierarchy within the legend box.

plt.legend(title='Team', fontsize='10', title_fontsize='14')

Leveraging the Matplotlib API: Understanding plt.legend() Parameters

Within the integrated environment of the Matplotlib and Seaborn libraries, the plt.legend() function functions as the central controller for managing virtually every aspect of the legend box, including its position, appearance, and textual formatting. This function is designed to accept a multitude of optional arguments that govern its final output and placement. When the objective is specifically font size manipulation, our attention must be directed toward two primary and highly effective arguments: fontsize and title_fontsize. Understanding the precise role of each parameter is key to successful customization.

The fontsize argument is exclusively dedicated to defining the display size of the textual labels associated with each unique data category listed within the legend. These specific strings are the identifiers that correlate directly to the colors, markers, or line styles employed within the visualization (for example, ‘Category A’, ‘Group B’, etc.). This parameter is absolutely critical because it directly influences the legibility of the categories for the viewer. Ensuring that these category labels are easily readable is paramount, especially when dealing with plots that contain numerous elements or require detailed inspection.

In sharp contrast, the title_fontsize argument is responsible for controlling the size of the font utilized for the legend’s overarching header or title. Typically, if the legend is automatically generated based on a specific column name (such as ‘team’ or ‘region’ within a Pandas DataFrame), that column name is designated as the title. Increasing the size of the legend title through this argument is an excellent technique for immediately emphasizing the primary variable being categorized, establishing a clear visual hierarchy relative to the individual category labels. This distinction helps users quickly grasp the context of the visual encoding being used.

A significant feature of these font size controls is their versatility in accepting input values. Both fontsize and title_fontsize are capable of interpreting two distinct types of data: absolute numeric values (which can be integers or floating-point numbers typically representing font point sizes) or descriptive string values (such as ‘small’, ‘medium’, or ‘large’). This dual input capability provides developers with considerable flexibility, allowing them to choose between precise, absolute sizing necessary for fixed design documents or relative scaling suitable for responsive graphical environments.

Achieving Precision with Numeric Font Sizes

To effectively demonstrate the functionality and impact of using numeric parameters, we will construct a straightforward scatterplot utilizing a synthetic dataset. This dummy data is created using Pandas and tracks hypothetical player statistics, which are categorically grouped by ‘team’. This categorical grouping enables Seaborn to automatically generate a corresponding legend, driven by the hue parameter used during the scatterplot function call. This method is the most common way to link data categories to visual attributes.

The necessary setup script begins by importing the essential libraries required for this task: Pandas for efficient data structure and manipulation, Seaborn for high-level statistical plotting, and crucially, Matplotlib‘s pyplot module, which is the necessary tool for explicit plot customization. After defining the DataFrame structure, we initiate the visualization using sns.scatterplot(). For enhanced clarity and readability, we apply sns.set_style('whitegrid'), which establishes a clean, non-distracting background environment for the statistical graphic.

The critical step in this process is the final invocation of the plt.legend() function. In this specific implementation, we are establishing a clear visual hierarchy using fixed numeric values: the label fontsize is set to 10 points, while the title_fontsize is explicitly set to a larger 14 points. This deliberate contrast ensures that the legend title is noticeably more prominent than the category labels, thereby improving the plot’s overall organizational clarity and structure. Using numeric values is optimal when precise adherence to a design specification (e.g., a style guide requiring 10pt text for labels) is mandatory.

The comprehensive example below illustrates the entire workflow: creating a scatterplot in Seaborn and then specifying the font size for both the category labels and the legend title using clear, explicit numeric values, demonstrating the highest level of dimensional control:

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
sns.set_style('whitegrid')

#create data
df = pd.DataFrame({'points': [25, 12, 15, 14, 19, 23, 25, 29],
                   'assists': [5, 7, 7, 9, 12, 9, 9, 4],
                   'team': ['A', 'A', 'A', 'A', 'B', 'B', 'B', 'B']})

#create scatterplot
sns.scatterplot(data=df, x='points', y='assists', hue='team')

#add legend
plt.legend(title='Team', fontsize='10', title_fontsize='14')

Visual Confirmation of Numeric Font Control

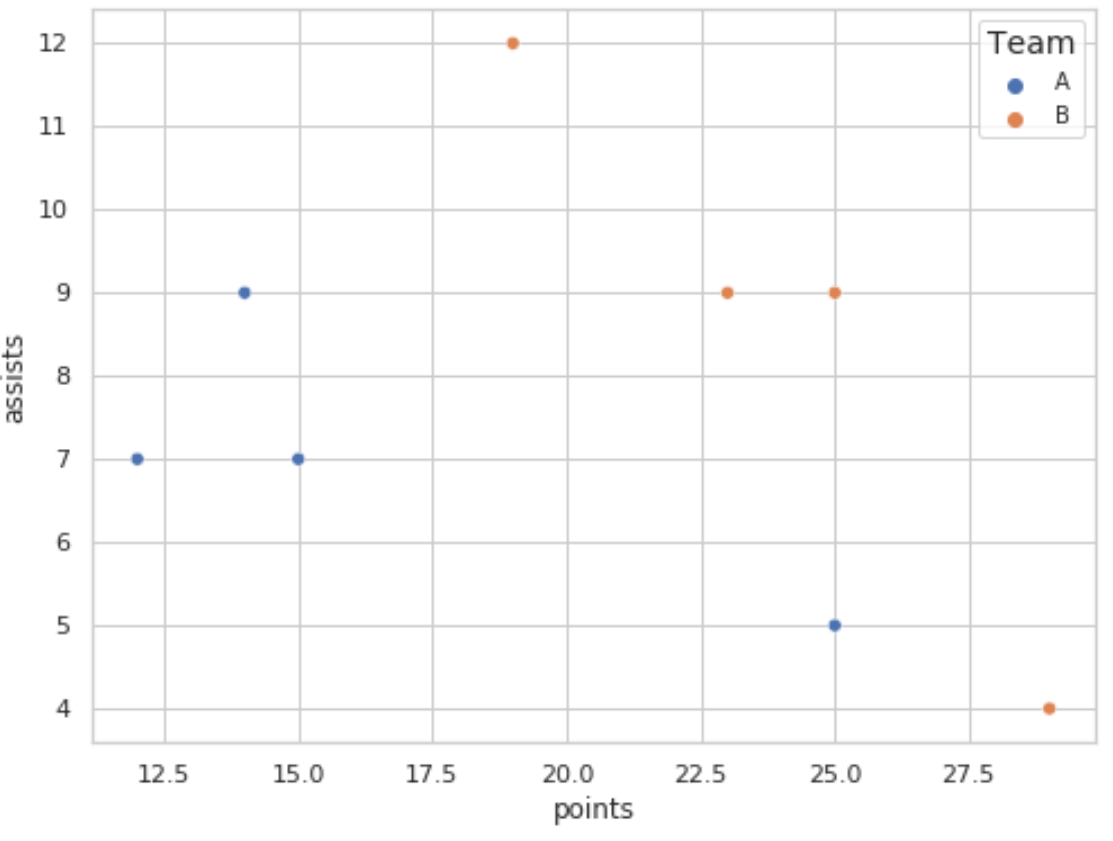

The resulting visualization provides immediate and clear evidence of the effectiveness of the specified numeric font sizes. Within the main plot area, the data points are distinctly separated by color, directly corresponding to the ‘team’ category as defined and labeled within the legend. This fundamental visual differentiation is essential for accurately interpreting the underlying relationship between variables, in this case, the interplay between points, assists, and the categorical team affiliation. The success of the visualization hinges on the clarity of this mapping provided by the legend.

As explicitly intended by the numeric settings, the legend title, designated as “Team” and set to 14 points, is visibly more prominent and structurally heavier than the individual team labels, which are set to 10 points. This intentional visual hierarchy ensures that viewers immediately understand the basis of the categorization without confusion. This level of meticulous, granular control is particularly vital when integrating Seaborn plots into larger, formally structured documents, academic papers, or corporate presentations where font consistency and adherence to predefined design standards must be rigorously maintained across all visual elements.

While the use of absolute numeric values offers the highest degree of precision, there are many practical situations where relying on relative scaling is a more advantageous and flexible approach. This is particularly true when the plot’s overall rendering context—such as the specific notebook environment or an underlying publication template—might dynamically alter the base font size. For these variable environments, the plt.legend() function is designed to support a predefined set of standard string descriptors that adjust the typography relative to the current default plot size, offering adaptability without sacrificing visual balance.

Flexible Styling: Utilizing Standard String Descriptors

Instead of employing the rigid requirement of hardcoded point sizes, the Matplotlib framework offers users the ability to define font sizes using a set of highly descriptive strings. This methodology introduces considerably greater flexibility, as these descriptive strings are universally interpreted relative to the established default font size of the current plotting environment. The primary advantage of this approach is its inherent ability to ensure that the legend remains proportionally balanced and visually harmonious even if the entire statistical graphic is scaled up or down during rendering or embedding.

The accepted set of string values spans a wide range, from ‘xx-small’ to ‘xx-large’, providing a standardized, quick method for adjusting the visual weight of the legend text without the need for time-consuming trial-and-error using specific point values. This feature is commonly employed when the aim is to achieve a general visual equilibrium and balance across the entire plot, rather than strictly adhering to a specific point-size requirement dictated by an external style guide. It allows the visualization to maintain its internal consistency regardless of external rendering factors.

The font size arguments, fontsize and title_fontsize, are capable of accepting the following standard string values, which facilitate relative scaling based on the plot’s current default settings:

• xx-small
• x-small
• small
• medium
• large
• x-large
• xx-large

By leveraging these relative strings, developers can ensure that if the entire plot is resized globally—for instance, by employing a Seaborn context manager like sns.set_context()—the legend elements will scale appropriately while meticulously preserving their intended visual hierarchy and relationship to one another. This practice is widely considered a best practice in the field of data visualization for producing highly responsive and adaptable statistical graphics suitable for various output formats.

Implementing Relative Scaling with String Values

To demonstrate the practical application of string descriptors, we will utilize the identical dataset and scatterplot definition established in the preceding numeric example. The only change required is the modification of the final plt.legend() function call to incorporate the descriptive string descriptors instead of the fixed numeric values, showcasing the flexibility of the Matplotlib API.

In this second, modified example, the strategic objective is to set the legend labels to a standard, readily legible size, which we define as 'medium'. Concurrently, we aim to make the legend title significantly more emphatic and visually dominant by setting its size to 'x-large'. This pronounced contrast between the label size and the title size serves to powerfully emphasize the categorical variable, thereby effectively demonstrating the practical utility of the string method for achieving clear visual differentiation and maximum impact with minimal effort. This approach is ideal for rapid prototyping and maintaining proportional relationships.

The complete example below demonstrates how to integrate these descriptive string arguments into the plotting workflow, applying them directly to the exact same Seaborn visualization structure:

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
sns.set_style('whitegrid')

#create fake data
df = pd.DataFrame({'points': [25, 12, 15, 14, 19, 23, 25, 29],
                   'assists': [5, 7, 7, 9, 12, 9, 9, 4],
                   'team': ['A', 'A', 'A', 'A', 'B', 'B', 'B', 'B']})

#create scatterplot
sns.scatterplot(data=df, x='points', y='assists', hue='team')

#add legend
plt.legend(title='Team', fontsize='medium', title_fontsize='x-large')

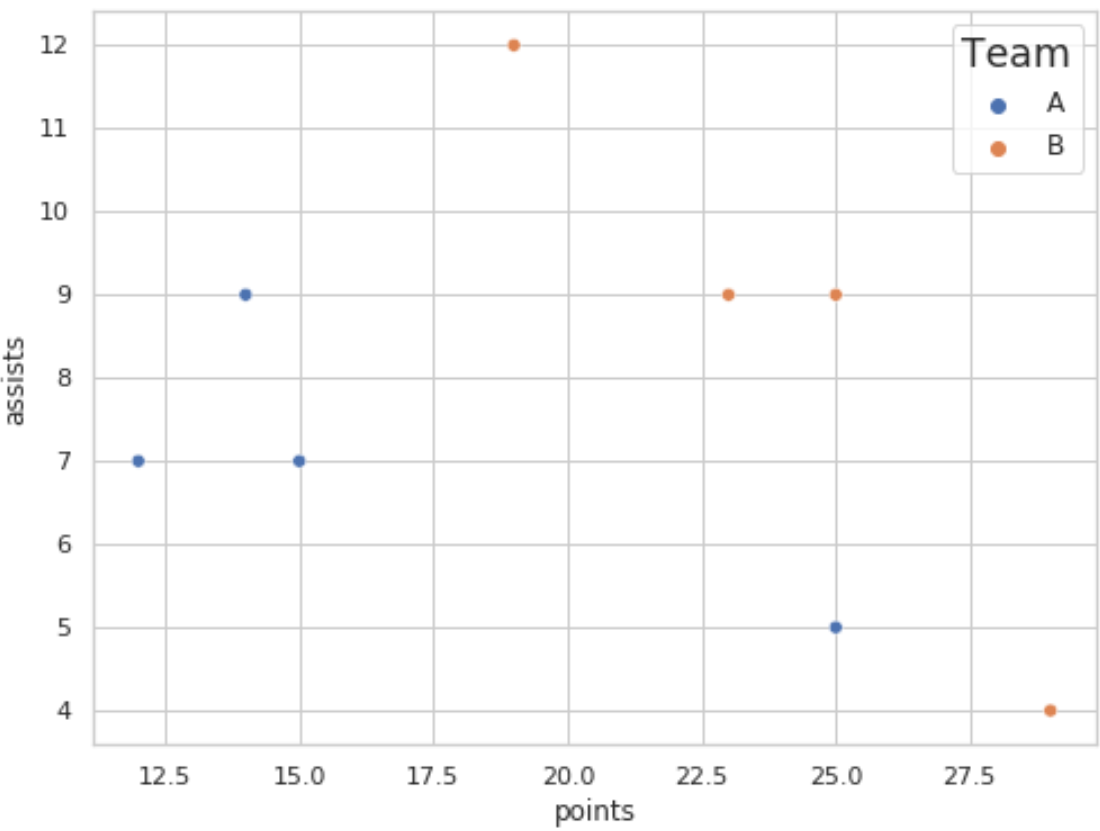

Upon observing the output image below, it is immediately apparent that the title font has increased substantially in proportion to the category labels, clearly demonstrating the flexible and powerful relative scaling mechanism provided by the string inputs. This aesthetic adjustment yields a visually compelling and well-balanced result where the crucial categorical variable is instantly recognizable and appropriately emphasized. This ensures that the primary encoding variable receives the necessary visual attention from the viewer.

Conclusion: Mastering Font Customization for Publication-Quality Plots

Customizing the font size within the legend of Seaborn visualizations is an essential and easily manageable process, accomplished effectively by leveraging the powerful capabilities of the underlying plt.legend() function. By strategically manipulating the fontsize and title_fontsize parameters—using either highly precise numeric values for absolute control or flexible string descriptors for relative scaling—data scientists and analysts can confidently ensure that their legends are always clear, professional, and perfectly balanced with all other elements of the statistical plot.

The creation of effective data visualization consistently demands meticulous attention to every aesthetic detail, and font sizing represents a key control mechanism that significantly enhances a viewer’s ability to quickly and accurately interpret the categorized data. Mastering this relatively simple customization technique is absolutely fundamental for producing publication-quality graphics that are both informative and aesthetically superior, ensuring that the visualization communicates its intended message without unnecessary visual friction.

For a complete and comprehensive understanding of all available customization options for legends, including advanced controls for placement, handle adjustments, border styles, and more, always consult the official Matplotlib documentation for the plt.legend() function. This documentation remains the most authoritative source for fine-tuning your graphical output.
