Learning Guide: How to Change Legend Position in Seaborn Plots

Introduction to Legend Management in Data Visualization

When constructing compelling data visualizations, the effective placement of the legend is crucial for ensuring clarity and readability. The popular Python visualization library, Seaborn, relies heavily on its foundational dependency, Matplotlib, for managing fine-grained plot elements. Specifically, we utilize the matplotlib.pyplot module, typically imported as plt, to gain granular control over the plot components, including the legend’s precise location.

The legend acts as a key for mapping visual encodings (like color or shape) back to the underlying data categories. If the legend obstructs the visual data, the entire plot loses efficacy and the user’s ability to interpret the results is hindered. Therefore, understanding how to override the default placement is a necessary skill for any data scientist or analyst utilizing these powerful tools.

To achieve precise control over where the legend appears on your visualization, you interact directly with the plt.legend() function. This function accepts several key parameters that allow users to dictate the exact position, overriding the library’s automatic placement heuristics and optimizing the display for maximum visual impact and data interpretation.

Internal Legend Placement using the `loc` Parameter

The most straightforward and commonly used technique for adjusting the legend’s location inside the plotting area is through the loc argument within the plt.legend() function. This argument accepts specific string keywords or integer codes that define the legend’s anchoring point relative to the axes boundaries.

By default, the loc parameter is set to “best”. In this default configuration, Matplotlib intelligently attempts to calculate the optimal position that results in the least amount of overlap with the plotted data points, ensuring minimal visual conflict. While this automatic placement is often convenient, it can sometimes be unpredictable, especially with dense scatterplots or complex data distributions, necessitating manual intervention.

For guaranteed placement, developers should specify an exact location using one of the predefined string values. This ensures that the legend will be anchored at that specific corner or edge within the plot boundaries, providing consistency across different renderings. For example, to ensure the legend resides in the top right quadrant of the figure, you would use the following simplified syntax:

plt.legend(loc='upper right')

Standard Internal Location Options

The loc parameter provides ten standard string options for positioning the legend strictly within the confines of the plot area. These options correspond to the corners, edges, and center of the axes. Choosing the correct string determines where the legend box itself is anchored, relative to the coordinates of the plot.

It is important to note that these settings are relative to the bounding box of the axes itself. Using these standard strings offers quick, intuitive control over positioning when the visual data allows for internal placement without compromising clarity or obstructing critical data points.

A full list of the available string values recognized by the loc parameter for defining the legend’s position inside the plot boundaries includes:

• upper right: Anchors the legend to the top-right corner.
• upper left: Anchors the legend to the top-left corner.
• lower left: Anchors the legend to the bottom-left corner.
• lower right: Anchors the legend to the bottom-right corner.
• right: Centers the legend vertically along the right edge.
• center left: Centers the legend vertically along the left edge.
• center right: Centers the legend vertically along the right edge.
• lower center: Centers the legend horizontally along the bottom edge.
• upper center: Centers the legend horizontally along the top edge.
• center: Places the legend box directly in the middle of the plot.

Advanced External Positioning with `bbox_to_anchor()`

When data density demands that the visualization area remains unobstructed, or when the legend is simply too large for internal placement, shifting the legend to an external position is necessary. For this advanced maneuver, we must utilize the bbox_to_anchor() argument alongside the loc parameter. This combination allows for extremely precise placement relative to the axes’ bounding box, facilitating external positioning within the figure canvas.

The bbox_to_anchor() argument accepts a tuple of coordinates, typically (x, y), which are normalized to the axes. This means that (0, 0) represents the lower-left corner of the axes, and (1, 1) represents the upper-right corner. By setting coordinates outside this [0, 1] range (i.e., x > 1 or y < 0), we effectively move the legend outside the visualization frame and into the surrounding margin.

Understanding the relationship between bbox_to_anchor() and loc is critical for external placement. While bbox_to_anchor() defines a specific anchor point (x, y) on the canvas, the loc parameter dictates which corner of the legend box will be aligned with that anchor point. For instance, if you set bbox_to_anchor=(1.05, 1) and loc=’upper left’, you are instructing Matplotlib to place the upper-left corner of the legend box at the normalized position (1.05, 1), pushing the legend slightly to the right of the plot’s top boundary.

A common usage pattern involves placing the legend just outside the top right corner of the plot, requiring precise coordinate tuning as shown here:

plt.legend(bbox_to_anchor=(1.05, 1), loc='upper left', borderaxespad=0)

Practical Example 1: Adjusting Internal Legend Location

This first practical demonstration illustrates the use of the loc parameter to strategically place the legend within the bounds of a Seaborn scatterplot. We begin by importing the required libraries—pandas for data handling, Seaborn for plotting, and matplotlib.pyplot for control—and setting up a small DataFrame for visualization.

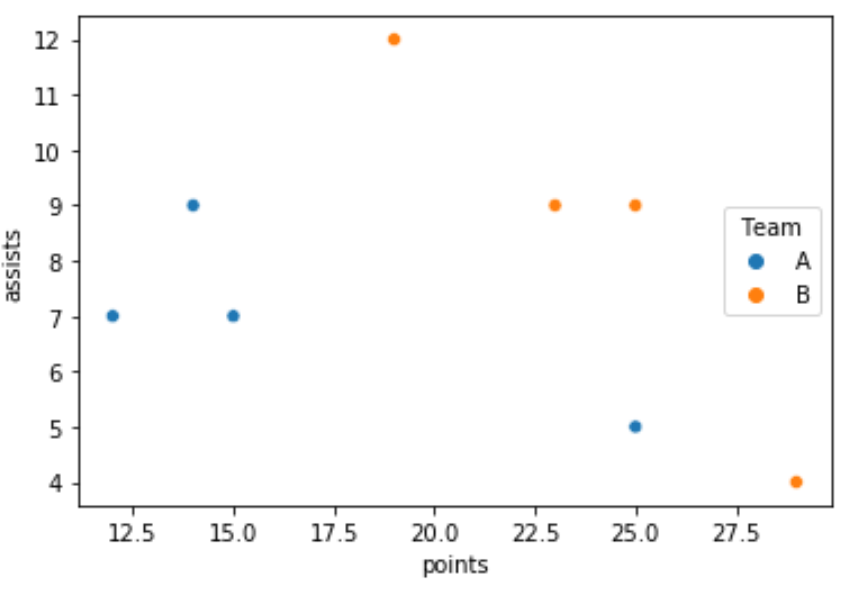

The following code snippet generates a scatterplot, differentiating points based on the ‘team’ column using the hue parameter. Crucially, we use plt.legend() with loc=’center right’. This ensures the legend is positioned vertically centered along the right edge, avoiding obstruction of the primary data clusters near the origin. We also apply the title argument to clearly label the categories.

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

#create fake data
df = pd.DataFrame({'points': [25, 12, 15, 14, 19, 23, 25, 29],
                   'assists': [5, 7, 7, 9, 12, 9, 9, 4],
                   'team': ['A', 'A', 'A', 'A', 'B', 'B', 'B', 'B']})

#create scatterplot
sns.scatterplot(data=df, x='points', y='assists', hue='team')

#place legend in center right of plot
plt.legend(loc='center right', title='Team')

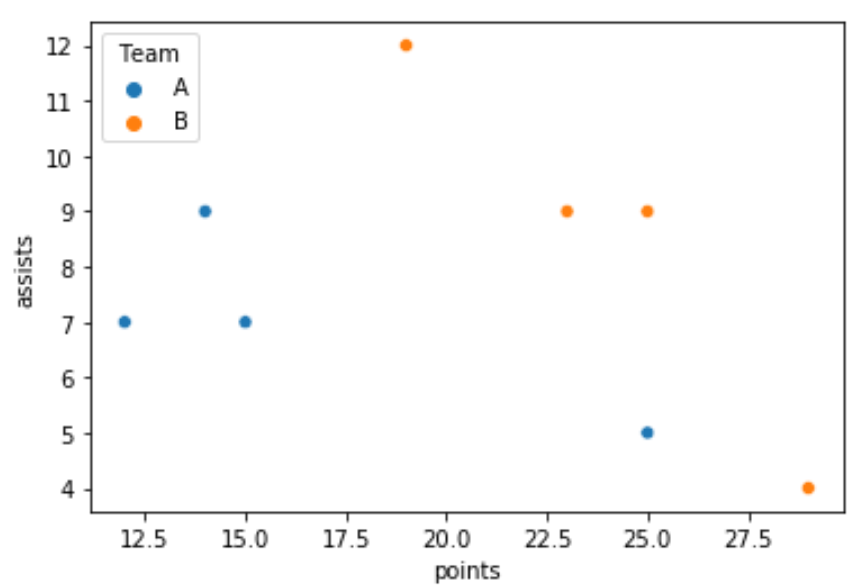

If the data distribution requires the legend to be repositioned to a different quadrant, the change is instantaneous. Here, we adjust the loc argument to ‘upper left’. This simple modification moves the legend to the top-left corner, demonstrating the essential flexibility of the loc parameter for quick internal adjustments based on data flow and visual hierarchy.

#create scatterplot
sns.scatterplot(data=df, x='points', y='assists', hue='team')

#place legend in upper left of plot
plt.legend(loc='upper left', title='Team')

Practical Example 2: Moving the Legend Outside the Plot Area

When creating dense visualizations, placing the legend outside the plot area is often the best practice to prevent data obfuscation. This requires utilizing the bbox_to_anchor() method, which provides precise control over the legend’s external coordinates relative to the plot axes. We will reuse the same sample dataset as the previous example to demonstrate external placement in the margin.

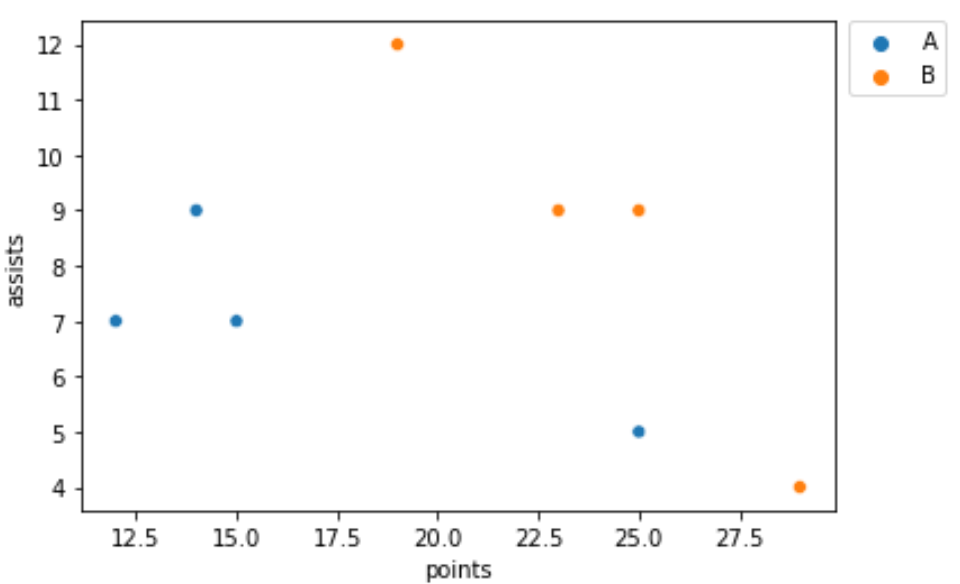

To place the legend just outside the top right corner, we define the anchor point at (1.02, 1). The X coordinate (1.02) pushes the anchor point slightly past the right edge (X=1), while the Y coordinate (1) places it exactly at the top edge. We pair this coordinate with loc=’upper left’, which means the upper-left corner of the legend box will align with (1.02, 1). This combination correctly forces the entire legend box to appear in the margin, adjacent to the top right corner.

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

#create fake data
df = pd.DataFrame({'points': [25, 12, 15, 14, 19, 23, 25, 29],
                   'assists': [5, 7, 7, 9, 12, 9, 9, 4],
                   'team': ['A', 'A', 'A', 'A', 'B', 'B', 'B', 'B']})

#create scatterplot
sns.scatterplot(data=df, x='points', y='assists', hue='team')

#place legend outside top right corner of plot
plt.legend(bbox_to_anchor=(1.02, 1), loc='upper left', borderaxespad=0)

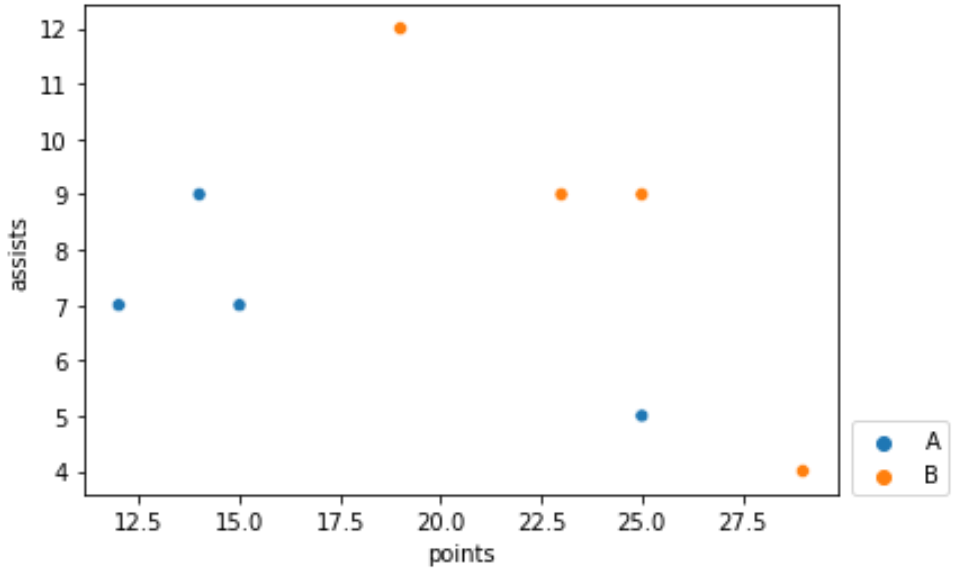

Alternatively, if we wish to position the legend outside the bottom right corner, we must adjust the Y coordinate to a low value (e.g., 0.15) while keeping the X coordinate slightly greater than 1. This time, setting loc=’upper left’ ensures the legend box extends upwards from this low anchor point, effectively placing the legend in the lower portion of the right margin.

#create scatterplot
sns.scatterplot(data=df, x='points', y='assists', hue='team')

#place legend outside bottom right corner of plot
plt.legend(bbox_to_anchor=(1.02, 0.15), loc='upper left', borderaxespad=0)

Conclusion and Further Customization

Mastering the positioning of the legend is a fundamental step in creating professional and informative data visualizations using Seaborn and Matplotlib. Whether you opt for the simplicity of the loc string arguments for internal placement, relying on the plot’s structure, or require the granular coordinate control offered by bbox_to_anchor() for external positioning, these tools provide the necessary flexibility to enhance the clarity of your plots.

For developers seeking a deeper understanding of coordinate systems, precise bounding box manipulation, and other complex rendering features, consulting the official Matplotlib documentation regarding the relationship between the legend and the axes is highly recommended. Achieving pixel-perfect placement requires familiarity with these underlying graphical concepts and diligent experimentation with normalized coordinates.

To explore further customization options beyond placement, such as styling or sizing, consider the following related resources:

How to Change Legend Font Size in a Seaborn Plot
