Add a Trendline in Matplotlib (With Example)

Introduction to Trendlines in Data Visualization

Data visualization serves as the cornerstone for deciphering complex information and extracting meaningful insights from raw datasets. Among the essential tools in this domain, Matplotlib stands out as the foundational library in Python, enabling the creation of high-quality static, animated, and interactive graphics. A crucial technique for exploring relationships within this data is the addition of a trendline to a scatterplot.

A trendline, often referred to as a line of best fit, is a graphical representation designed to illustrate the general direction, or trend, of the data points. By calculating and plotting this line, analysts can immediately reveal underlying relationships and patterns—such as correlation, growth, or decay—that might be obscured by individual data point noise. This visual summary is indispensable, whether you are analyzing financial market performance, scientific experimental outcomes, or macro-economic indicators.

Understanding the correlation between variables is paramount for making informed decisions. The trendline simplifies this process, making it immediately clear whether variables exhibit a positive correlation (increasing), a negative correlation (decreasing), or a more complex, non-linear pattern. This article will provide a comprehensive, step-by-step guide to generating both linear and polynomial trendlines within your Matplotlib plots, significantly enhancing your data modeling and analytical capabilities.

Understanding the Core Matplotlib Trendline Syntax

Generating an accurate trendline in Matplotlib requires a close partnership with the NumPy library, which handles the necessary mathematical computations. The overall strategy involves three distinct phases: first, visualizing the raw data using a scatterplot; second, calculating the coefficients of the line of best fit; and finally, plotting this derived line directly over the scatterplot. This integrated approach offers exceptional flexibility, allowing you to model relationships ranging from simple linear correlations to intricate polynomial curves.

The mathematical backbone of this process relies on two powerful NumPy functions. The first is numpy.polyfit(), which computes the coefficients of the best-fit polynomial using a least squares approach. This function takes three primary arguments: the x-data array, the y-data array, and the degree of the polynomial. The degree parameter is critical; setting it to 1 results in a simple linear fit, while setting it to 2 or higher yields a quadratic or higher-order polynomial fit, respectively.

Once the coefficients are determined by numpy.polyfit(), the second function, numpy.poly1d(), is utilized. This function constructs a one-dimensional polynomial class from the calculated coefficients. The resulting polynomial object can then be treated as a callable function, making it trivial to input the original x values and generate the corresponding predicted y values for the trendline. The final line is then rendered using Matplotlib’s primary plotting function, plt.plot(), seamlessly overlaying the model onto the data.

The foundational code snippet below encapsulates this elegant combination of NumPy’s numerical strength and Matplotlib’s visual presentation capabilities, forming a robust framework for all your trend analysis needs:

#create scatterplot
plt.scatter(x, y)

#calculate equation for trendline (degree 1 for linear fit)
z = np.polyfit(x, y, 1)
p = np.poly1d(z)

#add trendline to plot
plt.plot(x, p(x))

Step-by-Step: Creating a Linear Trendline

The most straightforward approach to trend analysis is employing a linear trendline. This straight line represents the best linear fit for the data, making it ideal when a direct, proportional relationship is hypothesized between the independent (x) and dependent (y) variables. This section guides you through the practical steps of generating a sample dataset, plotting the initial scatterplot, and accurately overlaying the linear trendline.

To begin any data visualization task, we must first import the necessary modules: NumPy for efficient numerical computation and matplotlib.pyplot for plotting routines. We then define our sample data arrays using np.array(). Once the data is loaded, the command plt.scatter(x, y) produces the initial visualization, allowing for a preliminary, crucial visual inspection of the data distribution before the modeling process begins.

The core of fitting the linear model resides in calling np.polyfit(x, y, 1). Crucially, the third argument, 1, dictates that the function must fit a first-degree polynomial, aligning with the standard linear equation form (y = mx + b). The calculated coefficients, stored in z, are subsequently transformed into a callable function p using np.poly1d(z). Finally, the fitted line is drawn using plt.plot(x, p(x)), mapping the original x values to the predicted y values of the line of best fit.

Below is the complete, executable code demonstrating the creation of a basic linear trendline:

import numpy as np
import matplotlib.pyplot as plt

#define data
x = np.array([8, 13, 14, 15, 15, 20, 25, 30, 38, 40])
y = np.array([5, 4, 18, 14, 20, 24, 28, 33, 30, 37])

#create scatterplot
plt.scatter(x, y)

#calculate equation for linear trendline (degree 1)
z = np.polyfit(x, y, 1)
p = np.poly1d(z)

#add trendline to plot
plt.plot(x, p(x))

The resulting visualization clearly displays the individual data points as blue dots. More importantly, the prominent straight blue line cutting across these points represents the calculated linear trendline. This line serves as an immediate, clear visual indication of the general upward momentum in the data, strongly suggesting a positive correlation between the x and y variables. Such plots are invaluable for rapidly and accurately discerning the underlying direction and strength of relationships within any dataset.

Customizing Your Trendline’s Appearance for Clarity

While a standard trendline is effective at conveying the general data direction, the presentation of your visualization can be significantly improved through thoughtful customization. Matplotlib provides extensive control over visual elements, offering a variety of arguments within the plt.plot() function that allow modification of the line’s properties, including color, linewidth, and linestyle. These options are crucial for ensuring the trendline is visually distinct, easily traceable, and compliant with specific branding or complex multi-line presentation requirements.

Effective customization ensures your trendline stands out, particularly against a dense background of scatter points or other plotted series. The color argument is highly versatile, accepting standard color names (e.g., “red”, “green”) or precise hexadecimal color codes. To control the prominence of the line, the linewidth argument can be adjusted, with larger integer values producing a thicker, more noticeable line. Furthermore, the linestyle argument allows for the use of patterns such as dashed lines (“–“), dotted lines (“:”), or dash-dot lines (“-.”), which are extremely useful for distinguishing between different fitted models on a single chart.

Incorporating these visual enhancements is remarkably simple. By merely appending parameters such as color="purple", linewidth=3, and linestyle="--" to your existing plt.plot() call, you can dramatically improve the clarity and professional polish of your visualization. This fine-grained control guarantees that your results are not only analytically sound but also highly effective in communicating complex analytical insights to any audience.

#add custom trendline to plot
plt.plot(x, p(x), color="purple", linewidth=3, linestyle="--")

As demonstrated in the updated output, the trendline has been successfully transformed into a bold, purple dashed line. This level of customization ensures maximum visual distinction, immediately drawing the viewer’s eye to the overall pattern and trajectory within the data. Thoughtful styling such as this significantly enhances the readability and overall impact of sophisticated data visualizations.

Implementing Polynomial Trendlines for Non-Linear Relationships

In reality, many natural and commercial phenomena do not follow a simple linear path. Data often exhibits curvilinear motion, indicating a more complex, non-linear relationship between variables. In these scenarios, a polynomial trendline becomes essential, offering a far more accurate fit than its linear counterpart. NumPy‘s versatile np.polyfit() function is perfectly suited for this task, allowing users to easily modify the polynomial degree to model diverse non-linear patterns.

The transition from a linear trendline to a polynomial one requires only a slight, but significant, adjustment to the degree argument within the np.polyfit() call. While a degree of 1 defines linearity, increasing this value enables the fitting of higher-order polynomials. For example, a degree of 2 will fit a quadratic trendline (y = ax² + bx + c), resulting in a parabolic curve, while a degree of 3 models a cubic relationship. The appropriate choice of degree must be guided by both a visual inspection of the data and a theoretical understanding of the relationship being modeled.

To illustrate, generating a quadratic fit for the same dataset involves changing the third argument of np.polyfit() from 1 to 2. The subsequent steps—using np.poly1d() to construct the callable polynomial function p and then plotting the result with plt.plot()—remain identical. This simplicity highlights the power of the NumPy and Matplotlib ecosystem in adapting seamlessly to various data modeling demands.

import numpy as np
import matplotlib.pyplot as plt

#define data
x = np.array([8, 13, 14, 15, 15, 20, 25, 30, 38, 40])
y = np.array([5, 4, 18, 14, 20, 24, 28, 33, 30, 37])

#create scatterplot
plt.scatter(x, y)

#calculate equation for quadratic trendline (degree 2)
z = np.polyfit(x, y, 2)
p = np.poly1d(z)

#add trendline to plot
plt.plot(x, p(x))

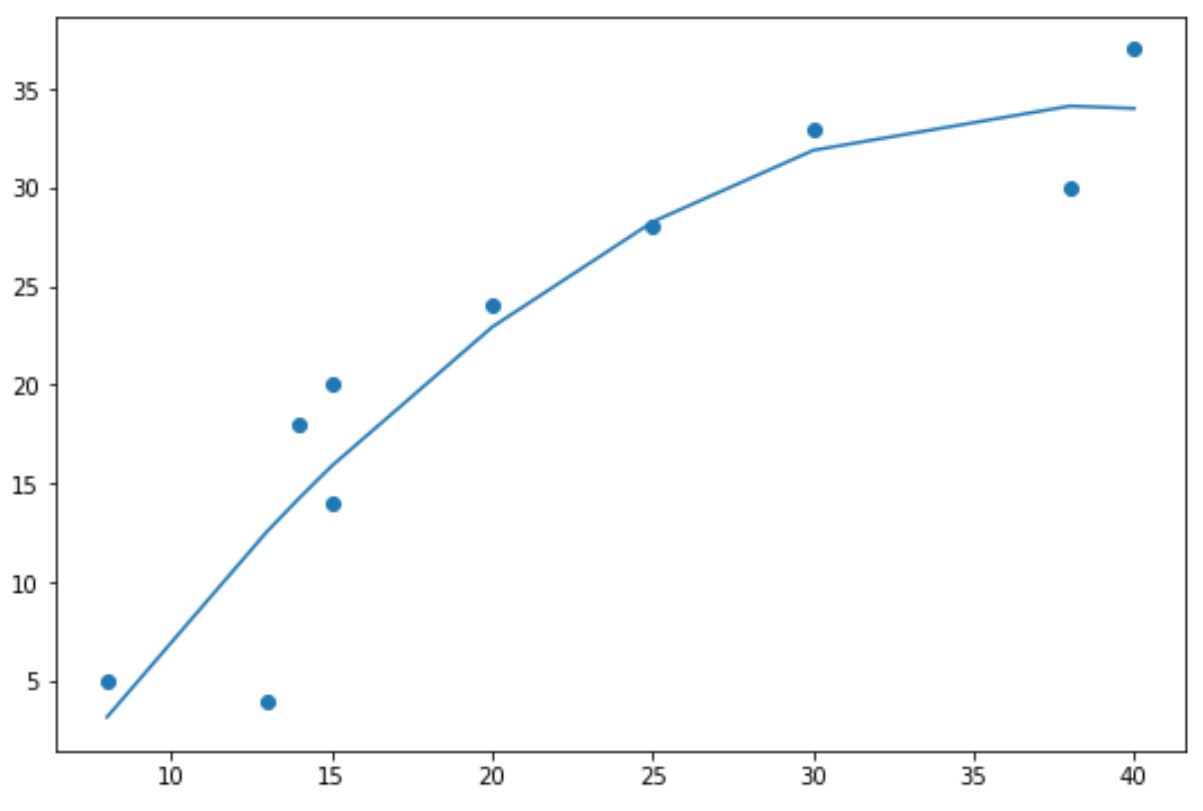

The plot above immediately reveals the curved nature of the resulting trendline. This curvilinear path accurately represents the quadratic trendline, which provides a demonstrably better fit for data exhibiting non-linear behavior. Such visualizations are crucial for identifying nuanced patterns that would be missed by a simple linear model, leading to a much deeper and more accurate understanding of the underlying data dynamics.

Choosing the Right Trendline: Balancing Fit and Complexity

The decision between a linear and a polynomial trendline is perhaps the most significant choice in data visualization and analysis. This selection must be driven by the inherent nature of the relationship you observe or hypothesize between your variables. A linear trendline is the preferred option when data points suggest a constant rate of change, following a relatively straight trajectory. Its simplicity, ease of interpretation, and natural resistance to overfitting make it the ideal baseline for most datasets.

Conversely, if your scatterplot clearly indicates a curve, inflection points, or a pattern where the direction changes, a polynomial trendline is necessary. Examples include ecological growth curves, chemical decay rates, or the physics of a projectile trajectory—all of which are inherently non-linear. The analyst should always start with a visual assessment of the scatterplot and consider the theoretical context of the variables to inform the initial model choice.

While polynomial trendlines offer the flexibility to capture complex patterns, they introduce a significant risk: overfitting. Overfitting occurs when a model is so closely tuned to the specific sample data that it begins to capture random noise and anomalies rather than the true underlying signal. A polynomial of a very high degree (e.g., degree 5 or higher) might pass perfectly through every point in your existing dataset, but it will likely fail dramatically when attempting to predict outcomes for new, unseen data. Consequently, the best practice is to select the lowest possible degree polynomial that adequately and robustly captures the essential trend without introducing excessive complexity. Rigorous evaluation tools, such as R-squared metrics and cross-validation techniques, should be used to scientifically validate the model fit beyond simple visual confirmation.

Conclusion and Further Exploration

Mastering the technique of adding trendlines to Matplotlib plots is a fundamental requirement for anyone engaged in data analysis or scientific research. As demonstrated, both linear and polynomial trendlines are efficiently generated through the combined power of NumPy‘s polyfit() and poly1d() functions, and visualized using Matplotlib’s robust plt.plot(). Furthermore, the ability to fully customize the appearance of these lines ensures your visualizations are not only informative but also highly professional and impactful.

By integrating these practical techniques into your workflow, you gain the ability to uncover deeper insights into variable relationships, facilitating better decision-making and clearer communication of complex findings. Always remember the critical balance: choose the simplest model that accurately represents the data, thereby mitigating the substantial risk of overfitting, especially when working with polynomial degrees. We strongly encourage you to practice these methods with diverse datasets and explore the full range of customization options to solidify and refine your data visualization expertise.

The capabilities of Matplotlib and the realm of data visualization extend far beyond the scope of simple trendlines. Continuing your exploration of this library will unlock even more advanced and powerful ways to represent, analyze, and communicate your data findings effectively.
