Add Multiple Trendlines to Chart in Google Sheets

In the realm of data analysis, visualizing trends is paramount for informed decision-making. While a single trendline can offer initial insights into one primary data series, comparing multiple datasets simultaneously requires a more sophisticated analytical approach. This comprehensive guide will walk you through the precise process of adding multiple trendlines to a single chart within Google Sheets, enabling complex comparative visualization.

This capability is particularly useful for sophisticated business intelligence tasks, such as comparing the performance trajectories of different products over time, analyzing various market segments simultaneously, or rigorously evaluating the differential impact of distinct strategies on key performance indicators. By overlaying distinct trendlines, users can easily discern subtle patterns, identify crucial correlations, and project future outcomes for each individual data set, all consolidated within one powerful visualization tool, leading to data-driven decisions.

Follow this detailed, step-by-step tutorial to master the creation of dynamic and insightful charts featuring multiple trendlines. This mastery will significantly enhance your ability to interpret complex data, transforming raw numbers into actionable business intelligence within the Google Sheets environment, thereby elevating your overall analytical proficiency.

Step 1: Preparing Your Data for Analysis

The foundational step in constructing any meaningful visualization is the meticulous organization of your source data. For demonstrative purposes in this guide, we will simulate a practical scenario involving the total sales figures recorded over several consecutive years for two distinct entities: Product A and Product B. This specific columnar structure is chosen because it inherently allows us to easily observe, differentiate, and compare their individual sales trajectories against a shared timeline, making the subsequent trend analysis straightforward.

Begin by accurately entering your raw data into a new or existing Google Sheets spreadsheet. It is highly recommended to arrange the data in a standardized columnar format: the time variable (e.g., years or months) should occupy the first column, followed by the corresponding metric (sales) for each distinct product in separate, adjacent columns. This format is crucial for optimal chart creation, as each product’s metric will naturally form its own independent data series within the resulting visualization.

Specifically, you should assign column A for ‘Year’, column B for ‘Product A Sales’, and column C for ‘Product B Sales’, mirroring the structure illustrated in the visual aid below. Always ensure that your column headers are exceptionally clear and descriptive, as these labels will be automatically utilized by Google Sheets to populate the chart legend, aiding immediate and accurate interpretation of the displayed trends.

Step 2: Crafting Your Chart for Visual Insight

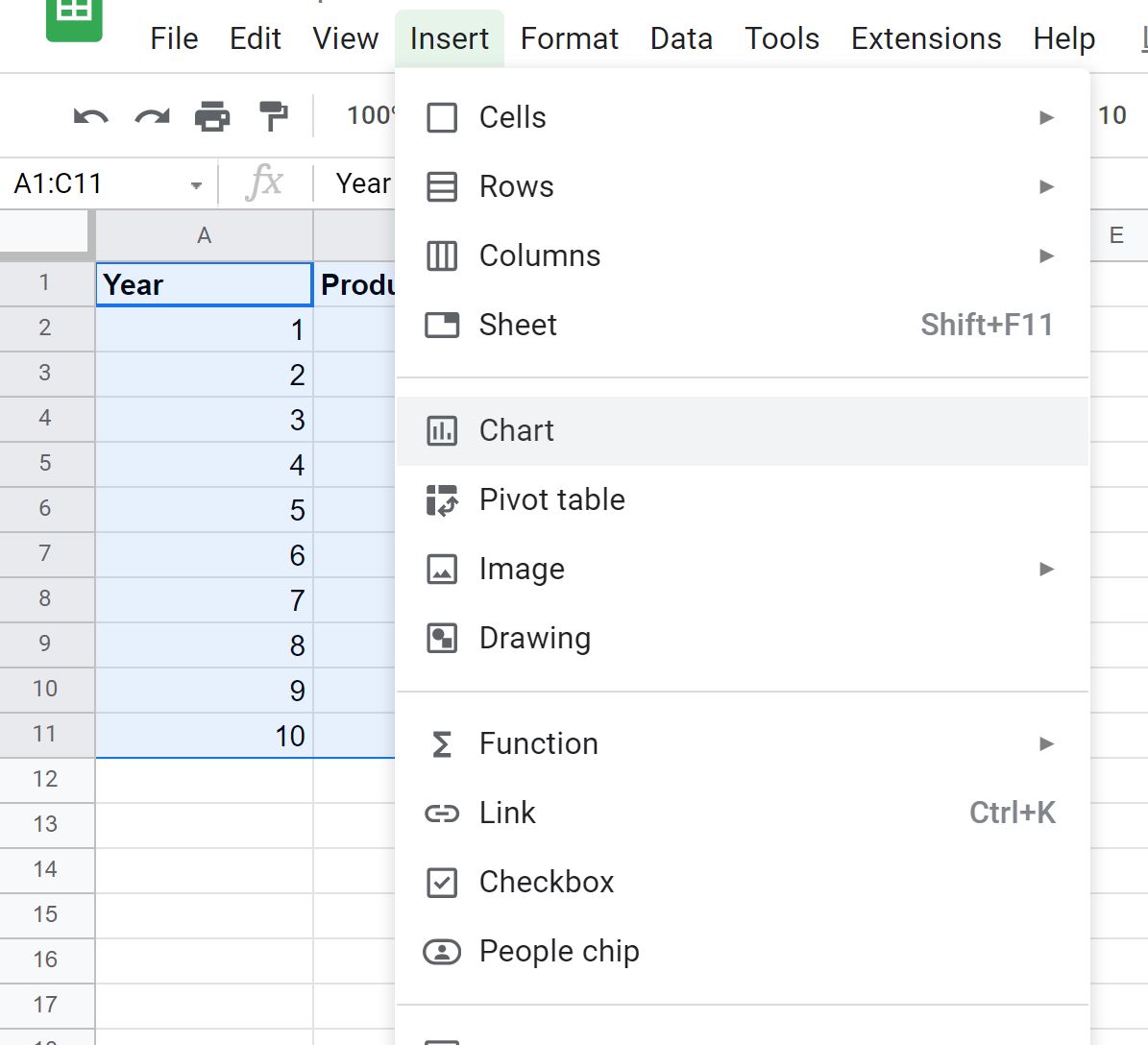

With your analytical data meticulously organized in the spreadsheet, the next critical phase involves transitioning these raw numerical inputs into a visually compelling and interpretable graphical representation. To initiate the chart creation process, you must first select the entire relevant range of your data, including all necessary column headers. In our example scenario, this complete selection would typically span the range A1:C11. After the selection is confirmed, navigate to the Insert tab located in the Google Sheets main menu, and then execute the command by clicking on Chart.

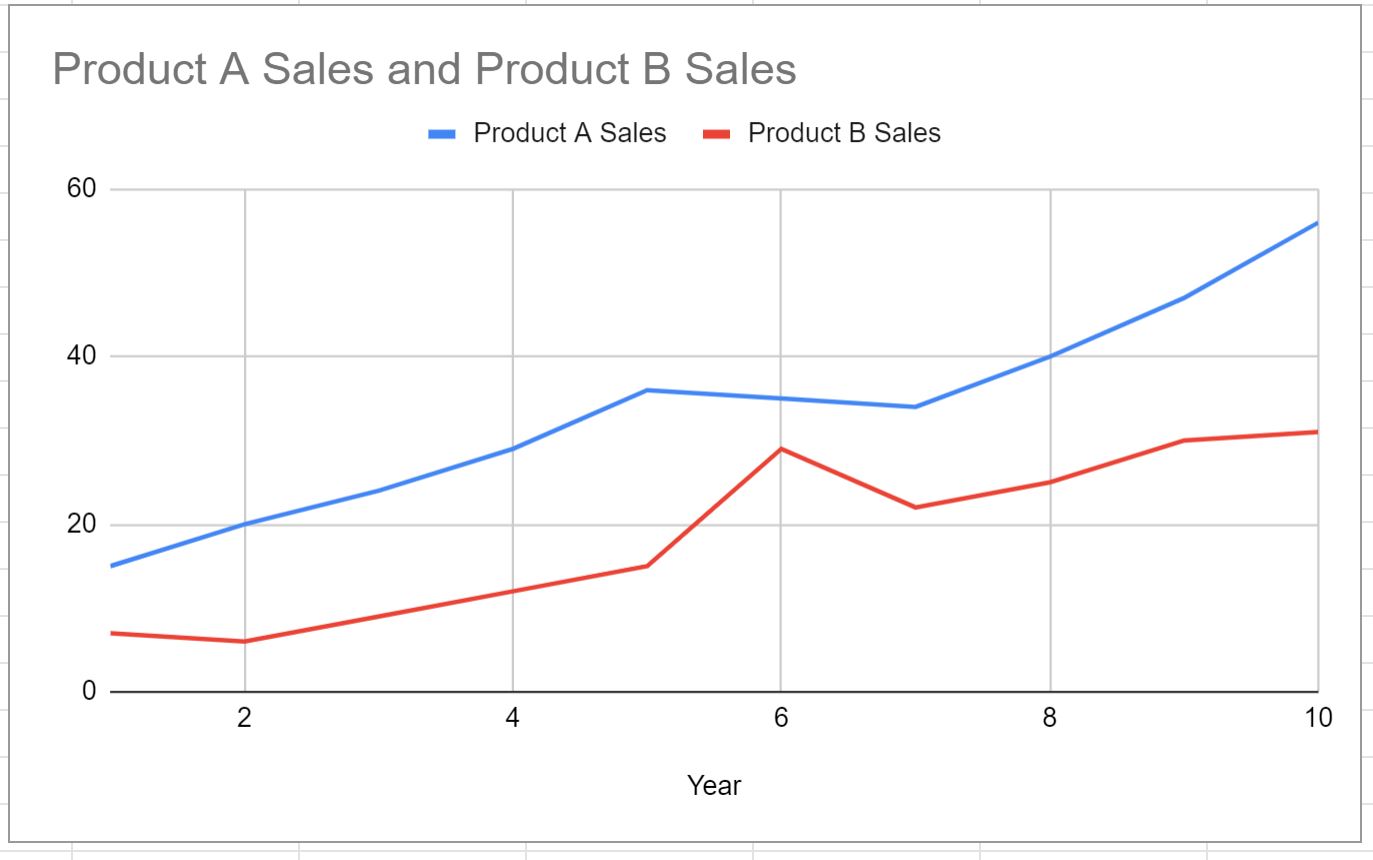

Upon executing the “Chart” command, Google Sheets frequently defaults to inserting a standard line chart. While line charts are generally effective for illustrating continuous trends, for the specific purpose of accurately adding individual trendlines and performing detailed statistical regression analysis on discrete data points, a scatter chart (also commonly referred to as a scatterplot) is typically a more robust and visually superior choice for this application, as it clearly separates the data points.

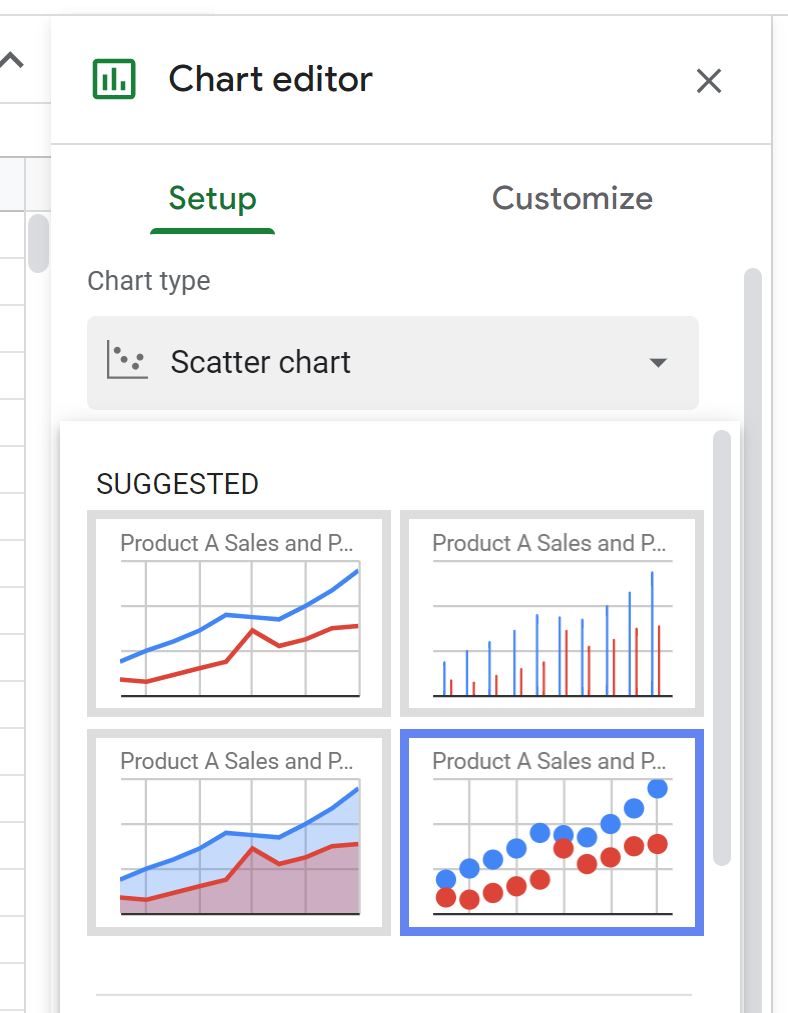

To promptly convert the default line chart into the preferred scatter chart format, you must access the Chart editor configuration panel, which automatically appears anchored on the right side of your screen upon chart insertion. Within this essential panel, navigate directly to the Setup tab. Under the “Chart type” configuration option, select Scatter chart from the comprehensive dropdown menu. This mandatory action will instantly update your visualization, shifting the display from connected lines to discrete, individual data points, which is the ideal presentation for calculating multiple trendlines.

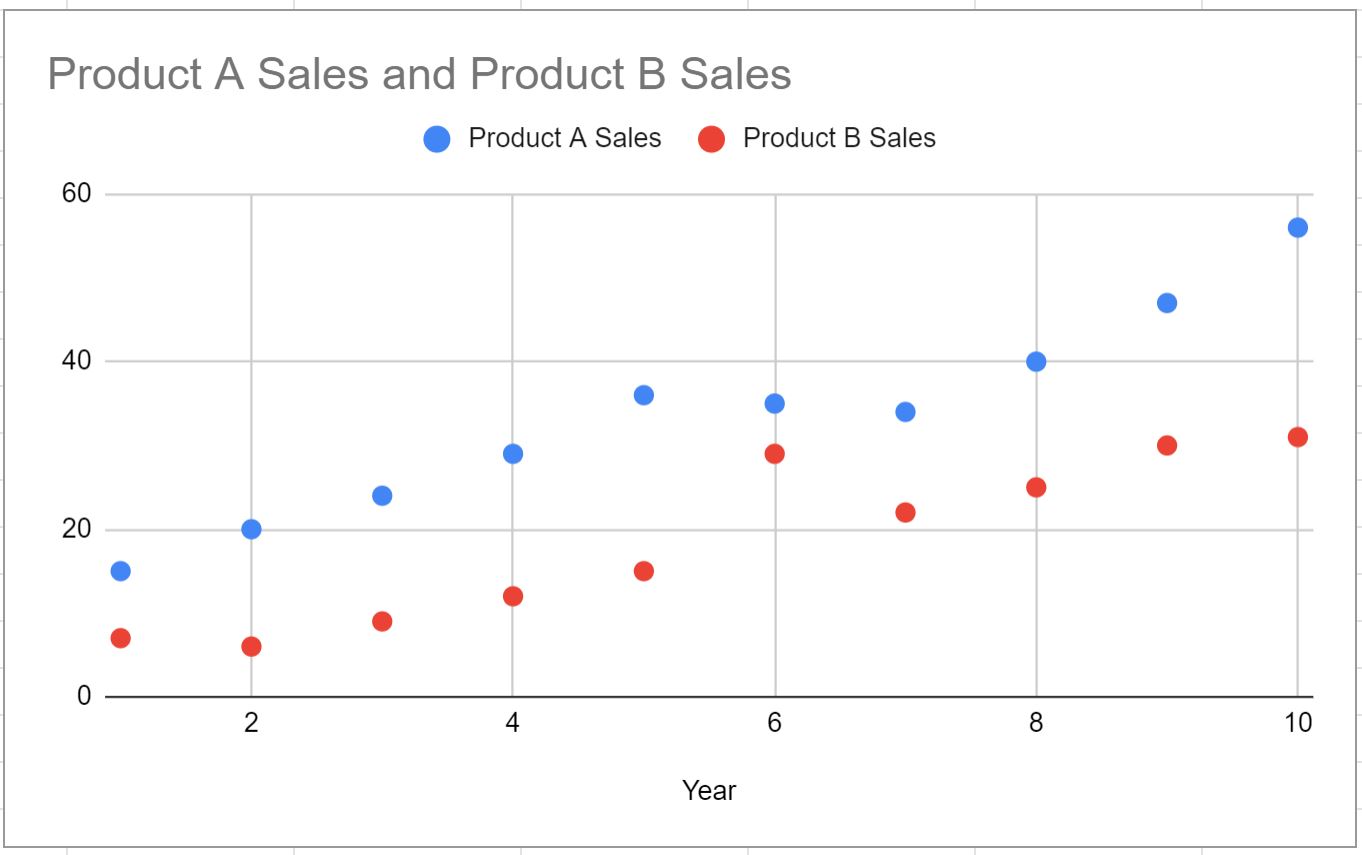

Once the scatter chart type has been successfully applied, your visualization will transform, clearly presenting the sales data for both Product A and Product B as distinct, plotted points against the corresponding years on the X-axis. Conventionally, the blue data points will represent the historical sales data for Product A, while the contrasting color, often red, will illustrate the sales performance trajectory for Product B across the observation period. This clear graphical differentiation establishes the perfect groundwork for the subsequent step: adding specific trendlines to analyze each product’s long-term sales trajectory.

Step 3: Implementing Multiple Trendlines

With your scatter chart now correctly prepared, the central objective is to integrate separate trendlines for each of your distinct data series. This crucial analytical process is managed efficiently and independently for each series within the Chart editor panel, which should remain accessible on the right side of your interface. We will first focus on establishing the analytical trendline specifically for Product A, which is represented by the blue data points in our current visualization.

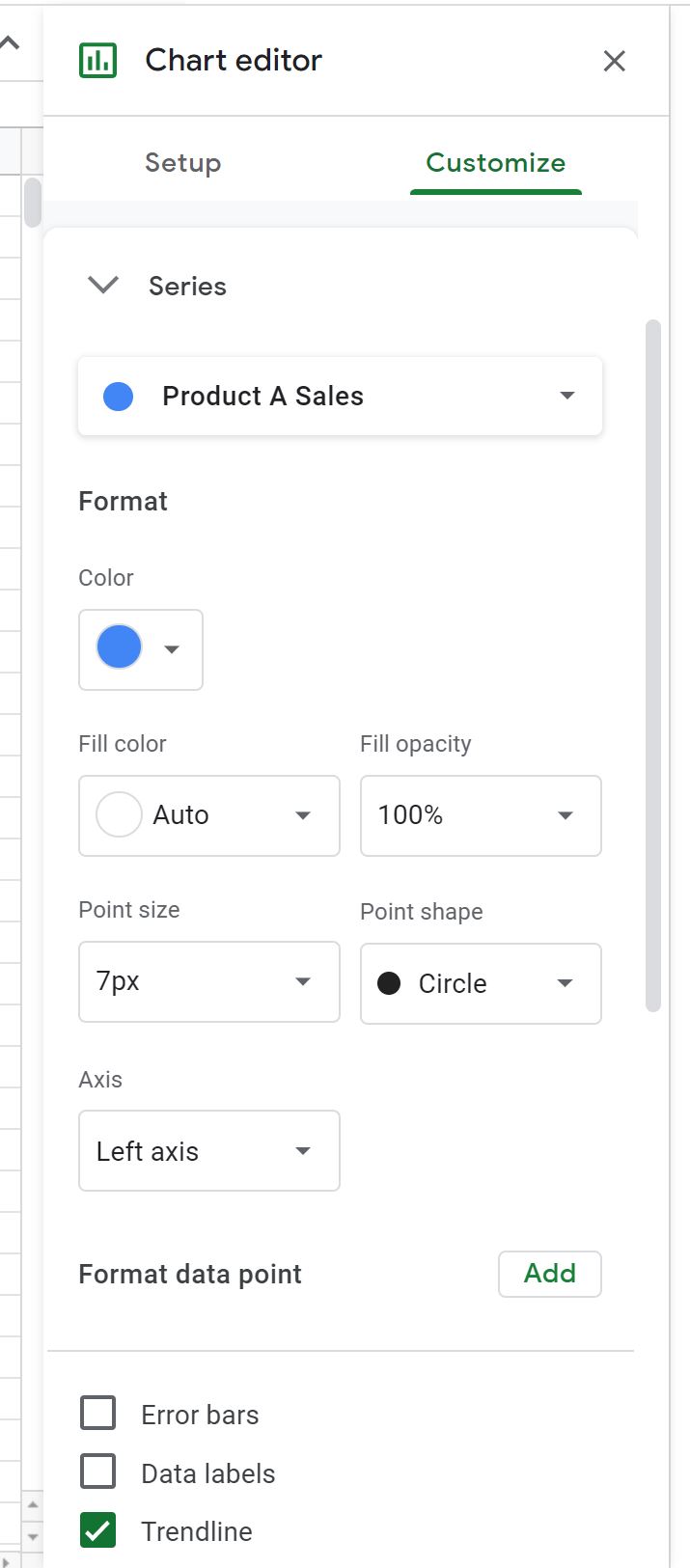

To accurately add the initial trendline, targeting the Product A Sales data, follow these explicit configuration steps within the Chart editor:

• Click on the Customize tab within the Chart editor. This tab is the repository for all visual styling and advanced analytical customization options for your chosen chart.
• Locate and click the Series dropdown menu. This menu is essential as it allows you to select and modify specific data series independently of others.
• From the complete list of available series, explicitly choose Product A Sales. This selection ensures that any subsequent modifications or analytical additions apply exclusively to this particular dataset.
• Scroll down the array of Series options until you locate the prominent Trendline checkbox. Check this box to immediately calculate and enable the trendline projection for Product A Sales.

After successfully integrating the trendline for Product A, you must replicate the exact same, meticulous procedure to introduce a comparative trendline for Product B. This repetition is necessary to ensure that both products have their individual long-term trends clearly highlighted for effective comparative analysis. The contrasting colors assigned automatically by Google Sheets will help instantly differentiate between the two analytical lines.

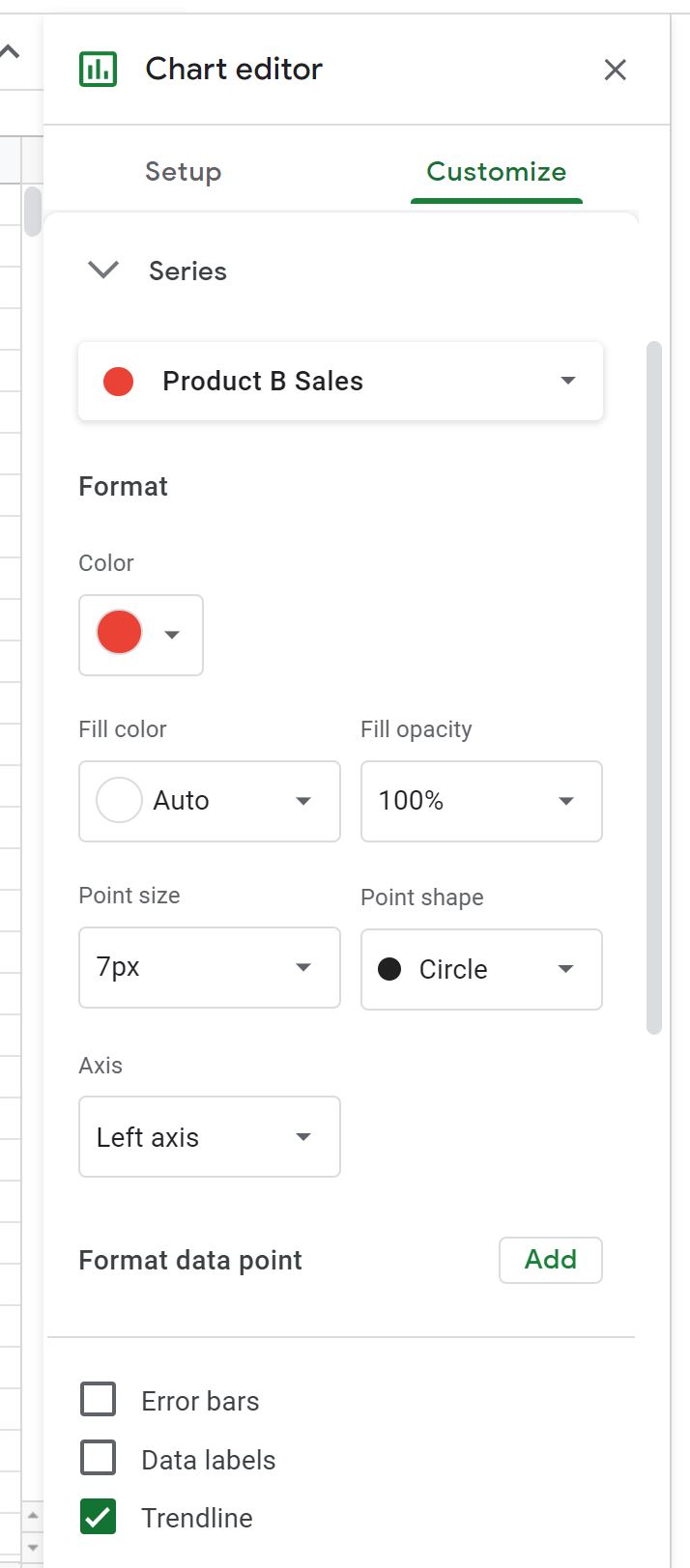

To proceed, simply return to the Series dropdown menu located within the Customize tab. This time, deliberately select Product B Sales from the list of available data series. Once this series is confirmed, proceed to check the Trendline box associated with this specific dataset as well. Google Sheets will then automatically perform the necessary statistical calculations and display the resulting trendline for Product B, typically rendered in a contrasting color to the trendline established for Product A.

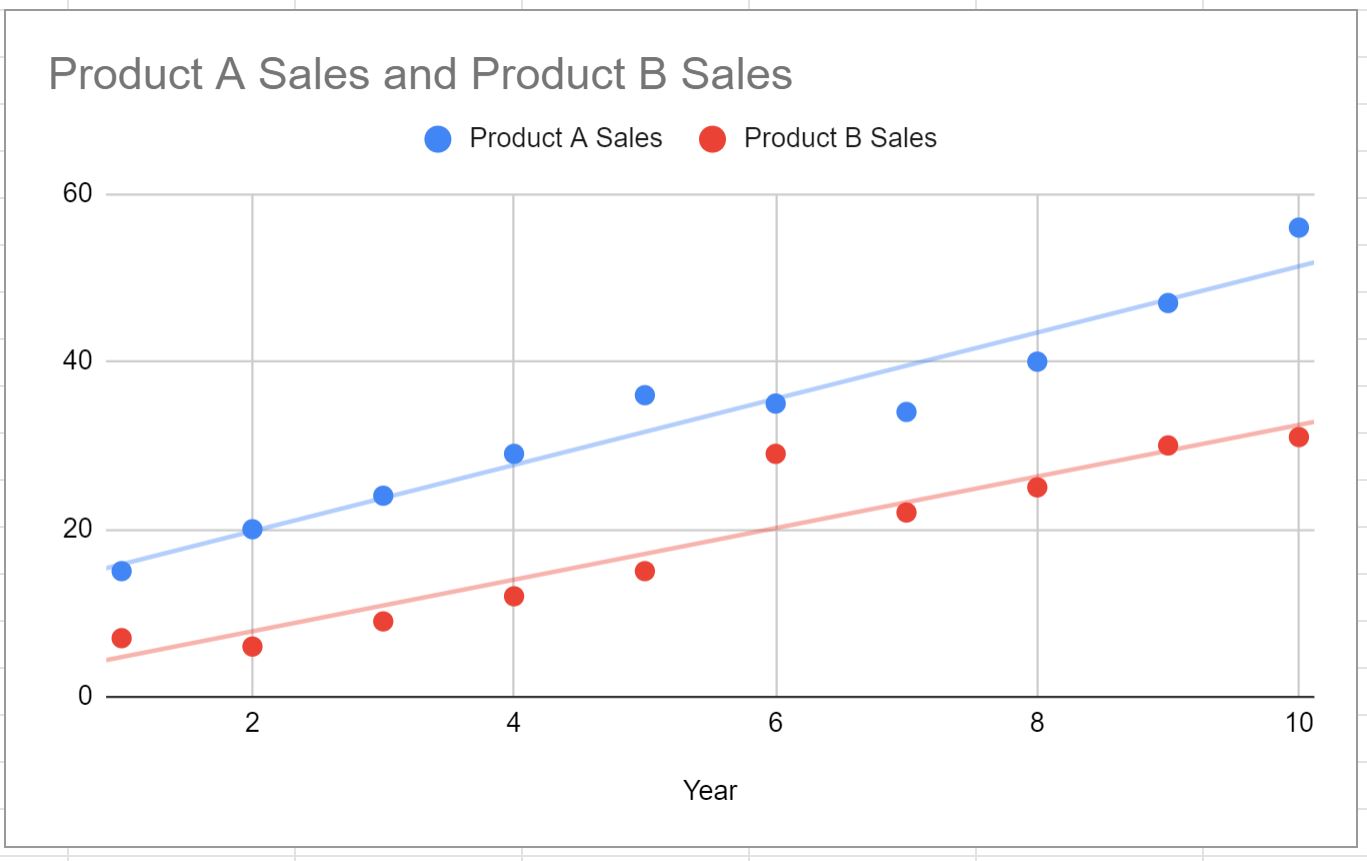

Upon completing these steps for both of your critical data series, your sophisticated chart will now distinctly display two separate, highly informative trendlines: one precisely modeling the trajectory of Product A Sales and another representing the performance of Product B Sales. This crucial visual enhancement provides an immediate and unambiguous comparison of each product’s underlying performance trajectory over the entire observed period, facilitating far deeper and more actionable analytical insights at a single glance.

Exploring Advanced Trendline Customization Options

Moving beyond the foundational step of simply adding trendlines, Google Sheets is equipped with a robust suite of advanced customization tools, all conveniently located within the Customize tab of the Chart editor. These powerful options grant you the ability to meticulously refine both the visual presentation and the inherent analytical depth of your calculated trendlines, thereby making your charts significantly more impactful and perfectly tailored to specific interpretative requirements.

For every selected data series, you have granular control to adjust various fundamental visual attributes of its dedicated trendline. This flexibility includes modifying the color to align with organizational branding standards or to sharply enhance the contrast between competing series. Furthermore, you can precisely alter the line thickness to emphatically emphasize certain key trends or adjust the opacity for a more subtle or background visual effect. Making thoughtful stylistic choices such as these can dramatically improve both the overall readability and the aesthetic appeal of your complex multi-trendline chart.

Crucially, Google Sheets also provides significant flexibility regarding the underlying mathematical calculation type applied to the trendline. By default, it applies a linear trendline, which is the most suitable choice for data that exhibits a relatively constant, straight-line rate of increase or decrease over time. However, to accurately model more complex or non-linear data patterns, users can readily select other sophisticated model types, such as an exponential trendline for data demonstrating accelerating growth or decay, or a polynomial trendline for data characterized by fluctuating, curvilinear, or cyclical patterns. Experimenting judiciously with these regression options ensures a highly accurate representation of the true underlying trends present in your data.

As an additional statistical advantage, for specific types of trendline calculations, users are offered the essential option to display both the R-squared value and the precise equation directly on the chart canvas. The R-squared value serves as a measure of the goodness of fit, where values approaching 1.0 strongly suggest a near-perfect fit of the trendline to your source data. Displaying the corresponding equation is invaluable for users who need to perform precise future predictions or rigorously understand the fundamental mathematical relationship that governs the observed trend. These advanced analytical features empower users to conduct more rigorous statistical inquiry directly within the familiar spreadsheet environment.

Conclusion: Leveraging Multi-Trendline Analysis for Data-Driven Decisions

The sophisticated capability to simultaneously add multiple trendlines to a single chart within Google Sheets represents an exceedingly powerful tool for any serious data analyst, manager, or business professional. This specialized technique dramatically enhances the comparative analysis of different, often competing, data series, providing immediate and crystal-clear visual insights into their individual trajectories and relative performance dynamics.

By meticulously following the structured steps outlined within this comprehensive guide, you are now equipped to effectively visualize even highly complex datasets, accurately identify subtle emerging patterns that might otherwise be missed, and ultimately formulate far more reliable, data-driven decisions. Whether your goal is rigorously comparing quarterly product sales, precisely tracking complex operational metrics, or analyzing volatile market trends, well-designed multi-trendline charts offer a concise, compelling, and easily digestible narrative of your data’s evolution over critical periods of time.

We strongly encourage you to embrace and actively utilize these advanced charting capabilities available in Google Sheets. Doing so will inevitably elevate your overall data visualization skills and unlock deeper, more nuanced understandings from your raw information, effectively transforming complex numerical data into immediately actionable strategic intelligence.
