Learning to Add an Average Line to Plots in ggplot2

The Power of Reference Lines: Visualizing the Mean in ggplot2

Data visualization is a critical step in any data analysis workflow, offering immediate insights that raw numbers often conceal. When using the powerful R package, ggplot2, analysts frequently require visual aids to anchor their observations, making complex distributions easier to interpret. One of the most fundamental reference points is the arithmetic average, or mean. Adding a horizontal line representing this central tendency allows viewers to quickly assess how individual data points deviate from the group’s typical value. This technique is particularly useful in time-series analysis, quality control charts, or when comparing subsets against a global average, providing context that a simple scatter of points cannot offer alone.

In ggplot2, this functionality is provided by the highly flexible layer function, geom_hline(). This function is specifically designed to draw straight horizontal lines onto a plot. Unlike other geometry functions that map aesthetics to data columns, geom_hline() requires a single value for the intercept—the y-coordinate where the line should be placed. To calculate the average and plot it simultaneously, we typically embed the R statistical function mean() directly within the yintercept argument of the geometry layer. This integration streamlines the visualization process, ensuring the reference line dynamically updates if the underlying data frame changes, maintaining consistency between the statistics and the graph.

The core syntax for implementing this average line is straightforward yet robust. It requires initializing the plot, specifying the point geometry (or another relevant geometry like a bar plot), and then appending the horizontal line layer. Understanding how to correctly calculate the mean, particularly handling missing values using the na.rm=TRUE argument, is essential for accurate visualization. Failing to account for missing data (Not Available, or NA) in the calculation can result in an incorrect or non-existent mean value, thus preventing the line from rendering properly on the visualization. This introductory section sets the stage for a practical demonstration of how to harness this powerful combination of statistical calculation and graphical representation using the following fundamental code structure.

You can use the following basic syntax to add a line that represents the average value in a plot in ggplot2:

ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_hline(yintercept = mean(df$y, na.rm=TRUE))

The following example shows how to use this syntax in practice, beginning with the necessary data preparation steps.

Preparing the Environment and Sample Data

Before proceeding with the visualization, we must ensure our R environment is properly configured. This typically involves installing and loading the ggplot2 package, which forms the foundation of all our visualization efforts. While many modern installations of R often include the Tidyverse suite (which contains ggplot2), explicitly calling library(ggplot2) is a necessary first step to make the functions available for use within the current session. Once the package is loaded, we can focus on creating the sample data that will serve as the basis for our scatter plot demonstration.

For this tutorial, we will construct a simple data frame named df. This structure is the fundamental unit of data handling in R and is analogous to a spreadsheet or SQL table. Our data frame will contain two variables: x, representing an independent variable (perhaps time or an index), and y, representing the dependent variable whose average we wish to calculate and visualize. We populate these vectors with 12 distinct numerical observations to provide a realistic spread of data points across the plotting area, ensuring the resulting mean is representative of the entire set, offering a good test case for our visualization technique.

The code below demonstrates the creation of this sample data frame. By viewing the head of the data, we confirm that the structure is correct and the values are loaded as expected. This structured approach—data creation followed by verification—is crucial for minimizing errors when moving into the visualization phase. We are specifically interested in the distribution of the y variable, as this is the variable upon which the horizontal average line will be based, acting as our central measure of tendency for the vertical axis.

Example: Add Average Line to Plot in ggplot2

Suppose we have the following data frame in R, which we define using the data.frame() function:

#create data frame
df <- data.frame(x=c(1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12),
                 y=c(2, 5, 6, 5, 7, 8, 10, 12, 10, 9, 11, 15))

#view head of data frame
head(df)

  x y
1 1 2
2 2 5
3 3 6
4 4 5
5 5 7
6 6 8

Core Implementation: Plotting the Mean Reference

With the data ready and the ggplot2 library loaded, we can now construct the visualization. The process involves three distinct layers combined using the + operator, which is central to ggplot2‘s grammar of graphics. First, we initialize the plot using ggplot(df, aes(x=x, y=y)), mapping the x and y variables from our data frame to the plot’s primary axes. Second, we add the visualization layer using geom_point(), which renders the data as a classic scatter plot, allowing us to see the relationship between X and Y.

The third and most crucial step is the addition of the horizontal reference line using geom_hline(). Inside this function, we pass the calculated mean of the y variable directly to the yintercept argument. The calculation mean(df$y, na.rm=TRUE) ensures that the line is drawn precisely at the statistical average of the dataset. The inclusion of na.rm=TRUE is a best practice in R programming, instructing the mean() function to silently exclude any missing values (NAs) from the calculation, thereby preventing the entire mean calculation from returning NA if even a single observation is missing.

Executing the following code block generates the desired plot, combining the raw data points with a clear, default horizontal line indicating the central tendency of the dependent variable. This simple addition transforms the plot from a mere display of points into an analytical tool, immediately highlighting data points that lie above or below the average performance or measure. This visualization technique is standard practice in reporting descriptive statistics graphically, offering immediate context to the data distribution.

We can use the following code to create a scatter plot of x vs. y and add a horizontal line that represents the average y-value:

library(ggplot2)

#create scatter plot with average line to represent average y-value
ggplot(df, aes(x=x, y=y)) +
    geom_point() +
    geom_hline(yintercept = mean(df$y, na.rm=TRUE))

Verification and Interpretation of the Result

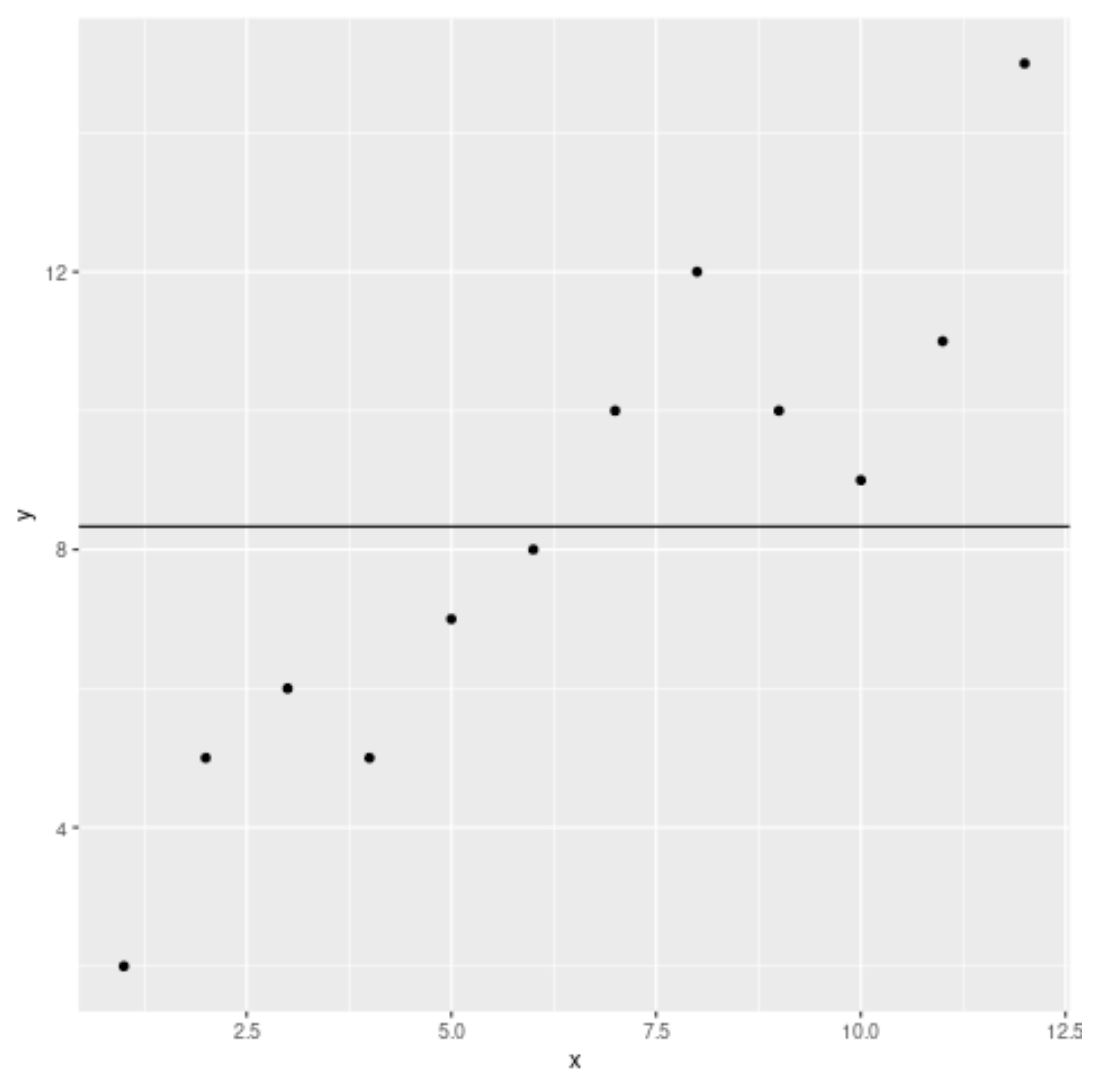

Upon reviewing the generated plot, we observe a solid, thin black horizontal line positioned slightly above the y-axis marker for 8. This line visually confirms the central location of the data points. The power of this visualization lies in its immediate analytical capability: points lying above this line represent values greater than the average, while points below represent values less than the average. In our example, we can visually ascertain that roughly half the points fall above this threshold, reflecting a balanced distribution around the calculated mean.

To confirm the precision of the visual representation, it is good practice to calculate the average value independently, ensuring that the yintercept used by geom_hline() is exactly as expected. Using the standalone mean() function on the df$y vector provides this numerical confirmation. This verification step is particularly important in complex visualizations where layers might interact unexpectedly, although in this simple case, the calculation is direct. For our specific data frame, the arithmetic average is calculated as follows, yielding a value slightly higher than 8, which aligns perfectly with the visual placement of the line.

The precise calculation confirms that the line is indeed positioned at 8.333333. This accuracy reinforces the reliability of using embedded R functions within ggplot2 aesthetics. When interpreting the chart, remember that the mean can be sensitive to outliers. If the data contained extreme values, the horizontal line might be pulled significantly towards those outliers, potentially misrepresenting the “typical” value if the distribution is highly skewed. Analysts often complement the mean line with other measures of central tendency, such as the median, which can be added using the same geom_hline() function by replacing mean() with median().

We can see that an average line has been added to the plot just above the y-value of 8.

If we calculate the average y-value directly in R, we’ll find that it is precisely 8.333333:

#calculate average y-value
mean(df$y, na.rm=TRUE)

[1] 8.333333

Enhancing Aesthetics: Customizing the Reference Line

While the default black, solid line serves its purpose, visualizations often benefit from aesthetic adjustments to enhance clarity, especially when multiple reference lines (e.g., median, standard deviation boundaries) are present. The geom_hline() function provides several key arguments for controlling the appearance of the line: color, lty (line type), and lwd (line width). Customizing these parameters ensures the average line stands out appropriately without overpowering the primary data visualization, guiding the viewer’s eye effectively.

The color argument accepts standard R color names (like ‘blue’, ‘red’, ‘gray’) or hexadecimal codes (like ‘#FF0000’). Choosing a color that contrasts well with both the background and the data points is essential for visibility. The lty argument controls the line style, allowing the line to be solid, dashed, dotted, or various combinations thereof. Common values include 'solid' (default), 'dashed', 'dotted', and 'longdash'. Using a dashed or dotted line often helps distinguish the calculated reference line from any data trend lines that might be added later using functions like geom_smooth(), preventing visual confusion.

Finally, the lwd (line width) argument, which takes a numerical value, dictates the thickness of the line. Increasing the line width makes the average line more pronounced, drawing immediate attention to the central measure. In the following example, we demonstrate how to apply these three arguments simultaneously to create a distinctive, highly visible average line. We set the line color to blue, the line type to dashed, and increase the width to 2, significantly improving the visual impact and differentiation of the mean reference line within the overall scatter plot.

Note that we can also use the color, lty, and lwd arguments to specify the color, line type, and line width of the average line, respectively:

library(ggplot2)

#create scatter plot with custom average line
ggplot(df, aes(x=x, y=y)) +
    geom_point() +
    geom_hline(yintercept = mean(df$y, na.rm=TRUE), color='blue', lty='dashed', lwd=2)

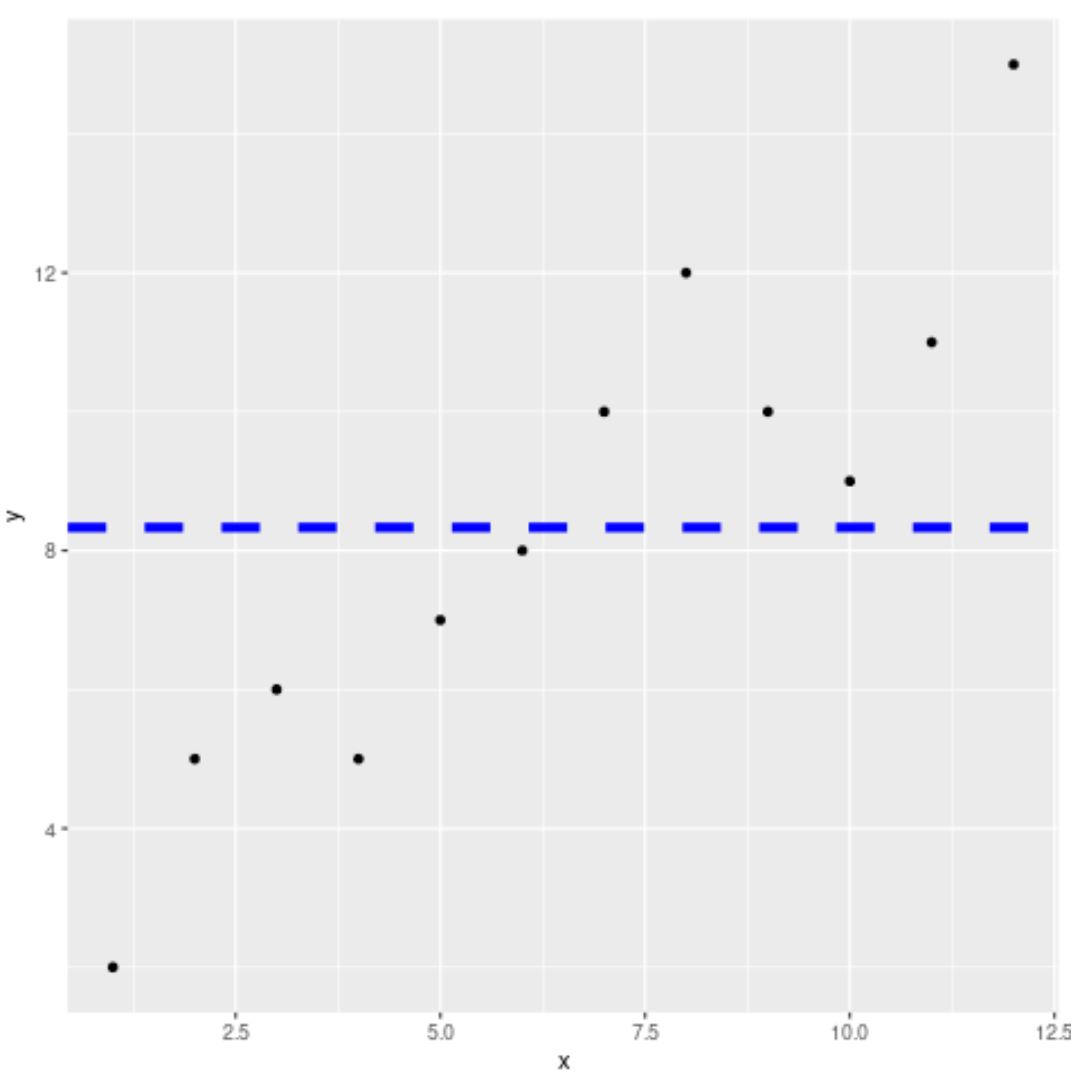

The average line is now blue, dashed, and has a line width of 2, achieving a high degree of visual contrast against the data points.

Expanding Beyond Horizontal Lines

While geom_hline() is perfect for plotting the mean (a constant y-value), ggplot2 offers geometry functions for other types of reference lines that may be equally useful depending on the analytical goal. For instance, if one needed to plot the average of the X variable, the function geom_vline() would be used, accepting the xintercept argument instead of yintercept. This is valuable when analyzing distributions along the horizontal axis, such as time or sequence data, allowing for two-dimensional assessment of central tendency.

Furthermore, analysts often need to visualize linear relationships, such as regression lines, rather than just constant averages. For this purpose, geom_abline() is utilized, which plots arbitrary straight lines defined by a slope (slope) and an intercept (intercept). This function is ideal for comparing the data against a theoretical model, such as a 1:1 line (where slope=1 and intercept=0), providing a visual benchmark for parity or expected growth. Although these functions are distinct from geom_hline(), they all operate within the same grammar of graphics framework, allowing for seamless integration and customization using the same aesthetic arguments like color and lty.

Another powerful approach is using the statistical summary layers provided by ggplot2. Functions like stat_summary() or stat_function() can automatically calculate and plot statistical summaries—including the mean—for subsets of data, often rendering them as points or bars rather than continuous lines. However, for the simple, global average of a single variable across the entire plot, geom_hline() remains the most direct and computationally efficient method, solidifying its role as a fundamental tool in the ggplot2 toolkit for presenting descriptive statistics.

Conclusion and Further ggplot2 Resources

Mastering the ability to add reference lines, specifically the average line using geom_hline(), is a foundational skill for any data scientist working in R. This technique moves beyond simple data plotting, transforming visualizations into analytical instruments that clearly communicate central tendencies and highlight deviations. By correctly calculating the mean within the yintercept argument and applying judicious aesthetic customizations using color, lty, and lwd, we can create professional-grade charts that are both informative and visually compelling.

The principles demonstrated here—combining statistical calculations with geometric layers—are applicable across the entire ggplot2 ecosystem. Whether you are generating a scatter plot, a bar chart, or a density plot, the method for adding fixed reference lines remains consistent. This consistency is a core strength of the grammar of graphics philosophy, ensuring that once you understand one geometry function, you can quickly adapt to others and build complex visualizations iteratively.

For those interested in exploring the full depth of this function, the official documentation provides comprehensive details on all available arguments and advanced use cases, such as passing vectors of intercepts to plot multiple lines simultaneously. Continuing to explore the extensive capabilities of ggplot2 will unlock endless possibilities for sophisticated data storytelling and deeper analytical insight.

You can find the complete online documentation for the geom_hline() function here.
