How to Add an Average Value Line to an Excel Bar Chart

In the realm of data visualization, the ability to effectively communicate complex insights is crucial. A frequent requirement in analytical reporting is the need to display a clear benchmark or critical comparison point directly onto a visual representation. This detailed tutorial focuses specifically on maximizing the utility of a standard bar chart within Microsoft Excel by strategically incorporating a horizontal line that represents the calculated average value of the entire dataset. This integration serves as an immediate, powerful visual aid, enabling stakeholders and viewers to instantly assess which categories are performing above or below the overall central tendency.

The simple addition of an average line elevates a basic bar chart into a sophisticated, highly informative analytical instrument. It provides essential context for understanding performance variation, allowing analysts to quickly pinpoint outliers and trends against a reliable standard. Whether you are rigorously examining quarterly sales figures, tracking operational performance metrics, or analyzing any other form of quantitative data, this technique is fundamental for robust data interpretation.

This comprehensive guide is structured to lead you through every necessary step, demonstrating precisely how to transform your raw data into a compelling bar chart enhanced with a clear average line, mirroring the professional example illustrated below.

Let us begin the process of data preparation and chart creation.

Step 1: Prepare Your Data in Excel

The creation of any accurate and visually effective chart is predicated on having meticulously organized source data. Before we can even begin to visualize the average line, we must first ensure our raw data is correctly structured within an Excel spreadsheet. For instructional purposes in this guide, we will utilize a practical, hypothetical dataset detailing the total sales of a specific product recorded across the twelve months of a fiscal year. This structure, which represents time-series data, is perfectly suited for demonstrating performance fluctuations and benchmarking monthly results against the calculated average.

To commence, open a fresh Excel workbook and systematically input your categorical data—in this case, the Months—into one column (A). Subsequently, enter the corresponding quantitative values, the Sales figures, into the adjacent column (B). It is imperative that your data includes clear, descriptive headers to ensure Excel correctly interprets the data series during the charting process.

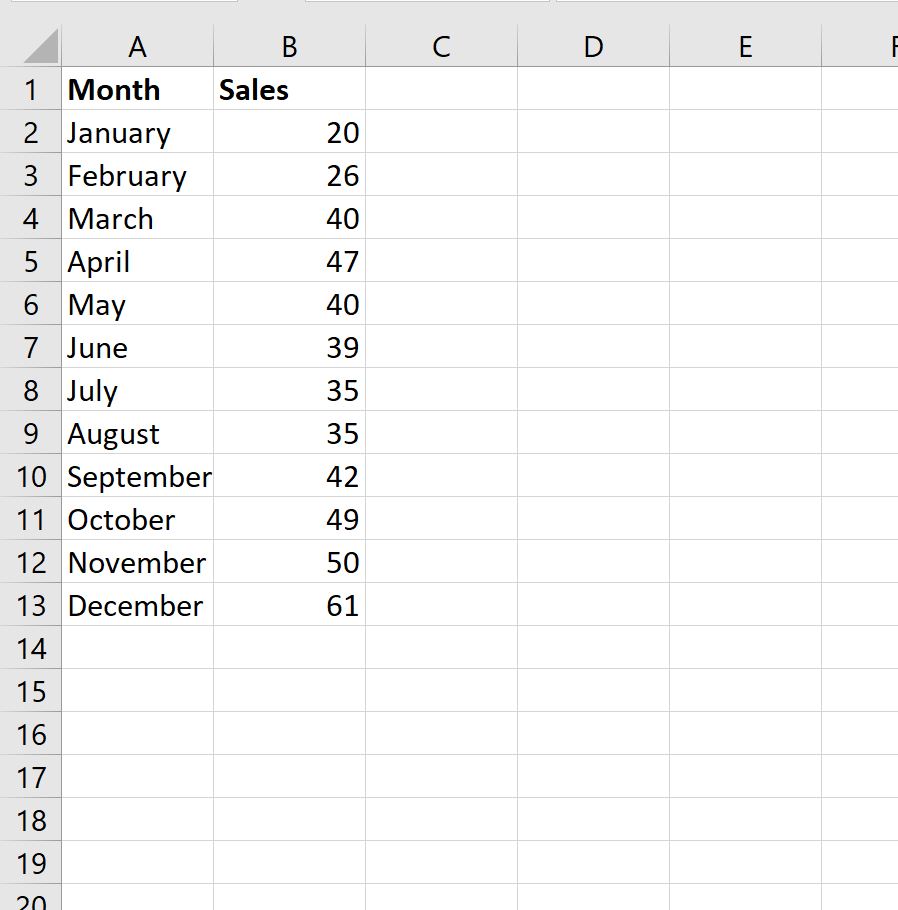

Please replicate the specific arrangement below in your Excel sheet. Position the header “Month” in cell A1 and the header “Sales” in cell B1, then proceed to populate the subsequent rows with the provided monthly data.

Ensuring the data is laid out correctly and completely is arguably the most critical preliminary step, as the accuracy and ease of chart creation in the forthcoming stages depend entirely upon this foundational structure.

Step 2: Calculate the Average Value for the Data Series

With the foundational sales data entered, the next essential procedure is to compute the specific average value that will ultimately be displayed as the benchmark line on your visualization. This calculated mean will serve as the constant point of reference throughout the analysis. Fortunately, Excel simplifies this calculation using the built-in AVERAGE function, which is the most efficient method for determining the central tendency of the numerical range.

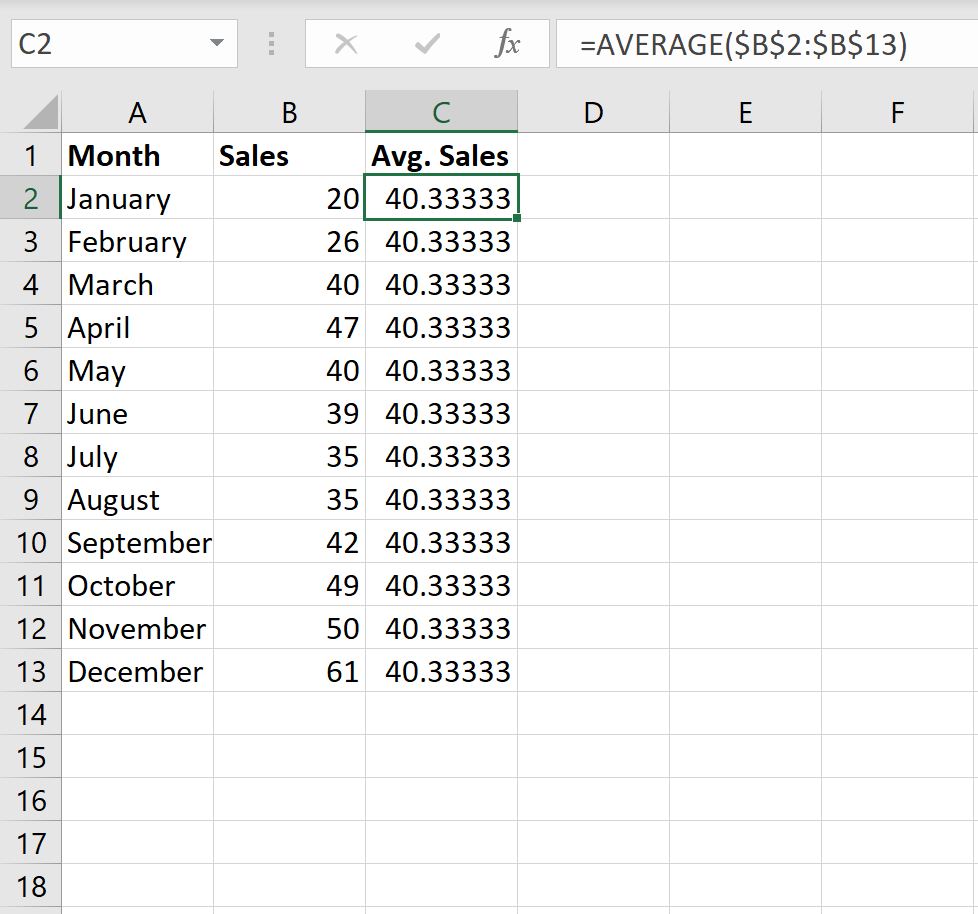

To properly plot this benchmark, we must establish a new, dedicated column (let us use Column C) that will hold the average value, repeated identically for every single data point. This repetition is vital because it instructs Excel to plot a perfectly straight, horizontal line across the entire chart. To calculate the average monthly sales from our data series, navigate to cell C2 and input the following formula, referencing the sales data range (B2 through B13):

=AVERAGE($B$2:$B$13)

Crucially, observe the employment of absolute references, which are denoted by the dollar signs (e.g., $B$2:$B$13) surrounding the column and row identifiers. These absolute references ensure that when you subsequently copy the formula down column C, the underlying calculation range remains fixed, consistently referring to the complete sales data set from B2 to B13, thus generating a constant average value in every cell.

After entering the formula in cell C2 and pressing Enter, utilize the fill handle to copy this cell’s content down to all corresponding rows, extending to cell C13. This action populates the entire column with the constant average value, creating the necessary “Average” data series that is indispensable for rendering a flat reference line on your chart.

With this new “Average” data series successfully generated, our preparation phase is complete, and we are now ready to integrate both series into a single, cohesive visualization.

Step 3: Construct the Bar Chart with an Average Line

Having successfully prepared both the primary sales data and the calculated average series, we can now proceed to the core visualization step. This involves two distinct phases: initially generating a combined chart and subsequently modifying the chart type for the average series to transform it into a line overlay.

First, meticulously select your entire data range, which must include all headers (Month, Sales, and Average) and all corresponding data rows. In our running example, this range spans from cell A1 to C13. Navigate to the Insert tab positioned in the main Excel ribbon. Within the Charts grouping, select the icon corresponding to the Clustered Column chart type. Upon execution, Excel will generate an initial visualization that currently depicts both your monthly sales figures and, incorrectly at this stage, a secondary set of bars representing the constant average value.

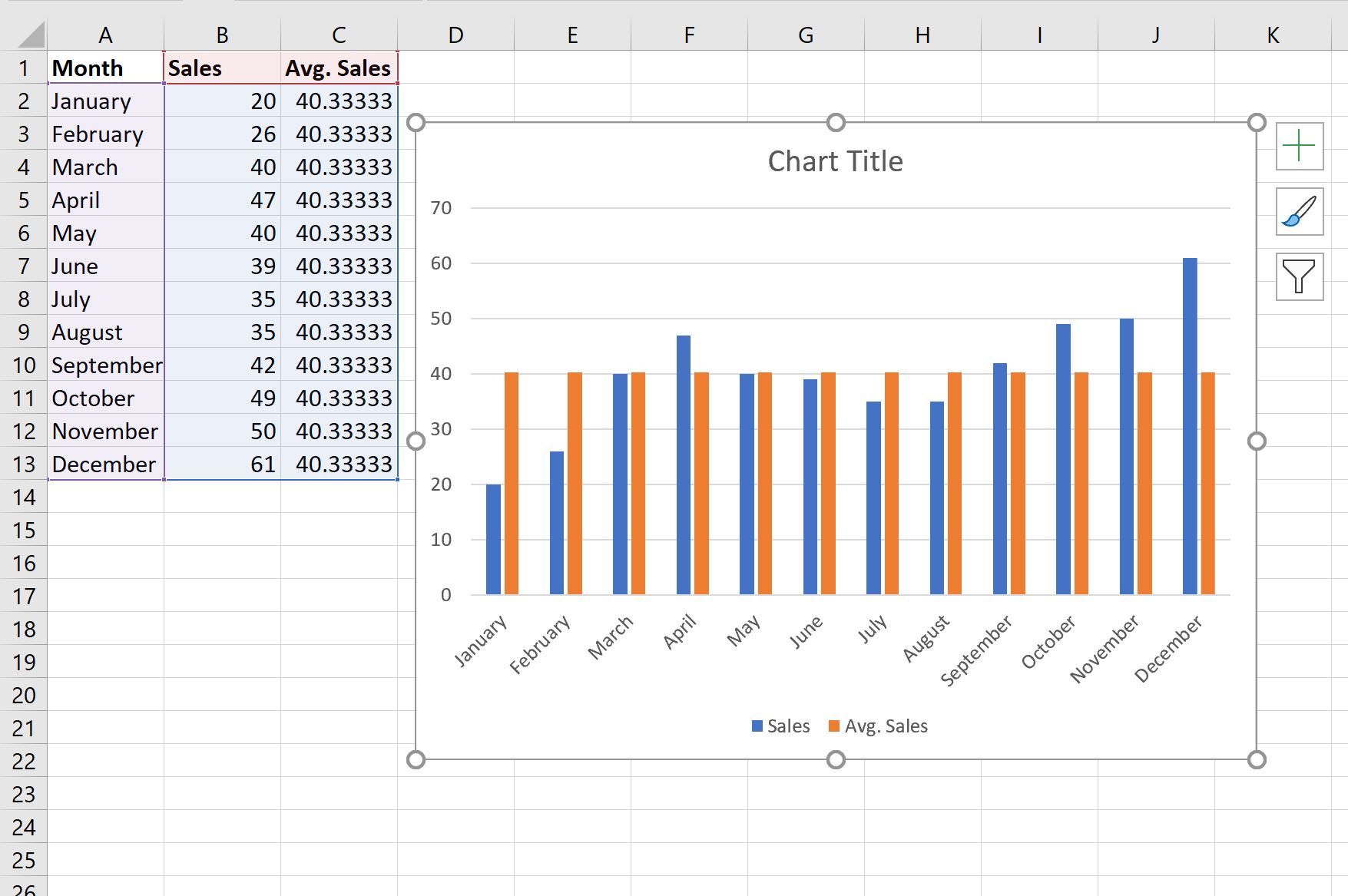

The automatically generated chart will appear similar to the following illustration, clearly showing both data sets plotted as bars:

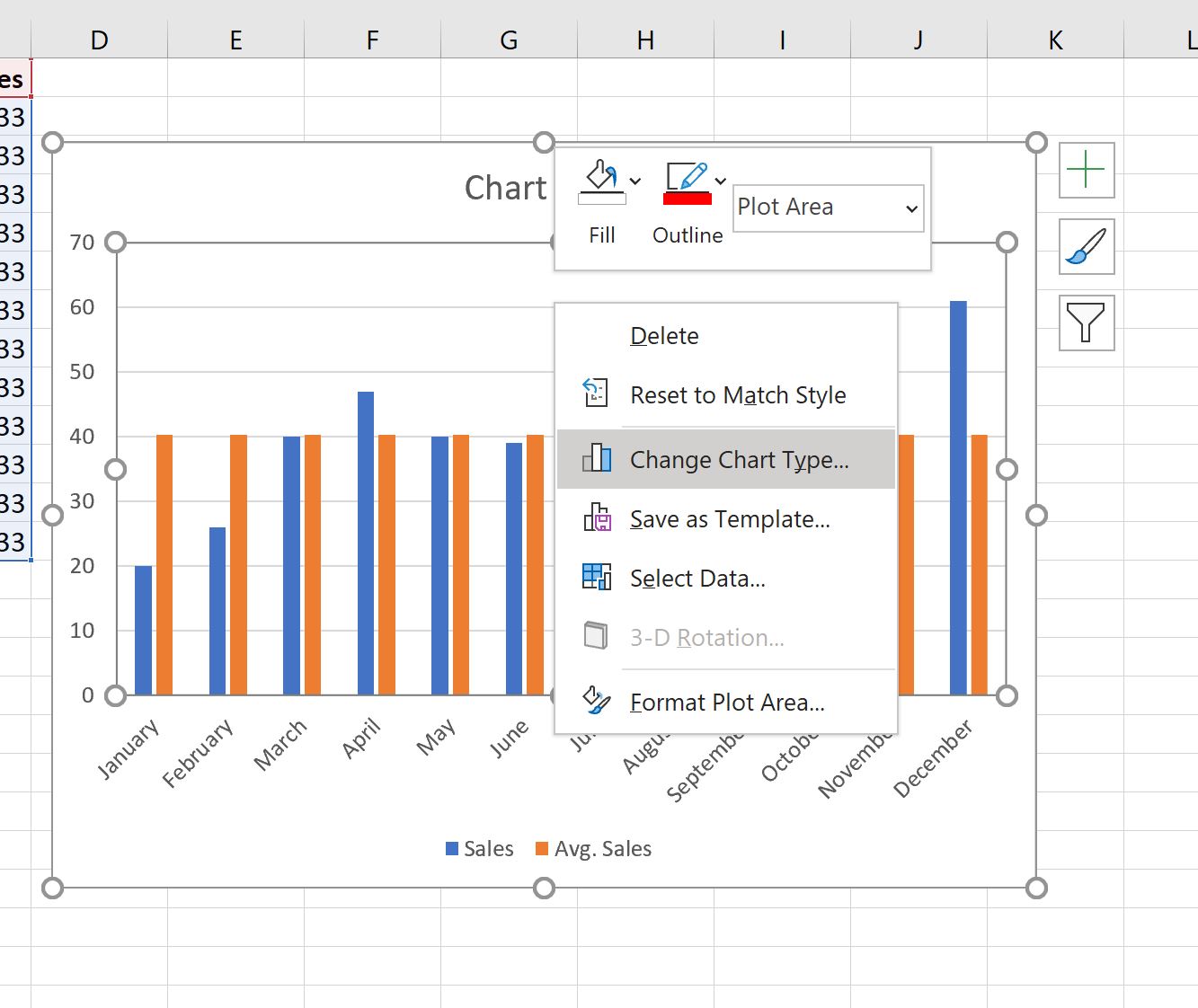

Since both the “Sales” and “Average” data series are currently represented as clustered columns, we must initiate a change in chart type for the “Average” series alone. Right-click anywhere on the chart area to open the context menu, then select the command Change Chart Type.

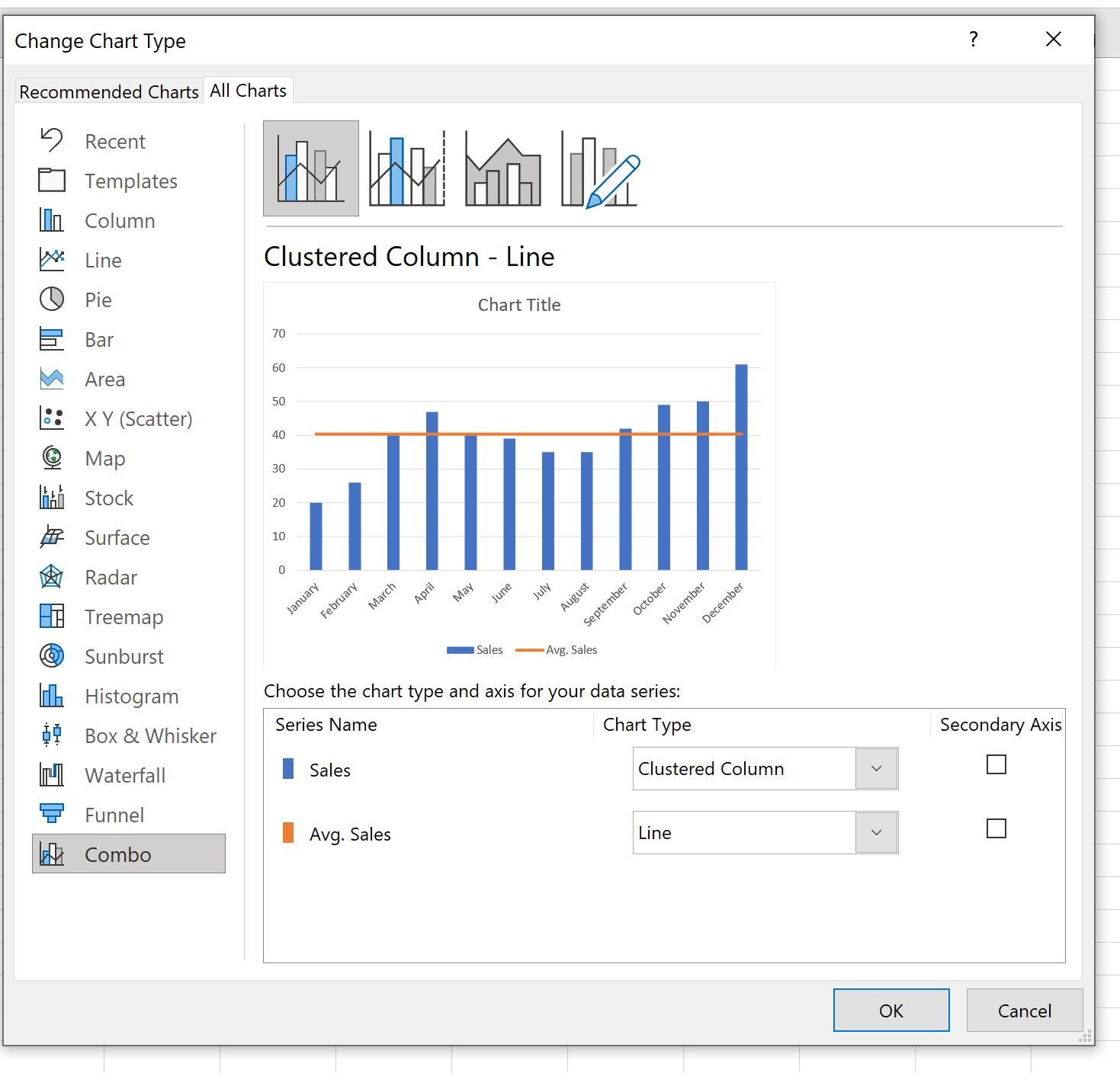

A new configuration window titled “Change Chart Type” will subsequently open. From the navigation panel on the left side, select the Combo option. The Combo chart configuration is specifically engineered to merge dissimilar chart styles—like columns and lines—within a single visualization canvas. In the lower section of this dialog box, review the settings for each series. Ensure the “Sales” series retains the Clustered Column type. Crucially, change the chart type associated with the “Average” series to Line. Confirm these modifications by clicking OK.

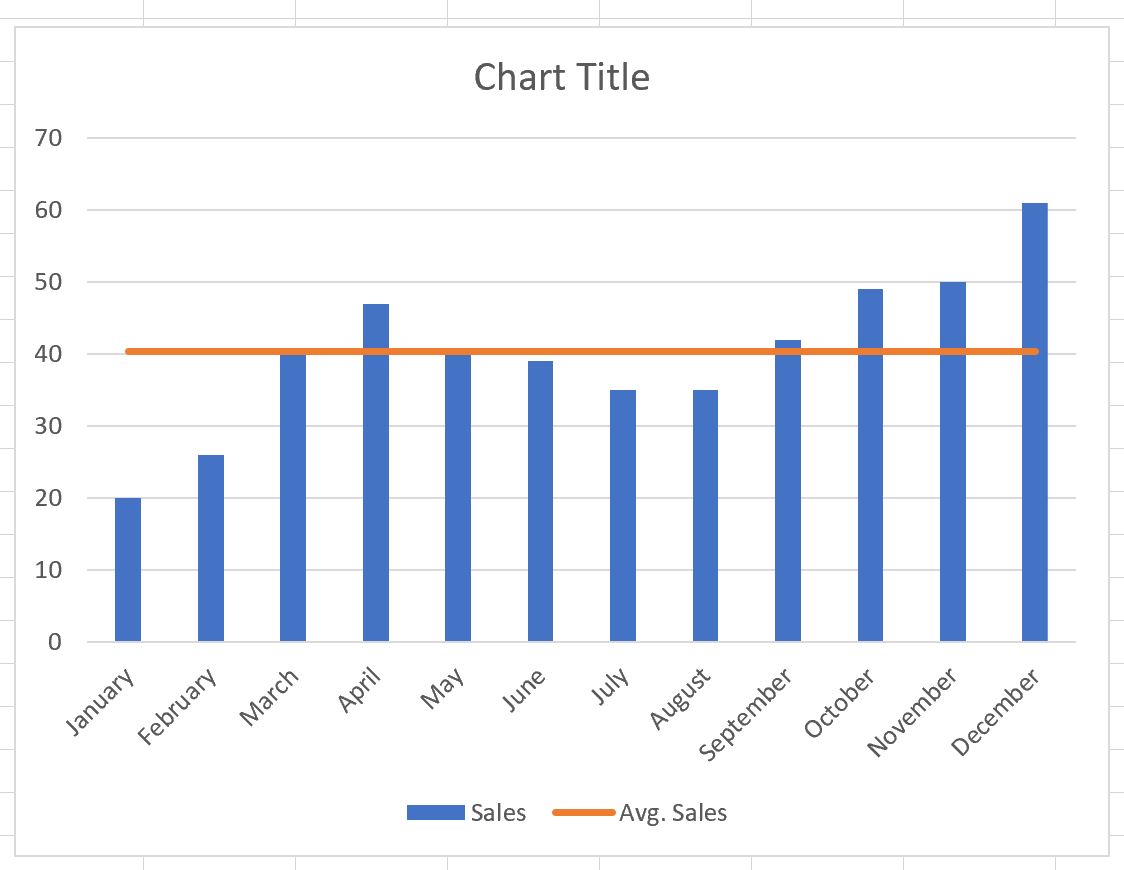

Upon applying these changes, your visualization will be instantly transformed. The monthly sales figures will remain accurately displayed as distinct column bars, while the average sales benchmark will now be clearly rendered as a straight, consistent line spanning the entire width of the chart. This configuration provides a powerful and immediate visual mechanism for comparing individual monthly performance against the established overall average.

In the final resulting visualization, the blue bars distinctly represent the total sales recorded for each respective month, facilitating granular analysis. Concurrently, the orange line cutting horizontally across the chart acts as a potent visual anchor, definitively showcasing the consistent average sales value calculated over the entirety of the twelve-month period. This combination is essential for swiftly identifying months that substantially exceed, or fall short of, the performance mean.

Step 4: Customize the Chart for Enhanced Clarity and Aesthetics (Optional)

While the preceding steps successfully generate a functional chart that accurately overlays the average line onto the bars, investing time in further customization can dramatically elevate the chart’s readability, professional quality, and overall visual impact. This optional stage allows expert users to fine-tune the visualization to align perfectly with specific corporate reporting standards or analytical objectives.

To achieve maximum visual effectiveness and clarity, consider implementing the following customization options:

• Add a Descriptive Chart Title: A precise title, such as “Monthly Sales Performance vs. Annual Average,” ensures that viewers immediately grasp the chart’s fundamental purpose and scope.
• Label Axes Clearly: It is essential to clearly label both the horizontal (category) and vertical (value) axes. For instance, label the horizontal axis “Month” and the vertical axis “Sales Amount” to eliminate any potential ambiguity in interpretation.
• Customize Colors and Formatting: Adjusting the colors of the bars and the line can significantly enhance contrast and visual hierarchy. Ensure the colors chosen either adhere to organizational branding or simply provide a clear distinction between the data series.
• Adjust Line Style and Thickness: Modify the appearance of the average line—perhaps making it thicker, utilizing a dashed pattern, or selecting a contrasting color—to guarantee it stands out effectively as a benchmark without visually dominating the primary bar data.
• Add Data Labels: For reports requiring precise numerical scrutiny, incorporate data labels directly onto the bars or use annotations to explicitly state the constant average value.
• Format the Legend: Ensure the legend is concise and accurately differentiates between the “Sales” series (columns) and the “Average” series (line).

By meticulously applying these aesthetic and formatting adjustments, you successfully transition a merely functional chart into a polished, highly communicative piece of data visualization. The ultimate objective of customization is to streamline the audience’s path to the key insights and conclusions, minimizing visual clutter and maximizing informational efficiency.

Conclusion and Additional Resources

Integrating an average line into your bar chart within Excel represents a fundamental yet exceptionally powerful technique for immediate analytical enhancement. This methodology provides crucial context, allowing viewers to effortlessly benchmark performance against a stable central tendency. By diligently following the structured steps outlined in this guide, you gain the ability to consistently produce more insightful, professional-grade charts that communicate complex analytical insights with speed and clarity. This proficiency is an invaluable asset for professionals engaged in data analysis across commercial, educational, and research sectors.
