Learning to Display Total Values on Stacked Bar Charts in Excel

When presenting data using a stacked bar chart in Excel, a key enhancement is the display of the overall total value precisely at the summit of each bar. This seemingly minor addition provides immediate, high-level insight into the aggregate magnitude of each category, transforming the chart into a significantly more effective and easily digestible data visualization tool. Without these explicit totals, viewers are forced to manually calculate the sums of individual segments, which introduces friction and reduces the chart’s analytical impact.

Integrating these critical total values directly into your stacked bar chart eliminates all ambiguity and greatly streamlines the comprehension of complex data. It empowers stakeholders to rapidly assess both the proportional contributions of each segment and their combined performance, facilitating clearer and faster decision-making processes. This comprehensive tutorial provides a rigorous, step-by-step methodology for accurately incorporating these essential total values into your enhanced Excel charts.

By meticulously following the instructions detailed below, you will gain the expertise required to convert a standard stacked bar chart into a profoundly powerful and insightful visual representation. The result will resemble the professional example provided here, which clearly illustrates the aggregate value floating above every stacked bar:

Let us proceed with the detailed steps required to achieve this enhanced chart visualization!

Step 1: Structure and Input the Raw Data

The integrity and effectiveness of any chart are fundamentally dependent on a meticulously organized dataset. Before any visualization can commence, it is absolutely crucial to accurately input and structure your raw information within the Excel worksheet. This foundational step guarantees that all subsequent calculations, data manipulations, and charting operations are built upon reliable and well-structured information, thereby minimizing the potential for errors and ensuring a seamless transition to the visualization stage.

For the purposes of this specialized tutorial, we will utilize a practical sample dataset that simulates the total sales performance for three distinct product lines across a twelve-month period. This structure—where distinct categories (months) are measured by multiple component variables (Product A, B, and C sales)—is ideally suited for a stacked bar chart. This arrangement inherently allows for a lucid comparison of how individual product contributions factor into the overall monthly sales volume. It is essential that you arrange your source data in a similar tabular fashion, with the primary categories in the first column and the corresponding numerical values for each segment in adjacent columns.

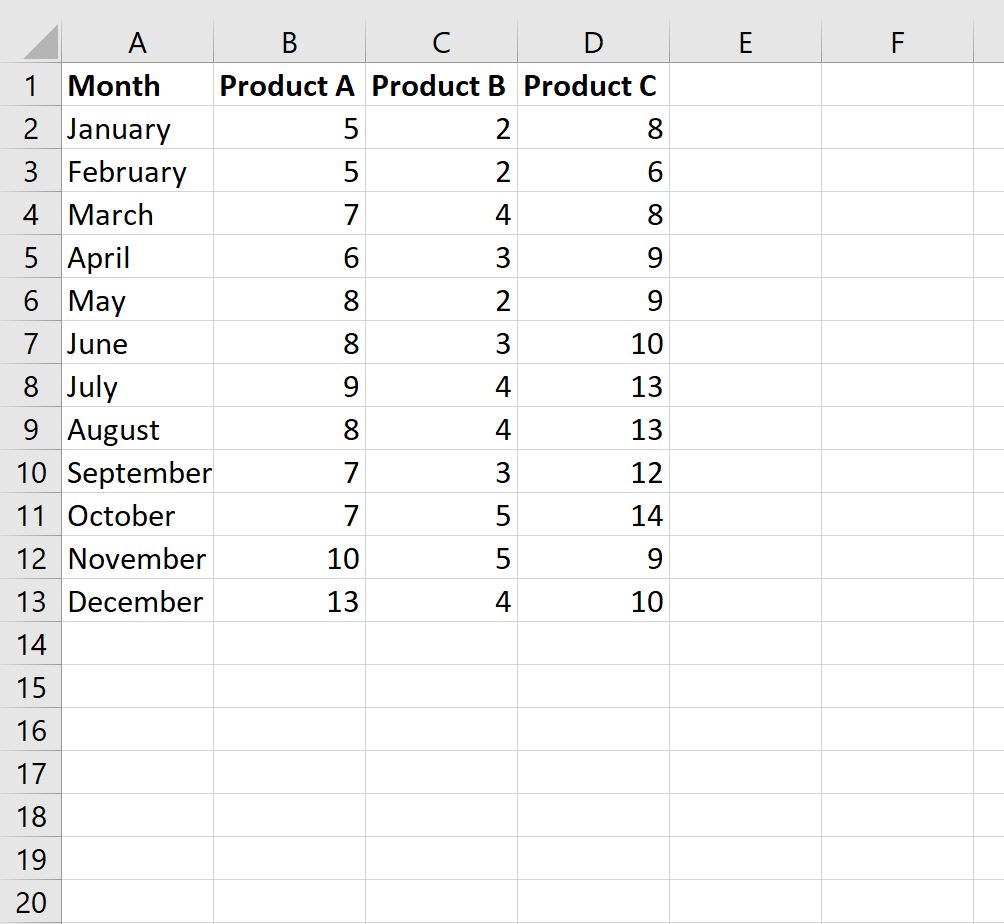

Please replicate the following dataset precisely in your Excel worksheet. Note that the columns designated Product A, Product B, and Product C represent the individual sales segments, while the rows correspond to each month, detailing their respective sales figures. This specific arrangement is mandatory for the successful execution of the subsequent steps required to construct our enhanced chart.

Step 2: Calculate the Aggregate Total Values

Following the successful entry of your raw segmented data, the next imperative step involves calculating the aggregate total sales for every period (month). These derived totals are critical, as they will be utilized as the definitive labels that we position at the very top of each respective stacked bar. By establishing a dedicated column for these cumulative sums, we significantly simplify the subsequent charting workflow and ensure that the accurate aggregate values are readily available for immediate visualization.

To efficiently compute the total sales per month, we will leverage Excel‘s foundational and indispensable SUM function. This powerful function is explicitly engineered to add all numerical values contained within a specified range of cells. In the context of our sales dataset, for each row (representing a single month), we must sum the sales figures originating from Product A, Product B, and Product C. This calculation will yield the comprehensive, overall monthly sales total.

=SUM(B2:E2)

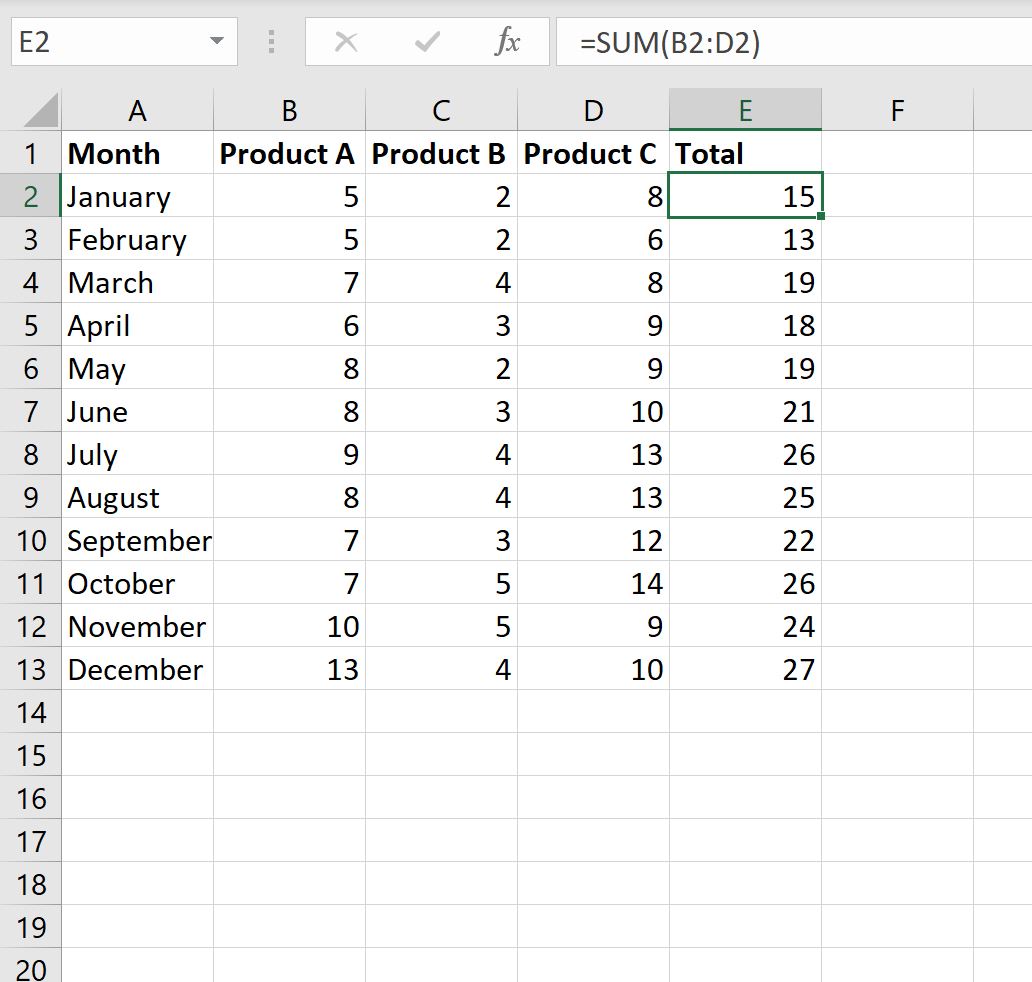

Initiate this process by typing the formula displayed above into cell E2, assuming that your product sales data begins in column B. After inputting the formula, press the Enter key to execute the calculation for the initial month. To apply this calculation with maximum efficiency to all remaining months, simply select cell E2 again. Locate the small green square, known as the fill handle, situated at the bottom-right corner of the cell. Click and drag this handle downwards until you reach the final row of your dataset. This action automatically copies the formula down the column, ensuring that Excel adjusts the cell references appropriately for each row, resulting in a complete and accurate “Total” column.

Upon successful completion of this step, your worksheet will feature a new column, clearly titled “Total,” which precisely reflects the sum of sales contributed by all products during each corresponding month. This newly created column is absolutely indispensable for displaying the overall performance metrics on our finalized stacked bar chart.

Step 3: Construct the Chart and Convert to Combo Type

With your underlying data meticulously prepared and the critical total values calculated, the next logical step is to formally initiate the chart creation process within Excel. This requires selecting the entire dataset, which is crucial for ensuring that all pertinent information, including your newly computed ‘Total’ column, is integrated into the visualization. Begin by highlighting the comprehensive cell range, typically A1:E13 (or the equivalent range that encompasses your months, all product sales columns, and the final ‘Total’ column).

Once your data selection is complete, navigate to the Insert tab situated on the main ribbon of Excel. Within the dedicated Charts group, locate and click the option for a Stacked Column chart. This initial action will generate a preliminary stacked bar chart that includes all five data series, which serves as the starting point for integrating the total labels.

You will immediately notice that the initial chart includes the ‘Total’ series incorrectly displayed as another segment piled onto each stacked bar. This is not the desired outcome for positioning distinct total labels. To correctly position the total values above the stacks, we must convert this visualization into a Combo chart. This specialized chart type is invaluable because it permits the combination of two or more distinct chart types within a single visualization, providing the flexibility needed for advanced data presentation.

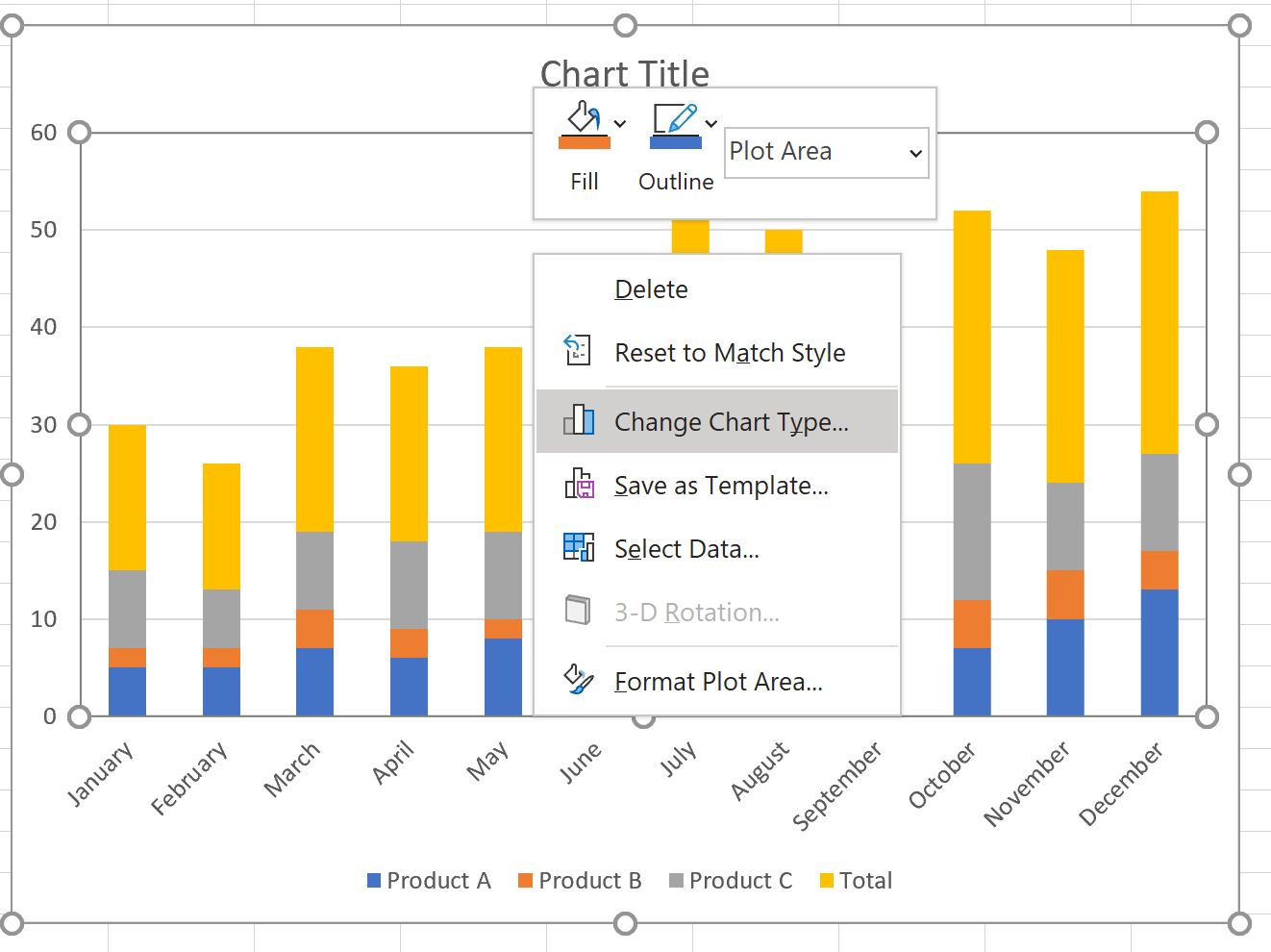

To modify the chart type, right-click anywhere within the chart area to open the contextual menu. From the available options, select Change Chart Type. This action will launch a dialog box that allows you to precisely specify the desired chart configuration for every individual data series.

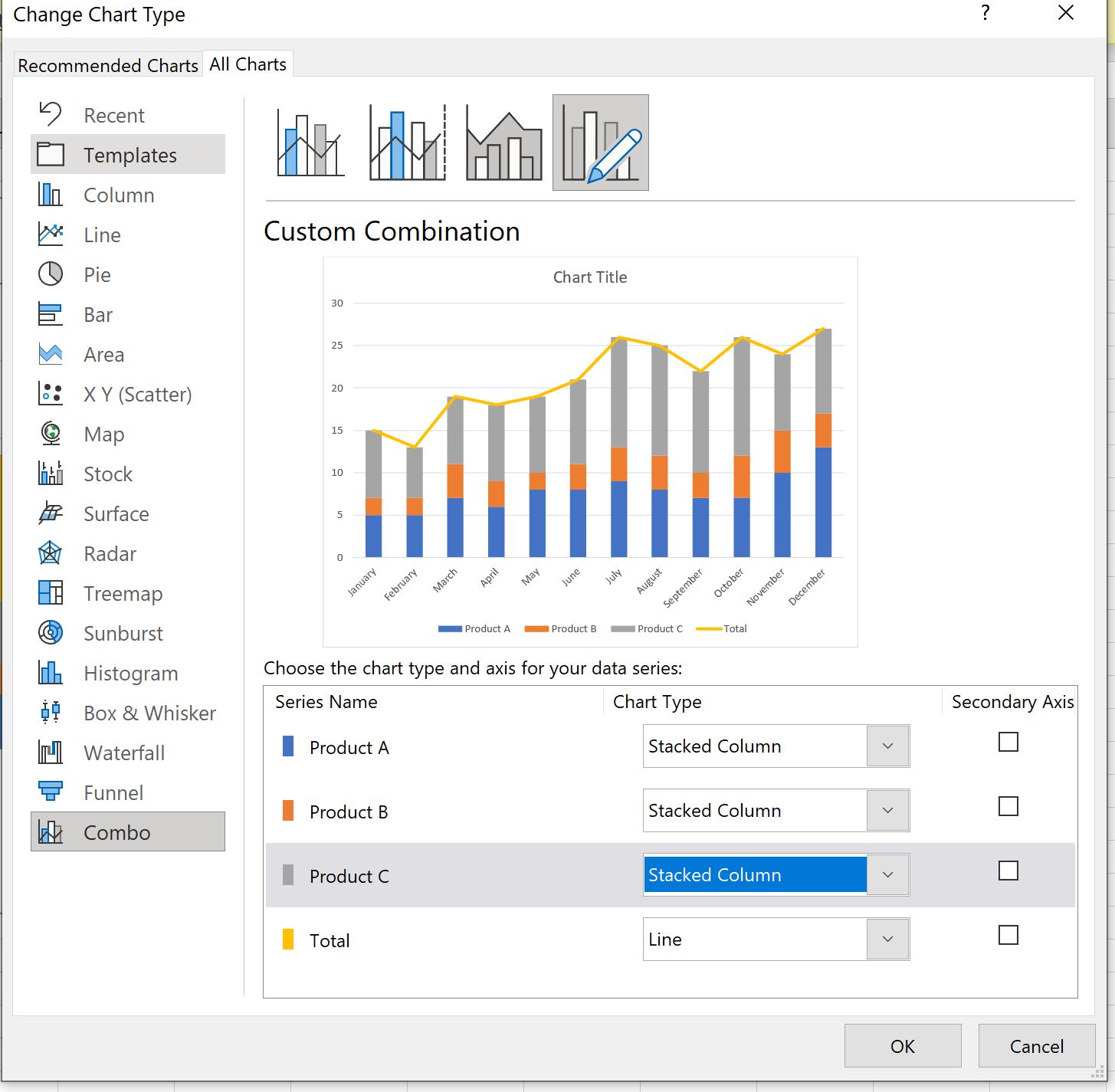

Within the “Change Chart Type” window, navigate directly to the Combo section. Here, you must carefully assign specific chart types to each data series. For Product A, Product B, and Product C, confirm that the selection is Stacked Column. Crucially, for the ‘Total’ data series, you must select Line as its chart type. This precise configuration ensures that the total values are represented by a distinct line that traces the peak of the stacked bars, a line which we will subsequently utilize to anchor our numerical labels. Once these selections are finalized, click OK to implement the structural changes.

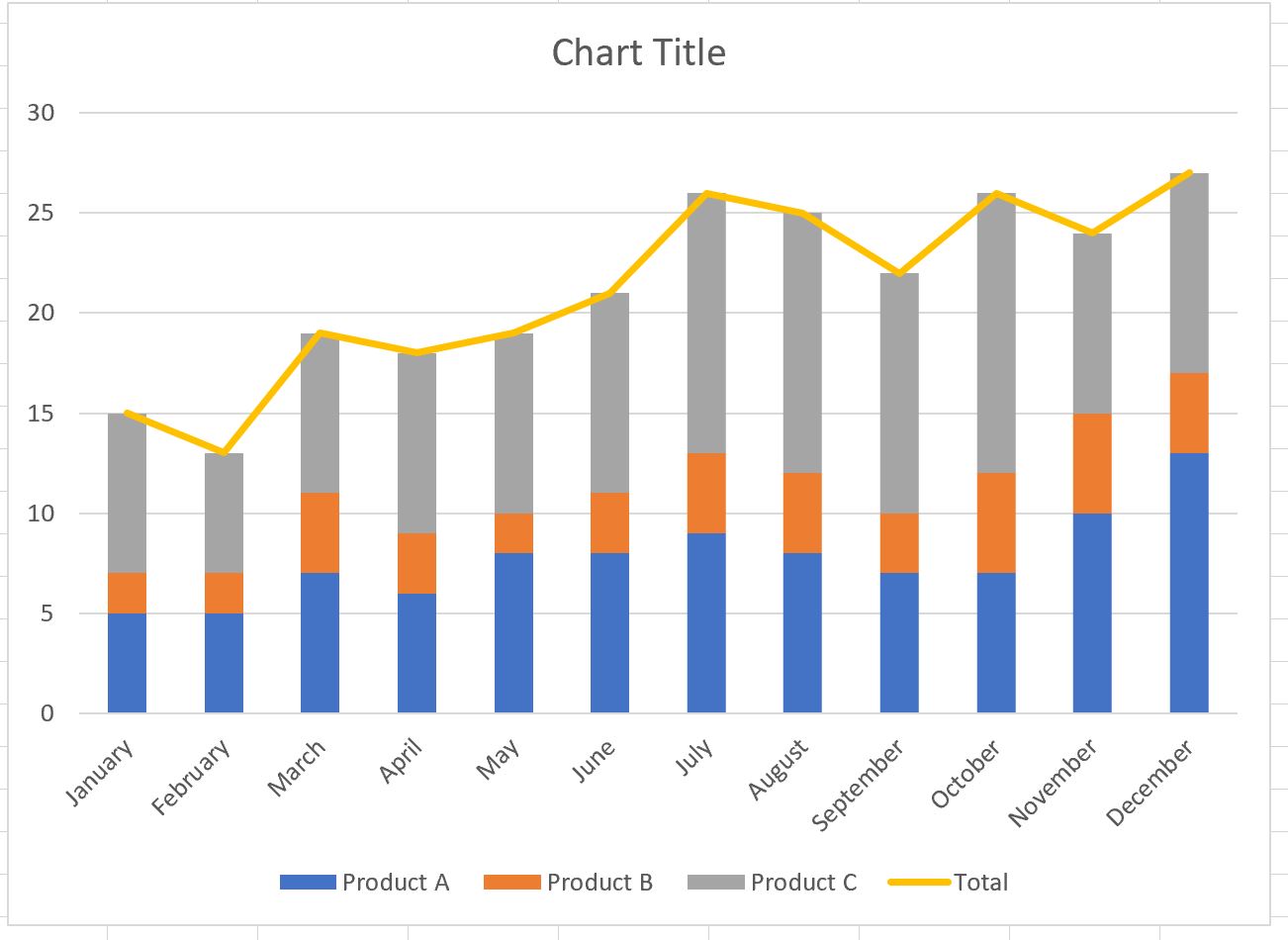

Following these technical adjustments, your chart will now correctly display the product sales as stacked columns, accompanied by a prominent line that traces the cumulative monthly totals. This fundamental visual transformation correctly sets the stage for the final step: adding the clear numerical total values in the subsequent procedures, bringing us significantly closer to achieving our desired professional chart output.

Step 4: Position and Format the Total Values

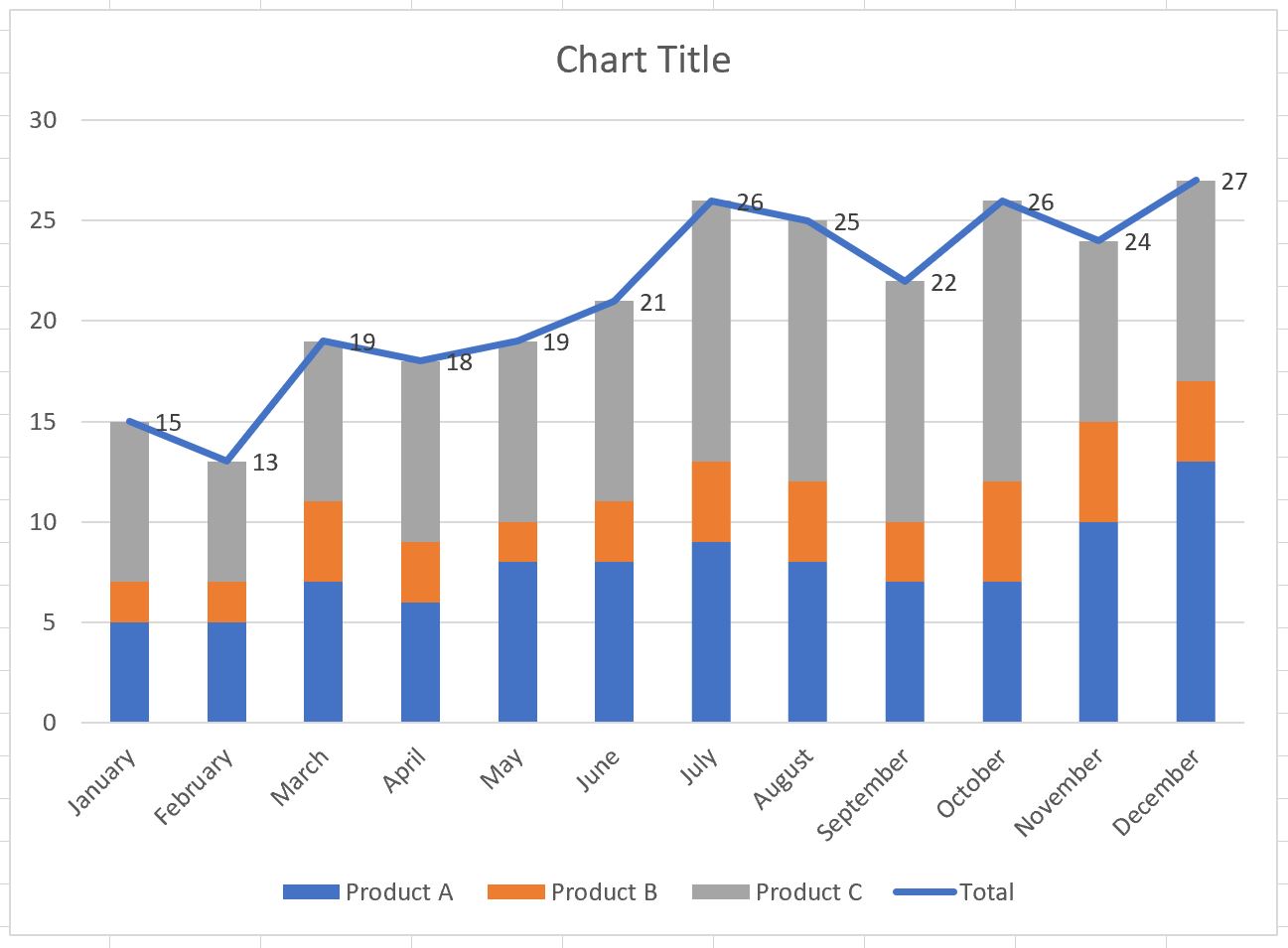

With the chart successfully converted into a Combo chart featuring a line that represents the total values, the immediate next step is to display these totals as highly visible, numerical labels. To achieve this, right-click directly on the line data series (likely appearing in yellow or orange) within your chart area. From the context menu that appears, select the option Add Data Labels. This action instantly places the corresponding total values onto the line, which, by design, aligns perfectly with the top edge of each stacked bar.

Once the data labels are added, you may observe that their default positioning is often not optimal—they might overlap slightly with the bars or appear centered on the line markers. To ensure optimal readability and visual separation, we must refine their placement.

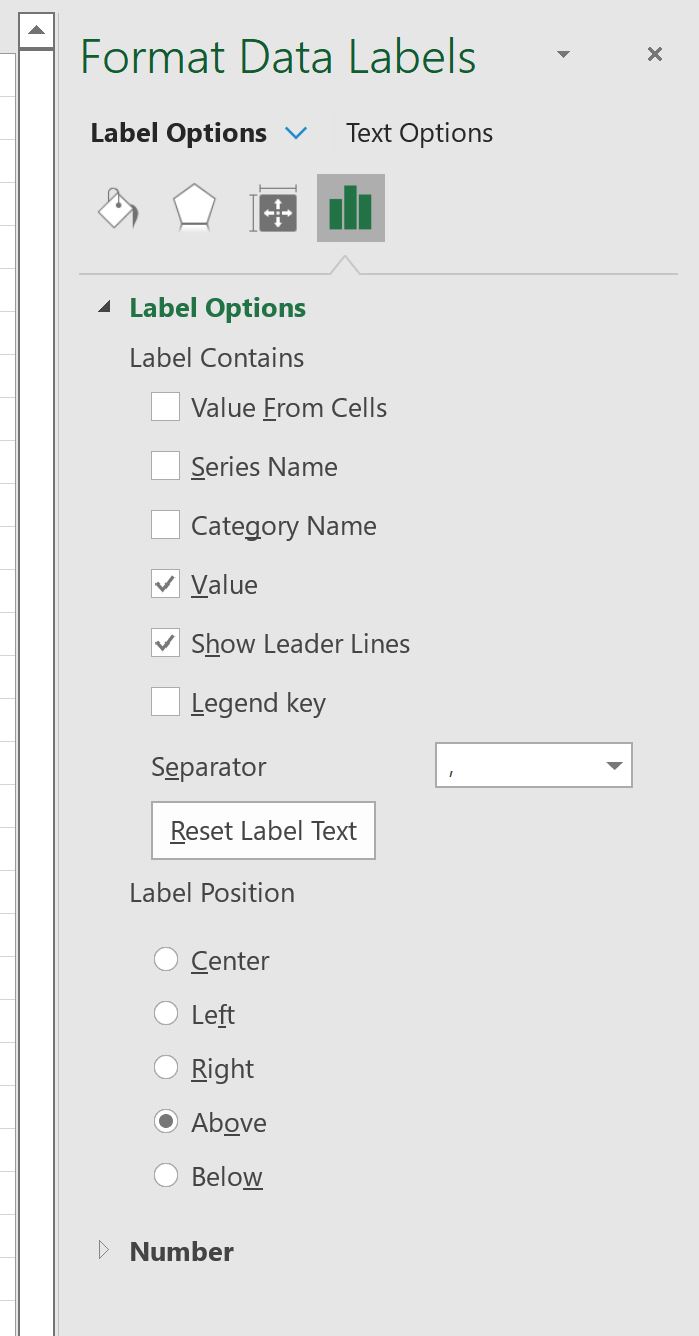

To adjust the precise position of these labels, double-click on any one of the newly added numerical labels. This action will automatically launch the “Format Data Labels” task panel on the right side of your Excel window. Within this panel, navigate to the “Label Position” options and ensure you select the radio button corresponding to Above. This crucial formatting adjustment immediately repositions all the total labels directly above their respective stacked bars, resulting in a significantly cleaner, more professional, and intuitive data presentation.

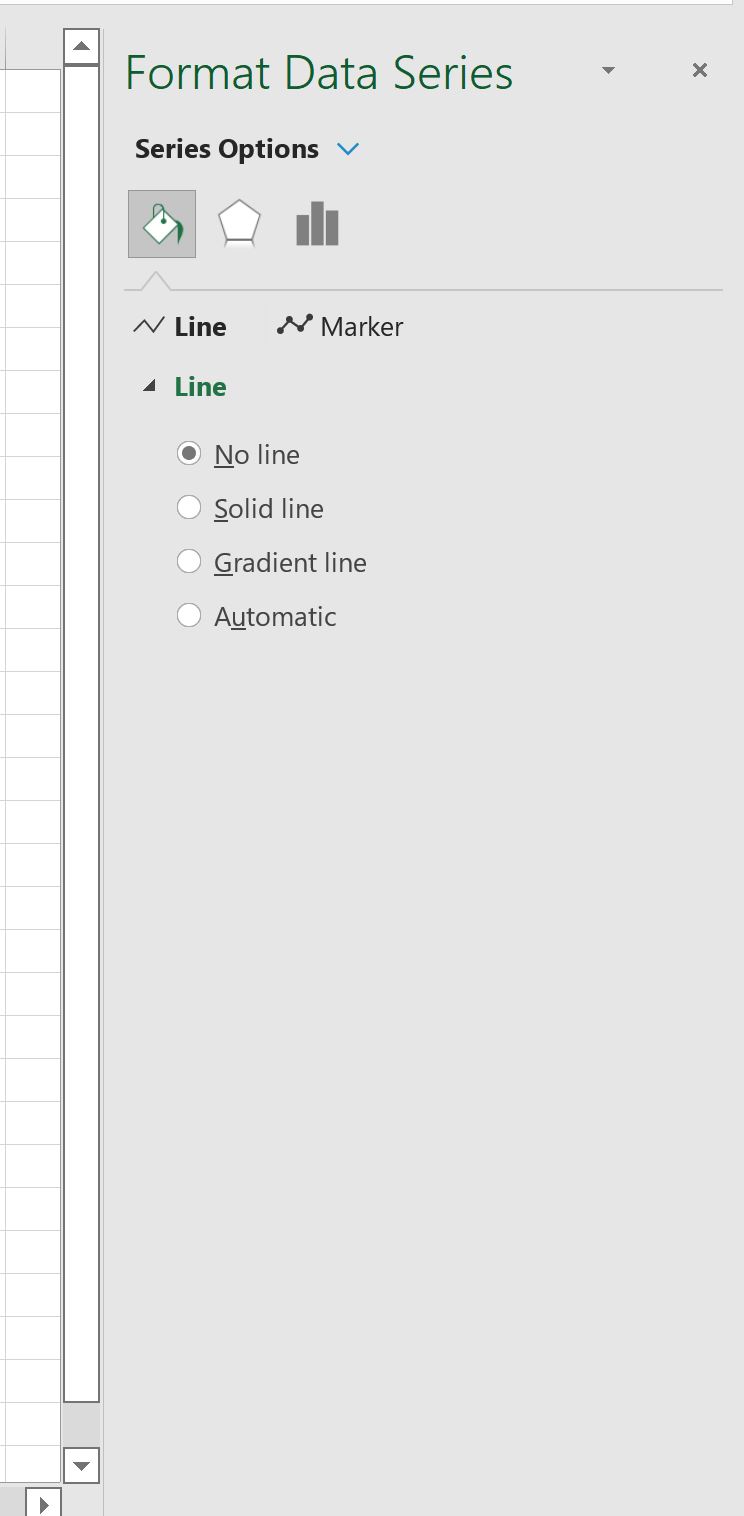

The final aesthetic refinement involves rendering the connecting line itself invisible, thereby leaving only the total values displayed floating cleanly above the stacks. To achieve this, double-click on the line series (the total line) in the chart once more. This will open the “Format Data Series” panel. Under the “Fill & Line” section, specifically locate the “Line” options and check the radio button next to No line. This decisive action completely removes the visual representation of the line, allowing the total numerical values to appear suspended cleanly above each stacked bar without any distracting graphical elements.

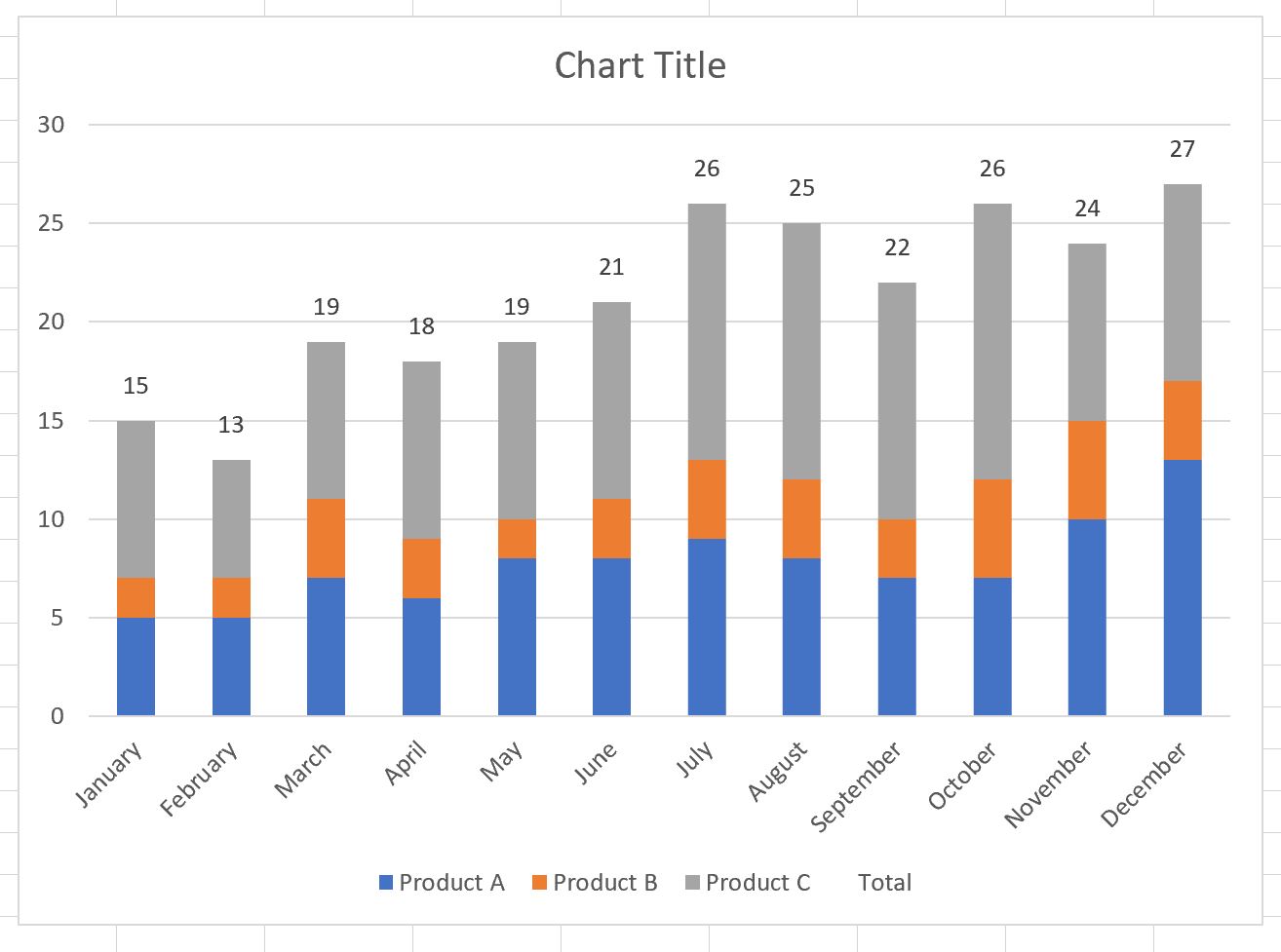

Upon setting the line formatting to “No line,” the connecting visual element vanishes from the chart, while the precisely positioned total numerical values remain clearly visible and highly legible. Your stacked bar chart now successfully communicates both the individual segment contributions and their crucial aggregate sums, drastically enhancing its analytical utility and professional quality.

Step 5: Optional Customization and Final Polish

With the total values accurately and cleanly displayed on your stacked bar chart, the core technical requirement of this tutorial is fulfilled. However, to maximize the chart’s impact, professionalism, and storytelling capacity, it is highly recommended to dedicate time to an optional customization phase. Tailoring the chart’s aesthetic elements can significantly boost its readability, enhance its aesthetic appeal, and improve its overall effectiveness in conveying data insights to a target audience. This final step allows you to align the chart with organizational branding guidelines or simply optimize it for visual engagement.

You are encouraged to personalize various components of your visualization. Start by adding a concise, descriptive title that accurately reflects the scope and context of the data presented. Refine the axis labels for maximum clarity and precision, adjust the color palette of the stacked bars to ensure strong differentiation or to match a specific theme, and modify the width or spacing of the bars to optimize their visual presence. Further enhancements can include experimenting with professional font styles, adjusting background colors, and strategically placing the legend for improved data accessibility.

These optional refinements, while not strictly essential for maintaining the chart’s data accuracy, play a pivotal role in constructing a compelling data visualization. A well-designed and expertly customized chart is far more likely to capture the audience’s attention, facilitate deeper understanding, and leave a lasting, professional impression on viewers. Investing time in fine-tuning these details ensures your chart is not only highly informative but also aesthetically superior and analytically impactful.

Additional Resources for Data Mastery

Mastering advanced chart customization techniques and various other robust functions within Excel can substantially elevate your overall data analysis and presentation capabilities. We strongly recommend exploring further specialized tutorials to continually deepen your proficiency with this versatile and industry-standard software.
