Learning to Visualize Data Uncertainty: A Guide to Adding Error Bars in Google Sheets

Data visualization serves as the cornerstone of effective analytical reporting. However, relying solely on raw data points or averages in charts can often be misleading, as they fail to communicate the inherent uncertainty or variability present in measurements. This is precisely why error bars are an indispensable feature; they provide a crucial visual metric representing the estimated potential error, thereby significantly clarifying the reliability and statistical scope of the data presented to the audience.

In this comprehensive, step-by-step guide, we will demonstrate the straightforward process of integrating error bars into your graphical outputs using the native charting capabilities available in Google Sheets. This functionality is essential for practitioners across diverse fields, ranging from experimental science and medical research to complex financial modeling, where the rigorous quantification of measurement uncertainty is absolutely paramount for drawing valid conclusions.

We will meticulously walk through the creation of a standard column chart and subsequently detail how to apply, customize, and interpret its error bars directly within the intuitive Sheets interface. Understanding these customization options allows users to transform a simple average into a robust, statistically sound representation of their findings.

The Crucial Role of Error Bars in Statistical Reporting

Before engaging with the technical mechanics of implementation, it is vital to establish a strong conceptual understanding of why error bars are statistically necessary. They are typically depicted as vertical lines extending symmetrically above and below a central data marker, serving as graphical indicators of the estimated uncertainty or dispersion associated with a reported measurement. Without their inclusion, a single data point—such as a mean or average—presents an illusion of deceptive precision, which can lead stakeholders to overstate confidence in potentially volatile or uncertain results.

Error bars commonly represent several key measures of variability, including the standard deviation, the standard error of the mean, or a defined confidence interval. The appropriate measure depends entirely on the statistical context and the intended interpretation. By visually incorporating these metrics, analysts empower their audience to critically assess the overlap between different data series, which is often the primary factor in determining whether observed differences between comparison groups are statistically significant or merely due to random chance.

The accessibility and ease with which Google Sheets allows users to configure these critical indicators makes it an exceptionally powerful tool for preliminary data analysis and the generation of robust, statistically rigorous reports. Users can significantly enhance the trustworthiness and interpretability of their charts without needing to rely on highly specialized or complex external statistical software packages.

Step 1: Preparing and Structuring Your Data for Visualization

The foundation for any meaningful visualization, especially one incorporating statistical uncertainty, is meticulously organized source data. For generating a standard column chart that requires the inclusion of error bars, the minimal required data structure usually involves two primary columns: one dedicated to defining the distinct categories or labels (e.g., experimental groups, time periods) and another containing the associated measured values, which are typically calculated means or averages derived from a larger raw dataset.

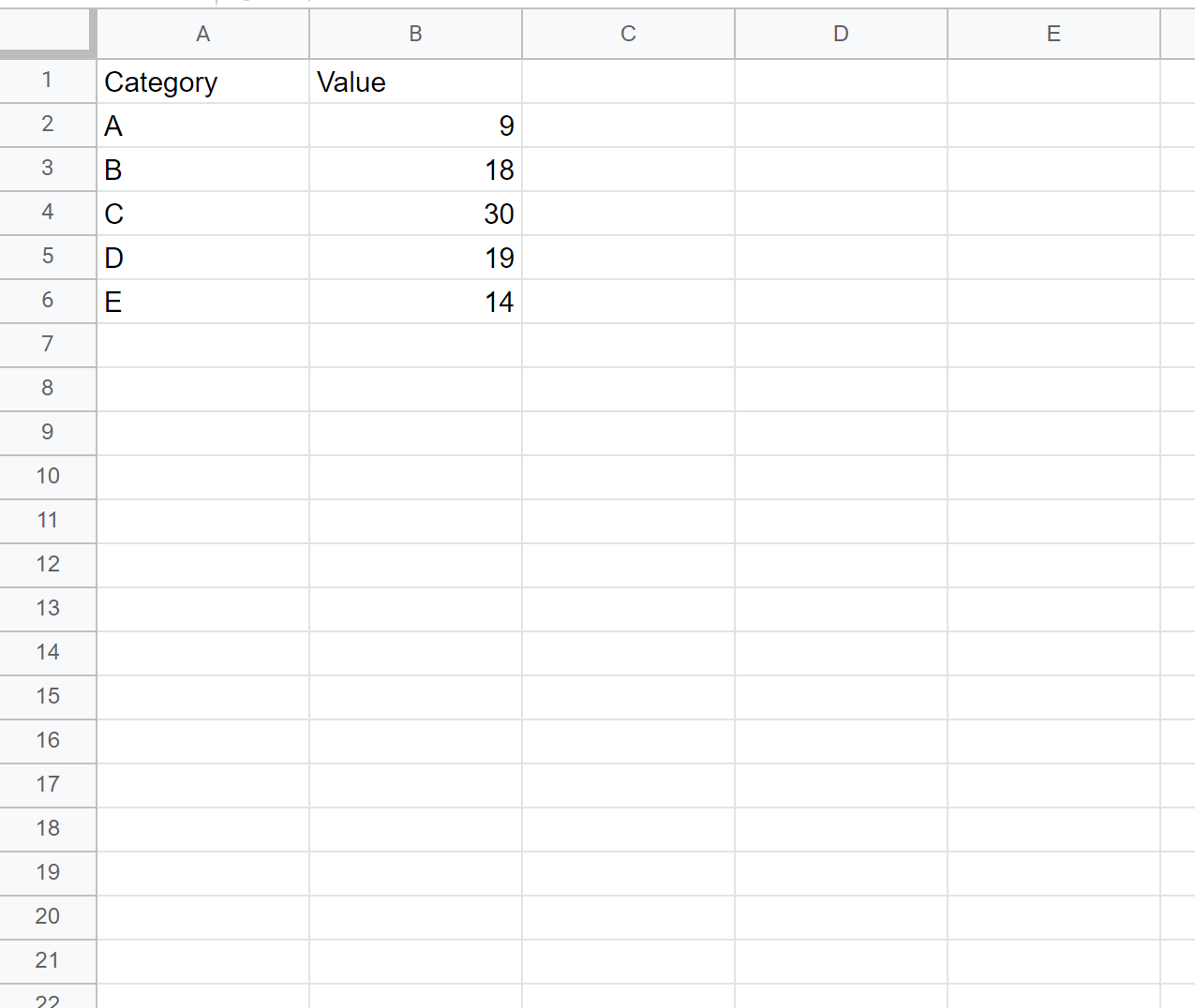

To initiate the process, open your Google Sheets workbook and accurately input the necessary data points. It is imperative to confirm that all measurement values are formatted as numerical data and that the category labels are descriptive and unambiguously clear. For the purpose of this practical example, we will utilize a small, illustrative dataset representing five distinct groups and their corresponding calculated central values, as shown below:

While we only enter the central value (the mean) directly into the chart data range, it is crucial to remember that the error bars we apply later will represent the uncertainty that has been pre-calculated from the underlying raw data. This measure of uncertainty is most often summarized as either a standard deviation (reflecting the variability within the sample) or the standard error (reflecting the precision of the mean estimate), depending entirely on the statistical methodology appropriate for your data.

Step 2: Generating the Initial Base Column Chart

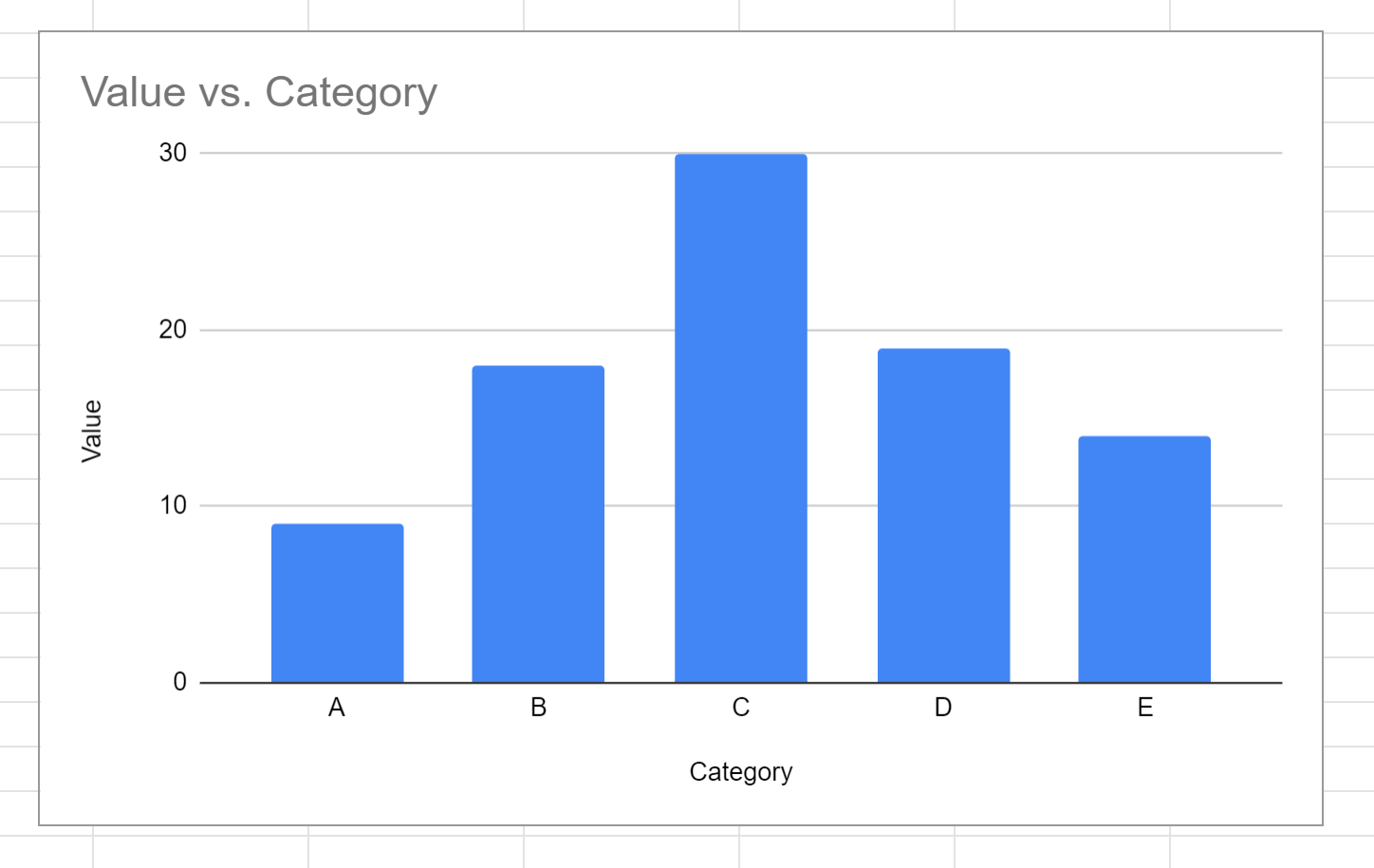

Once the required data is accurately structured and entered into the spreadsheet, the subsequent step involves creating the initial graphical representation. The process for inserting and configuring a chart in Google Sheets is designed to be streamlined, providing users with rapid access to customization features immediately upon creation.

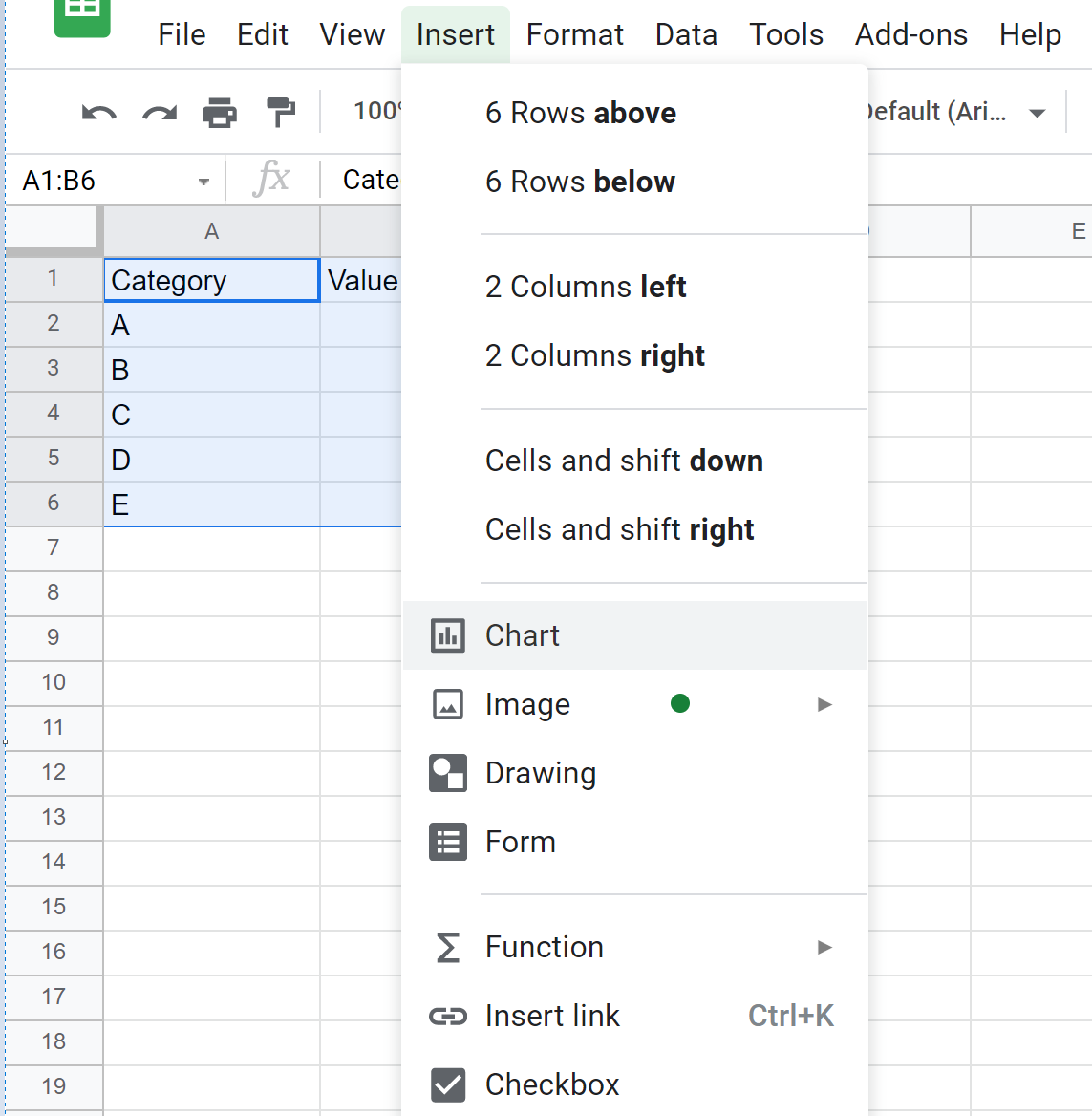

To begin, carefully highlight the complete data range that encompasses both your descriptive category labels and the associated measurement values—in our specific demonstration, this corresponds to the cell range A1:B6. Following the selection, navigate to the menu bar situated at the top of the interface, click the Insert tab, and then select the Chart option. Upon selection, Google Sheets will automatically render a preliminary chart based on the data structure and simultaneously activate the Chart editor panel on the right side of your screen.

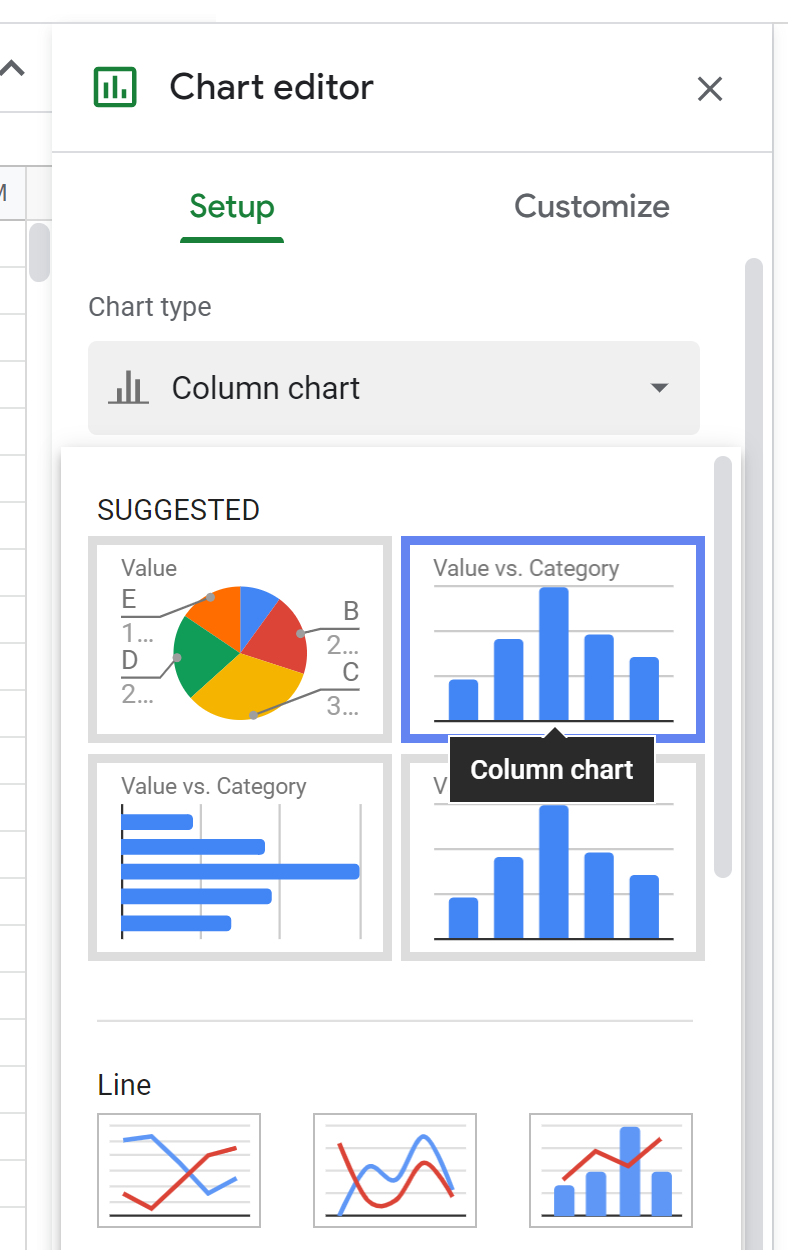

Within the Chart editor, under the Setup tab, it is essential to confirm that the desired visualization type has been correctly selected. Click the Chart type dropdown menu and explicitly verify that the Column chart option is chosen. Although Google Sheets often defaults to an intelligent selection based on common data structures, manually confirming the chart type ensures accuracy and prevents misrepresentation of the data distribution. Upon successful creation, the basic column chart, displaying only the central values for each group, will be embedded within your sheet, ready for further customization.

Step 3: Activating and Interpreting Default Error Bars

With the foundational column chart now successfully established, the next critical phase involves introducing the visual representation of uncertainty onto the data columns. This crucial configuration step is managed exclusively within the Customize section of the Chart editor panel, offering a dedicated space for styling and statistical adjustments.

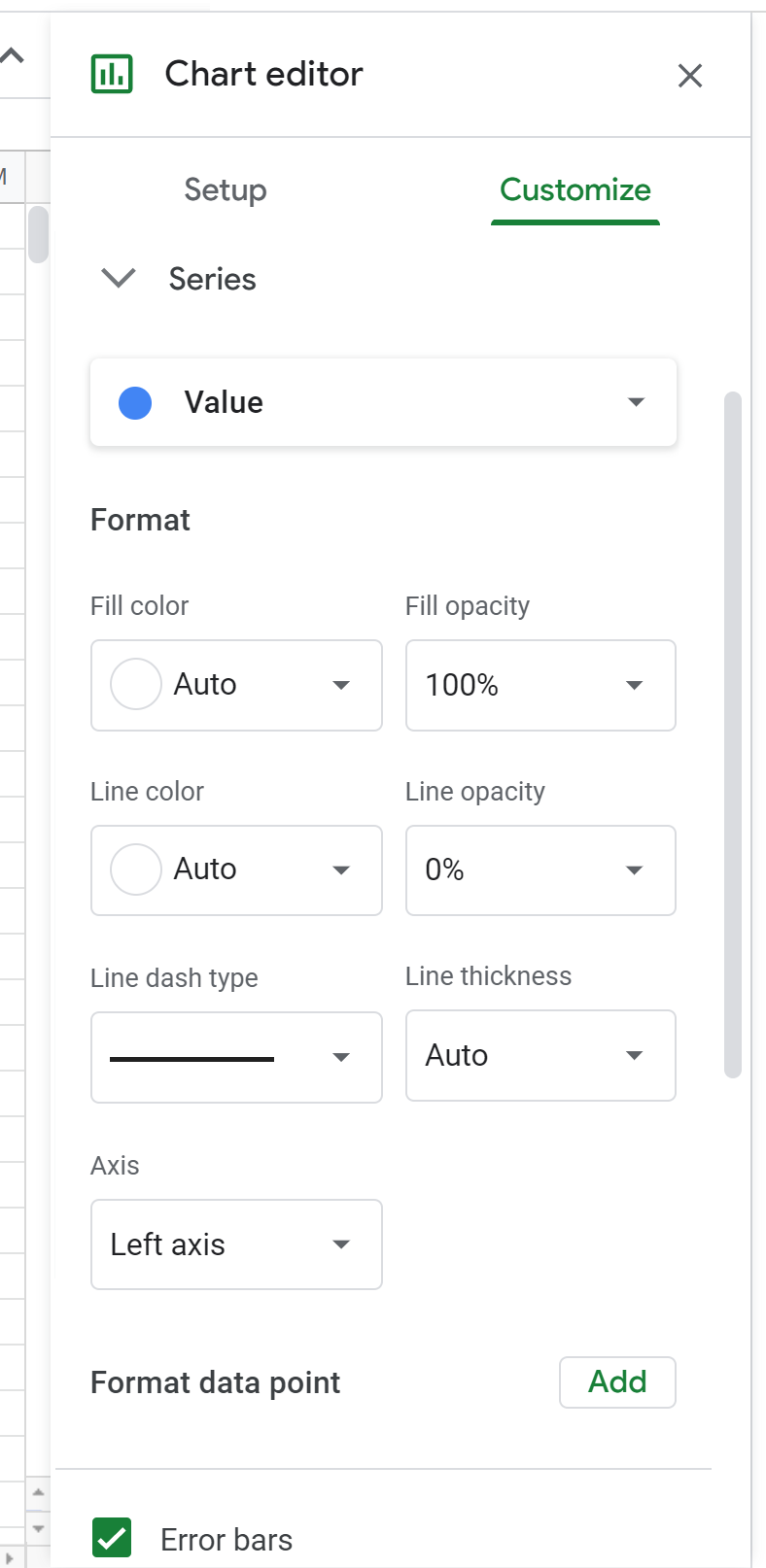

Click on the Customize tab within the active Chart editor window. Scroll through the available customization options until you locate and expand the Series menu. This dedicated section governs the visual styling, color, and representation parameters of your primary data series. Within the detailed Series options, you will find a critical setting: the checkbox labeled Error bars. Checking this box immediately activates the default error bar setting for your column chart, overlaying indicators of estimated uncertainty onto the top of each data column.

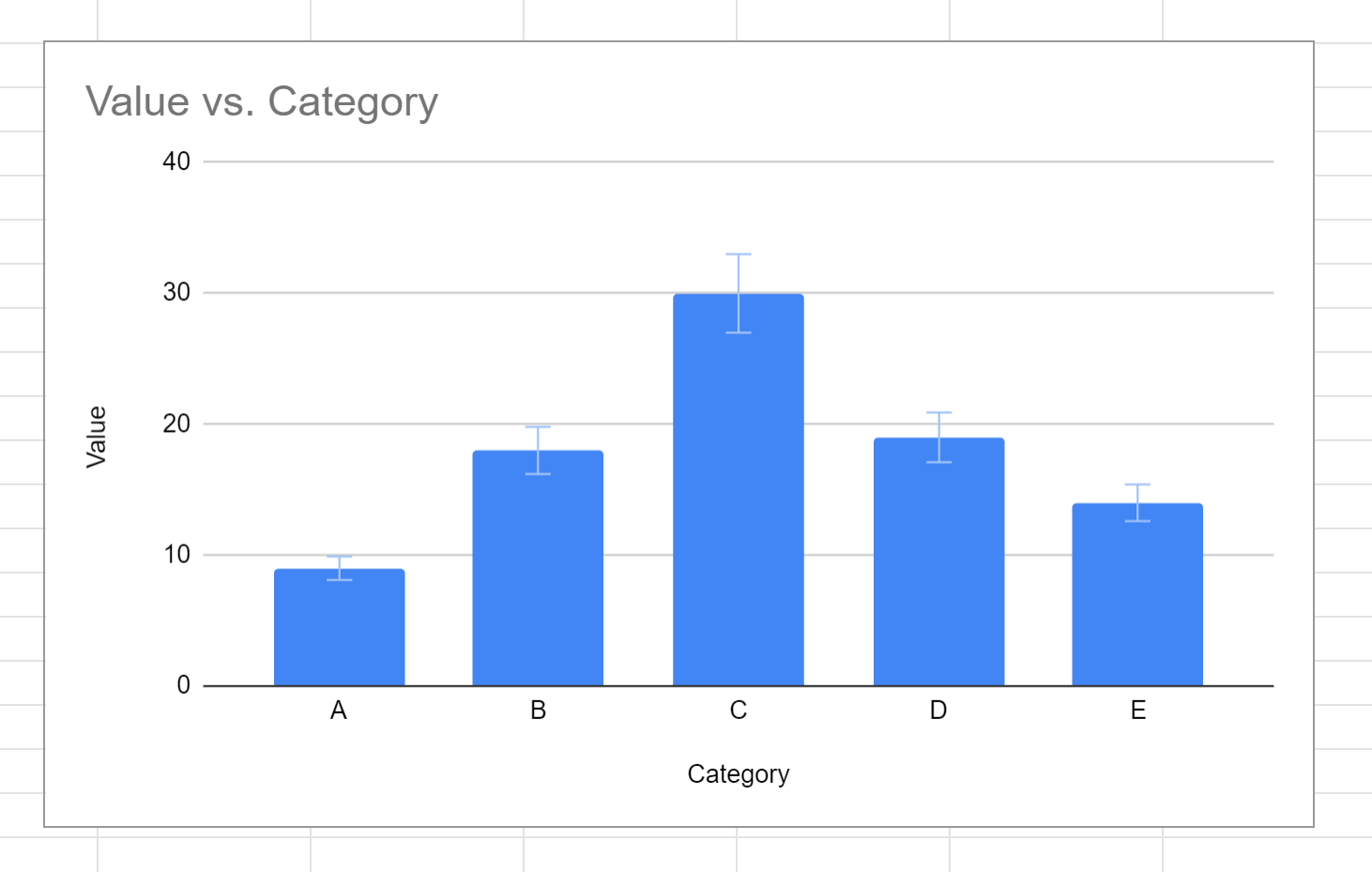

By default, Google Sheets typically applies a Percent type of error bar, generally standardized to 10% of the size of the data point’s value. This mechanism ensures that the physical length of the error bar scales proportionally with the height of the column itself. While this proportional scaling provides a quick, useful view of relative error, it rarely represents the true, calculated statistical uncertainty. The resulting chart, displaying this initial 10% error visualization, serves as a starting point before applying rigorous statistical measures:

Step 4: Customizing Error Bar Types for Statistical Rigor

While the 10% default error bar is useful for preliminary visualization, formal data analysis and rigorous scientific reporting necessitate error bars based on empirically calculated statistical parameters. Google Sheets accommodates this need by offering three distinct and statistically meaningful methods for defining the magnitude of the uncertainty to be displayed:

• Percent (Relative): The error is calculated as a percentage of the central data point’s value. This method is generally most appropriate when the relative variability or coefficient of variation across differently scaled values is the primary concern for visualization.
• Constant (Absolute): A fixed, absolute numerical value is applied uniformly to all data points within the series. This setting must be used exclusively when the known measurement error, such as uncertainty derived from instrument tolerance or a predefined margin of error, is consistent and uniform across all observations.
• Standard Deviation (Intrinsic Variability): The error bar length is based directly on the calculated Standard Deviation (SD) or Standard Error (SE) of the underlying sample data. This is overwhelmingly the most widely accepted method in scientific reporting, as it accurately depicts the dispersion or spread of data around the calculated mean.

Selecting the Appropriate Error Bar Type

The decision of which of these three customization options to employ is statistically critical. Choosing an inappropriate type can fundamentally distort the visual interpretation of your data, potentially leading to inaccurate conclusions about the reliability and effective comparison of your data groups. The Percent option, for instance, is inherently relative: if one column has a value of 50 and another has 100, a 5% error setting results in absolute error lengths of +/- 2.5 and +/- 5, respectively. This clearly emphasizes that the absolute magnitude of the error scales with the magnitude of the measurement.

Conversely, the Constant setting enforces a single, fixed absolute value across all data points. If your established analytical protocols or instrument specifications dictate that all measurements carry an inherent, consistent uncertainty of, for example, +/- 3 units, the Constant setting is the correct choice. When using this option, the physical length of the error bar will remain identical regardless of the column height, reflecting the same absolute constant value. This fixed value must be precisely entered into the customization field provided by Sheets.

The Standard Deviation setting, alongside its related Custom option, is utilized when the error bars must reflect the intrinsic, calculated variability within the collected sample data. If you have calculated the standard deviation or standard error for each specific group and included this metric in a separate column adjacent to your means, you must select the Custom option within the error bar settings. This allows you to reference the specific data range containing the SD values, ensuring that the error bars accurately reflect the true, statistically derived variability for each distinct data point.

Demonstration: Applying a Constant Error Bar

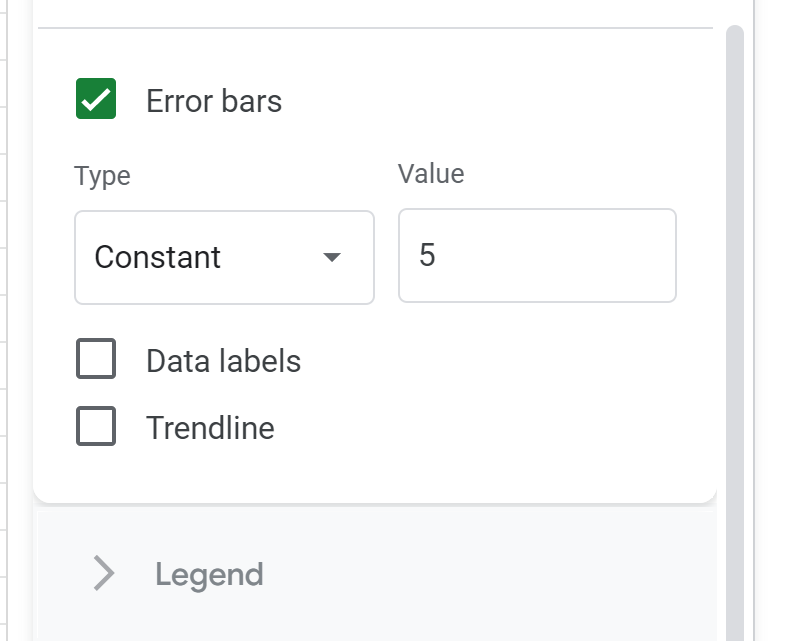

To effectively illustrate the customization process within the Sheets editor, let us apply a Constant error bar. In the Chart editor, within the Series menu where the Error bars checkbox is active, locate the Type dropdown menu and change the selection from Percent to Constant. Following this, manually enter the desired constant value—for instance, the numerical value 5—into the adjacent Value field:

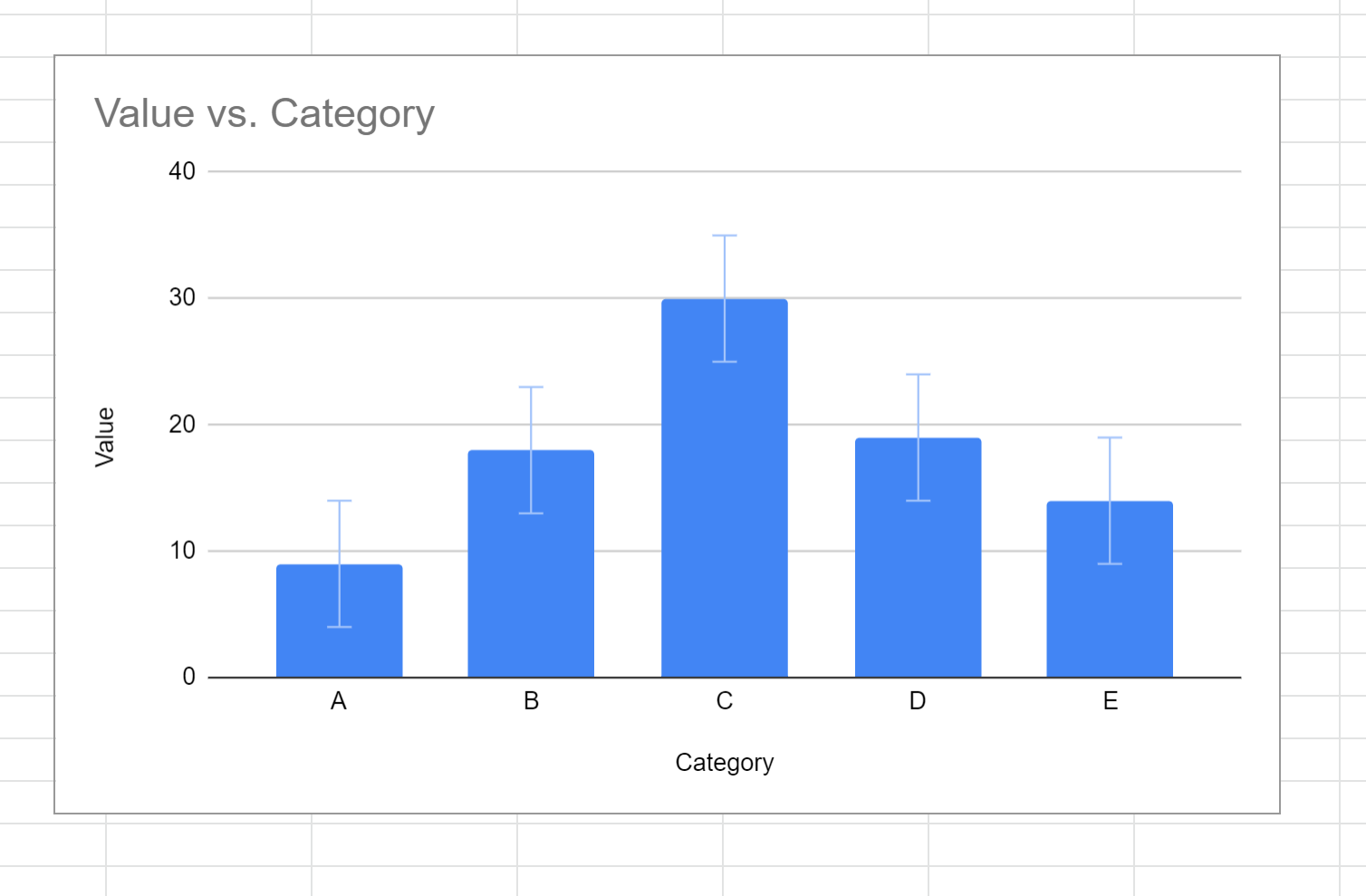

Once this setting is successfully applied, an error bar with a uniform, fixed length corresponding to 5 units (extending both positively and negatively from the mean) will be added to the center point of every column in the chart. This modified visualization accurately reflects a consistent, absolute level of measurement uncertainty across all groups:

It is incumbent upon the analyst to always ensure that the selected error bar type and its corresponding value precisely and accurately reflect the statistical context of the data. This integrity is absolutely vital for maintaining the statistical validity and drawing sound conclusions from your data visualization.

Conclusion and Advanced Visualization Resources

Mastering the effective utilization of error bars in Google Sheets marks a significant advancement in improving the overall quality, clarity, and trustworthiness of your data presentations. By providing immediate visual evidence of uncertainty alongside central measurements, you empower your audience to interpret findings with the necessary level of statistical caution and context, moving beyond the simple reporting of averages.

We strongly encourage users to continue building upon these foundational charting skills by exploring other advanced visualization techniques. These additional methods can maximize the impact, statistical depth, and comprehensiveness of their analyses and reporting:

• Creating Line Graphs with Multiple Axes for complex trend comparisons.
• Generating Histograms for clear frequency distributions of large datasets.
• Utilizing Scatter Plots for rigorous correlation and relationship analysis.
• Implementing Trendlines and Forecasts in Charts for predictive modeling.

By effectively applying and correctly customizing error bars, you transition from simple data reporting to providing a more honest, statistically robust, and scientifically valid representation of your findings, ensuring that the visual narrative aligns perfectly with the underlying statistical truth.
