Understanding and Analyzing Residuals in ANOVA Models: A Step-by-Step Guide

The Analysis of Variance (ANOVA) is one of the most fundamental and widely utilized statistical models in experimental research. Its primary function is to test the null hypothesis that the means of three or more independent groups are equal. Successful application of ANOVA requires stringent validation of its core statistical assumptions. Central to this validation process is the meticulous analysis of model error terms, commonly known as residuals.

In essence, whenever a statistical model is fitted to observed data, it attempts to explain the variation present. The portion of the data variation that the model fails to account for is captured by the concept of the residual. These residuals are not merely computational byproducts; they are crucial diagnostic indicators that inform researchers about the quality of the model fit, the presence of outliers, and the reliability of the statistical inferences drawn.

Understanding, calculating, and interpreting these error terms correctly is paramount, as they directly reveal whether the underlying assumptions necessary for the validity of the ANOVA test have been met. If the residuals exhibit problematic patterns, the resulting p-values and effect size estimates may lead to incorrect scientific conclusions.

Understanding Residuals: The Core Diagnostic Tool

Within the statistical framework of ANOVA, a residual represents the specific difference between an actual, observed data point and the mean of the group to which that observation belongs. This distinction is critical: unlike in simple regression where the residual is the difference between the observation and the predicted regression line, in ANOVA, the expected value for any observation is simply its corresponding group mean.

Mathematically, the residual for the i-th observation in the j-th group is calculated as: R_ij = Y_ij – μ_j, where Y_ij is the observed value and μ_j is the mean of Group j. By computing these values for every data point in the dataset, we effectively decompose the total variation into two parts: the variation explained by the group differences (the model) and the unexplained, within-group variation (the residuals).

A rigorous examination of these residuals allows statisticians to assess two primary assumptions: the independence of errors and the homogeneity of variances. If the residuals show signs of dependency (e.g., temporal correlation) or if the spread of residuals differs significantly across the treatment groups, the ANOVA model may not be appropriate, necessitating adjustments like weighted least squares or mixed-effects modeling.

Calculating Residuals in the One-Way ANOVA Framework

To illustrate the practical calculation of residuals, let us consider a hypothetical weight-loss study. This experiment involved 90 adult participants, who were randomly assigned in equal numbers (30 individuals per group) to follow one of three distinct intervention programs: Program A, Program B, or Program C. Our objective is to employ a one-way ANOVA to determine if there is a statistically significant difference in the mean weight loss achieved across these three programs after a standardized period of one month.

After the intervention phase is complete, the total weight loss for every participant is recorded. The first step in the ANOVA process involves calculating the average weight loss for each treatment group, as these group averages serve as the predicted or expected values against which individual performance is measured:

• Program A Mean Weight Loss: 1.58 pounds
• Program B Mean Weight Loss: 2.56 pounds
• Program C Mean Weight Loss: 4.13 pounds

The individual residual for each of the 90 participants is then derived by taking that person’s observed weight loss and subtracting the mean weight loss of their assigned program. This calculation yields a specific measure of error—the residual—for every single observation, reflecting how much that individual observation deviates from the central tendency of its assigned treatment group.

Interpreting Positive and Negative Error Terms

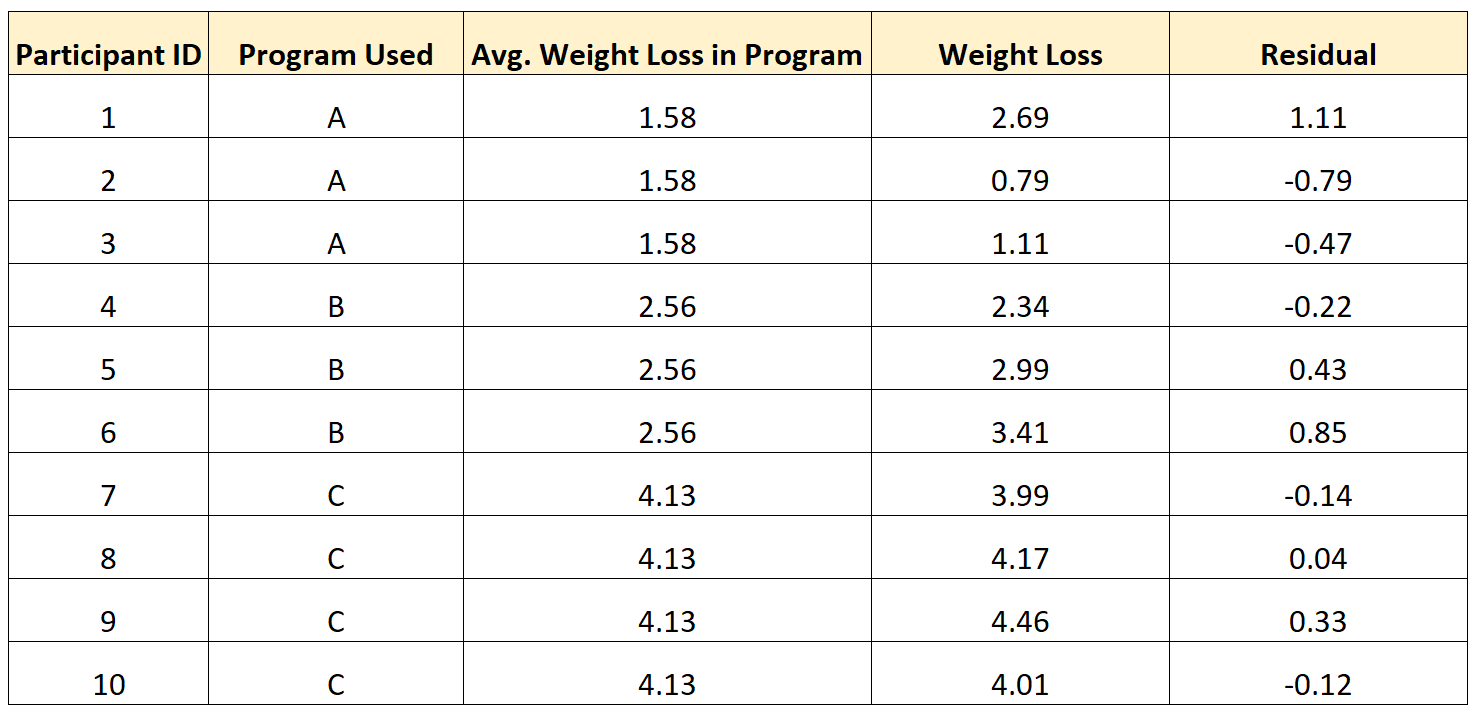

Analyzing the sign and magnitude of the calculated residuals provides immediate insight into the performance of individual observations relative to their peers within the same experimental condition. To make the calculation process highly transparent, the following visualization presents a small sample of 10 individuals from the overall study, detailing their observed weight loss, their respective group mean, and the resulting residual:

Based on this calculation, the interpretation of the residual sign is straightforward and consistent across all 90 observations in the study:

• If an individual’s observed weight loss was greater than the calculated average for their intervention group, the resulting calculation will produce a positive residual. A positive residual signifies that the observation performed better than the expected outcome defined by the group mean, representing data points that lie above the fitted model’s prediction.
• Conversely, if an individual’s observed weight loss was less than the average weight loss achieved by their group, the calculation results in a negative residual. A negative residual indicates that the observation performed below the expected outcome for that specific group, representing data points that fall below the model’s prediction.

The magnitude of the residual, regardless of sign, reveals the degree of deviation. A residual close to zero suggests the individual observation aligns almost perfectly with the group mean, while a large positive or negative residual indicates a substantial departure, often signaling an outlier or high variability within that treatment group. Robust statistical analysis requires calculating and analyzing the complete set of residuals for all observations to thoroughly assess model fit and variability.

Validating Assumptions: The Critical Test of Residual Normality

One of the cornerstone assumptions underpinning the mathematical validity of the ANOVA test is that the population from which the residuals are drawn must be normally distributed. This assumption is crucial because the formulas used to calculate F-statistics, p-values, and confidence intervals rely on the theoretical properties of the normal distribution.

If the distribution of residuals deviates significantly from normality—for instance, if they are heavily skewed or exhibit excessive kurtosis—the statistical inferences derived from the ANOVA model become unreliable. Violations of normality can lead to inflated Type I error rates (false positives) or reduced statistical power (false negatives), thereby compromising the integrity of the research findings.

Consequently, after calculating the residuals, the subsequent and equally critical step is to rigorously assess their distribution. While formal statistical tests such as the Shapiro-Wilk test or the Kolmogorov-Smirnov test can provide quantitative measures of normality, these tests can sometimes be overly sensitive, particularly with large sample sizes. Therefore, the most common, intuitive, and often preferred method for initial assessment of residual normality is through graphical techniques, which offer a visual and robust diagnosis of the underlying distribution.

Graphical Assessment using the Quantile-Quantile (Q-Q) Plot

The standard graphical diagnostic tool employed for assessing the normality assumption is the Quantile-Quantile (Q-Q) Plot. This visualization provides a powerful, non-parametric comparison between the quantiles of the calculated set of residuals (our observed data) and the quantiles of a perfectly theoretical normal distribution.

If the calculated residuals truly adhere to a normal distribution, the plotted points representing the relationship between the two sets of quantiles should align tightly along a straight, diagonal reference line. Any substantial deviation from this straight line signals a violation of the normality assumption, prompting further investigation or data transformation.

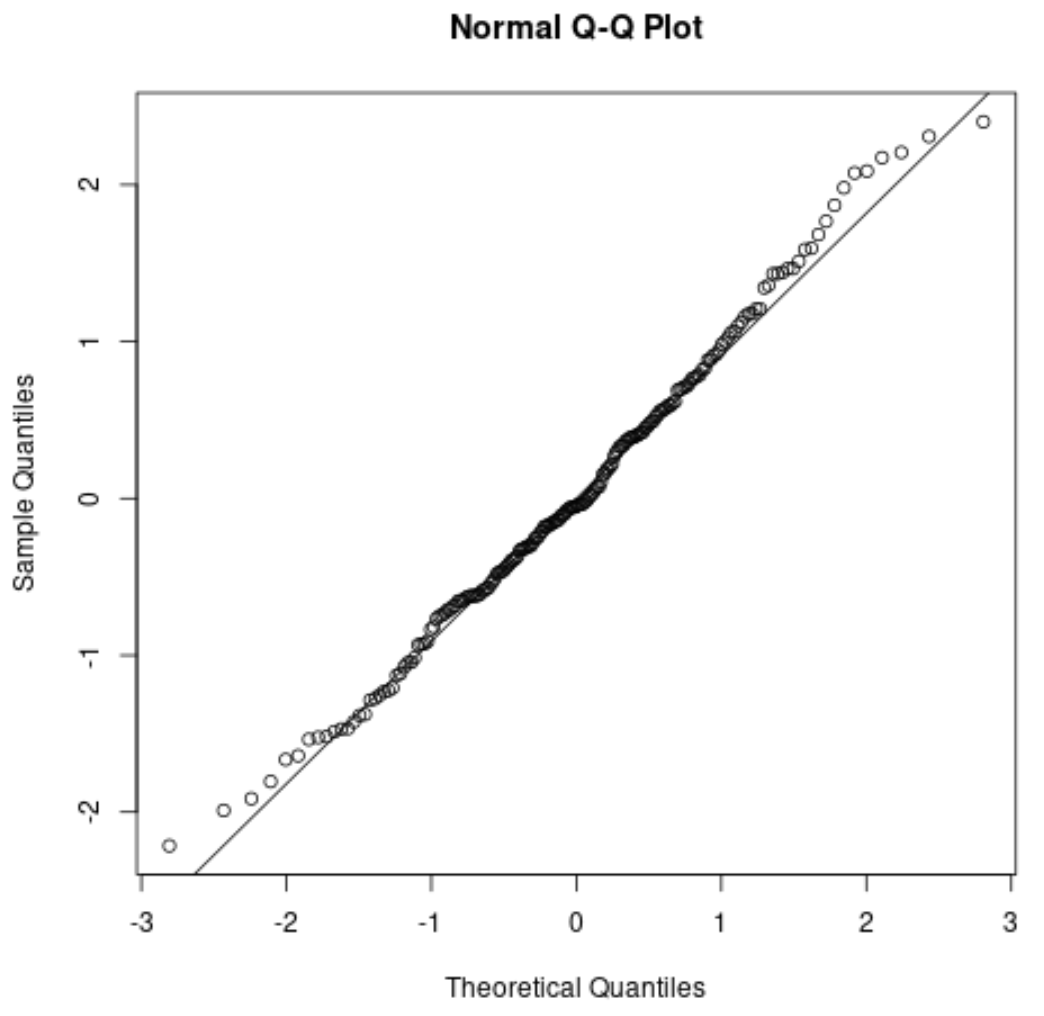

Let us examine the Q-Q plot generated from the residuals derived from our weight-loss experiment. This plot illustrates the ideal scenario where the assumption is met:

In this example, the vast majority of the plotted points track closely along the diagonal reference line. While minor, expected deviations occur, particularly at the extreme ends (the tails of the distribution), the overall strong alignment confirms that the assumption of residual normality is satisfied. This visual confirmation validates the use of the standard ANOVA procedures for hypothesis testing in this specific dataset.

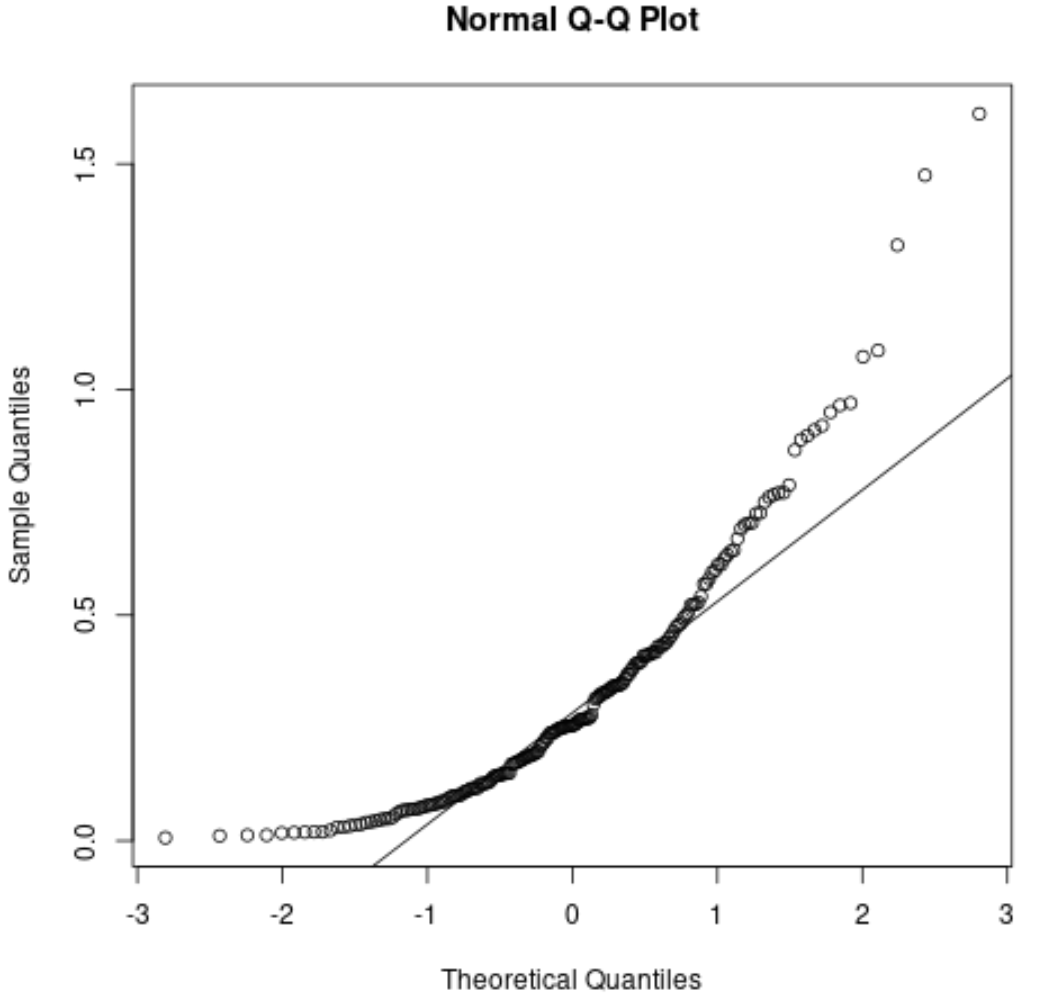

In contrast, it is essential to recognize the visual signs of a severe violation of the normality assumption. When the Q-Q plot indicates non-normal residuals, the plotted points typically exhibit significant curvature, often manifesting as an S-shape, or a sharp curve at one or both ends:

The plot above clearly shows points deviating sharply and widely from the reference line, particularly in the lower and upper quantiles. This pattern is a definitive indication that the residuals are not normally distributed. Faced with such a violation, analysts must consider remedial steps, such as applying data transformations (like log or square root transformations) to stabilize the variance and improve normality, or shifting the analysis entirely toward non-parametric statistical methods, which do not rely on distributional assumptions.

Ensuring Model Robustness and Next Steps

A comprehensive and critical analysis of residuals stands as the cornerstone of ensuring the reliability and validity of any statistical output derived from an ANOVA model. By calculating these fundamental error terms and subsequently visualizing their distribution through tools like the Q-Q plot, researchers can confidently assess whether the core assumptions—particularly normality and homoscedasticity—have been adequately met. Satisfying these diagnostic steps is essential for validating statistical conclusions and ensuring that inferences about population means are robust and trustworthy.
